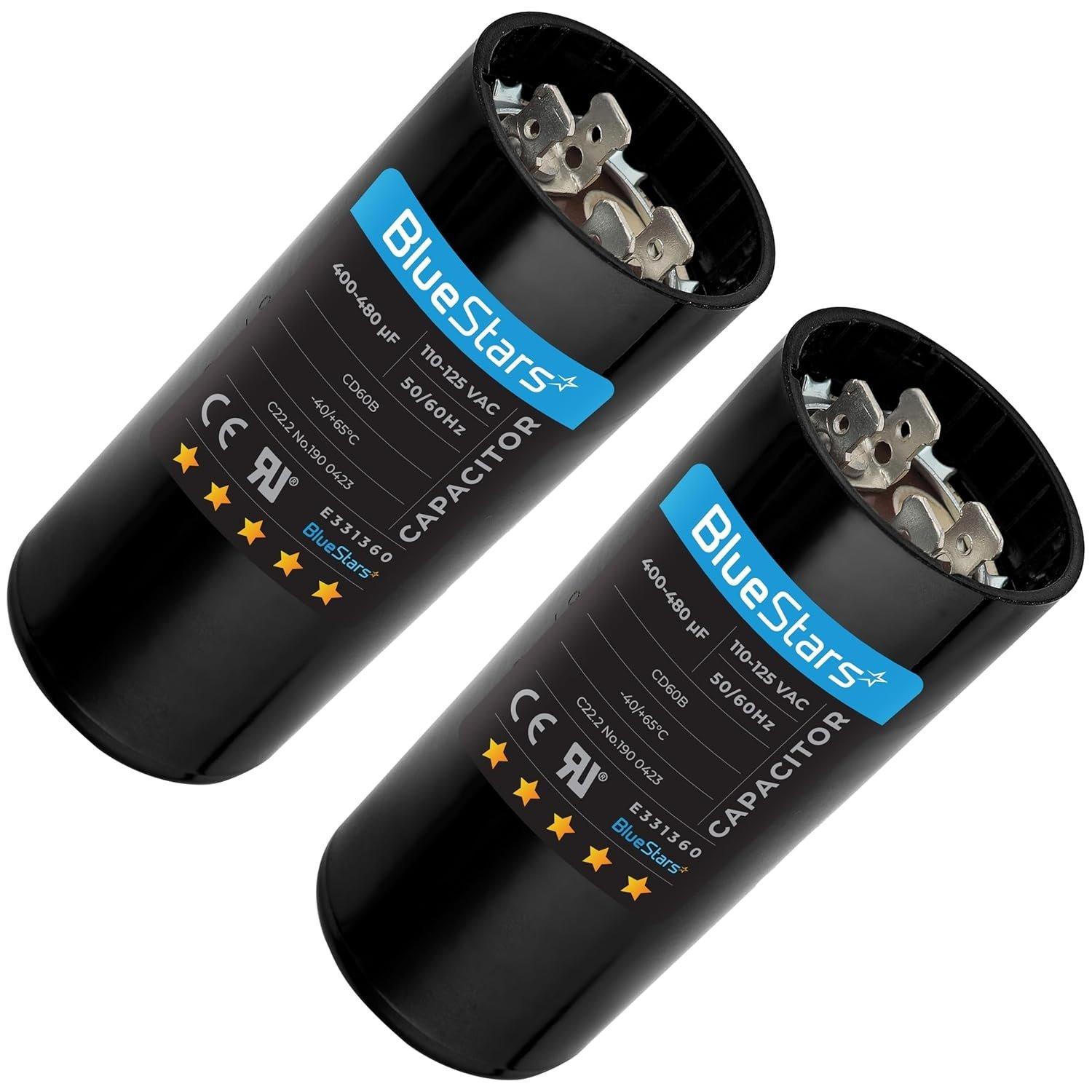

[Lifetime Warranty] 400-480 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz AC Electric Replacement - Pack of 2

2-pack 400-480 uf/MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz AC Electric

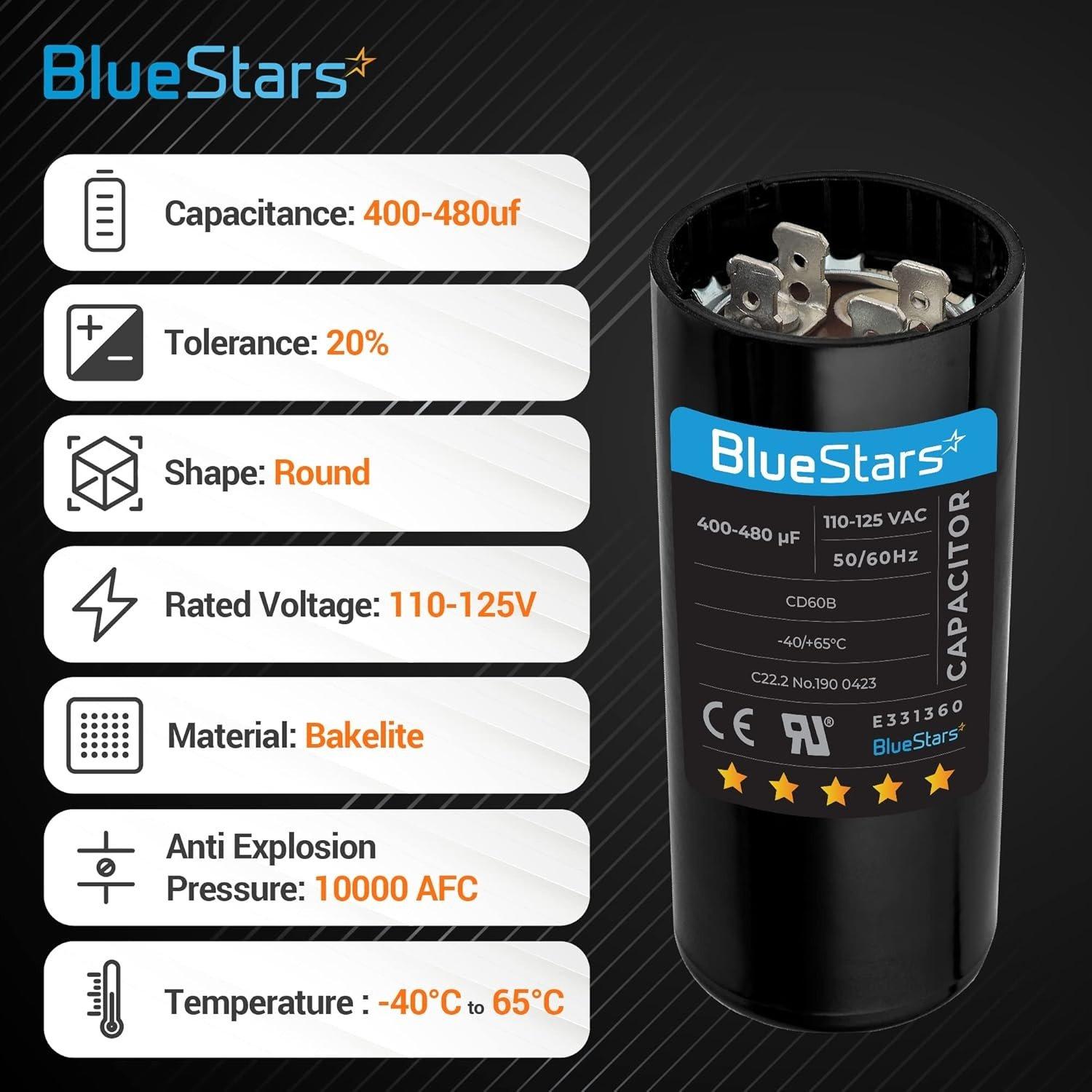

Key Features

• Package Quantity: Two (2) capacitors
• Capacitance: 400-480 uF/MFD
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: +/- 20%
• Shape: Round

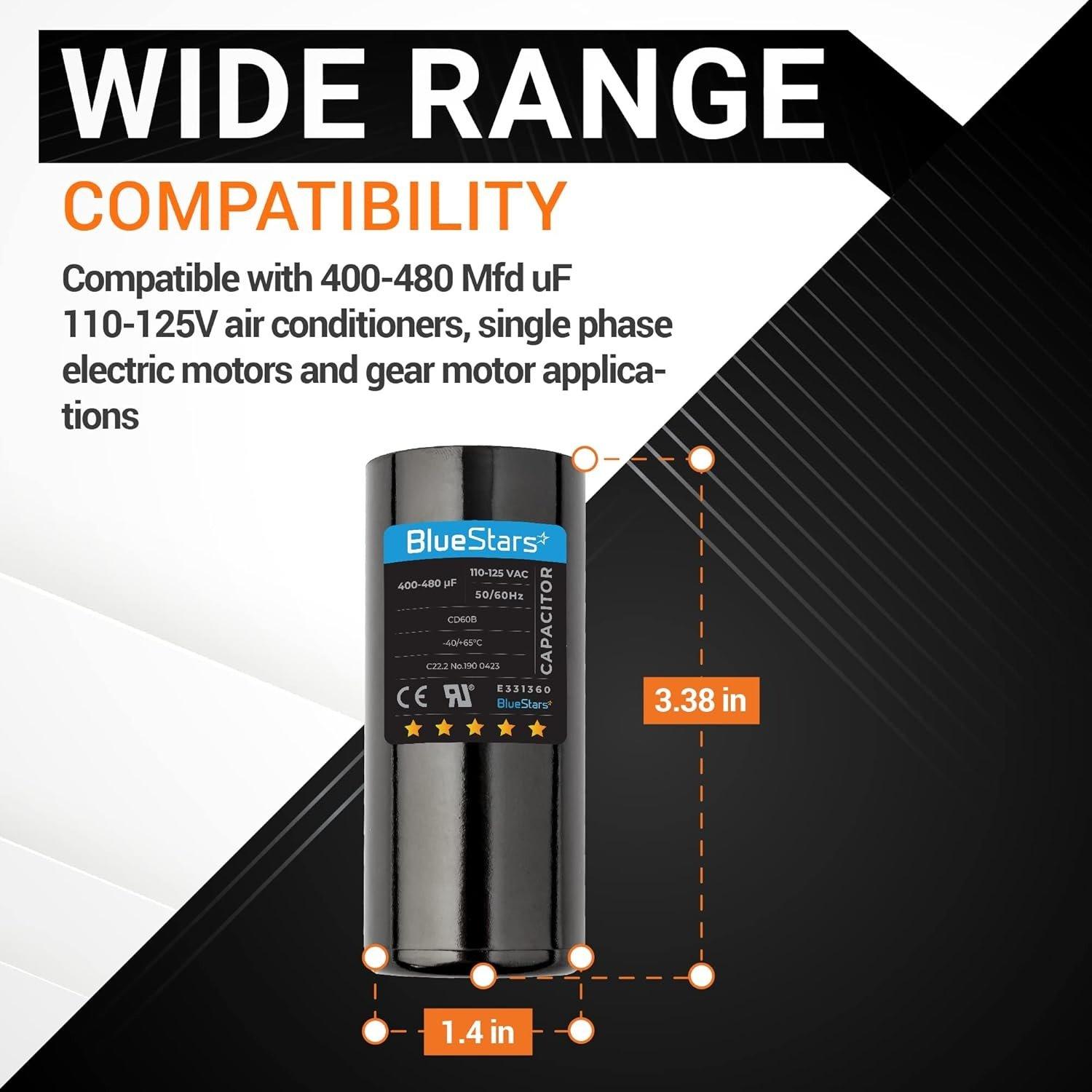

• Dimensions: 36mm Diameter x 70mm Height
• Operating Temperature Range: -40°C to +70°C (-104°F to +158°F)

Replaces / Cross-Reference Part Numbers

• Replaces any round motor start capacitor with the same capacitance and voltage ratings.
• Commonly replaces capacitors identified as CD60 type.
• Ensure physical dimensions are compatible with your existing mounting bracket.

Compatibility & Fitment

• Designed for single-phase AC electric motors that require a start capacitor.
• Suitable for a wide range of applications, including:
• HVAC systems
• Air conditioner compressors
• Heat pumps
• Refrigeration units
• Well pumps and other water pumps
• General purpose AC motors

When to Replace

• Motor hums or buzzes but does not start.
• Motor starts slowly or requires manual assistance to turn.
• Circuit breaker trips upon motor startup.
• Visible damage to the existing capacitor, such as swelling, bulging, or leaking fluid.
• Capacitance measures outside of the +/- 20% tolerance range when tested with a multimeter.

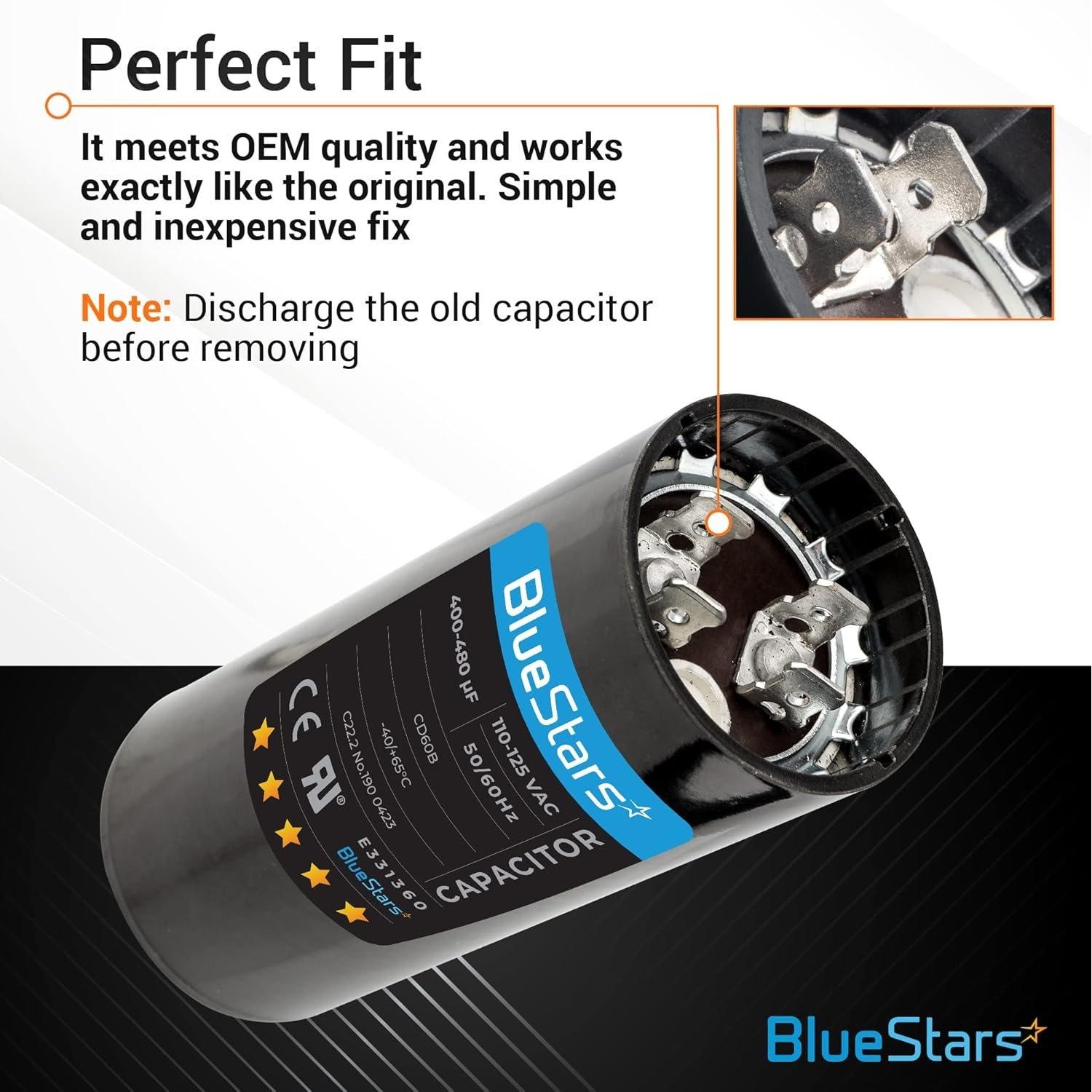

Installation Tips

• Disconnect all electrical power to the equipment before beginning installation.
• Carefully discharge the old capacitor by shorting the terminals with an insulated tool.
• Verify the uF/MFD and VAC ratings of the new capacitor match the specifications of the original part.
• Note the wire placement on the old capacitor before disconnecting.
• As an AC capacitor, it is not polarized; wires can be connected to either terminal.
