[Lifetime Warranty] MIU12537 Starter Solenoid

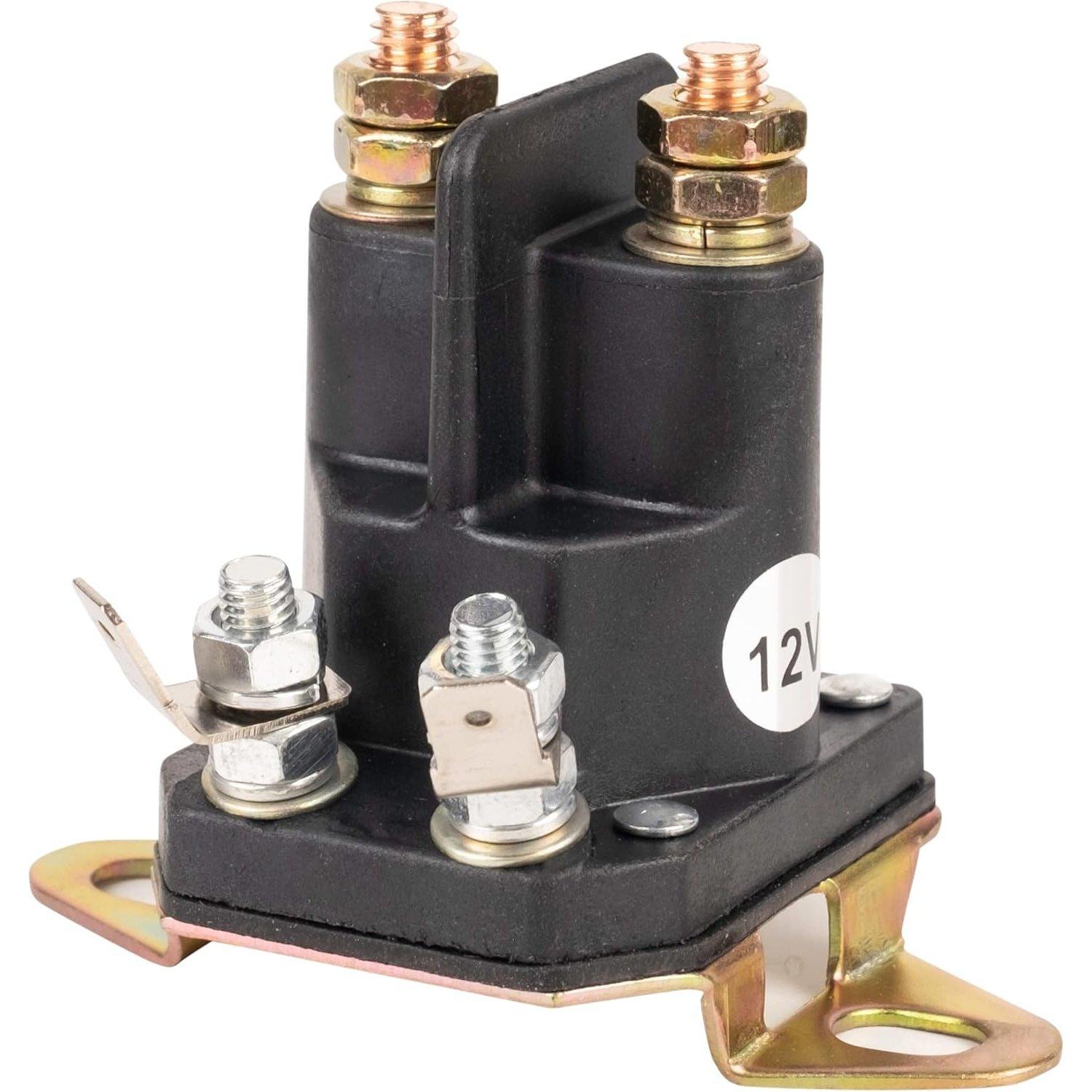

MIU12537 Starter Solenoid

Key Features

• Acts as a high-current electromagnetic switch for the starter motor circuit.
• Converts a low-amperage signal from the ignition switch into the high-amperage connection required to operate the starter.
• Designed for direct OEM replacement to ensure proper function and fit.

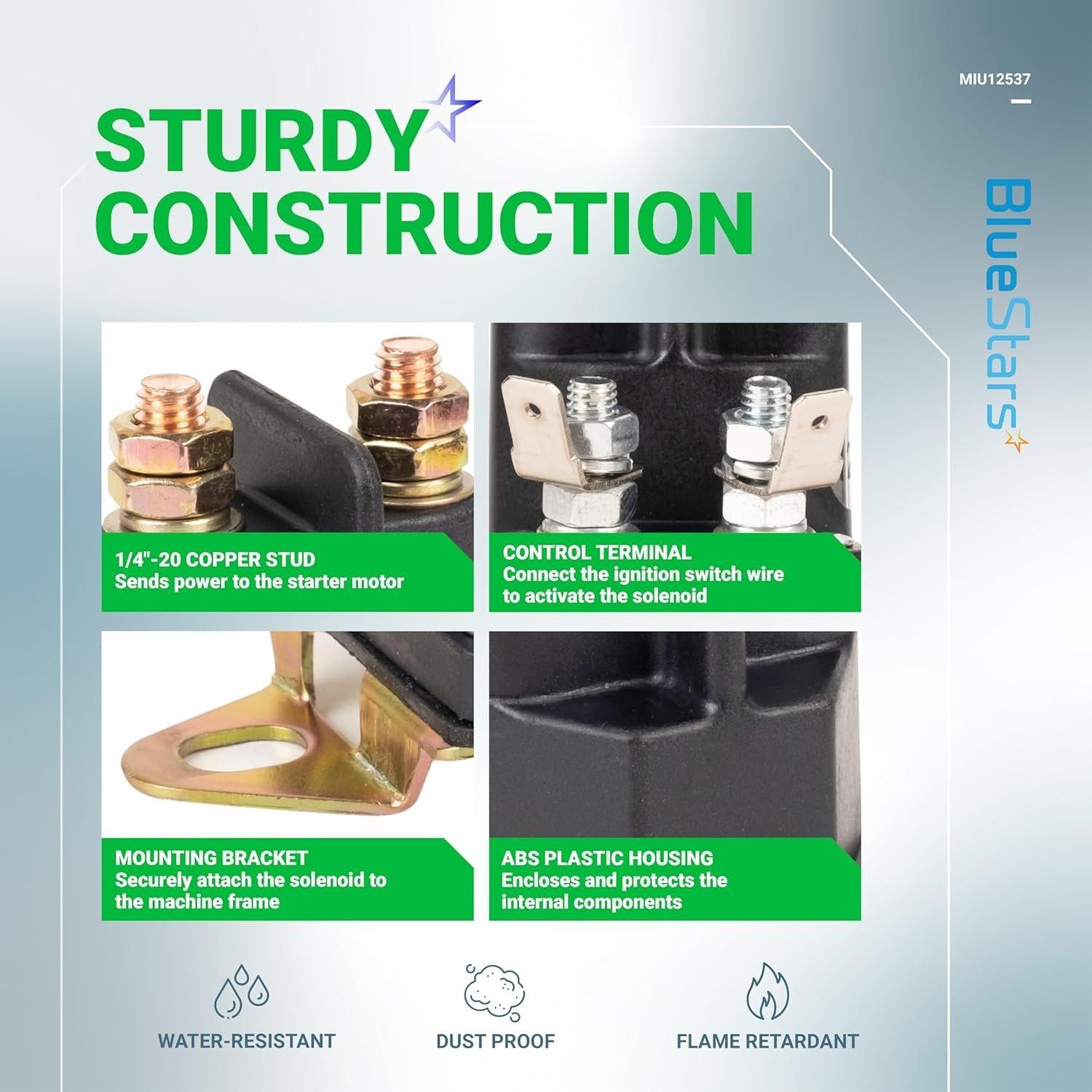

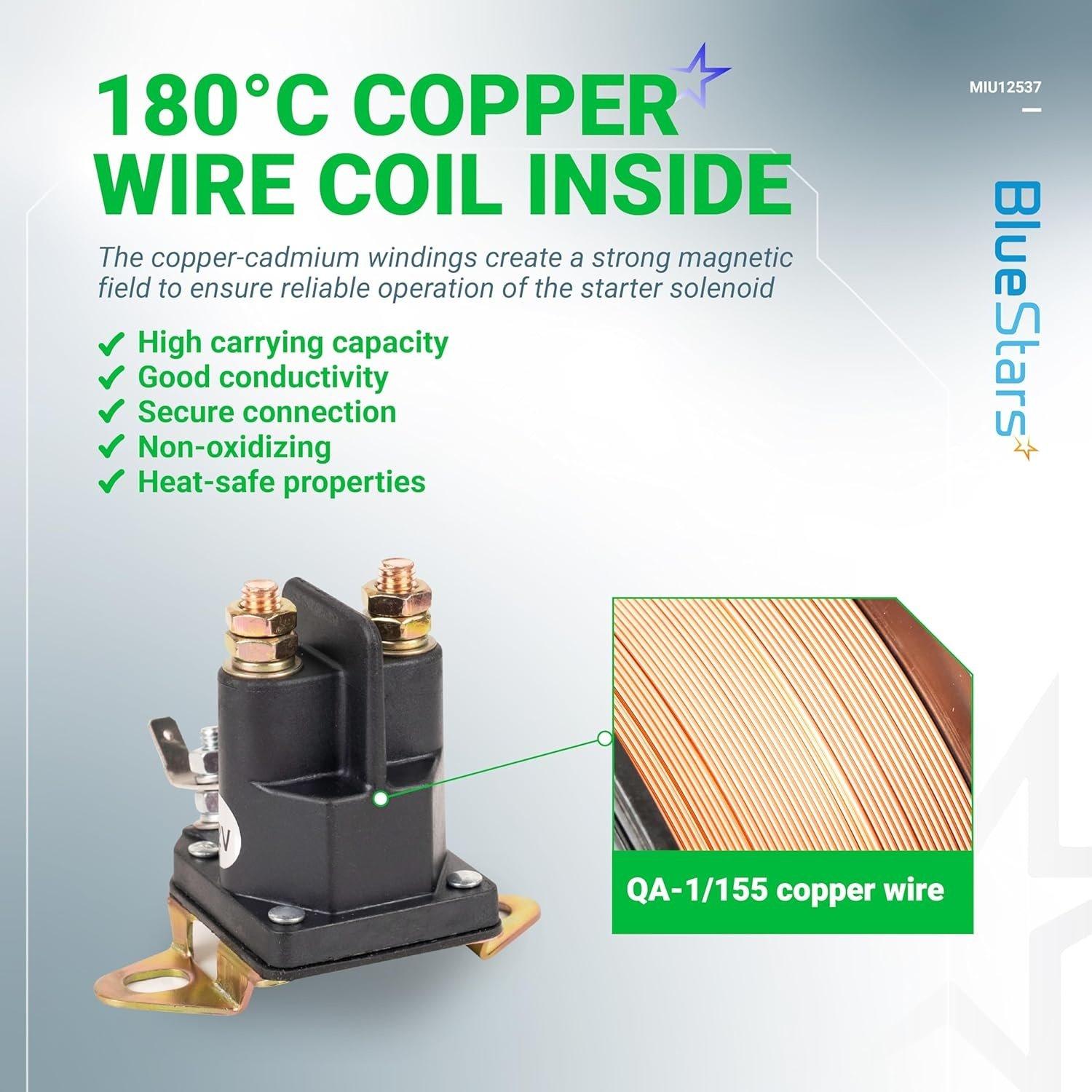

• Constructed with a copper wire coil and a movable plunger core for reliable activation.

Replaces / Cross-Reference Part Numbers

• John Deere: MIU12537

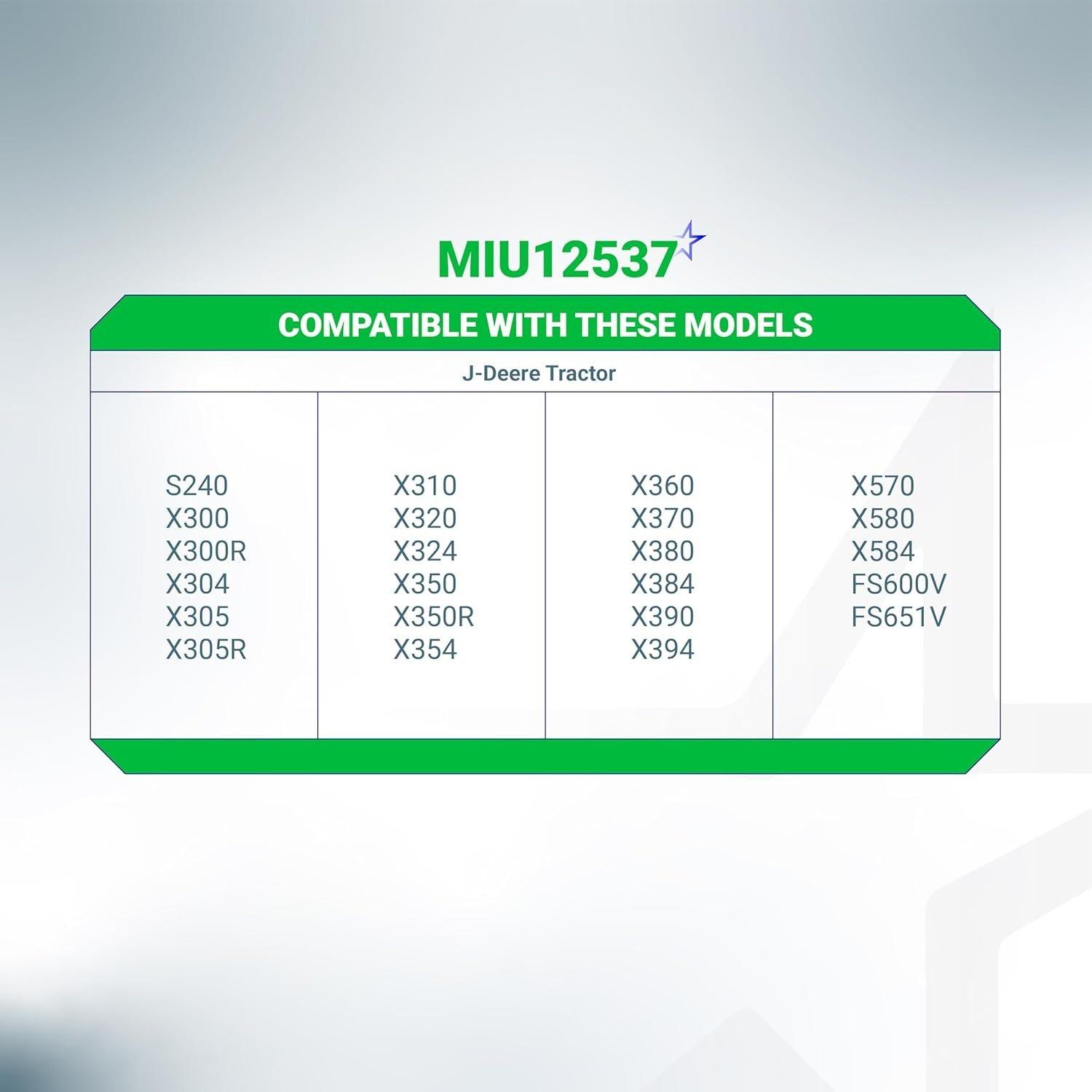

Compatibility & Fitment

• John Deere Lawn Tractors:S240, X300, X300R, X304, X305R, X310, X320, X324, X350, X354, X360, X370, X380, X384, X390, X394
• Note:For model X300, fits units with engine marked FH541V or FS600V. Verify part number against your equipment's serial number for correct fitment.

When to Replace

• A single, loud click is heard when turning the key, but the engine does not crank.
• The engine fails to start intermittently.
• No sound or response from the starter motor when the ignition key is turned.
• The starter motor continues to run after the engine has started and the key is released.

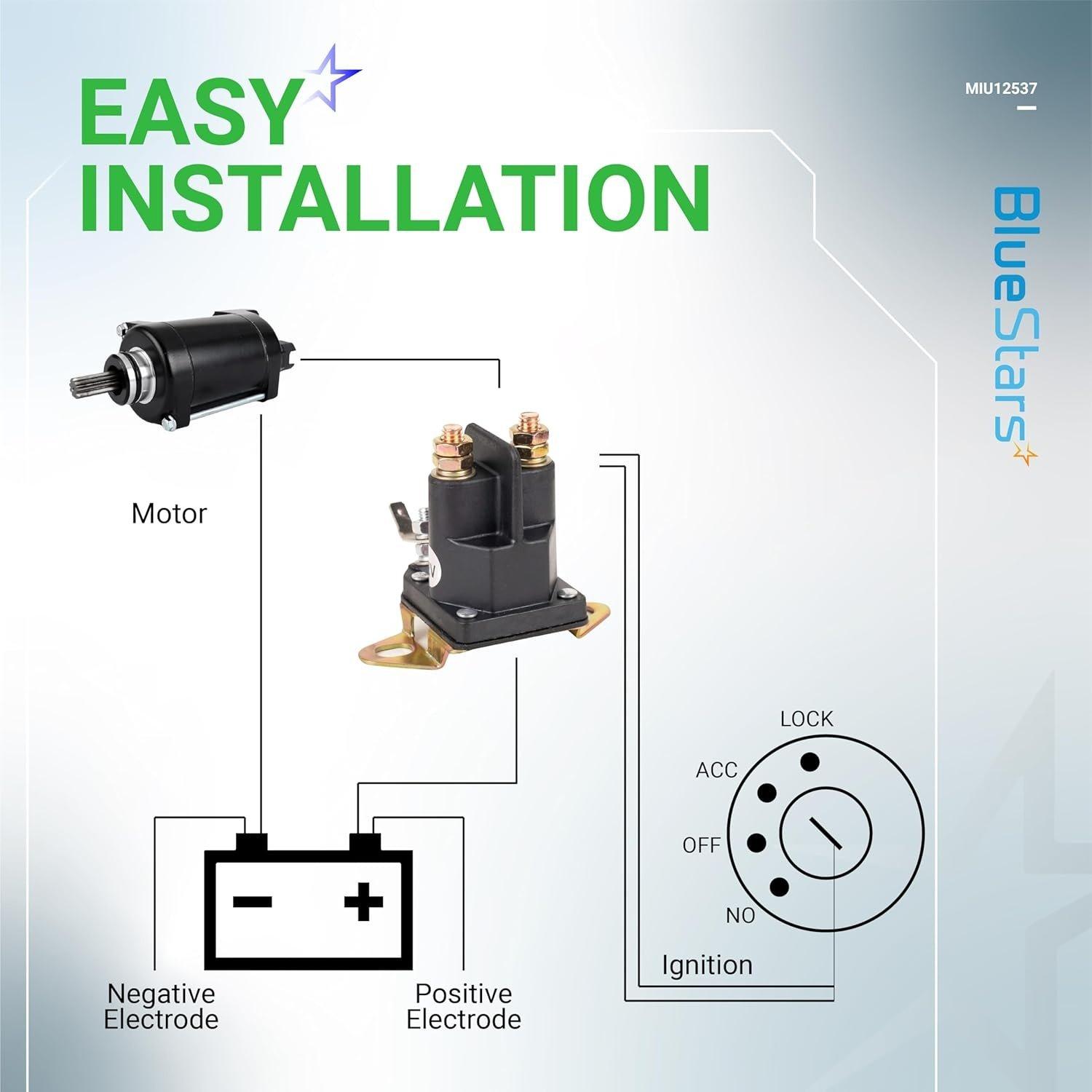

Installation Tips

• Disconnect the negative battery cable before starting the replacement.
• Carefully note or photograph the wiring configuration before removing the old solenoid.
• Clean all electrical connection points, including battery cables and terminals, to ensure good contact.
• Securely tighten all mounting bolts and terminal nuts to manufacturer specifications.
• Reconnect the battery and test the starting system to confirm correct operation.
