[Lifetime Warranty] RV City Water Inlet - Brass Black Flange with Check Valve - 3/4" NH Female Connection to 1/2" NPT Male Thread (Black)

RV City Water Inlet - Brass Black Flange with Check Valve - 3/4" NH Female Connection to 1/2" NPT Male Thread (Black)

Key Features

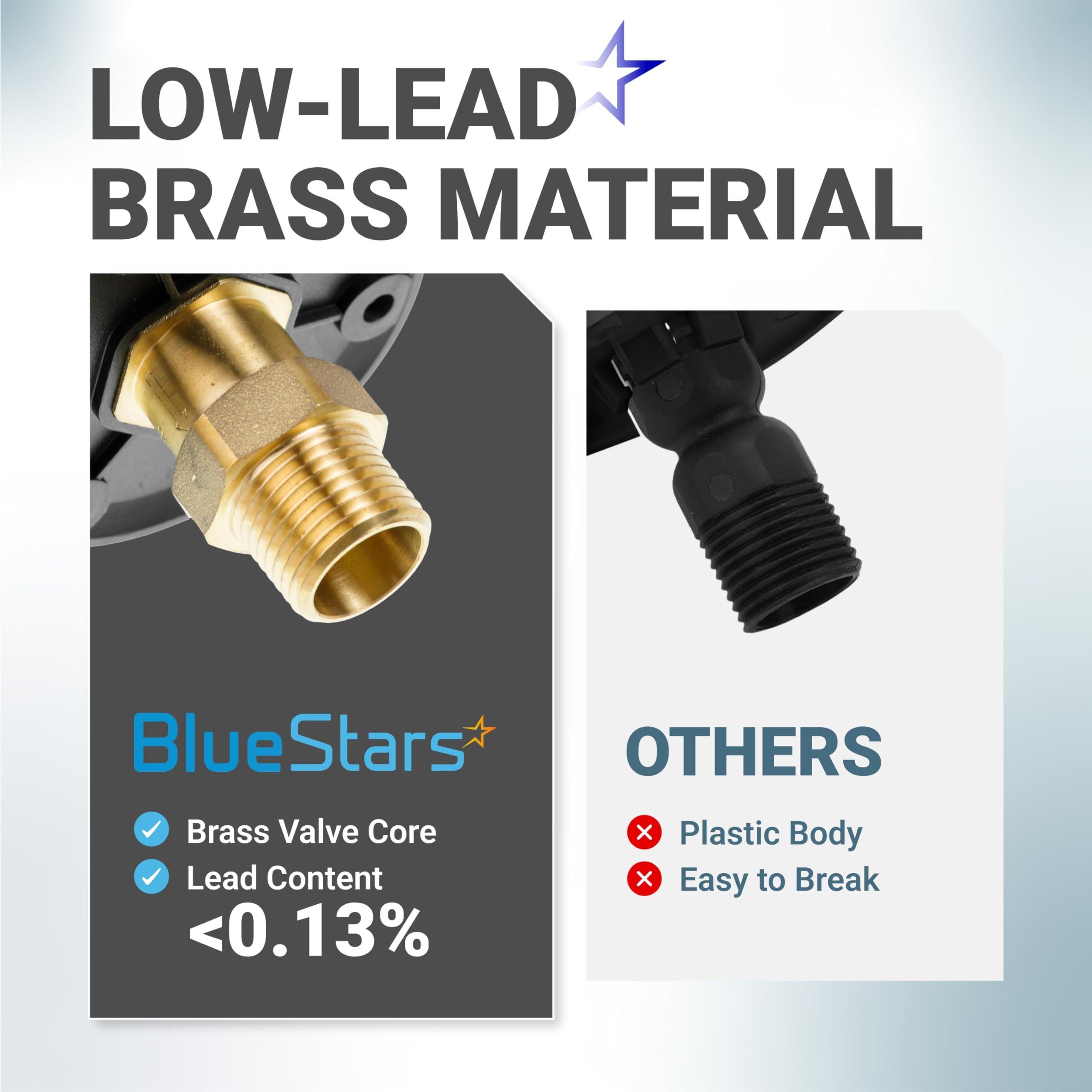

• Construction: Lead-free brass valve body with a durable, black-finished mounting flange.

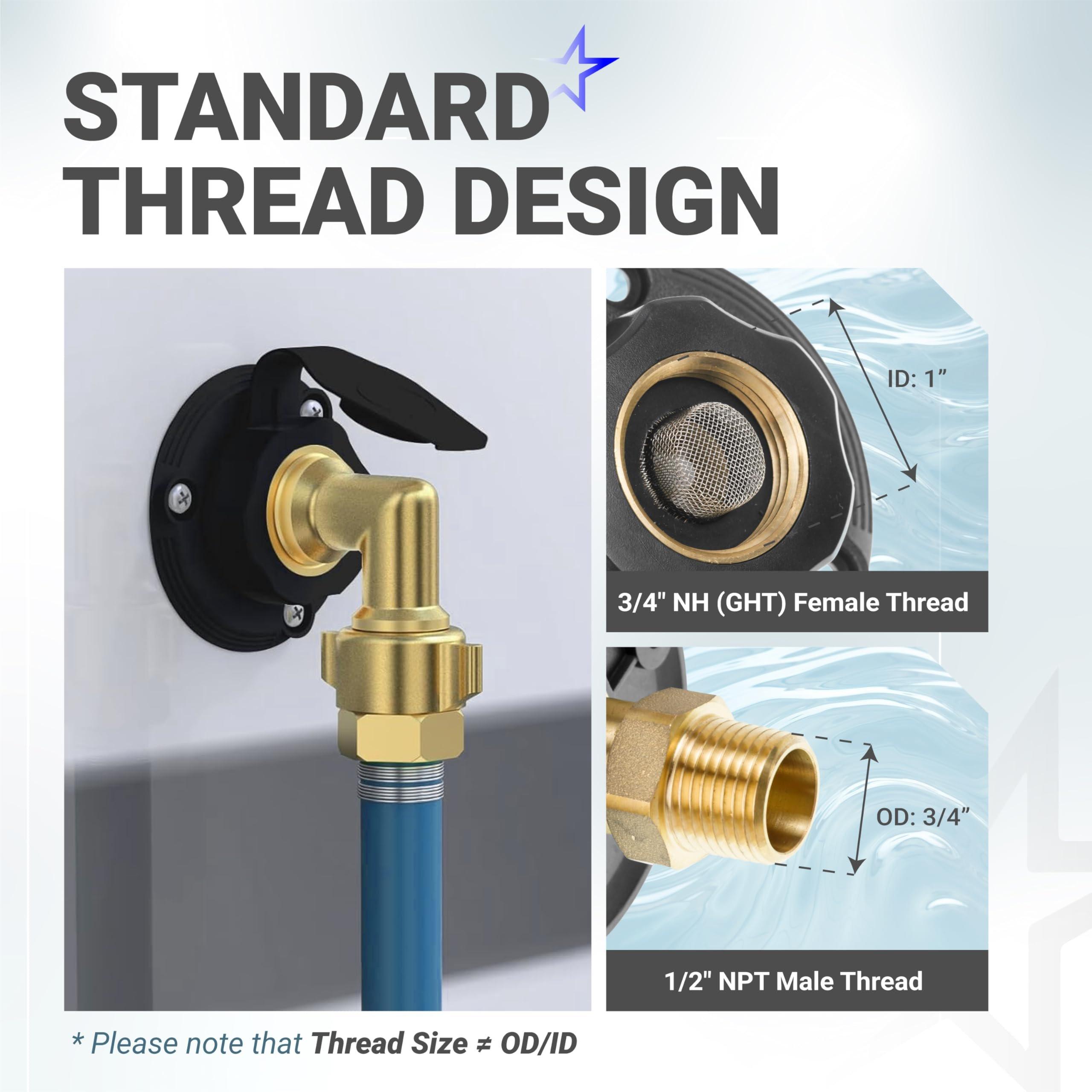

• Connections: 3/4" NH female threaded inlet for standard garden hose attachment; 1/2" NPT male threaded outlet for internal plumbing.

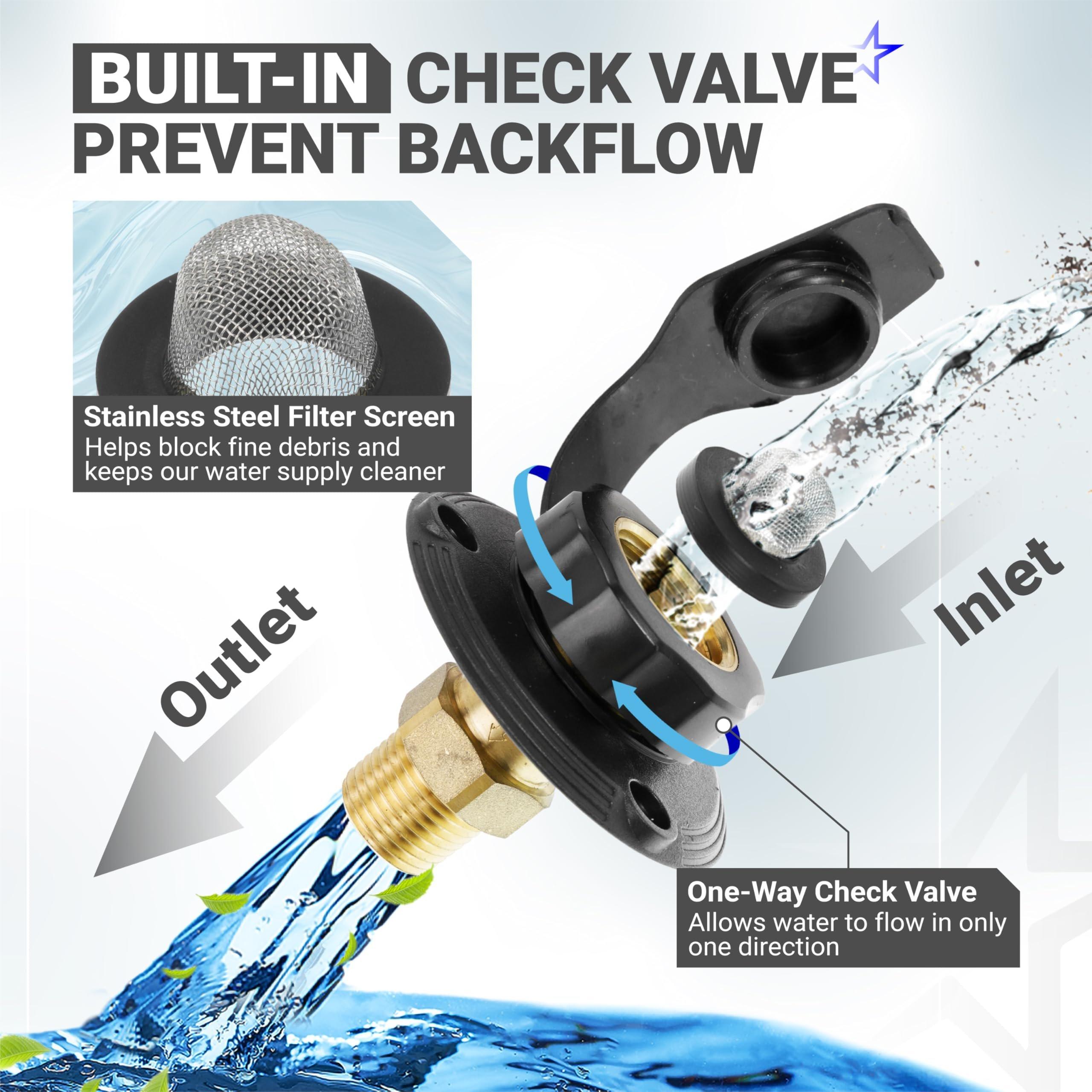

• Function: Integrated check valve prevents water backflow from the RV's fresh water tank.
• Mounting: Flange design for secure, surface-mount installation on the vehicle exterior.

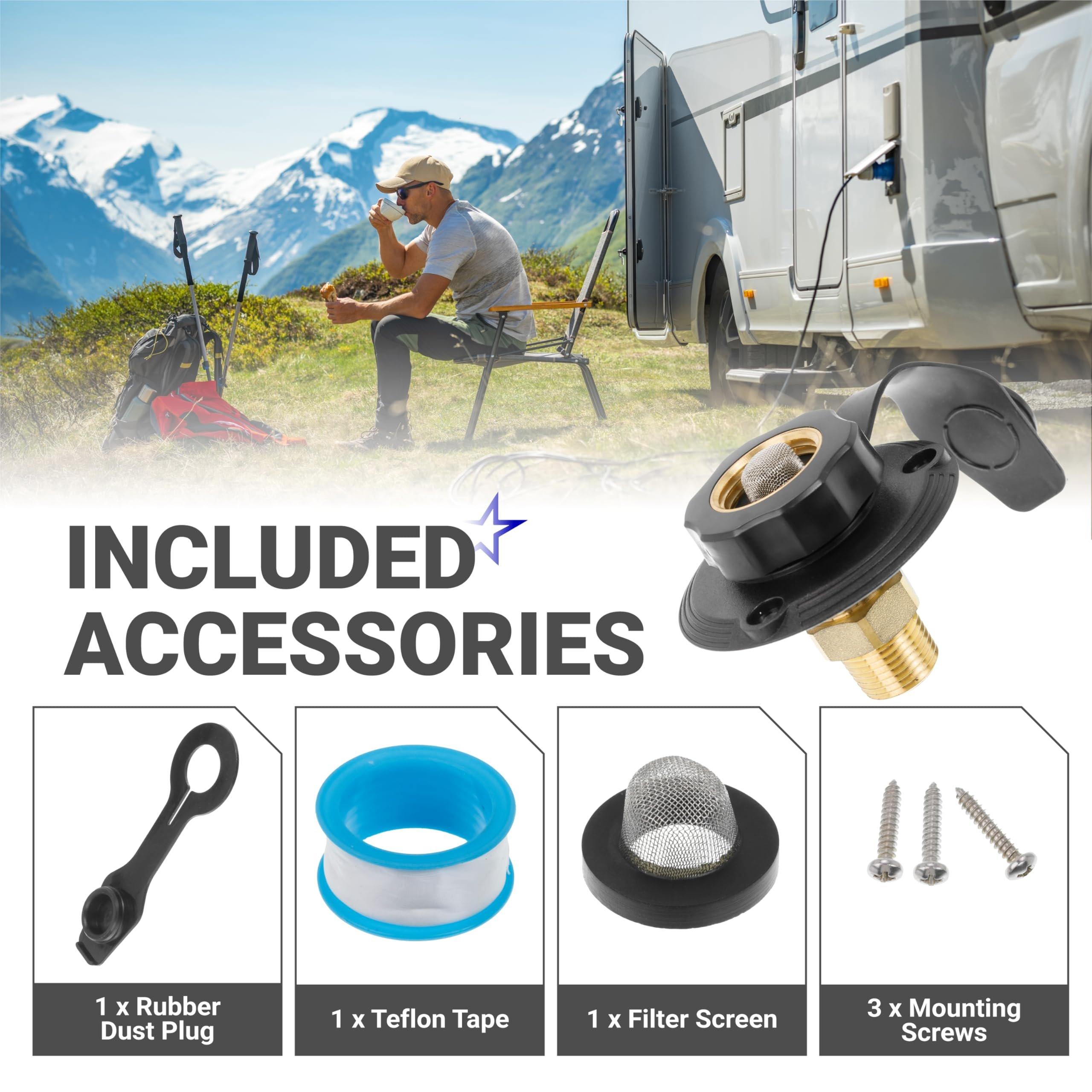

• Includes a dust cap to protect threads and prevent debris entry.

Replaces / Cross-Reference Part Numbers

• A01-6702LF
• P25201LFVP
• 60153
• 47021

Compatibility & Fitment

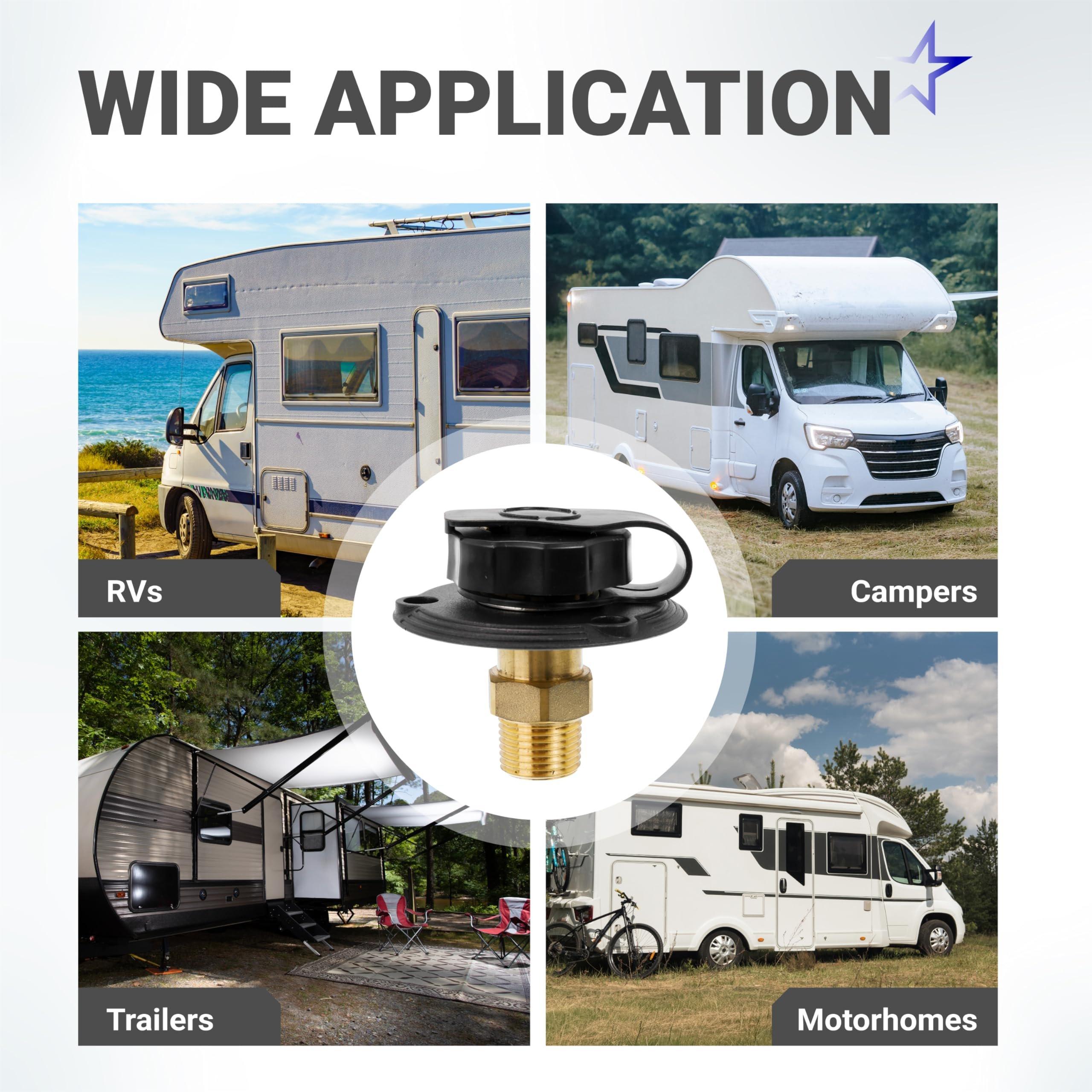

• Application: Designed for recreational vehicles, campers, travel trailers, and marine potable water systems.
• Inlet Connection: Mates with any standard 3/4" garden hose thread (GHT/NH).
• Outlet Connection: Fits standard 1/2" female NPT plumbing fittings.
• Installation: Requires a cutout for the valve body and sealant for a weatherproof seal.

When to Replace

• Visible leaks from the flange, valve body, or hose connection point.
• Cracked, brittle, or physically damaged flange or housing.
• Failure of the internal check valve, allowing backflow into the city water line.
• Corrosion or mineral deposits that restrict water flow or prevent a secure connection.
• Stripped or damaged threads on either the inlet or outlet connection.

Installation Tips

• Shut off the city water supply and depressurize the vehicle's plumbing system.
• Remove the old inlet by disconnecting the interior plumbing line and unscrewing the exterior flange.
• Thoroughly clean the mounting surface of old sealant and debris.
• Apply thread sealant tape to the 1/2" NPT male threads before connecting to the RV's plumbing.
• Apply a continuous bead of non-leveling RV sealant to the back of the new flange before mounting.
• Secure the flange to the vehicle with appropriate screws, ensuring a snug fit without over-tightening.
• Pressurize the system and carefully inspect for leaks at all connection points.
