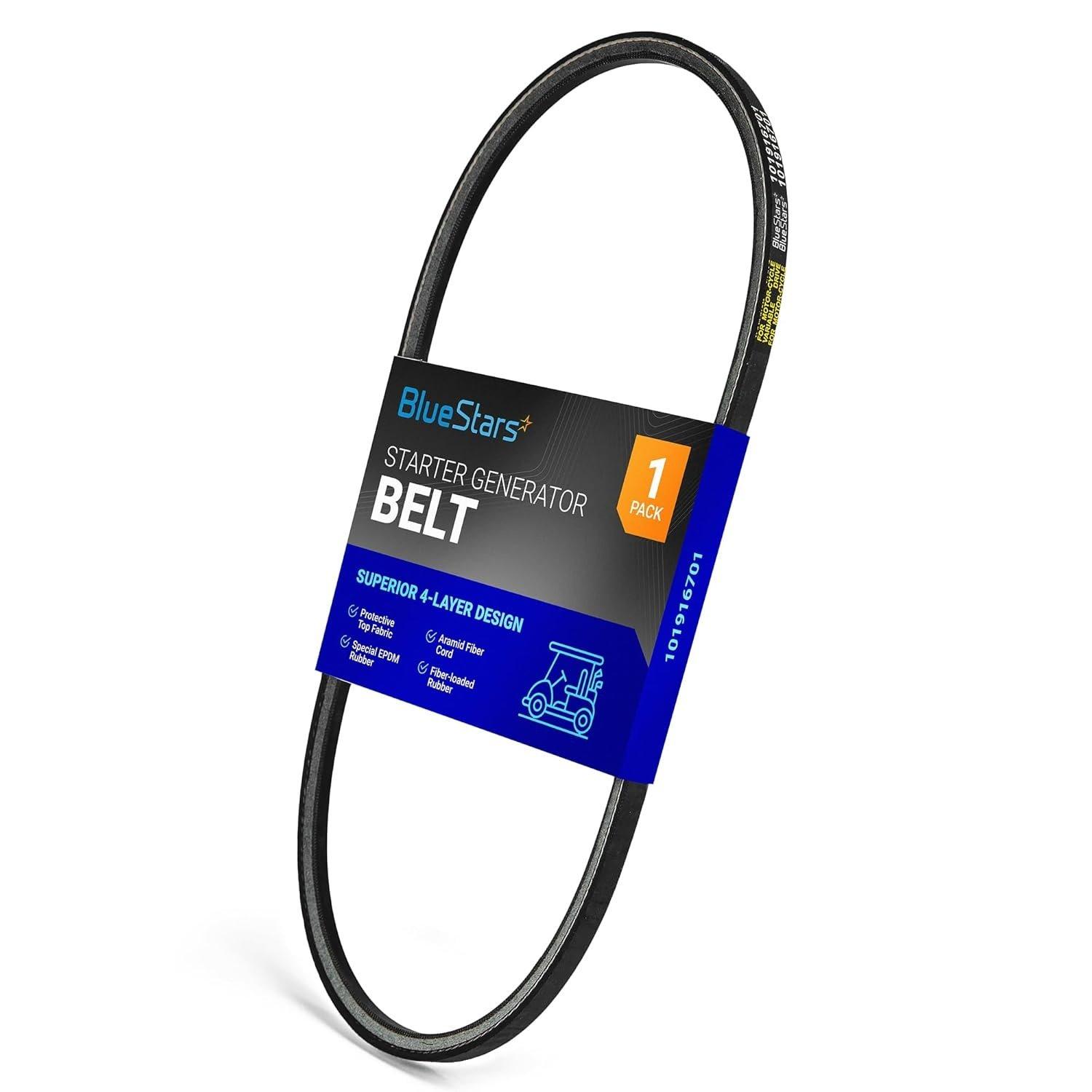

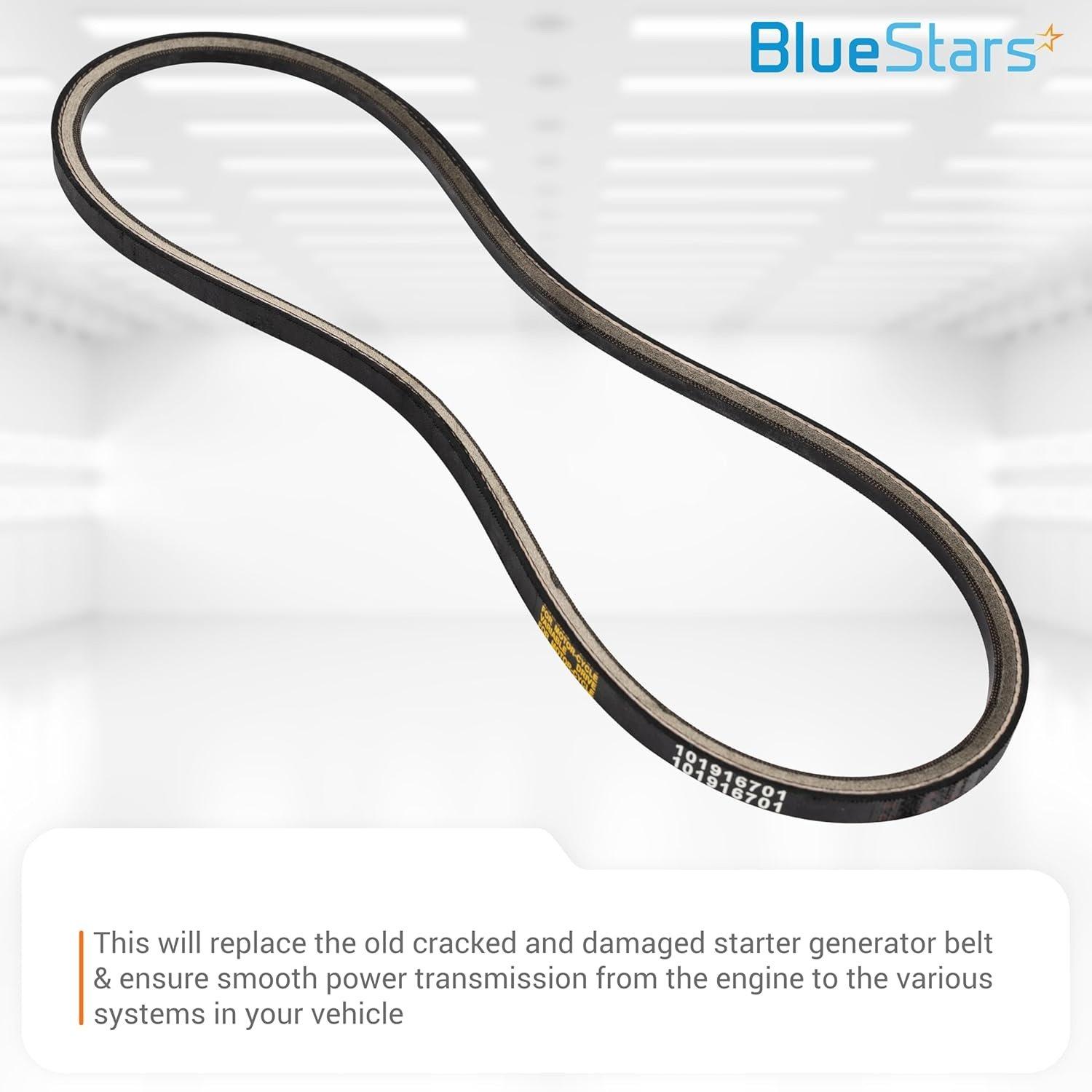

[Lifetime Warranty] 101916701 Replacement Starter Generator Belt

101916701 Replacement Starter Generator Belt

Key Features

• Connects the starter generator to the engine clutch
• Engineered for reliable power transmission
• Dimensions: 0.5 in Width x 36 in Outside Diameter

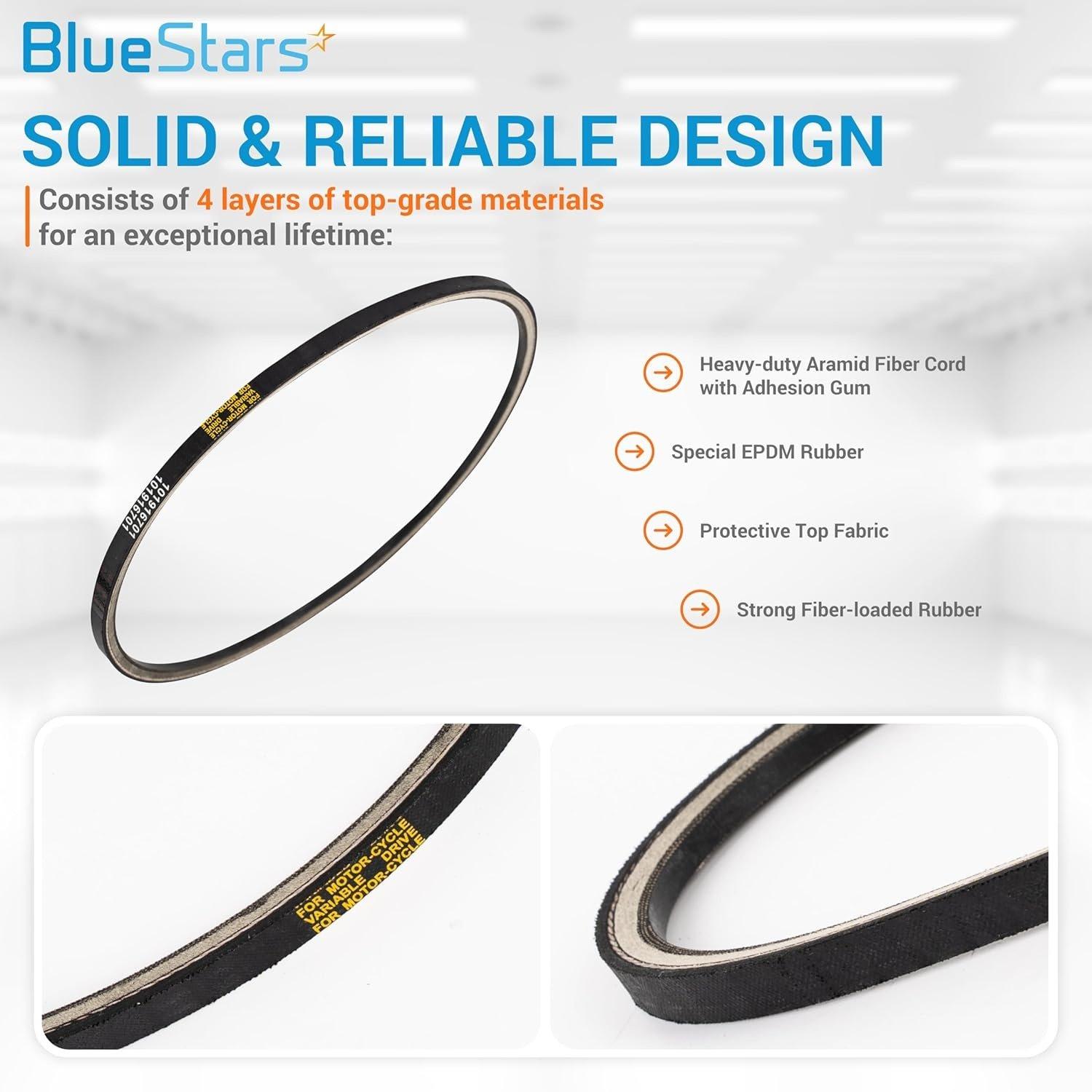

• Durable, wear-resistant construction

Replaces / Cross-Reference Part Numbers

• 101916701
• 1355

Compatibility & Fitment

• Brand: Club Car
• Engine Type: Gas OHV
• Models & Years:DS (1997-Up)Precedent (2004-Up)CarryallVillagerXRT

When to Replace

• Visible signs of cracking, fraying, or glazing on the belt surface
• Squealing or chirping sounds during engine start-up or operation
• Inconsistent charging or starting performance
• Recommended as part of routine preventative maintenance

Installation Tips

• Disconnect the battery before beginning installation.
• Loosen the starter generator mounting bolts to release tension from the old belt.
• Ensure pulleys are clean and free of debris before installing the new belt.
• Verify the belt is correctly seated in all pulley grooves.
• Adjust the generator position to achieve proper belt tension before tightening all mounting hardware.
