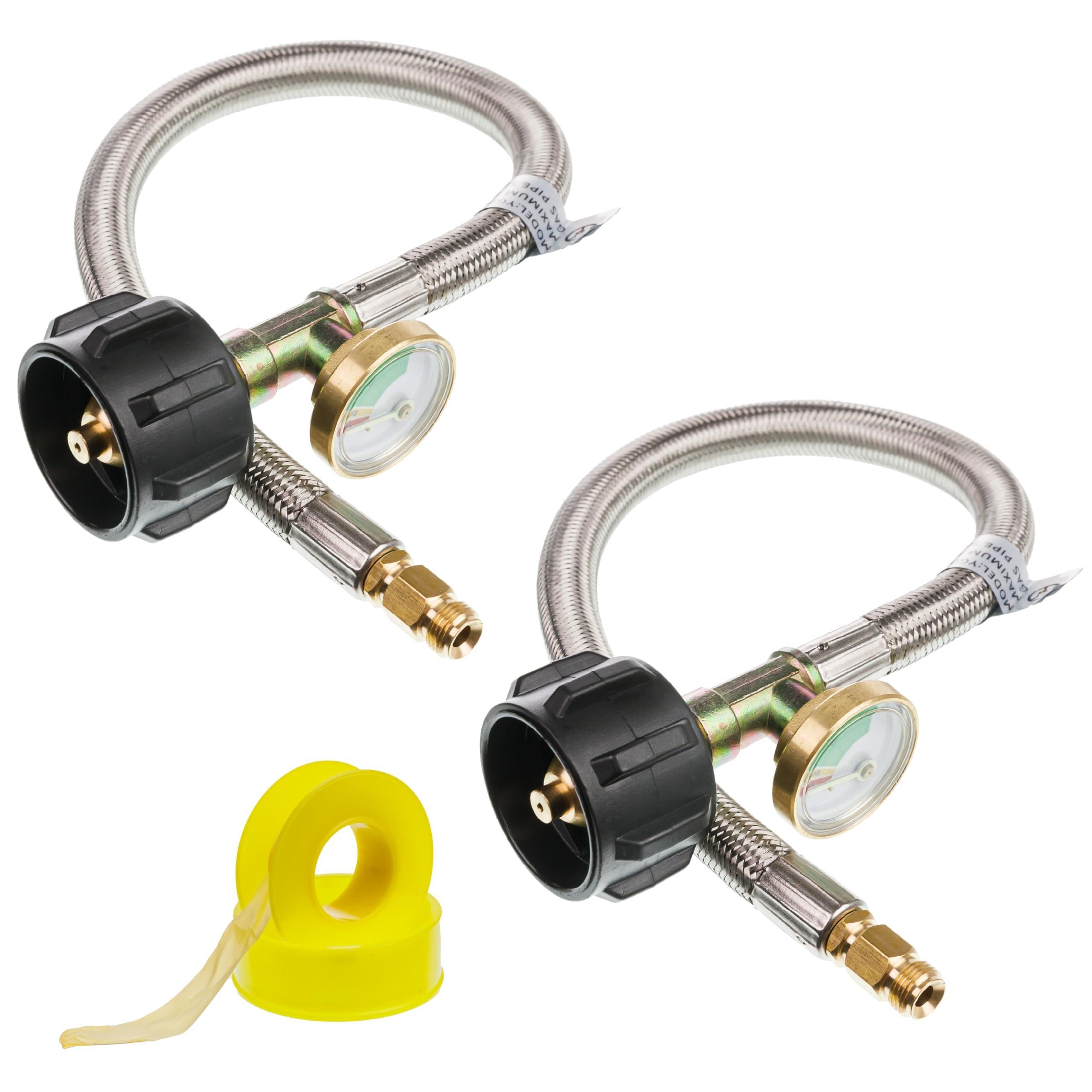

[Lifetime Warranty] [1/4" Male Inverted] 15 inch RV Propane Hoses with Gauge - Connects QCC1, Stainless Steel Braided Camper Propane Pigtail for 5LB - 40LB Tank to Two-Stage Regulator - 2 Pack with Tape

[1/4" Male Inverted] 15 inch RV Propane Hoses with Gauge - Connects QCC1, Stainless Steel Braided Camper Propane Pigtail for 5LB - 40LB Tank to Two-Stage Regulator - 2 Pack with Tape

Key Features

• Package Contents: 2x 15-inch propane pigtail hoses, 1x thread seal tape
• Hose Length: 15 inches

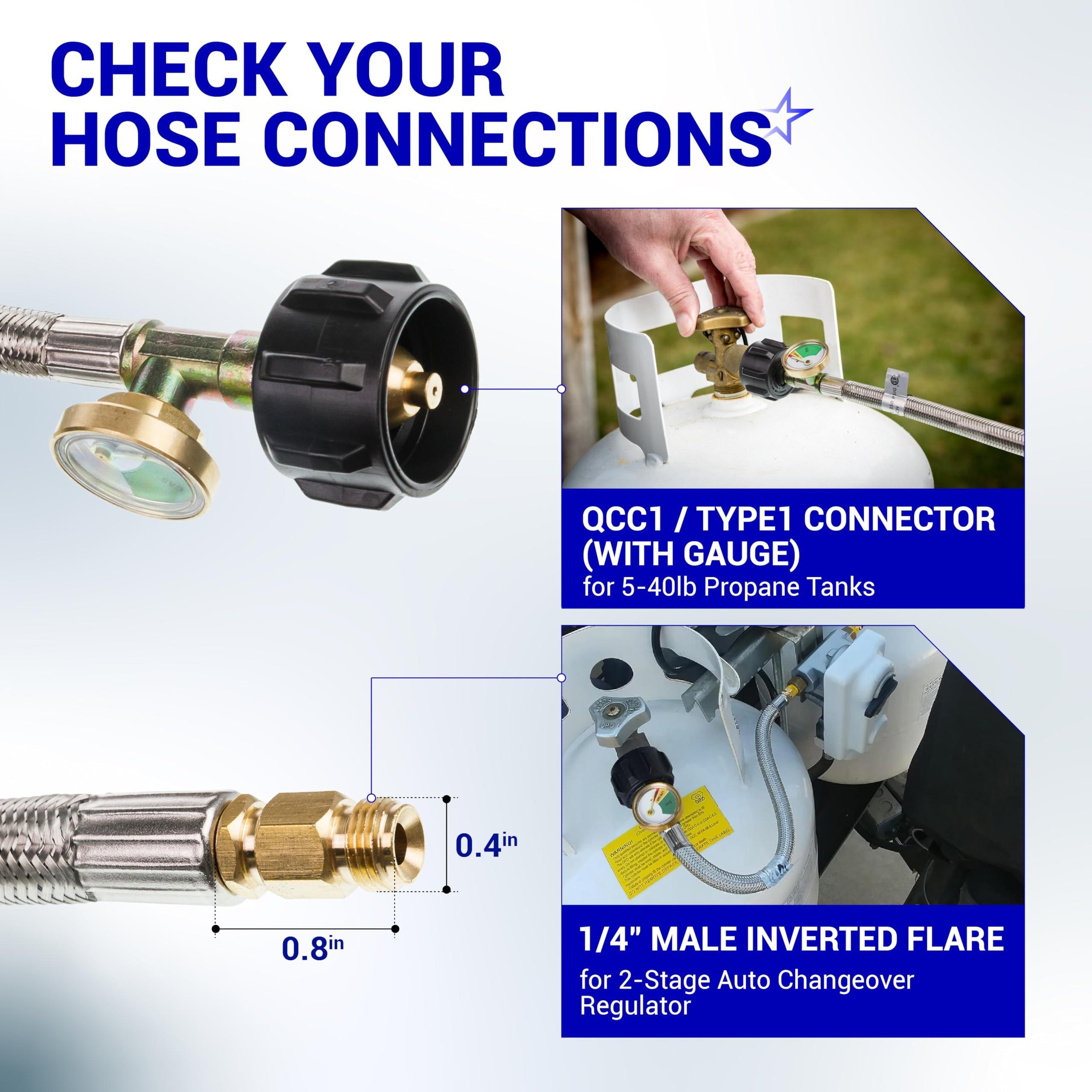

• Tank Connection: QCC1 / Type 1 for 5 lb to 40 lb propane tanks
• Regulator Connection: 1/4 inch male inverted flare

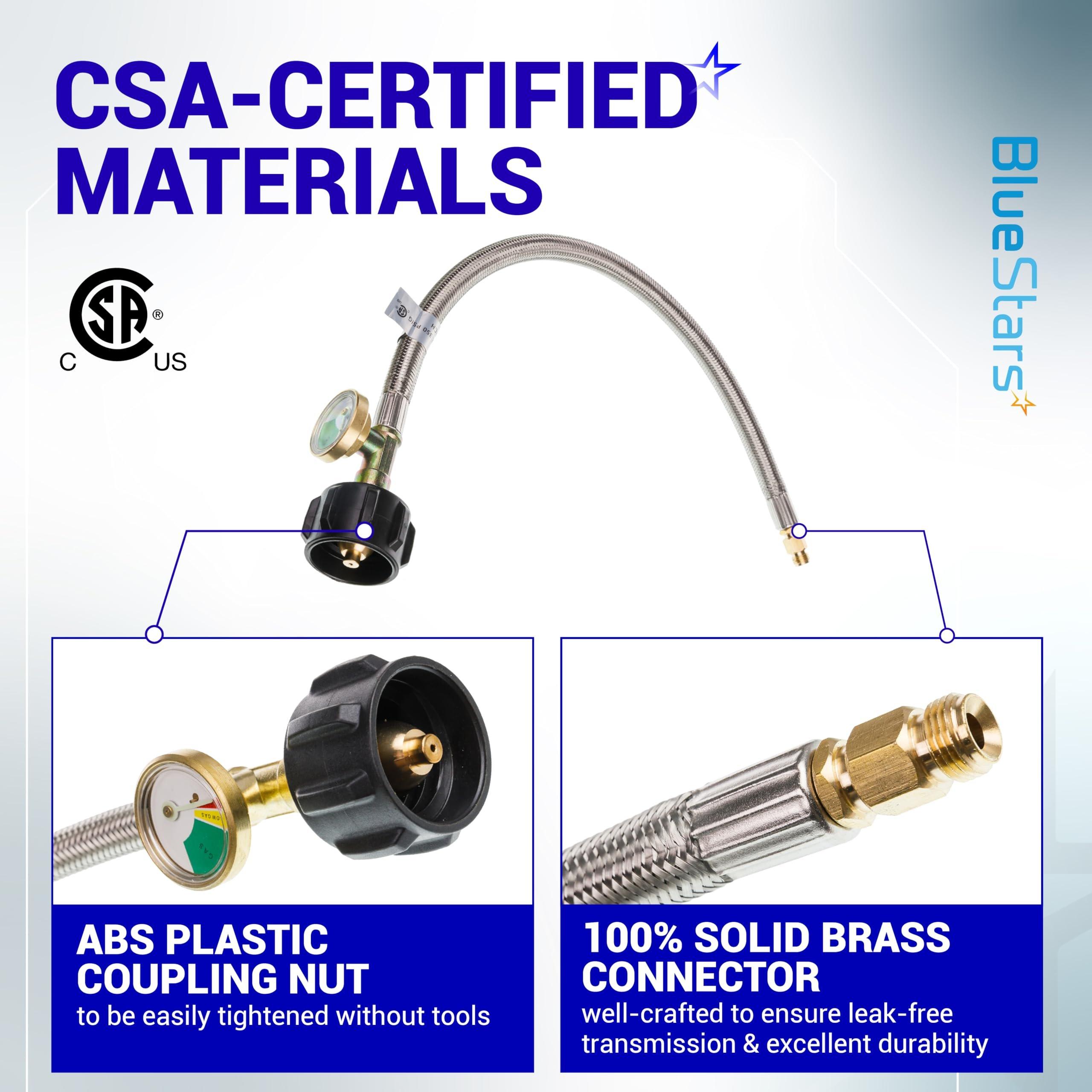

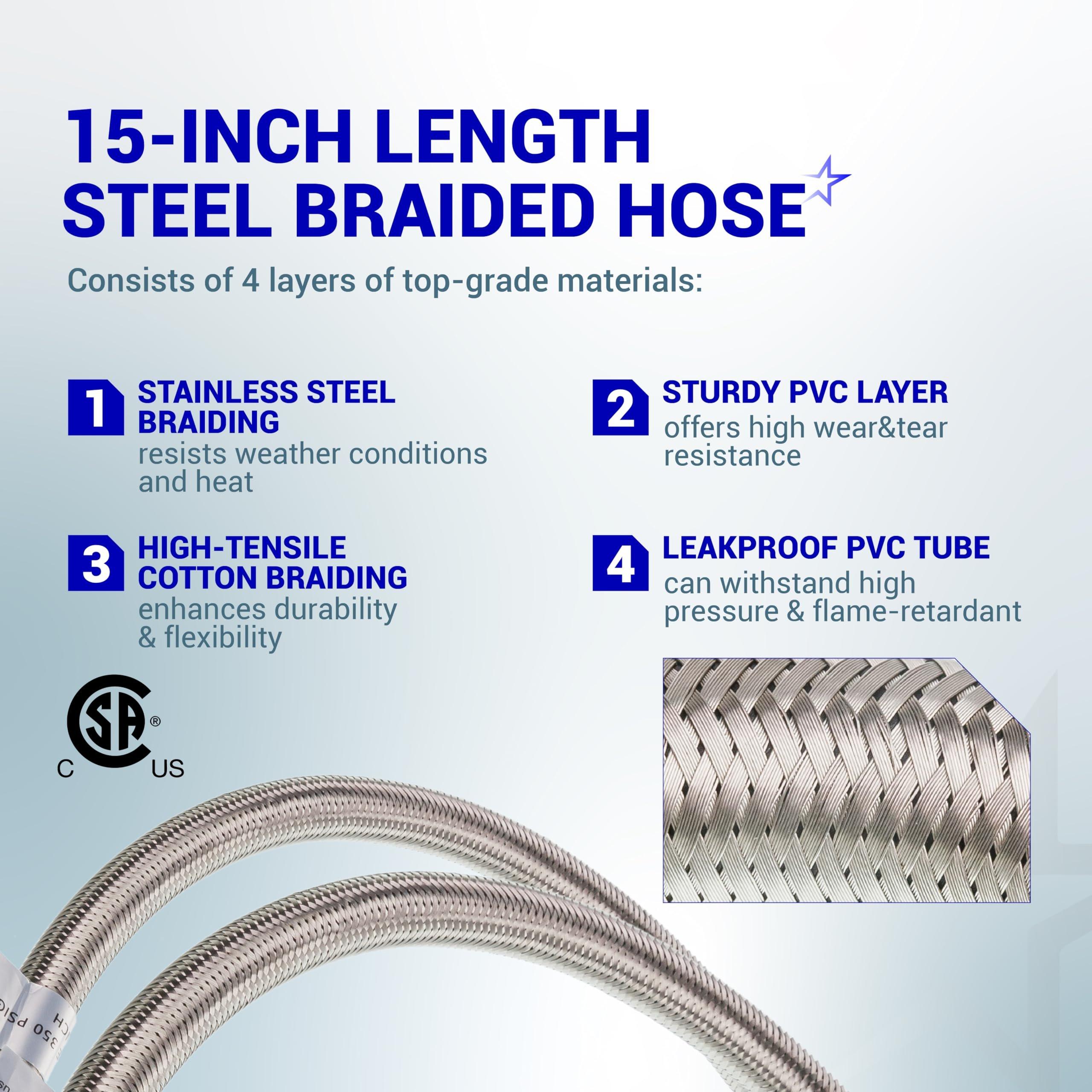

• Materials: Braided stainless steel exterior, durable inner rubber tube, solid brass fittings

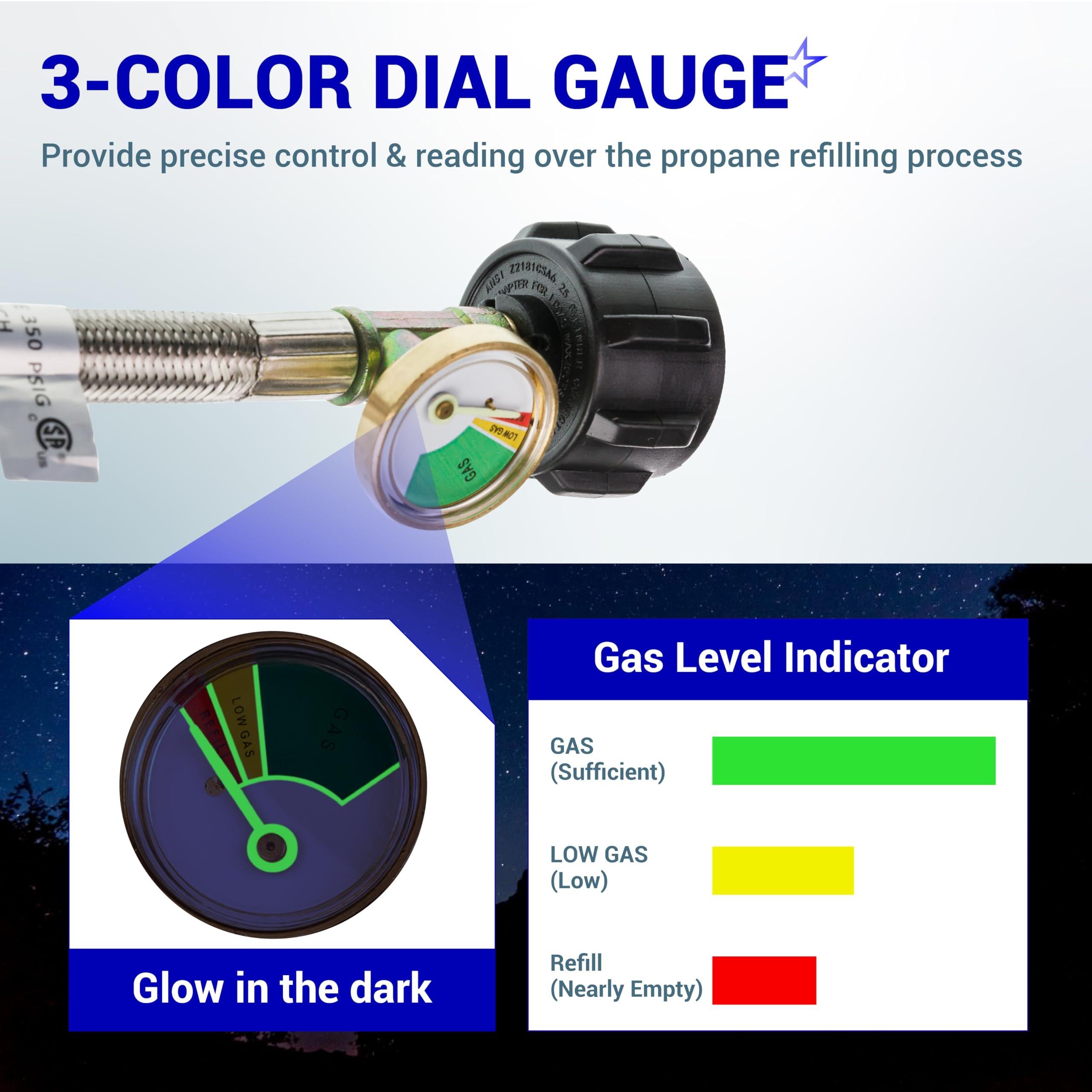

• Integrated Gauge: Provides a color-coded visual of the tank's remaining fuel level
• Certification: CSA Certified for safety and quality assurance

Replaces / Cross-Reference Part Numbers

• Universal replacement for pigtail hoses with a QCC1 tank connection and a 1/4 inch male inverted flare regulator fitting.

Compatibility & Fitment

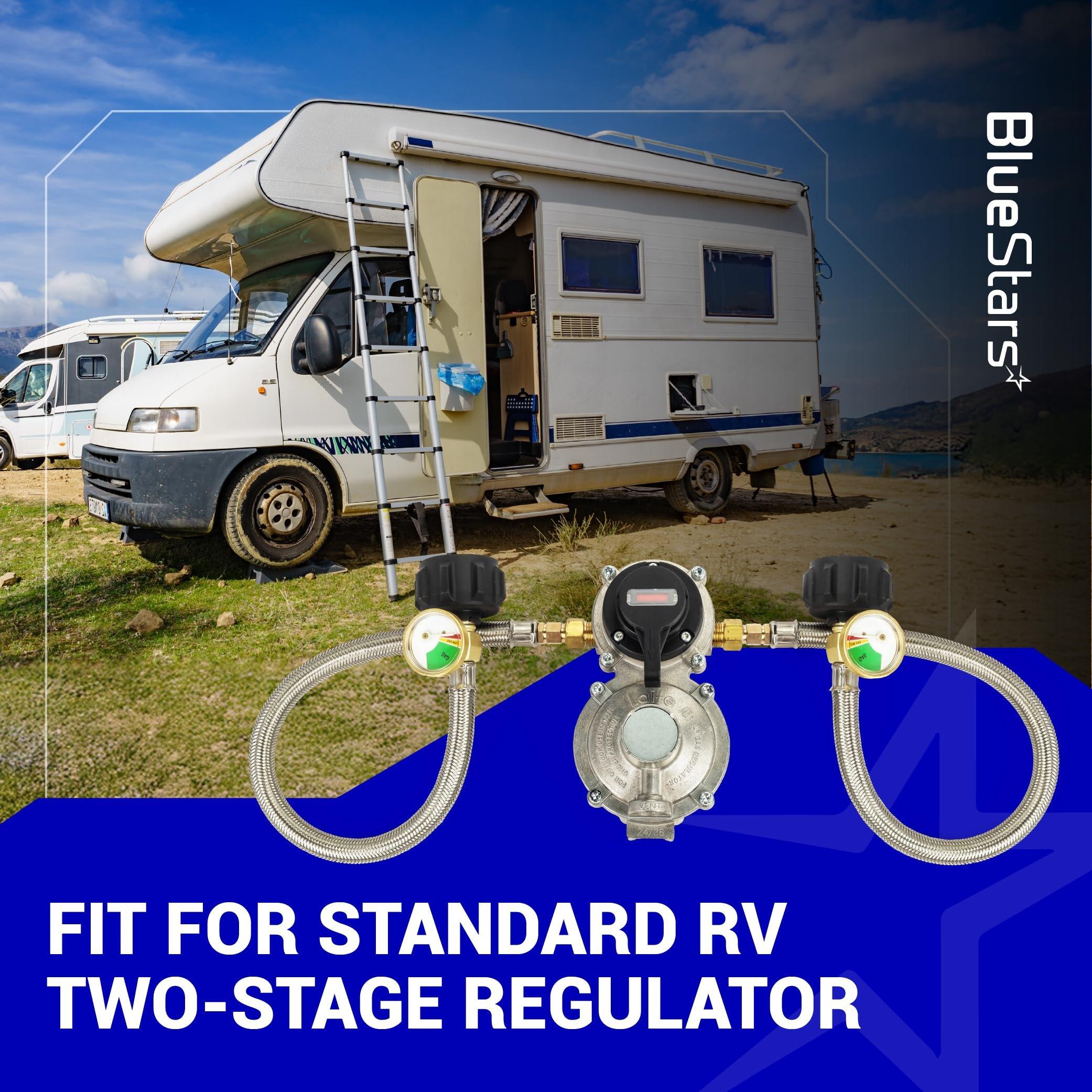

• Designed for RVs, travel trailers, and campers with a two-stage auto-changeover LP regulator system.
• Connects standard 5 lb to 40 lb propane tanks directly to the regulator's 1/4 inch female inverted flare inlet.

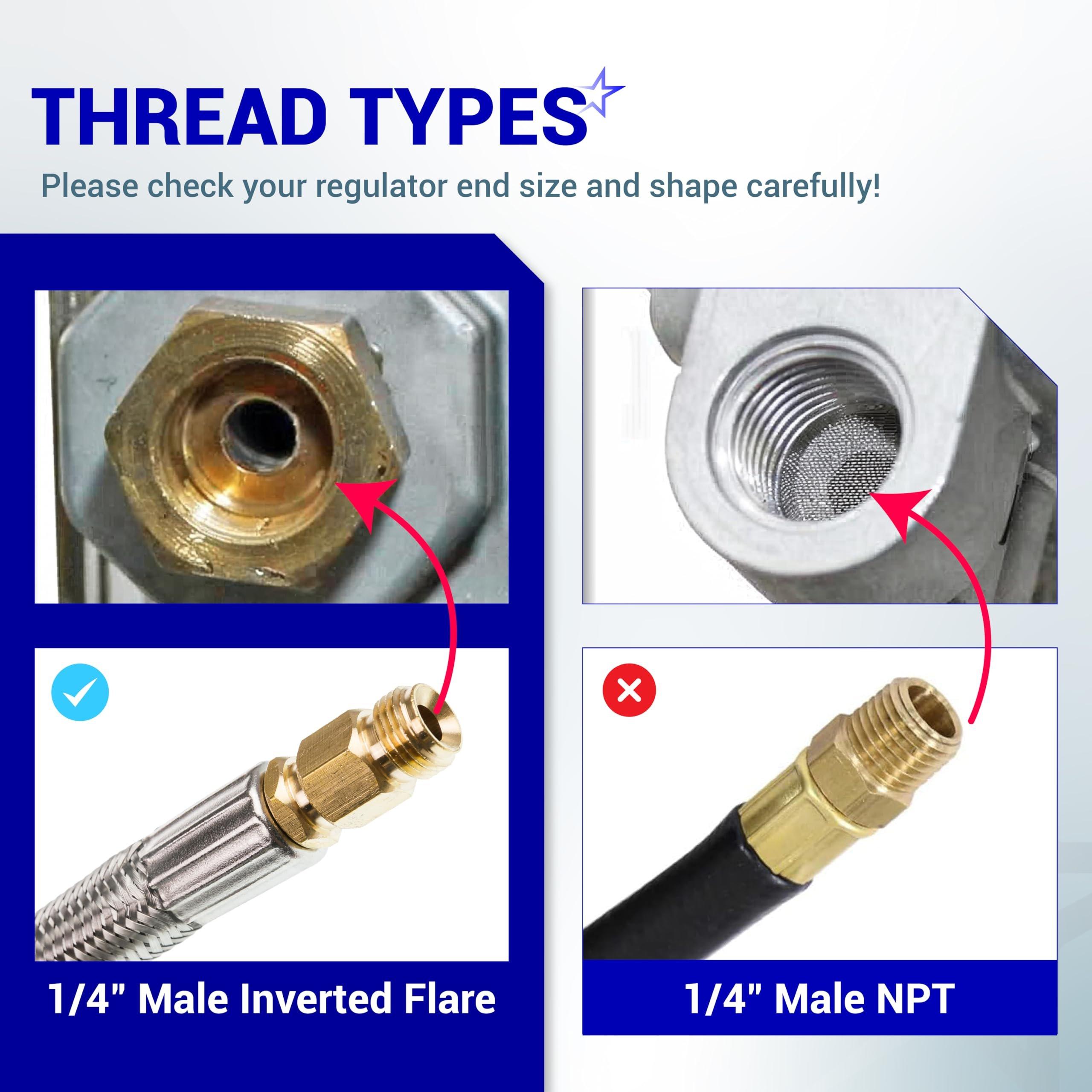

• Note: This hose has a 1/4 inch male inverted flare end. It is NOT compatible with 1/4 inch NPT fittings.

When to Replace

• Visible damage to the hose, including cracks, abrasions, cuts, or worn spots in the stainless steel braiding.
• The hose has become excessively stiff or brittle.
• Leaks are detected at fittings or along the hose length (use soapy water to test).
• The integrated pressure gauge is broken, inaccurate, or unreadable.

Installation Tips

• Ensure the propane tank service valve is fully closed before installation.
• Hand-tighten the QCC1 nut onto the propane tank valve until secure.

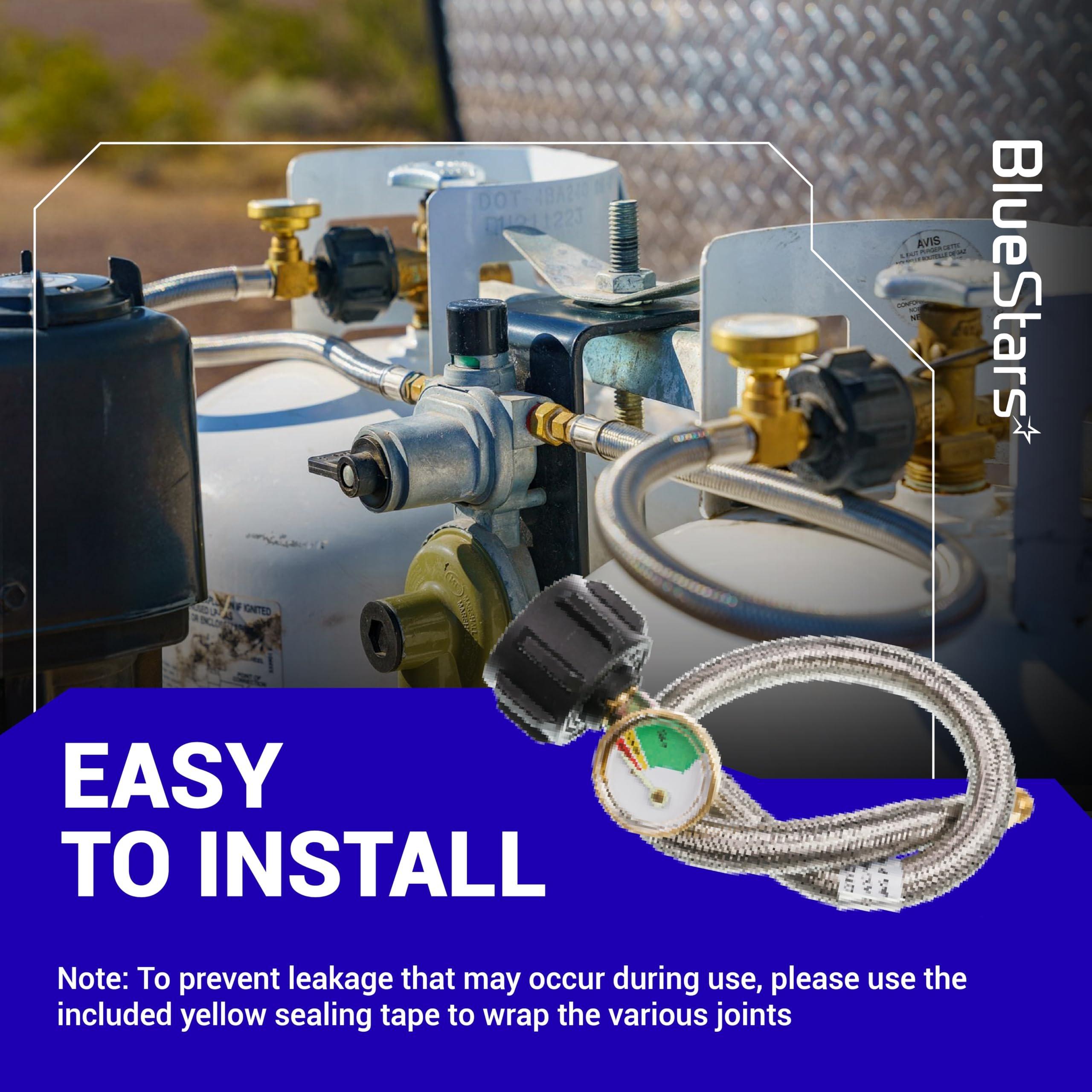

• Apply the included thread seal tape to the male inverted flare threads before connecting to the regulator.
• Use an appropriate wrench to tighten the 1/4 inch inverted flare fitting onto the regulator. Do not over-tighten.
• After connecting both ends, slowly open the tank valve and check all connections for leaks with a soapy water solution. Bubbles indicate a leak.
