[Lifetime Warranty] WH05X29521 Washer Door Gasket - Compatible with GE GFW550SSN0WW GFW550SSN2WW GFW550SSN5WW GFW550SSN1WW GFW550SPR5RS GFW510SCN0WW - Replaces AP6983548 PS12743602 EAP12743602 4978358

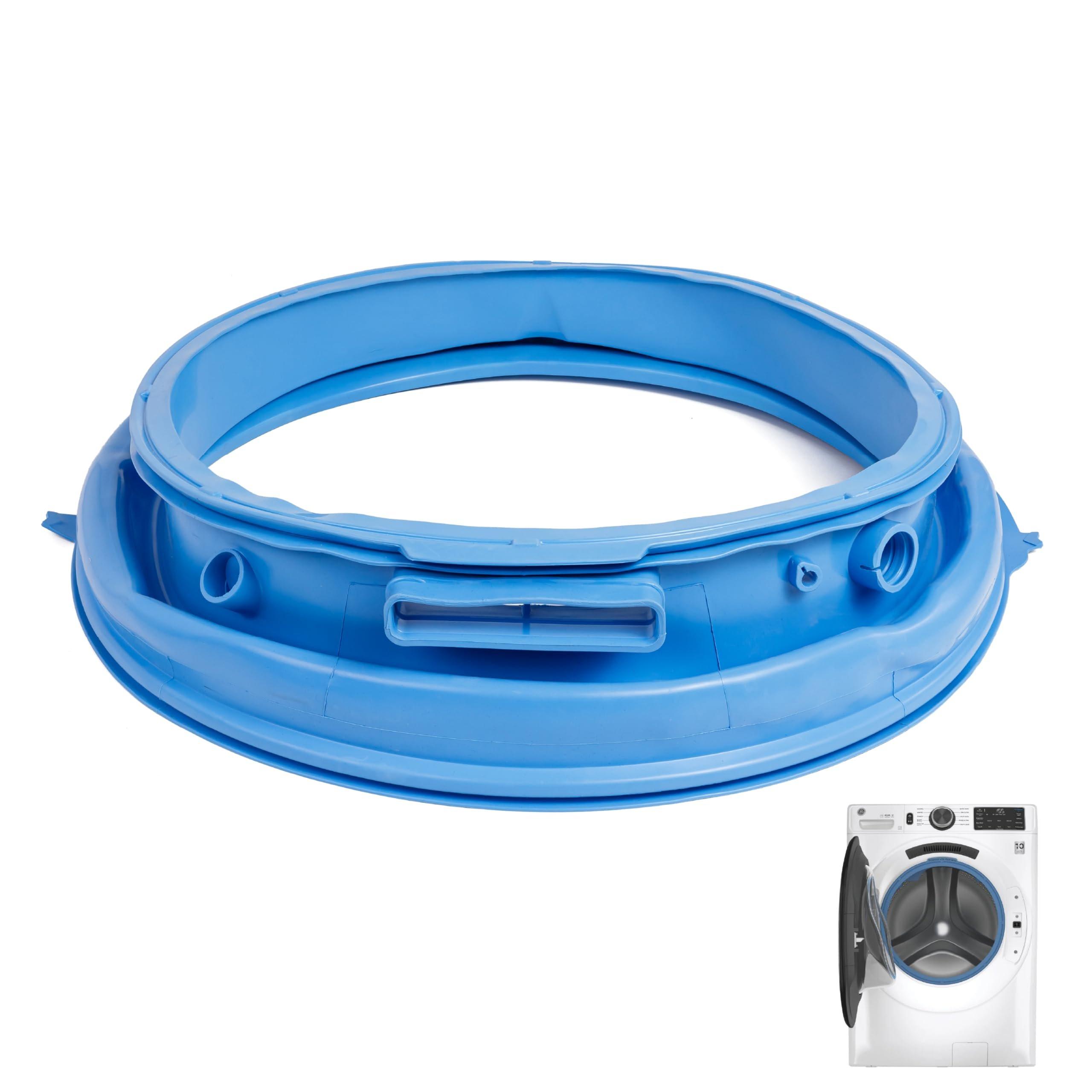

WH05X29521 Front-Load Washer Door Gasket

Key Features

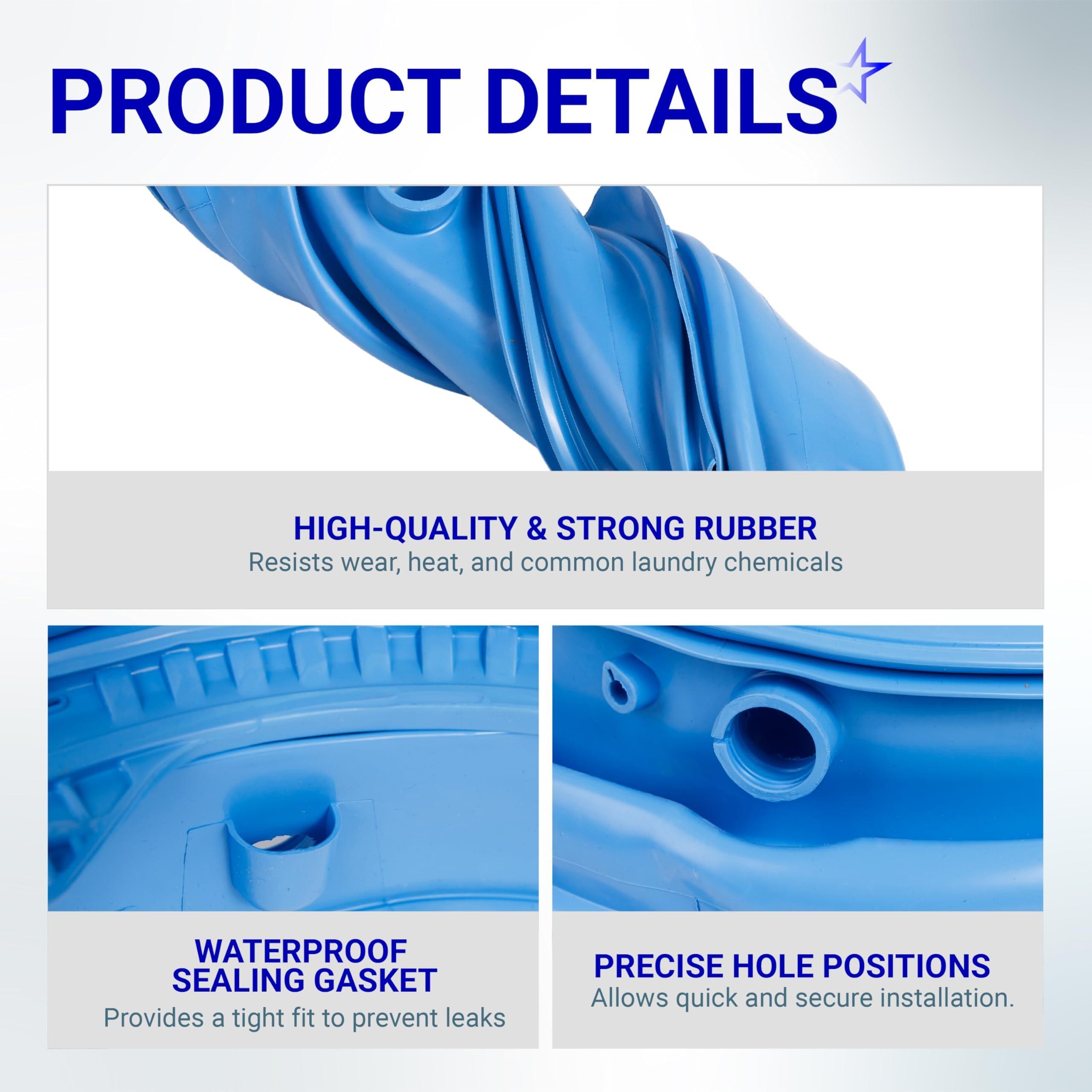

• UltraFresh Vent System Compatible:Specifically designed for GE washers featuring the UltraFresh technology, with specialized drainage and airflow ports to help prevent moisture buildup.
• Flexible Antimicrobial Rubber:Manufactured from high-grade, mold-resistant synthetic rubber that maintains a watertight seal while resisting chemical degradation from detergents and bleach.
• Integrated Drain Ports:Features precision-molded holes at the bottom of the bellows to ensure water drains back into the tub, reducing stagnant water and associated odors.
• High-Tension Fit:Engineered to withstand high-speed spin cycles, maintaining the structural integrity of the seal against the door glass and outer tub.

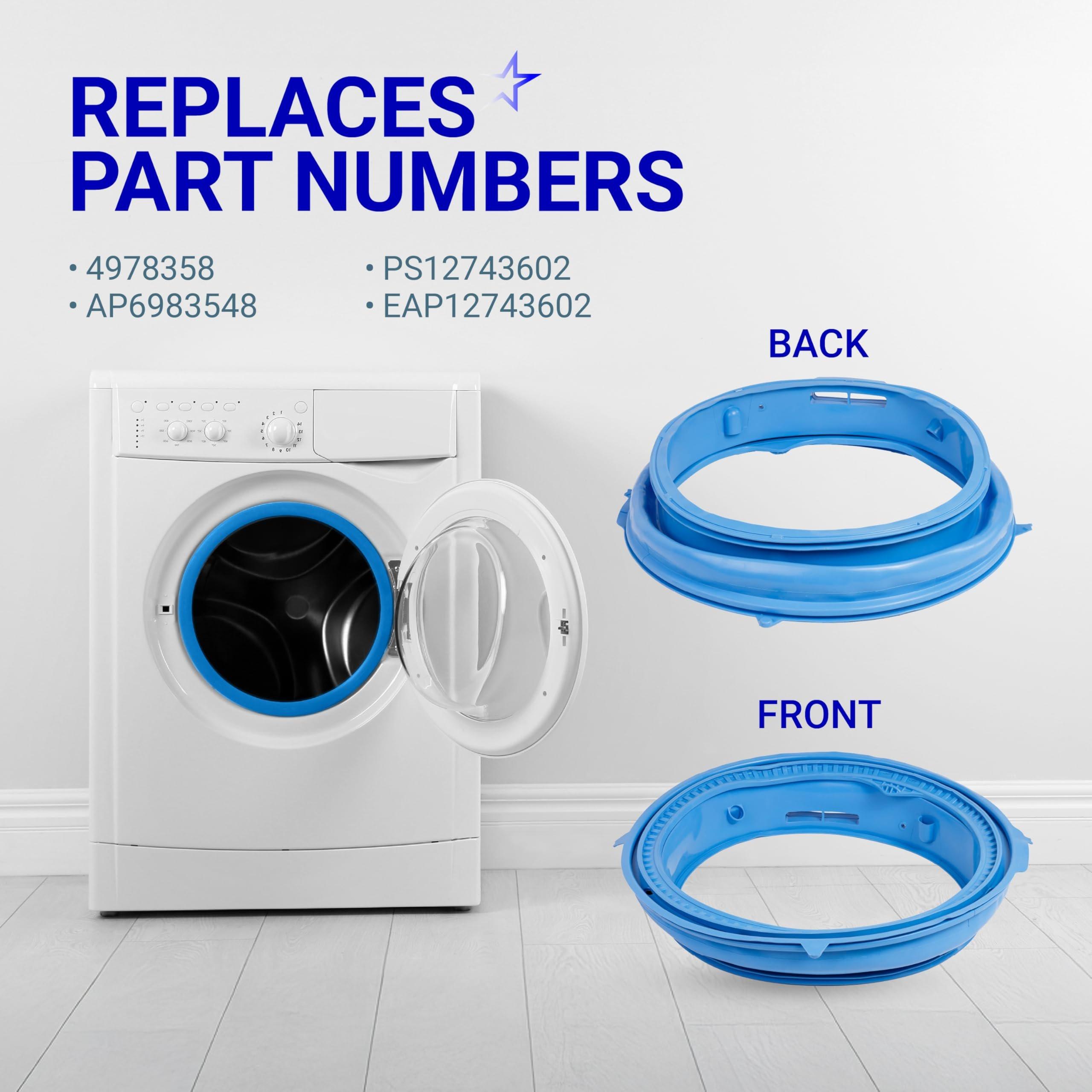

Replaces / Cross-Reference Part Numbers

• WH05X29521
• 4978358
• AP6983548
• PS12743602
• EAP12743602
• PD00057056

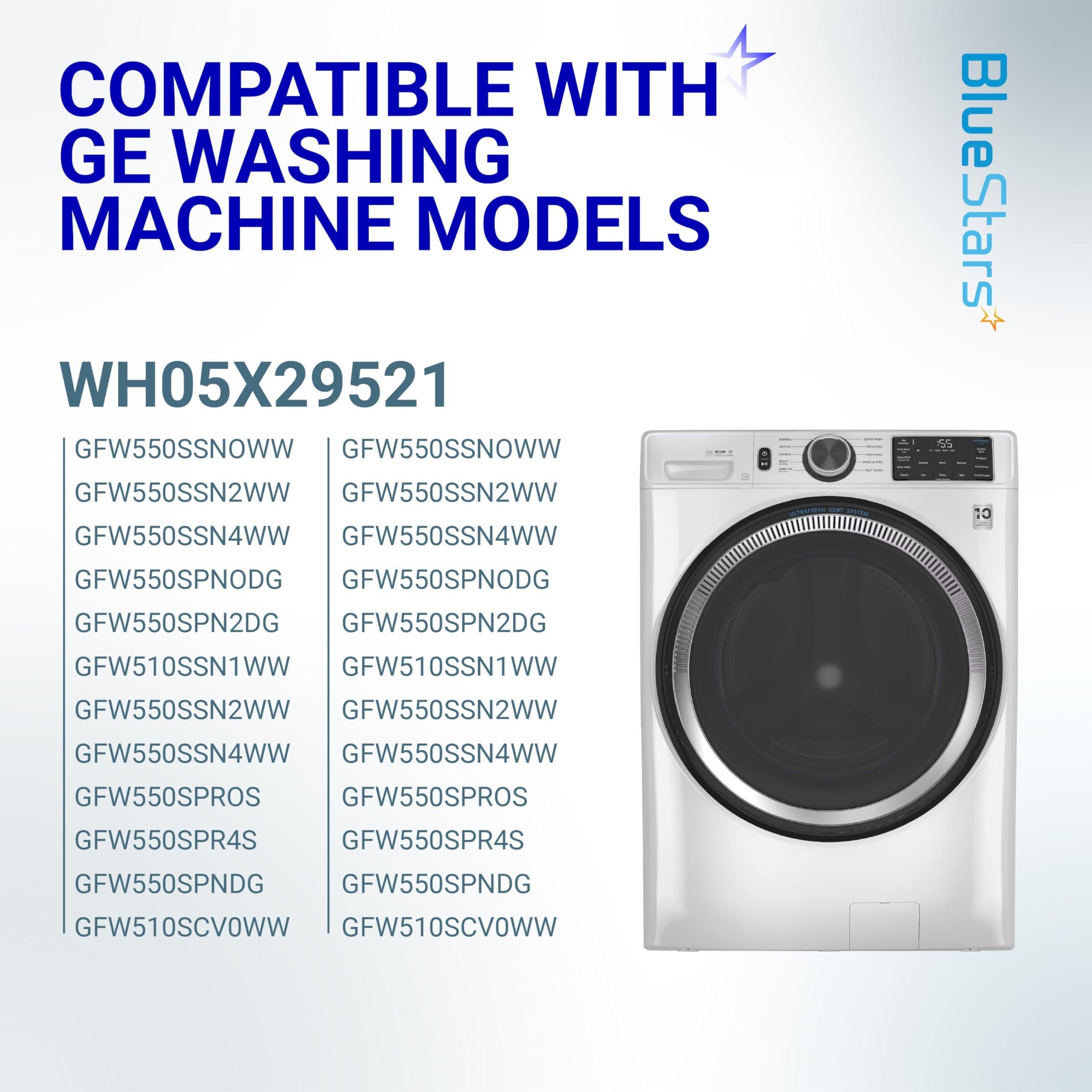

Compatibility & Fitment

• GFW550 Series:GFW550SSN0WW, GFW550SSN1WW, GFW550SSN2WW, GFW550SSN5WW, GFW550SPR5RS.
• GFW510 Series:GFW510SCN0WW, GFW510SCN1WW, GFW510SCN2WW.
• GFW650 Series:GFW650SSN0WW, GFW650SPN0RS, GFW650SSN2WW.
• GFW850 Series:GFW850SSN0WW, GFW850SPN0RS.

When to Replace

• Visible Water Leaks:Water is dripping from the bottom of the door during the wash or spin cycle.
• Tears or Punctures:Sharp objects like zippers or bra wires have sliced the rubber, compromising the seal.
• Persistent Odors:Despite cleaning, the gasket has deep mold or mildew growth within the folds that cannot be removed.
• Deformation:The rubber has become warped or "wavy," preventing the door from closing or sealing properly.
• Staining:Excessive buildup of calcium or detergent residue has made the rubber brittle and prone to cracking.

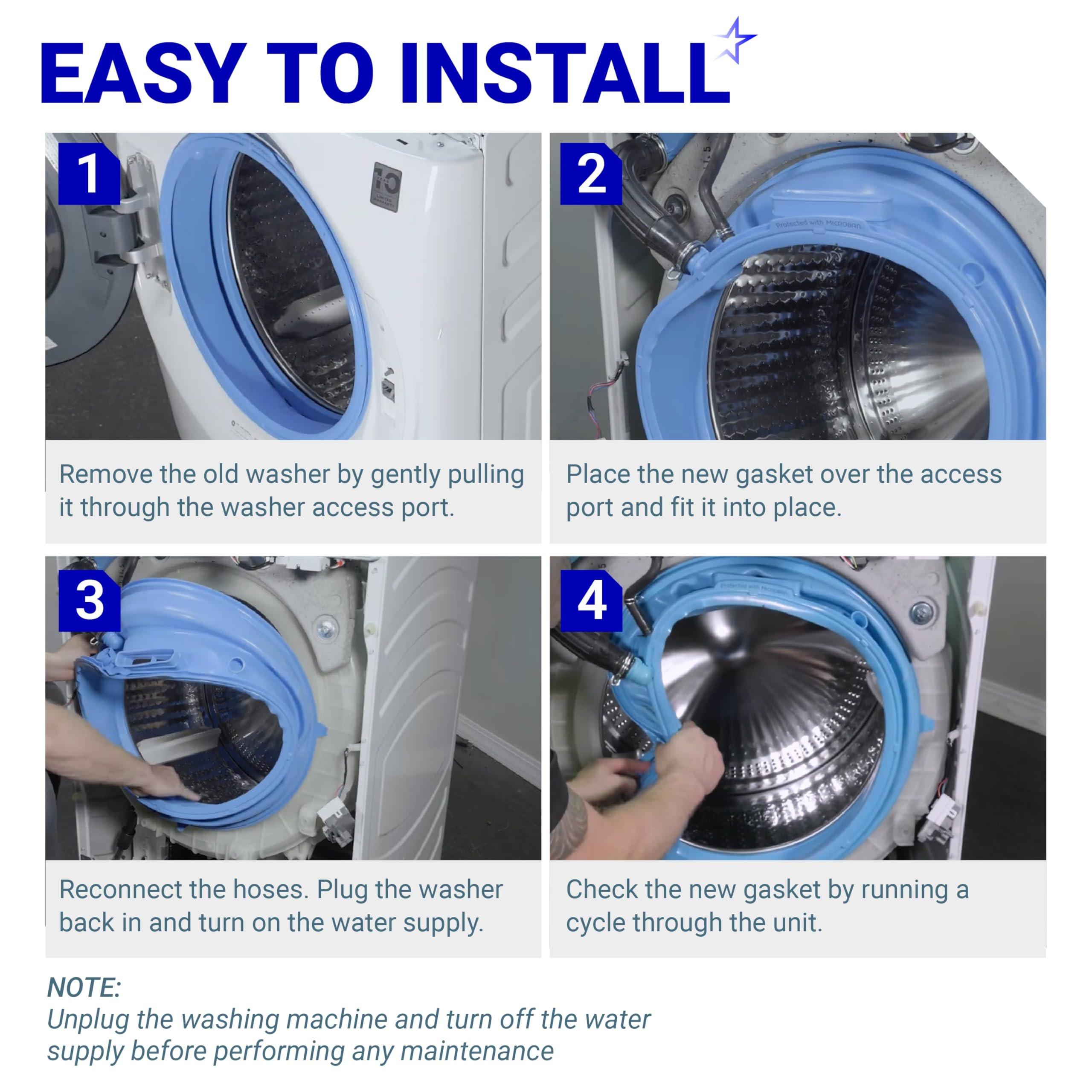

Installation Tips

• Safety First:Unplug the washer before beginning. Replacing a door gasket typically requires removing the front panel and the top cover of the machine.
• Spring Expansion Tool:Highly recommended. You will need to remove a high-tension outer wire clamp and an inner tub clamp. A specialized spring expansion tool (like theWH01X28532) makes this significantly easier and safer.
• Alignment Marks:Look for the "arrow" or "notch" on the new gasket and align it perfectly with the mark on the outer tub (usually at the 12 o'clock position).
• Lubrication:Apply a small amount of liquid dish soap to the lip of the gasket to help it slide onto the tub flange more easily.
• Check the Drain:Ensure the drain tube at the bottom of the gasket is connected securely to the drain port to prevent internal leaks.
