[Lifetime Warranty] 590739 Recoil Starter

590739 Recoil Starter

Key Features

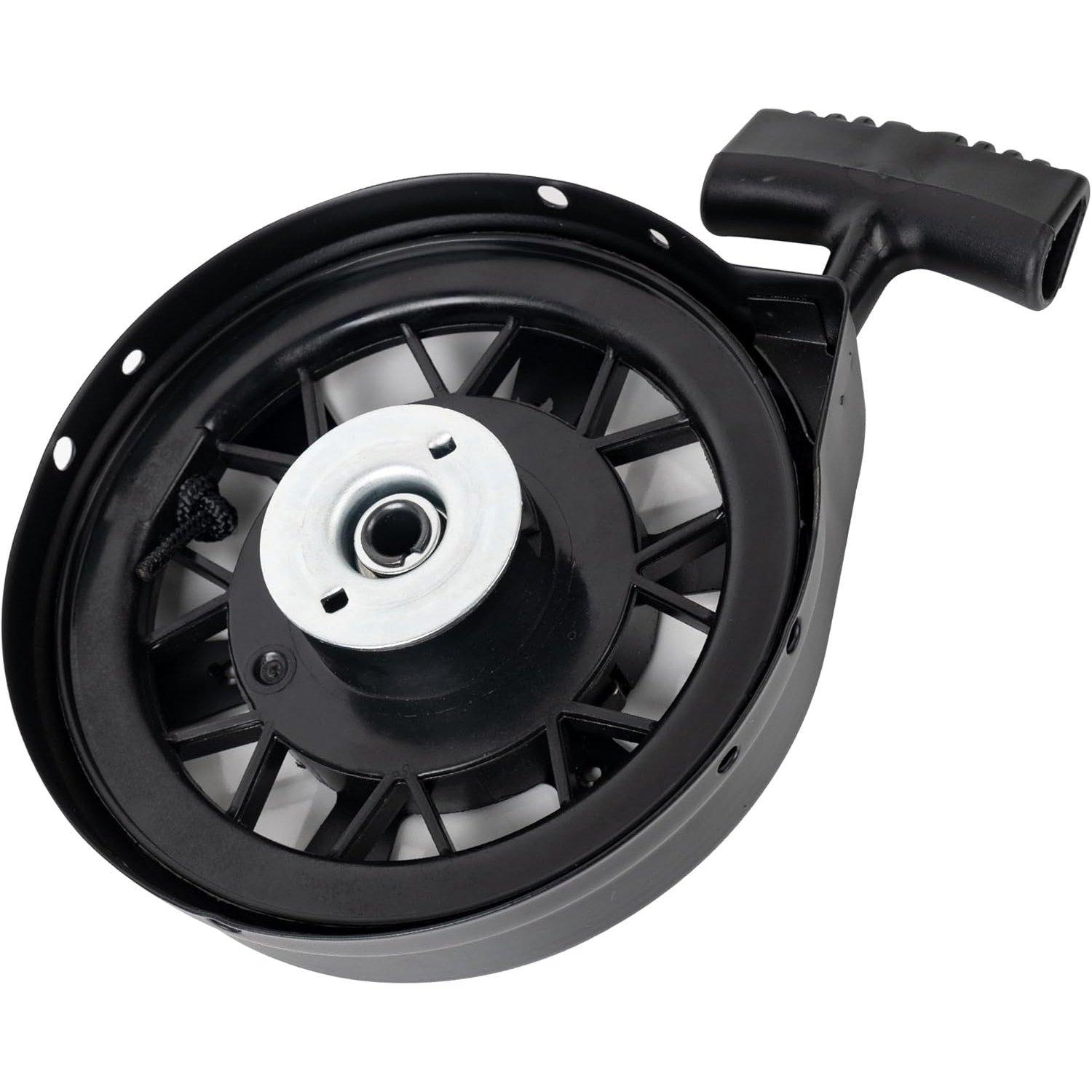

• Complete recoil starter assembly for small engines
• Engages the flywheel drive cup to start the engine
• Includes pull rope, handle, and internal spring mechanism

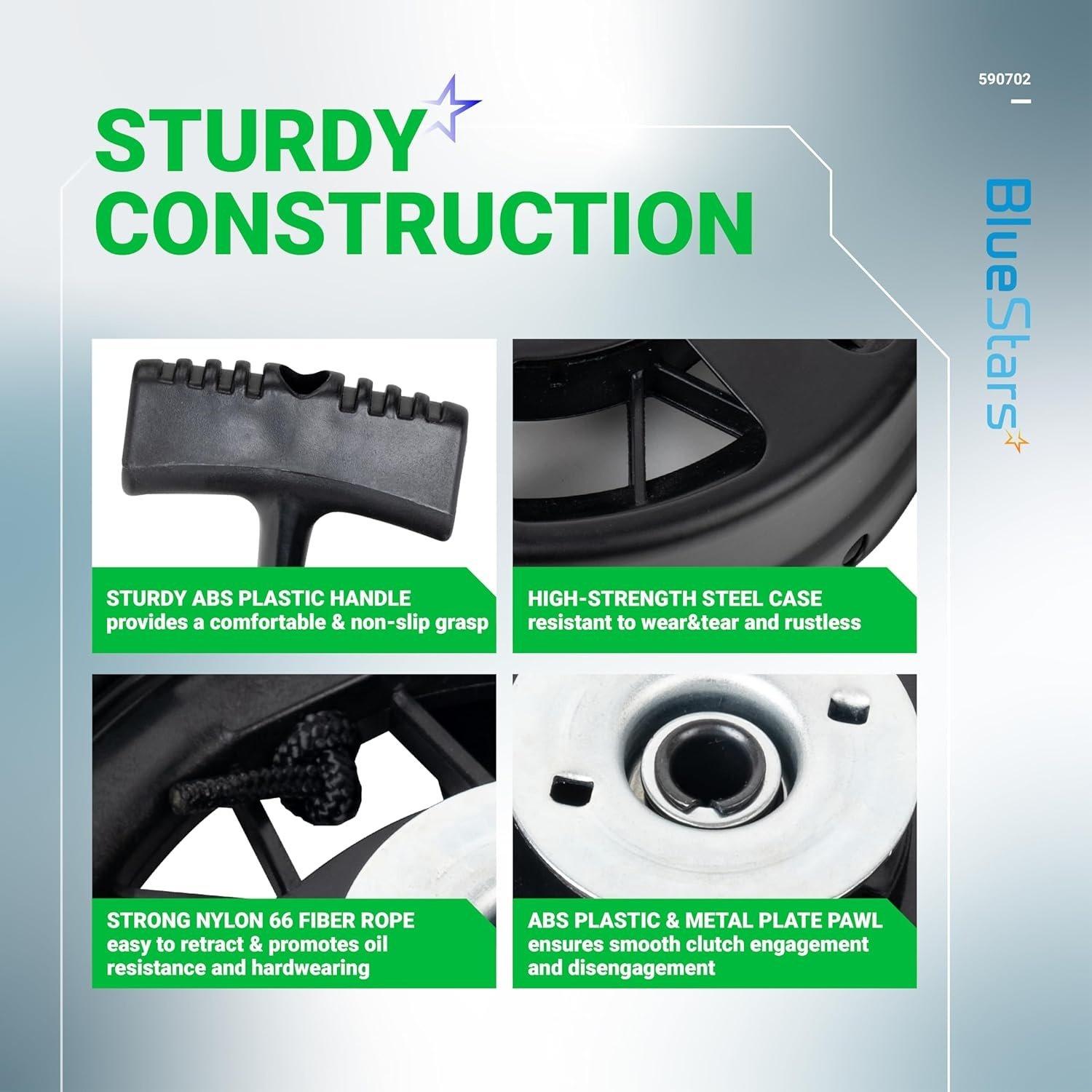

• Durable metal and polymer construction
• Direct replacement for the original manufacturer part

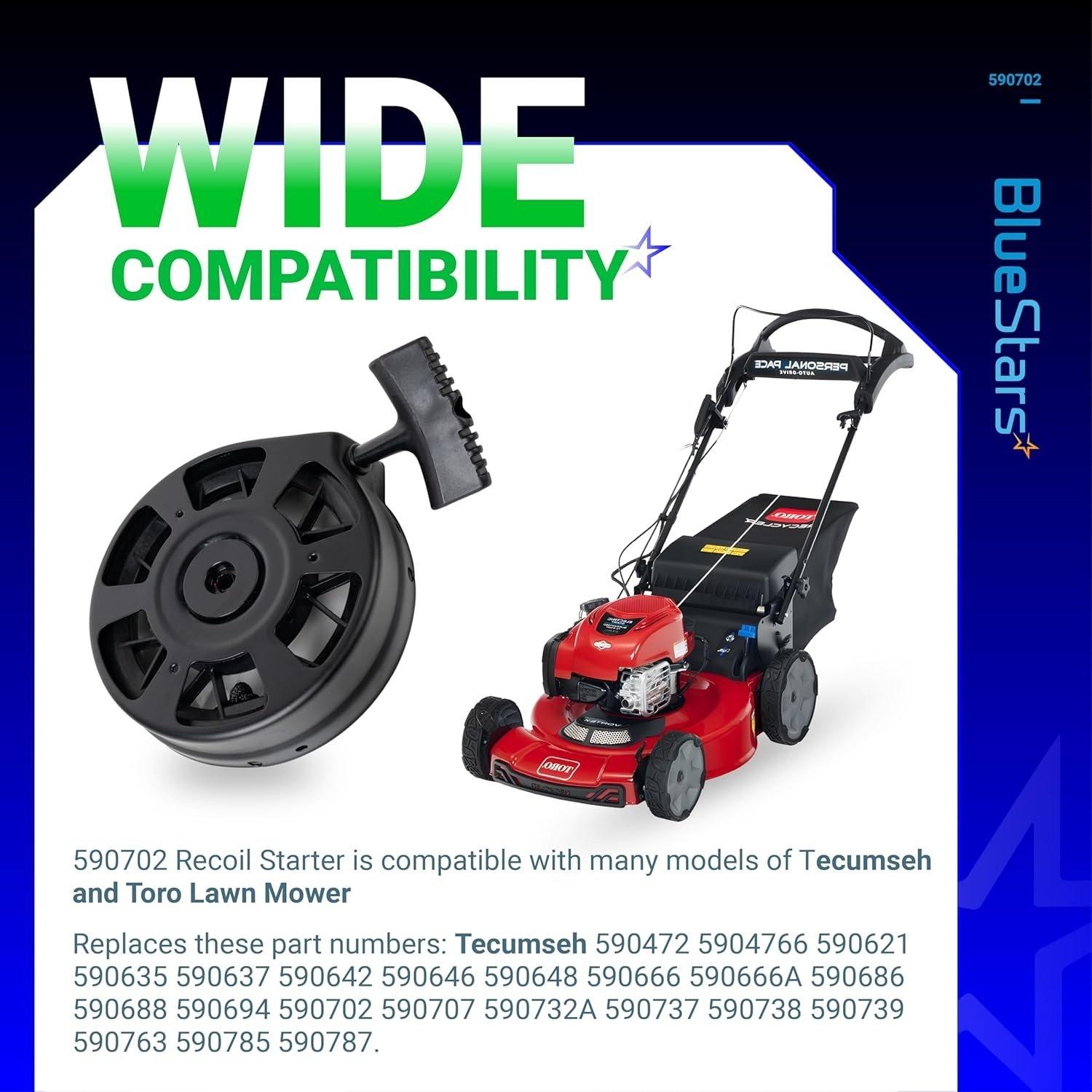

Replaces / Cross-Reference Part Numbers

• Tecumseh: 590739, 590702, 590637
• Rotary: 12655

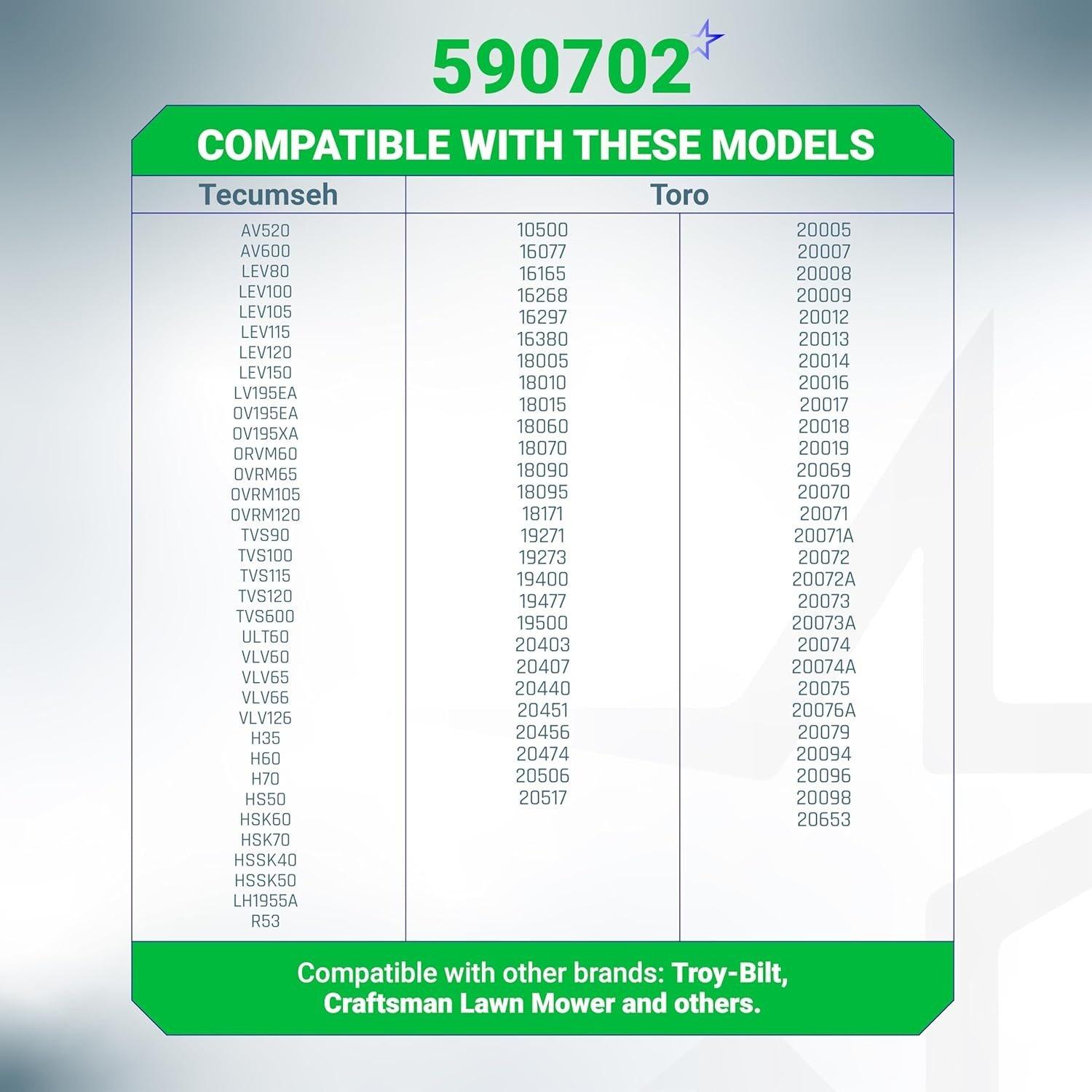

Compatibility & Fitment

• Fits various Tecumseh vertical shaft engines, including the following models:
• LEV Series: LEV80, LEV100, LEV105, LEV115, LEV120
• LV Series: LV148, LV195, LV195EA
• OV Series: OV195
• OVRM Series: OVRM60, OVRM65, OVRM105, OVRM120
• TVS Series: TVS100, TVS115

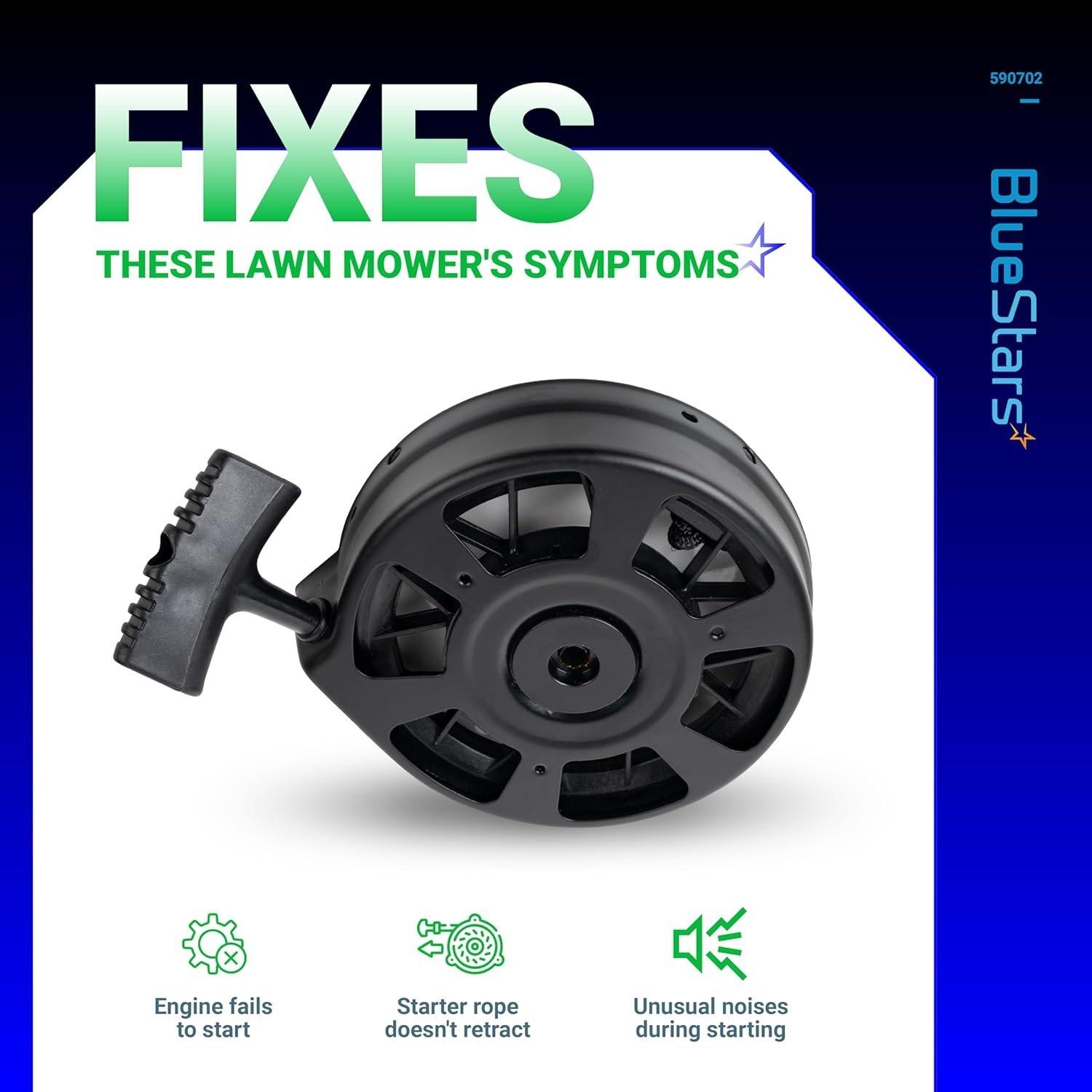

When to Replace

• Pull rope is broken, frayed, or will not retract
• Starter fails to engage the engine flywheel
• Excessive resistance or grinding noise when pulling the rope
• Housing is cracked, broken, or damaged
• Internal spring or pawl mechanism is broken

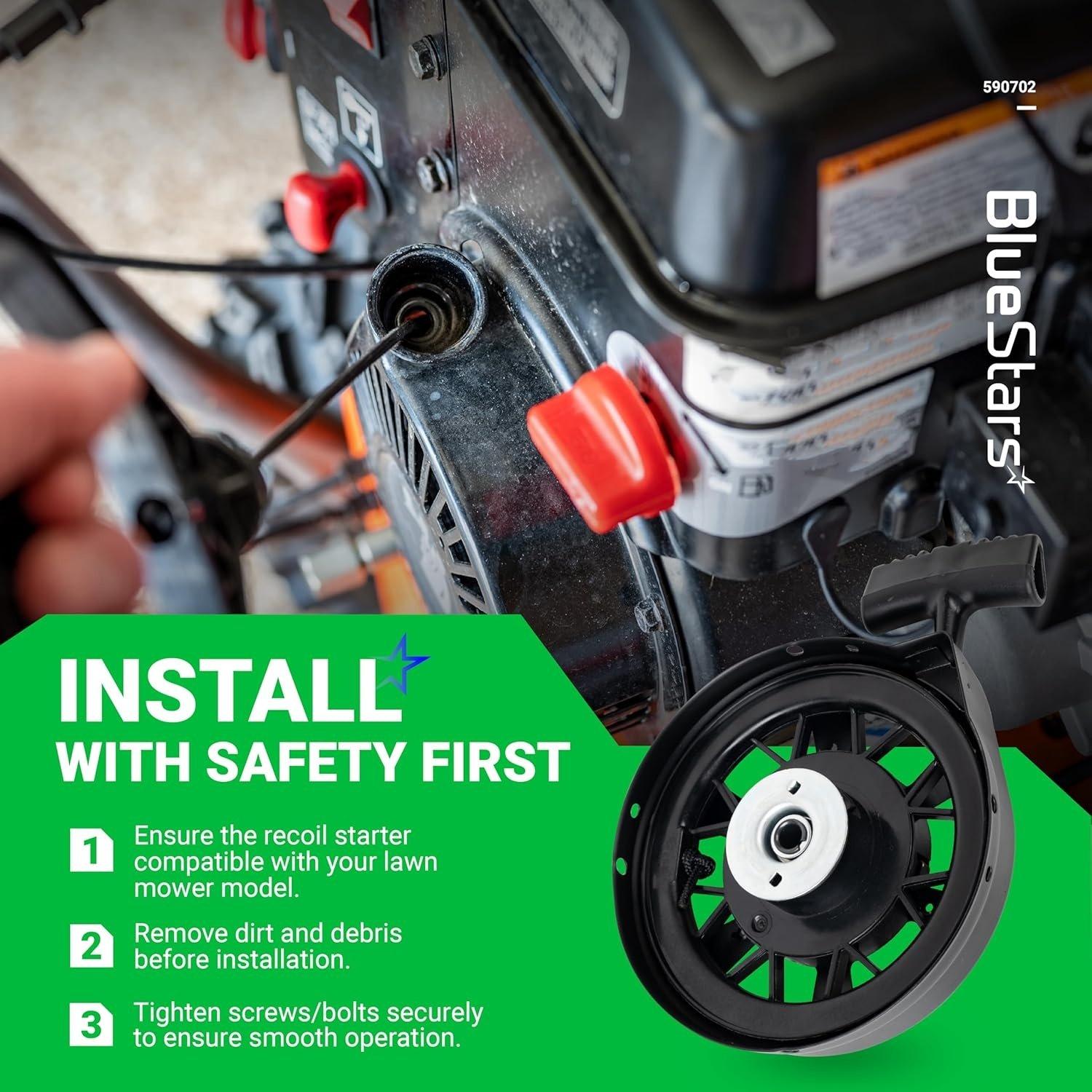

Installation Tips

• Disconnect the spark plug wire before starting work for safety.
• Remove the bolts securing the old recoil starter housing to the engine shroud.
• Ensure the new starter assembly is correctly aligned with the flywheel drive cup.
• Fasten the new assembly with the original mounting hardware.
• Tighten bolts securely and evenly to prevent damage to the housing.
• Test the recoil action before reconnecting the spark plug wire.
