[Lifetime Warranty] 30Amp Thermal Circuit Breaker 125/250V - Pack of 5

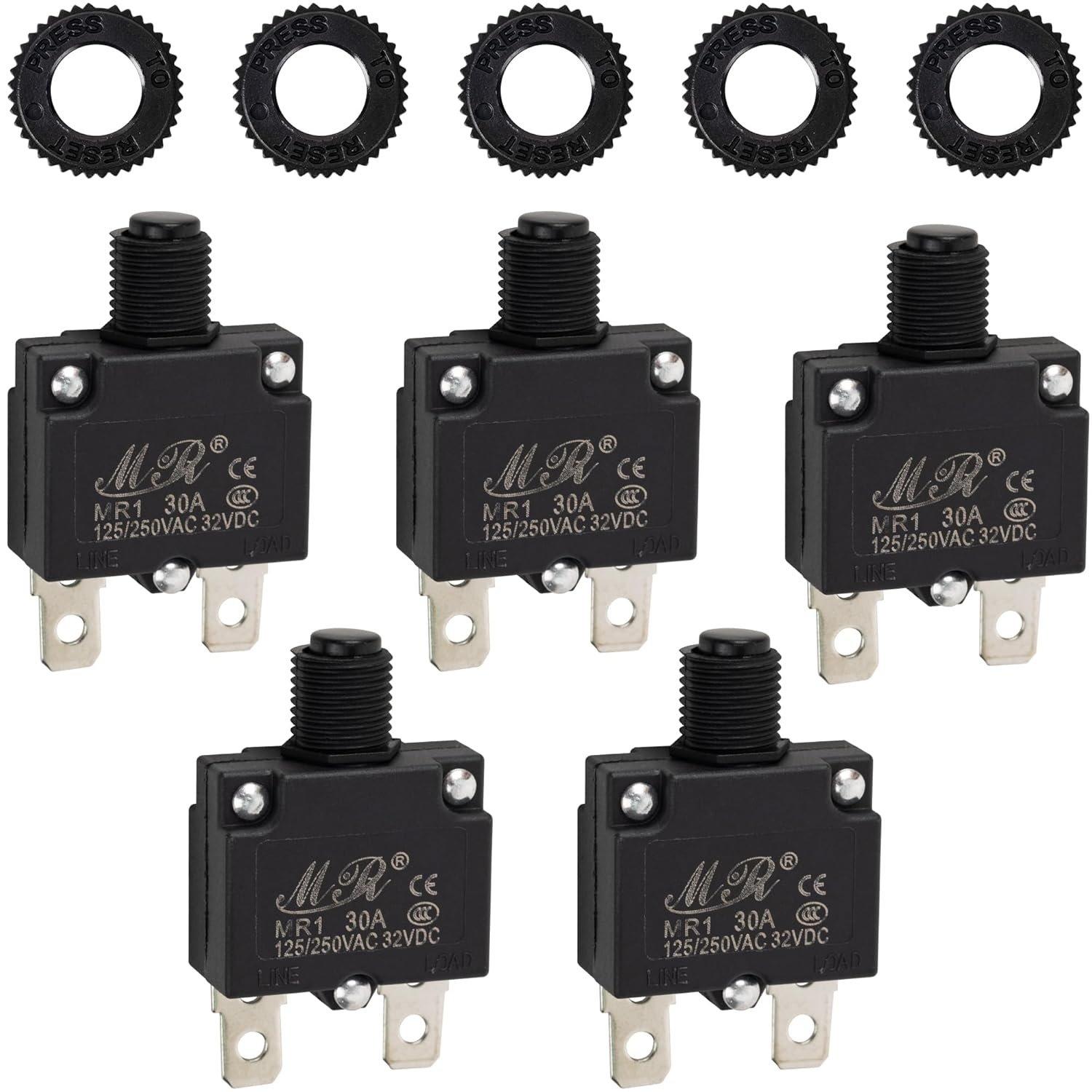

30Amp Thermal Circuit Breaker 125/250V - Pack of 5

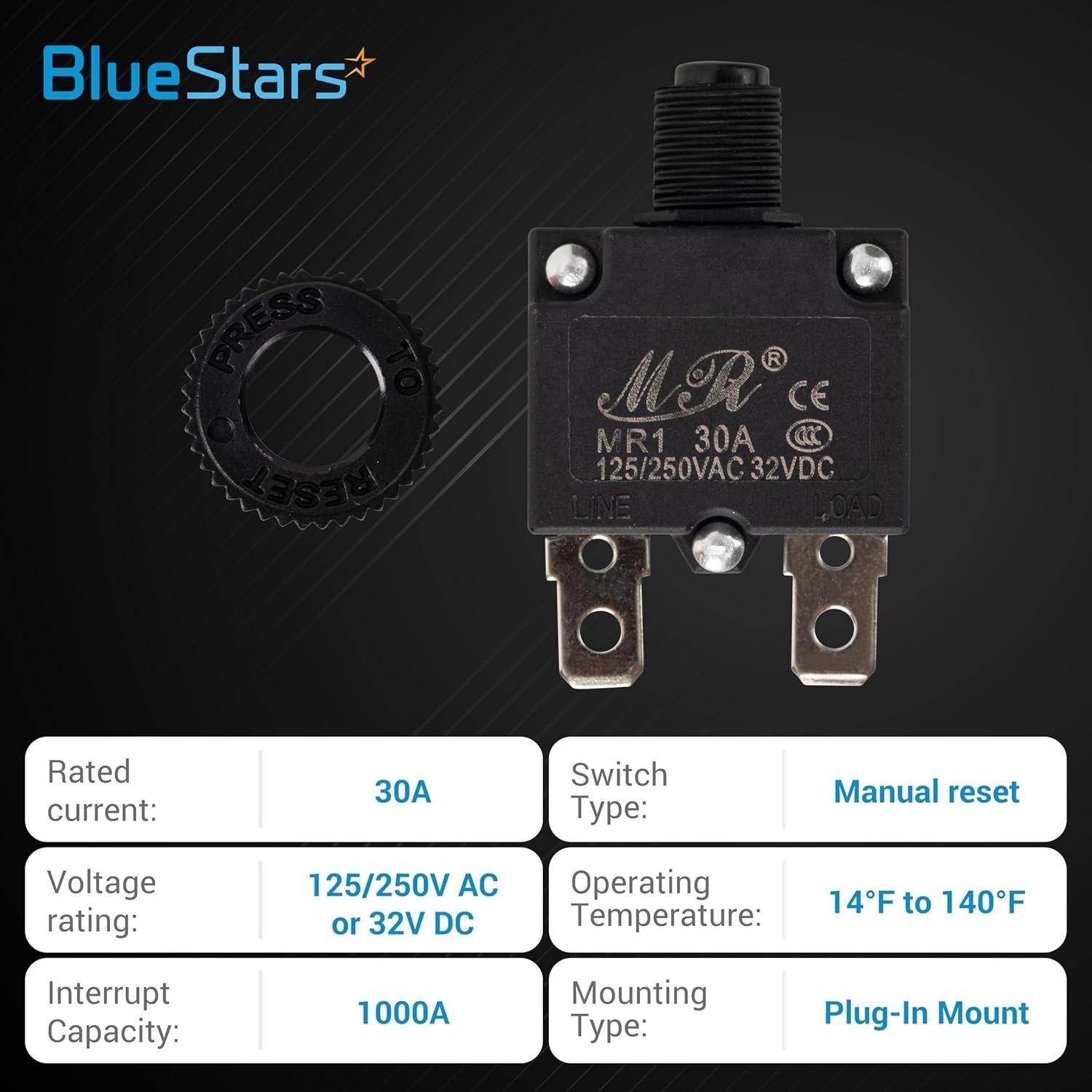

Key Features

• Quantity: 5
• Current Rating: 30A
• Voltage Rating: 125/250V AC, 32V DC
• Interrupt Capacity: 1,000A

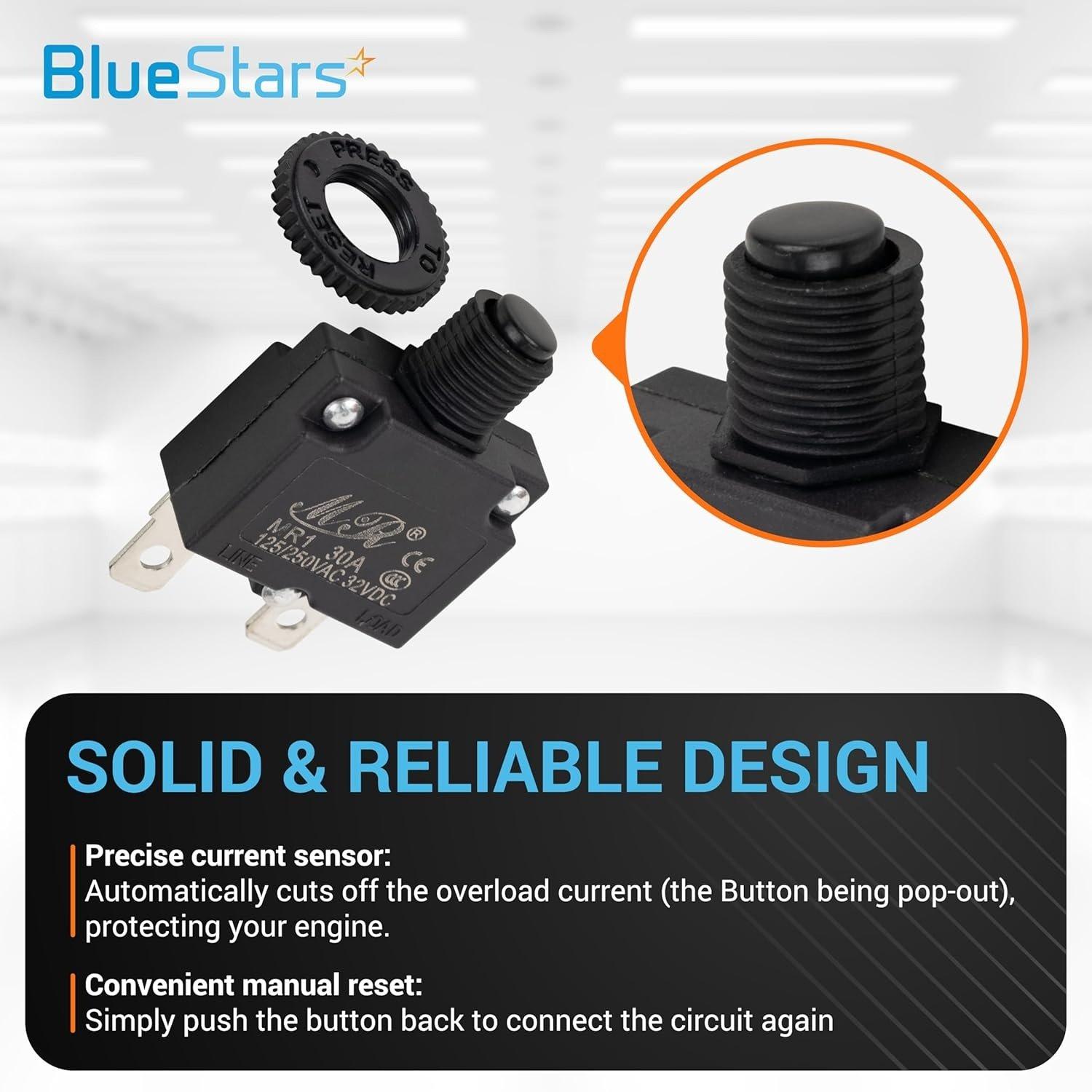

• Reset Mechanism: Manual push-to-reset
• Pole Configuration: Single Pole
• Protection Type: Thermal Overload
• Termination: Standard quick-connect terminals

Replaces / Cross-Reference Part Numbers

• Functions as a direct replacement for breakers with matching electrical ratings and physical dimensions.
• Commonly cross-referenced with T Tocas L1 and T3 series breakers.

Compatibility & Fitment

• Suitable for a wide range of applications including marine, automotive, RV, industrial controls, and power strips.
• Designed to fit standard panel mounting holes for this breaker style.
• Includes a waterproof cap for use in environments exposed to moisture or dust.

When to Replace

• Breaker fails to trip during an overcurrent condition.
• Nuisance tripping occurs under normal load conditions.
• The reset button will not stay engaged after tripping and cooling.
• Visible signs of damage, such as a cracked casing, corrosion, or melted terminals.

Installation Tips

• Disconnect all power to the circuit before beginning installation.
• Verify that the replacement breaker's amperage and voltage ratings match the circuit's requirements.
• Ensure wire connections are secure to prevent arcing or overheating.
• Use the correct wire gauge for a 30A circuit according to local electrical codes.
