[Lifetime Warranty] W10913953 49tyz-e120a1 Washer Shift Actuator Replacement - Compatible with Whirlpool Kenmore - Replaces W10815026 PS11769864 W10597177 WPW10597177 W10913953VP AP6037270

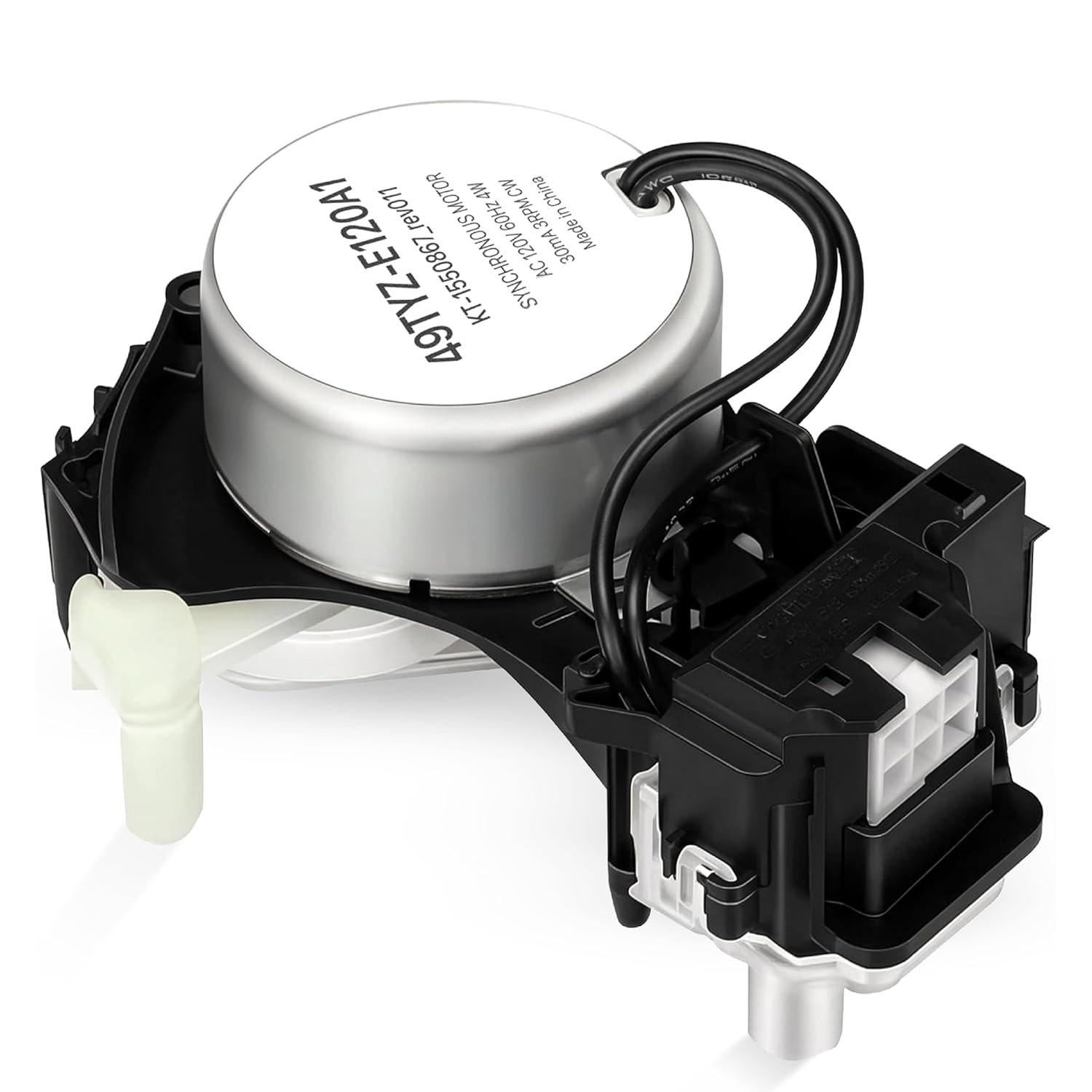

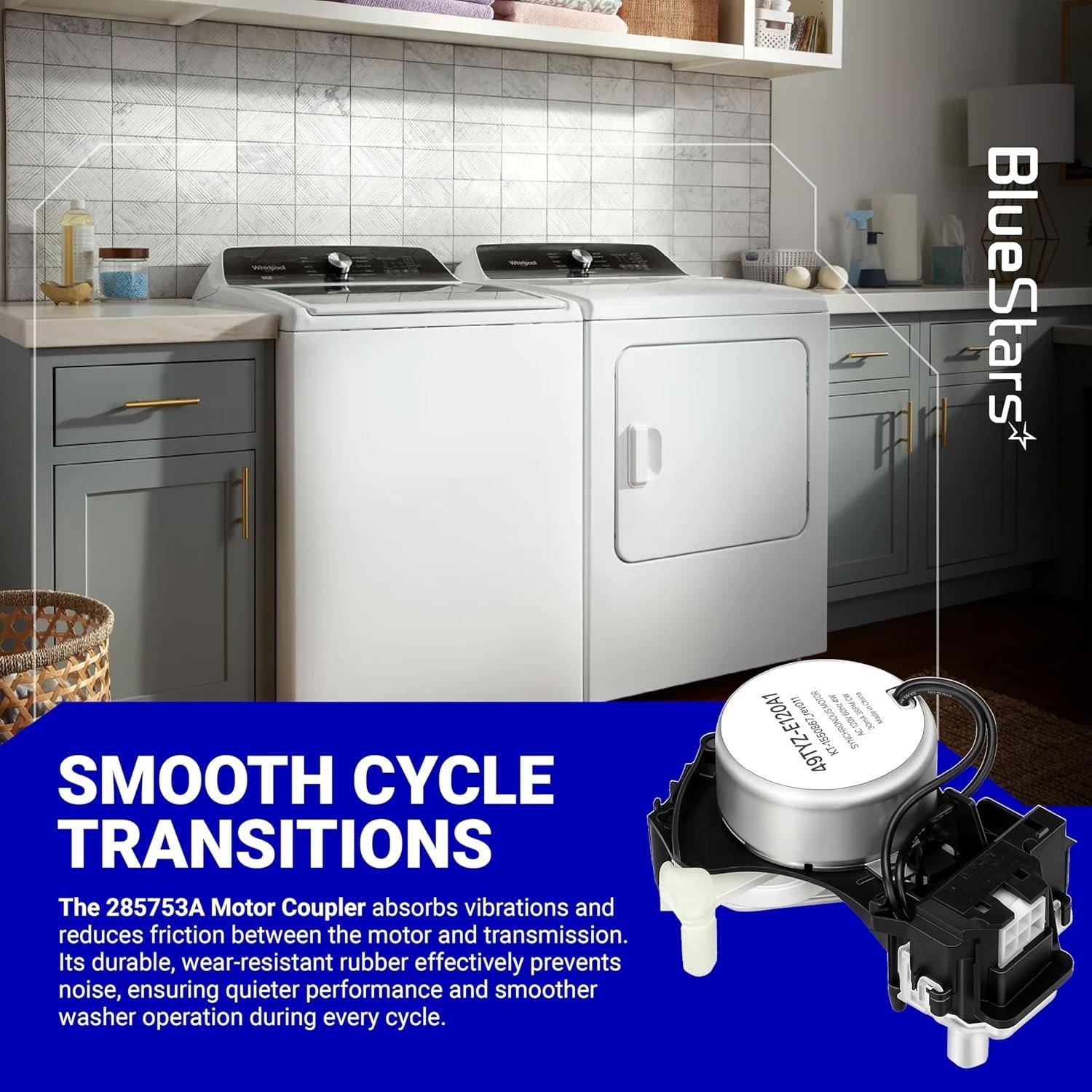

W10913953 49Tyz-E120A1 Washer Shift Actuator

Key Features

• Controls the transition between agitate and spin cycles.
• Synchronizes the motor, transmission, and tub movement.
• Includes an optical sensor to monitor motor speed and position.

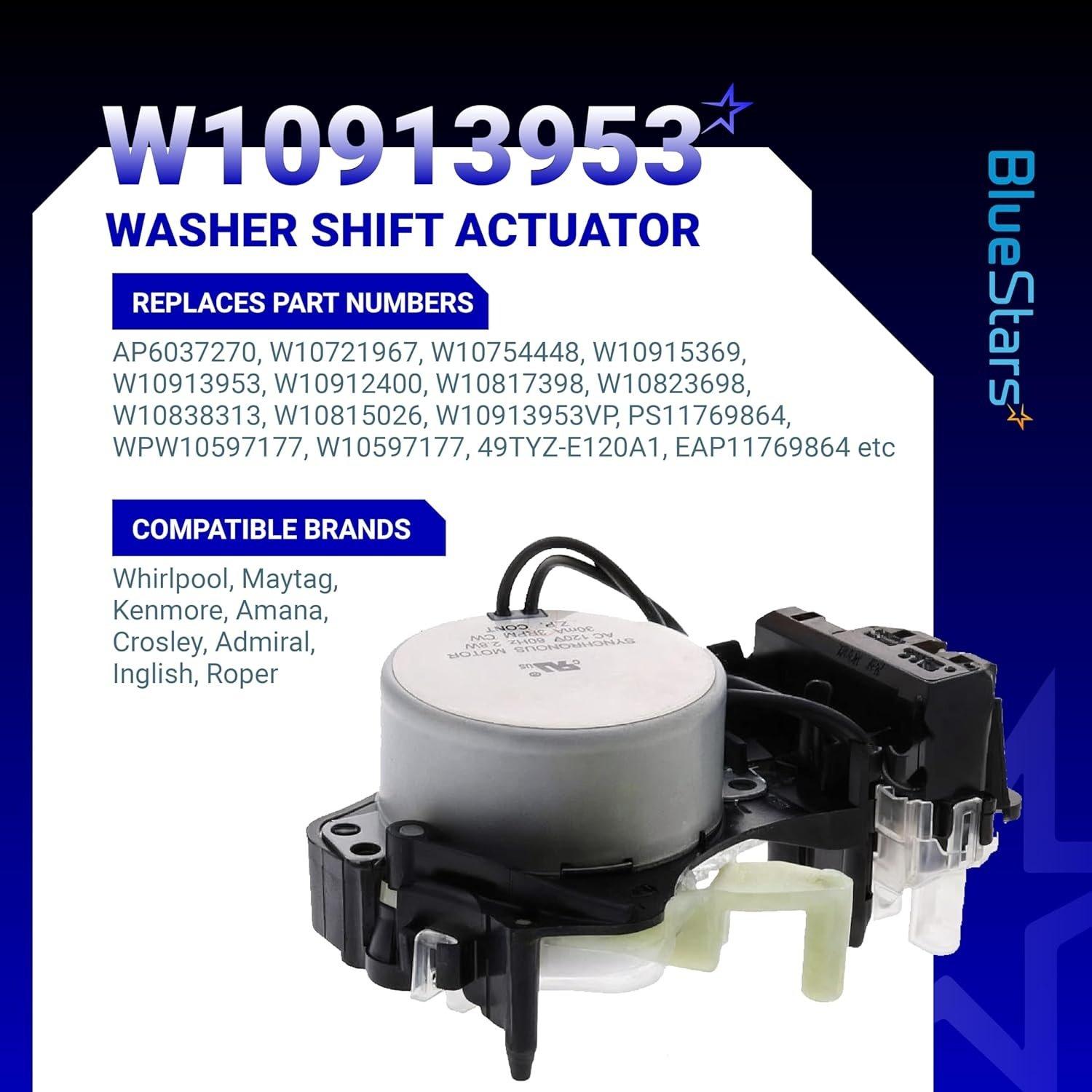

Replaces / Cross-Reference Part Numbers

• W10913953
• W10597177
• AP6037270

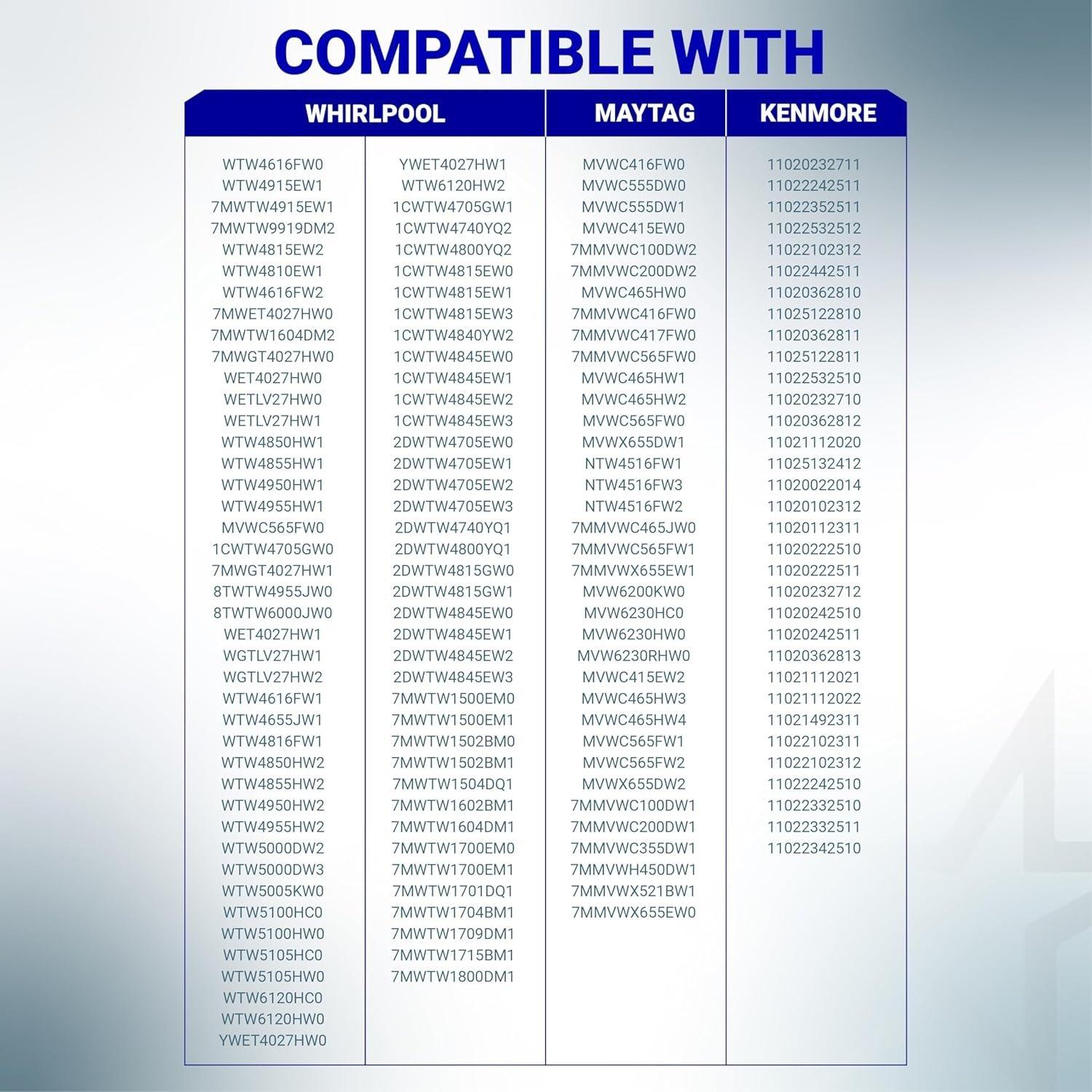

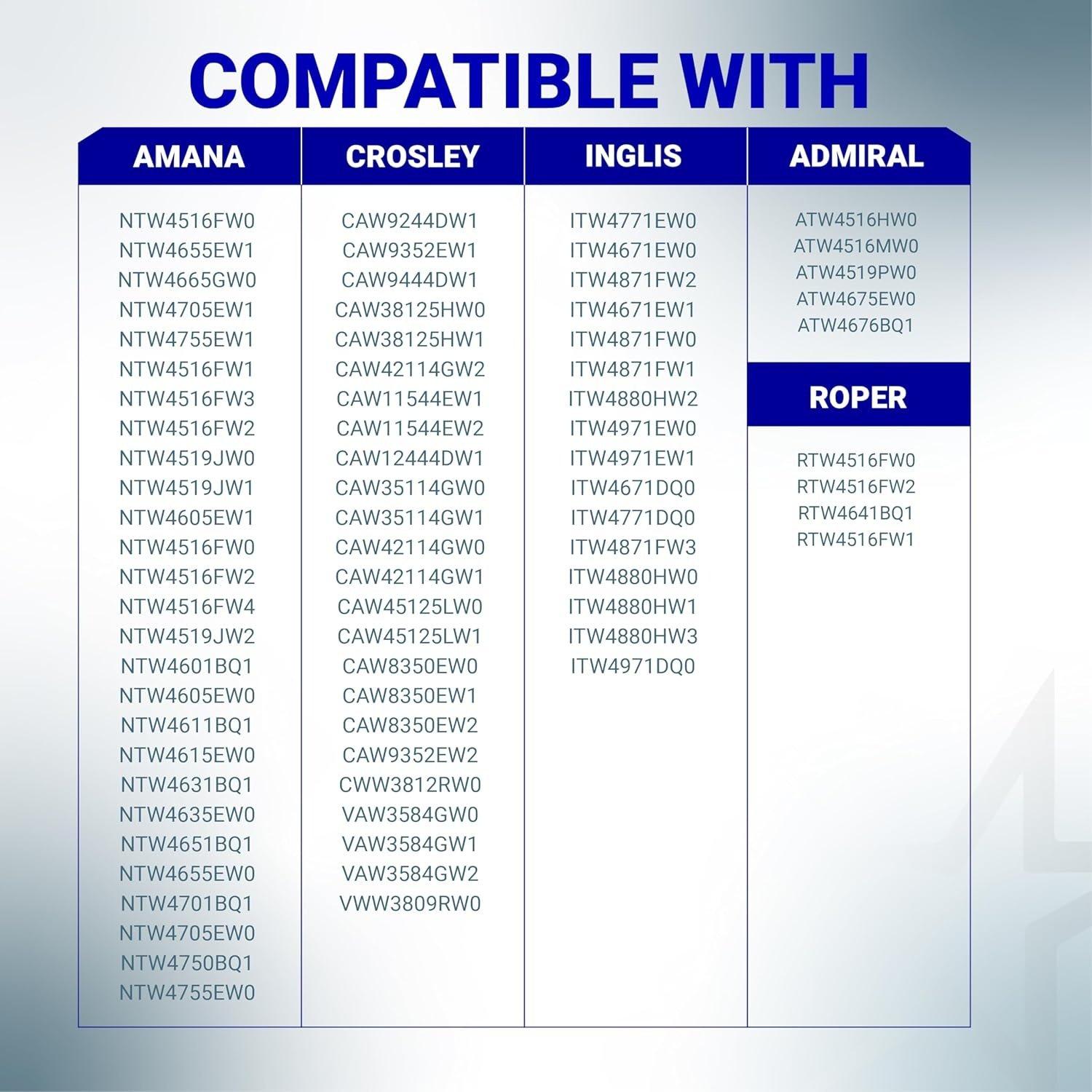

Compatibility & Fitment

• Fits specific top-load washer models.
• Compatible with select models from Amana, Crosley, Inglis, Kenmore, Maytag, Roper, and Whirlpool.

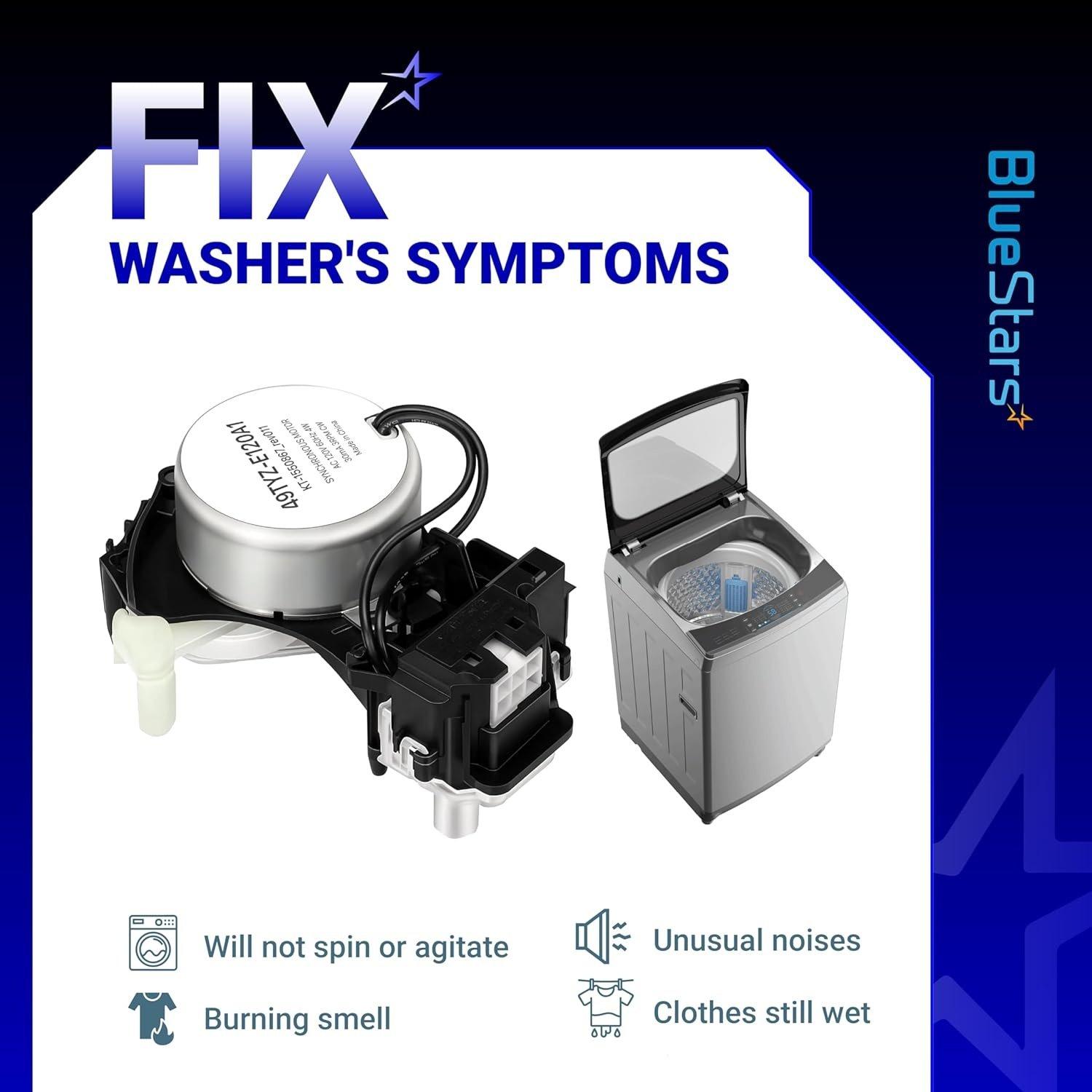

When to Replace

• Washer fails to agitate or spin.
• Machine stops mid-cycle.
• Grinding or clicking noises occur during cycle transitions.
• Actuator-related fault codes are displayed on the control panel.

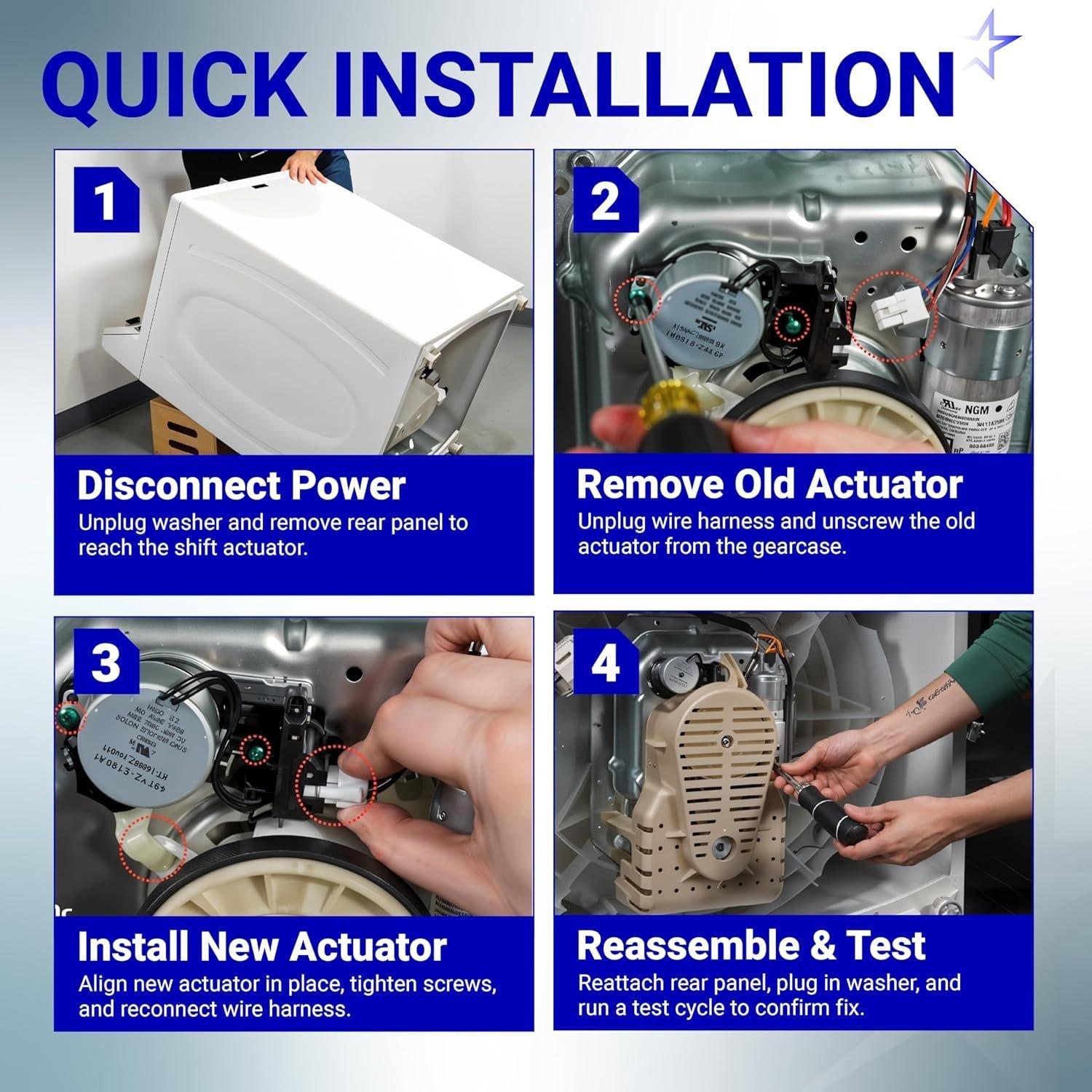

Installation Tips

• Disconnect power and water supply to the washer before servicing.
• The actuator is typically located on the bottom of the gearcase, accessible by tilting the machine.
• Remove the drive belt and mounting hardware to detach the old unit.
• After installation, run a system calibration or diagnostic cycle to ensure the control board recognizes the new component.
