Description
Description

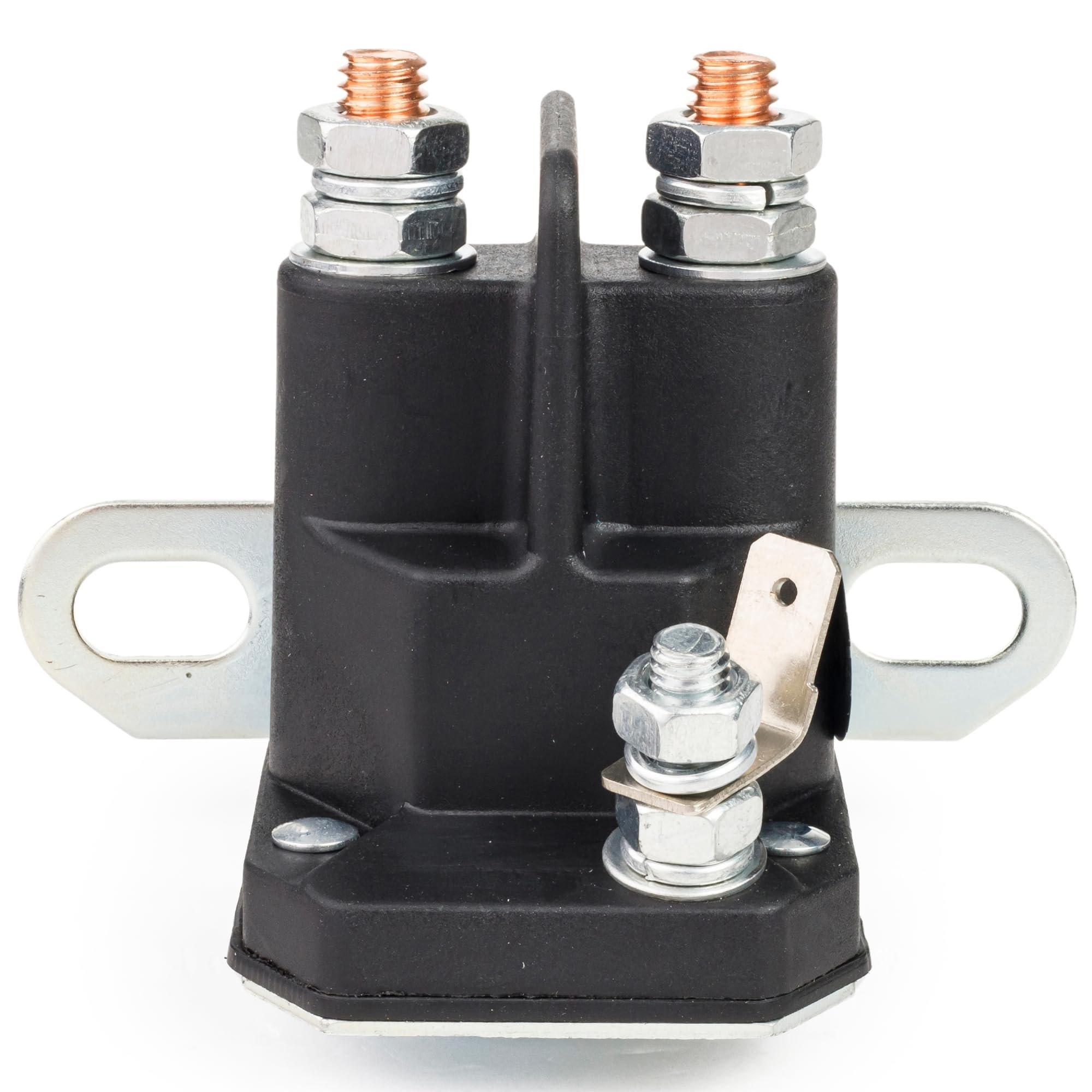

030817 12V Starter Solenoid Relay with 3 Terminals
Key Features
- 12V DC starter solenoid for compatible lawn mower electrical systems.

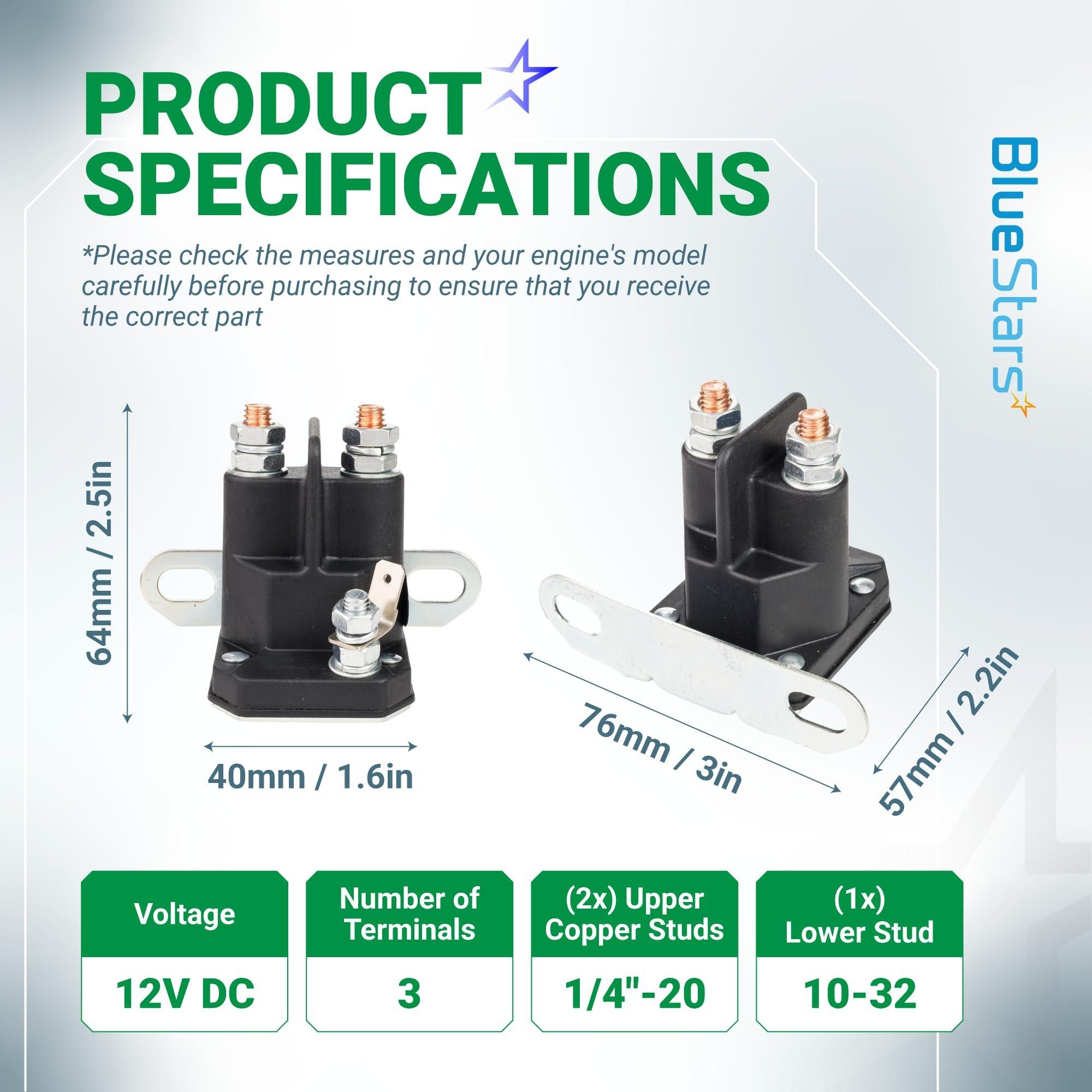

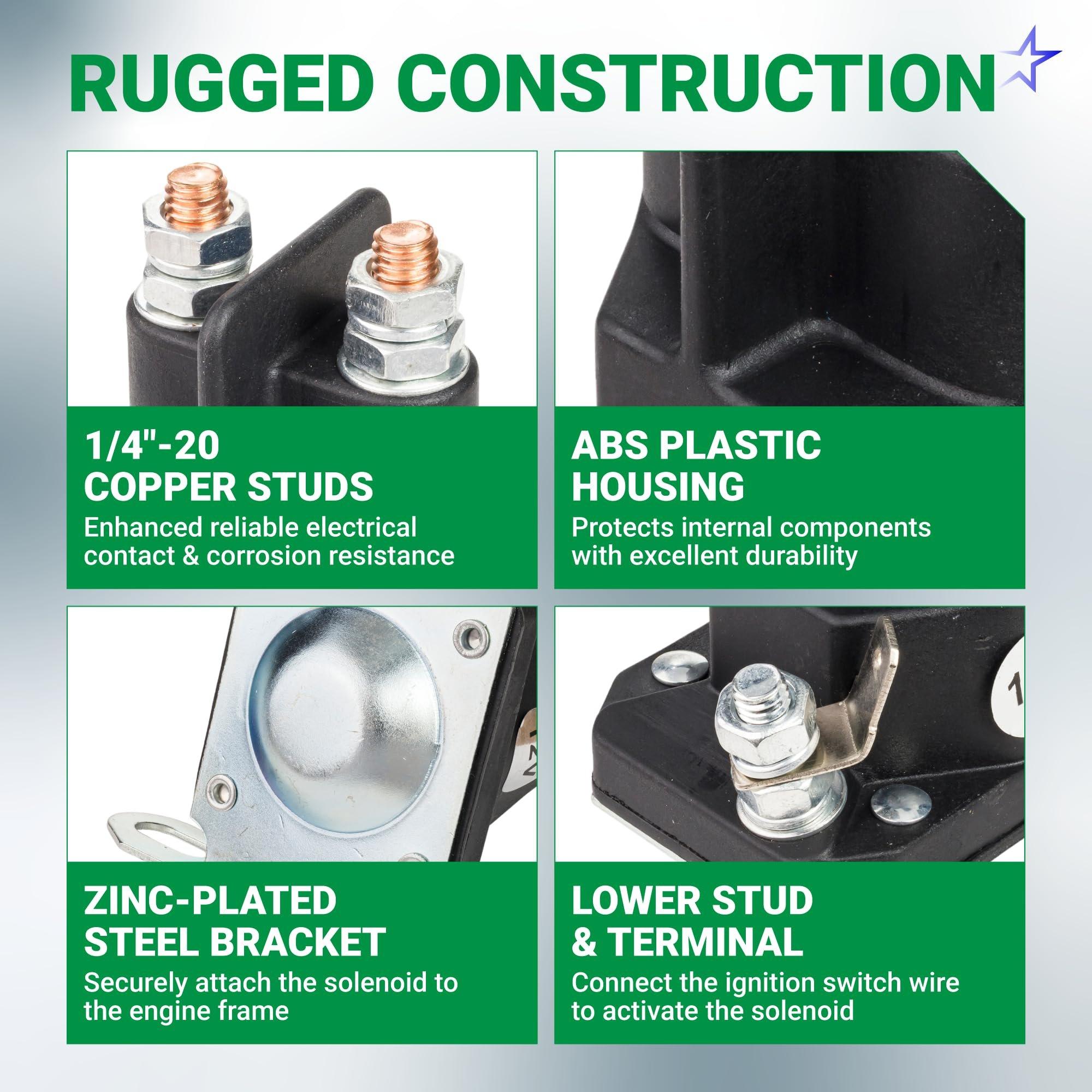

- Three-terminal configuration: two upper copper studs with 1/4-20 threads and one lower stud with a male 10-32 spade terminal.
- Screw-mount design with a one-hole mounting bracket.
- Screw connector type, copper contact material, and automatic operation.
- Transfers battery power to the starter motor to support engine cranking and startup.
- Model 30817.0; unit count: one solenoid relay.

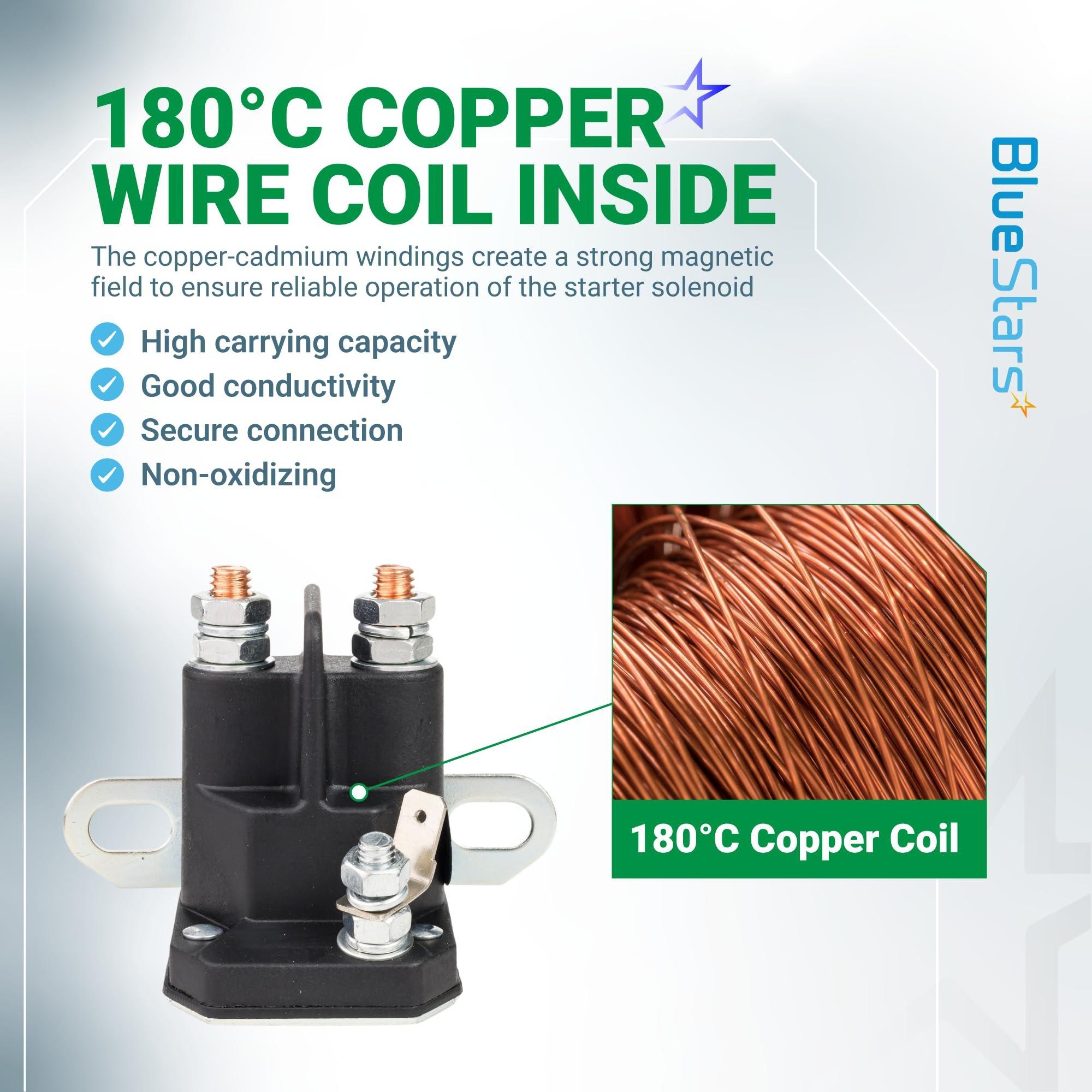

- ABS plastic housing, copper terminals, and internal copper windings rated to 180°C.
Replaces
This starter solenoid replaces the Hustler 030817W and is designed for 12V DC systems using the matching three-terminal configuration.

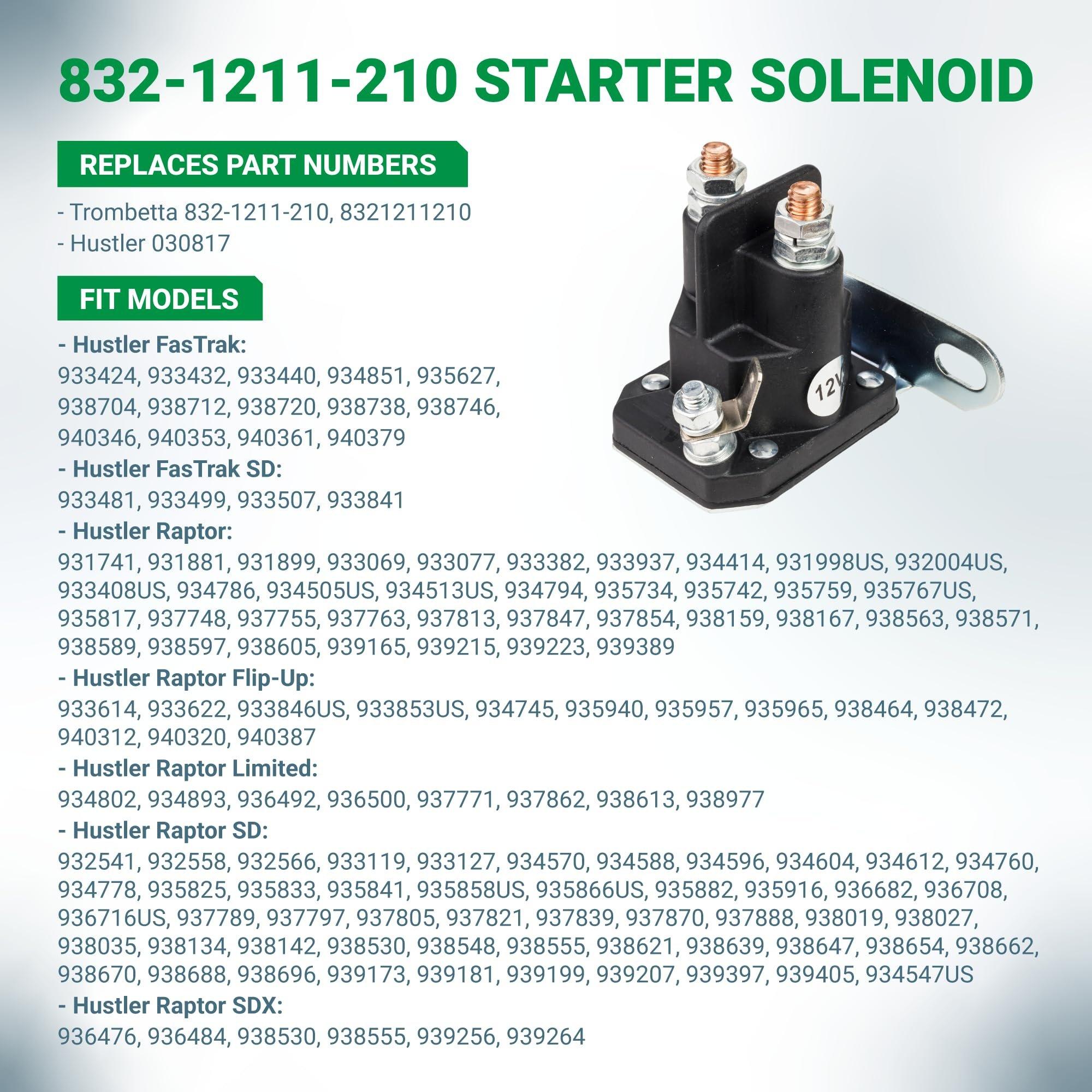

Cross-Reference Part Numbers
- 832-1211-210
- 8321211210
- Hustler 030817
- Hustler 030817W
Compatibility & Fitment

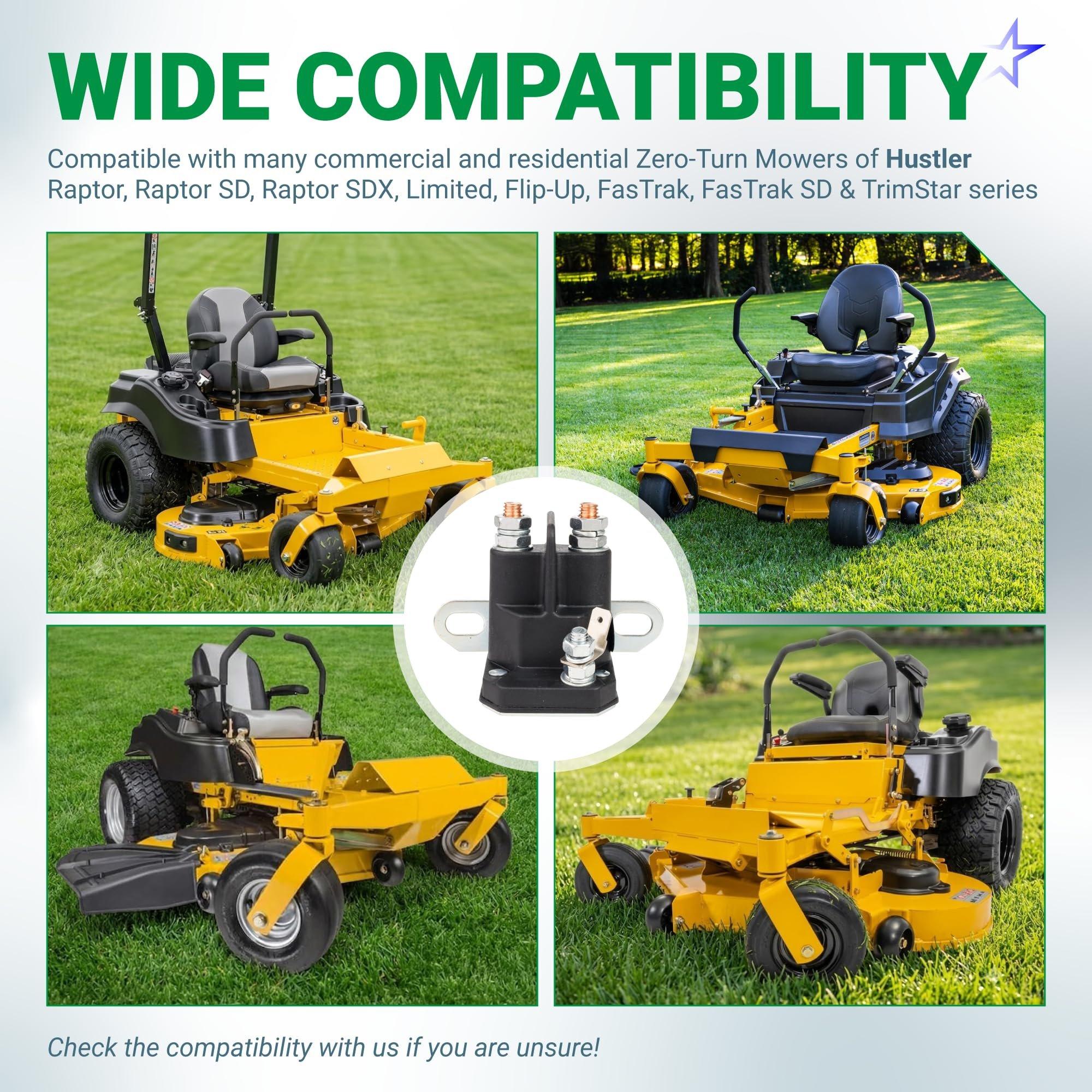

Compatible with many Hustler commercial and residential zero-turn mower models in the following series. Confirm the mower model, existing part number, and three-terminal layout before ordering.
- FasTrak:933424, 933432, 933440, 934851, 935627, 938704, 938712, 938720, 938738, 938746, 940346, 940353, 940361, 940379
- FasTrak SD:933481, 933499, 933507, 933841
- Raptor Limited:934802, 934893, 936492, 936500, 937771, 937862, 938613, 938977
- Raptor:931741, 931881, 931899, 933069, 933077, 933382, 933937, 934414, 931998US, 932004US, 933408US, 934786, 934505US, 934513US, 934794, 935734, 935742, 935759, 935767US, 935817, 937748, 937755, 937763, 937813, 937847, 937854, 938159, 938167, 938563, 938571, 938589, 938597, 938605, 939165, 939215, 939223, 939389
- Raptor Flip-Up:933614, 933622, 933846US, 933853US, 934745, 935940, 935957, 935965, 938464, 938472, 940312, 940320, 940387
The listed series also include Raptor SD, Raptor SDX, Raptor Limited, FasTrak SD, and TrimStar applications where the original solenoid matches this three-terminal arrangement. Model fitment can vary by engine and production configuration.
When to Replace
Replace the starter solenoid when the mower has a fully charged battery and a properly operating starter circuit but the starter motor does not receive power. Common symptoms include a click without engine cranking, intermittent starting, or no solenoid response. Corroded terminals, worn internal contacts, ethanol-related equipment deterioration, restricted electrical connections, and loose or damaged wiring can also cause starting problems. Test the battery, grounds, ignition circuit, and wiring before replacing the solenoid.

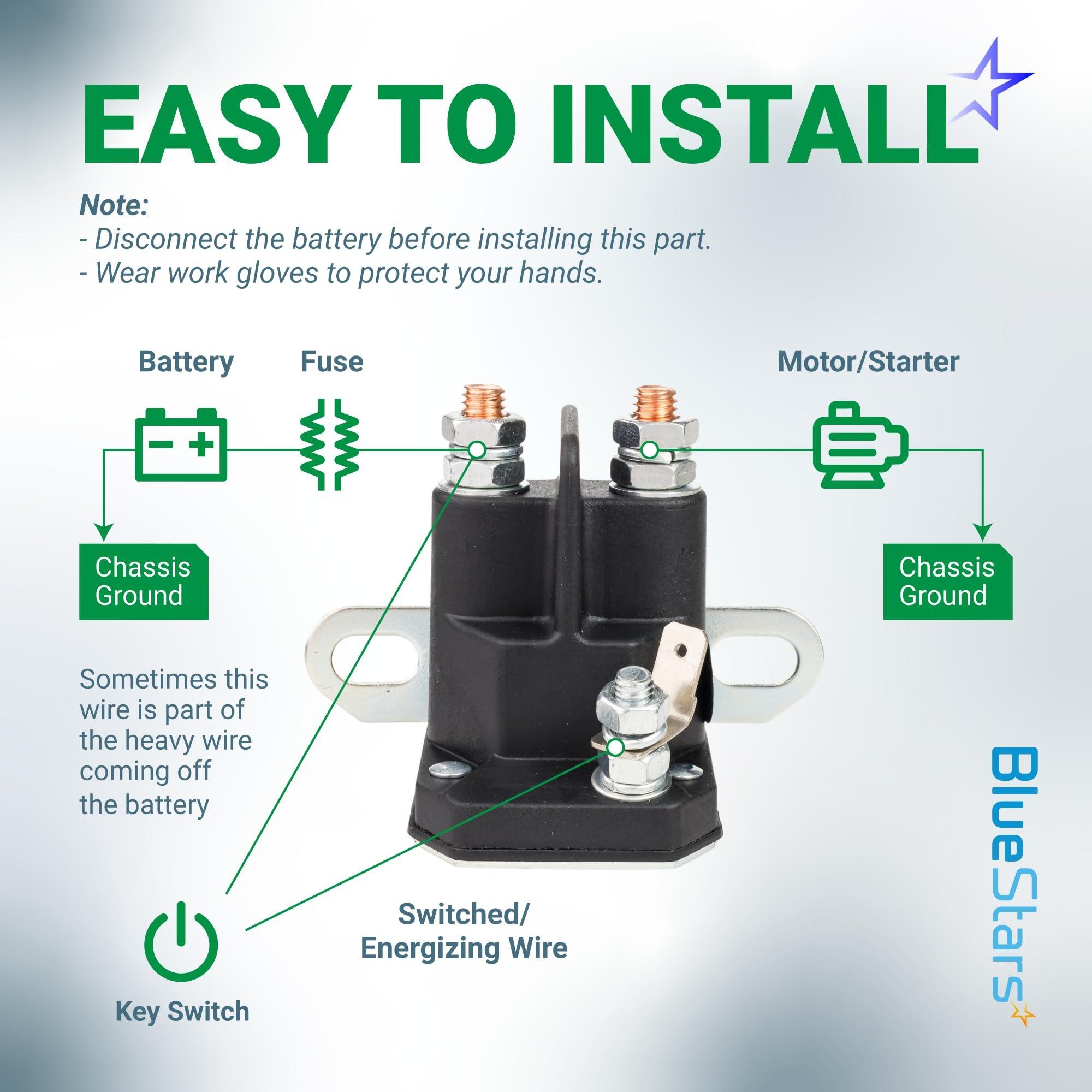

Installation Tips
- Allow a few minutes for replacement when the mounting hardware and wiring are accessible.
- Disconnect the battery negative (-) terminal and the spark plug wire before service to reduce the risk of accidental starting and short circuits.
- Photograph or label the wires before removal, then match them to the original terminal positions and the mower wiring diagram.
- Verify the replacement has two upper studs and one lower stud with a male spade terminal. Four-terminal versions and other layouts are not compatible with this configuration.
- Use the existing screw-mount location and tighten all electrical connections securely to prevent arcing, voltage loss, or premature failure.
- Prevent reverse polarity and protect exposed copper strands from contacting adjacent terminals. Overload, short circuits, and poor connections can damage the solenoid.
Connector Type
Screw
Contact Material
Copper
Mounting Type
Screw Mount
Operation Mode
Automatic
Coil Voltage
12 (dc)
Minimum Switching Voltage
12 (dc)
Unit Count
1.0 Count
Model
30817
Part Number
832-1211-210
