[Lifetime Warranty] 192980GS 90 Degree Fuel Shut Off Valve

192980GS 90 Degree Fuel Shut Off Valve

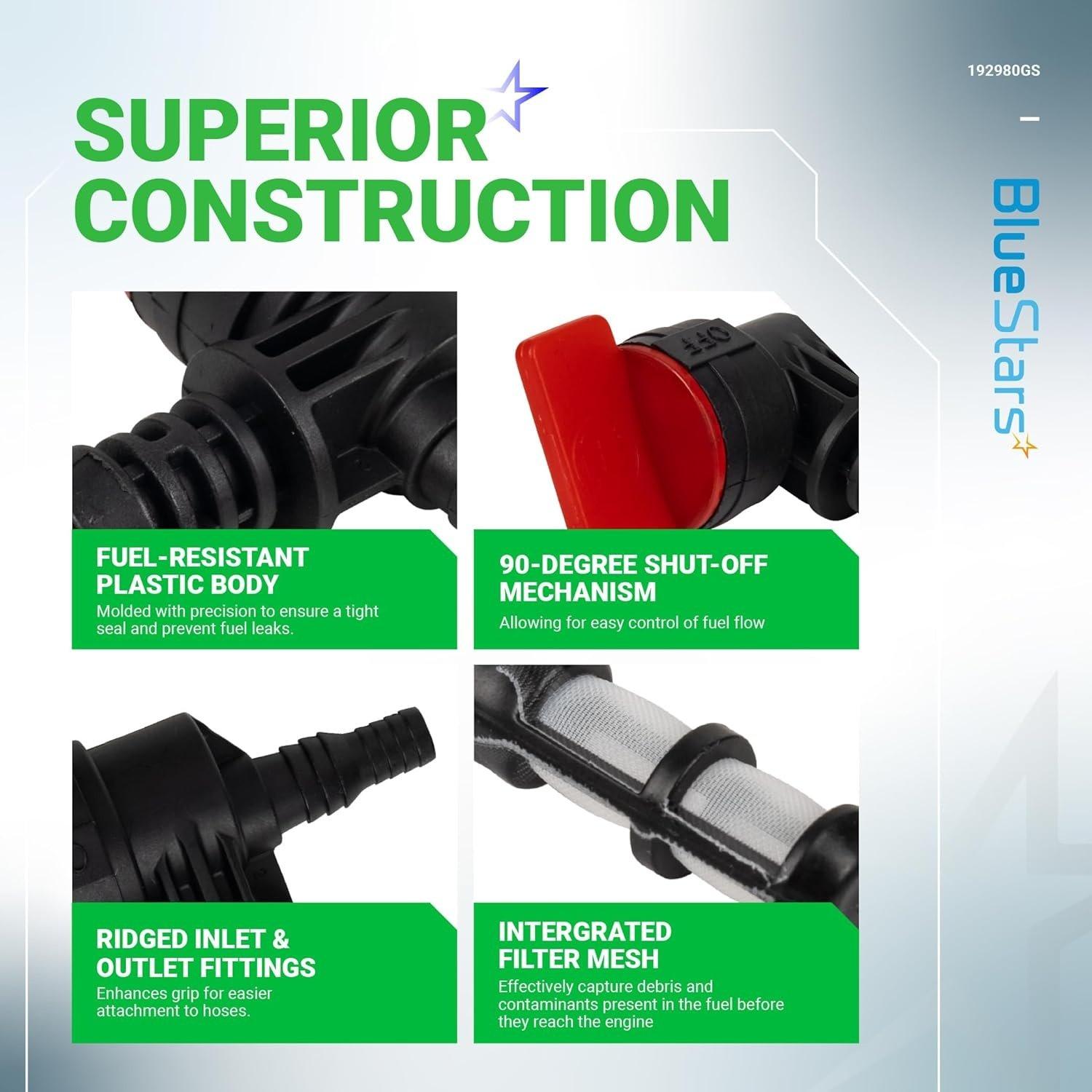

Key Features

• Controls fuel flow from the tank to the engine
• 90-degree turn for on/off operation
• Includes integrated fuel filter screen
• Designed for installation in plastic fuel tanks
• Requires a 33/64 inch fuel tank hole for the grommet

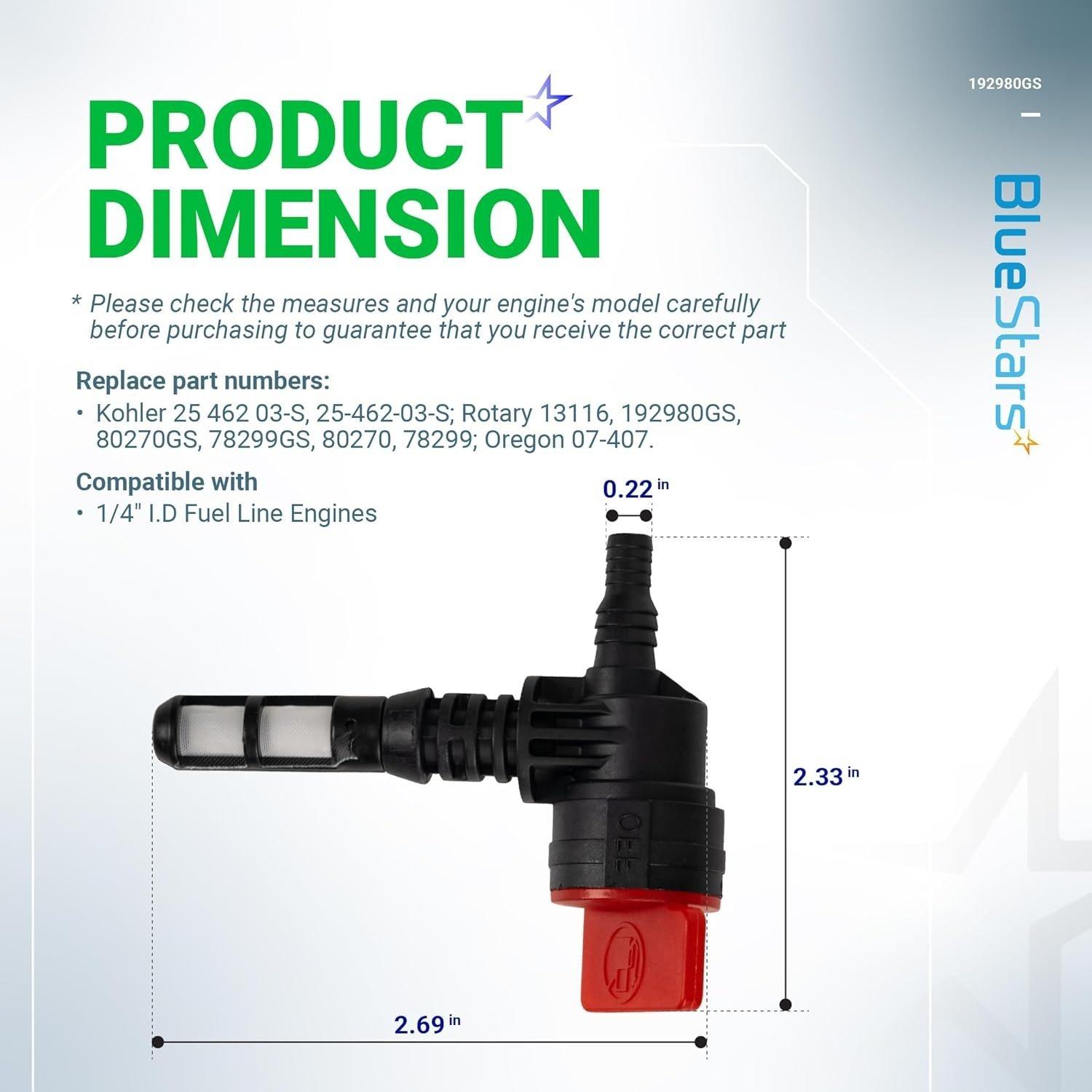

Replaces / Cross-Reference Part Numbers

• Briggs & Stratton: 192980GS, 208961, 80270GS, 78299GS
• Kohler: 25-462-03-S
• Oregon: 07-407
• Rotary: 13116

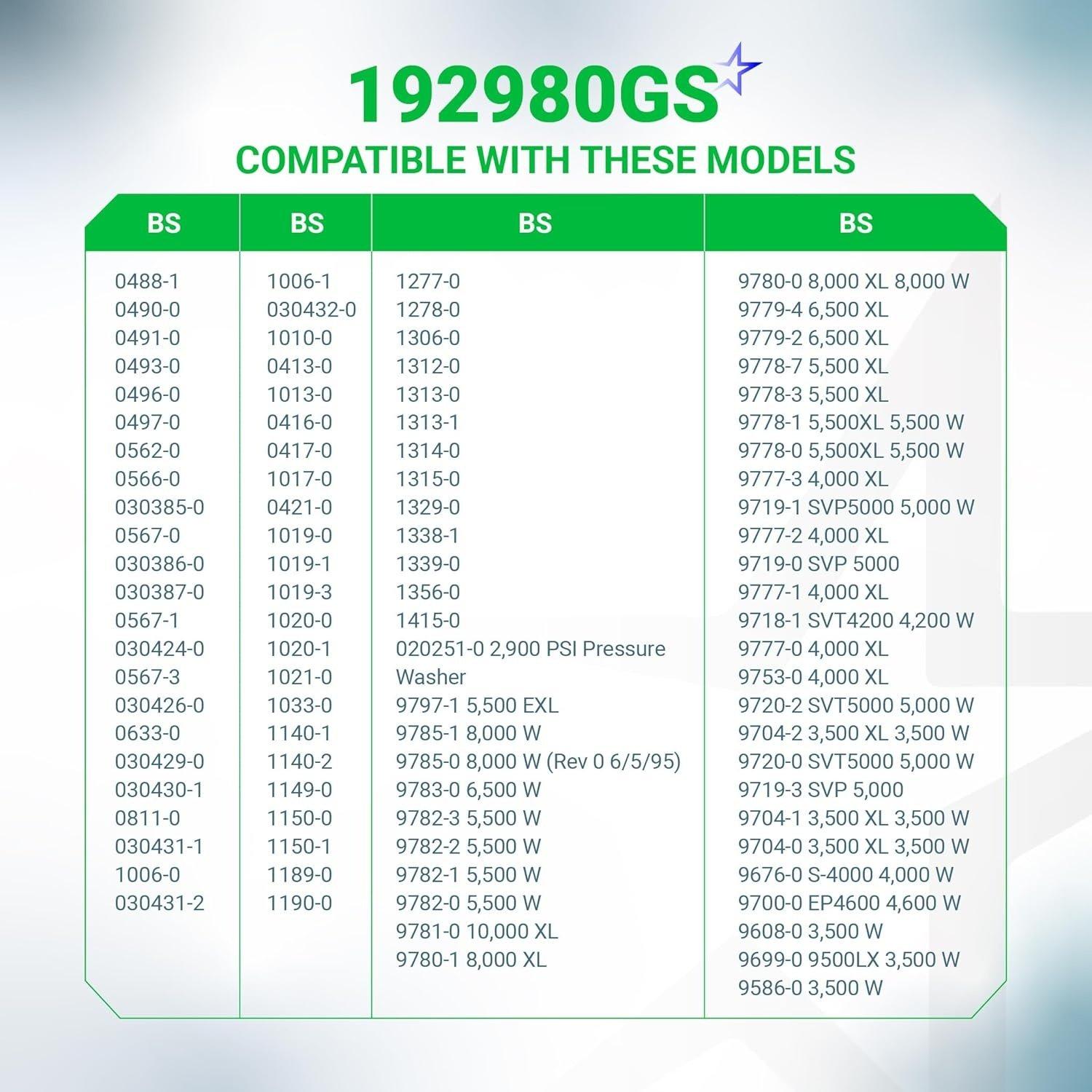

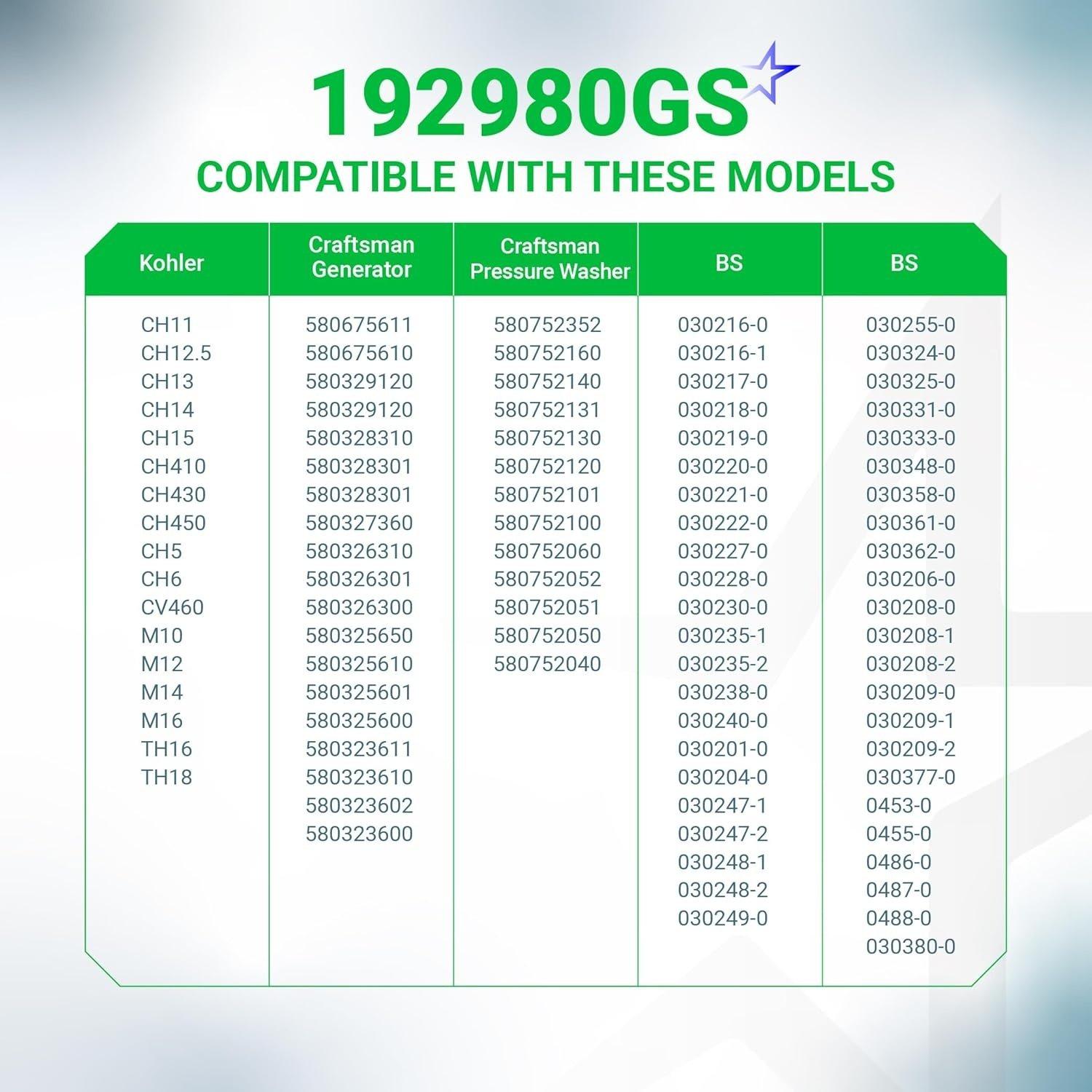

Compatibility & Fitment

• Fits a wide range of portable generators and pressure washers
• Commonly used on Generac generator models including 4KW, 5.5KW, and 4000XL
• Compatible with Troy-Bilt portable generator models: 3250, 3500, 3550, 5000, 5500, 5600, 6200, and 8000 watt
• Used on various engines from Briggs & Stratton and Kohler

When to Replace

• Existing valve is leaking fuel from the body, seal, or handle
• Valve is physically cracked, broken, or damaged
• Handle is seized and cannot be turned
• Fuel flow is restricted due to internal blockage

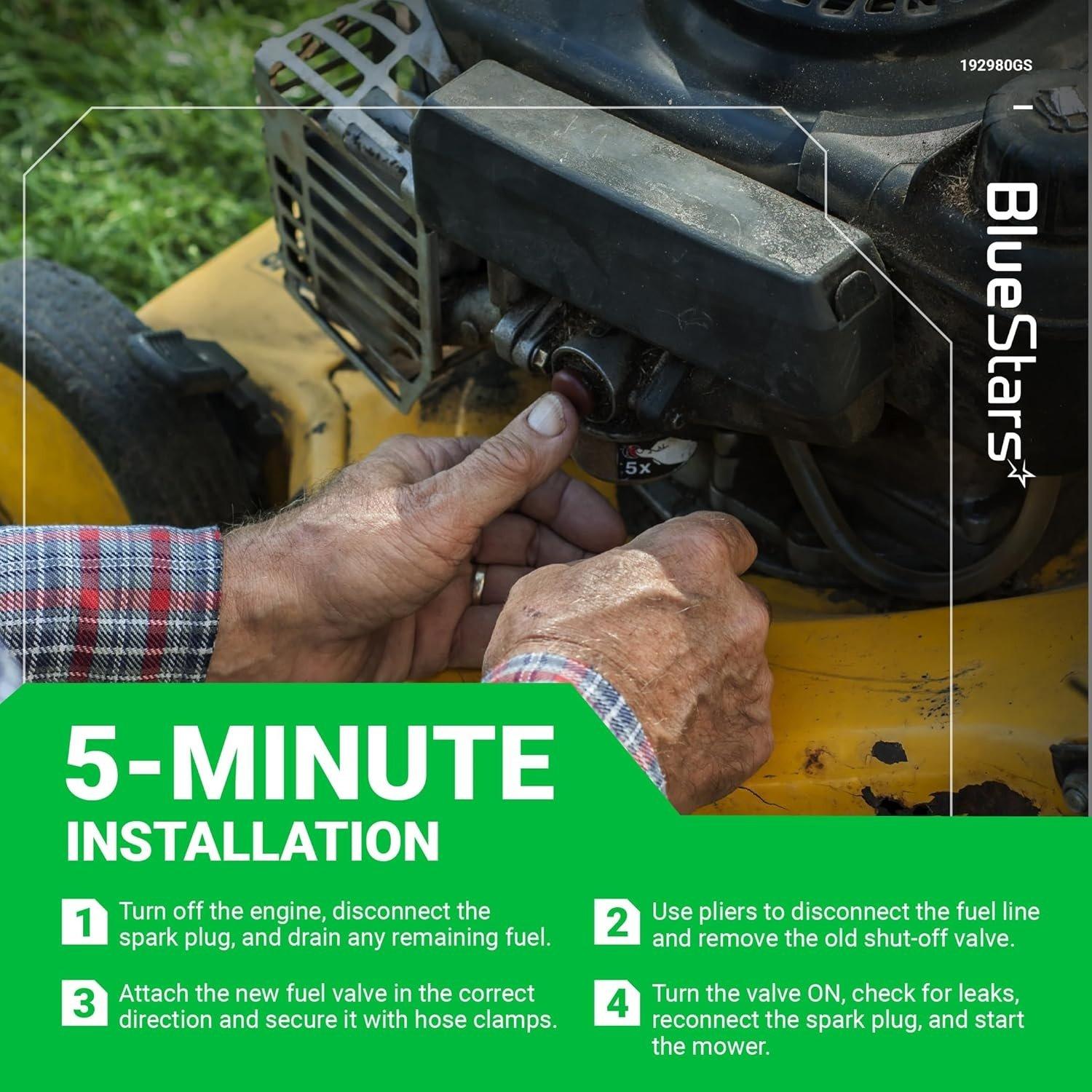

Installation Tips

• Drain the fuel tank completely before beginning installation
• Remove the old valve and grommet, then clean the tank opening area
• Install the new grommet first, ensuring it is fully seated in the tank hole
• Lubricate the valve inlet stem with a small amount of oil for easier insertion into the grommet
• After installation, fill the tank with a small amount of fuel to check for leaks before starting the engine
