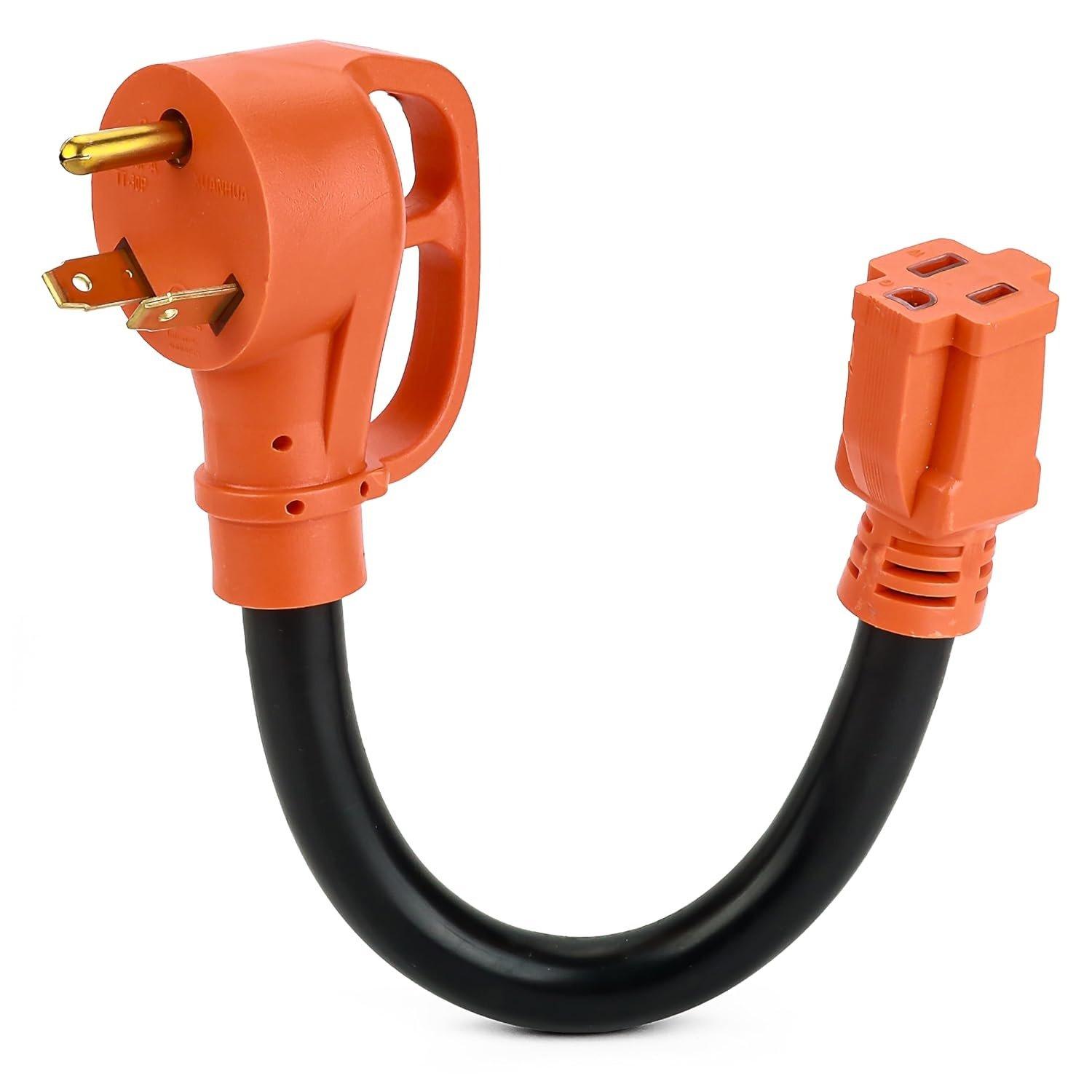

[Lifetime Warranty] TT-30P to 5-15R Adapter Cord

TT-30P to 5-15R Adapter Cord

Key Features

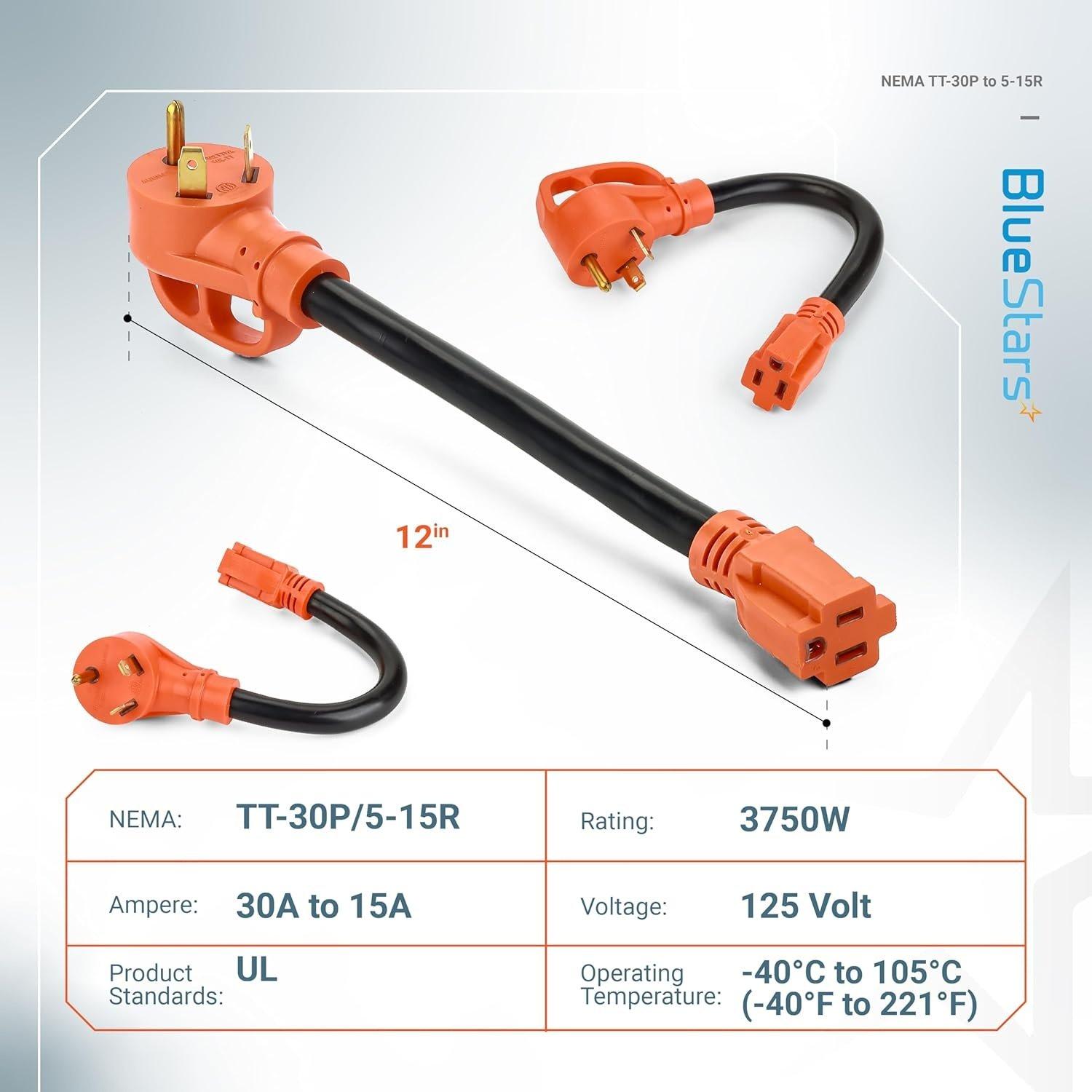

• Converts a 30 Amp, 125V male plug to one or more 15 Amp, 125V female receptacles.

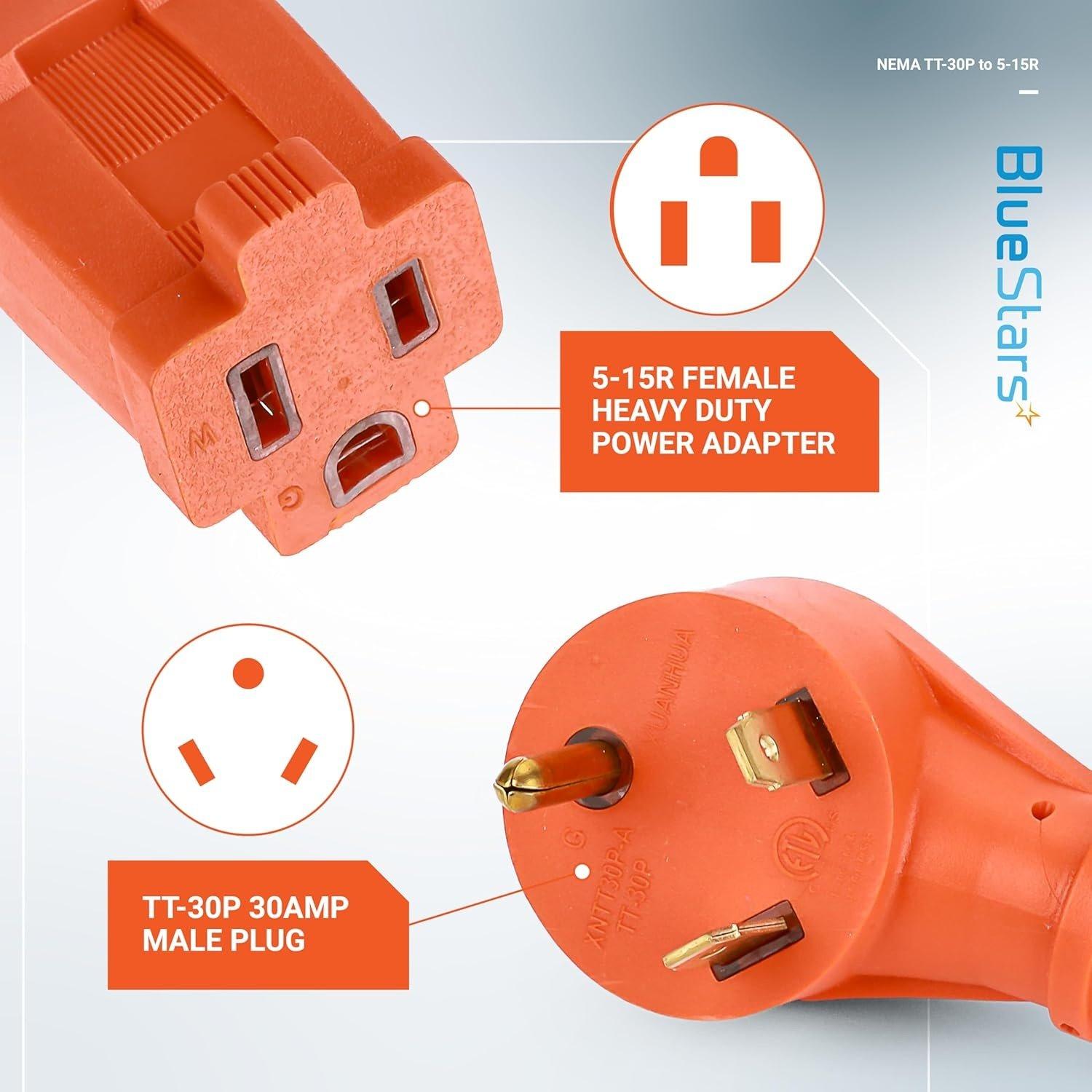

• Male Connector: NEMA TT-30P (30 Amp RV Plug)
• Female Connector(s): NEMA 5-15R (15 Amp Standard Household Receptacle)
• Electrical Rating: 125 Volts, 1875 Watts maximum output.

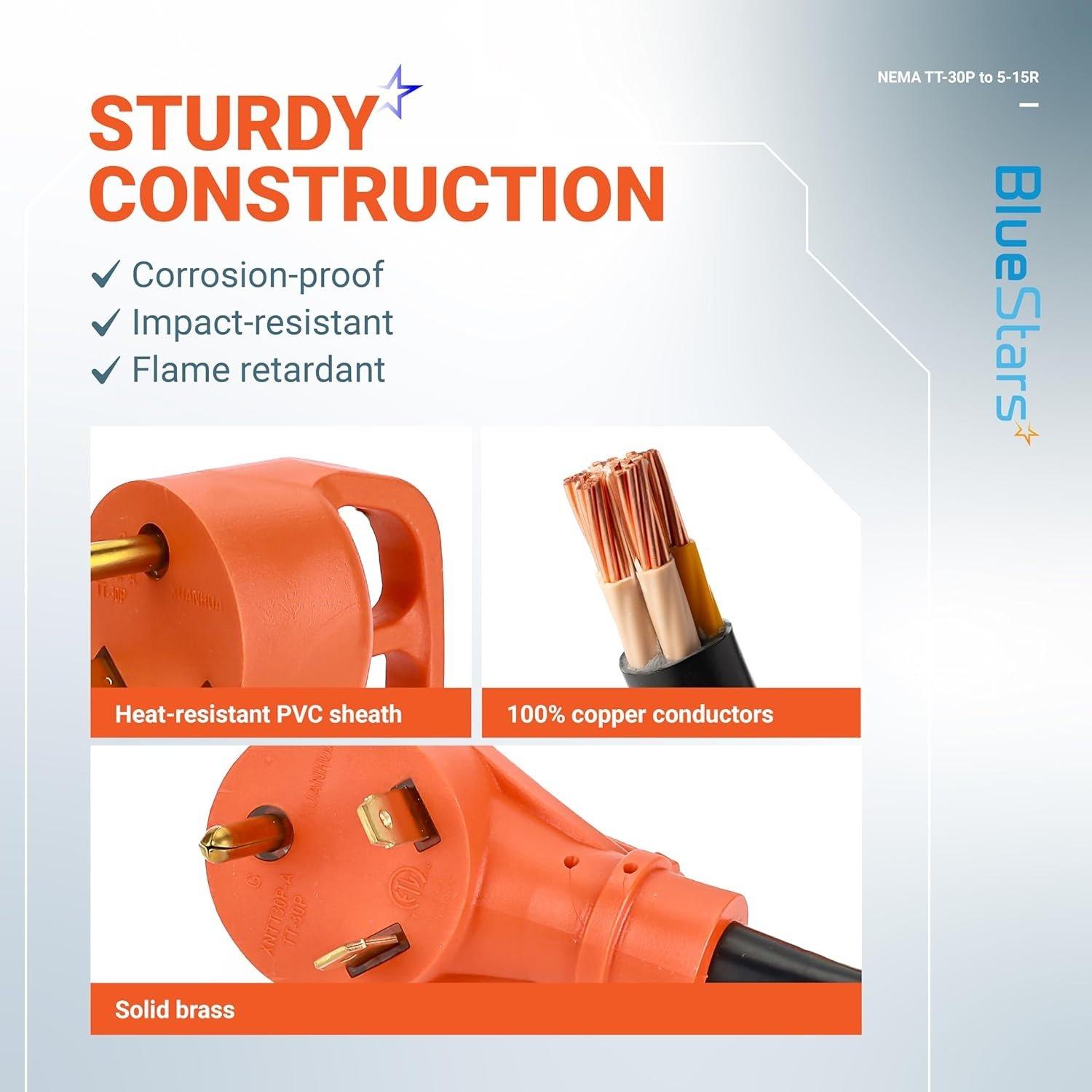

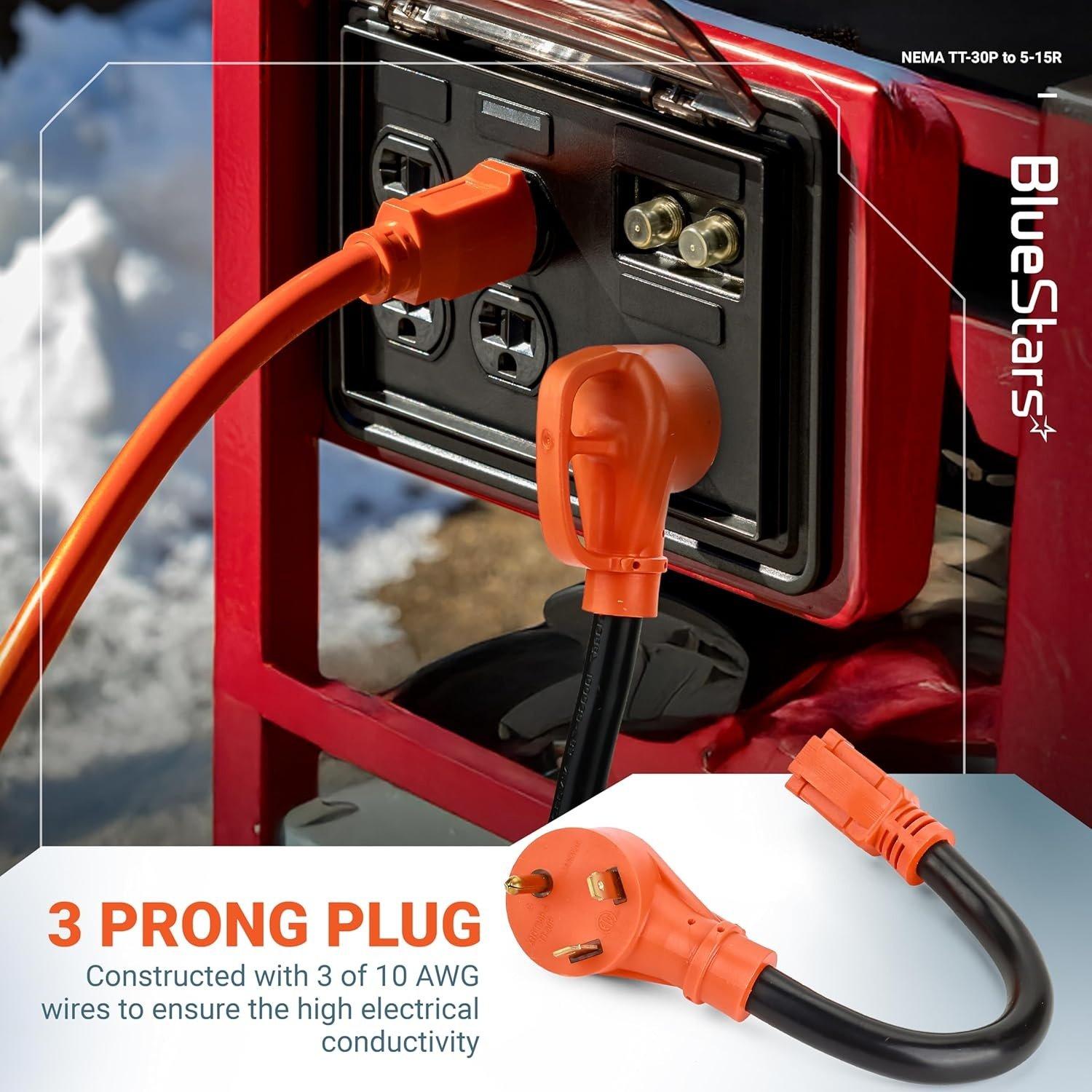

• Cable: Heavy-duty 10/3 AWG STW cord for outdoor use and weather resistance.

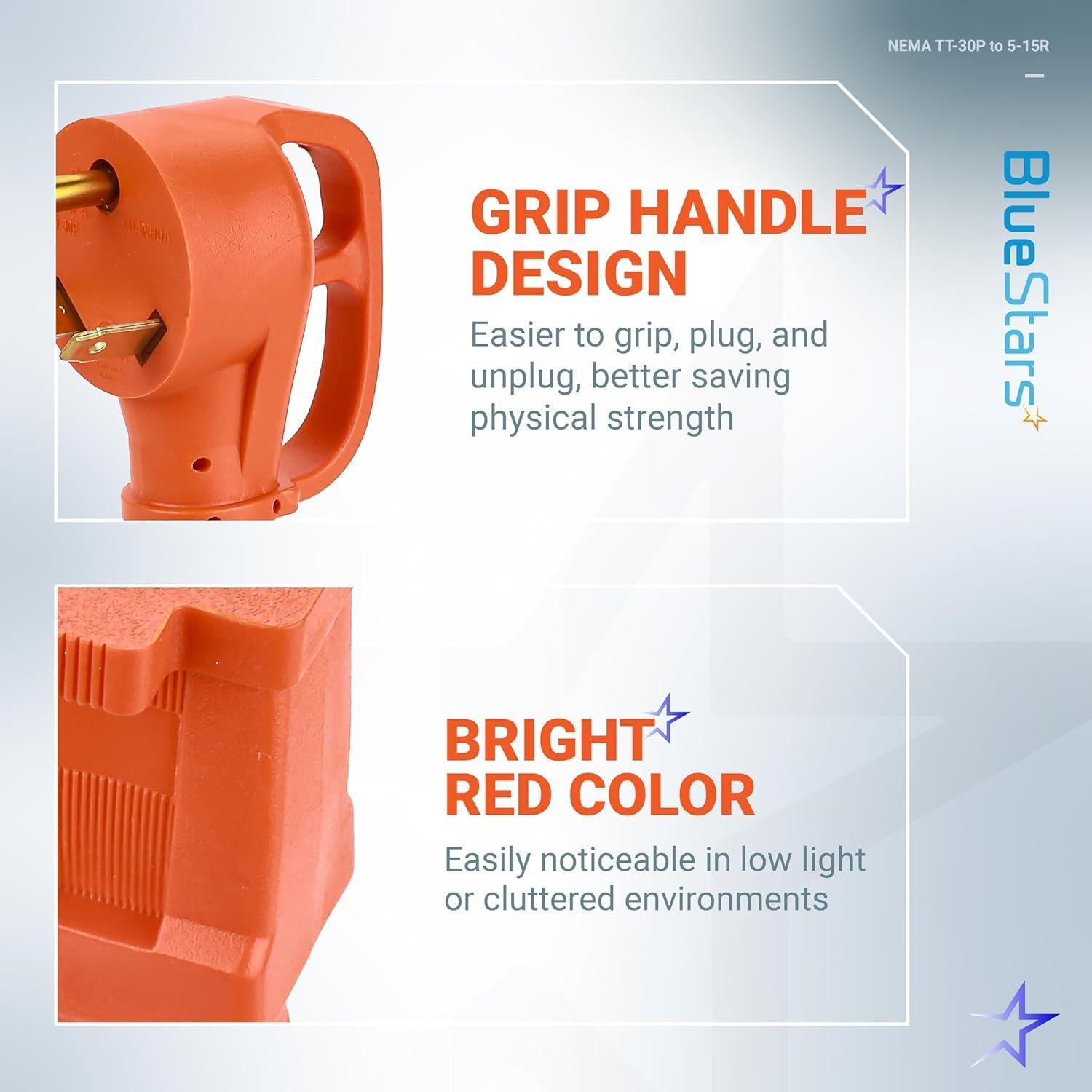

• Provides a secure, ergonomic grip for safe connection and disconnection.

Replaces / Cross-Reference Part Numbers

• Serves as a universal replacement for any power adapter cord with a NEMA TT-30P male plug and NEMA 5-15R female receptacle(s).
• Suitable for applications requiring a 30 Amp to 15 Amp step-down connection.

Compatibility & Fitment

• Fits all NEMA TT-30R (30 Amp) outlets commonly found at RV parks, campgrounds, and on portable generators.
• Accepts standard NEMA 5-15P (15 Amp) plugs from tools, appliances, and extension cords.

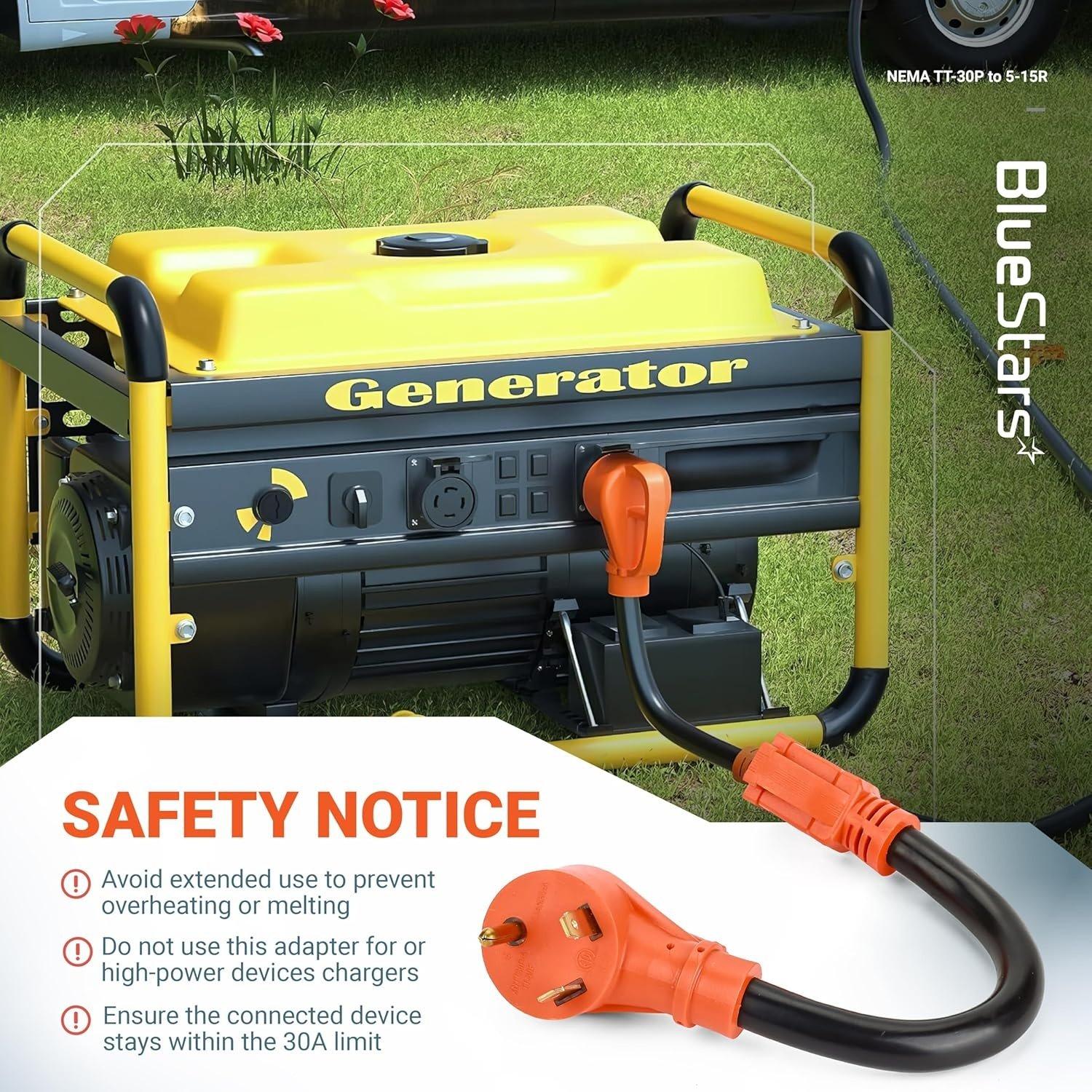

• Ideal for use with recreational vehicles, travel trailers, and generators to power standard 120V devices.

When to Replace

• Visible damage to the cord jacket, including cuts, cracks, or severe abrasions.
• Bent, corroded, or loose prongs on the male plug.
• Signs of overheating, such as melted plastic or discoloration at the plug or receptacle ends.
• Intermittent power delivery or a loose, unreliable connection.

Installation Tips

• Ensure the power source is turned off before connecting or disconnecting the adapter cord.
• Insert plugs fully into receptacles to ensure a solid electrical connection.
• Do not exceed the adapter's maximum load of 15 Amps or 1875 Watts.
• Avoid placing the cord in standing water or in high-traffic areas where it can be damaged.
