[Lifetime Warranty] W10509257 Dishwasher Door Gasket - Compatible with Whirlpool Kenmore Dishwashers - Replaces W10082795 3368994 3376927 WPW10509257 AP6022476 PS11755809

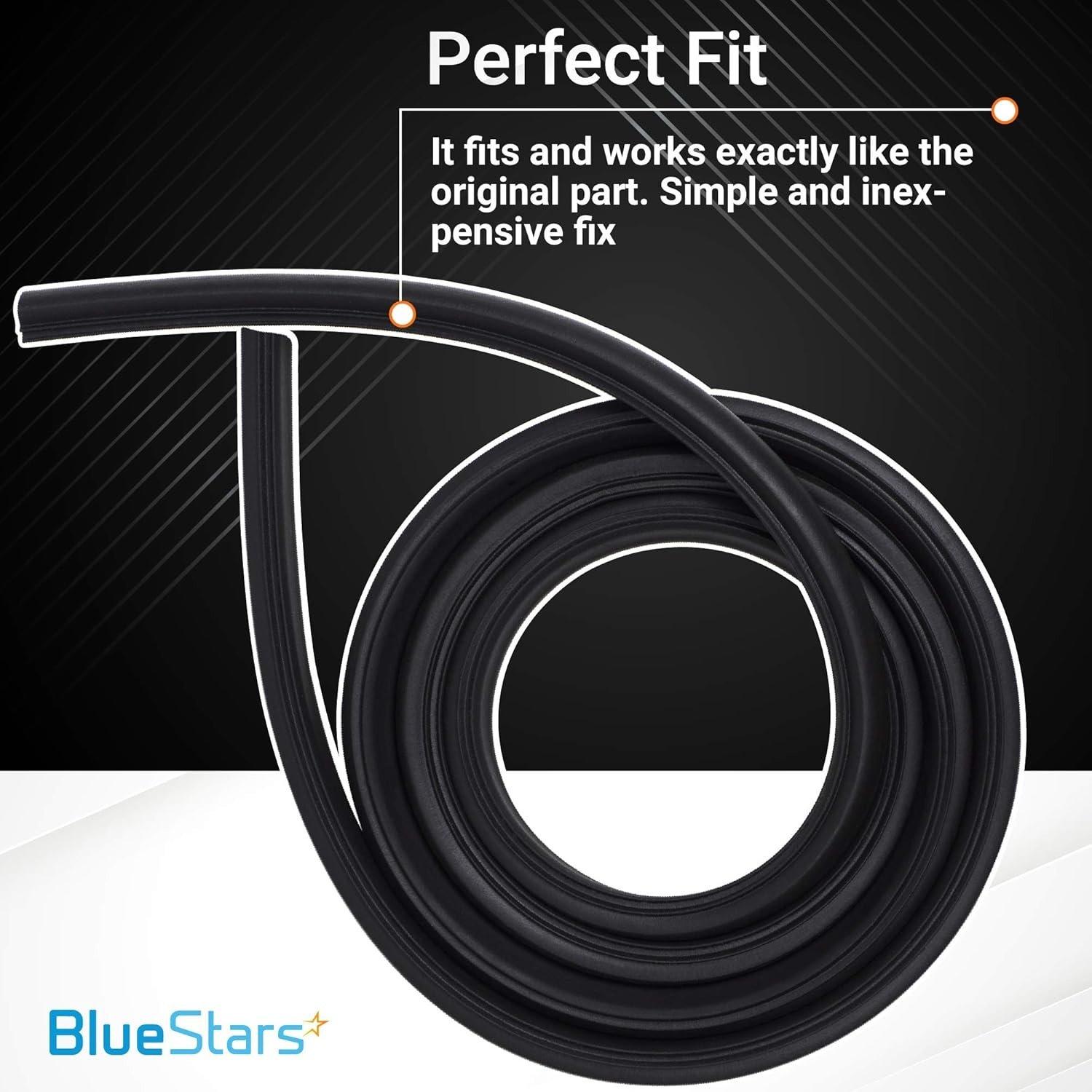

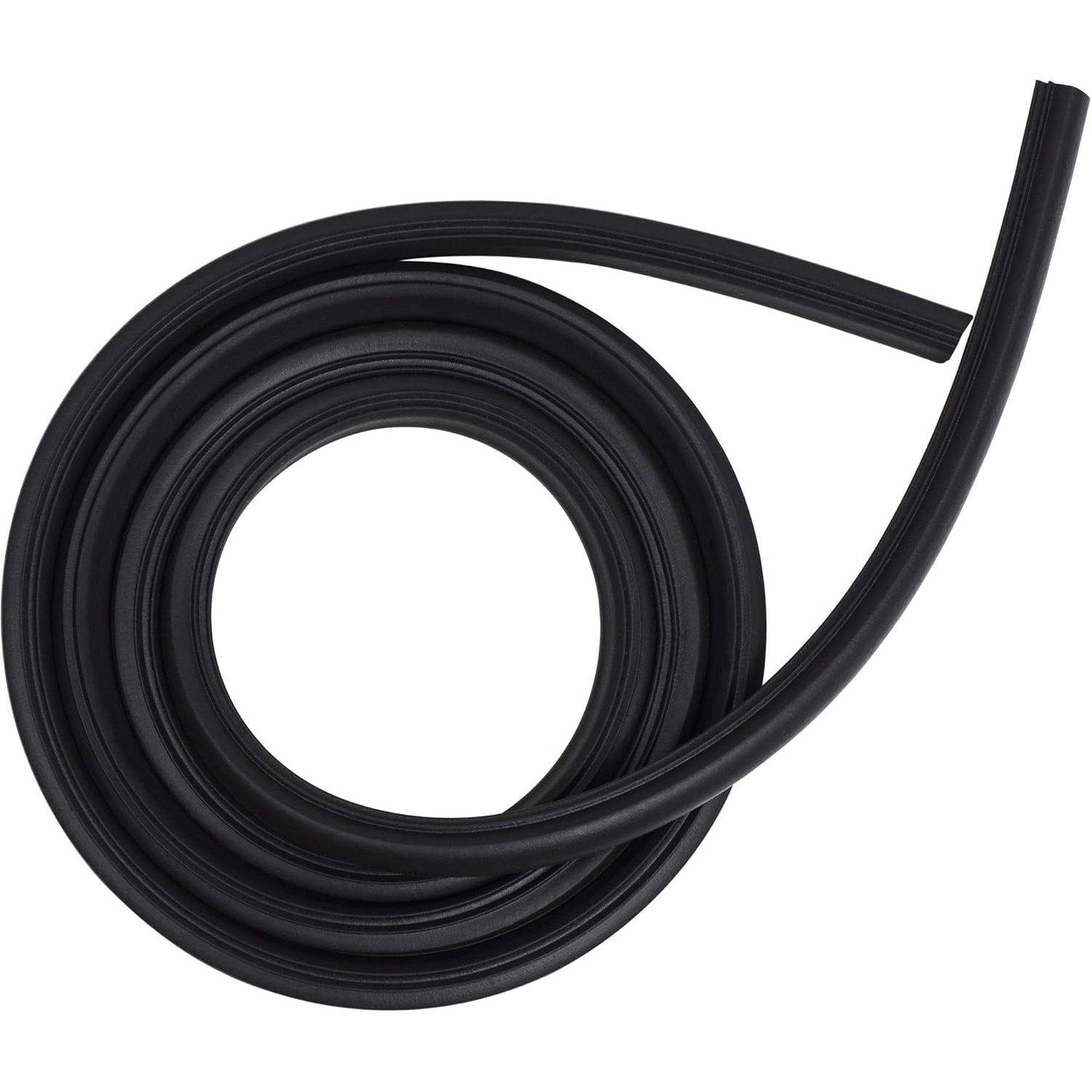

W10509257 Dishwasher Door Gasket

Key Features

• Creates a watertight seal around the dishwasher door to prevent leaks.
• Push-in installation design.

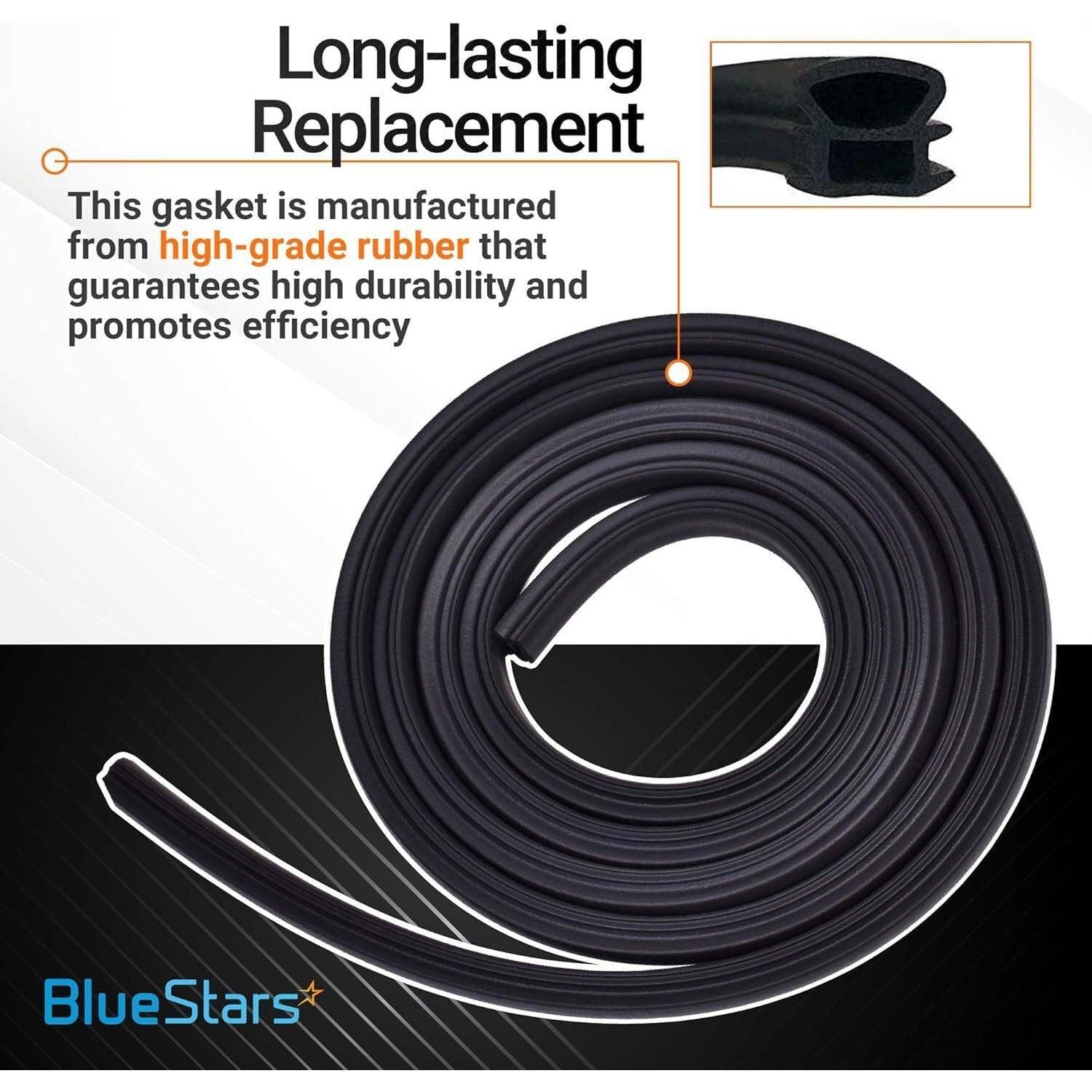

• Constructed from durable rubber material.
• Total length is approximately 68 inches when stretched.

Replaces / Cross-Reference Part Numbers

• W10509257
• WPW10509257
• W10082795
• 3368994
• 3376927
• 2448669

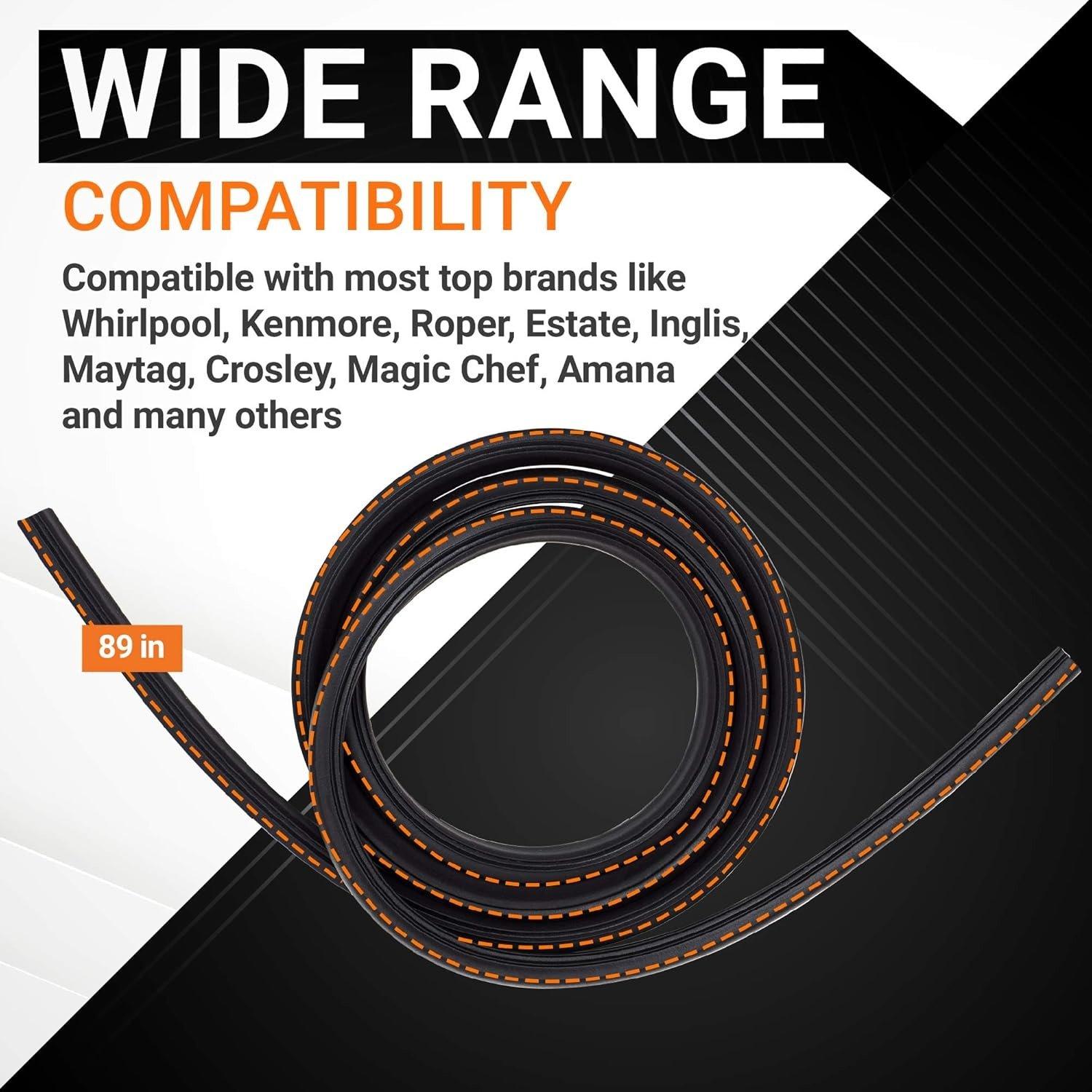

Compatibility & Fitment

• Designed for specific dishwasher models from brands including Whirlpool, KitchenAid, Kenmore, Roper, Crosley, and Estate.

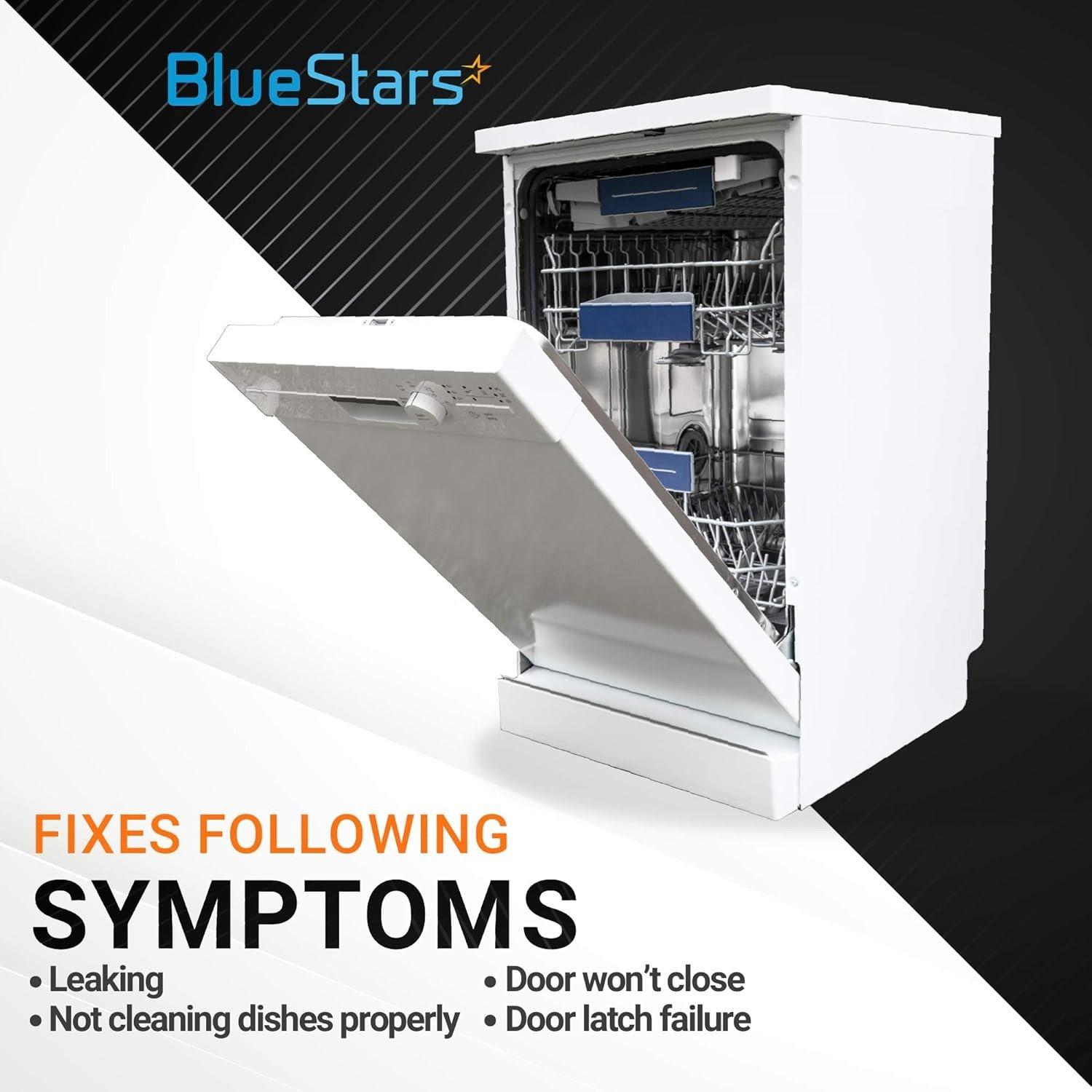

When to Replace

• Water is leaking from the front or sides of the dishwasher door.
• The existing gasket is cracked, brittle, loose, torn, or missing.
• The seal is improperly aligned or no longer sits correctly in its channel.

Installation Tips

• Remove the old gasket by pulling it out of the door channel.
• Clean any debris from the channel before installing the new gasket.
• Starting at the top center, press the new gasket firmly into the channel, working your way around the door opening.
• A small, flat-bladed tool can assist in seating the gasket fully into the channel corners.
