[Lifetime Warranty] 696065 697422 Carburetor with Mounting Gaskets Kit

696065 697422 Carburetor with Mounting Gaskets Kit

Key Features

• Direct replacement carburetor assembly for small engines.
• Regulates the air and fuel mixture for proper engine combustion.
• Engineered to meet original manufacturer specifications for fit and performance.

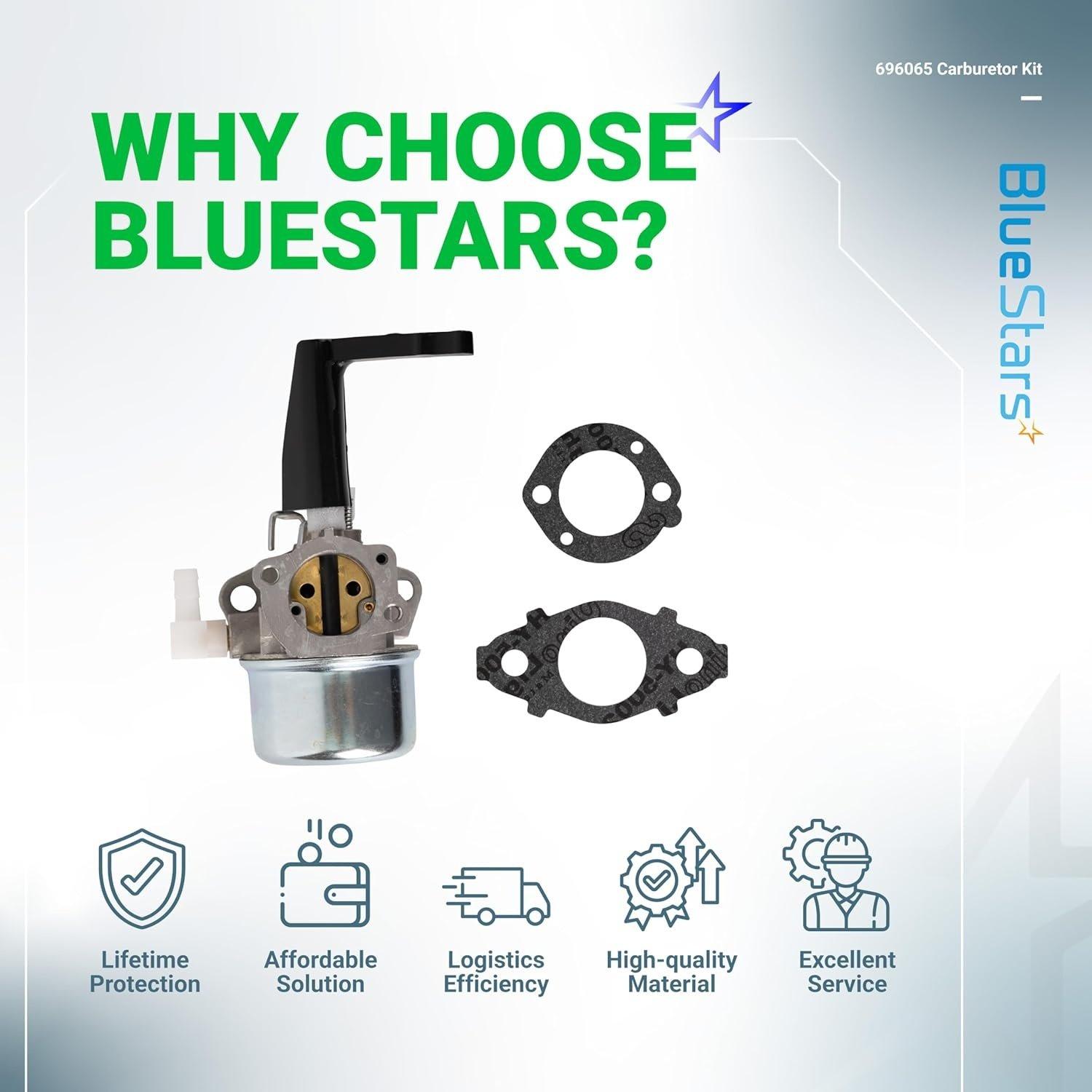

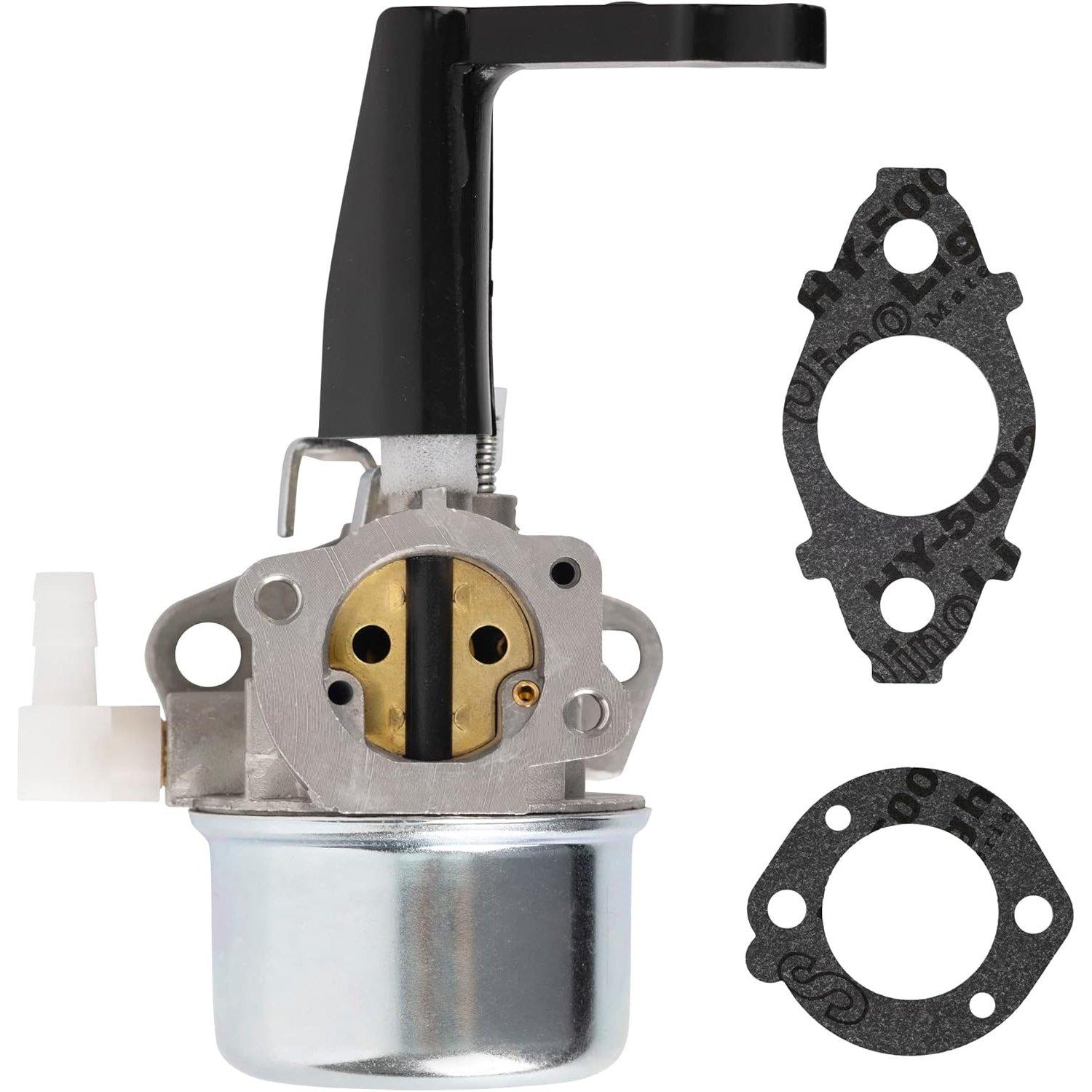

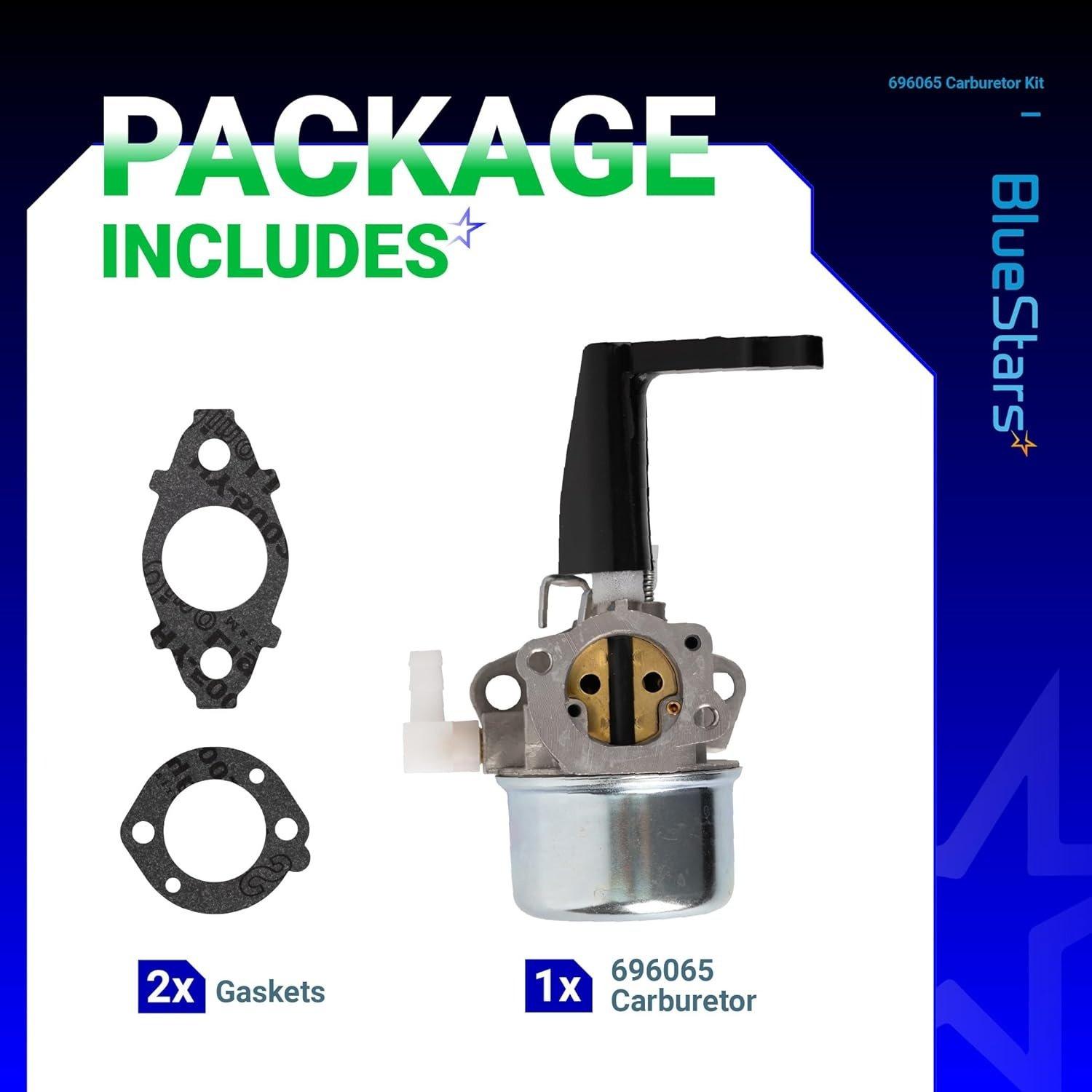

• Includes one carburetor and two mounting gaskets for a complete installation.

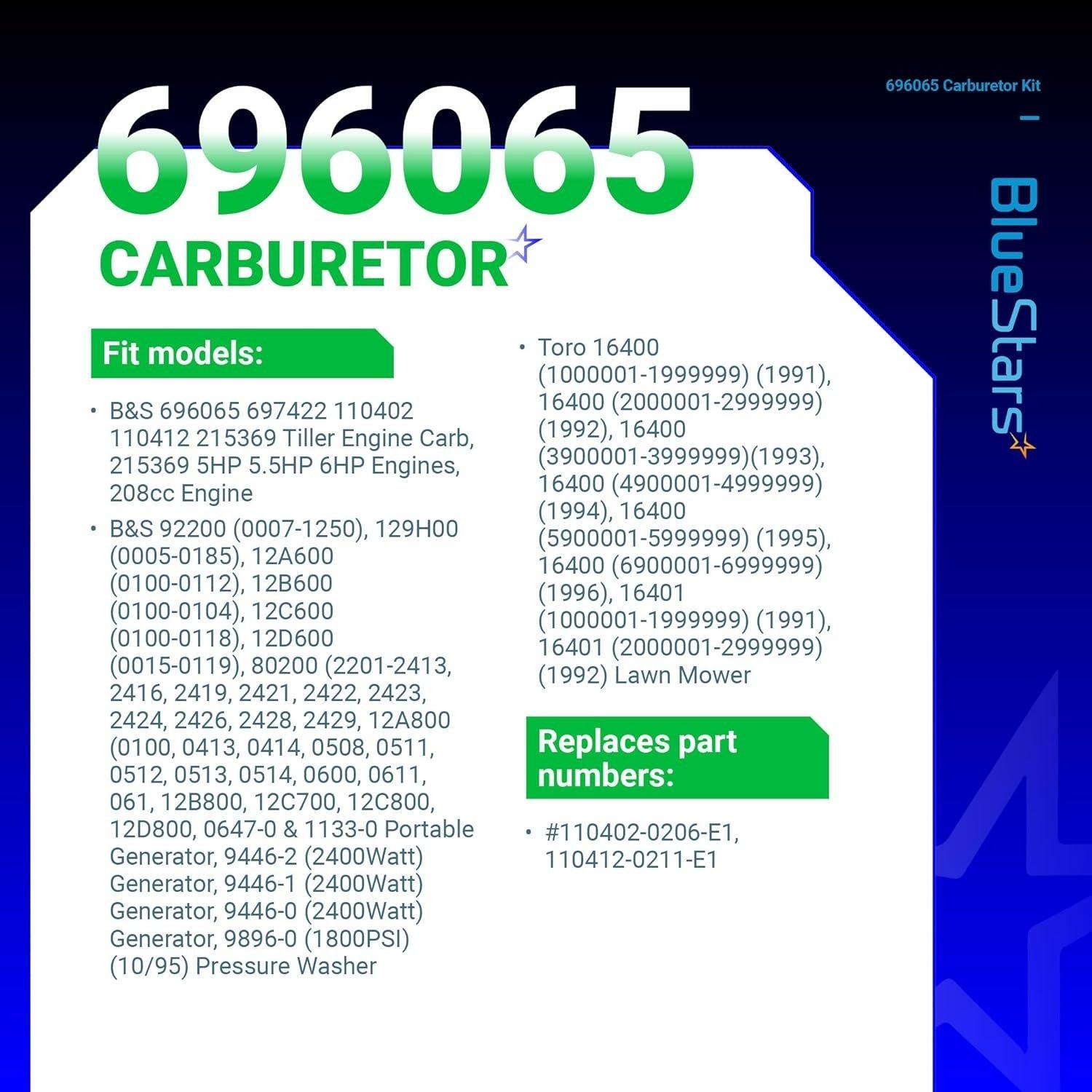

Replaces / Cross-Reference Part Numbers

• 696065
• 697422
• 215369

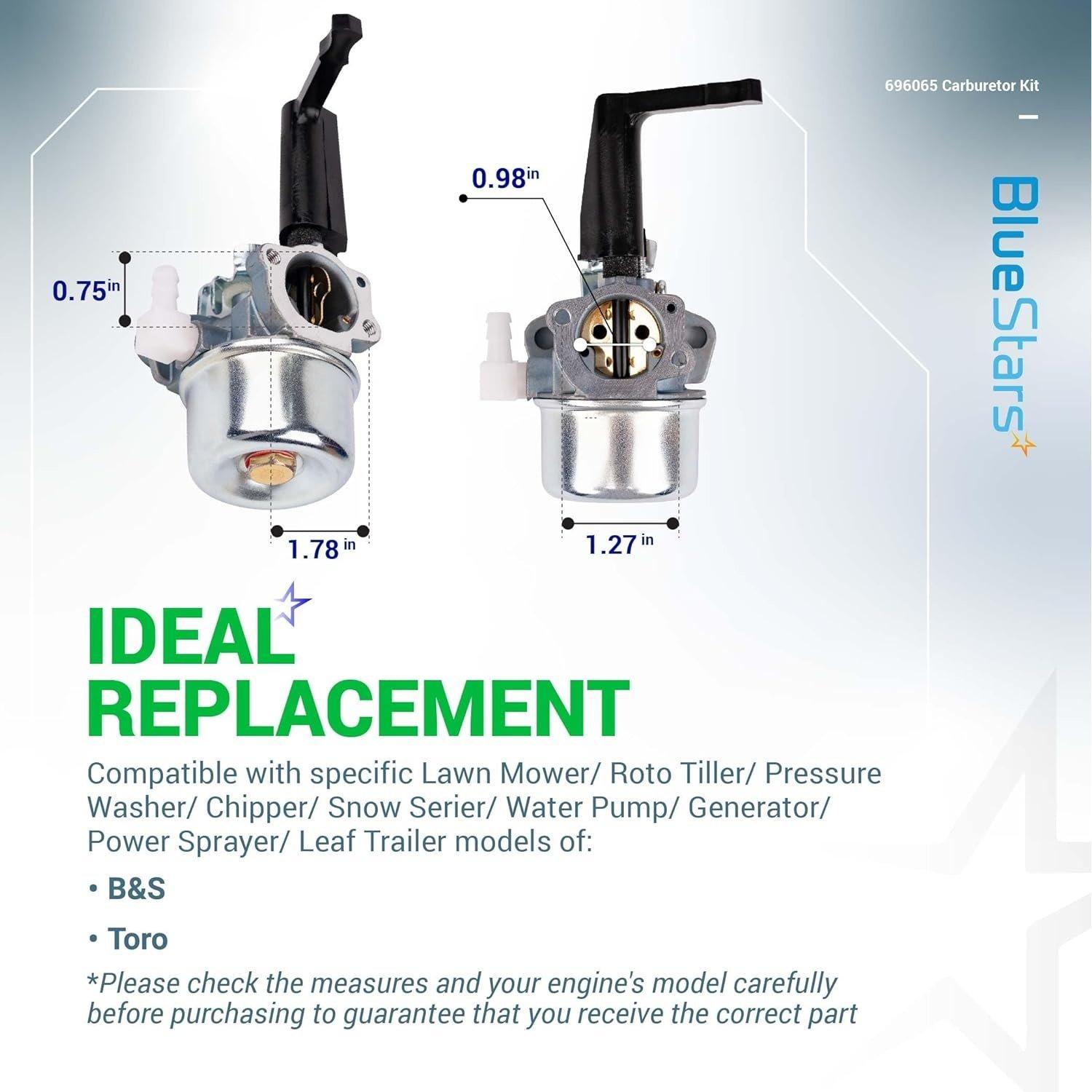

Compatibility & Fitment

• Fits select Briggs & Stratton engines rated at 5HP, 5.5HP, 6HP, 6.5HP, and 7HP.
• Commonly used on tiller engines.
• Specific Engine Models Include: 110402, 110412
• Confirmed Fit for Models: 110402-0206-E1, 110412-0211-E1

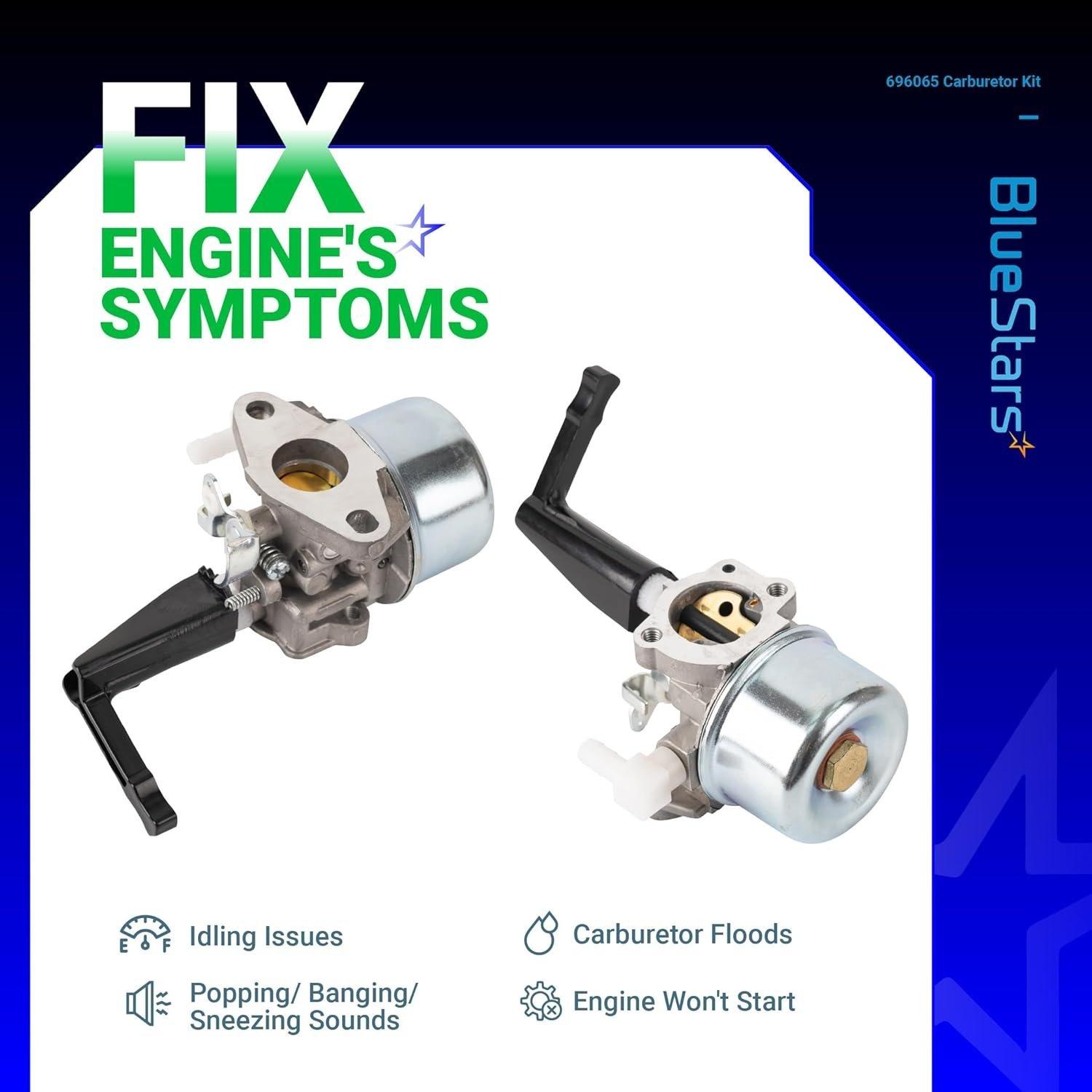

When to Replace

• Engine will not start or is difficult to start.
• Engine stalls, idles roughly, or surges.
• Visible fuel leaking from the carburetor body.
• Excessive black smoke from the exhaust.
• Poor fuel economy or loss of power during operation.

Installation Tips

• Disconnect the spark plug wire before beginning work.
• Shut off the fuel supply valve and drain any remaining fuel.
• Take a clear photo of the governor and throttle linkages before disassembly for reference.
• Always use the new gaskets included in the kit to ensure a proper seal.
• After installation, check all fuel line connections for leaks before starting the engine.
