Description
Description

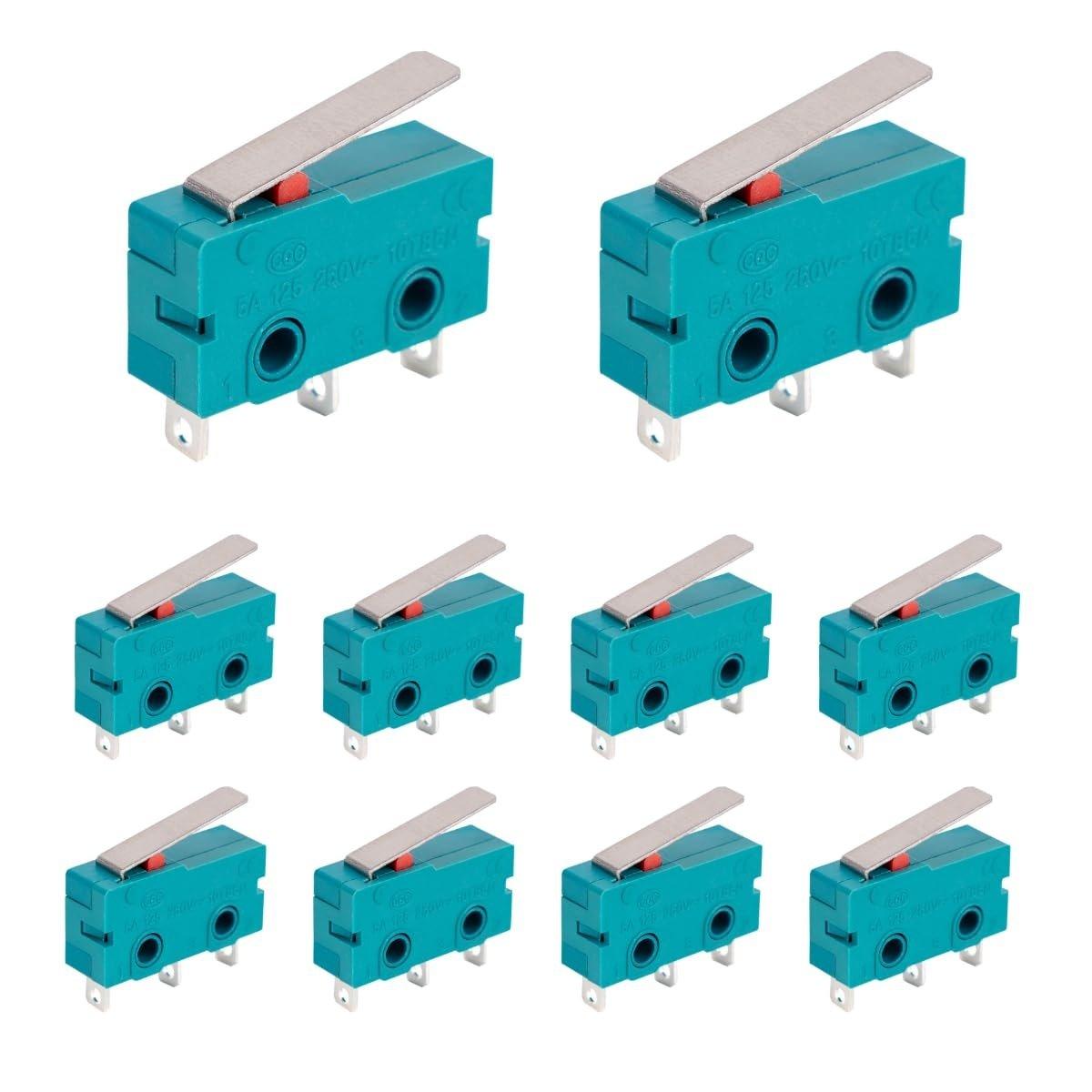

Pack of 10 KW4-3Z-3 Micro Limit Switch Lever Arm 28mm Long with 3 Terminals 250VAC/125VDC 5A

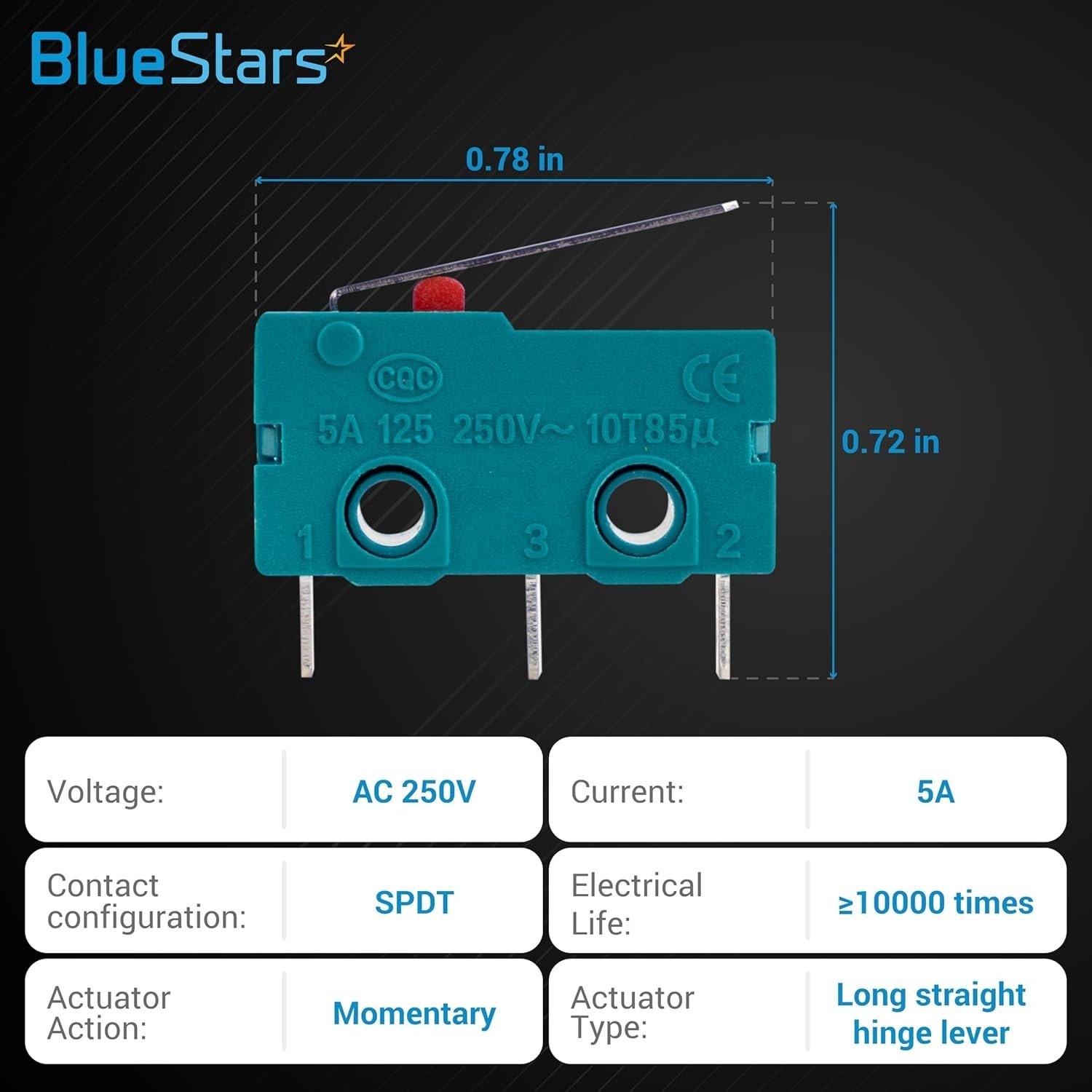

Key Features
- Quantity: 10 switches per pack
- Model: KW4-3Z-3
- Actuator: 28mm long hinge lever arm
- Terminals: 3-pin configuration for Normally Open (N/O) and Normally Closed (N/C) circuits
- Electrical Rating: 5A at 125VDC / 250VAC
- Function: Snap-action switch designed to control the movement of mechanical parts in electrical systems.
Replaces / Cross-Reference Part Numbers
- KW4-3Z-3
Compatibility & Fitment
- Designed for use in a wide range of applications including appliances, 3D printers, CNC mills, and other general-purpose electrical automation projects.
- Fitment depends on matching physical dimensions, actuator type (28mm lever), and electrical specifications (5A, 125/250V).
When to Replace
- Switch fails to actuate or operates intermittently.
- The circuit remains open or closed regardless of lever position.
- Visible damage, such as a broken lever or cracked housing.
- Audible click is absent or feels inconsistent during actuation.

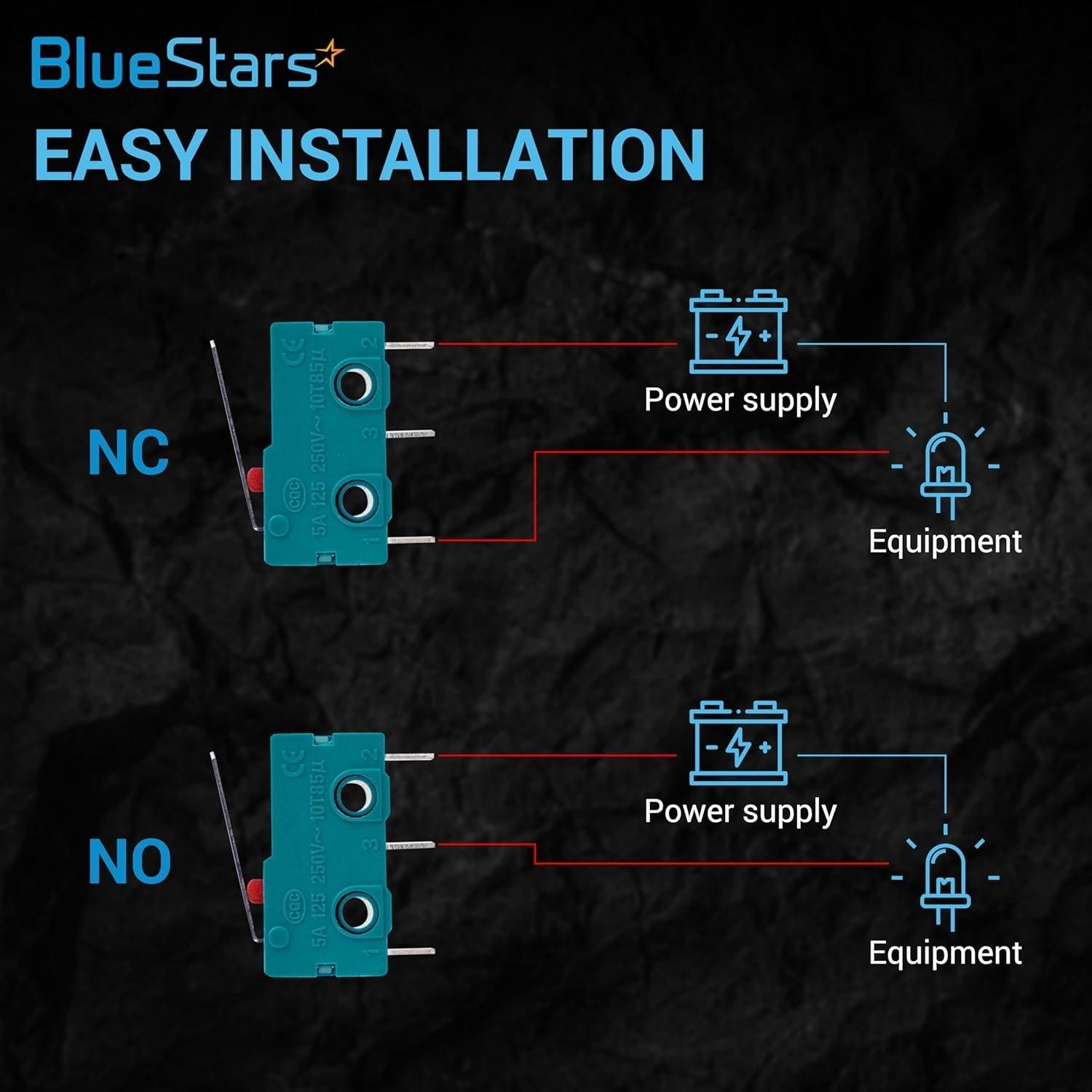

Installation Tips
- Disconnect all power to the equipment before beginning installation.
- Identify and connect wires to the appropriate terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
- Ensure the mechanical component correctly engages and releases the lever without excessive force or over-travel.
- Securely mount the switch body to prevent movement during operation.
