AZ00251427
0130F00010 Flame Sensor - Pack of 5
Normal
15 - 20 minutes
$11.70
$12.99
Save $1.29
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

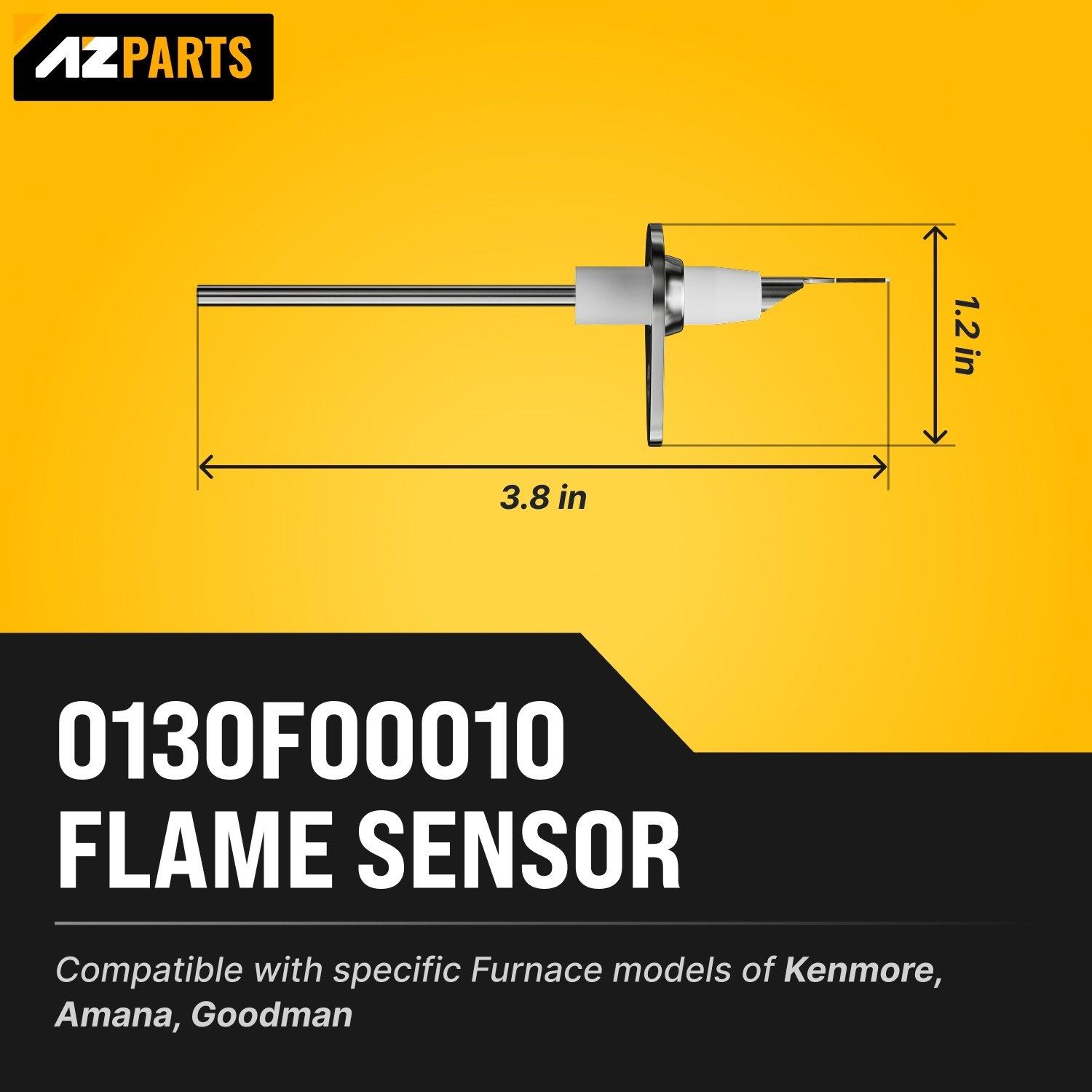

0130F00010 Flame Sensor - Pack of 5
Key Features

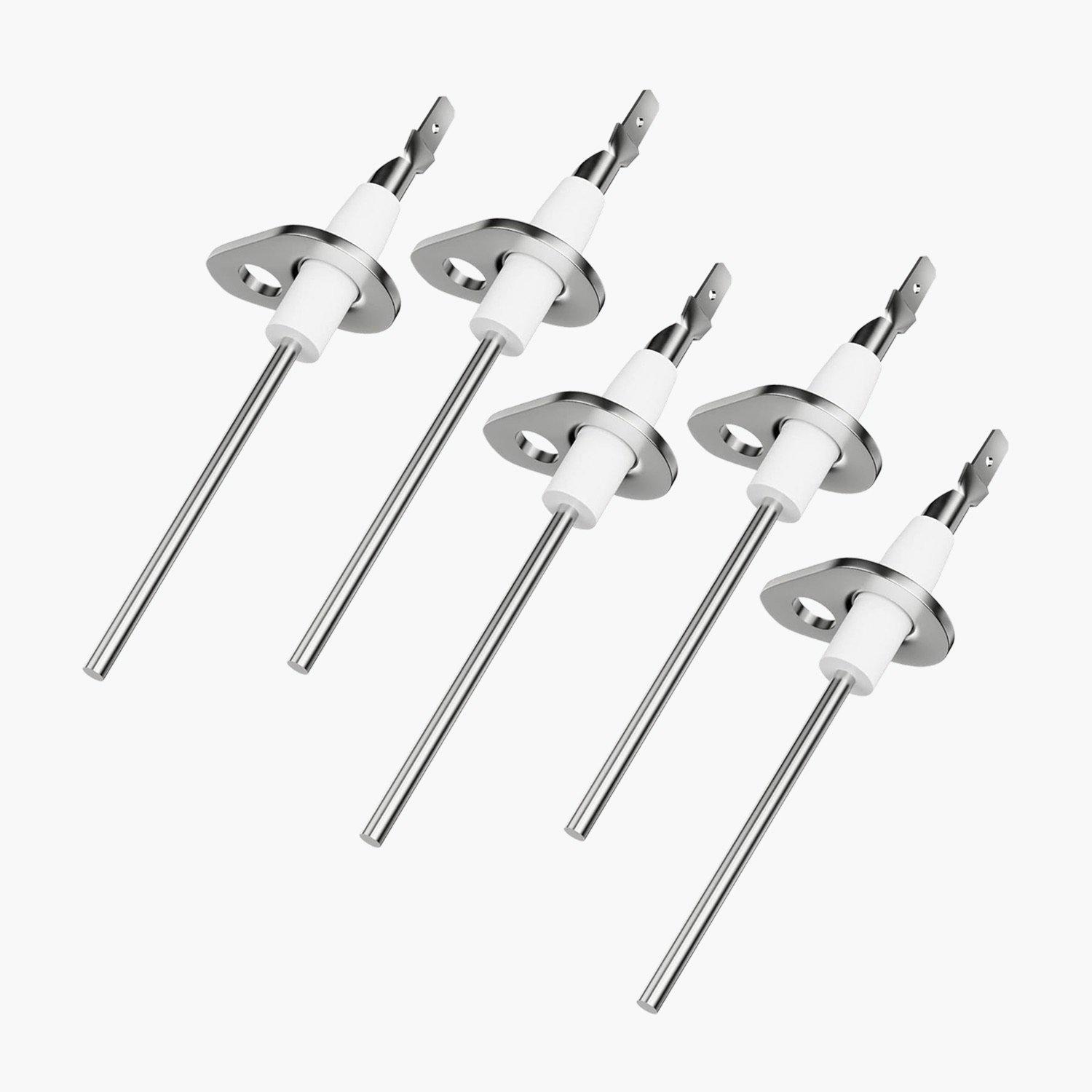

- Package contains five flame sensors.

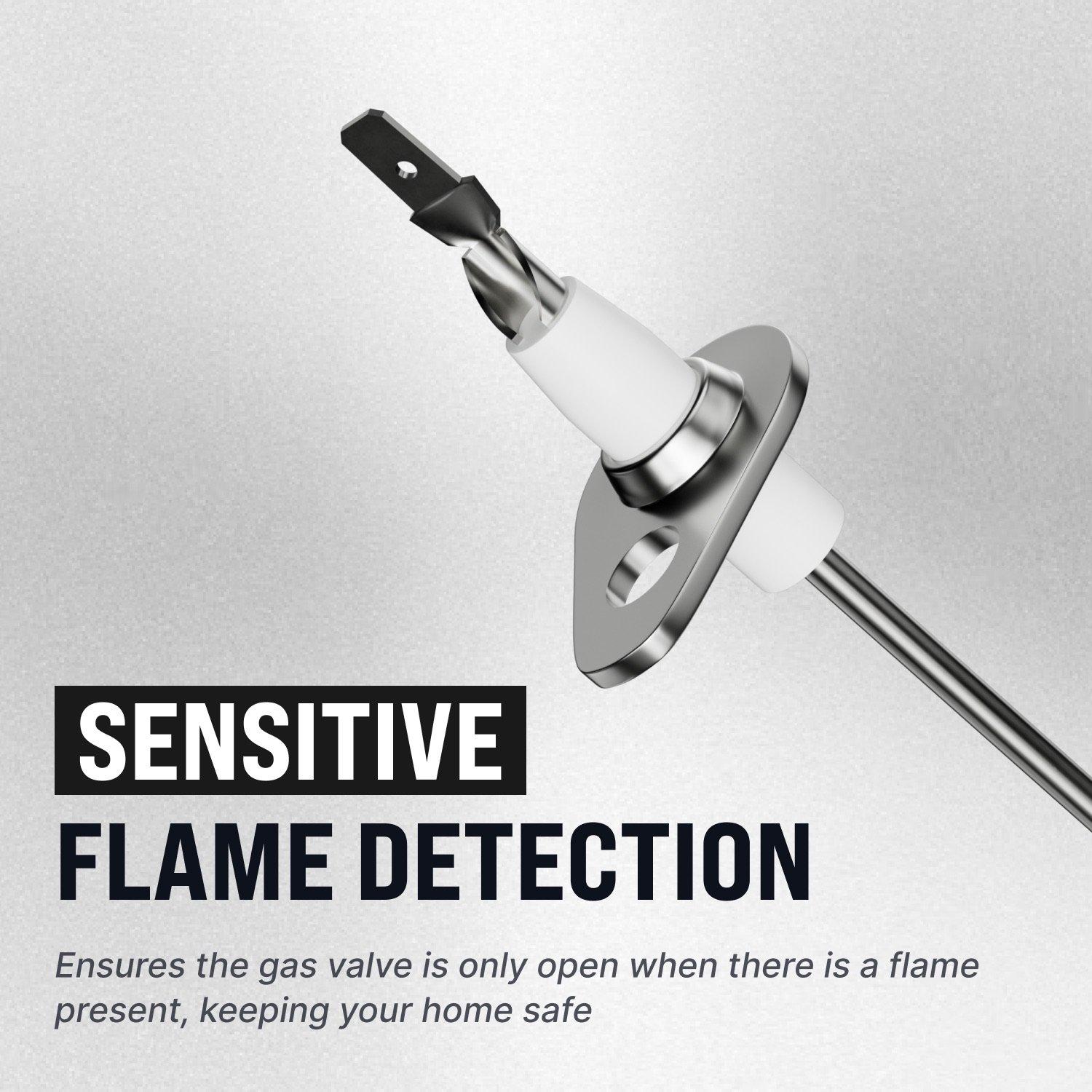

- Senses the presence of flame in the burner assembly.
- Direct replacement part designed for proper fit and function.
- Enables consistent furnace operation by sending a signal to the control board.
Replaces / Cross-Reference Part Numbers
- 0130F00010
- AP4513976
- B11726-06
- B1172606
- B1172806
- 20483501
- 20488501
- TJFLS013
Compatibility & Fitment
- Designed for use with various furnace models from Goodman, Amana, and Daikin.
- Fits specific models including GMHB and GDHB series.
- Verify compatibility by checking the part number on your original sensor or in your furnace's service manual.
When to Replace
- Furnace burners ignite for a few seconds and then shut off.
- Heating cycle starts but does not complete.
- Diagnostic codes indicate a flame sense or ignition failure.
- Existing sensor rod is corroded, cracked, or heavily coated in carbon buildup.
Installation Tips
- Always disconnect all electrical power to the furnace before servicing.
- Locate the sensor near the rear burner, typically secured with a single 1/4 inch hex screw.
- Remove the screw and wire to release the old sensor.

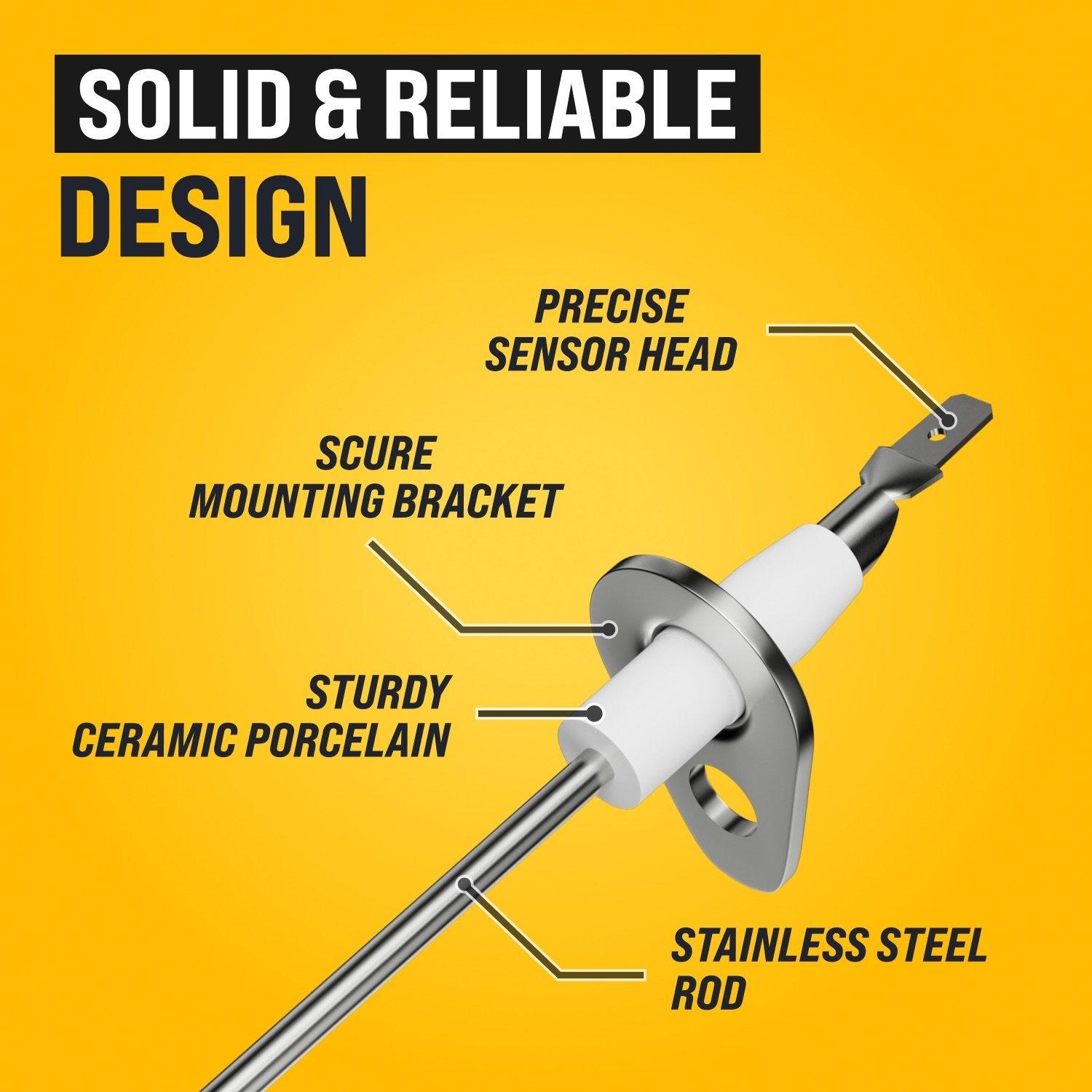

- Install the new sensor, ensuring the porcelain insulator is intact and the rod does not ground against any metal.
- Securely fasten the screw and reconnect the wire.
- Restore power and test the furnace through a full heating cycle.
