[Lifetime Warranty] 435-099 Starter Solenoid

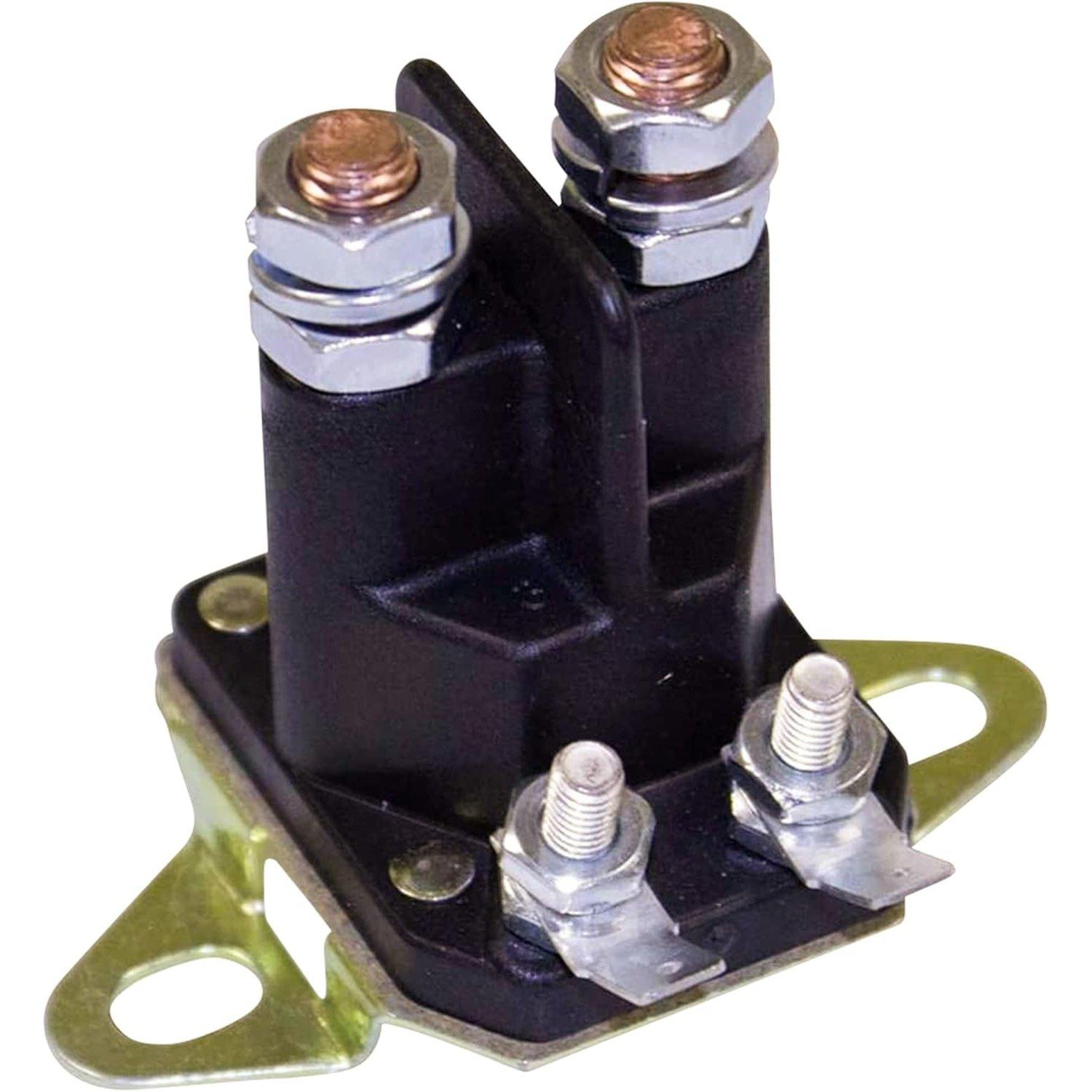

435-099 Starter Solenoid

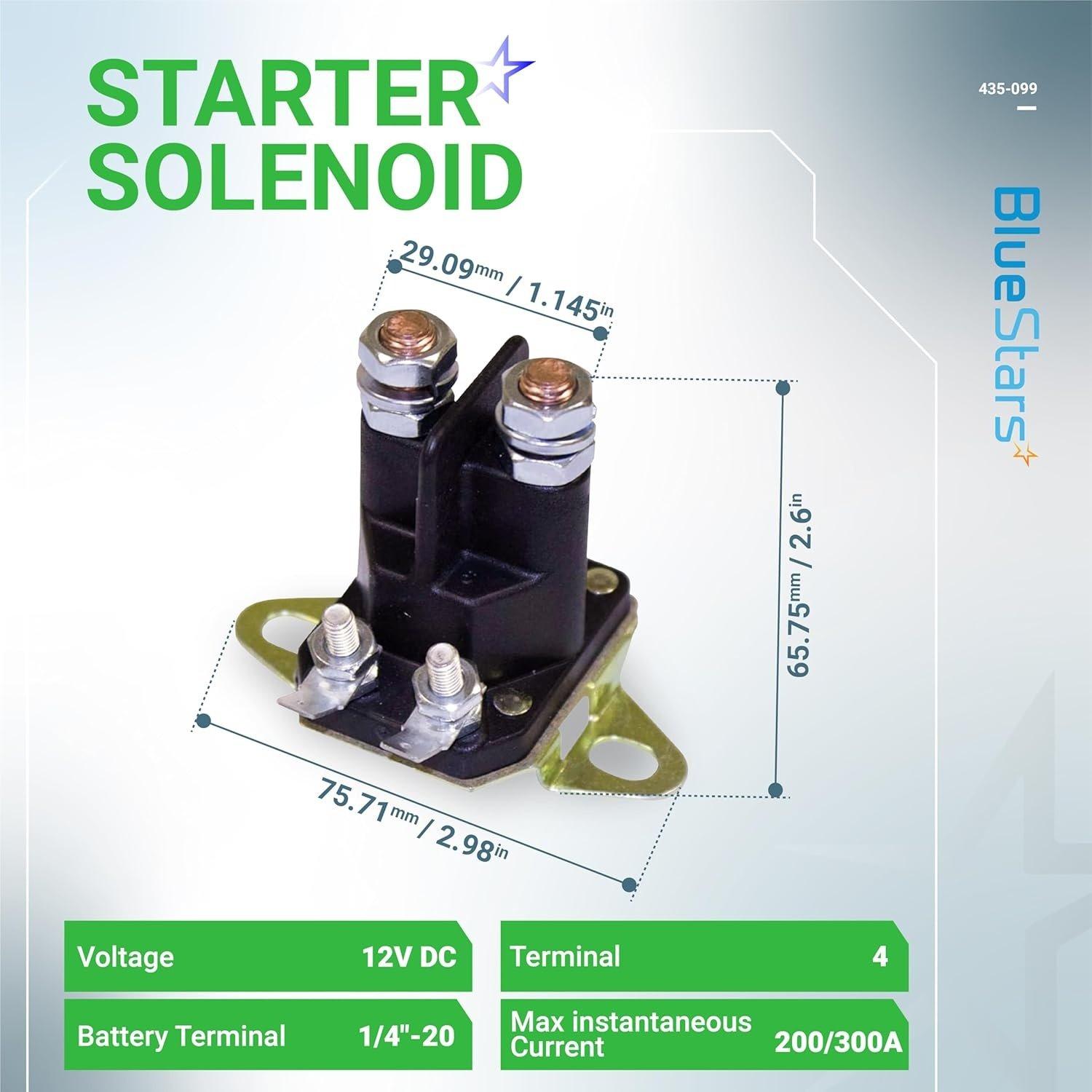

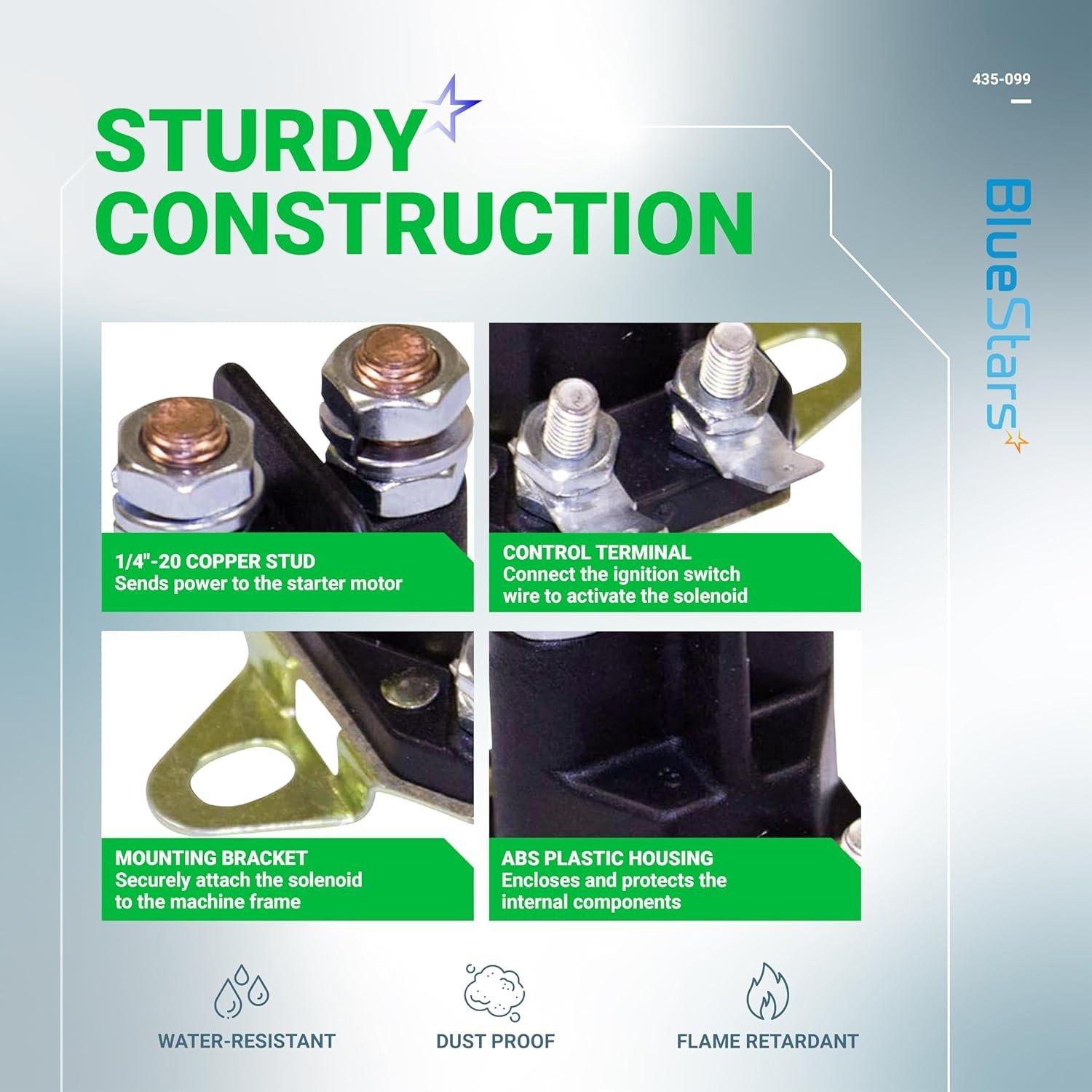

Key Features

• Voltage: 12V
• Pole Style: 4
• Studs: 5/16"-24
• Ground Type: Grounded through base
• Material: Steel housing
• Engineered to original equipment (OE) specifications for fit and performance.

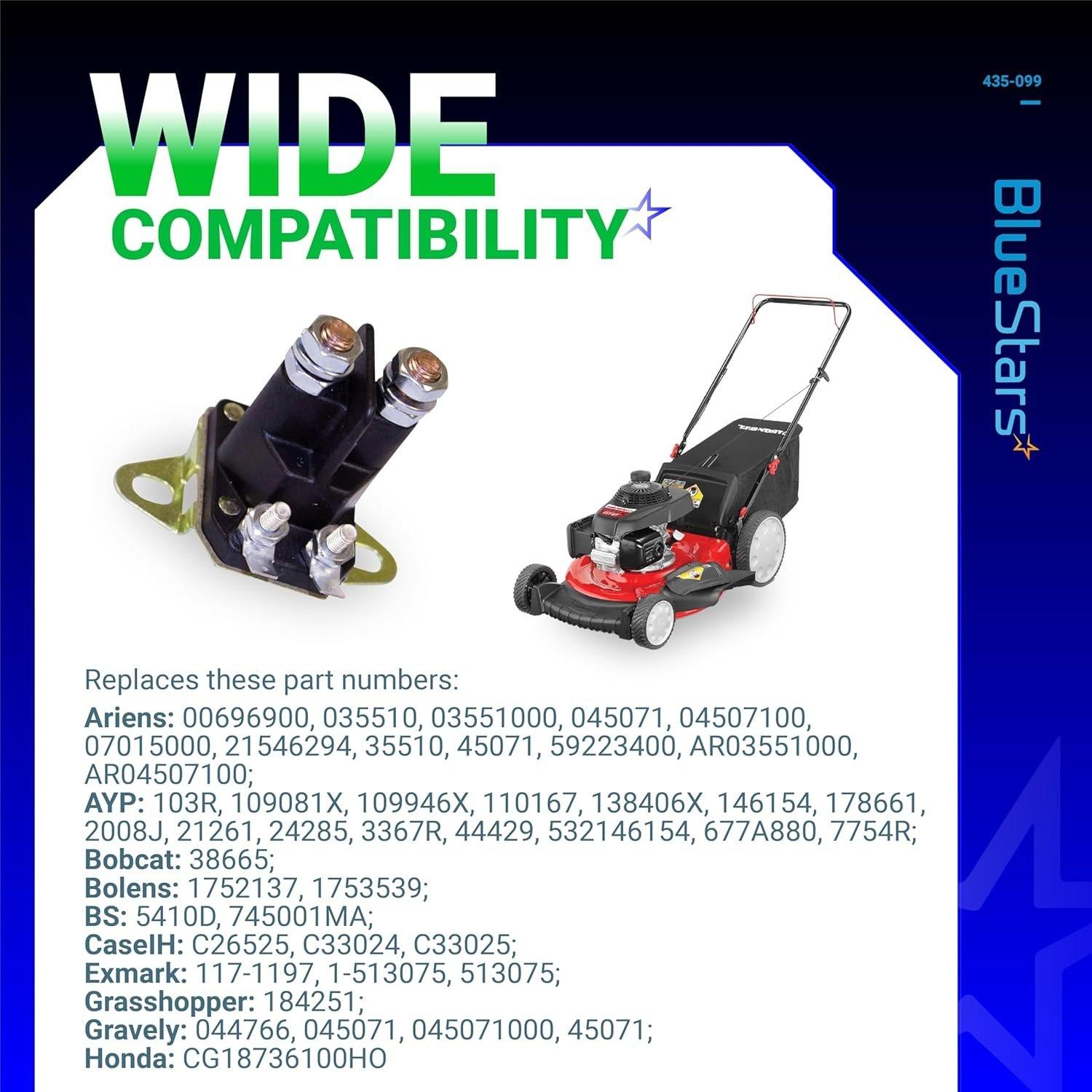

Replaces / Cross-Reference Part Numbers

• Ariens: 00696900, 035510, 03551000, 045071, 04507100
• AYP: 109946, 146154
• Bolens: 1752137, 1753539
• Briggs & Stratton: 745001MA
• Case: C-266525, C-33025
• Exmark: 1-513075, 117-1197, 513075
• Gilson: 212655
• Grasshopper: 184251
• Gravely: 044766, 045071, 045071000
• Husqvarna: 532109081, 532109946, 532146154
• John Deere: AM130365, AM132990, AM133094, AM138497, GY00185
• Lawn-Boy: 740207
• MTD: 725-04439A, 725-06153, 725-06153A
• Murray: 745001MA, 924285
• Scag: 483278
• Snapper: 1-8604, 7075622, 7075622SM, 75622
• Toro: 1-513075, 110116, 1101162, 117-1197, 28-4210, 47-1910, 740207, 92-9845

Compatibility & Fitment

• Ariens
• Gravely
• John Deere
• Husqvarna
• MTD
• Toro
• Snapper

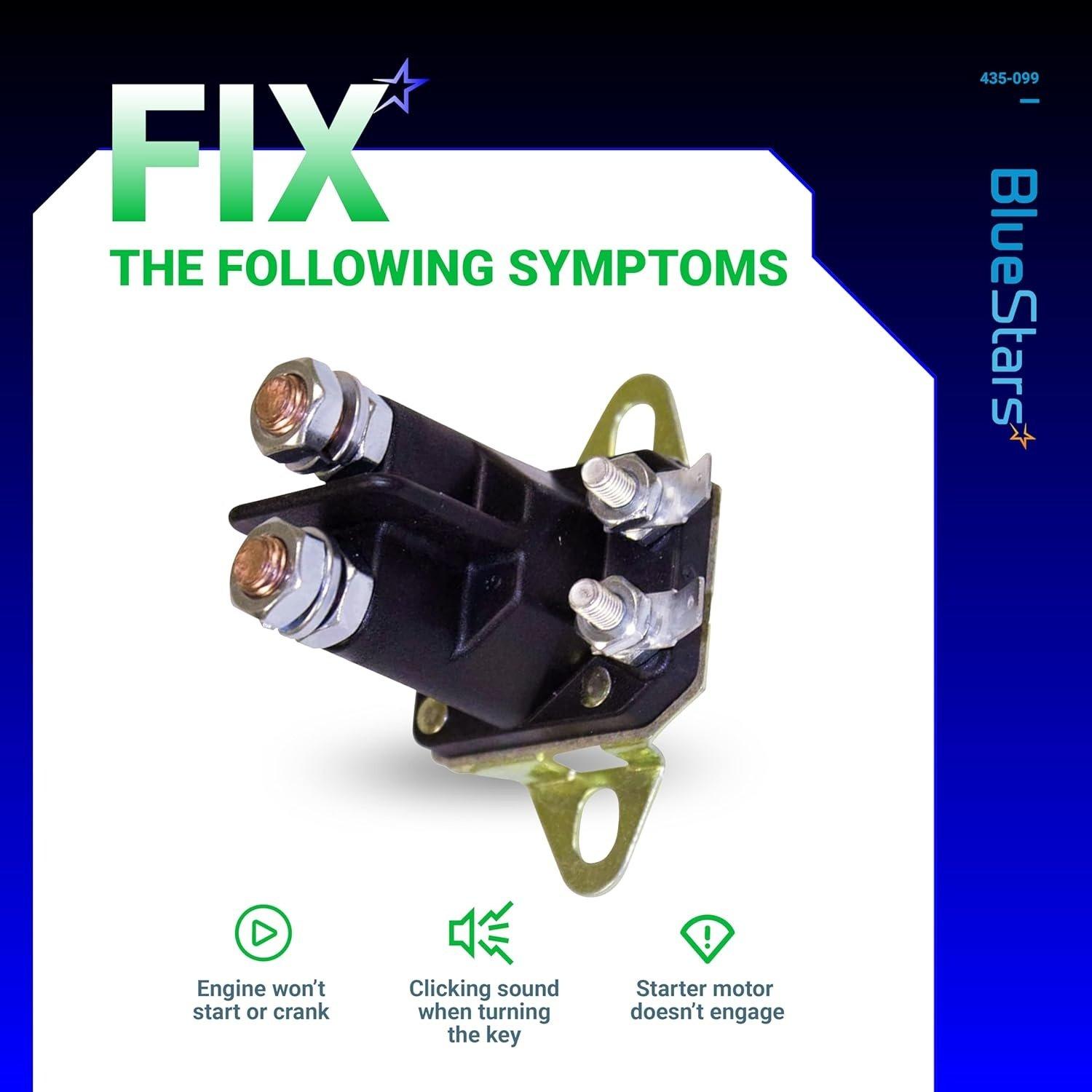

When to Replace

• A single, audible click when turning the key, but the engine does not crank.
• The starter motor does not engage or spins without turning the engine.
• Intermittent starting problems where the engine cranks sometimes but not others.
• No sound or action from the starter system when the ignition is activated.

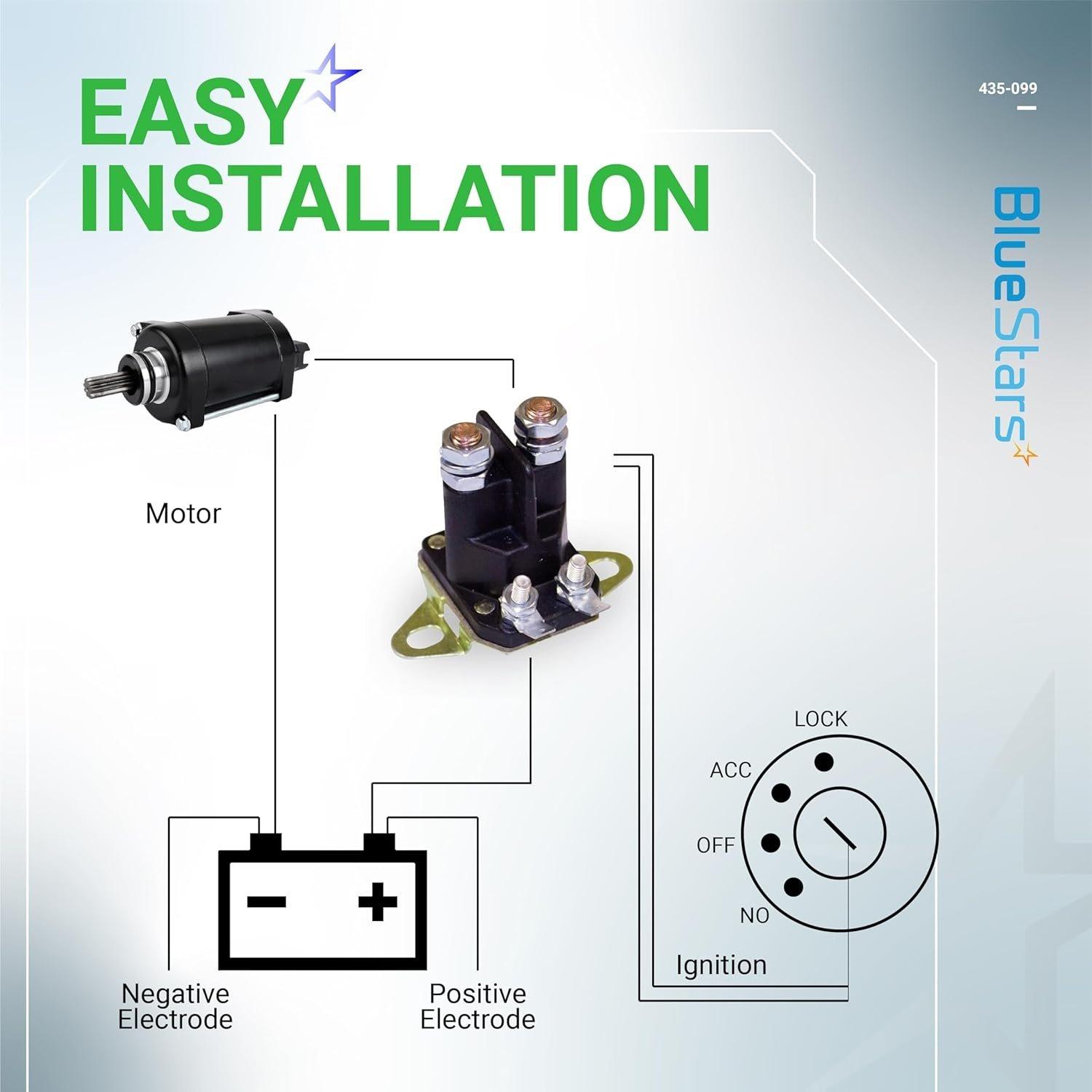

Installation Tips

• Always disconnect the negative battery terminal before beginning work.
• Take a photo or make a note of the existing wiring configuration before disconnecting the old solenoid.
• Ensure all electrical connection points are clean and free of corrosion.
• Securely tighten all nuts on the terminals to ensure a solid electrical connection. Do not overtighten.
