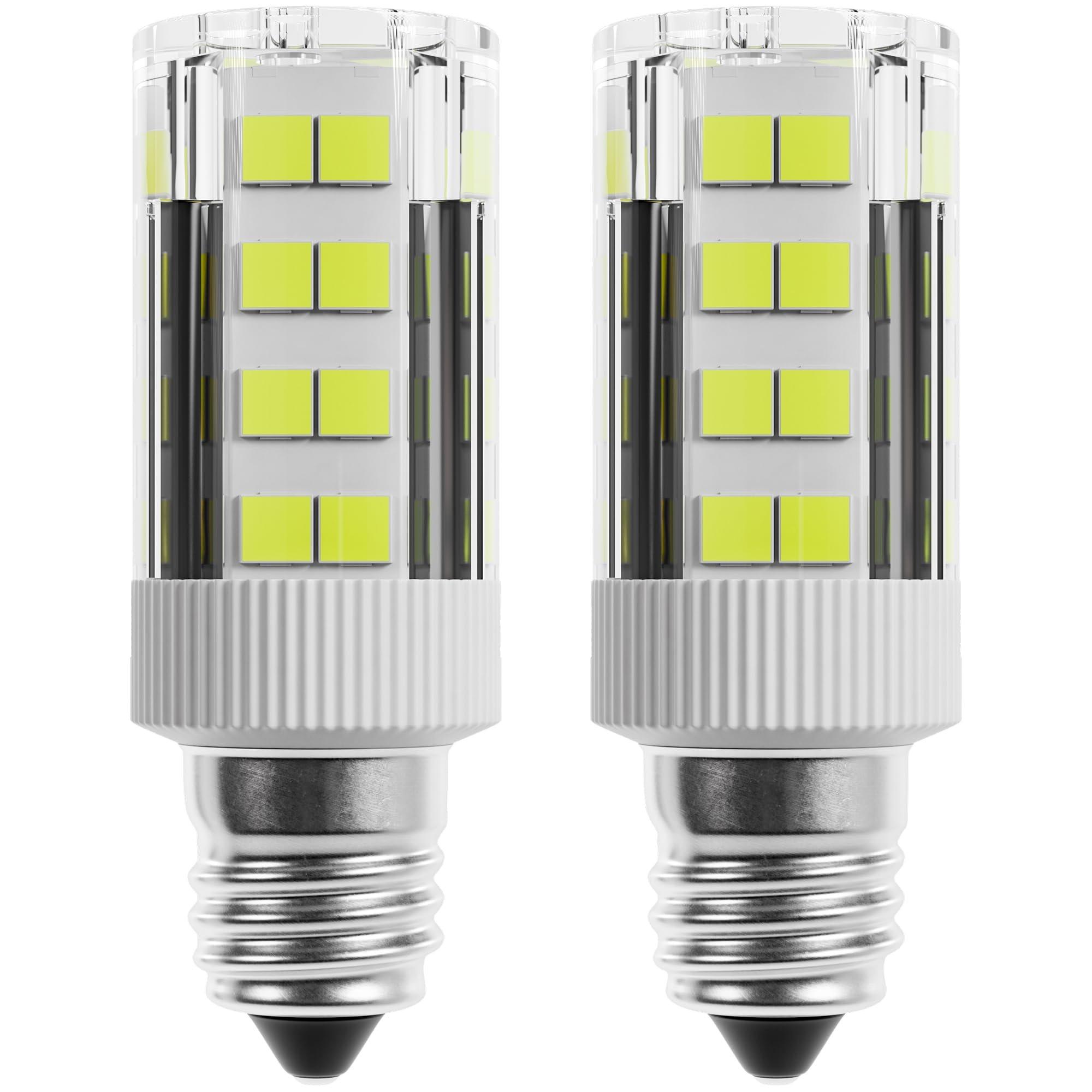

[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 0
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 1
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 2
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 3
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 4
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 5
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 6
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 7
[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2 image 8
AZ00255455

[Lifetime Warranty] WE05X20431 LED Dryer Drum Light Bulb 3.5W 120V E12 Candelabra Base 6000K Daylight for GE Whirlpool Kenmore KitchenAid - Replaces WE4M305 22002263 WP3395618 - Pack of 2

Sold 727

Difficulty Icon: Normal
Normal
More than 30 minutes

$11.70

$12.99

Save $1.29
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

WE05X20431 LED Dryer Drum Light Bulb (2-Pack)

Key Features

  • Energy-Efficient LED:Consumes only 3.5W of power while providing brightness equivalent to standard 10W–15W incandescent dryer bulbs.

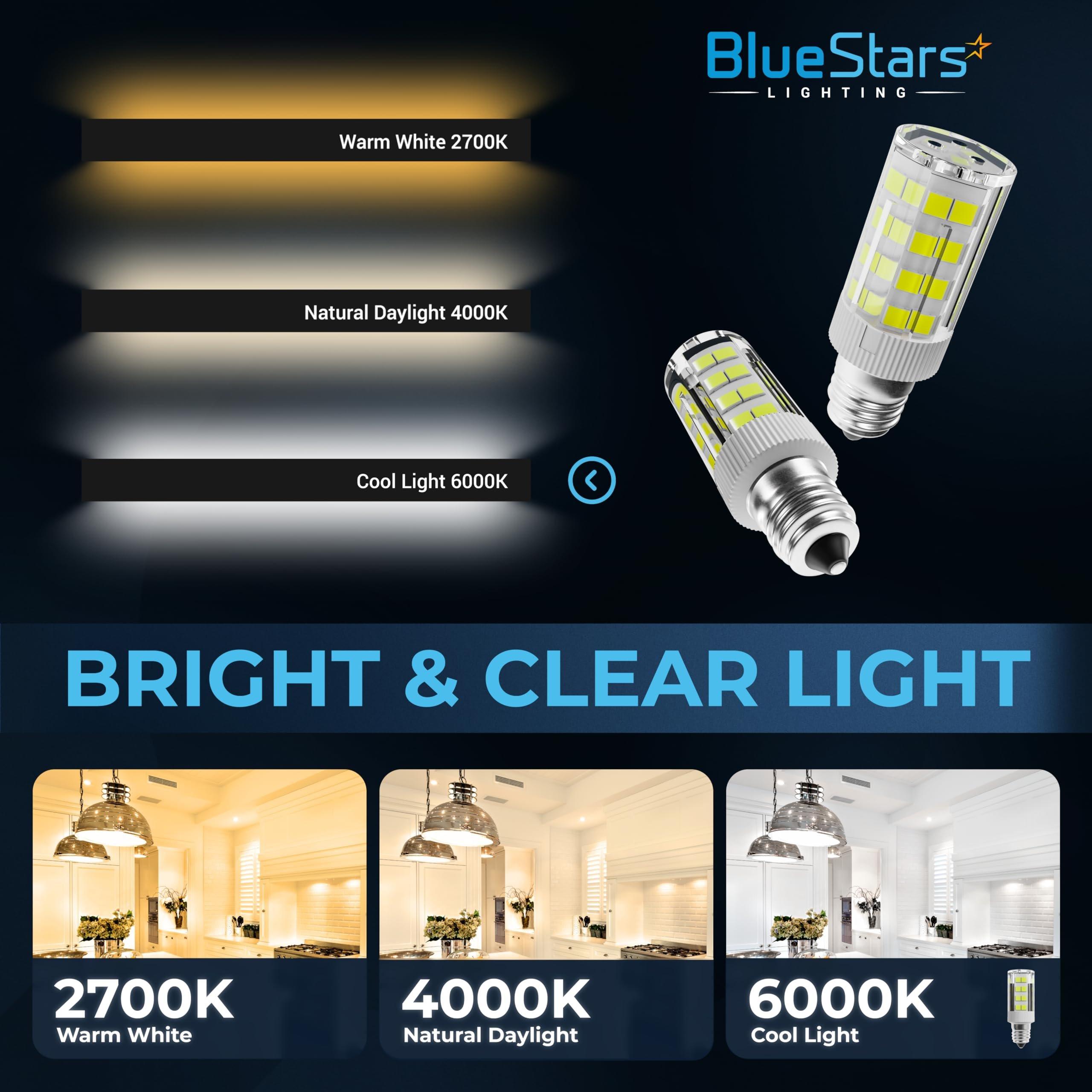

  • Daylight Clarity:6000K color temperature provides a crisp, neutral white light to improve visibility inside the dryer drum.
  • Vibration Resistant:Engineered with a solid-state design to withstand the high-vibration environment of a spinning dryer drum.

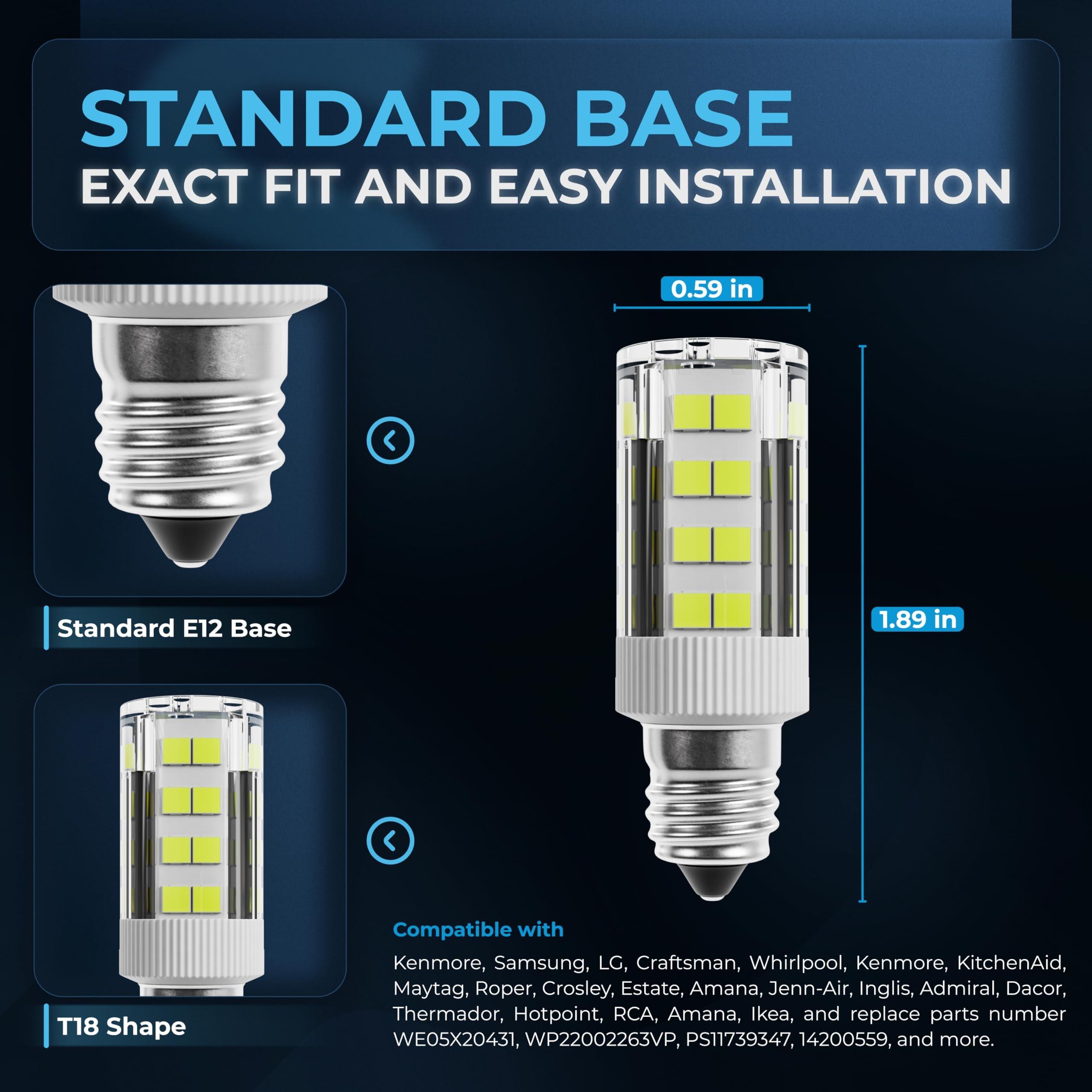

  • Universal E12 Base:Features a standard candelabra screw base for quick, tool-free installation in compatible sockets.
  • Long Service Life:Designed to outlast traditional filament bulbs, reducing the frequency of replacements in hard-to-reach sockets.

Replaces / Cross-Reference Part Numbers

  • WE05X20431
  • WE4M305
  • 22002263
  • WP3395618
  • 3395618
  • AP5791307
  • PS8754165
  • EAP8754165

Compatibility & Fitment

This LED bulb is compatible with various clothes dryers from major manufacturers that utilize a 120V E12 base socket. Key compatible brands include:
  • GE (General Electric):Fits many GTD, GTX, GFD, and GFD series models.
  • Whirlpool & Kenmore:Compatible with select residential dryers including the 110 series.
  • KitchenAid & Maytag:Fits models utilizing the WP3395618 or 22002263 part numbers.
  • Hotpoint & Amana:Compatible with standard top-load and front-load matching dryers.

When to Replace

  • Bulb Burnout:The drum remains dark when the door is opened, making it difficult to find small laundry items.
  • Intermittent Flickering:The light blinks or strobes during the cycle, often indicating a failing LED driver or loose filament in an old bulb.
  • Physical Damage:The glass envelope is cracked or the screw base has become corroded.
  • Upgrade Requirement:Replacing yellow-tinted incandescent bulbs with 6000K LED for better color accuracy and lower heat output.

Installation Tips

  • Safety First:Unplug the dryer or turn off the circuit breaker before attempting to replace the bulb.
  • Accessing the Bulb:Locate the light cover inside the dryer drum (usually on the back wall or near the door). You may need a Phillips-head screwdriver to remove the protective lens.
  • Removal:Unscrew the old bulb by turning it counter-clockwise. If the bulb is broken, use needle-nose pliers to carefully unscrew the remaining metal base.
  • Insertion:Thread the new LED bulb into the socket clockwise until it is finger-tight. Do not overtighten.
  • Testing:Restore power and open the dryer door to verify the light illuminates correctly before replacing the lens cover.
Light Type
LED

Wattage
3.5 watts

Bulb Shape Size
T

Bulb Base
E12

Incandescent Equivalent Wattage
40 Watts

Light Color
cool white

Unit Count
2.0 Count

Color Temperature
6000 Kelvin

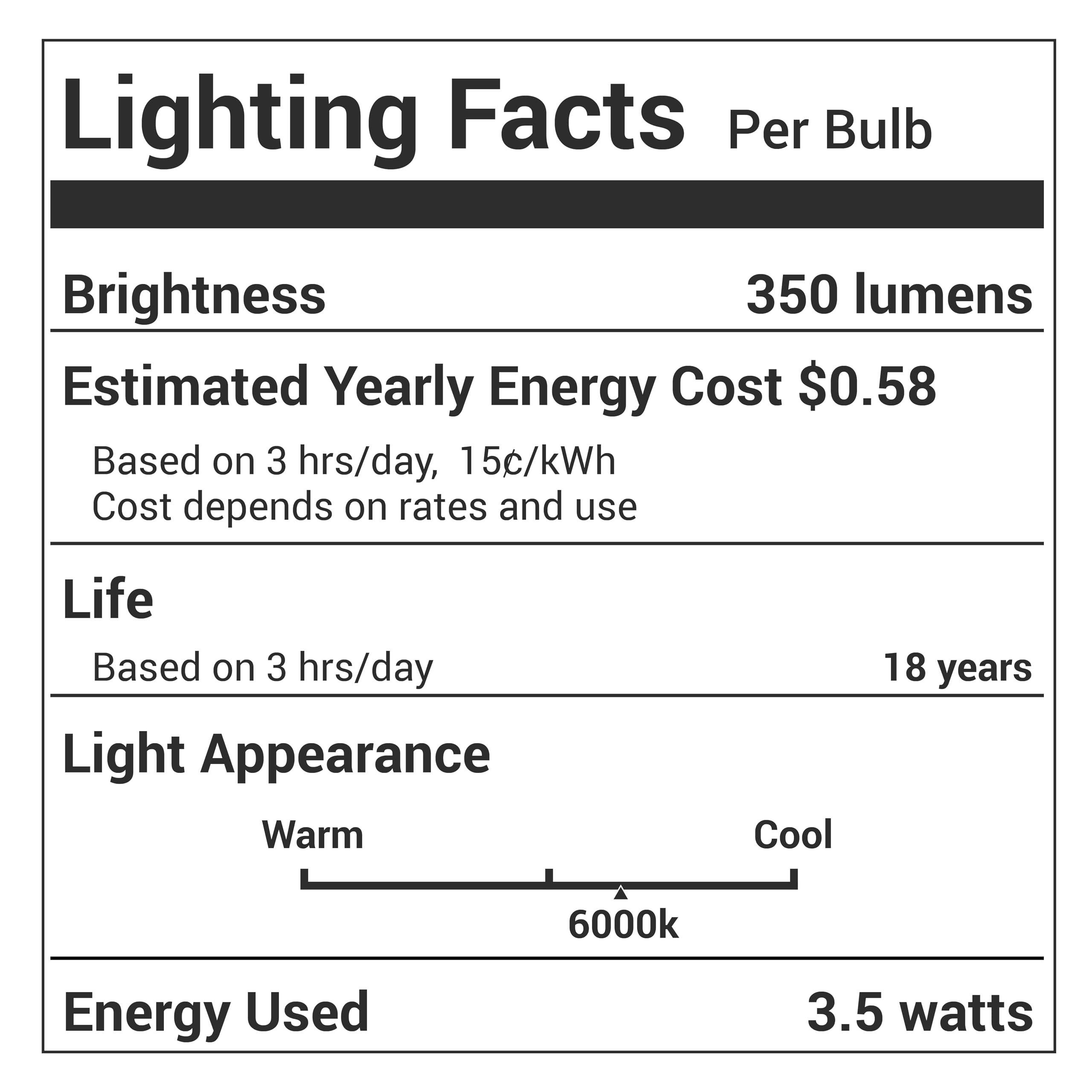

Brightness
350 Lumen

Shape
Tubular(T)

Material
Semiconductor

Model Name
LED Dryer Drum Light

Indoor/Outdoor Usage
Indoor

Power Source
Corded Electric

Beam Angle
360 Degrees

Power Consumption
3.5 Watts

Item Package Quantity
1.0

Light Source Wattage
3.5 Watts

Average Life
20000 Hours

White Brightness
350 Lumens

Efficiency
High

Style
LED 6000K

Color
Cool White

Light Output Maximum
350 Lumens

Part Number
WE05X20431 3.5W

Batteries Included?
No

Batteries Required?
No

Accepted Voltage Frequency
100 to 120 and 60 hertz

Item Model Number
WE05X20431

Number Of Items
2.0
