AZ00255781

[Lifetime Warranty] WPY312959 (Y312959 312959) Dryer Belt - Compatible with Whirlpool Maytag Dryer Belt - Replaces 3-12959, 3-14774, LB234, 6-3129590, 314774, 314774 WPY, WPY312959VP

Sold 13,267

Difficulty Icon: Easy
Easy
More than 30 minutes

$11.70

$12.99

Save $1.29
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

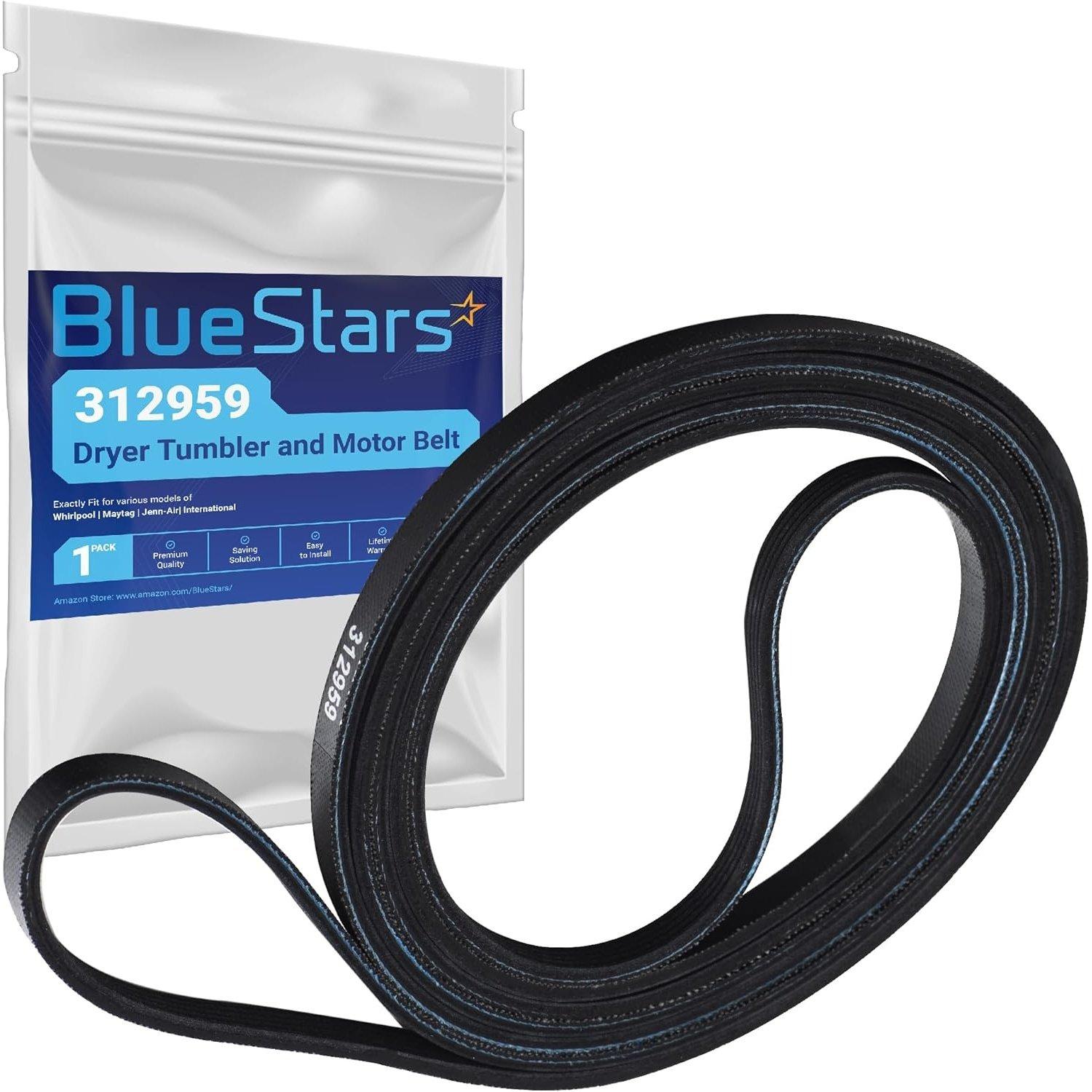

Y312959 WPY312959 312959 Dryer Tumbler and Motor Belt

Key Features

  • Connects the drive motor to the dryer drum to enable tumbling

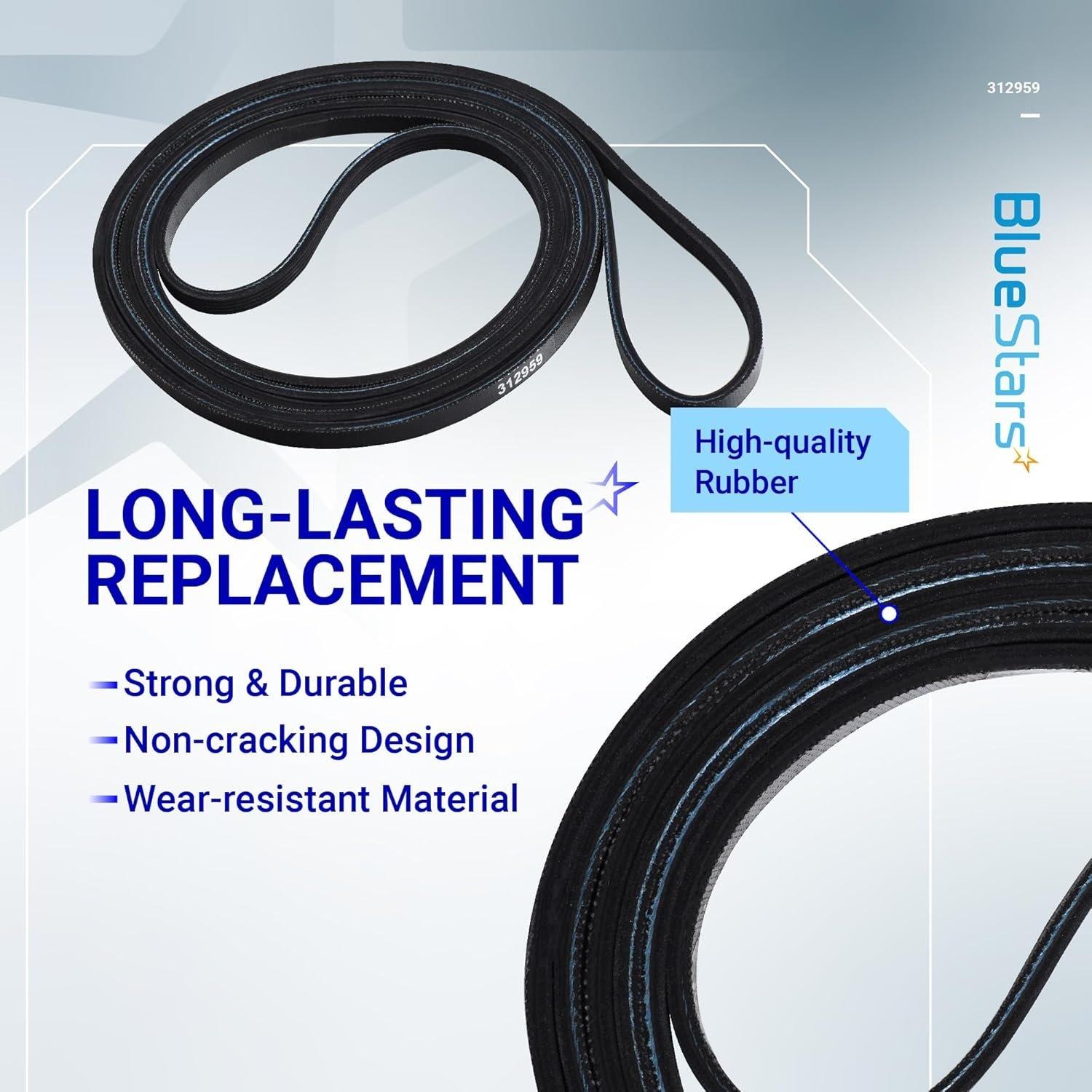

  • Material: Rubber
  • Length: 100 inches
  • Width: 3/8 inches

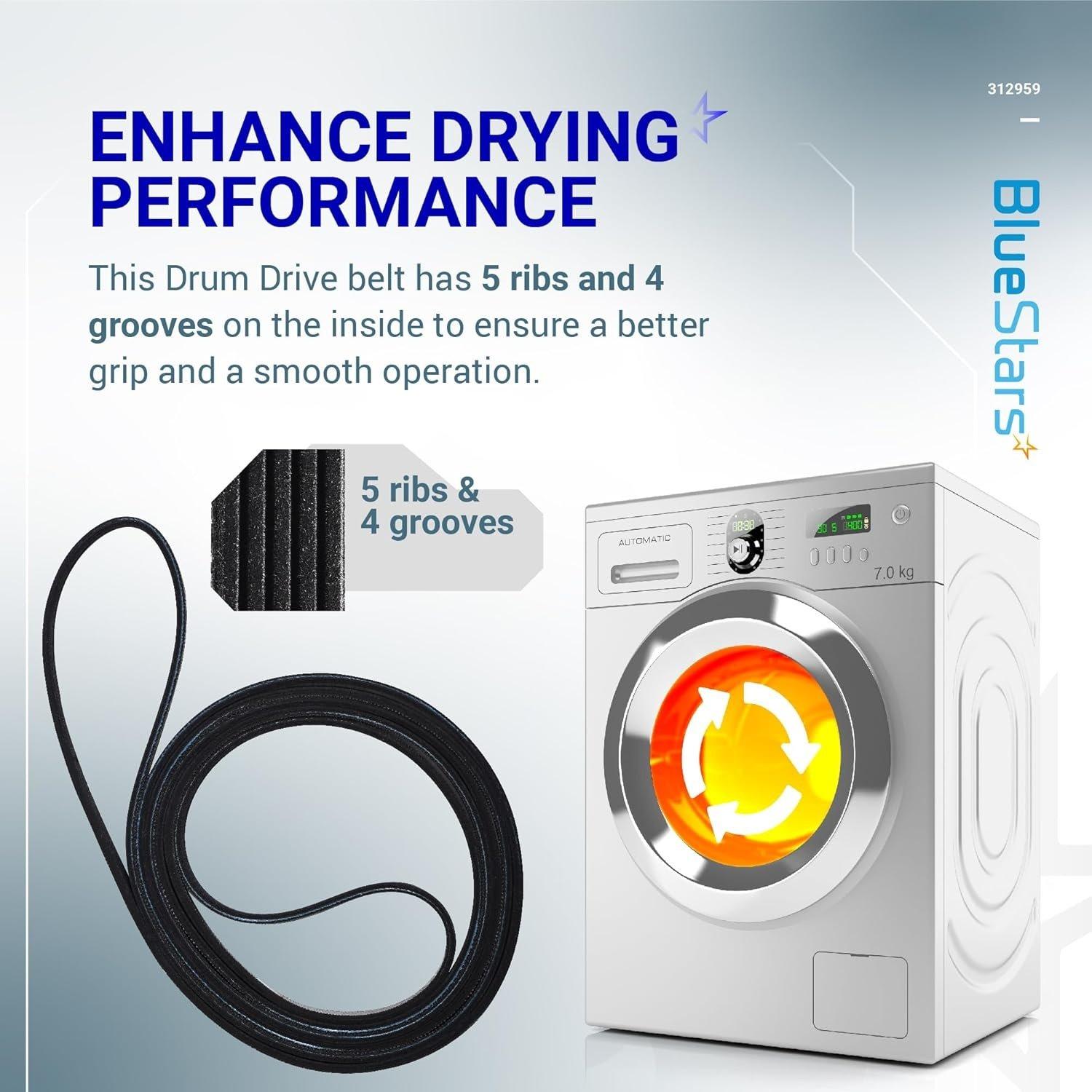

  • Specifications: 5 ribs, 4 grooves

Replaces / Cross-Reference Part Numbers

  • Y312959
  • WPY312959
  • 312959
  • 3-12959
  • 314774
  • WPY312959VP
  • AP6024192
  • PS11757542
  • LB234

Compatibility & Fitment

  • Designed for use with various clothes dryers, including models from:
  • Maytag
  • Whirlpool
  • Kenmore
  • Jenn Air

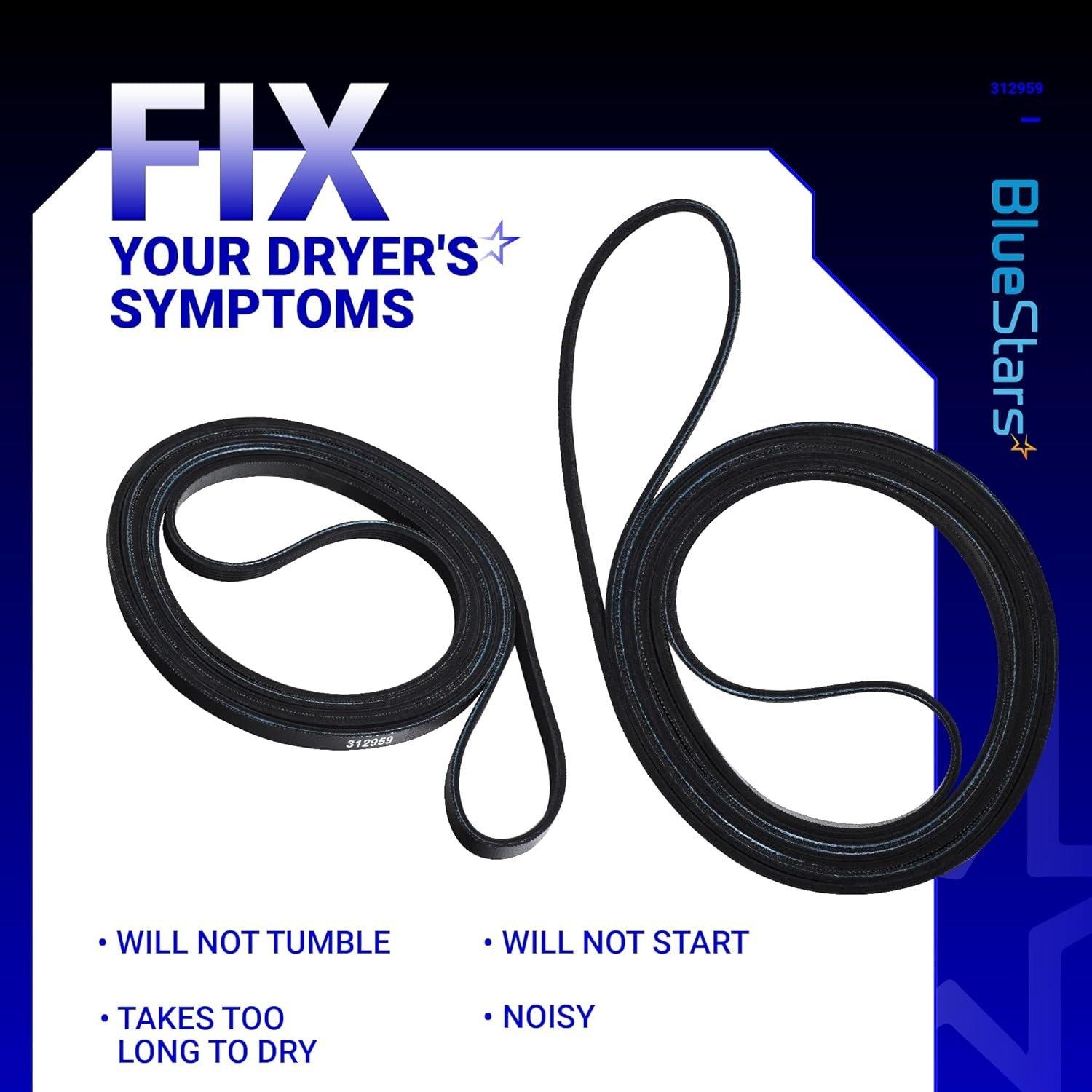

When to Replace

  • The dryer motor runs, but the drum does not spin.
  • The dryer makes loud thumping or squealing sounds.
  • The existing belt is visibly cracked, frayed, broken, or stretched.

Installation Tips

  • Disconnect the dryer from its power source before starting any repairs.
  • Access panels may need to be removed to reach the belt and pulleys.
  • Note the routing of the old belt around the drum and tensioner pulley before removal.
  • Install the new belt with the ribbed side against the drum and motor pulley.
  • Ensure the belt is correctly seated on the tensioner pulley to maintain proper tension.
