[Lifetime Warranty] WE12M29 WE03X29897 WE12M22 Dryer Belt 89.5-Inch - For GE Hotpoint Frigidaire GTD33EASK0WW GTD42EASJ2WW DBXR463ED2WW DBXR463ED1WW - Replaces 137292700 AP4565702 134163500

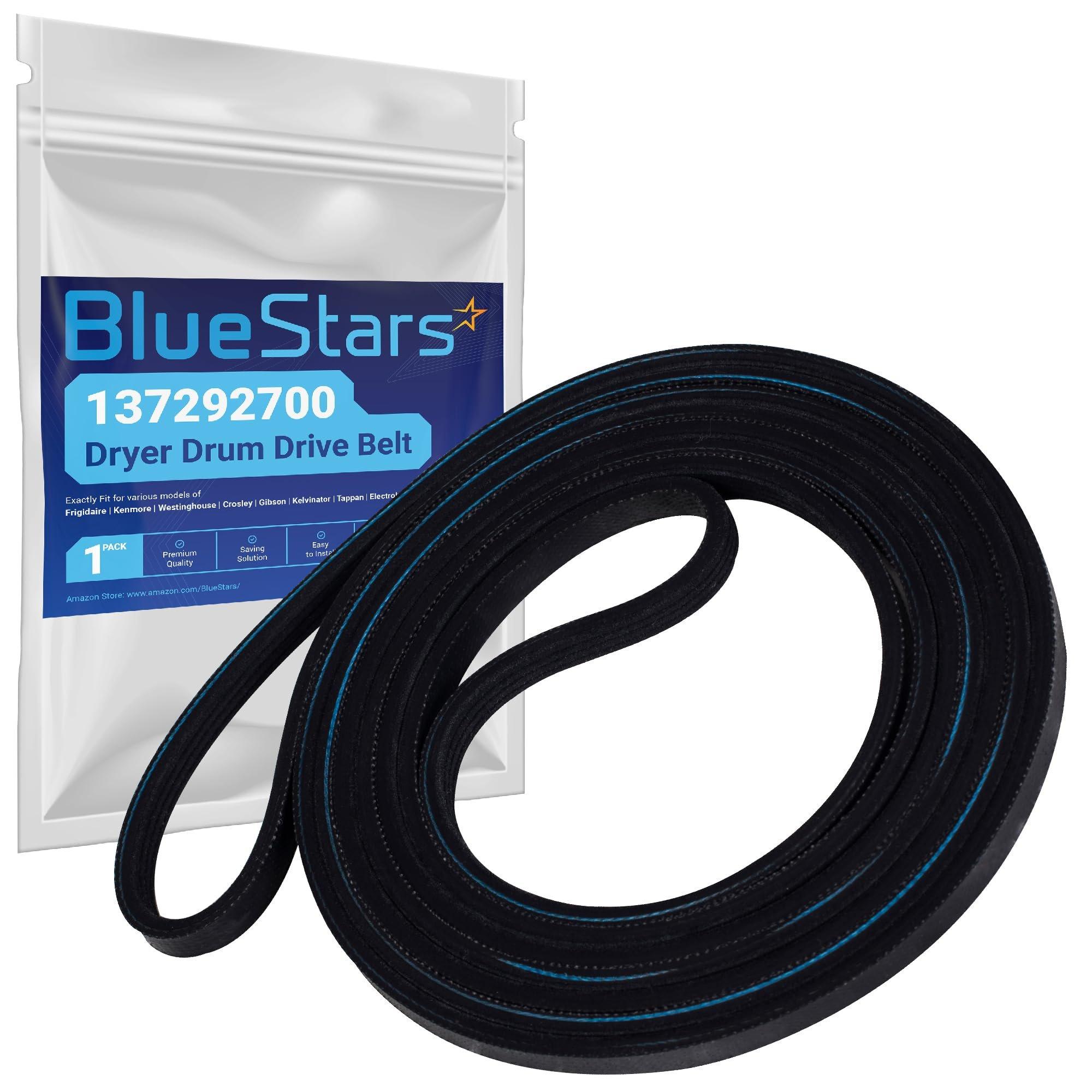

WE12M29 WE03X29897 WE12M22 Dryer Belt 89.5in

Key Features

• Material: High-tensile strength rubber compound
• Length: 89.5 inches
• Width: 0.25 inches
• Profile: 4 ribs, 5 grooves
• Function: Rotates the dryer drum

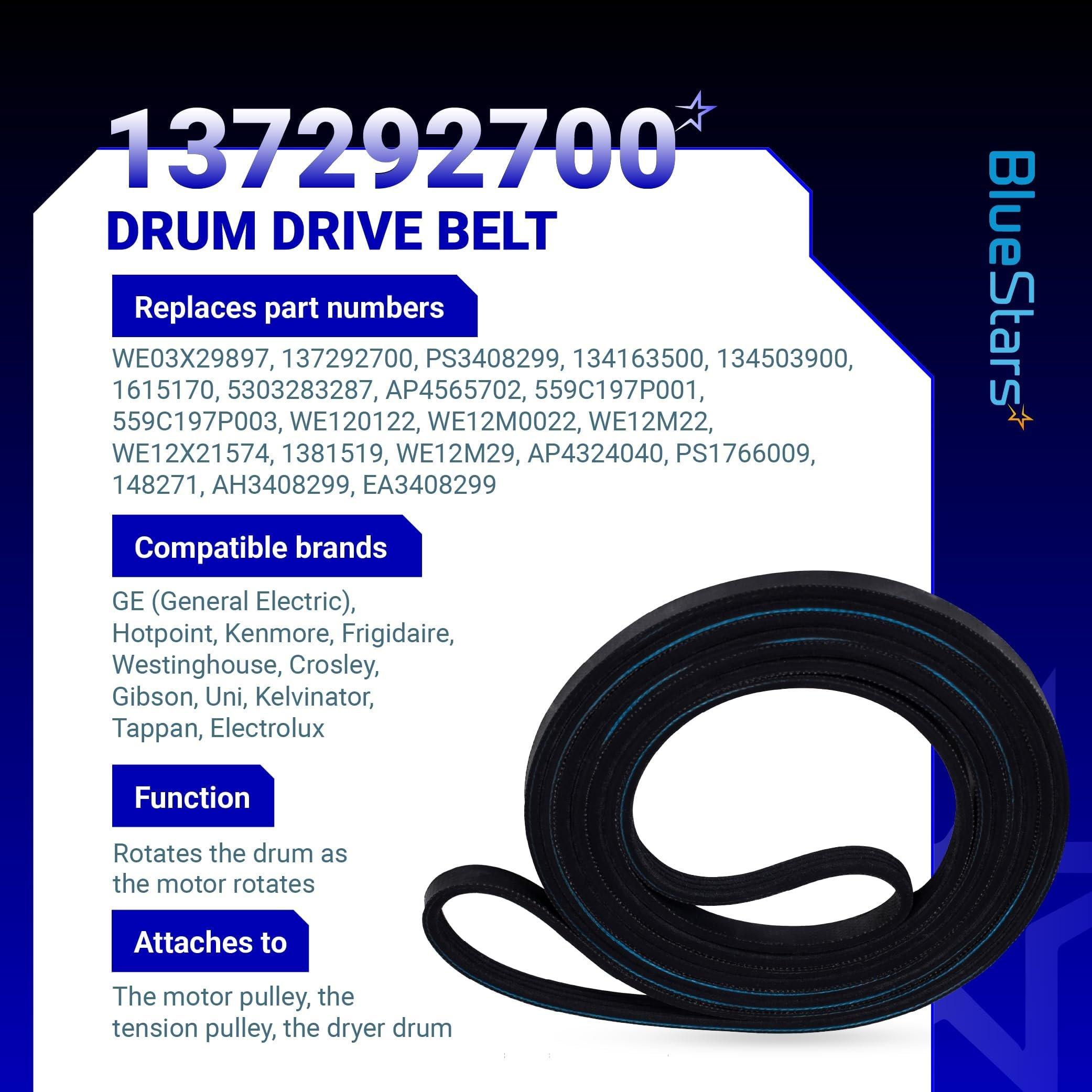

Replaces / Cross-Reference Part Numbers

• WE12M29
• WE03X29897
• WE12M22
• 137292700
• 134163500
• WE12M33
• WE120122
• PS1766009
• AP4324040

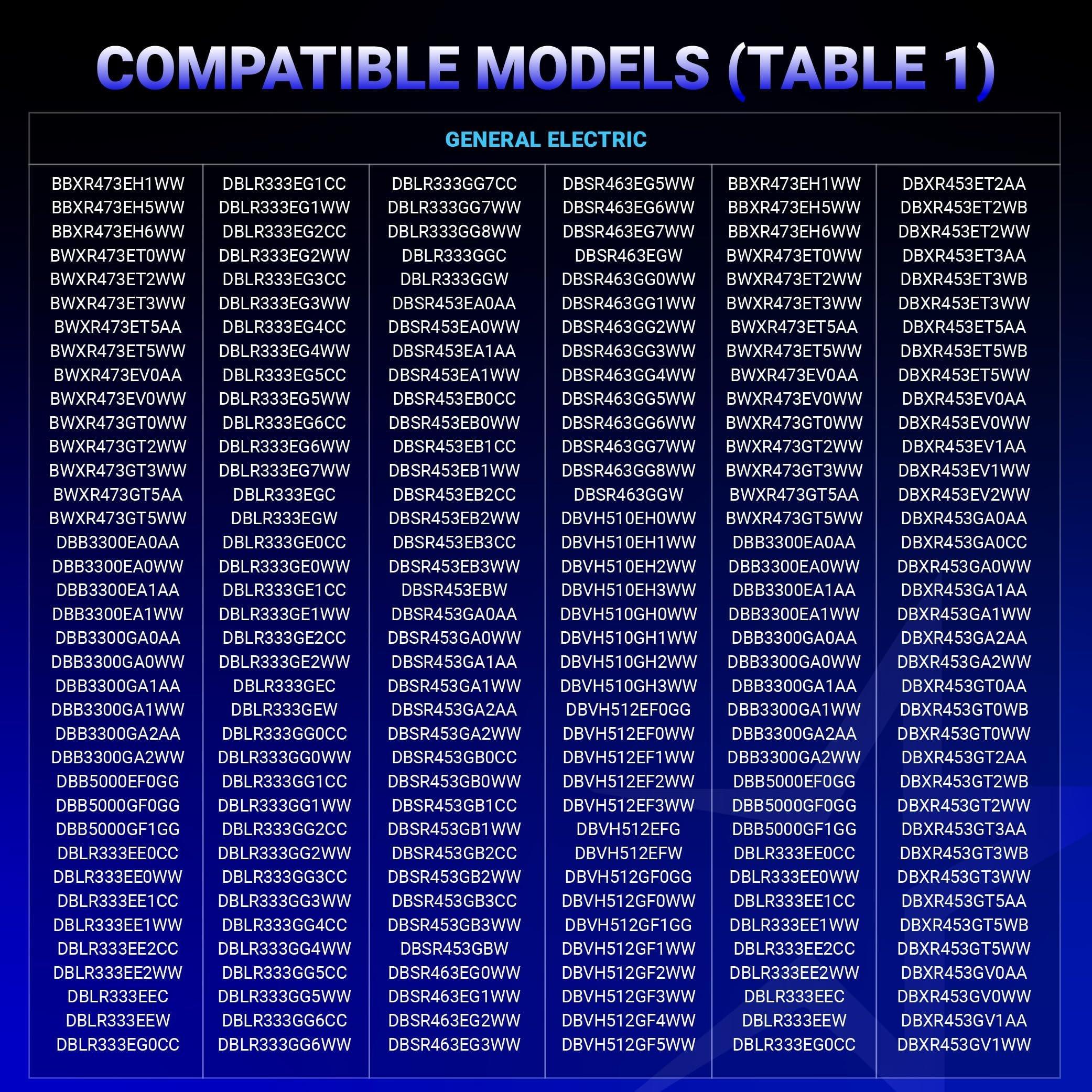

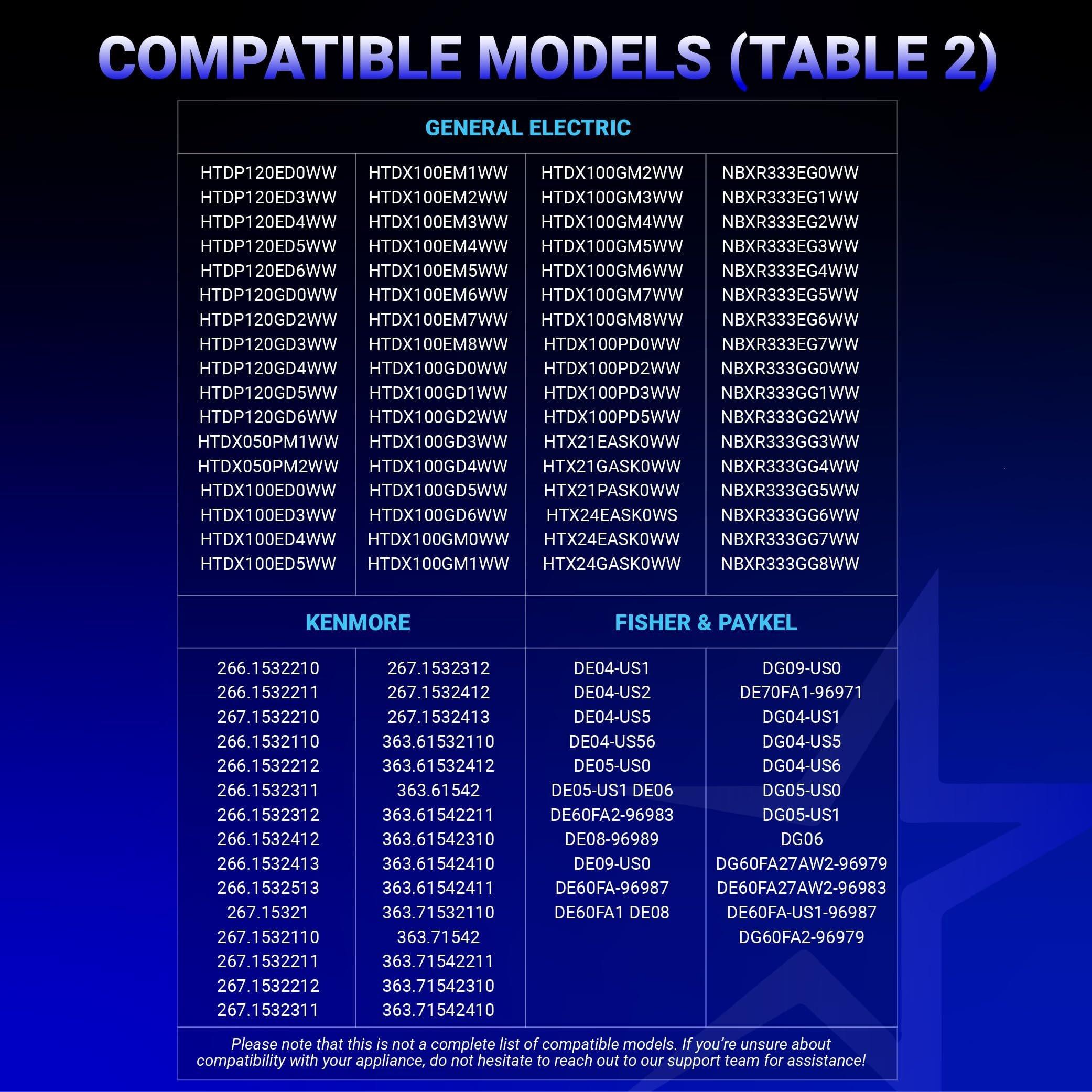

Compatibility & Fitment

• Fits select models from brands including General Electric (GE), Hotpoint, Frigidaire, Kenmore, and Whirlpool.
• Compatible with specific models such as GTD33EASK0WW, GTD42EASJ2WW, DBXR463ED2WW, DBXR463ED1WW, and GTX22EASK0WW.

When to Replace

• The dryer drum fails to turn while the motor is running.
• A loud thumping or squealing noise is present during the cycle.
• The dryer stops spinning mid-cycle.
• The existing belt shows visible cracks, frays, or signs of stretching.

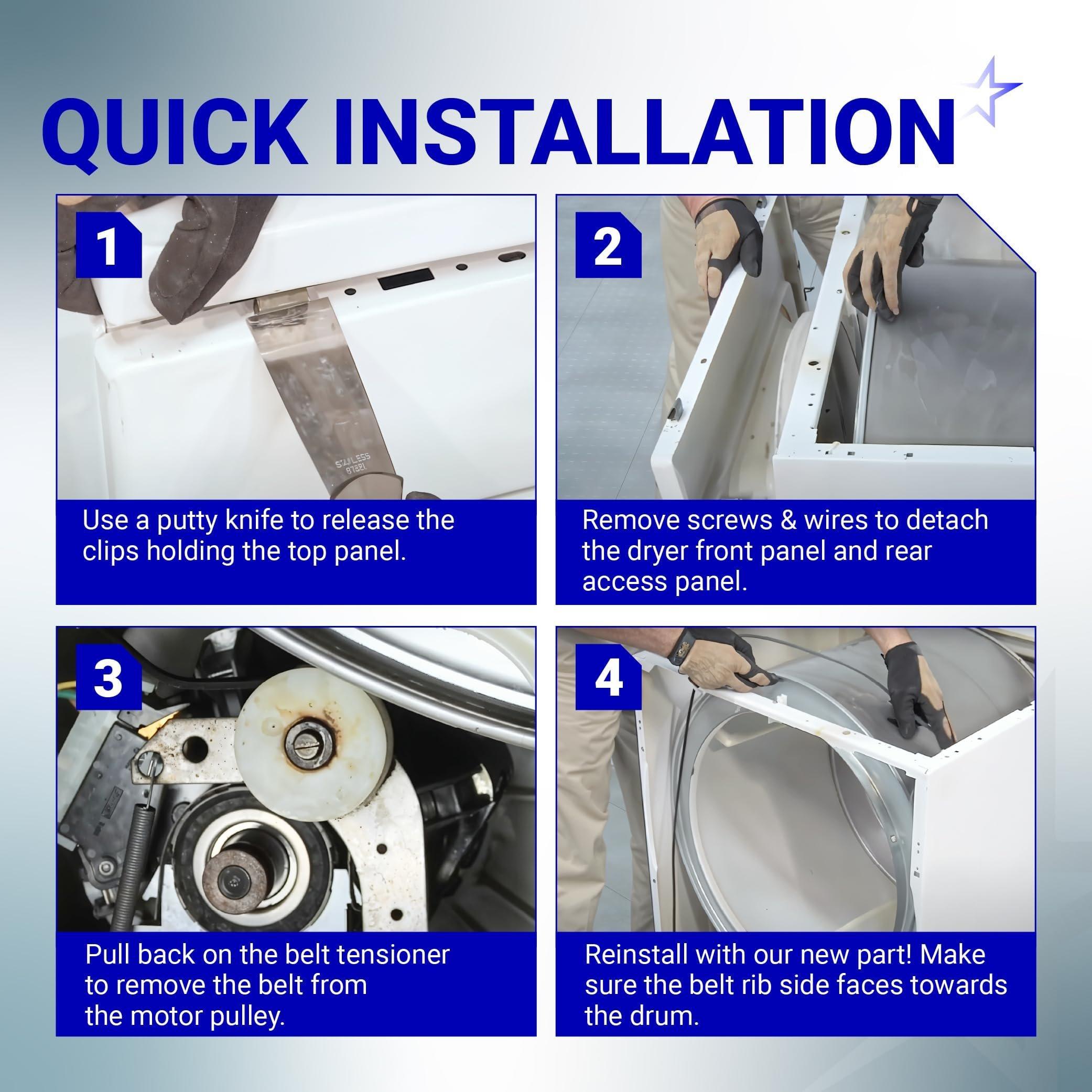

Installation Tips

• Disconnect the dryer from all power sources before beginning installation.
• Note the routing of the old belt around the motor pulley and idler pulley before removal.
• The ribbed side of the new belt must grip the motor pulley.
• The flat (smooth) side of the belt should be in contact with the drum.
• Inspect drum support rollers and the idler pulley for wear; replace if necessary during the repair.
