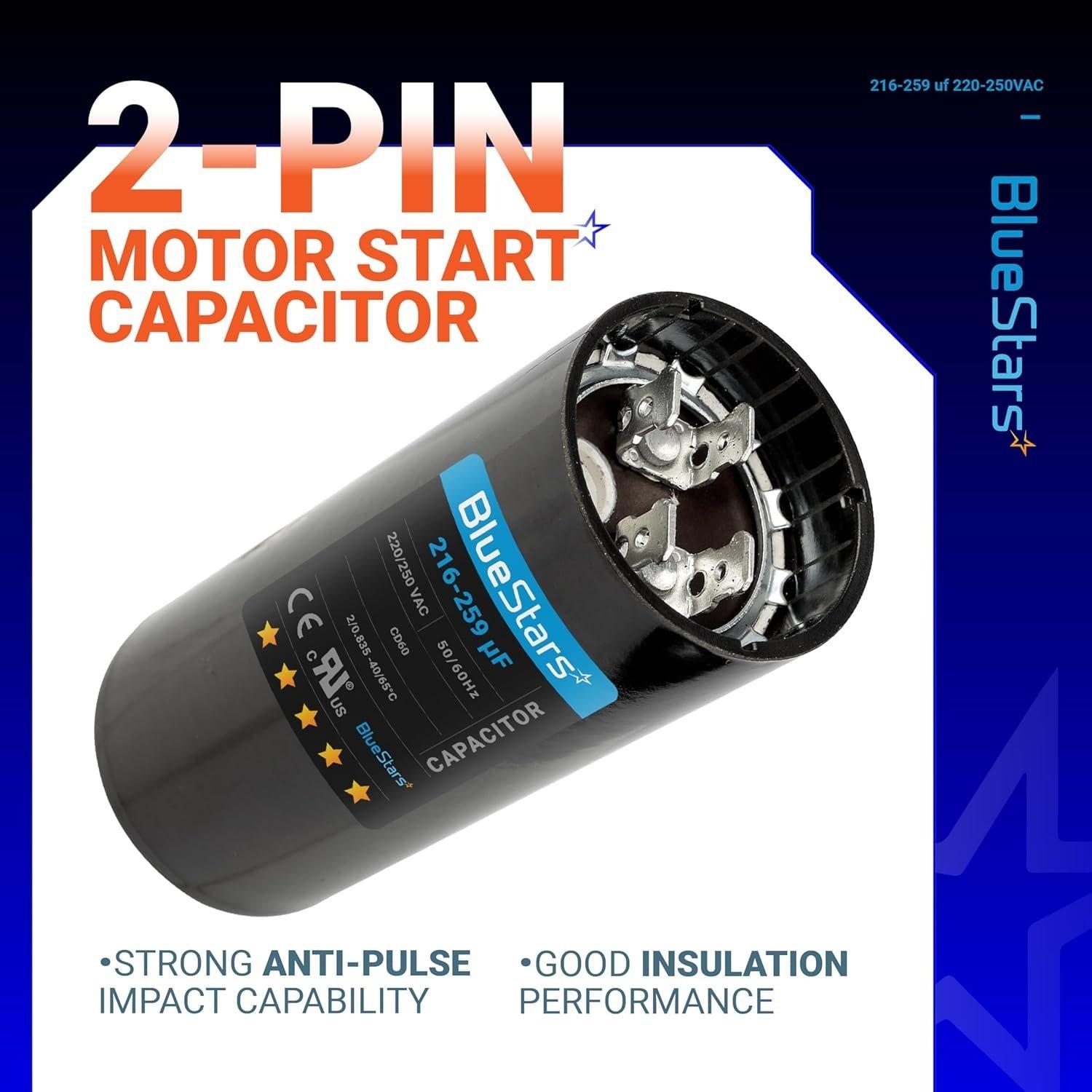

[Lifetime Warranty] 216-259 uF MFD 220-250 VAC 50/60 Hz SC0080 CD60 Round Motor Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump

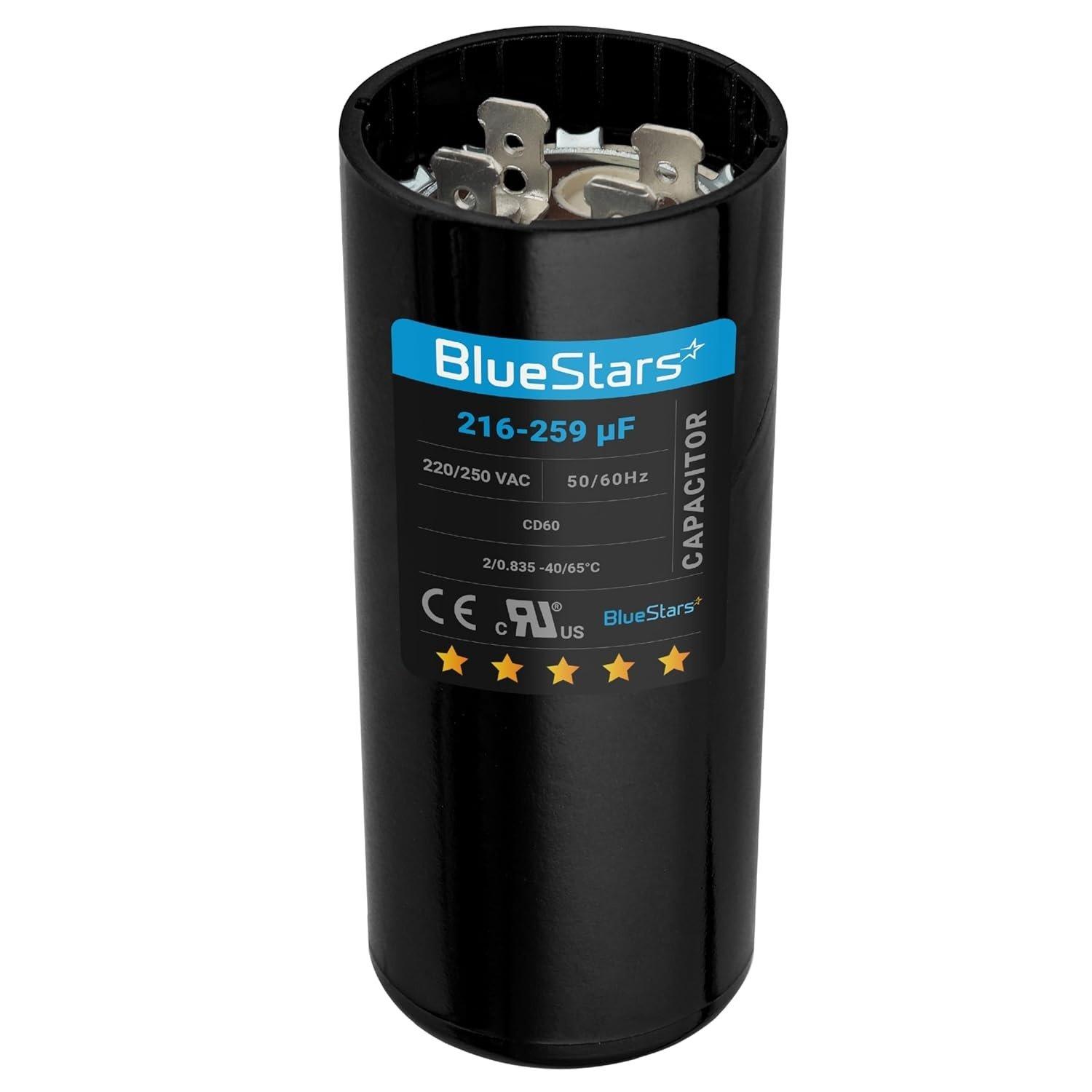

216-259 uf MFD 220-250 VAC 50/60 Hz SC0080 CD60 Round Motor Start Capacitor

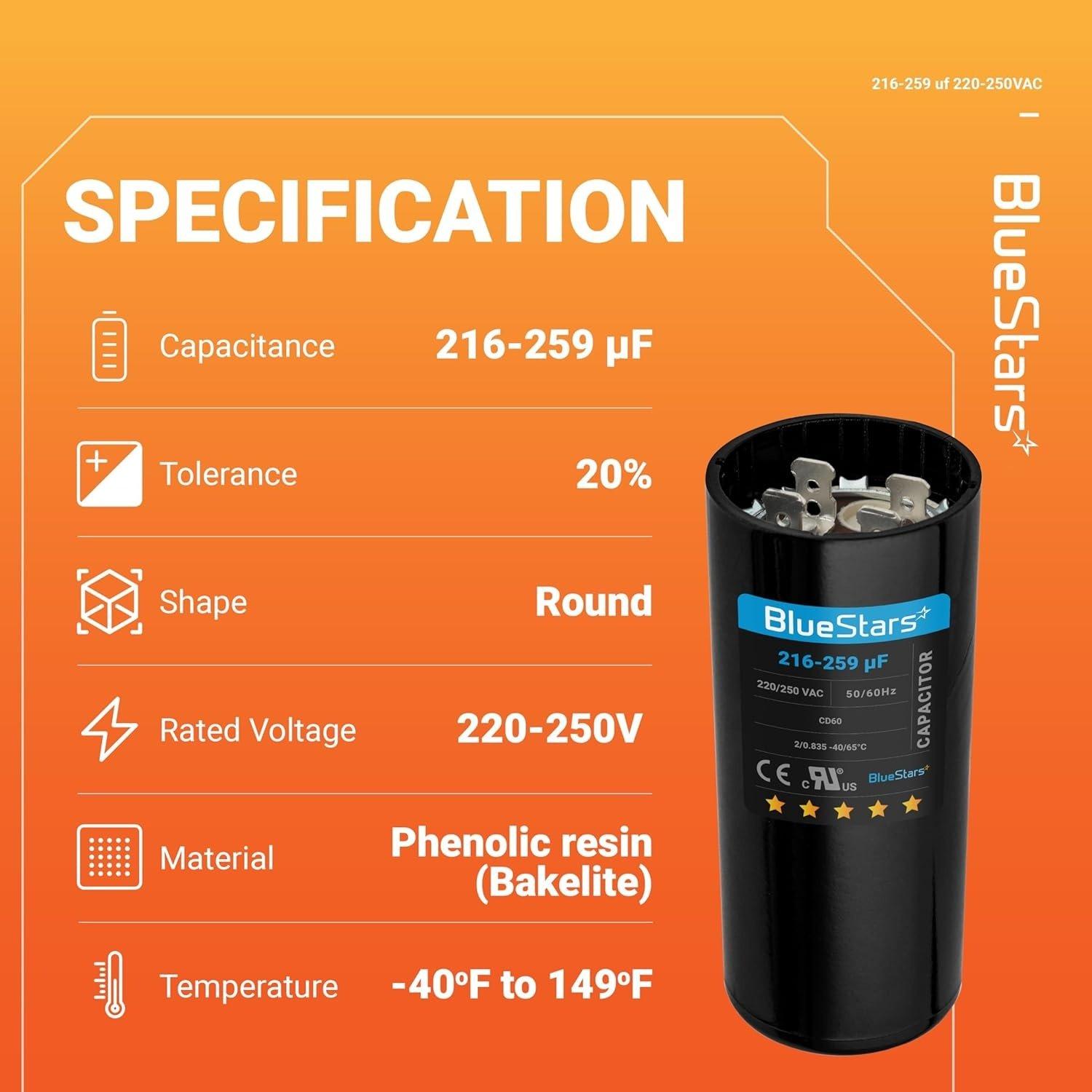

Key Features

• Capacitance: 216-259 microfarads (uF/MFD)
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)

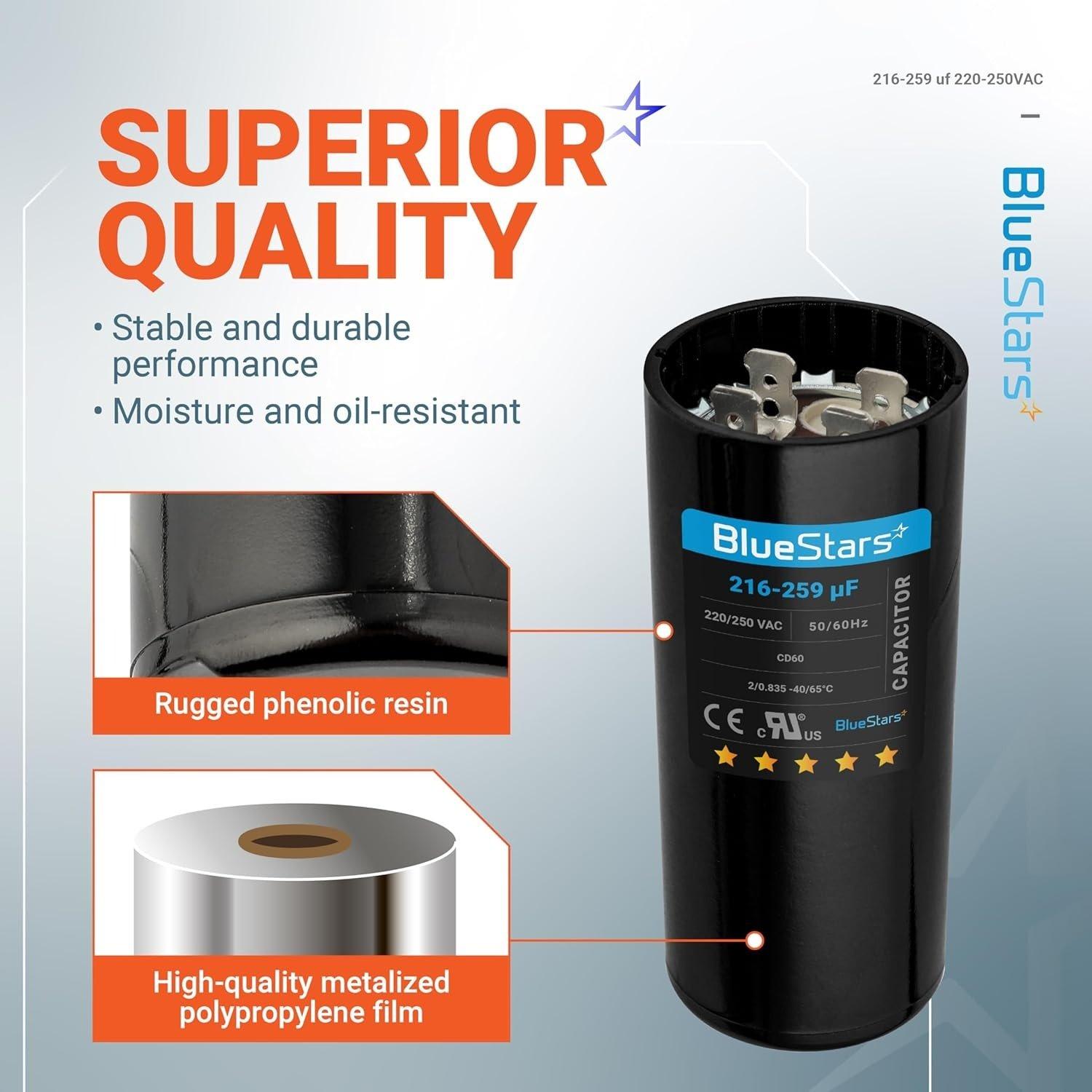

• Case Material: Rugged phenolic resin
• Construction: Dry, electrolytic, non-polarized
• Dimensions: 1.78 in. diameter x 3.33 in. height
• Terminals: 1/4 in. male quick-connect

Replaces / Cross-Reference Part Numbers

• SC0080
• CD60

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Commonly used in HVAC units, air compressors, well pumps, and other electric motor applications requiring a start capacitor with these specifications.

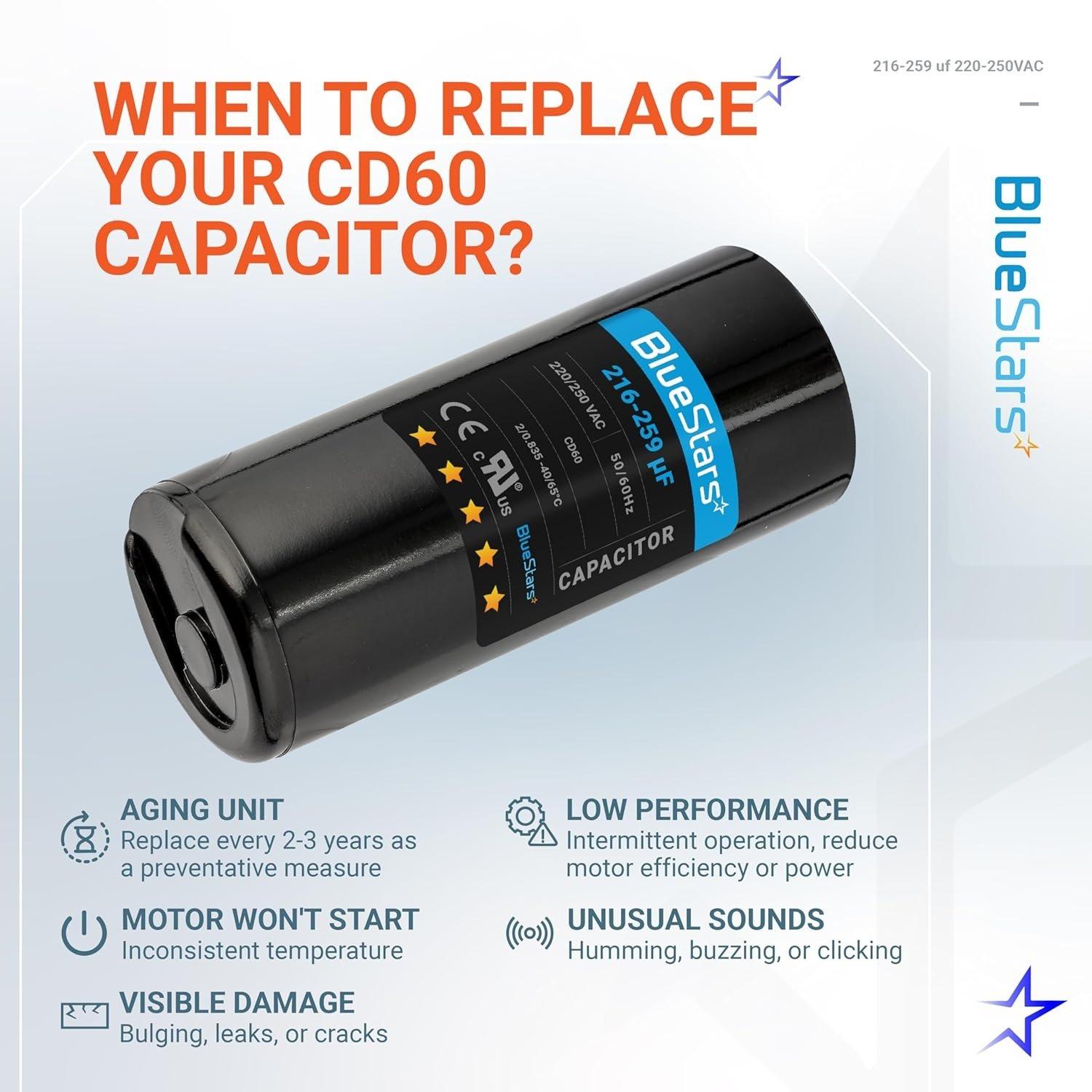

When to Replace

• Motor hums but fails to start or struggles to reach full speed.
• Circuit breaker trips when the motor attempts to start.
• Visible signs of damage on the old capacitor, such as bulging, cracking, or fluid leakage.

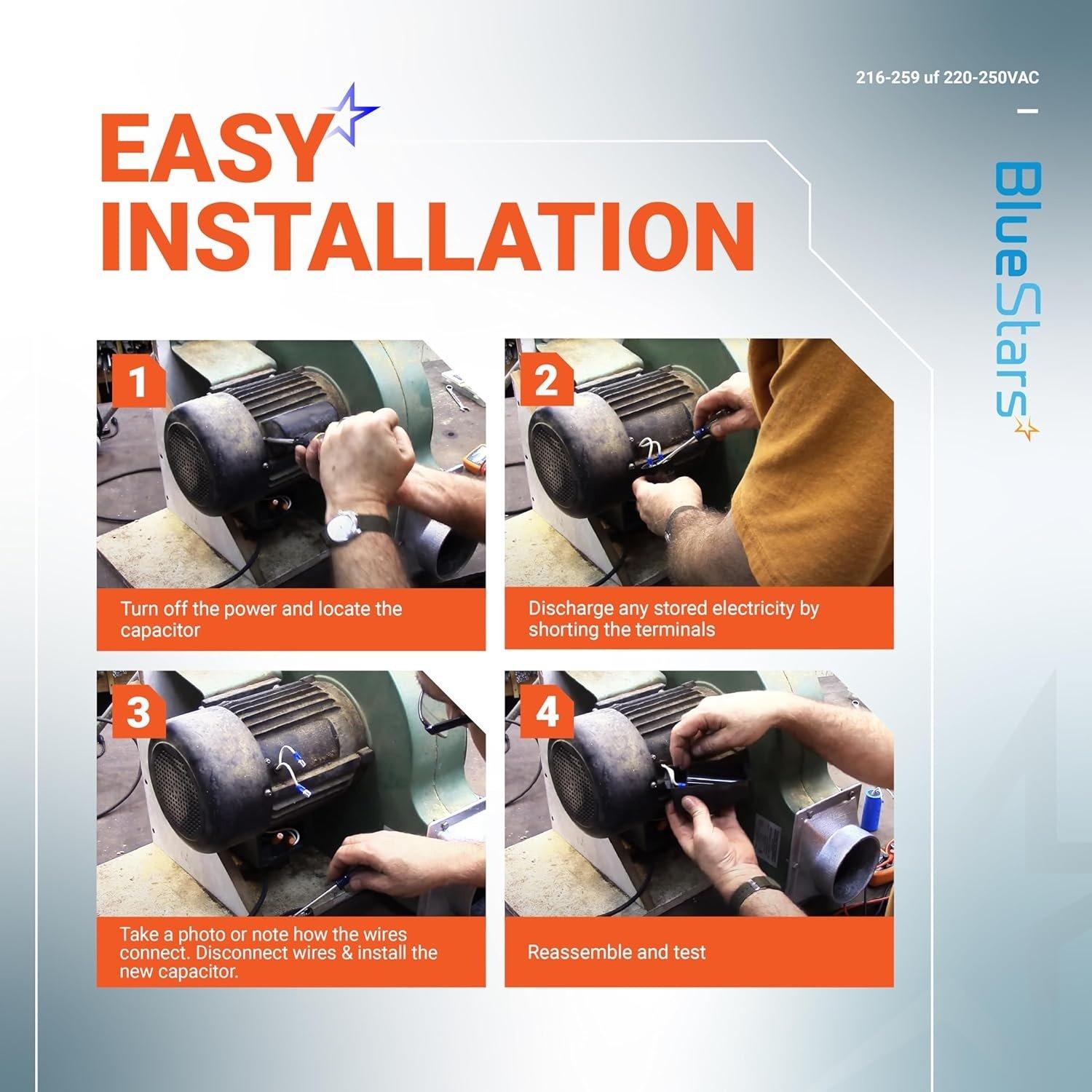

Installation Tips

• Disconnect all electrical power to the equipment before starting work.
• Safely discharge the old capacitor by shorting the terminals with an insulated screwdriver or a suitable resistor.

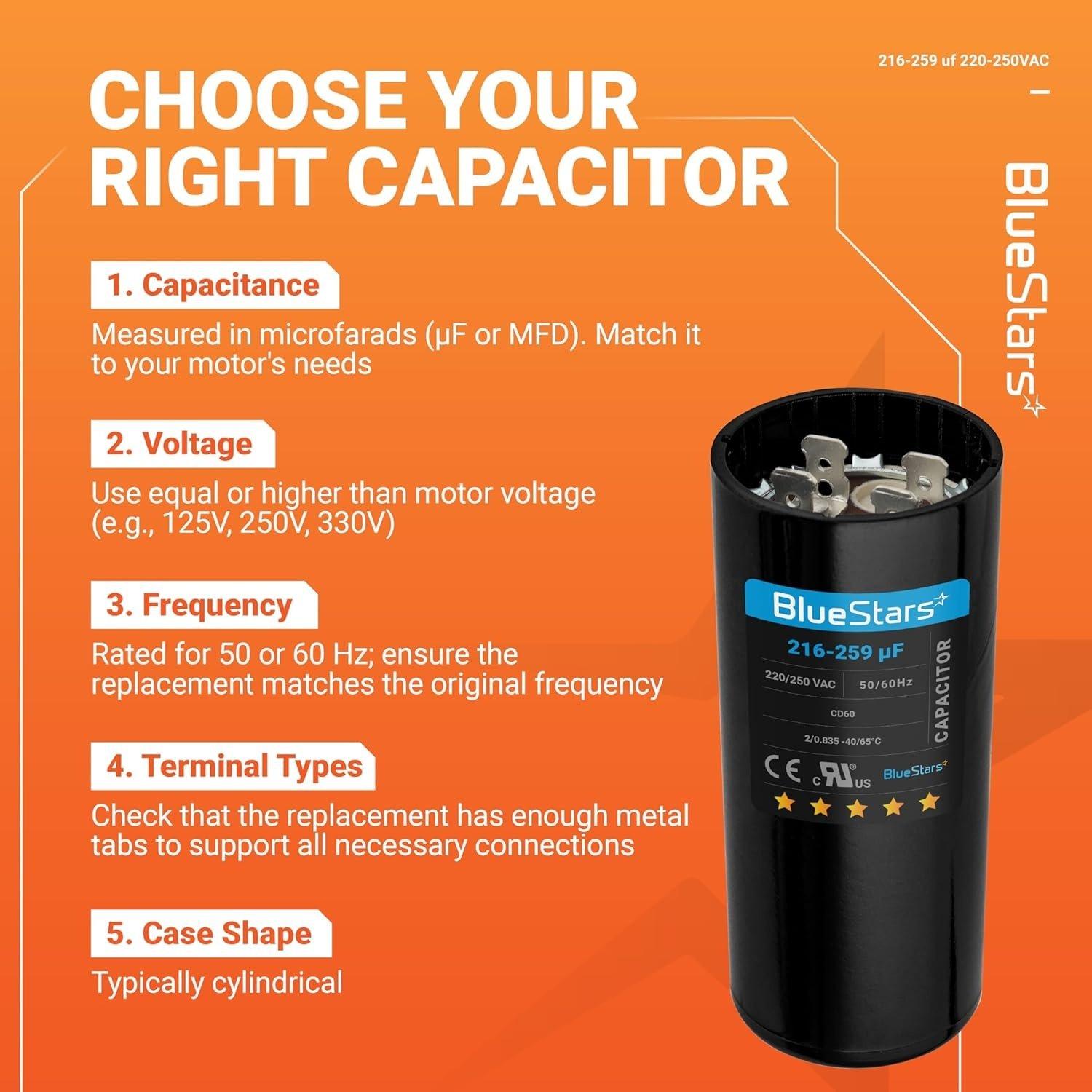

• Ensure the voltage and microfarad (uF/MFD) ratings of the new capacitor match the original part specifications.
• Confirm secure connections to the terminals. Polarity is not a concern for this type of AC capacitor.
