[Lifetime Warranty] ECX1014A Perflex Bump Shaft Kit

ECX1014A Perflex Bump Shaft Kit

Key Features

• Complete kit to service the filter's manual cleaning (bump) mechanism.
• Restores proper sealing to prevent leaks around the bump shaft.
• Includes all necessary wear components for a standard shaft rebuild.

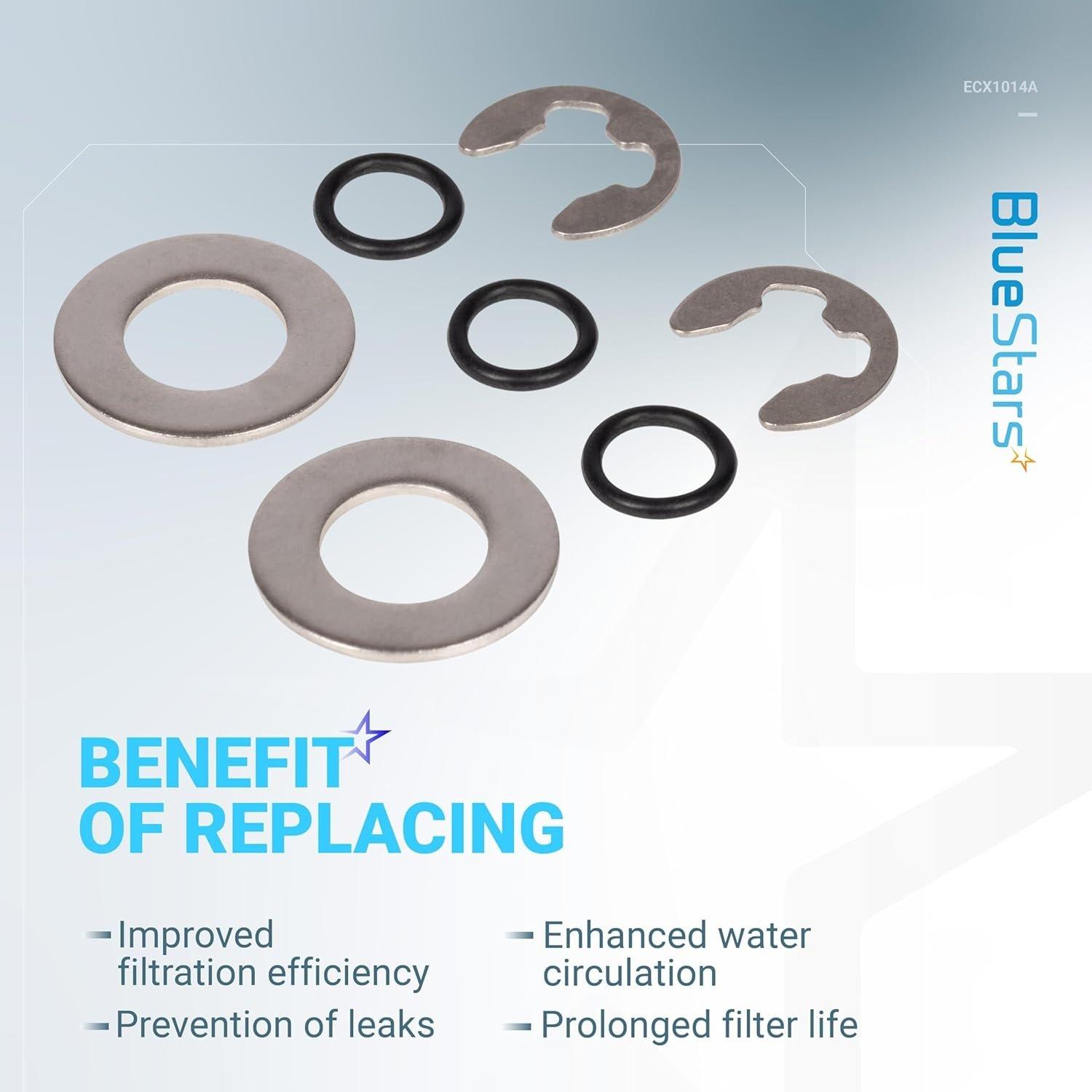

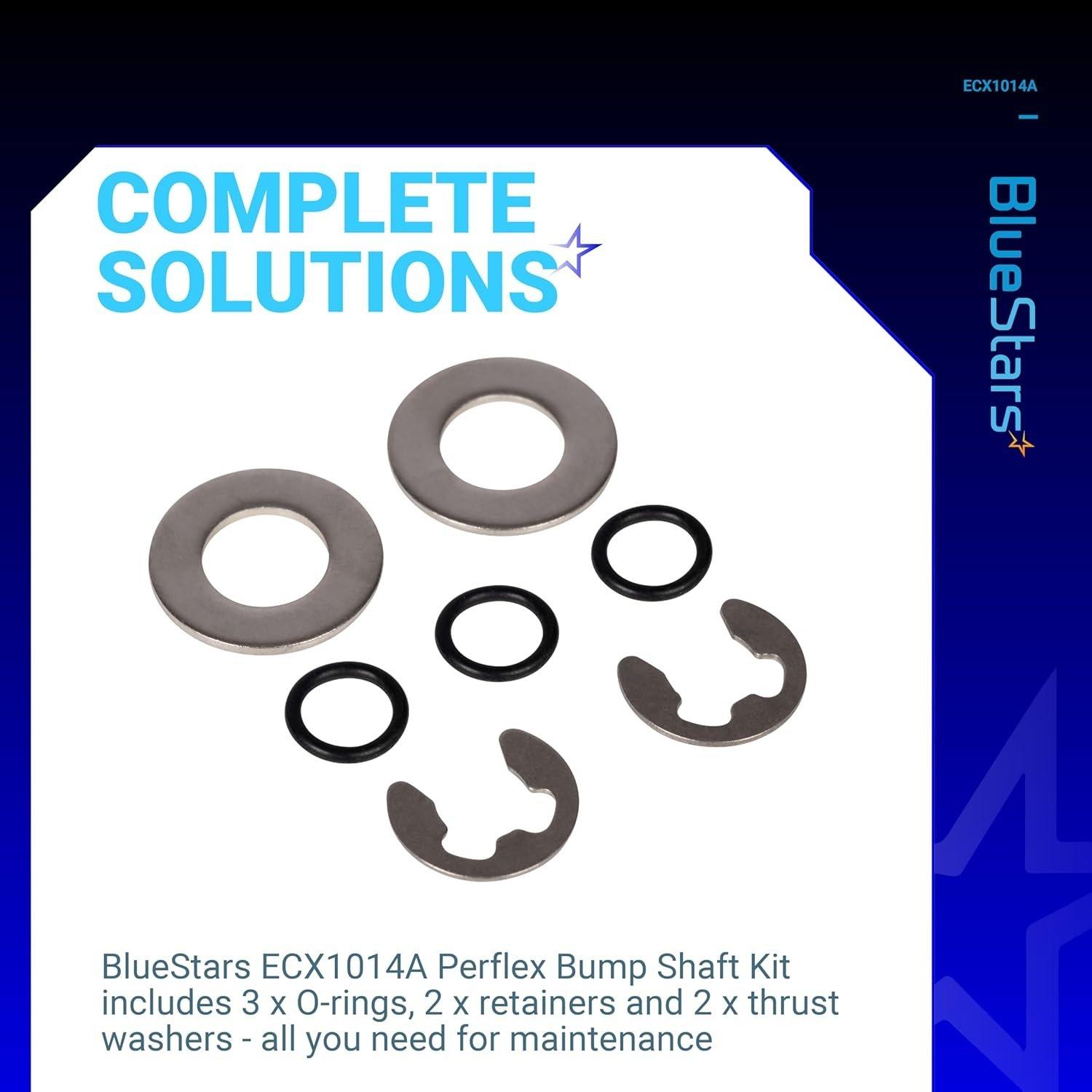

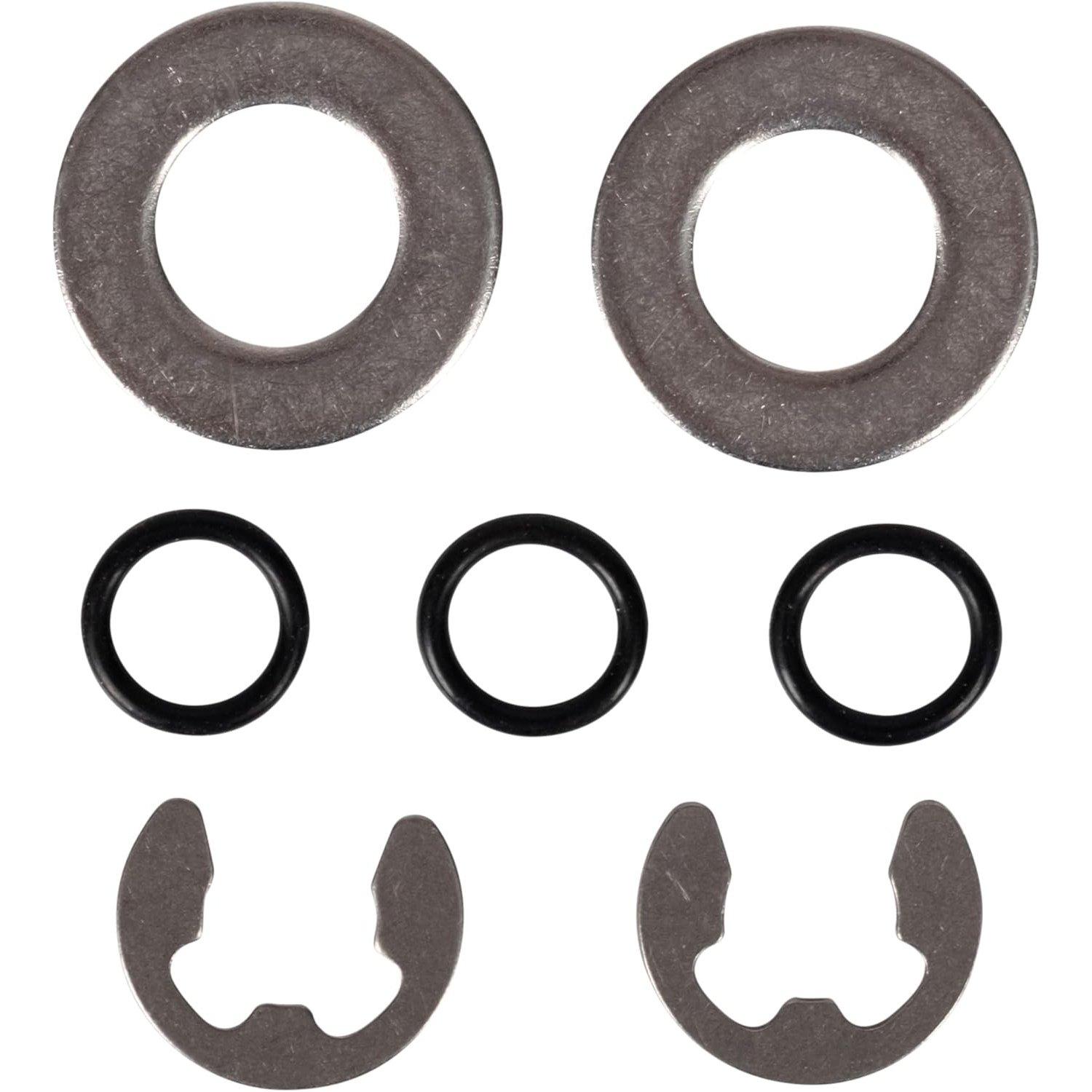

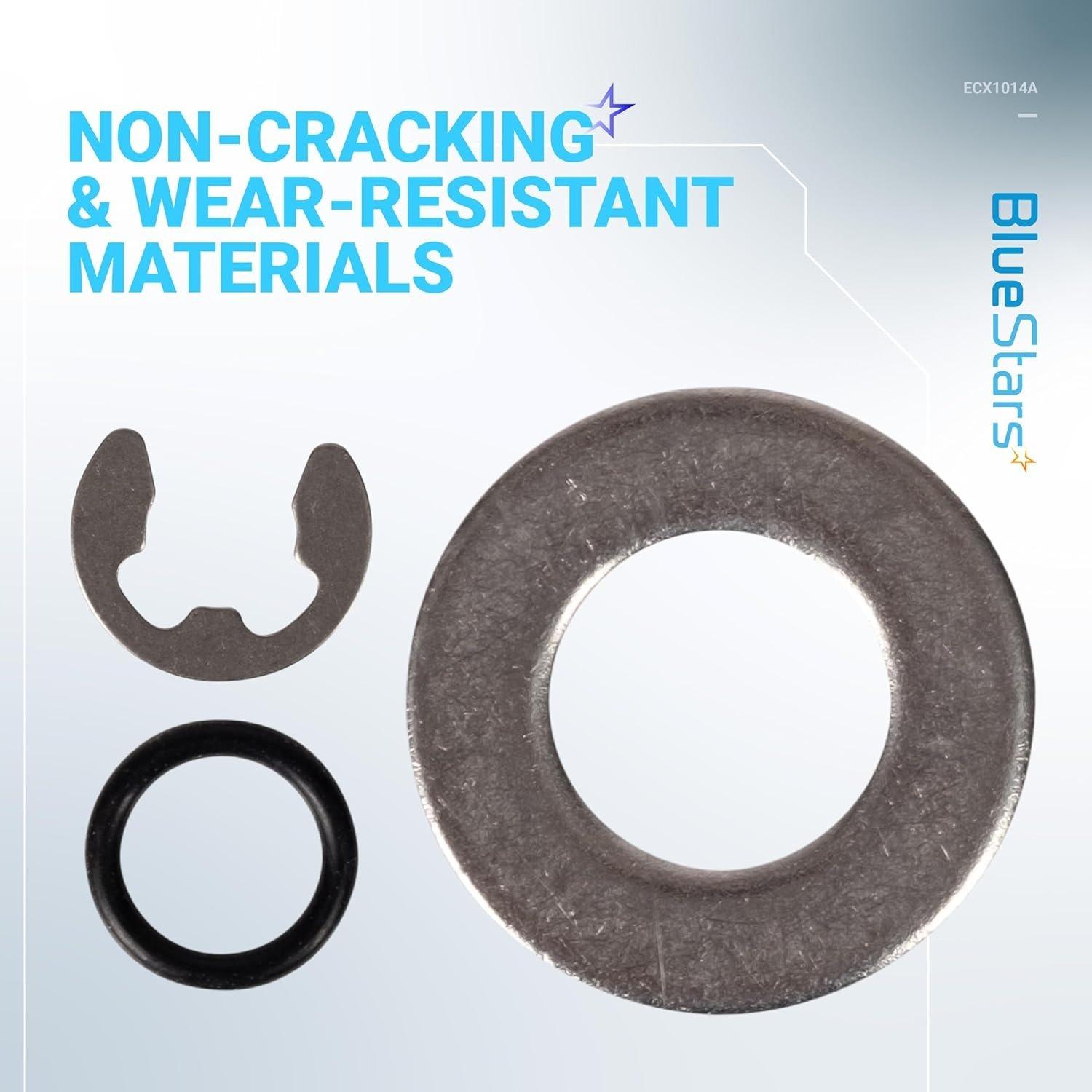

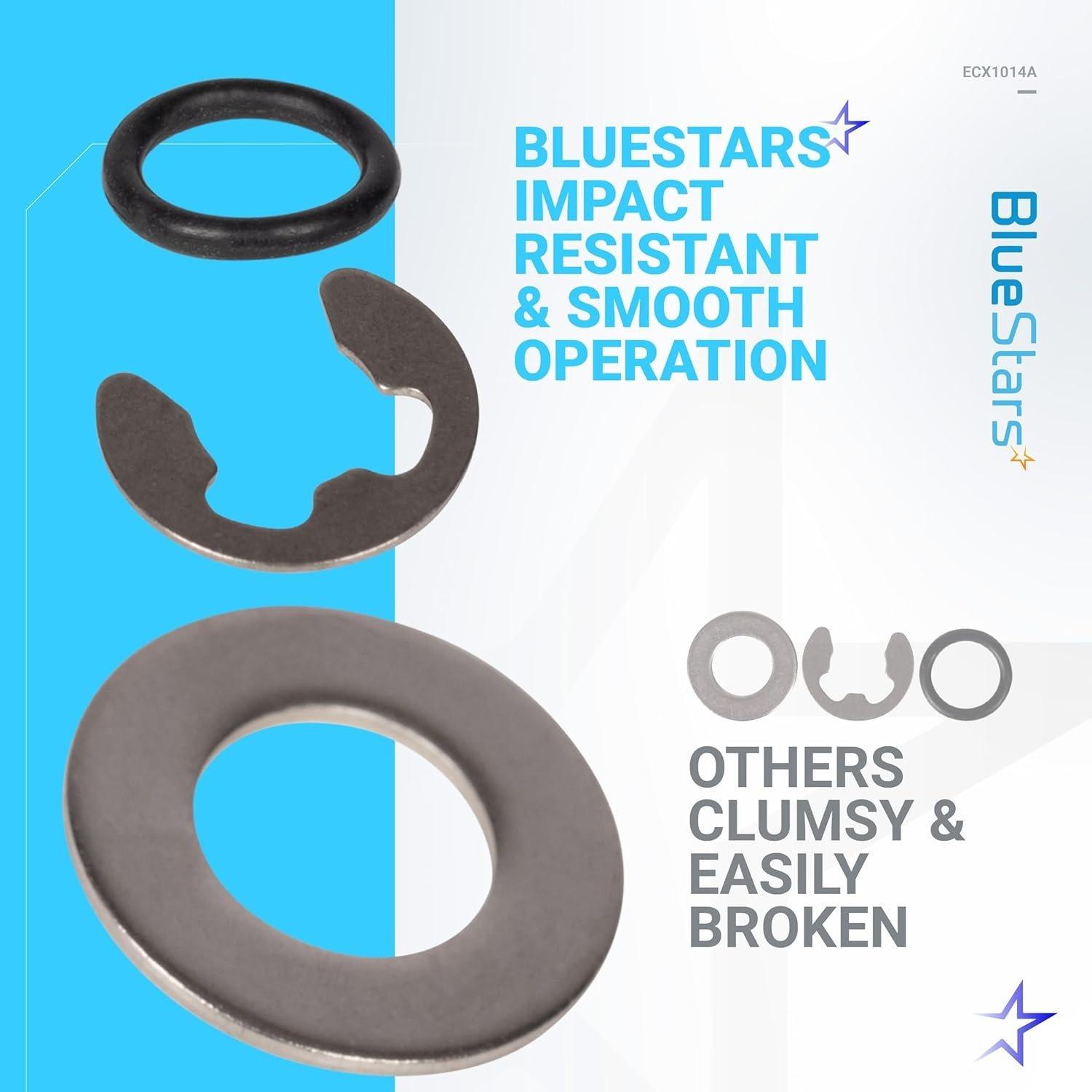

• Contains: 3 O-rings, 2 retainers, and 2 thrust washers.

Replaces / Cross-Reference Part Numbers

• Hayward ECX1014A

Compatibility & Fitment

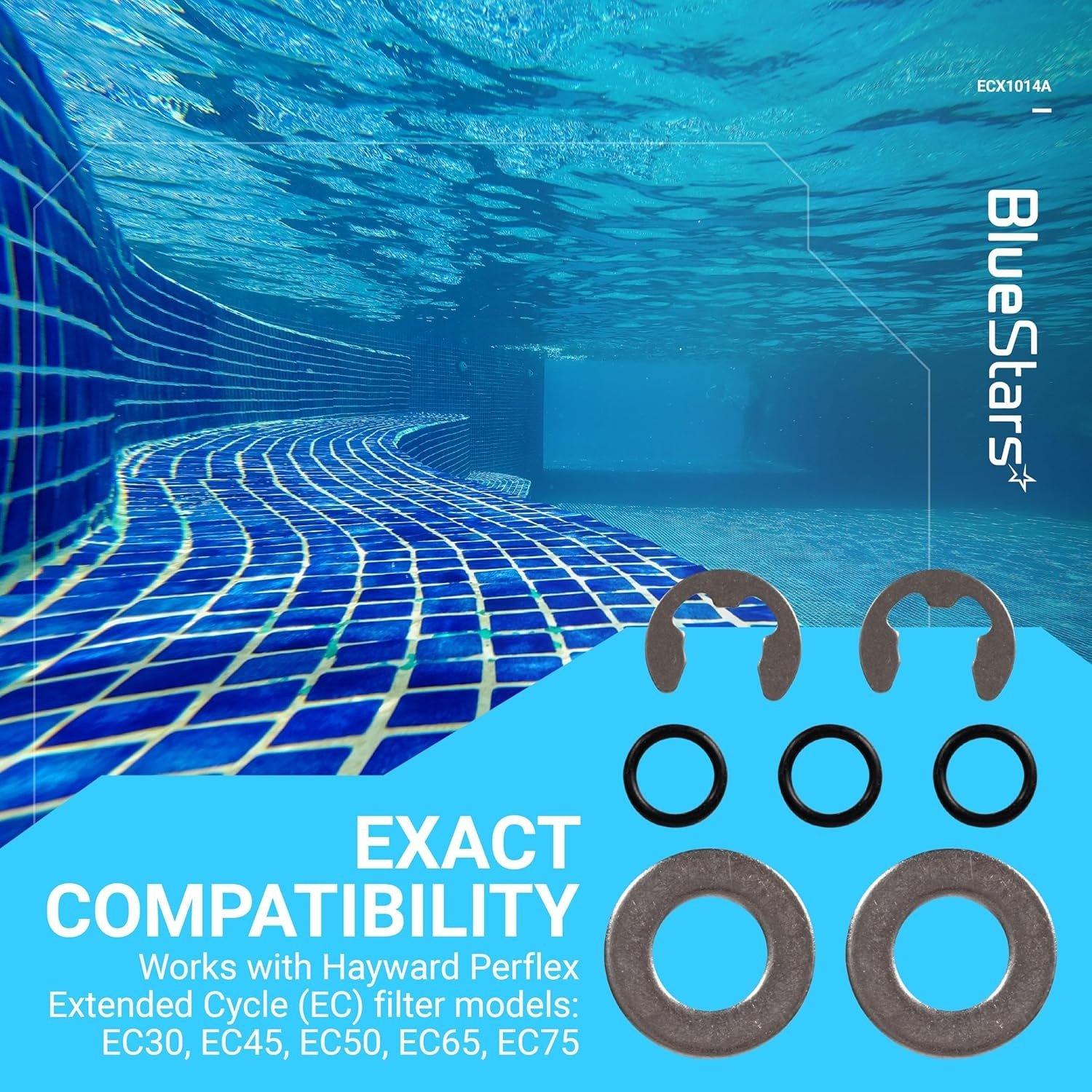

• For use with Hayward Perflex series extended-cycle D.E. filters.
• Fits models: EC30, EC40, EC40AC, EC50, EC50AC, EC50C80X5S, EC65, EC65A, EC75, EC75A.
• Designed for the 1/2 inch diameter bump shaft assembly.

When to Replace

• Water is leaking from the top of the filter at the bump handle.
• The bump handle is difficult to push down or pull up.
• Visible signs of wear, cracking, or degradation on existing O-rings or washers.
• During routine filter maintenance or when replacing the main shaft.

Installation Tips

• Always shut off the pump and release system pressure before starting service.
• Clean the shaft and all component grooves of any old debris before installing new parts.
• Lubricate new O-rings with a compatible, silicone-based lubricant to ensure a proper seal and prevent damage during installation.
• Refer to your filter's operational manual for the correct sequence of parts on the shaft.
