[Lifetime Warranty] W10872845 Dishwasher Pump Filter Cup Replacement - Fit for Whirlpool Kenmore Amana KitchenAid Dishwashers - Replaces 8579307 W10056425 W10056426 W10142911

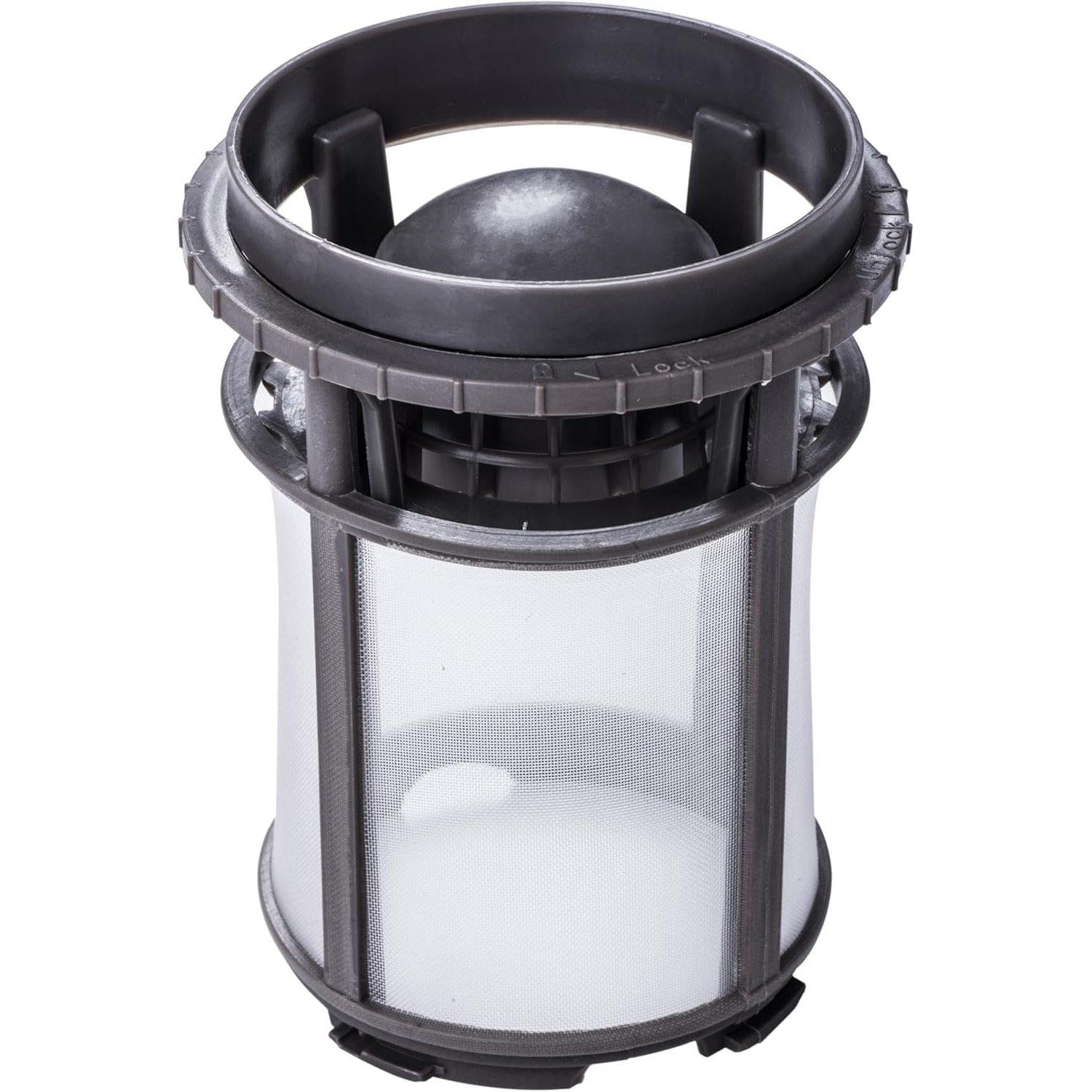

W10872845 Dishwasher Pump Filter Cup

Key Features

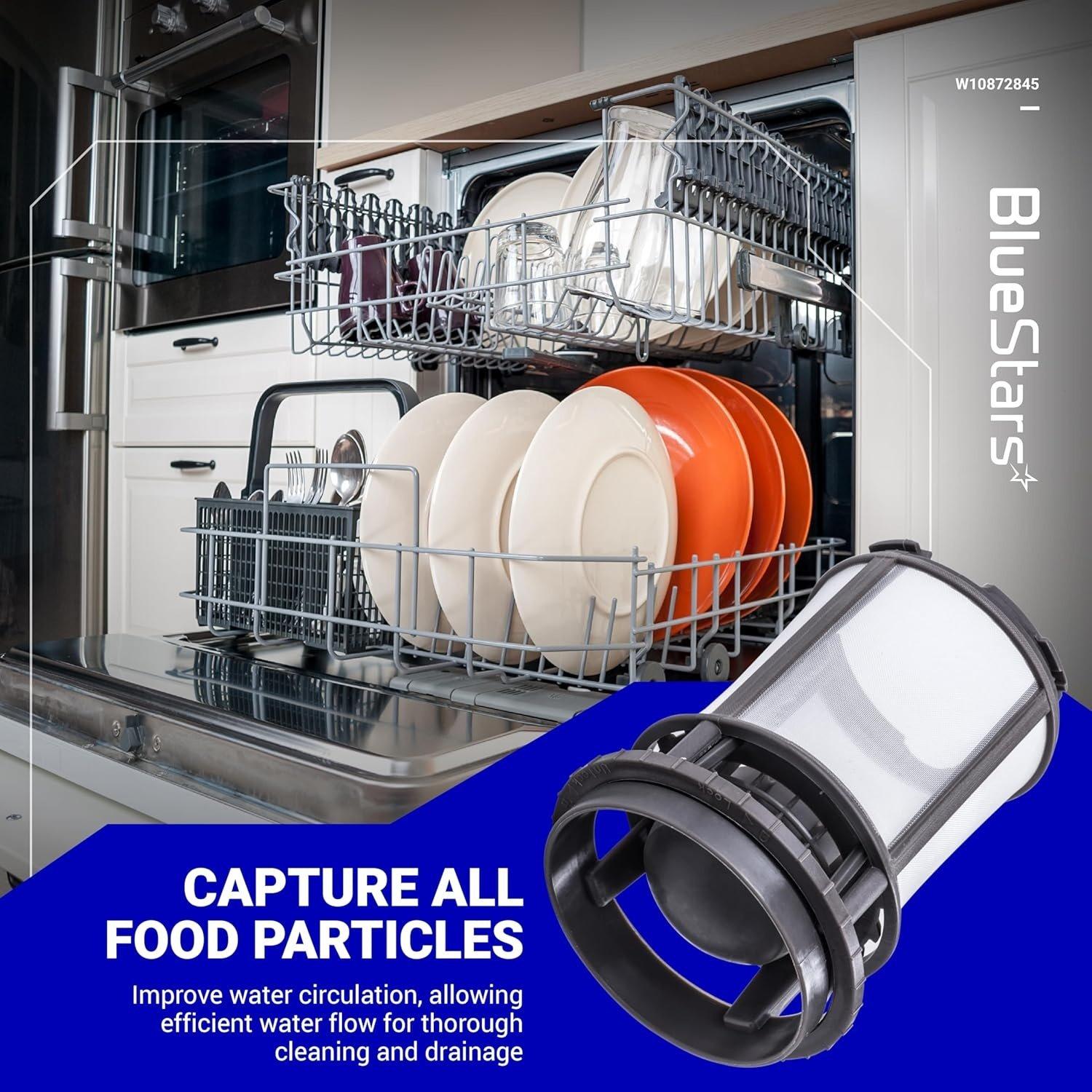

• Enhanced Filtration System:Features a fine-mesh screen designed to trap food particles and debris, preventing them from recirculating onto clean dishes.
• Pump Protection:Acts as a primary barrier to keep large particles from entering the drain pump and wash motor, reducing the risk of internal clogs and mechanical damage.

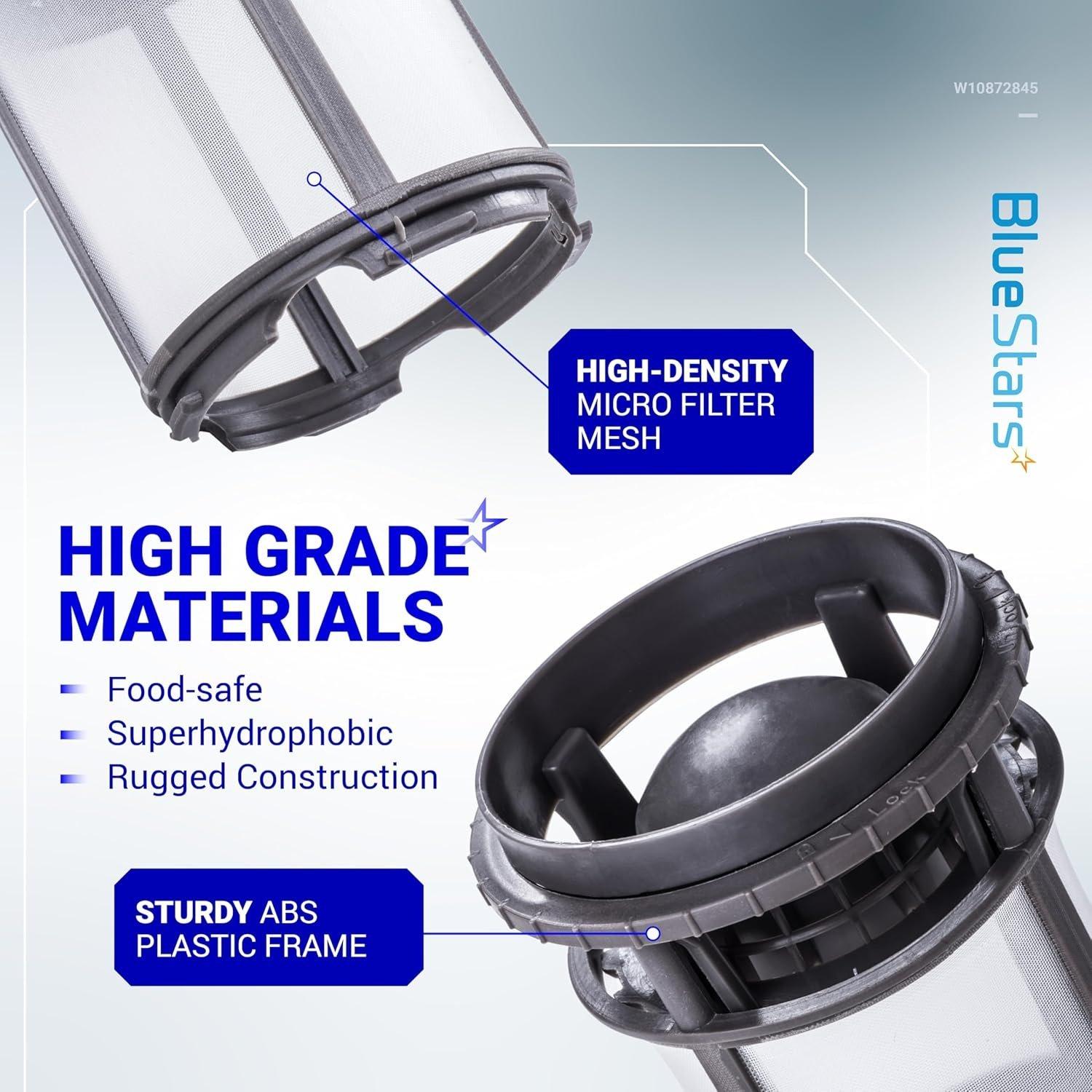

• Precision Molded Frame:Constructed from high-temperature, food-grade plastic to maintain its shape and seal integrity through hundreds of high-heat wash cycles.
• Improved Flow Design:Engineered to facilitate optimal water passage while maximizing debris retention, ensuring consistent spray arm pressure.

Replaces / Cross-Reference Part Numbers

• W10872845
• 8579307
• W10056425
• W10056426
• W10142911
• WP8579307
• PS11731613
• AP6026388

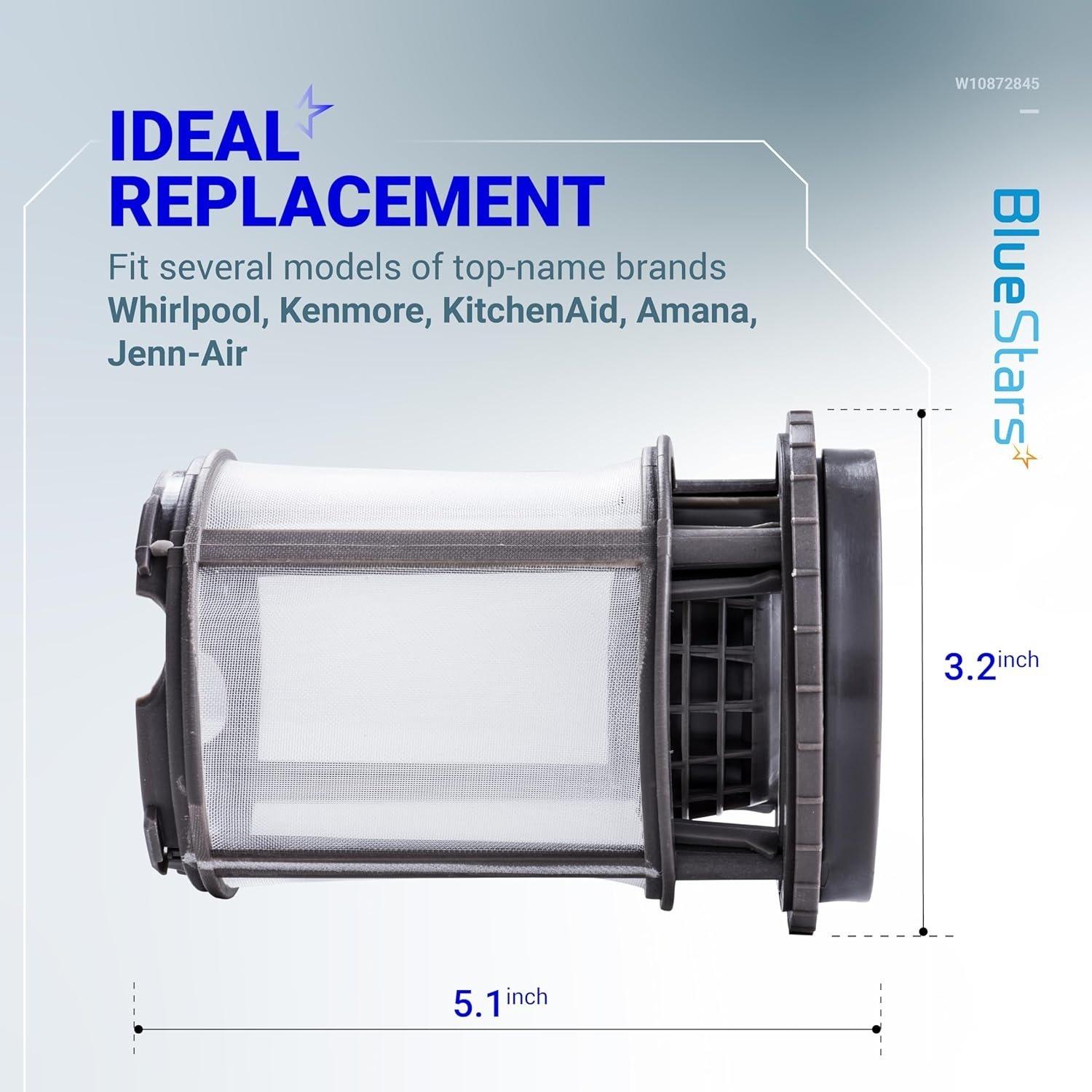

Compatibility & Fitment

• Whirlpool:Fits many WDF, WDT, and GU series models.
• Kenmore / Sears:Compatible with 665 series models (e.g., 665.13262K113, 665.13263K110).
• KitchenAid:Fits select KDT, KDF, and KUDE series high-end dishwashers.
• Amana & Maytag:Compatible with various ADB and MDB series models utilizing the central pump filter assembly.
• Jenn-Air & Estate:Fits select models using the 8579307 or W10056425 part specifications.

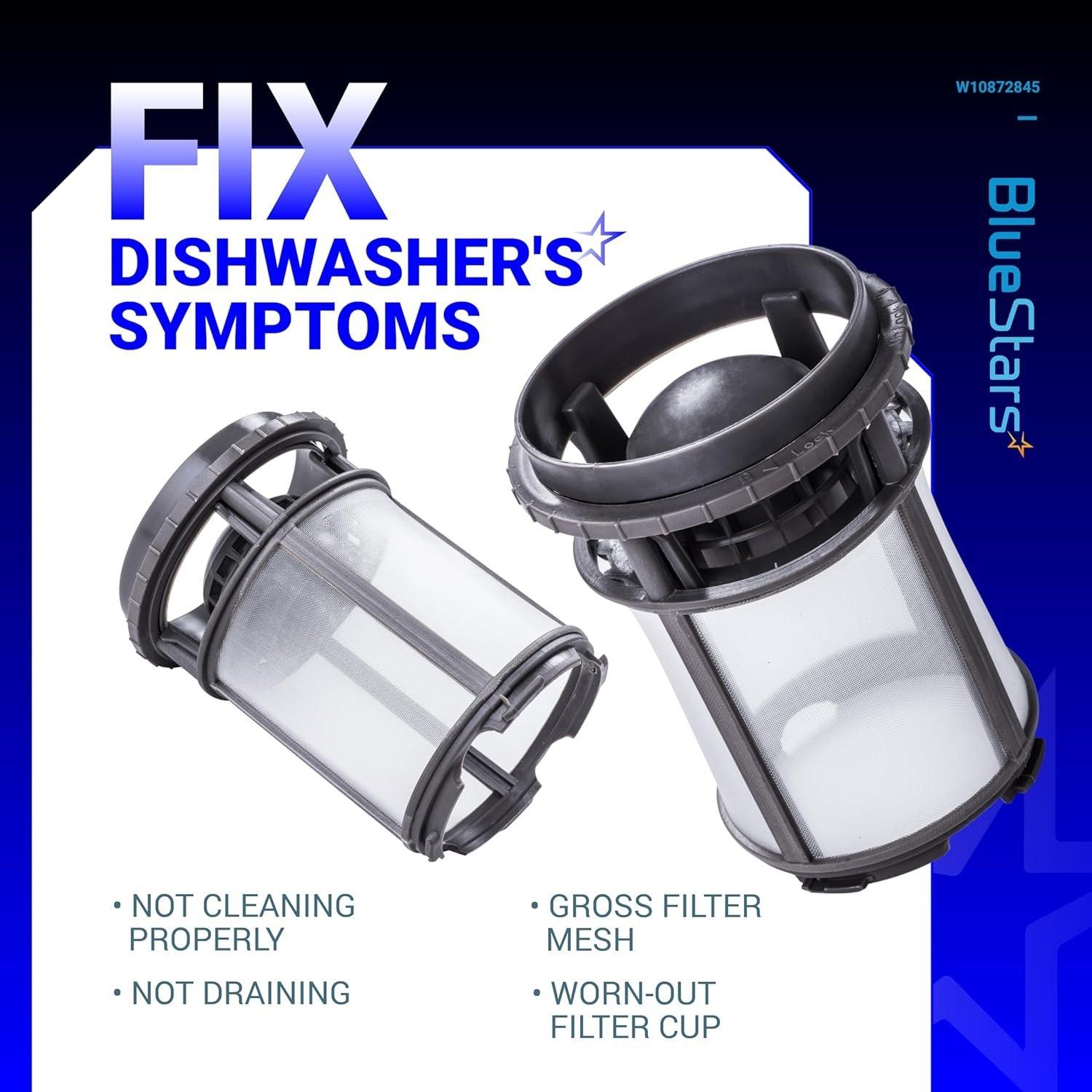

When to Replace

• Torn Mesh:Visible holes or fraying in the fine-mesh screen, which allows debris to bypass the filter and clog the spray arms.
• Odors:Persistent foul smells coming from the dishwasher, indicating that food particles have become trapped in a degraded filter frame.
• Poor Cleaning Results:"Grit" or sandy residue left on glassware after a cycle, caused by recirculated debris.
• Cracked Housing:The plastic frame is warped, cracked, or no longer sits flush in the pump housing.
• Slow Drainage:The dishwasher fails to drain completely or leaves standing water due to a heavily restricted or collapsed filter cup.

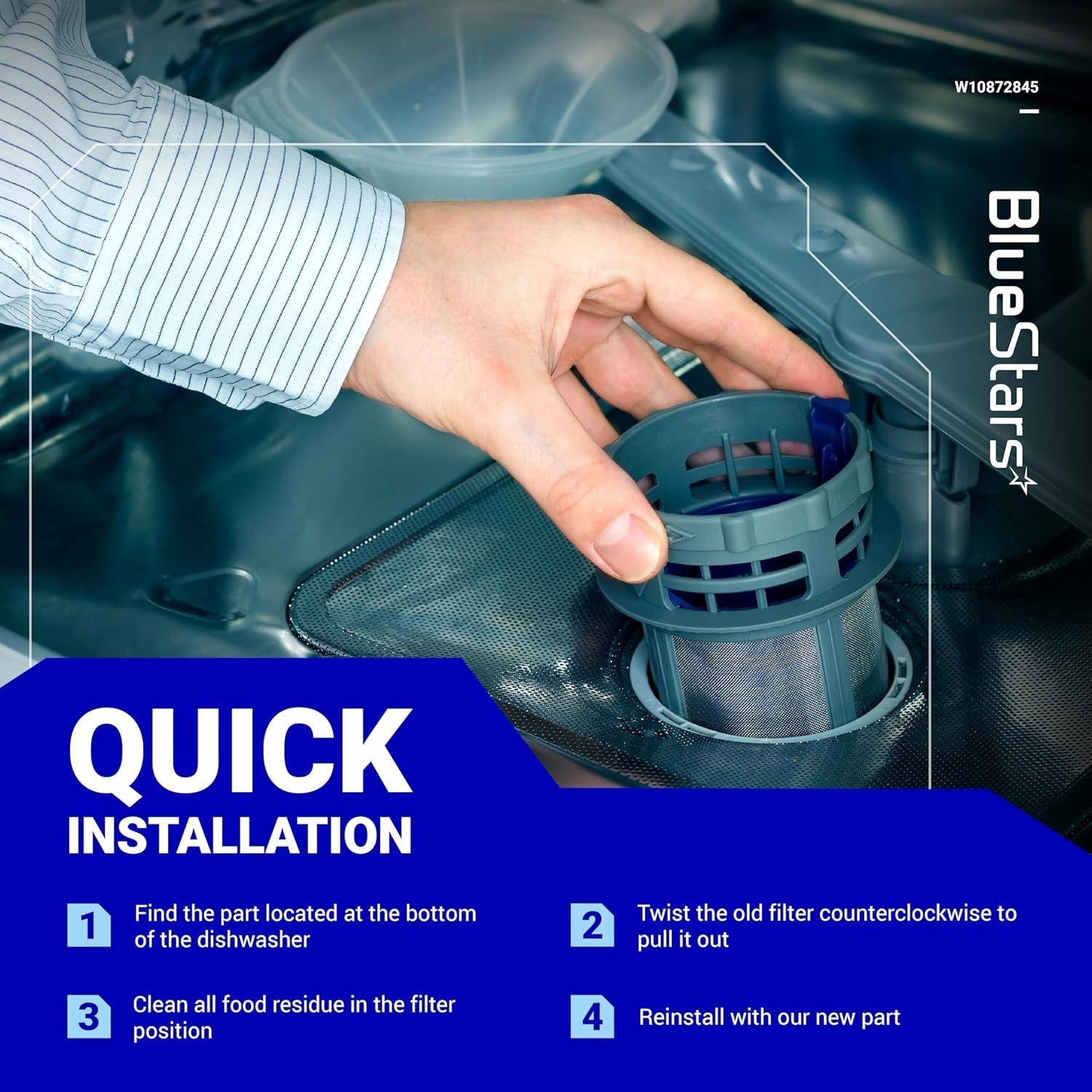

Installation Tips

• Safety First:Ensure the dishwasher is powered off before reaching into the bottom of the tub.
• Accessing the Filter:Most models require removing the bottom dish rack and rotating the center spray arm or filter assembly counter-clockwise to unlock it.
• Deep Cleaning:While the filter cup is removed, inspect the sump area for large debris like glass shards or toothpicks that may be blocking the pump inlet.
• Correct Seating:Align the tabs on the new filter cup with the slots in the pump housing; push down firmly until it clicks or locks into place.
• Maintenance:To extend the life of your new filter, rinse it under warm running water once a month to remove grease and mineral buildup.
