AZ00264622
[Lifetime Warranty] 149-2311 Electric 12V Fuel Pump
Normal
15 - 20 minutes
Out of Stock
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

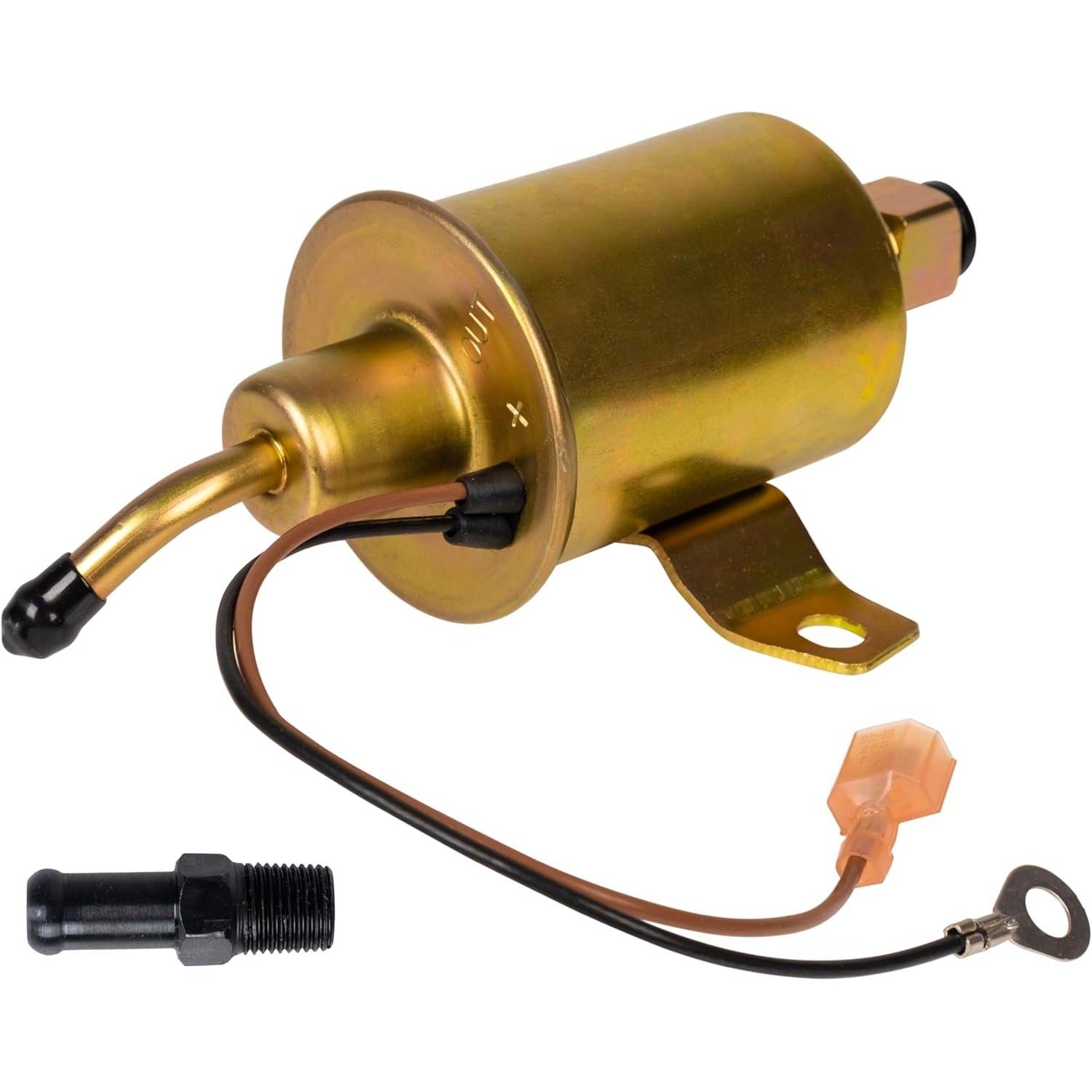

149-2311 Electric 12V Fuel Pump
Key Features
- Electric 12V DC operation
- Pressure: 2.5 to 4 PSI
- Flow Rate: 15 to 25 GPH
- Approximate Dimensions: 3.5 in x 3.5 in x 4 in
- Approximate Weight: 1.1 lbs
Replaces / Cross-Reference Part Numbers
- 149-2311-01
- 149-2311-02
- A029F889
- A047N926
- AR522
- E11006
- E11007
Compatibility & Fitment
- Fits select Onan / Cummins 4000-watt (4KW) gas generators
- Commonly used in Microlite and MicroQuiet series RV generators
When to Replace
- Generator fails to start
- Engine sputters or stalls under load
- Noticeable loss of power or surging
- Audible whining or clicking from the existing fuel pump
Installation Tips
- Disconnect the negative battery terminal before beginning work.
- Safely relieve fuel system pressure prior to disconnecting lines.
- Note the orientation and connection of all fuel lines and electrical wires on the old pump.
- Consider replacing the fuel filter (such as part 149-2457) during installation.
- After installation, prime the system and carefully check for any fuel leaks before starting the generator.
