[Lifetime Warranty] 46-6560 Fuel Tank Grommet Bushing - Pack of 6

46-6560 Fuel Tank Grommet Bushing, Pack of 6

Key Features

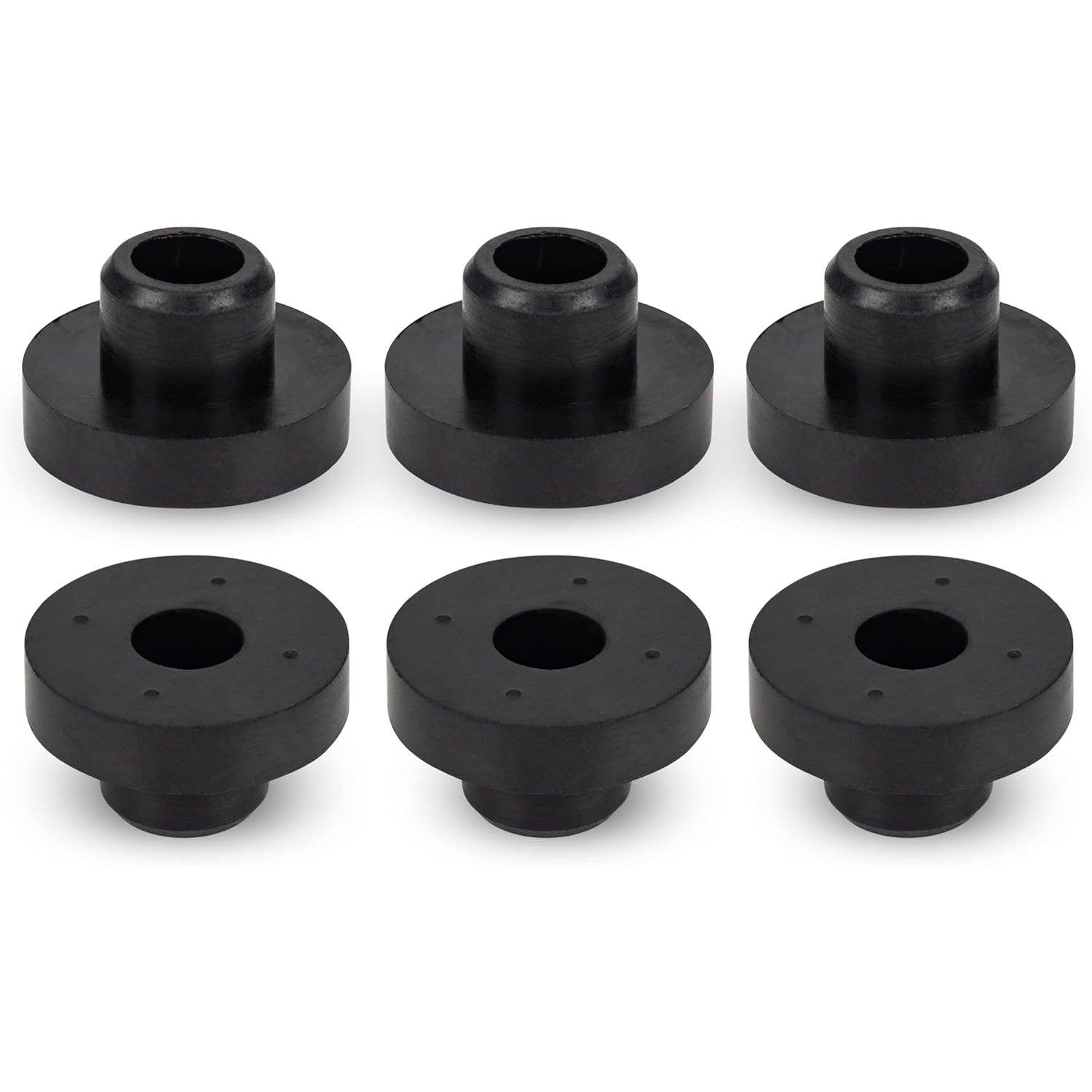

• Package includes six (6) fuel tank grommet bushings.
• Designed to fit a 33/64 inch (13mm) fuel tank hole.
• Creates a secure seal to prevent fuel leaks at the tank exit point.

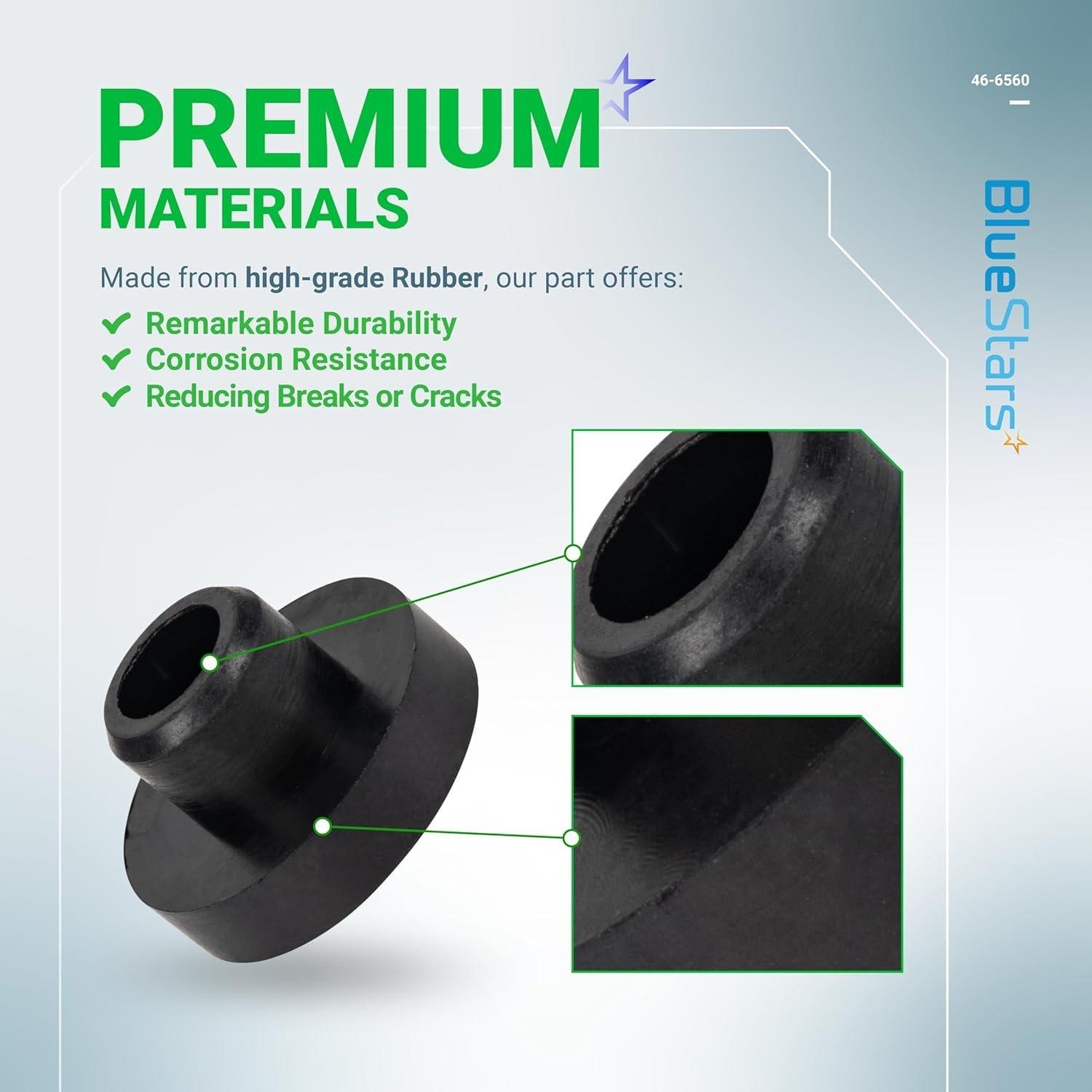

• Constructed from durable, fuel-resistant rubber material.
• Note: Not intended for use with fuel containing more than 10% ethanol.

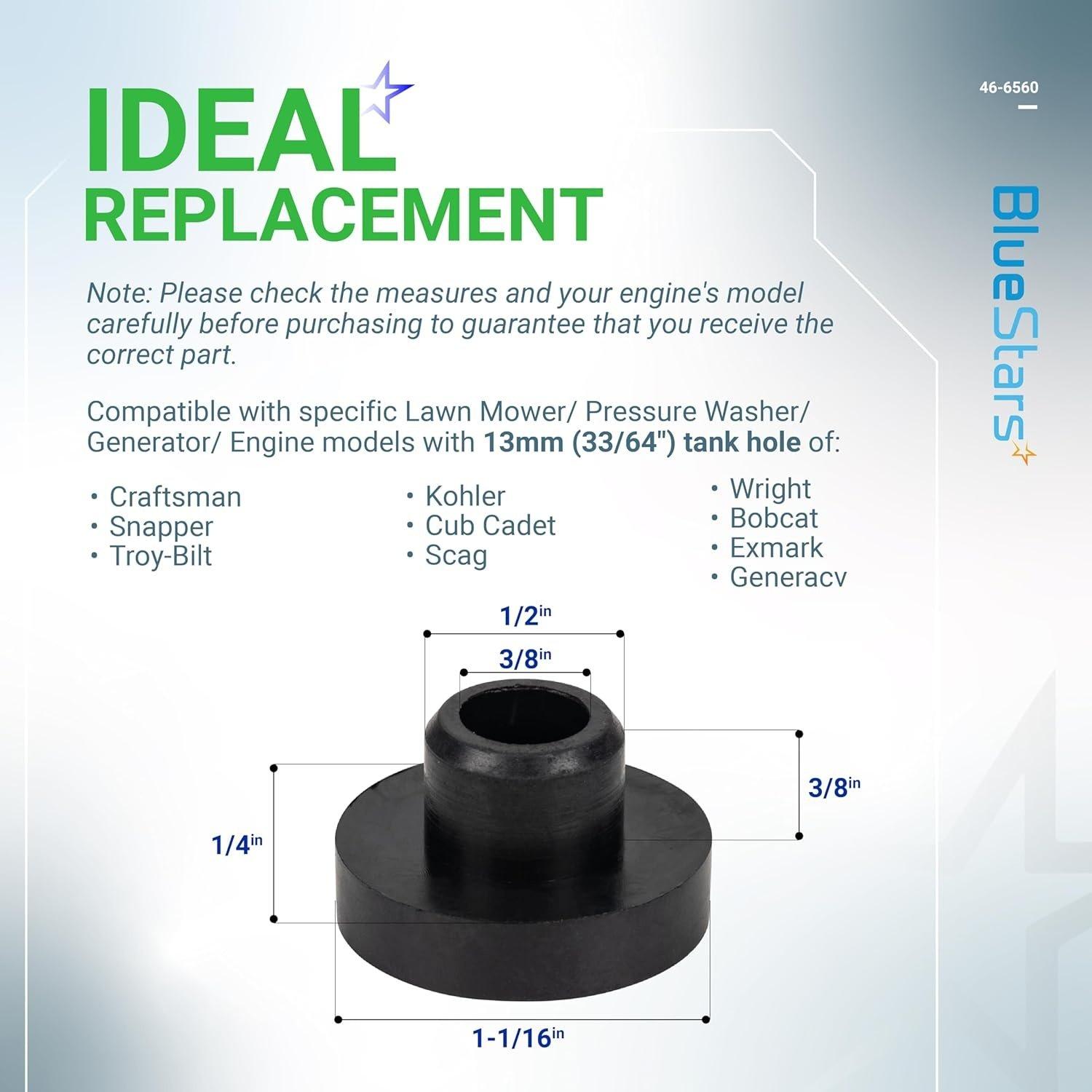

• Approximate Dimensions: 3/8" I.D., 1-1/16" O.D.

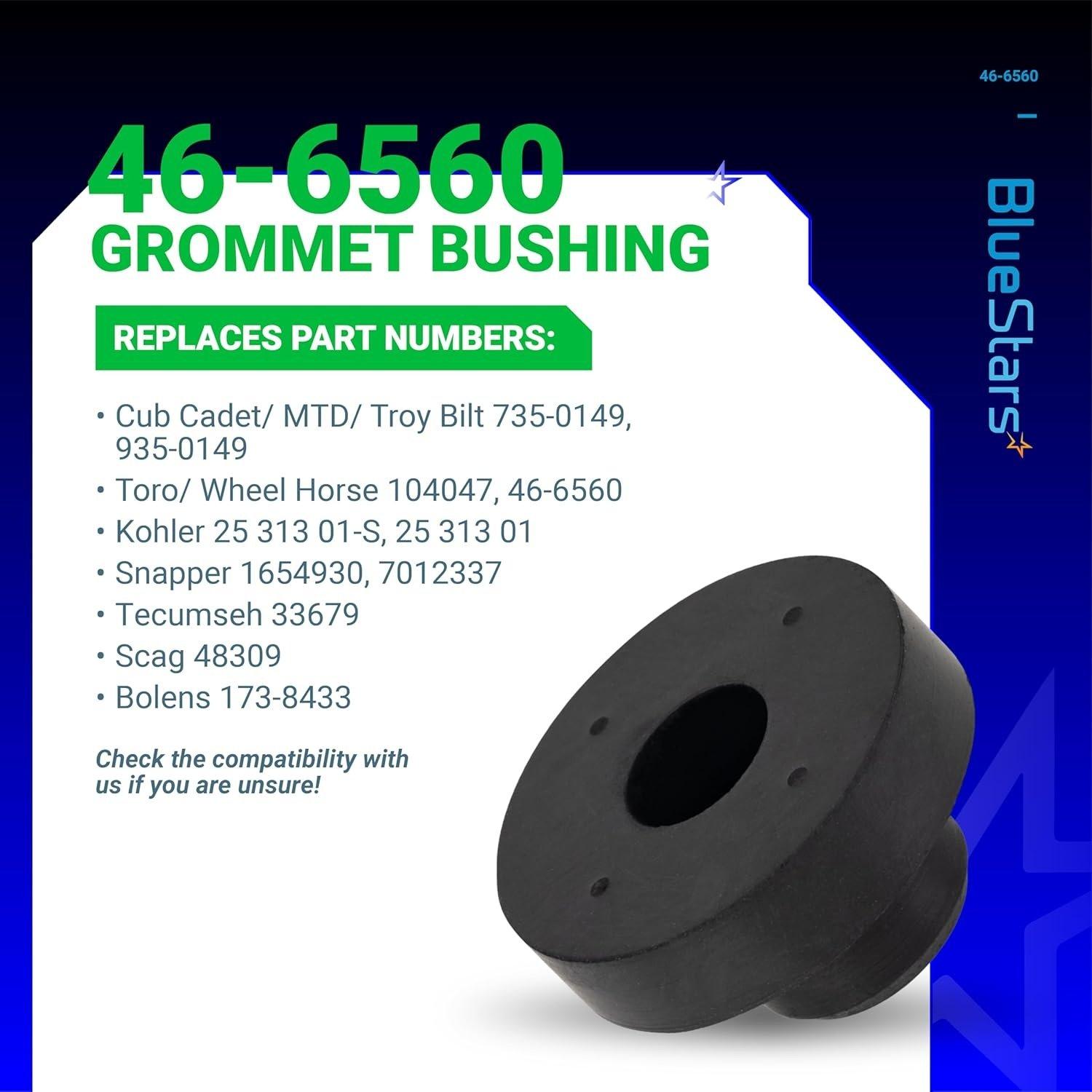

Replaces / Cross-Reference Part Numbers

• Toro / Wheel Horse: 46-6560, 104047
• MTD / Troy-Bilt / Cub Cadet: 735-0149, 935-0149
• Kohler: 25 313 01, 25 313 01-S
• Exmark: 1-513645
• Snapper: 1654930
• Tecumseh: 33679
• Generac: 25313

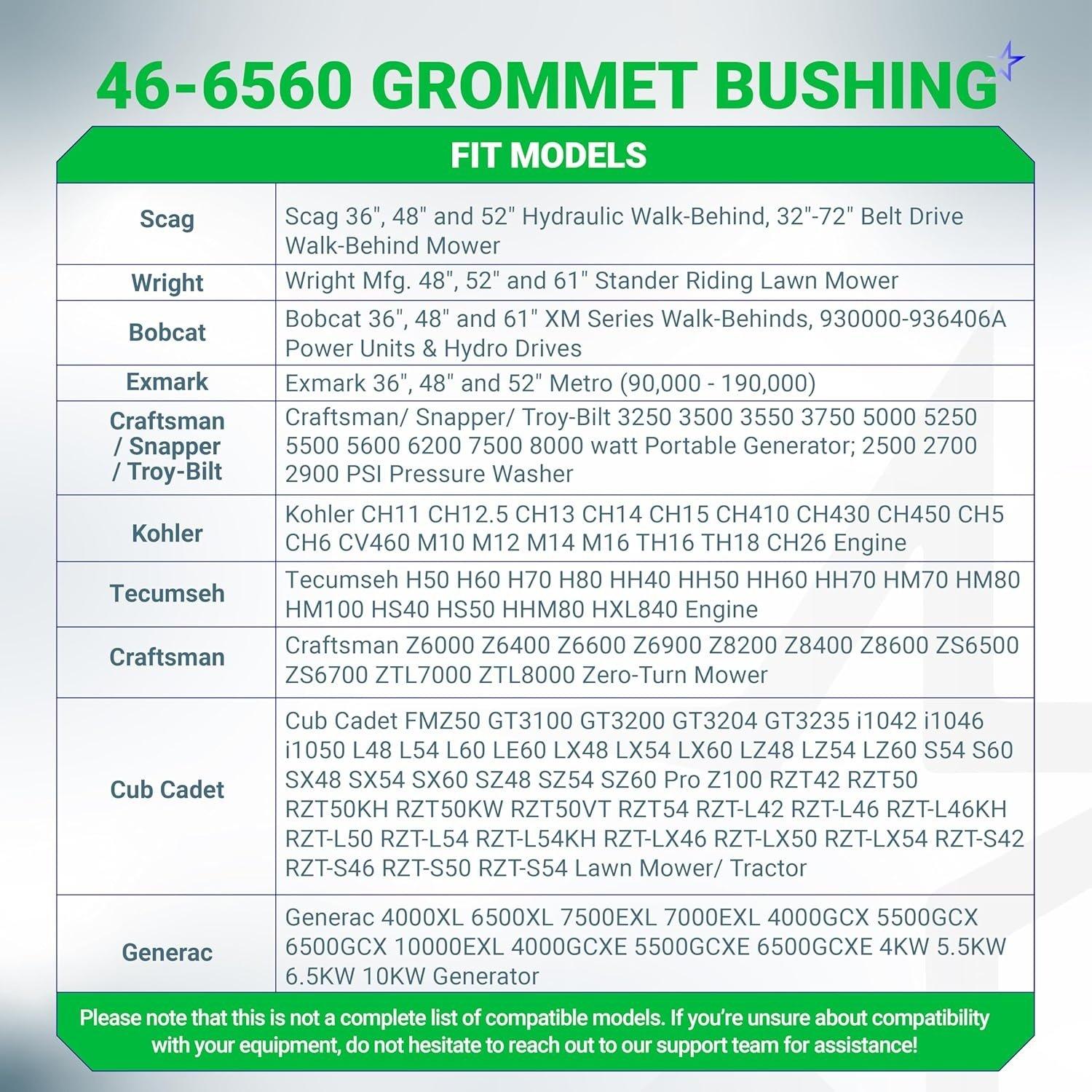

Compatibility & Fitment

• Fits a wide range of outdoor power equipment from brands including MTD, Troy-Bilt, Tecumseh, Craftsman, Kohler, and Toro.
• Used on lawn mowers, generators, tillers, and other small engine equipment requiring a 33/64" tank grommet.

When to Replace

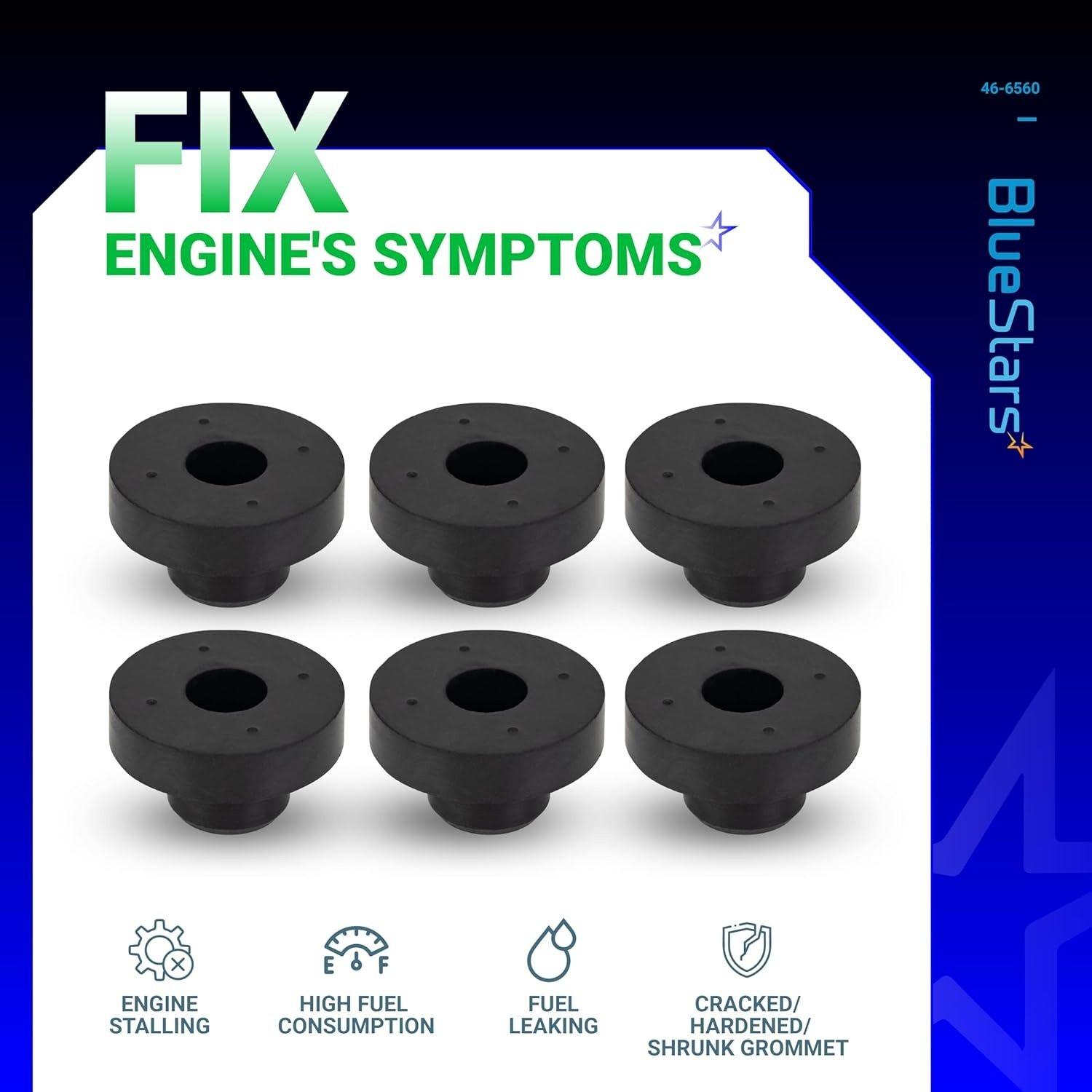

• Existing grommet is cracked, brittle, or deformed.
• Fuel is leaking or seeping from the base of the fuel line where it enters the tank.
• The grommet is loose and no longer provides a snug fit for the fuel line.
• Performing fuel system maintenance or replacing fuel lines.

Installation Tips

• Drain all fuel from the tank before beginning work.
• Thoroughly clean the tank surface around the hole to remove any dirt or residue.
• Apply a light lubricant, such as oil or grease, to the grommet to facilitate installation.
• Press the new grommet evenly into the hole until it is fully and securely seated.
• After installation and reassembly, check for leaks before operating the equipment.
