[Lifetime Warranty] Air Filter 793569, 793685; Oil Filter 696854, 492932

Air Filter 793569, 793685; Oil Filter 696854, 492932

Key Features

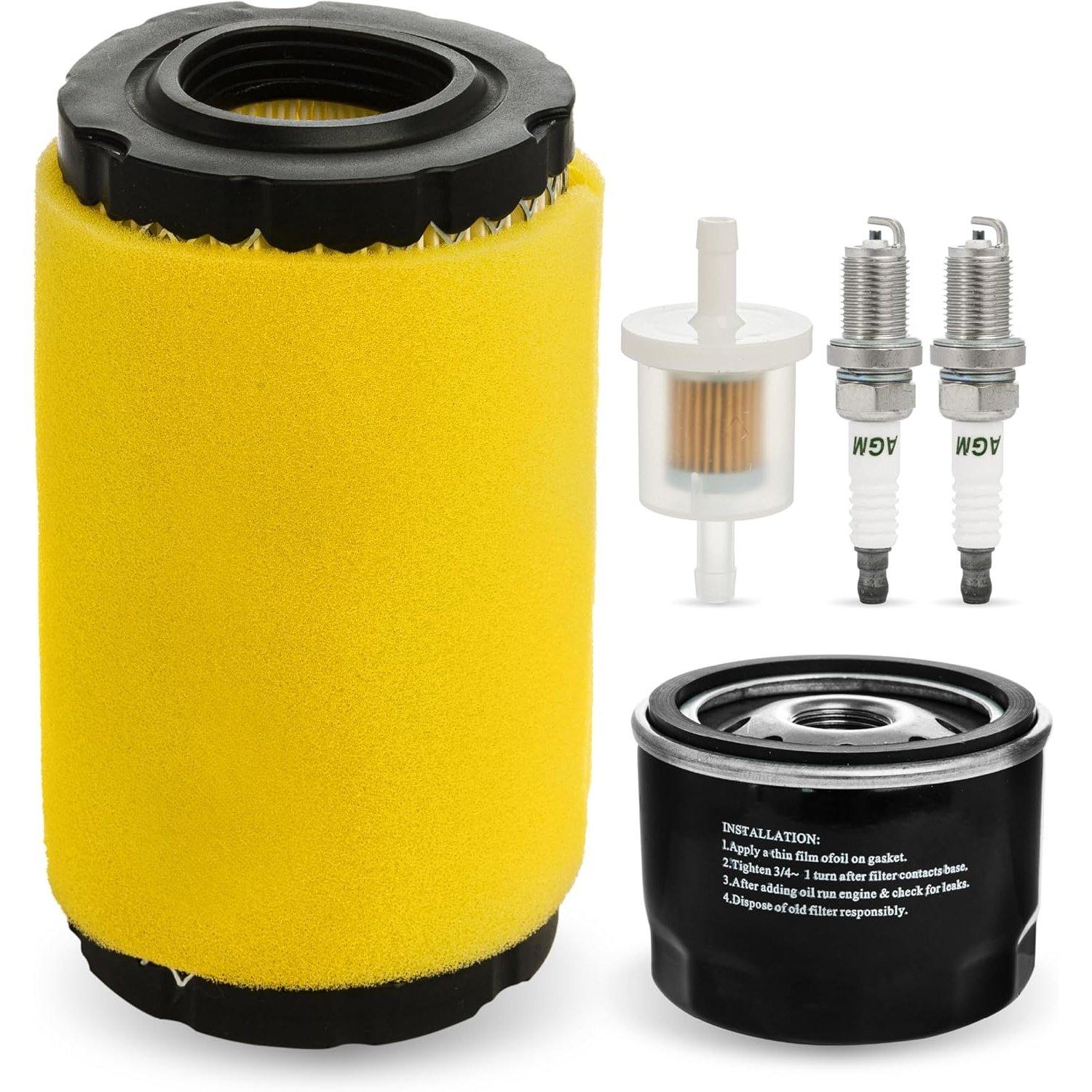

• Kit includes one engine air filter and one oil filter.

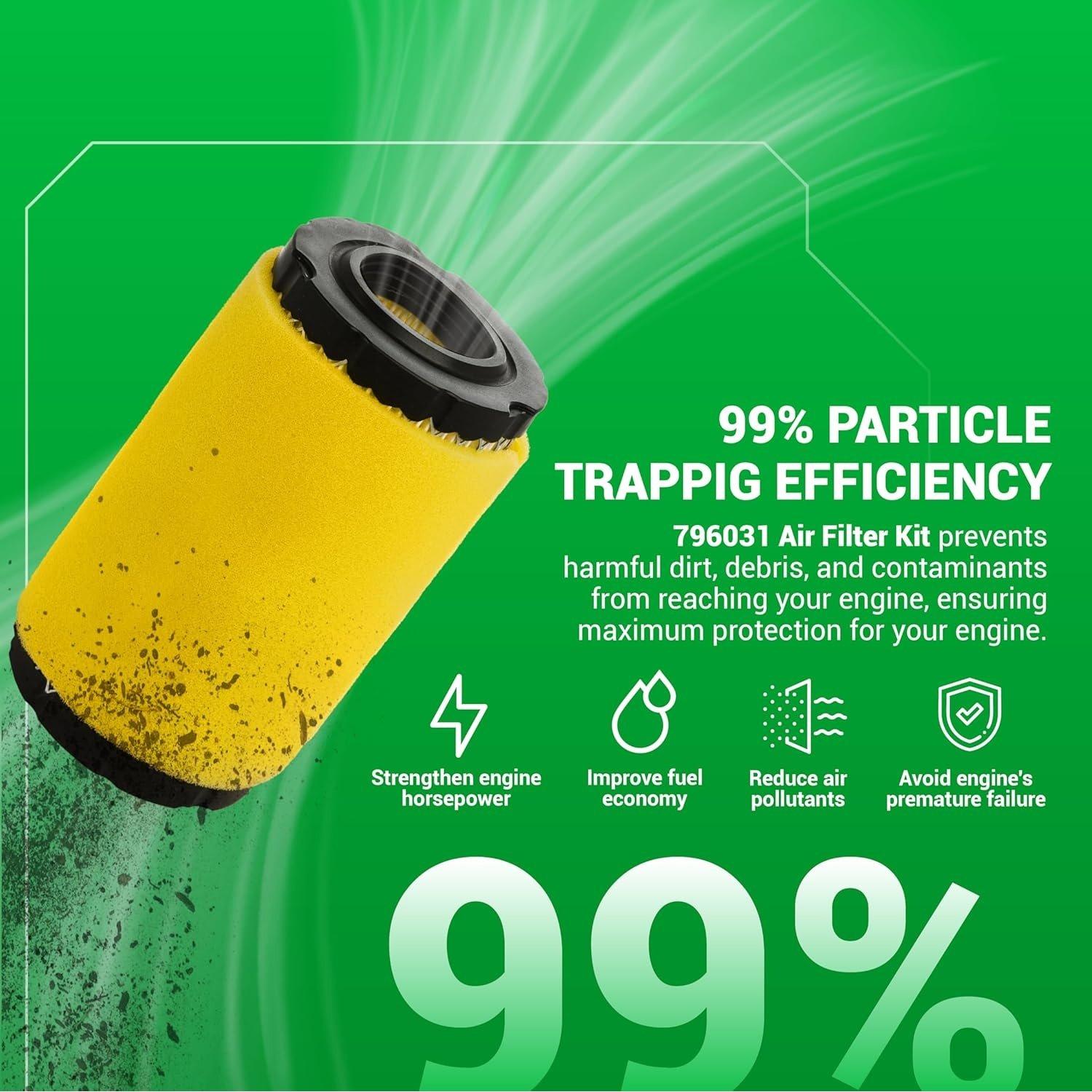

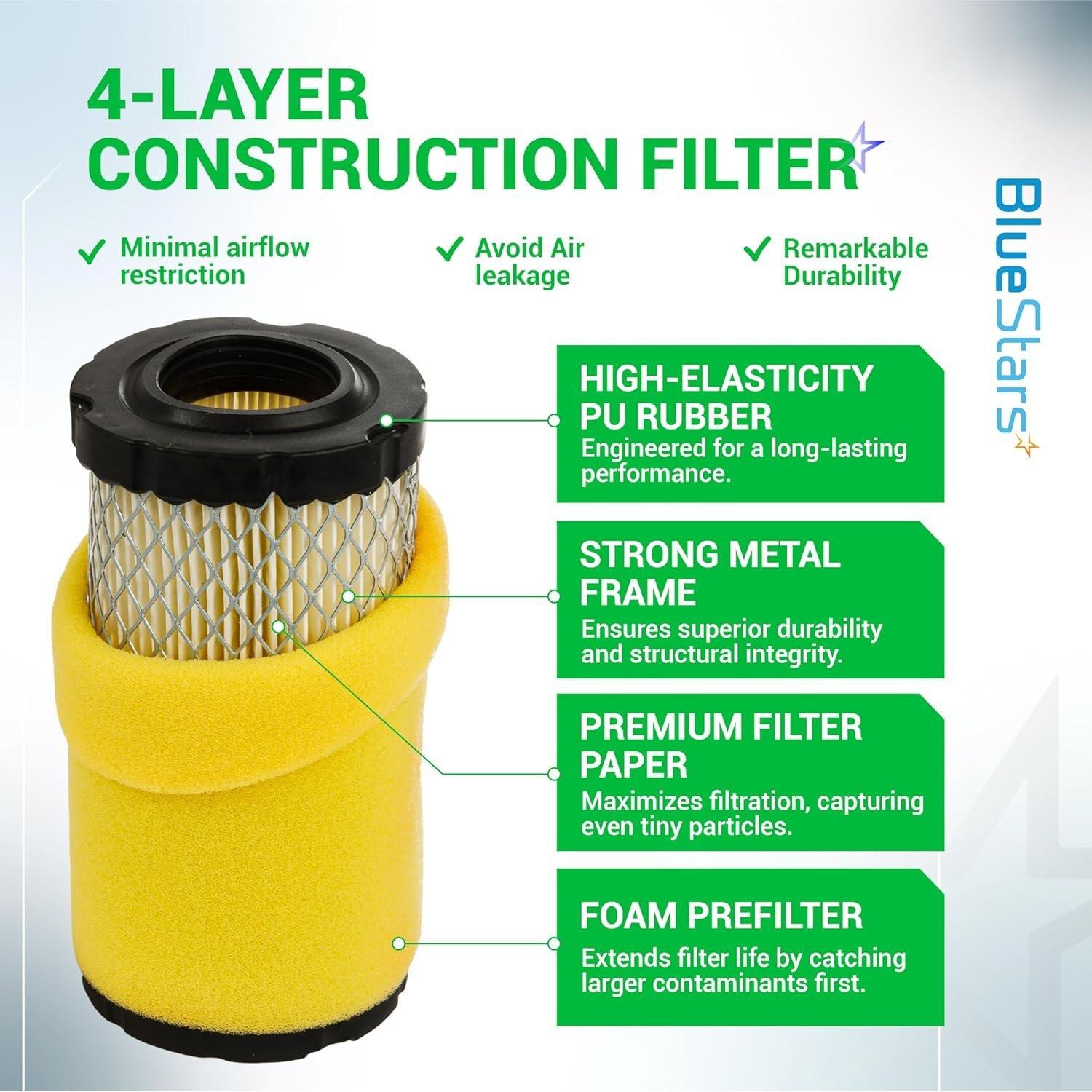

• Pleated paper air filter media provides efficient filtration and high dust-holding capacity.
• Direct replacement components for specified OEM parts.

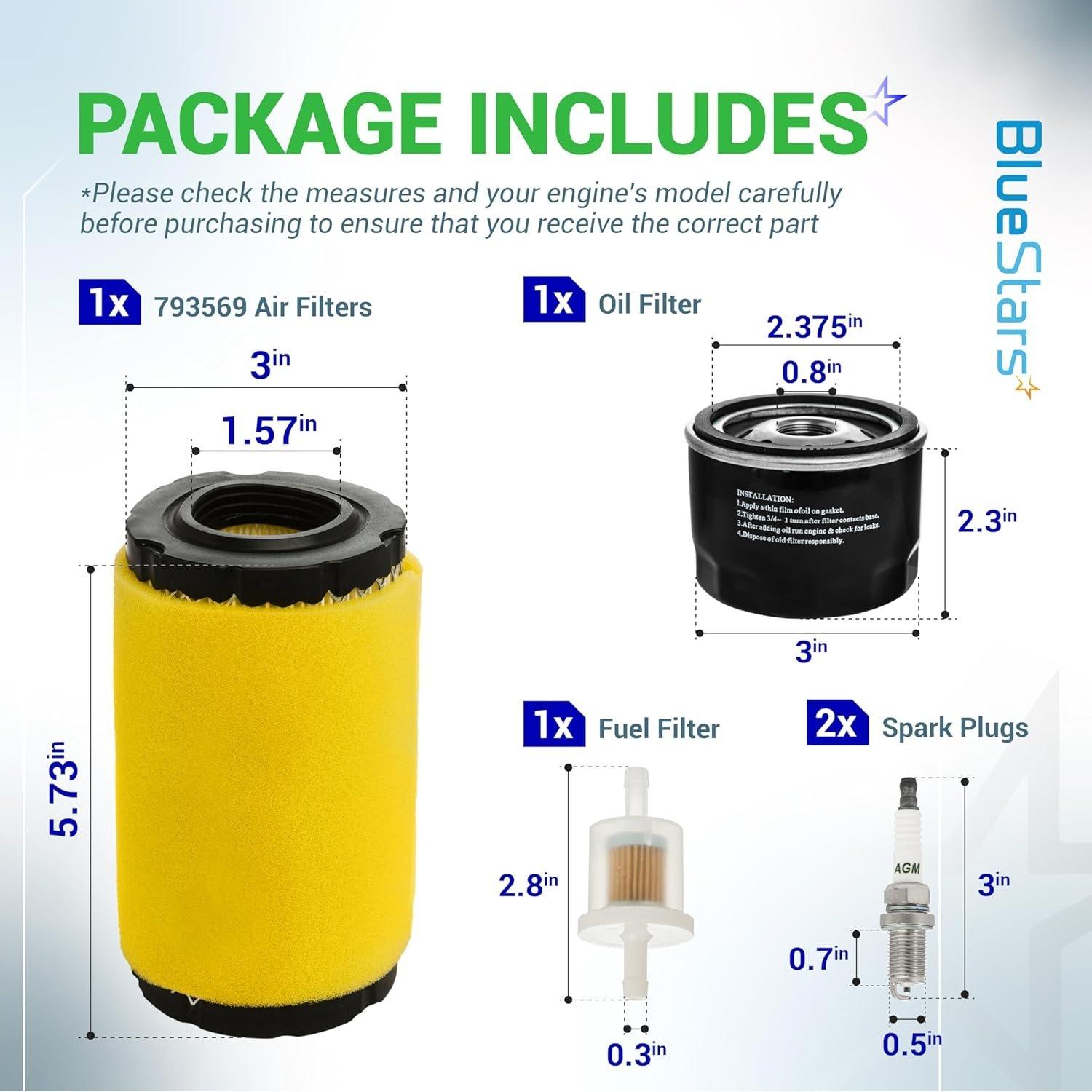

• Air Filter Dimensions: 3 inch Outer Diameter, 1.5 inch Inner Diameter, 5.88 inch Height.

Replaces / Cross-Reference Part Numbers

• Air Filter Replaces:Briggs & Stratton: 793569, 793685, 4241, 5415John Deere: GY21055, MIU11511Bad Boy: 063-4026-00
• Oil Filter Replaces:Briggs & Stratton: 696854, 492932, 492932S, 695396, 795890, 92134, 92134GSJohn Deere: AM119567, AM125424, GY20577, LG4153, LG492932S

Compatibility & Fitment

• Fits Briggs & Stratton Intek Series Engines including:31L777, 31M977, 31Q777, 331707, 331777, 331807, 331877, 33R877.
• Fits John Deere Mowers including:D100, D110, D120, LA115, LA125.
• Fits Craftsman Mowers including:LT2000, YT3000.

When to Replace

• Follow the service intervals recommended by your engine manufacturer.
• Replace sooner if operating in extremely dusty or dirty conditions.
• Inspect filters regularly for dirt, oil saturation, or physical damage.
• Replace if you notice reduced engine performance, increased fuel consumption, or dark exhaust smoke.

Installation Tips

• Ensure the engine is off and cool to the touch before starting service.
• Clean the area around the air filter housing before opening to prevent debris from entering the carburetor.
• Apply a light coat of clean engine oil to the new oil filter's gasket before installation.
• Hand-tighten the oil filter until the gasket makes contact, then tighten an additional 1/4 to 1/2 turn. Do not over-tighten.
• After installation, run the engine for a few minutes, then check and top off the engine oil level as needed.
