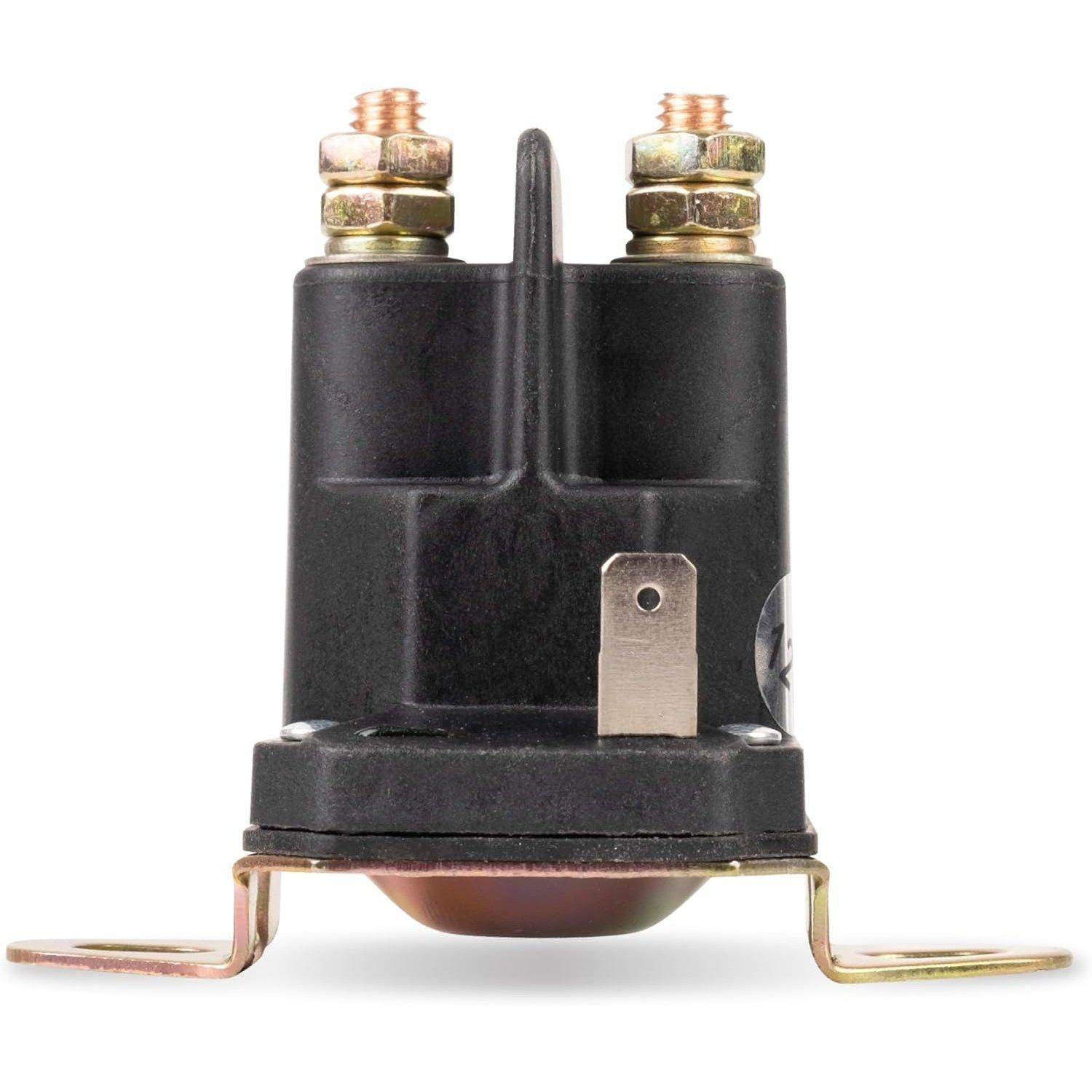

[Lifetime Warranty] 435-700 Starter Solenoid 3 Terminal 12V

435-700 Starter Solenoid 3 Terminal 12V

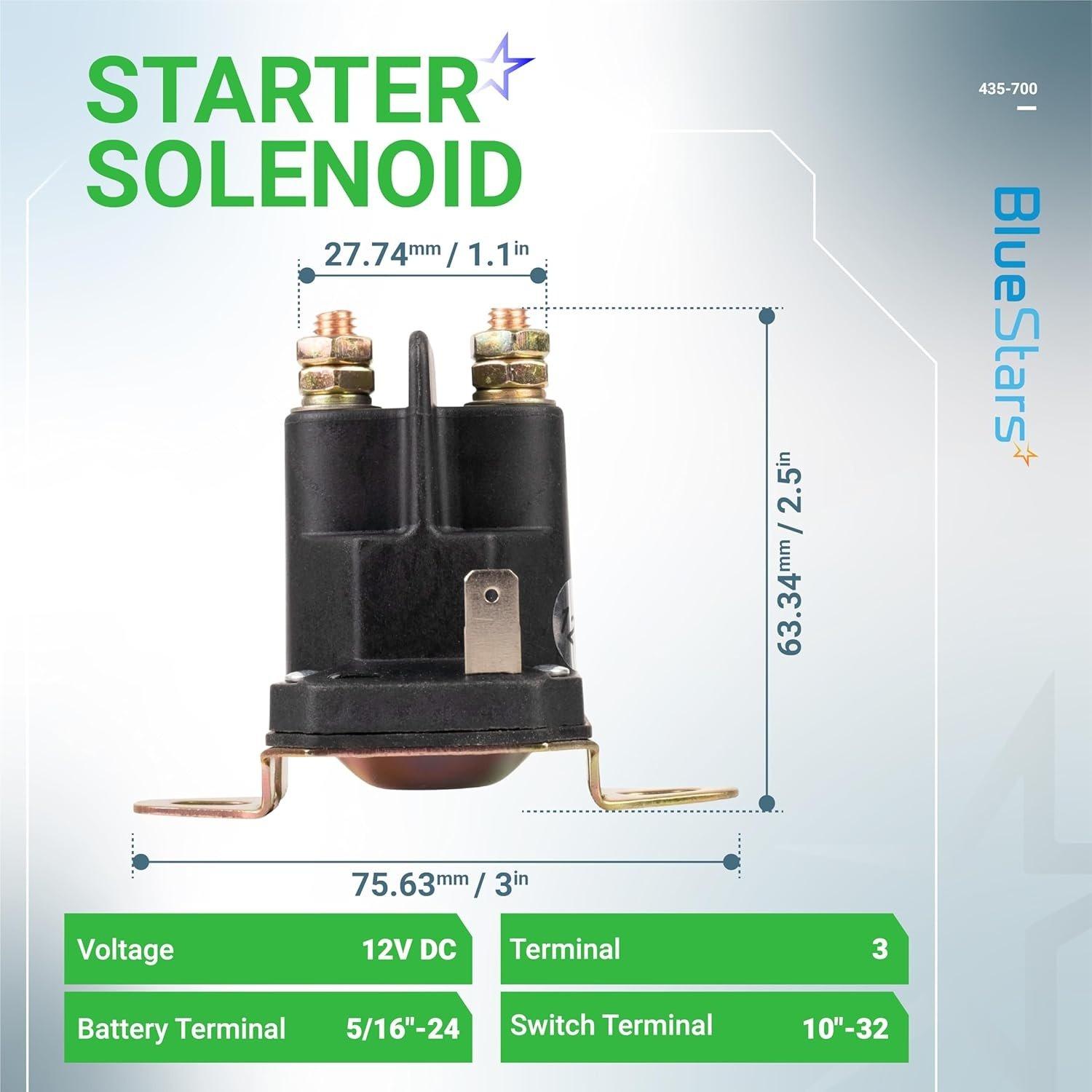

Key Features

• Operating Voltage: 12V DC
• Terminal Count: 3

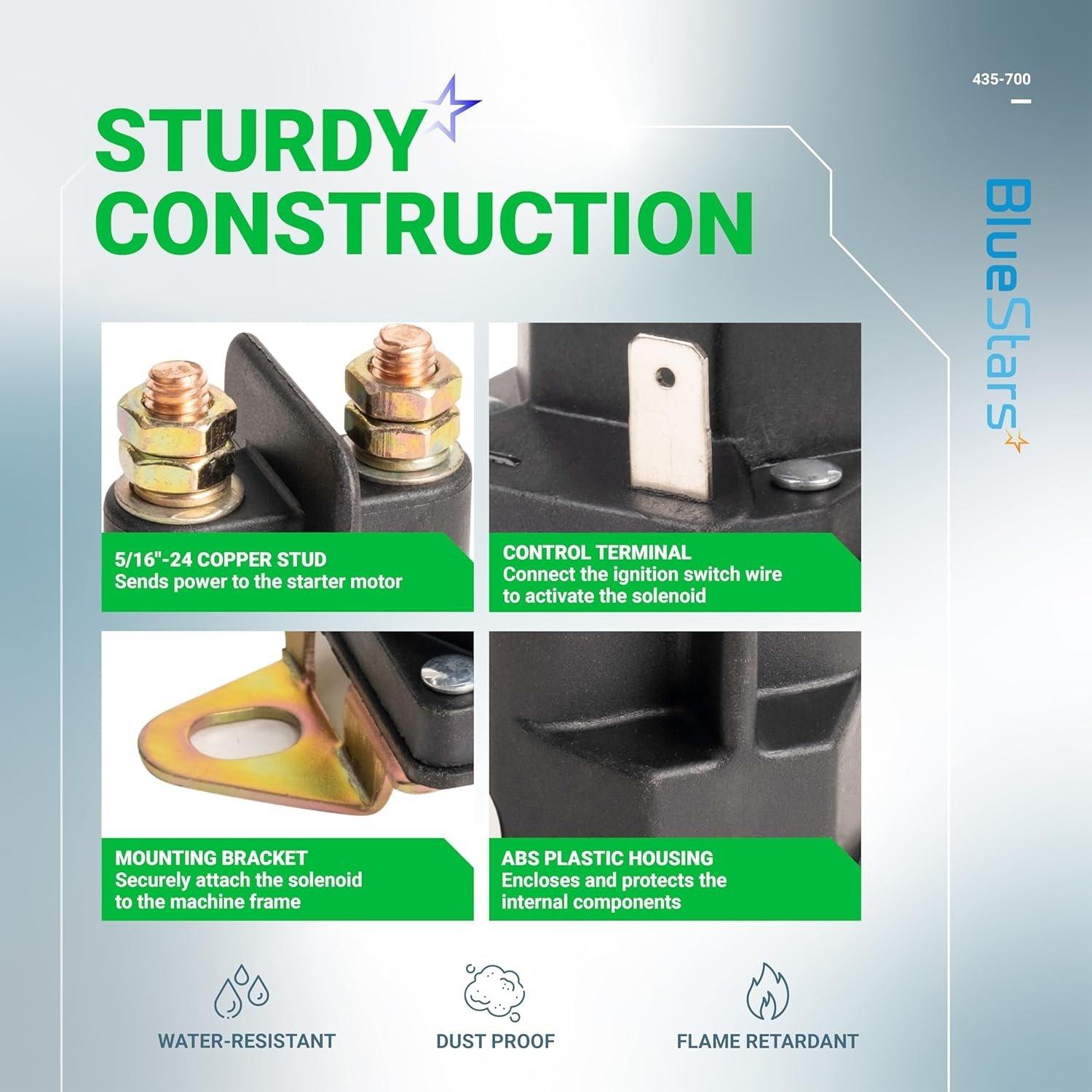

• Battery Stud: 5/16"-24
• Motor Stud: 5/16"-24
• Switch Terminal: 10-32"

Replaces / Cross-Reference Part Numbers

• Stens: 435-700
• Husqvarna: 539101714
• Trombetta: 812-1221-211, 854-1221-210

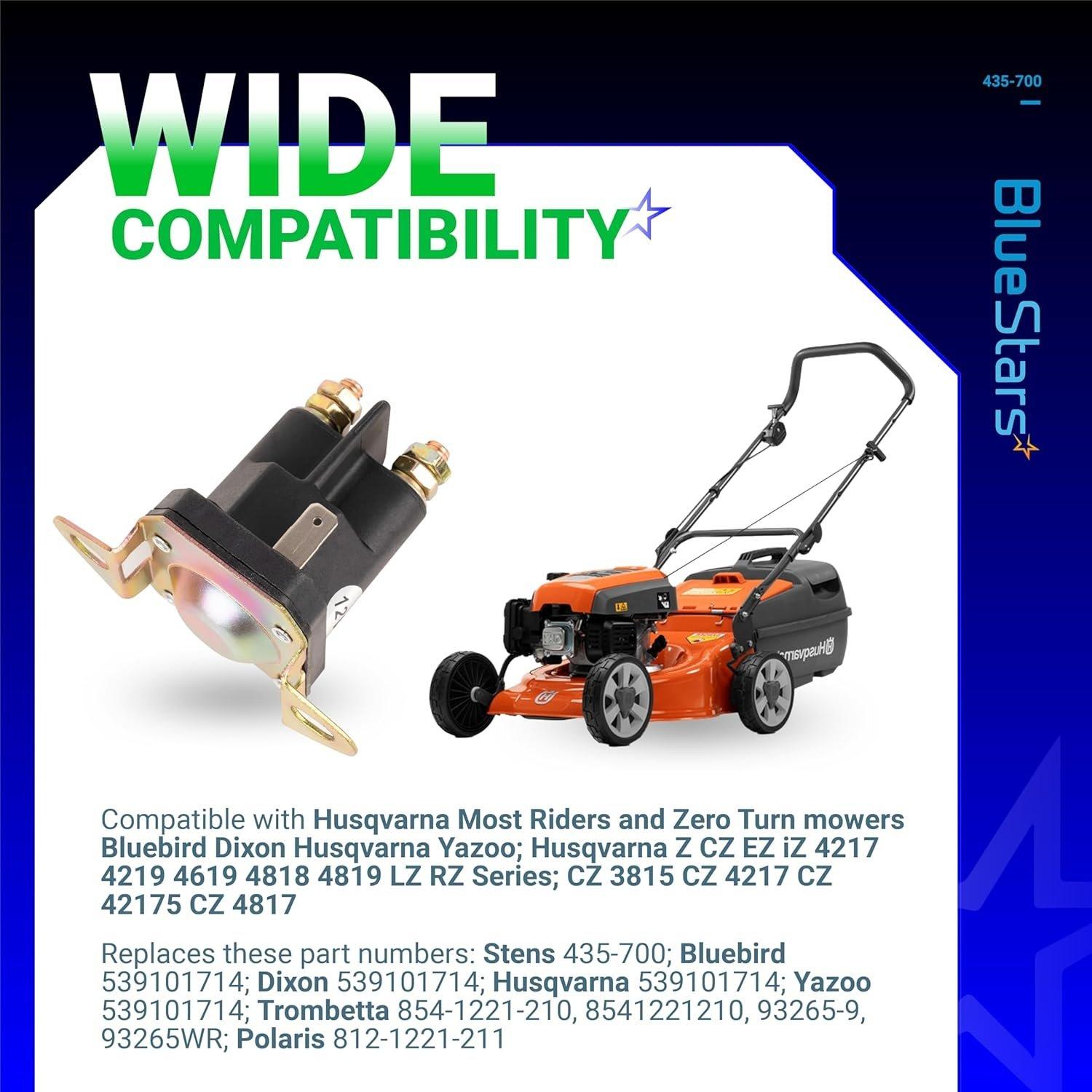

Compatibility & Fitment

• Designed for many Husqvarna riders and zero-turn mowers.
• Fits various equipment models that use a matching 3-terminal, 12V solenoid configuration.
• Verify part numbers and specifications to ensure correct fitment.

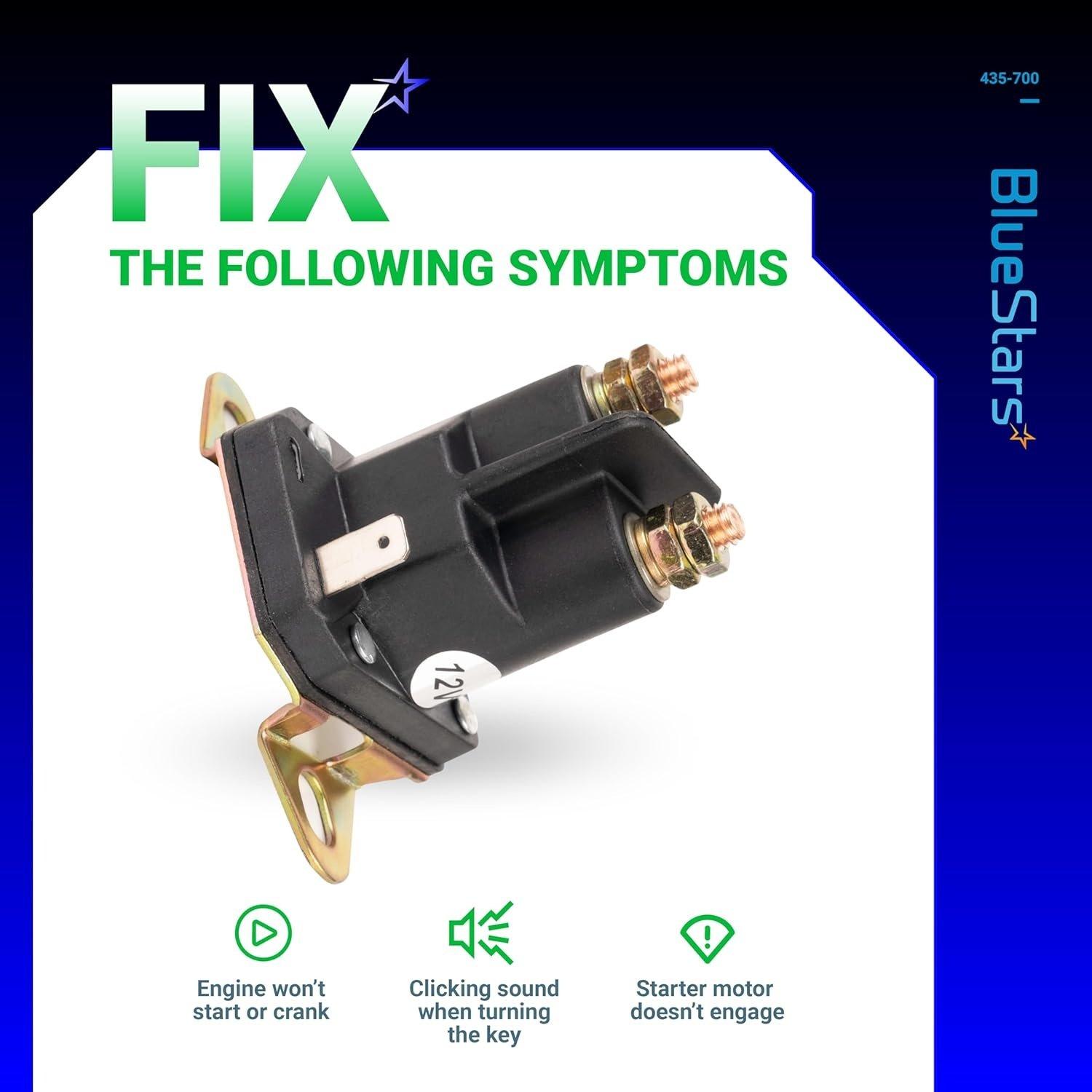

When to Replace

• Engine makes a single, audible click but does not crank.
• Starter motor does not engage when the ignition key is turned.
• Intermittent or no-start conditions.
• Starter motor continues to run after the engine has started.

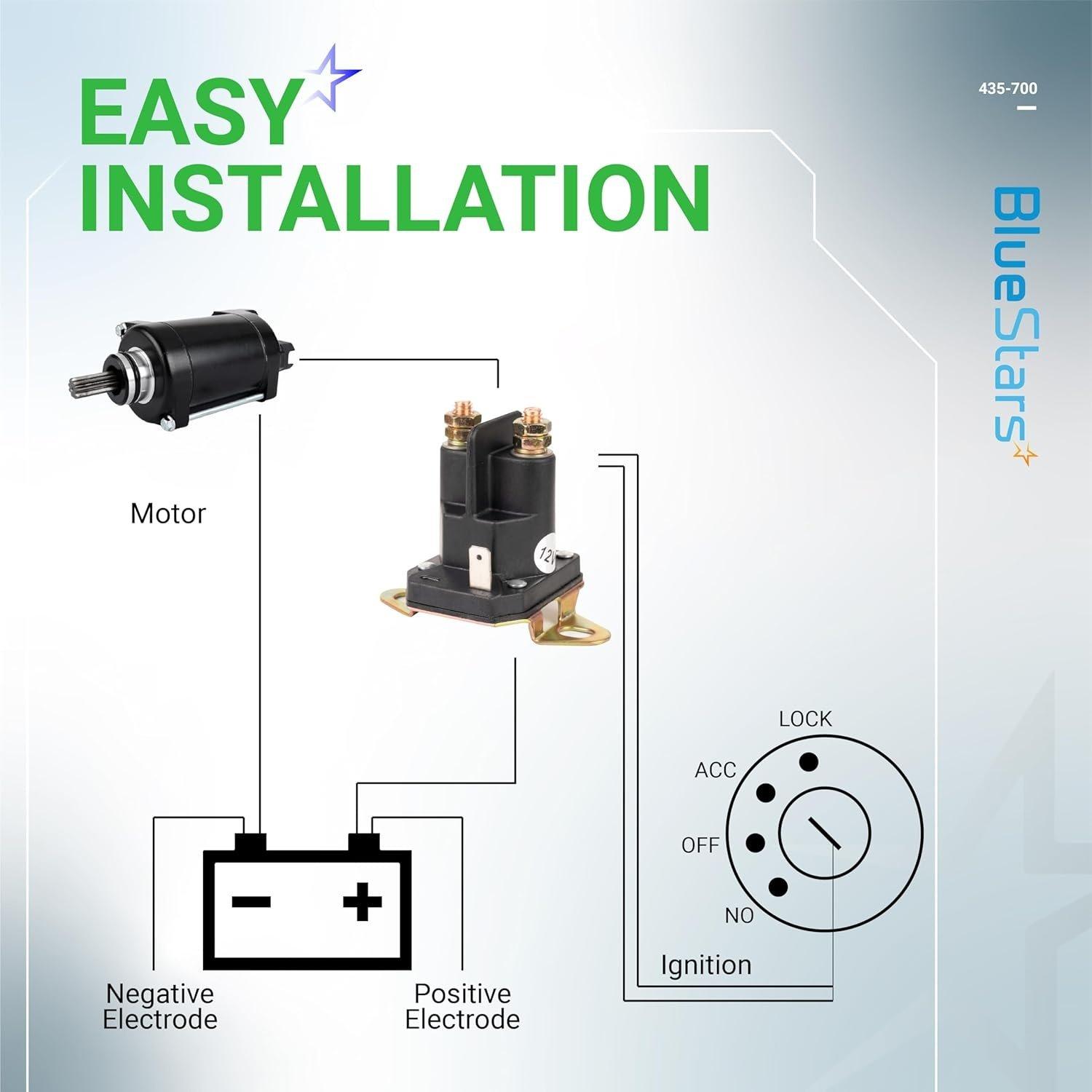

Installation Tips

• Disconnect the negative battery terminal before starting the replacement.
• Label all wires before removing them from the old solenoid.
• Ensure mounting surfaces and electrical connections are clean and free of corrosion.
• Securely tighten all terminal nuts to ensure proper electrical contact.
