[Lifetime Warranty] 9-100-9001 Pool Cleaner UWF Connector Replacement

9-100-9001 Pool Cleaner UWF Connector Replacement Part

Key Features

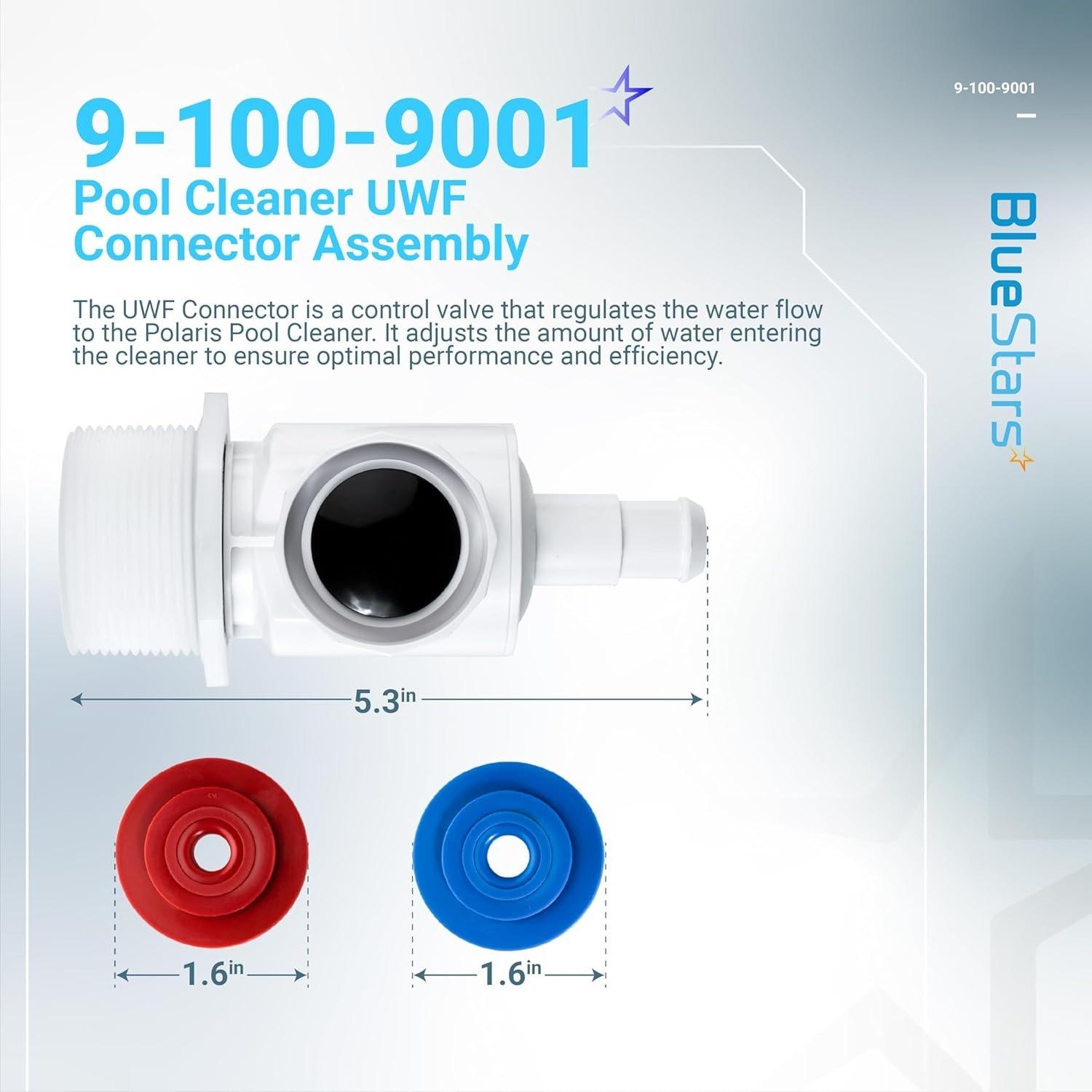

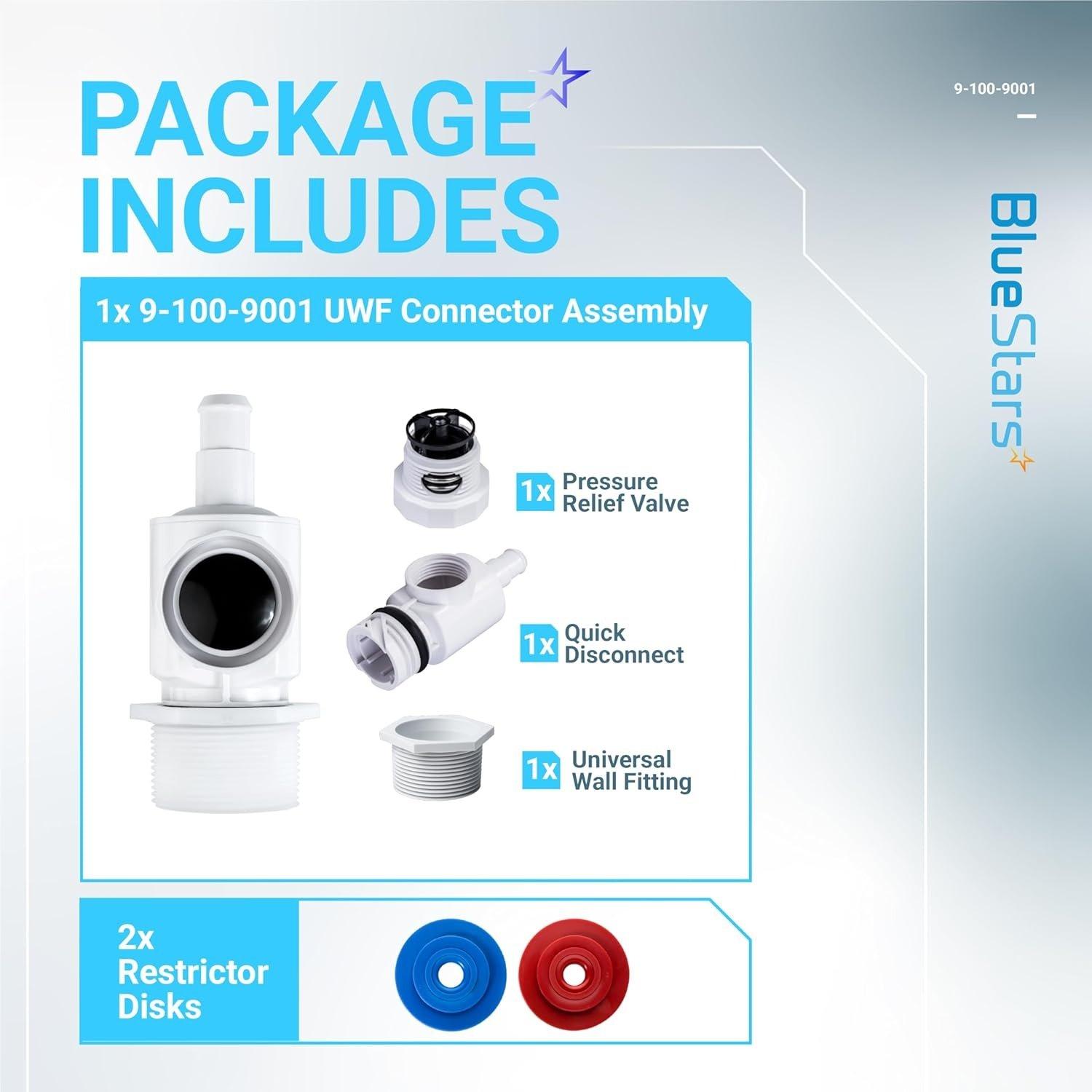

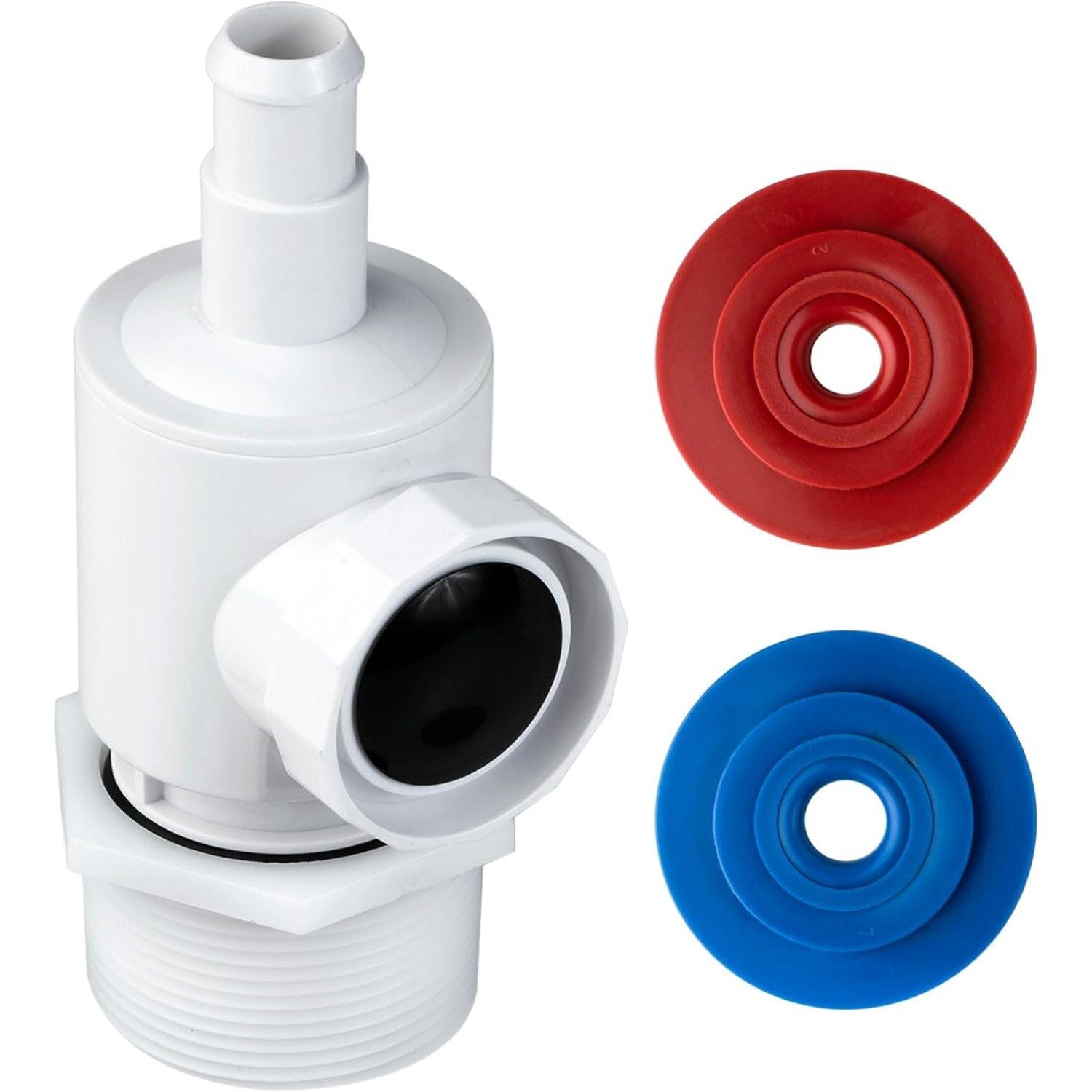

• Complete universal wall fitting (UWF) connector assembly
• Connects the pressure-side cleaner hose to the pool's dedicated return line

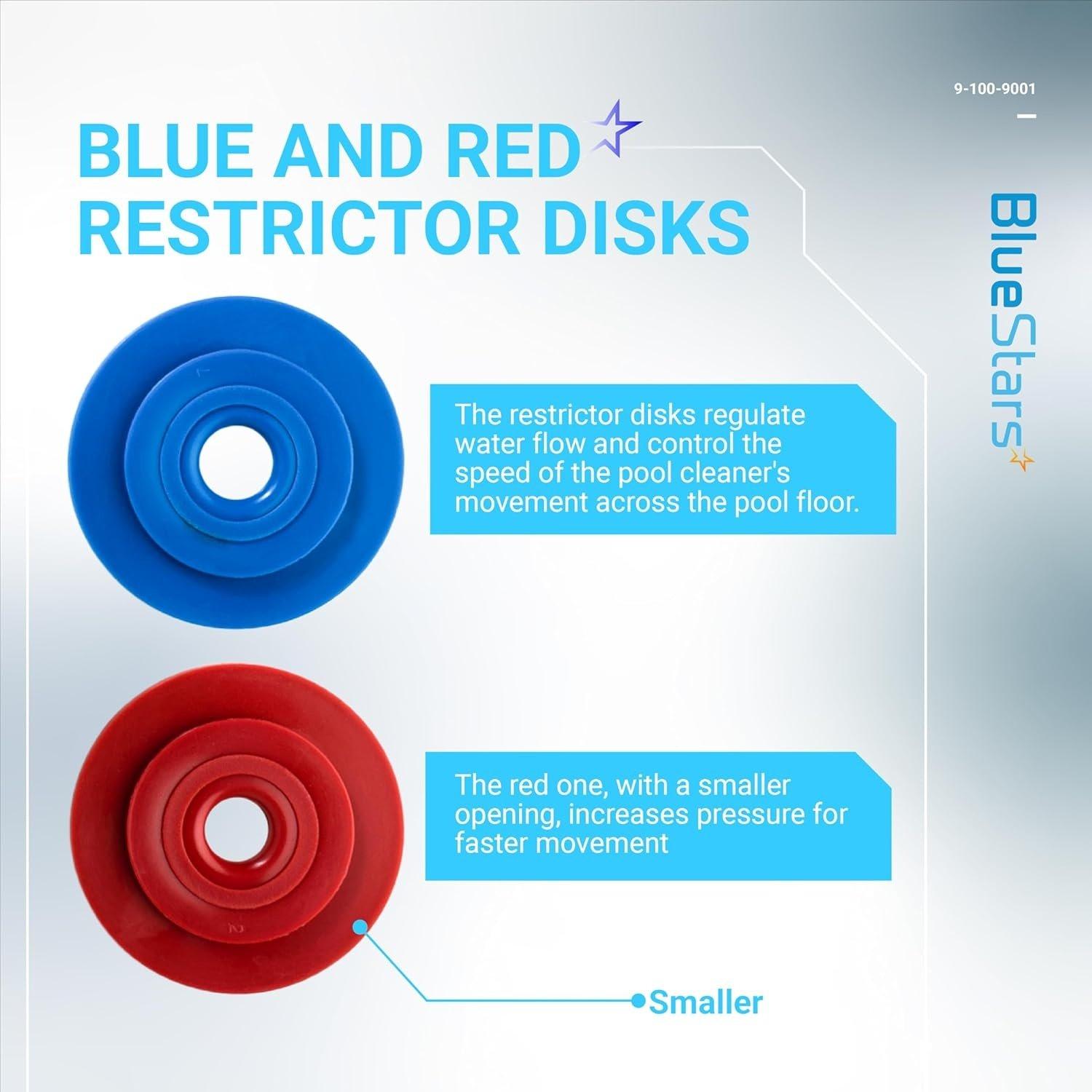

• Includes red and blue restrictor discs for water flow regulation
• Facilitates a secure, quick-disconnect point for the pool cleaner hose

Replaces / Cross-Reference Part Numbers

• Zodiac / Polaris: 9-100-9001
• Pentair: EW22

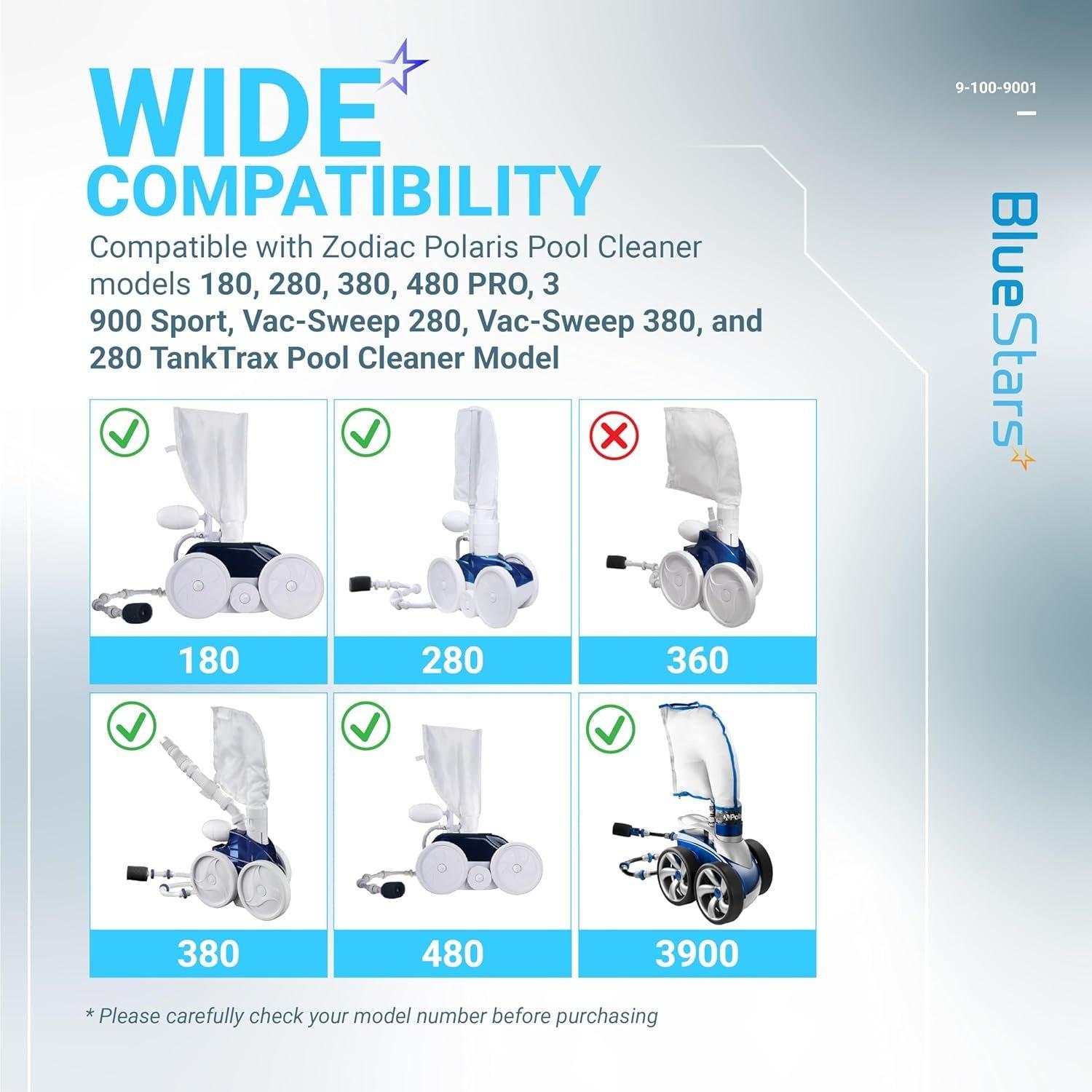

Compatibility & Fitment

• Polaris Vac-Sweep: 180, 280, 380
• Polaris: 280 TankTrax, 3900 Sport, 480 PRO
• Polaris Quattro Sport

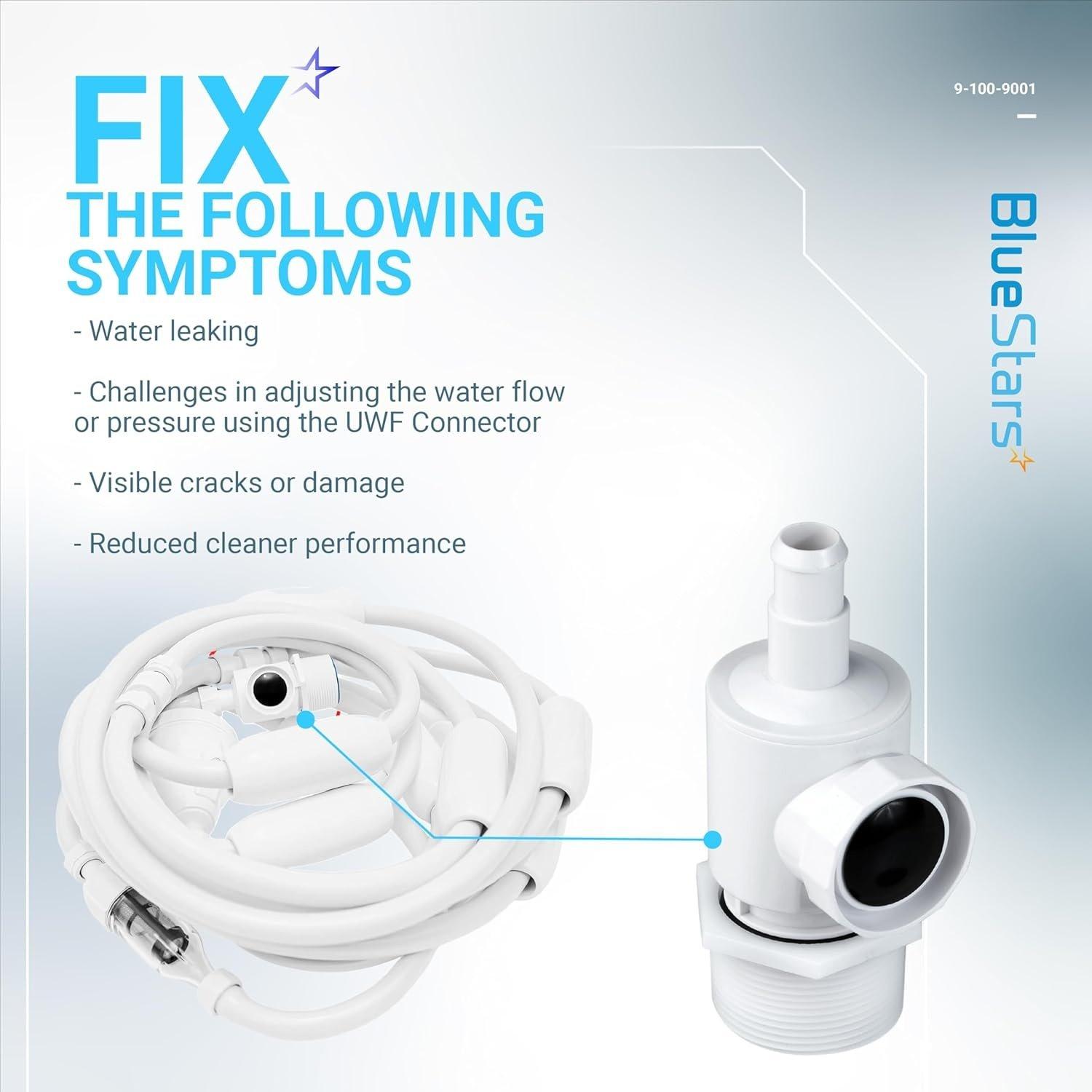

When to Replace

• Visible cracks, warping, or physical damage to the connector body
• Water leaks from the wall connection point when the system is active
• Cleaner hose will not connect securely or disconnects during operation
• Reduced water pressure or performance from the pool cleaner

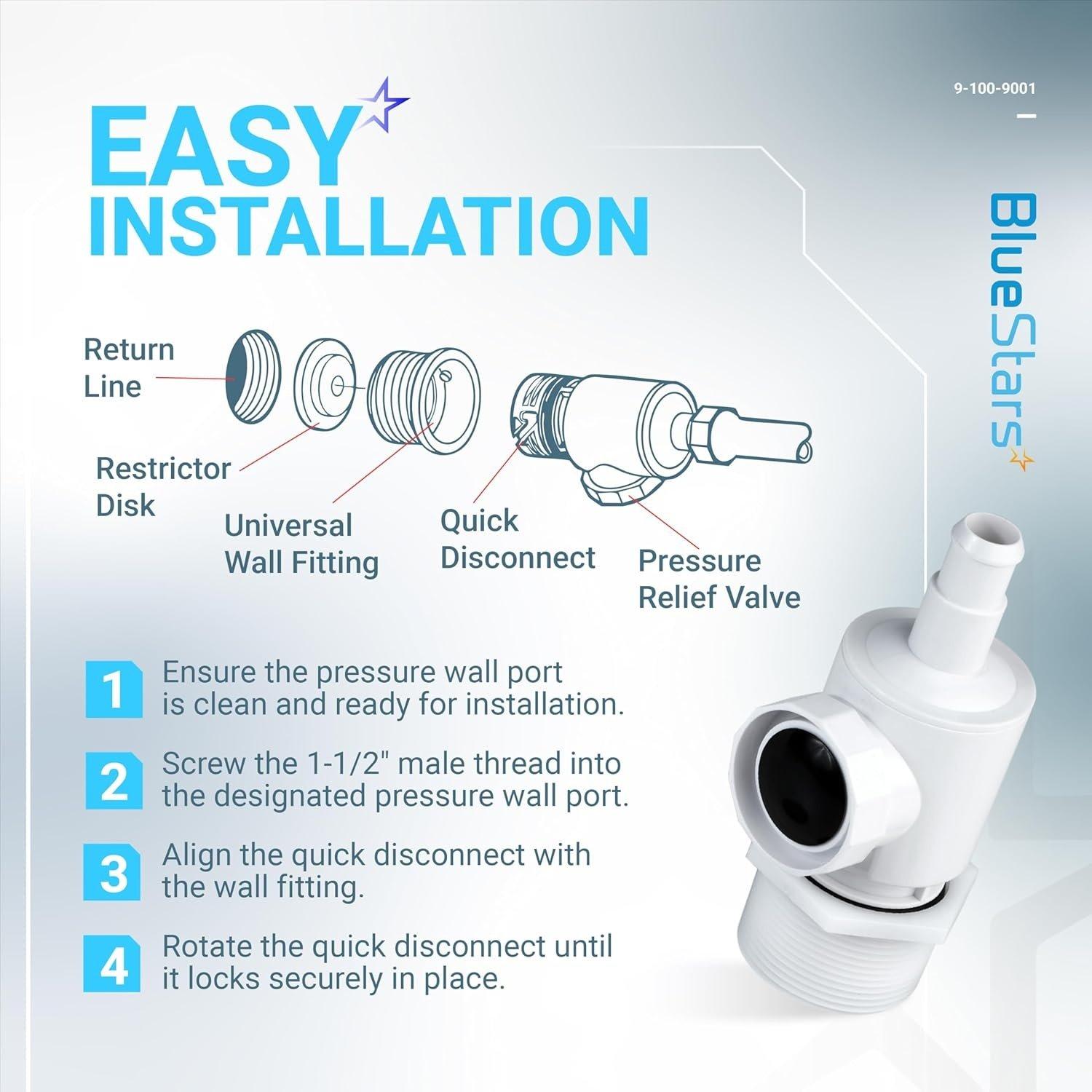

Installation Tips

• Turn off the pool booster pump before removing the old fitting.
• Select and install the correct restrictor disc (red or blue) based on the requirements of your specific pool cleaner model.

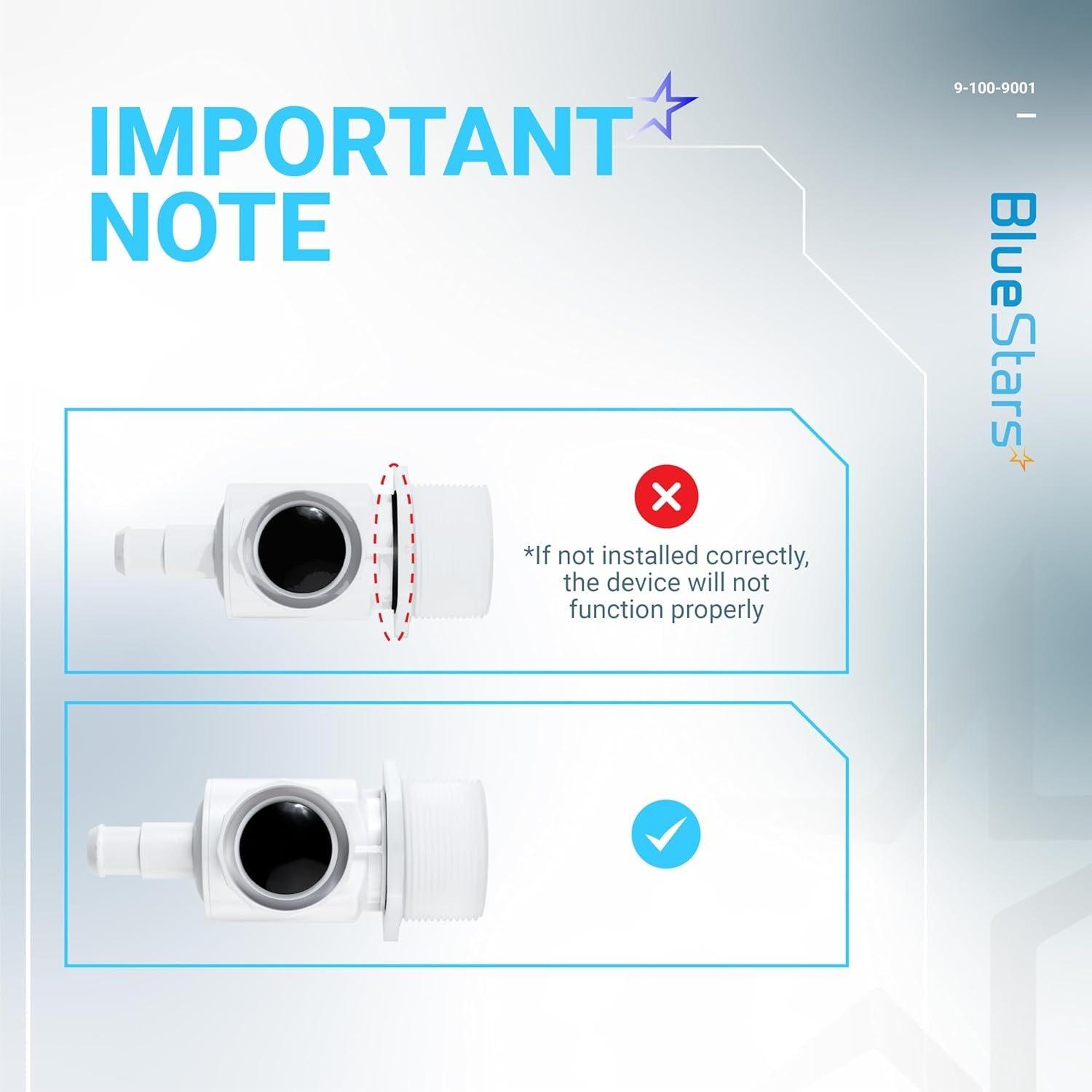

• Ensure the O-ring is correctly seated within the quick-disconnect housing to prevent leaks.
• Thread the new fitting into the pool wall return line until it is snug. Do not overtighten.
