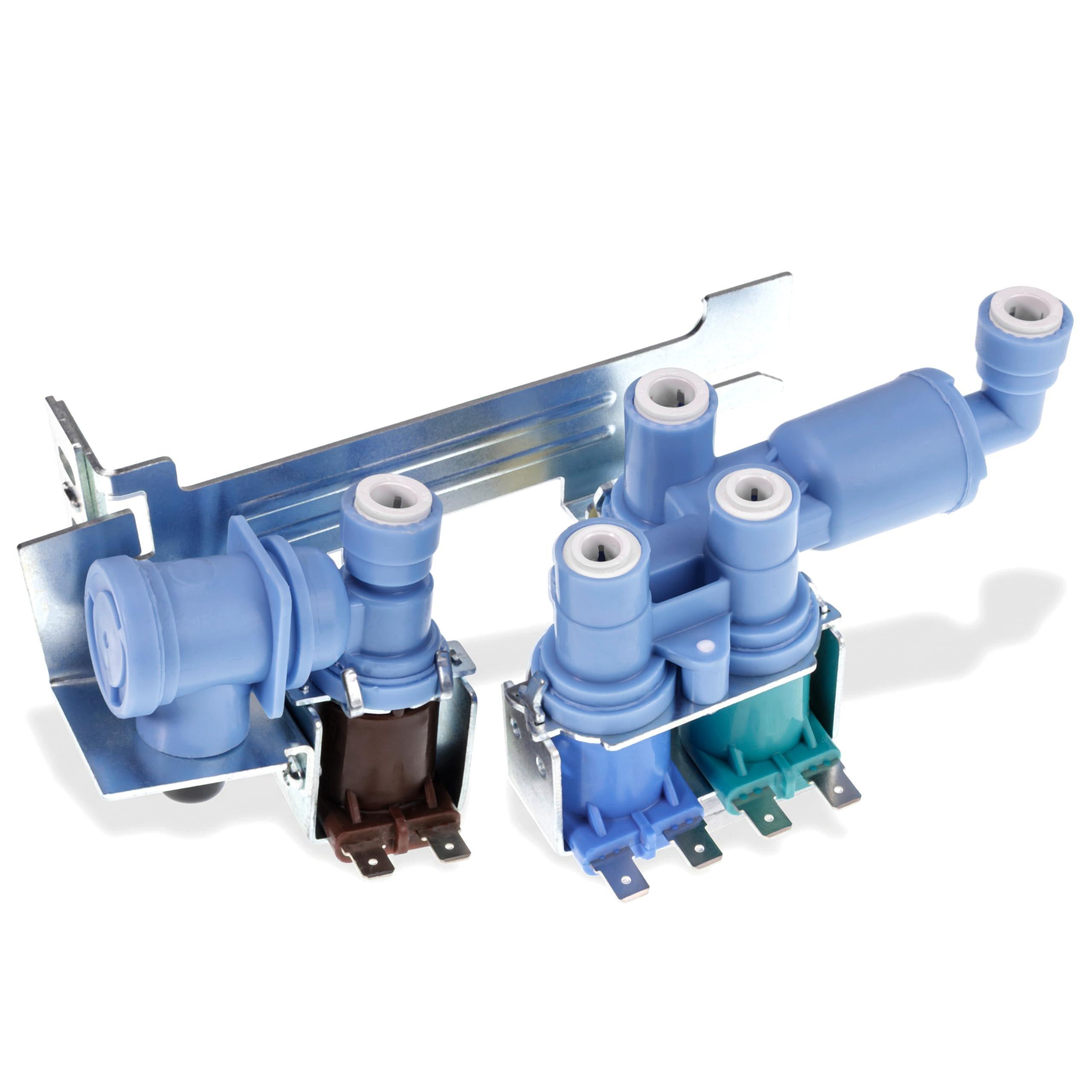

[Lifetime Warranty] 242253002 Refrigerator Water Inlet Valve - Compatible with Frigidaire Electrolux Kenmore Crosley Refrigerators - Replaces 242102201 2689640 AP5669874 PS7321353 EAP7321353

Refrigerator Water Inlet Valve Replacement

Key Features

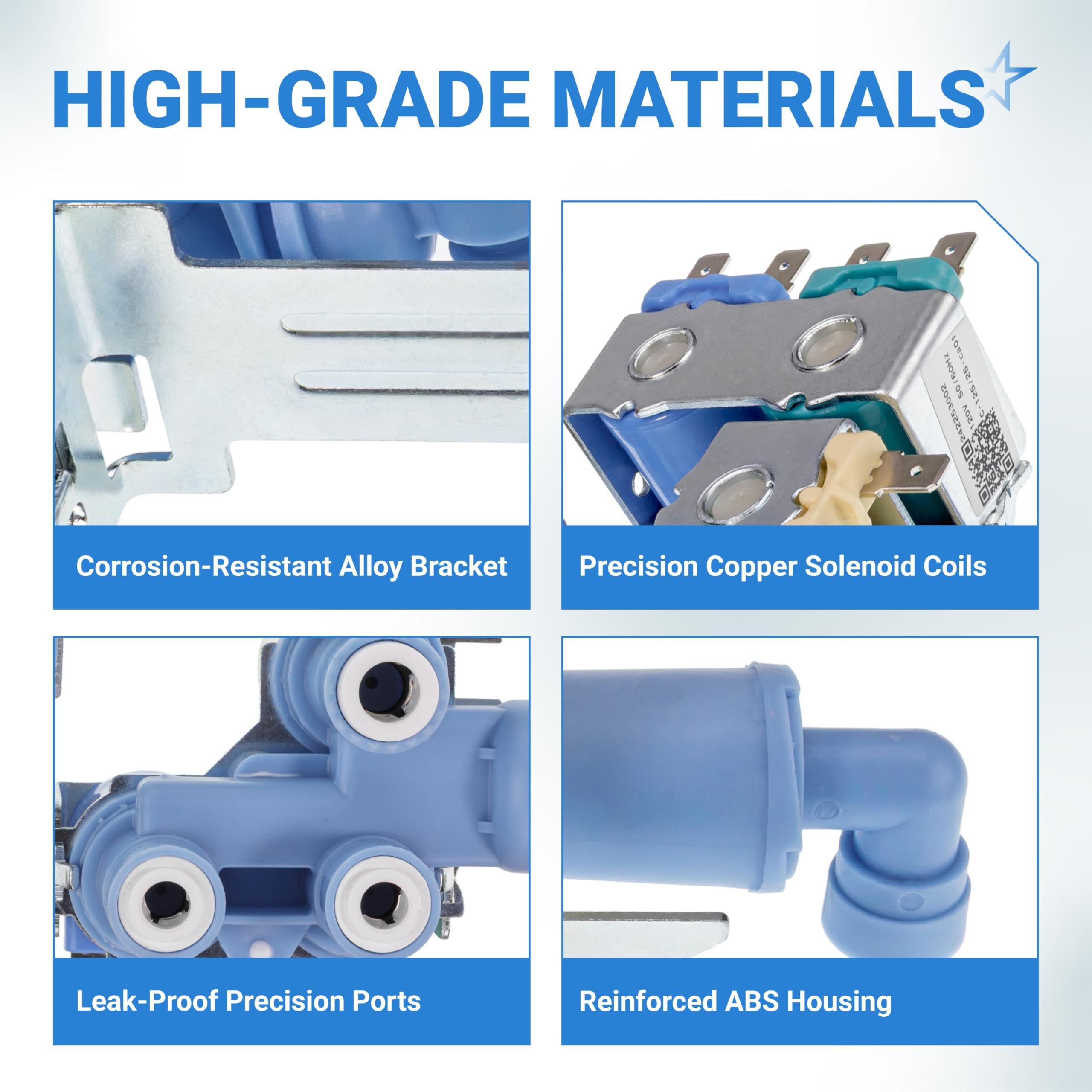

• Dual Solenoid Design:Features two solenoid coils to independently control water flow to both the ice maker and the water dispenser.
• High-Pressure Seal:Engineered with precision internal diaphragms to prevent leaks and ensure a tight shut-off when the solenoids are de-energized.
• Standard Plug-In Connection:Utilizes a specialized electrical terminal block designed for a secure, moisture-resistant connection to the refrigerator's wiring harness.
• Durable Composite Housing:Constructed from reinforced polymer materials to withstand varying household water pressures and prevent stress cracking.

Replaces / Cross-Reference Part Numbers

• Primary Part Number:242253002
• Manufacturer Substitutions:242102201, 2689640
• Industry Standards:AP5669874, PS7321353, EAP7321353, PD00007011

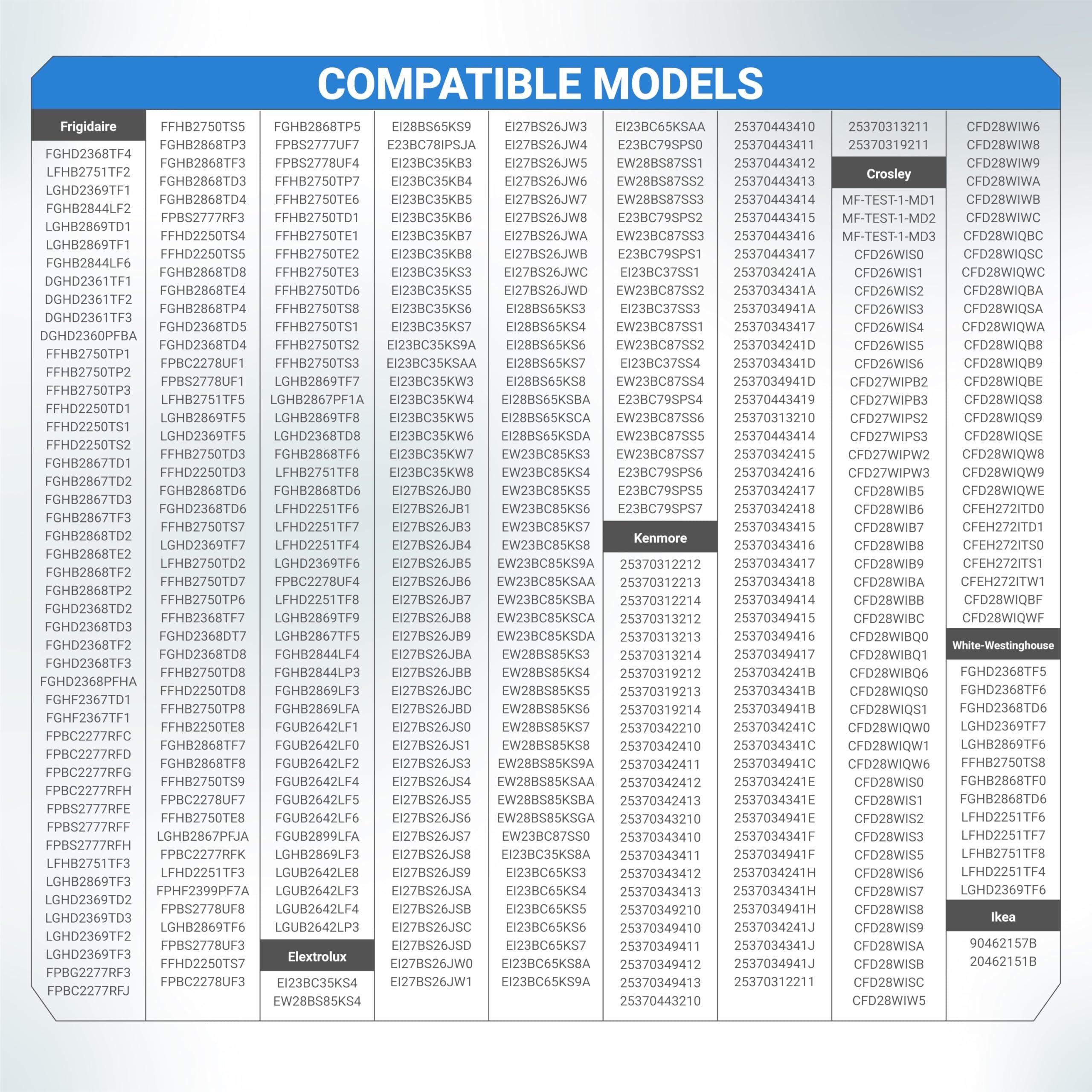

Compatibility & Fitment

• Frigidaire:Fits Gallery, Professional, and standard series models.
• Electrolux:Compatible with specific high-end French door configurations.
• Kenmore / Kenmore Elite:Fits models starting with prefixes 253.XXXXX.
• Crosley:Fits various top-mount and side-by-side models.
• Kelvinator & Westinghouse:Compatible with select units using the 242253002 part specification.

When to Replace

• No Water or Ice:The solenoids fail to open, preventing water from reaching the dispenser or ice mold.
• Slow Dispensing:Mineral buildup or a restricted internal screen reduces water pressure at the door.
• Constant Leaking:Water continues to drip into the ice tray or dispenser after the cycle ends, indicating a failed internal seal.
• Loud Humming:A vibrating or buzzing noise when the water is activated, suggesting a failing solenoid coil.
• Ice Maker Overfilling:The valve fails to close completely, causing the ice tray to overflow and freeze into a solid block.

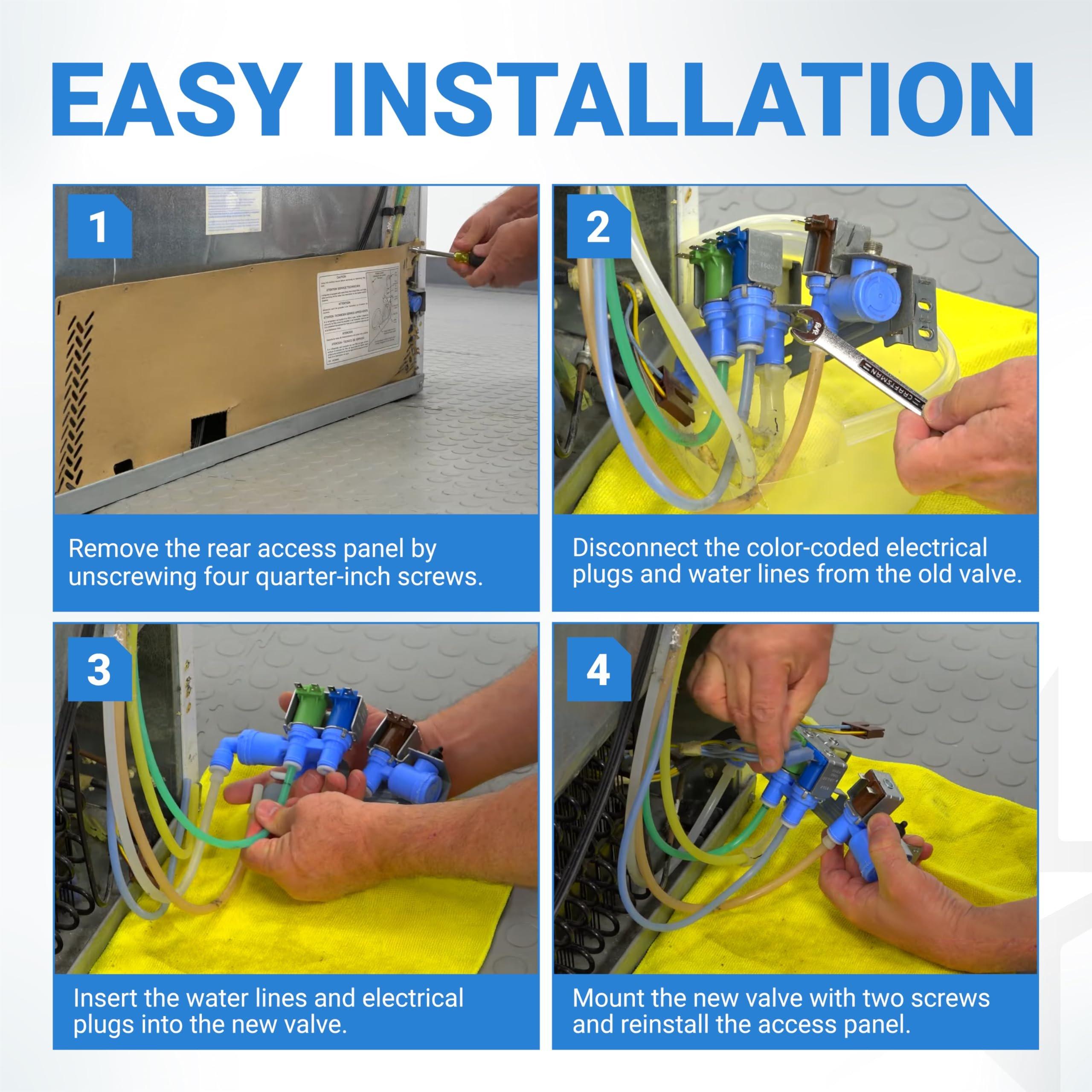

Installation Tips

• Utility Shut-off:Turn off the household water supply line and disconnect the refrigerator from the wall outlet before starting the repair.
• Drain Residual Water:Place a towel or shallow tray under the valve area to catch water remaining in the supply lines during disconnection.
• Quick-Connect Fittings:Many models use "push-to-connect" fittings; push the collar in to release the plastic tubing, and ensure the tubing is cut squarely before re-inserting.
• Electrical Safety:Ensure the wire harness is fully seated on the new valve terminals to prevent arcing or intermittent operation.
• Leak Test:After installation, turn the water on and check all connections for several minutes before sliding the refrigerator back into place.
