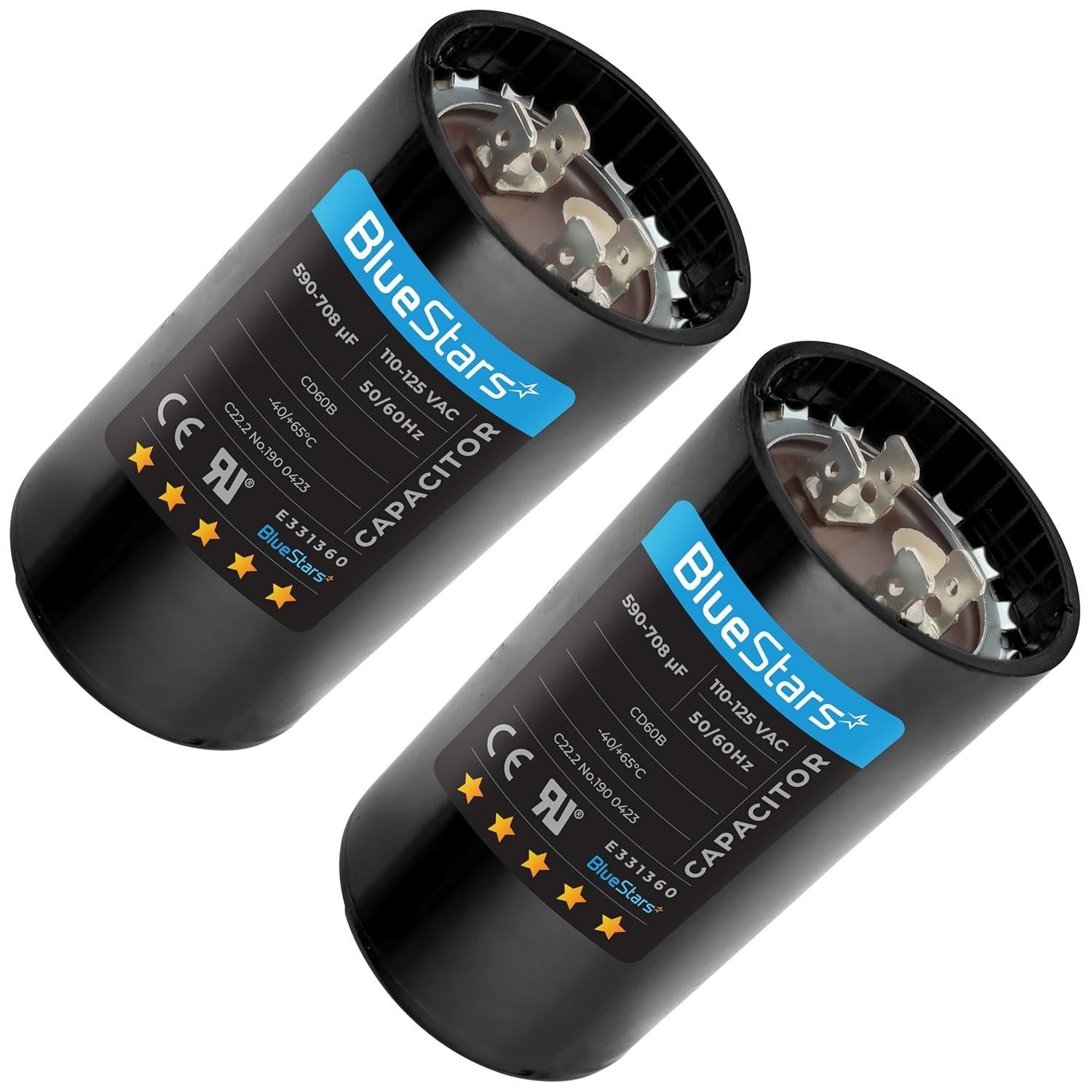

[Lifetime Warranty] 590-708 uF MFD 110-125 VAC ±20% 50/60 Hz CD60 Round Motor Start Capacitor - Fits Pool Pump, Well Pump - Pack of 2

590-708 mfd uF 110-125VAC ±20% Volts Round Motor Start Capacitor

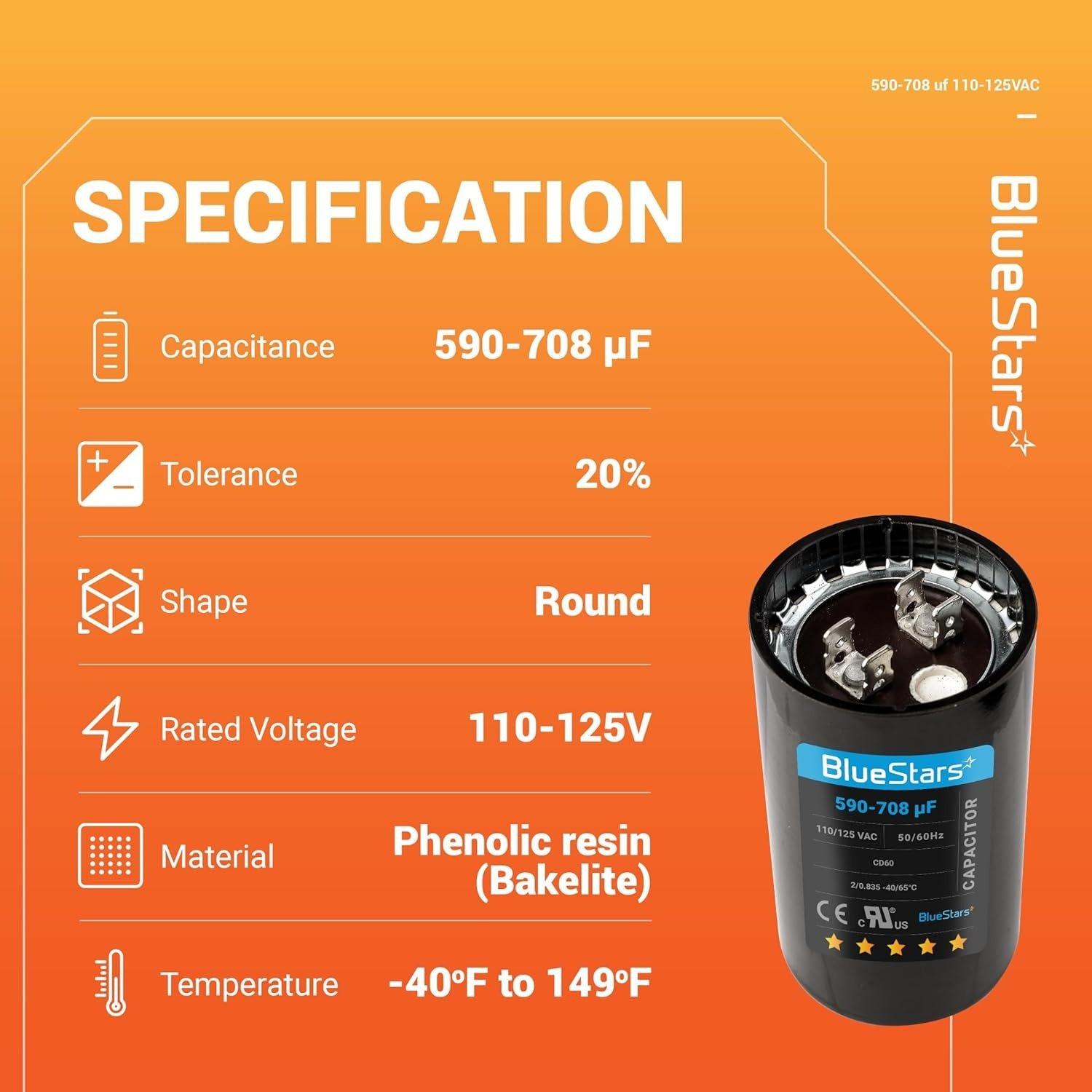

Key Features

• Capacitance: 590-708 MFD/uF
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature: -40°C to 65°C (-40°F to 149°F)
• Shape: Round

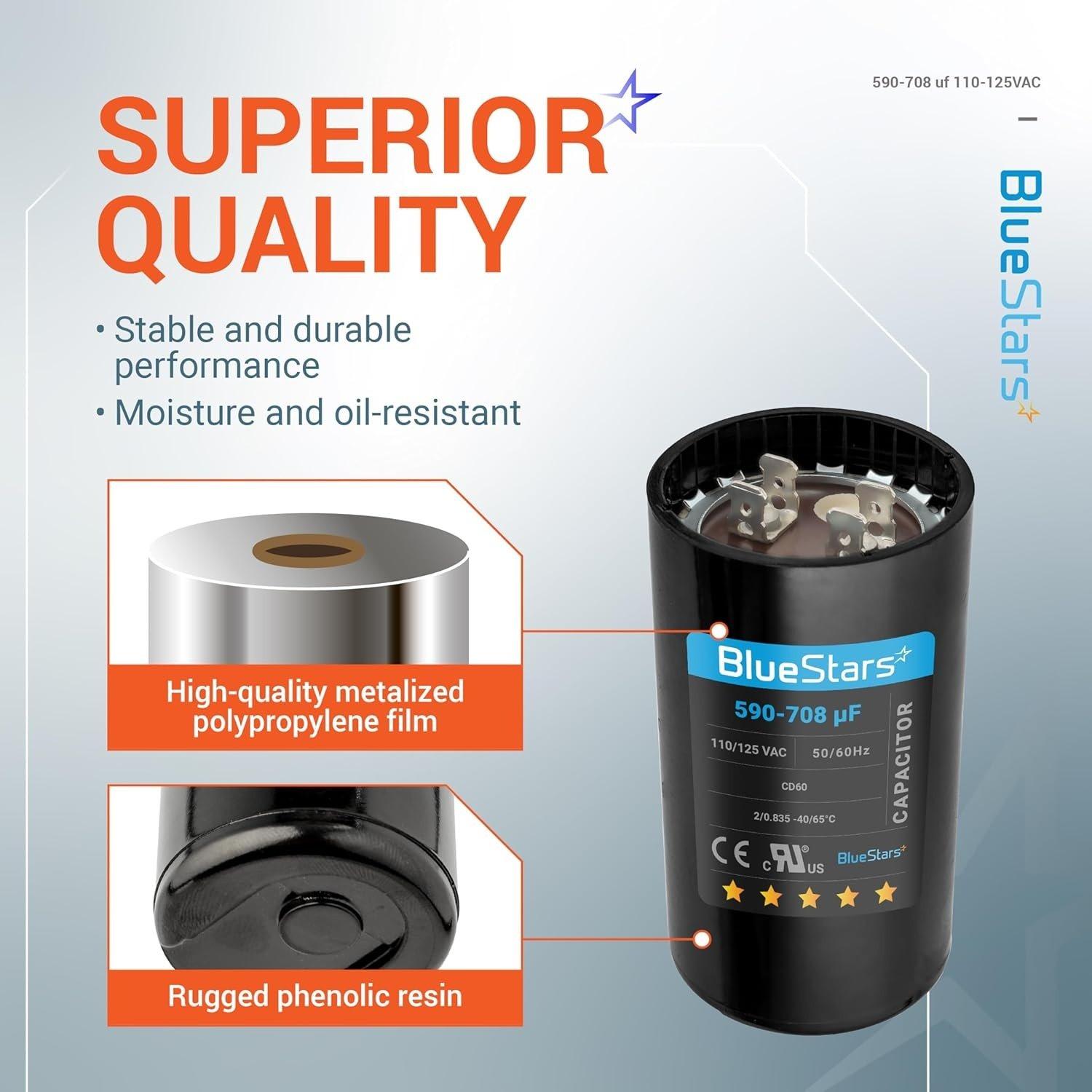

• Case Material: Moisture and oil-resistant plastic
• Terminals: 1/4 inch male quick-connect
• Dimensions (Diameter x Height): Approximately 46 mm x 85 mm (1.81 in x 3.35 in)

Replaces / Cross-Reference Part Numbers

• Replaces any start capacitor with a 590-708 MFD/uF capacitance range and a 110V, 115V, or 125V rating.
• Commonly used as a replacement for CD60 type start capacitors.
• Verify physical dimensions for proper fit before ordering.

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Suitable for a wide range of applications including HVAC systems, air compressors, well pumps, refrigeration units, and other electric motors requiring a start capacitor.
• Compatible with any system that requires a capacitor with matching electrical specifications and physical dimensions.

When to Replace

• The electric motor hums but fails to start.
• The motor is slow to start or requires manual assistance to turn.
• The circuit breaker trips when the motor attempts to start.
• The existing capacitor shows physical damage such as bulging, cracking, or leaking fluid.

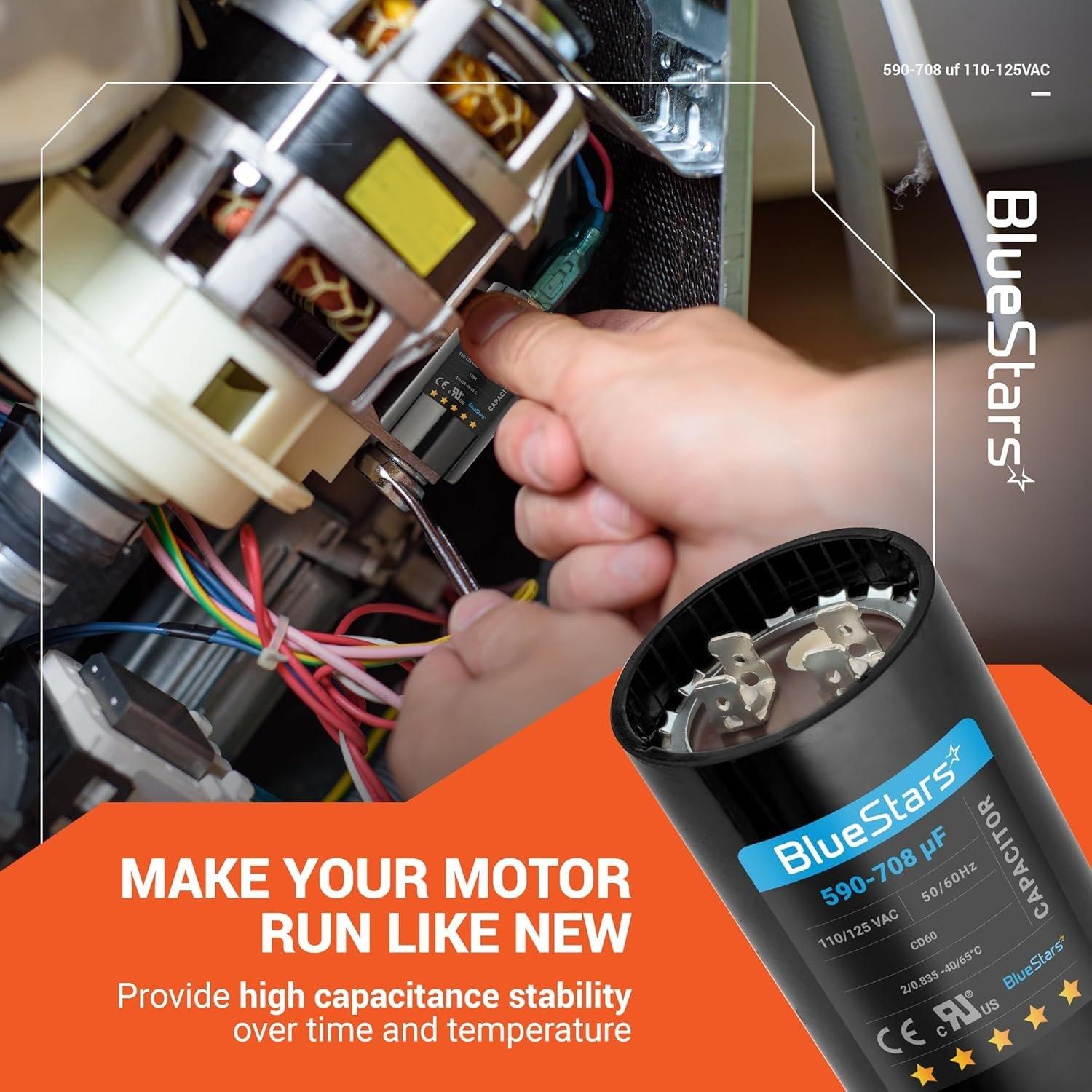

Installation Tips

• WARNING: Capacitors store an electrical charge. Always disconnect power to the unit before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.

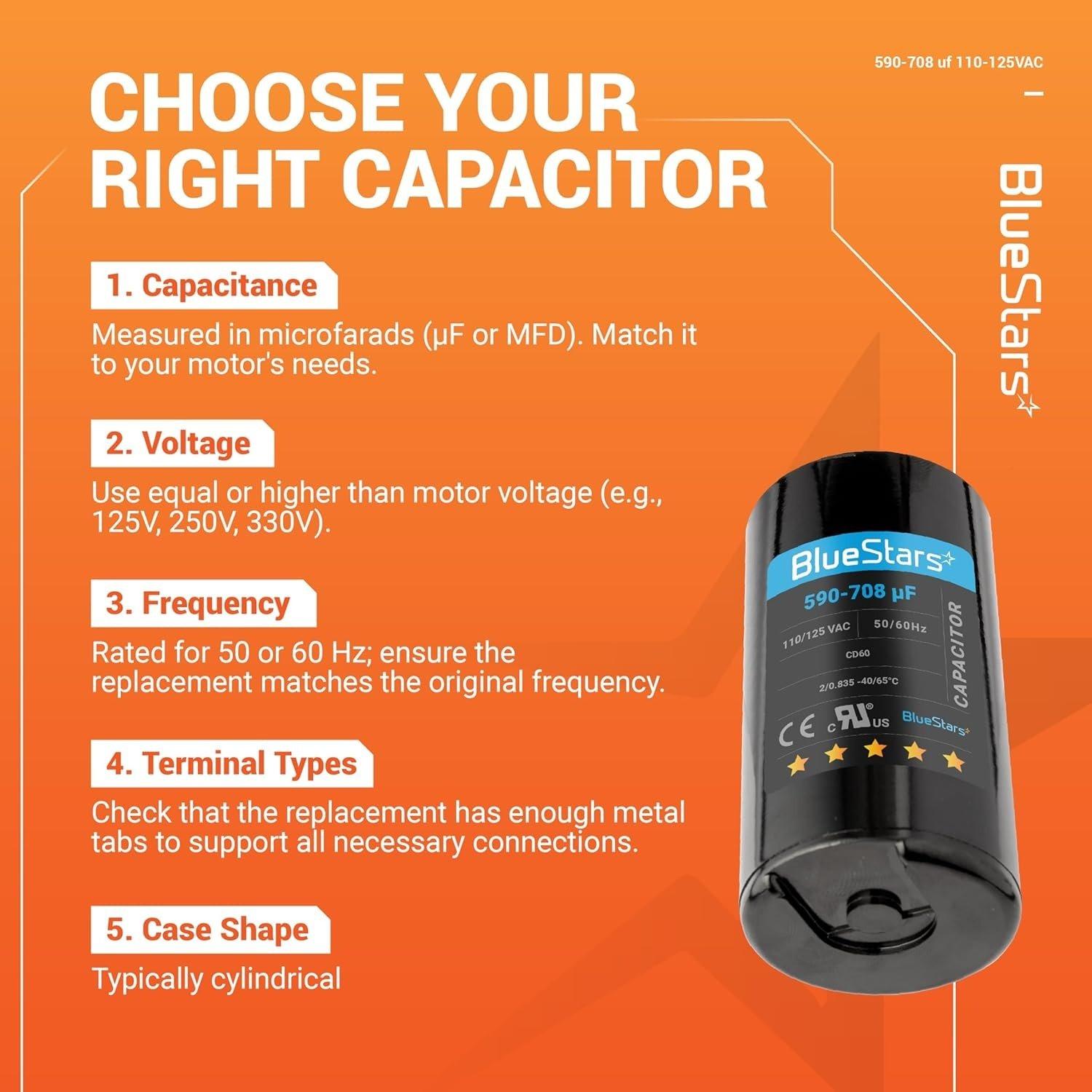

• Verify that the MFD/uF range and voltage rating of the new capacitor match the specifications of the original part.
• Note the wire connections before removing the old capacitor. Reconnect wires to the same terminals on the new unit.
• Ensure the capacitor is securely mounted in its bracket.
