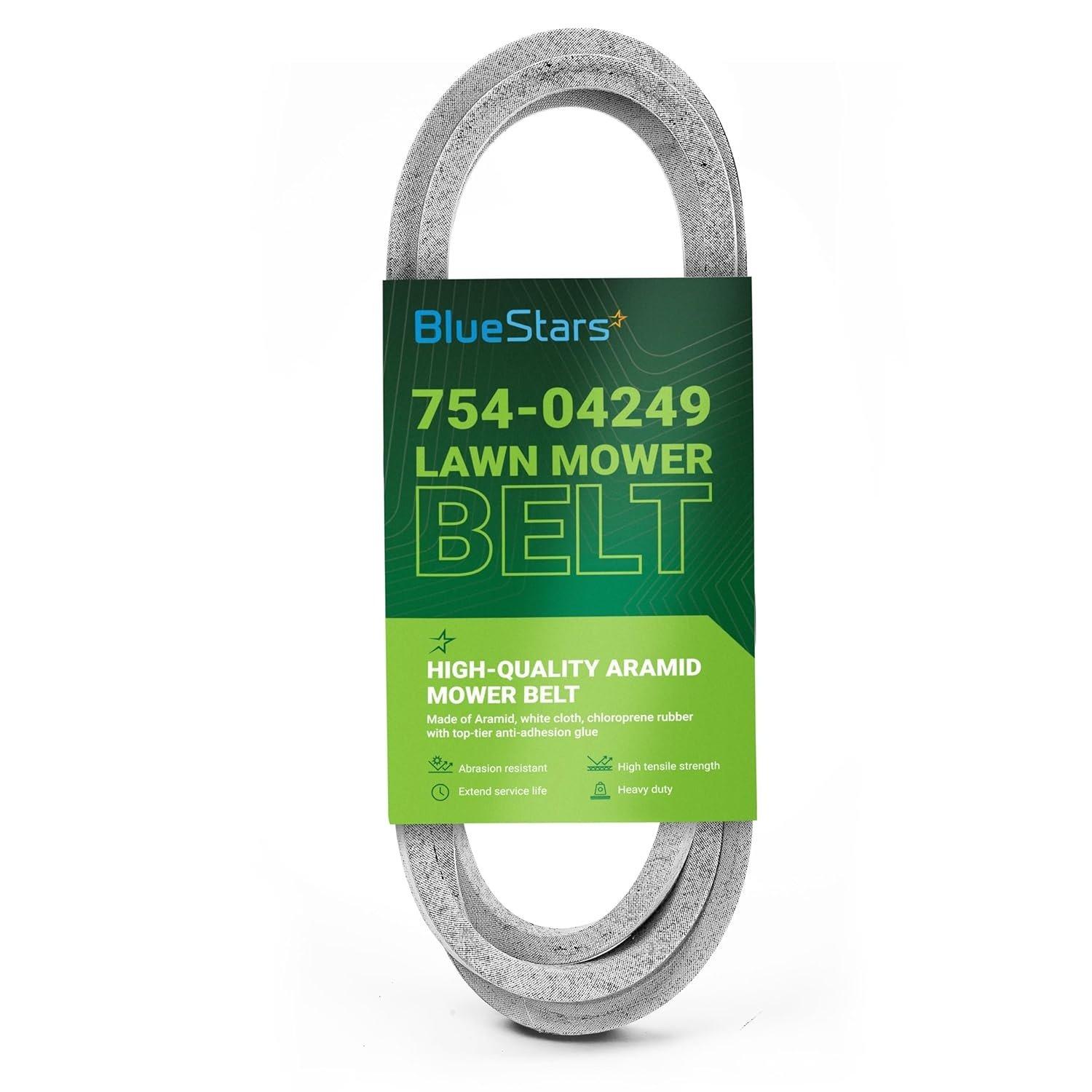

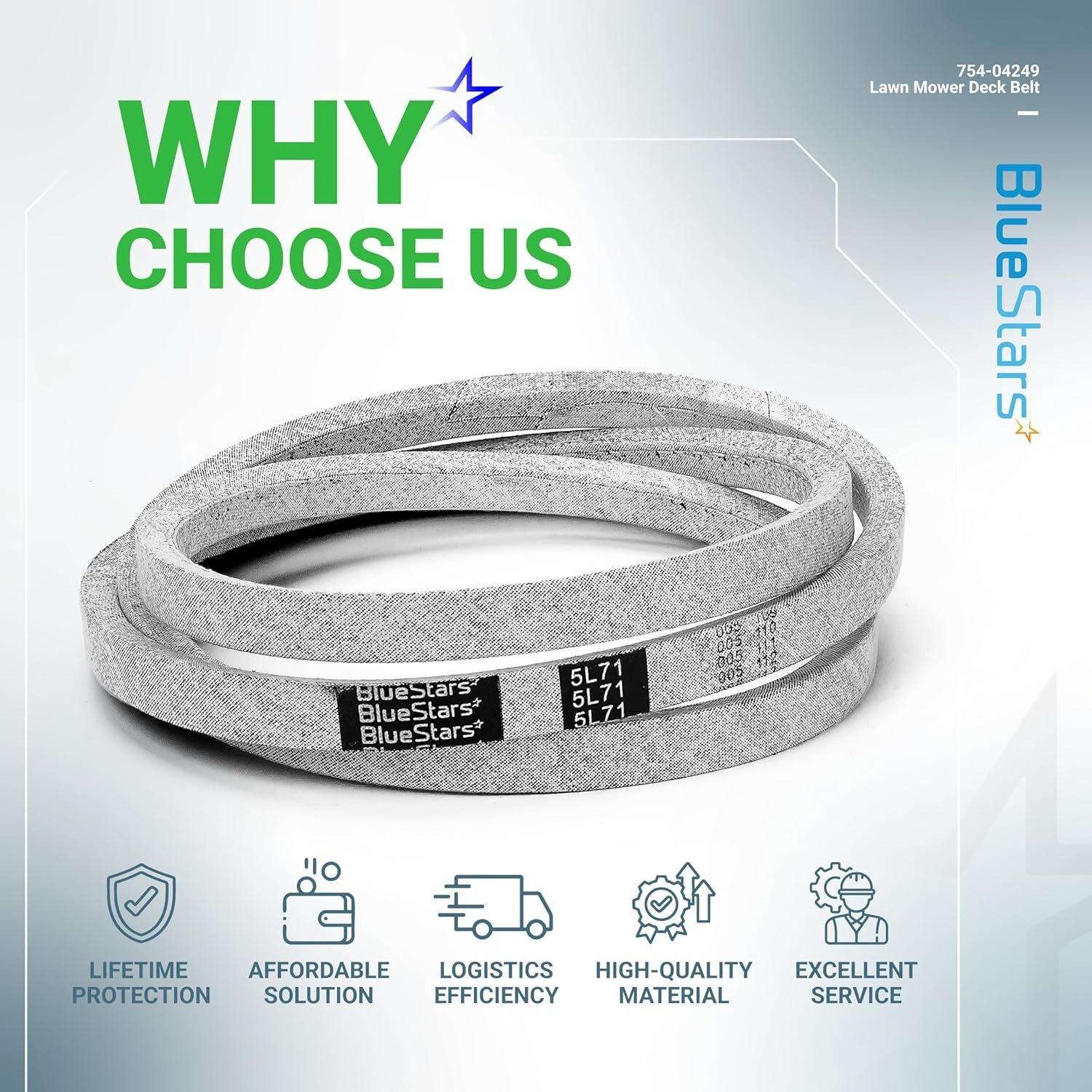

[Lifetime Warranty] 954-04249A 754-04249 Mower Drive Belt

954-04249A 754-04249 Mower Drive Belt

Key Features

• Type: Lower Transmission Drive V-Belt
• Function: Connects engine pulley to the transmission pulley to power the wheels.

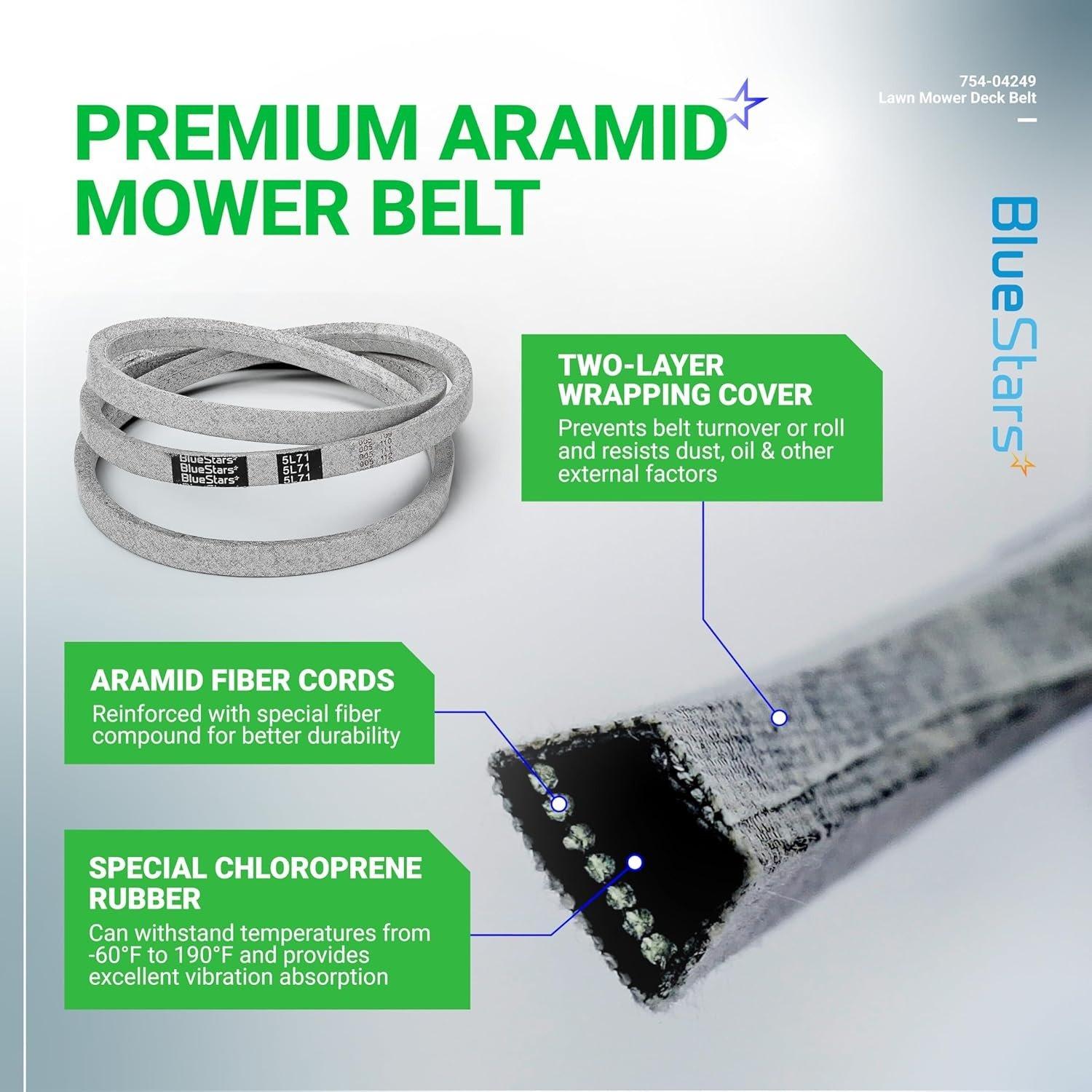

• Material: Constructed from a synthetic rubber compound for resistance to heat, oil, and abrasion.

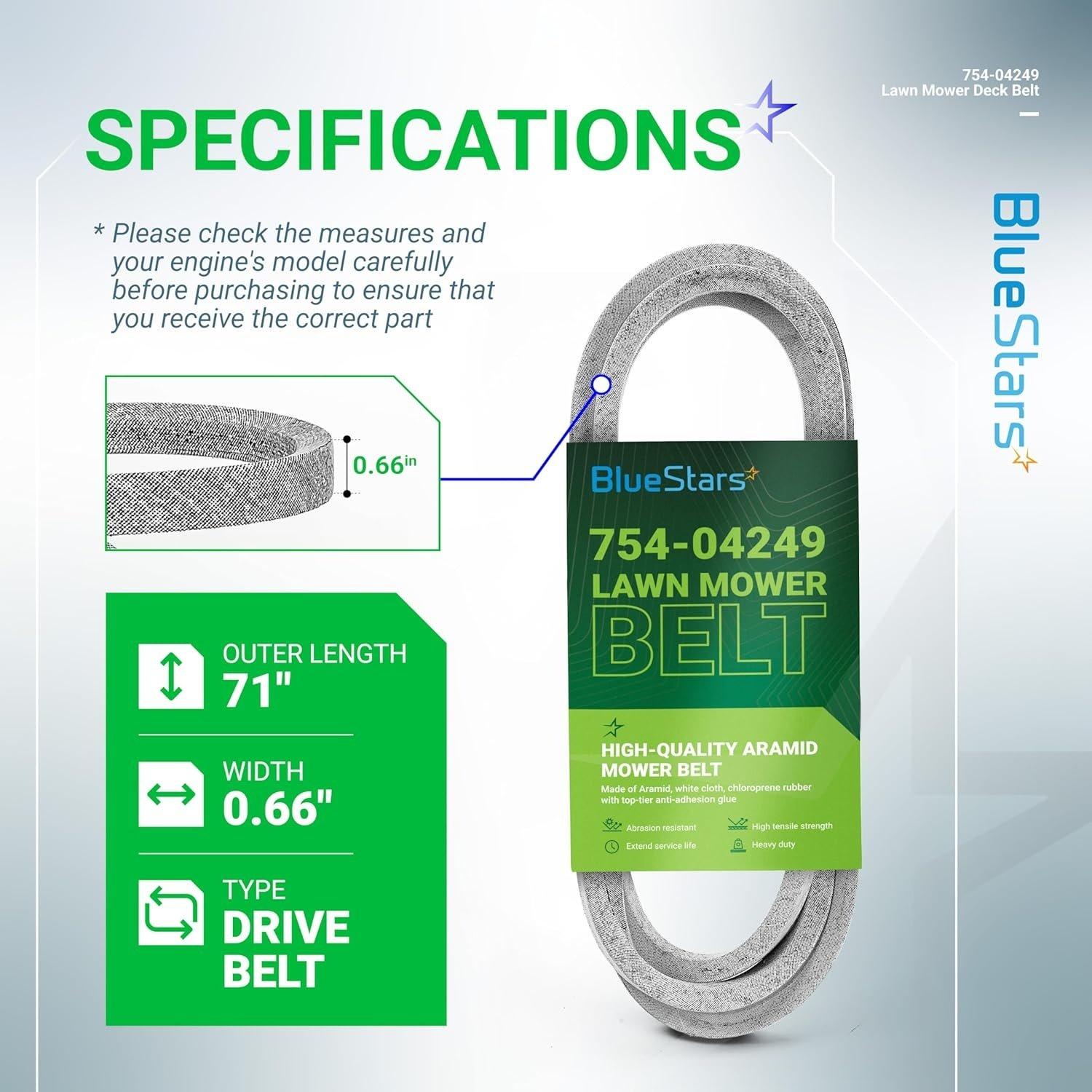

• Dimensions:Width: 5/8 inLength: 70.9 in (approximately)

Replaces / Cross-Reference Part Numbers

• 954-04249A
• 754-04249A
• 954-04249
• 754-04249

Compatibility & Fitment

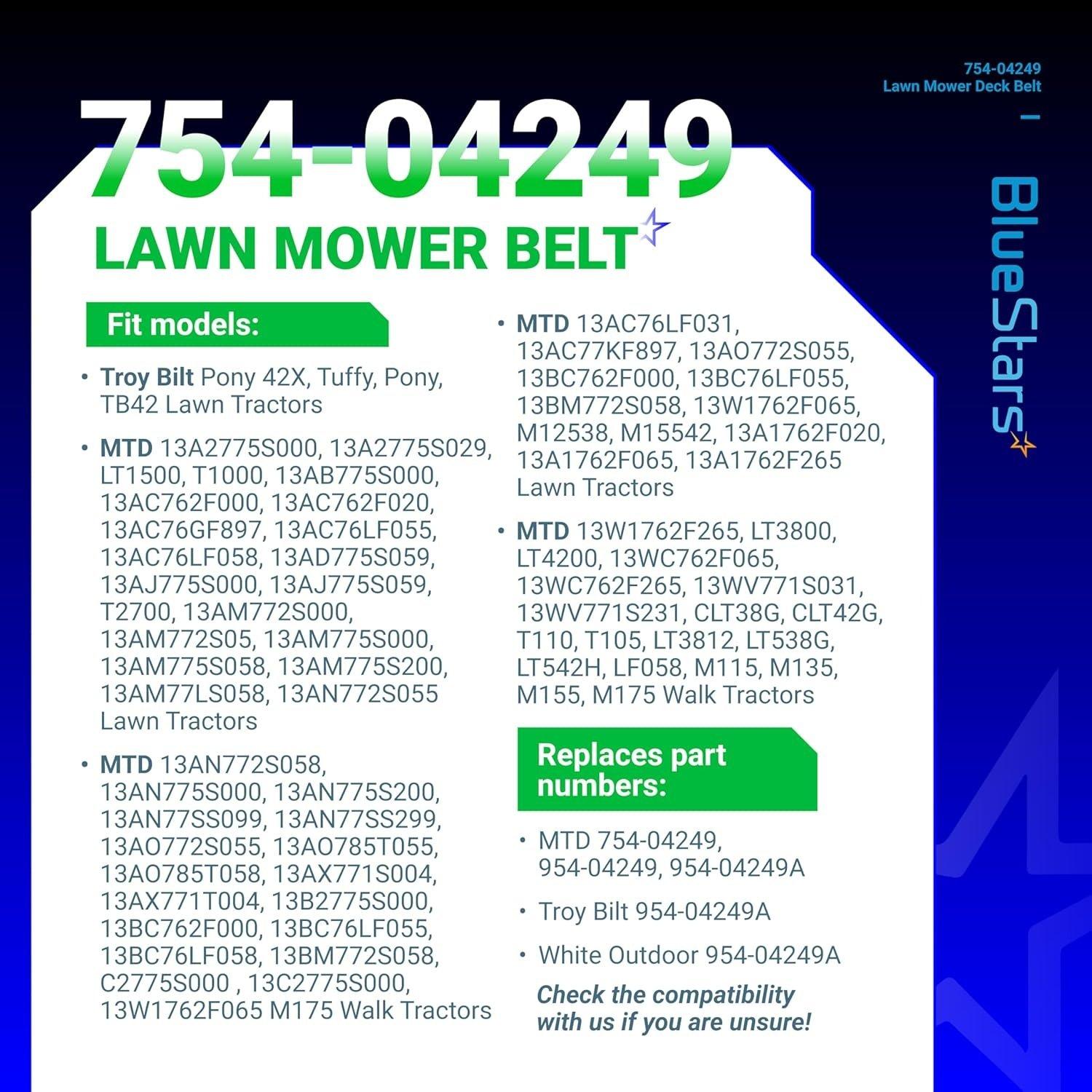

• Fits select riding mowers from MTD, Troy-Bilt, Cub Cadet, and Craftsman.
• Commonly used on models with 38-inch, 42-inch, and 46-inch single-speed transmissions.
• Example Models: MTD 13AN77KS011, 13AN77KS066
• Note: Always verify the part number in your owner's manual for correct fitment.

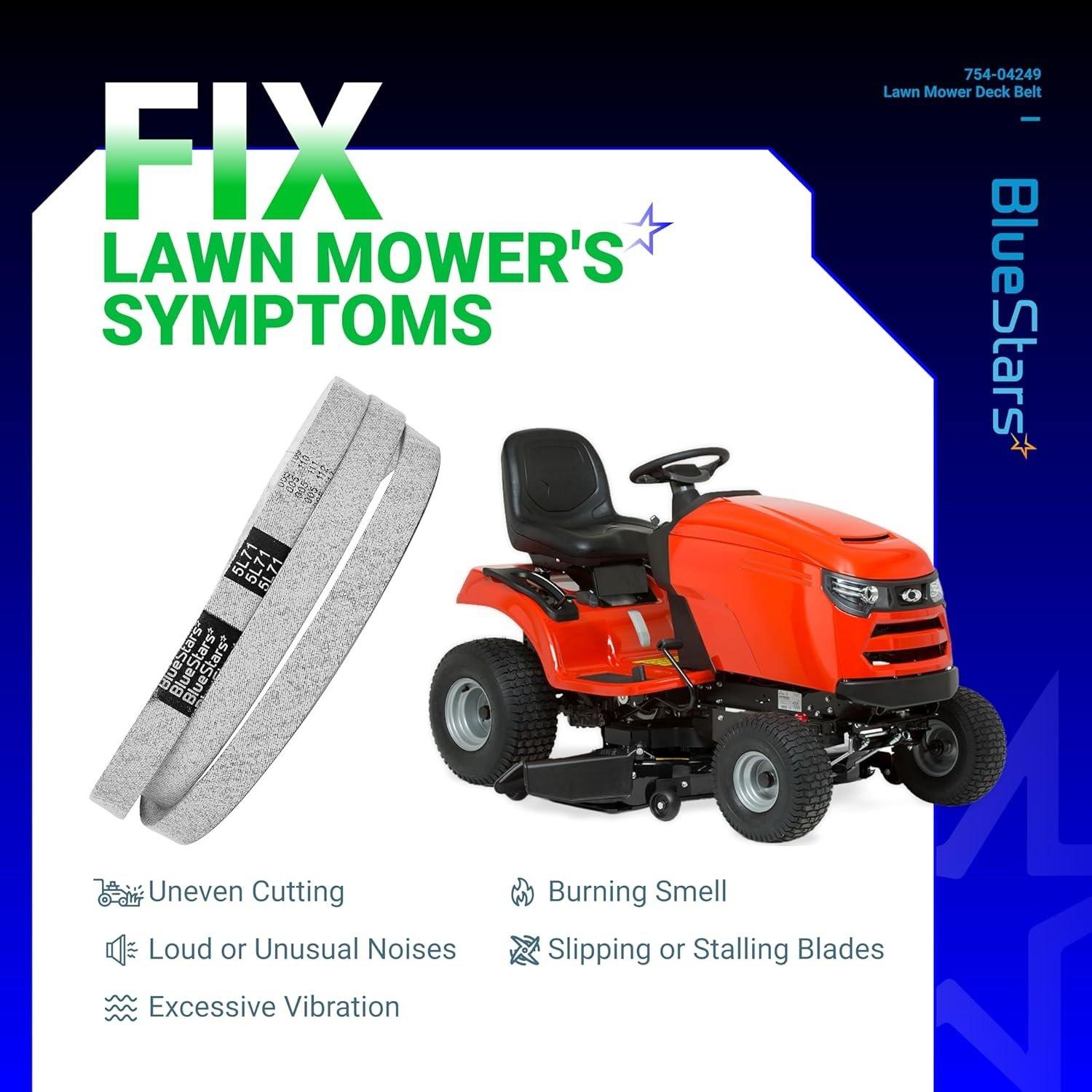

When to Replace

• Visible signs of wear such as cracking, fraying, or glazing on the belt surface.
• Belt is slipping, causing a loss of drive power or inconsistent speed.
• The belt has stretched and can no longer maintain proper tension.

Installation Tips

• Disconnect the spark plug wire for safety before starting any repairs.
• Consult your mower's owner's manual for the correct belt routing diagram.

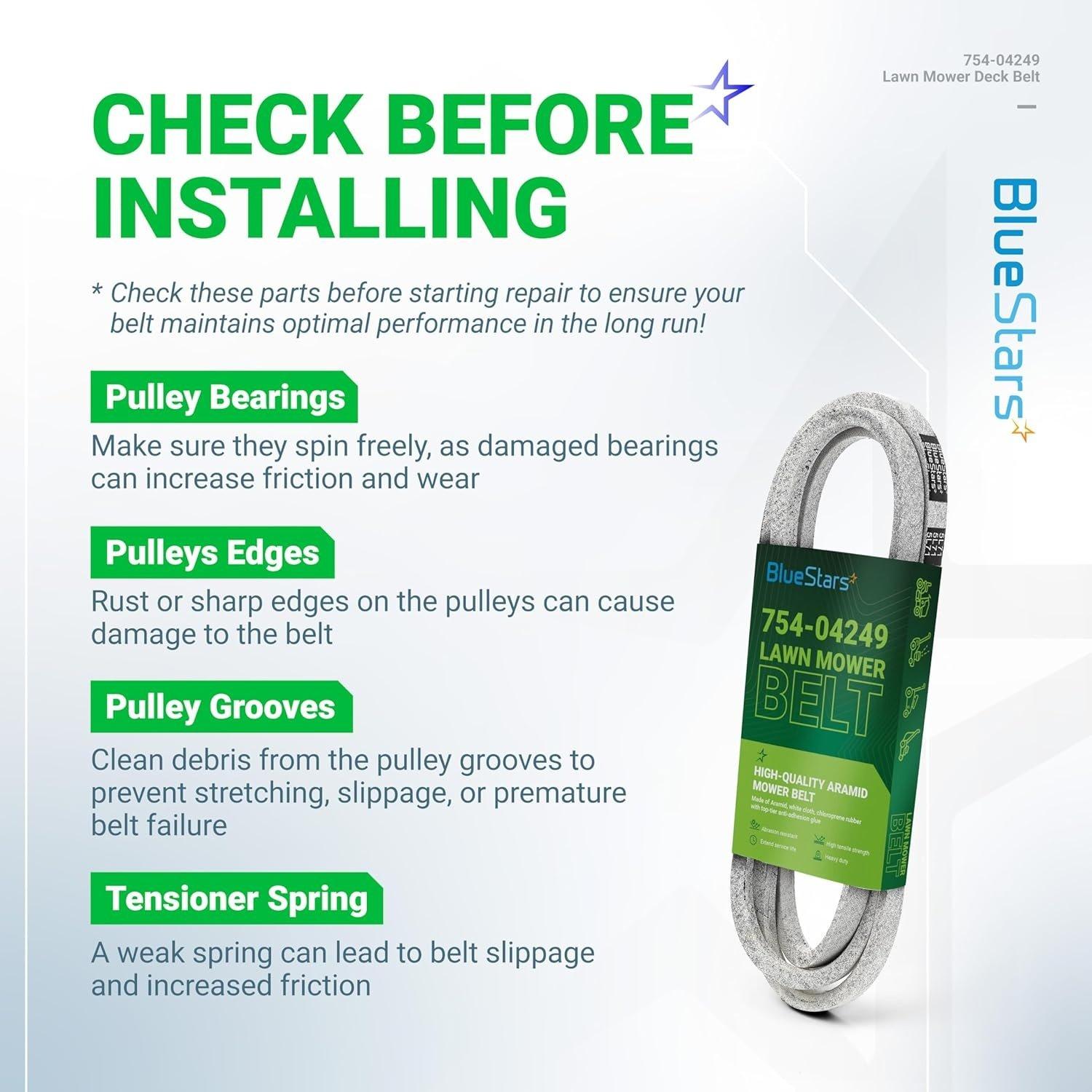

• Inspect all pulleys for wear, damage, or debris before installing the new belt.
• Ensure the belt is correctly seated in all pulley grooves and properly tensioned after installation.
