[Lifetime Warranty] 50 PCS Waterproof Wire Connectors AWG 12-22

50 PCS Waterproof Wire Connectors AWG 12-22

Key Features

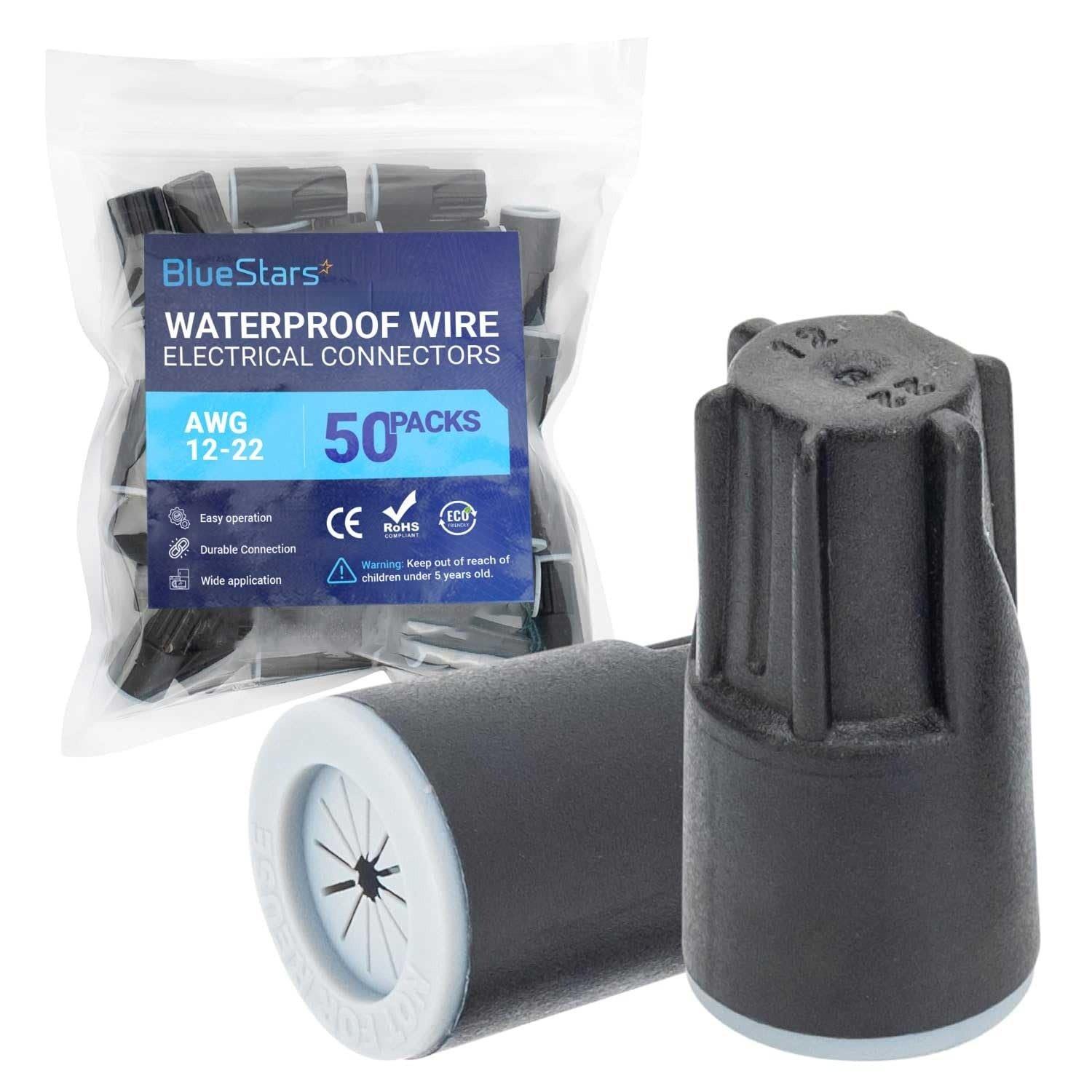

• Package includes 50 waterproof wire connectors.

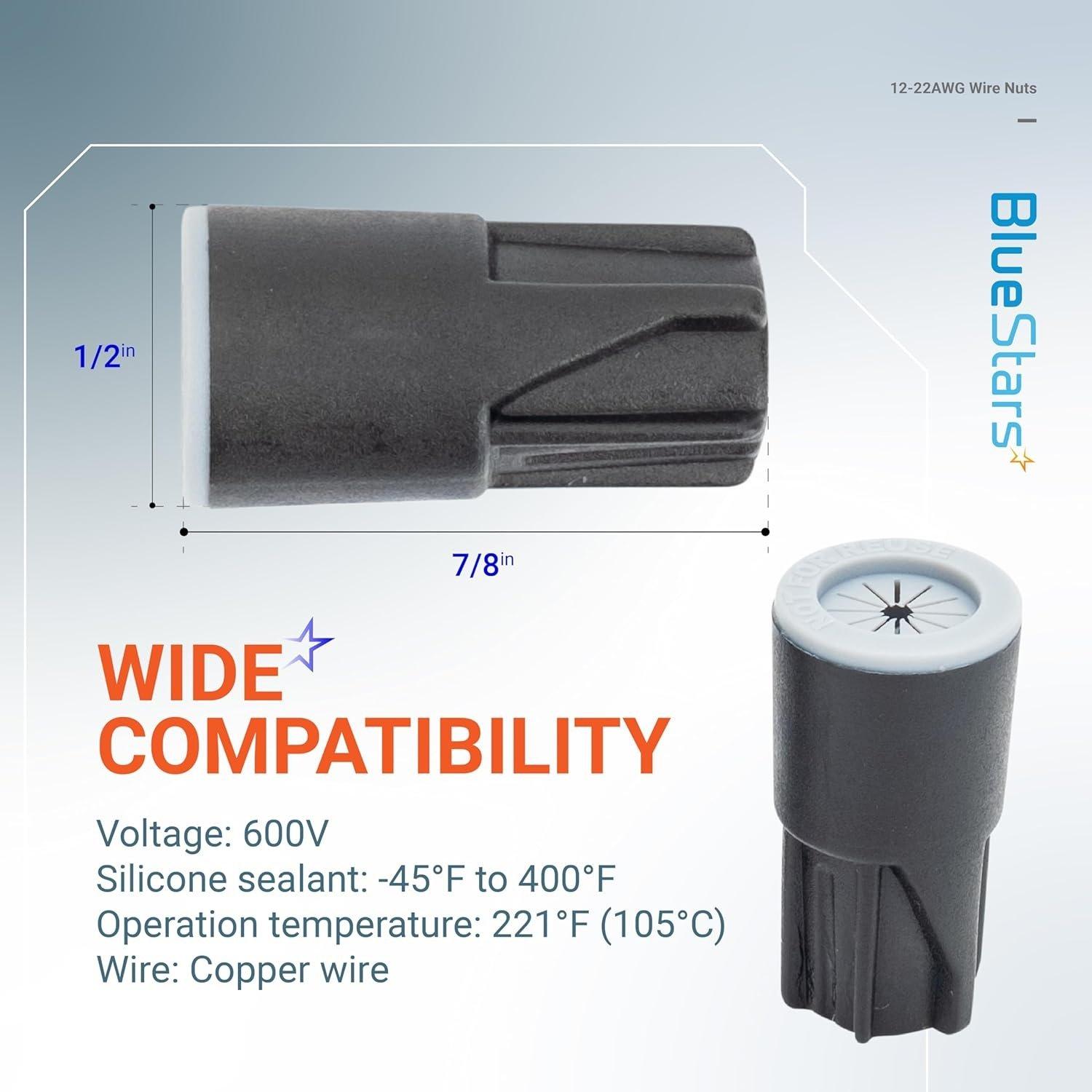

• Physical dimensions: 12 x 22 mm (0.47 x 0.87 in).
• Rated for a maximum voltage of 600V.

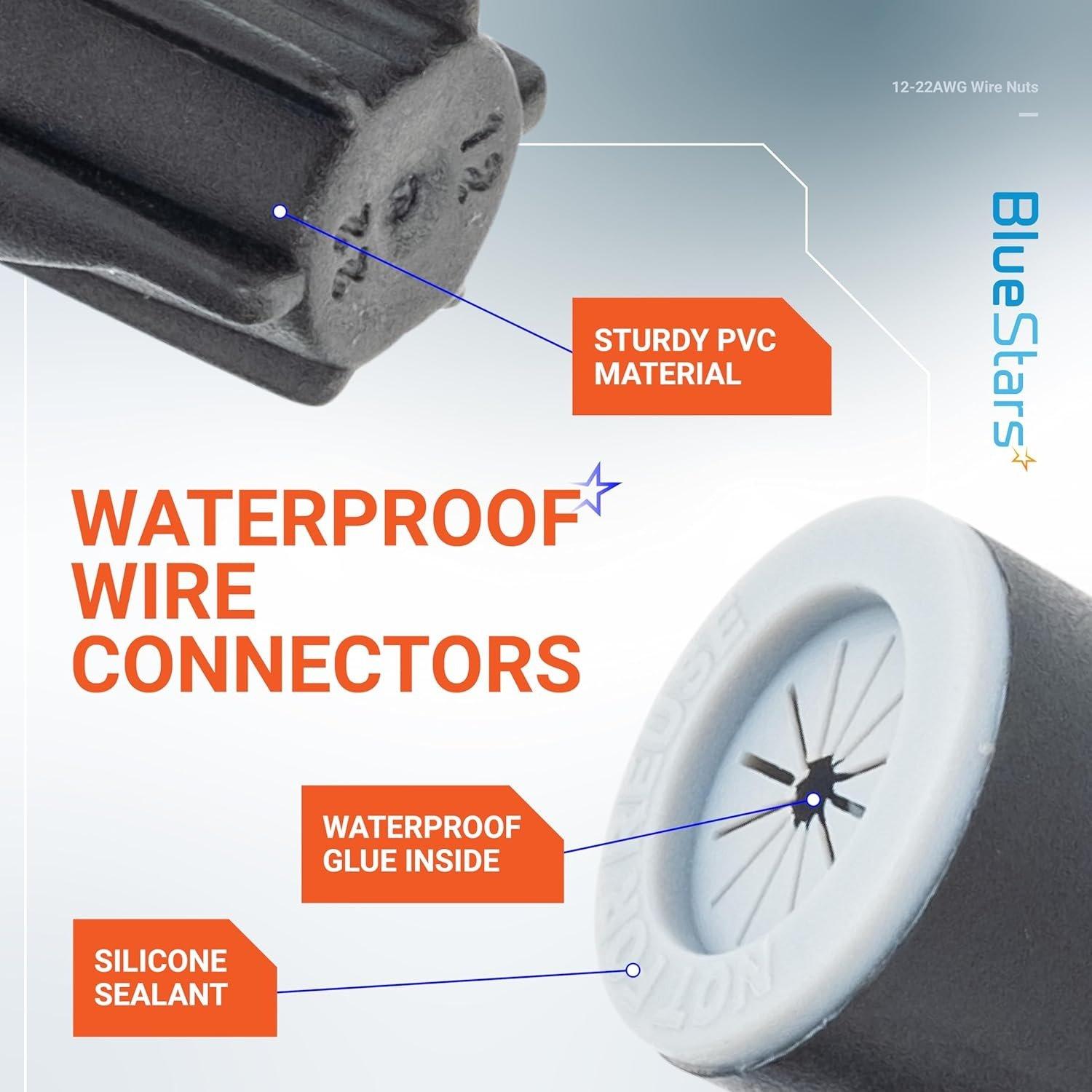

• Pre-filled with a silicone sealant for a waterproof and corrosion-resistant connection.
• Features an internal stainless steel spring for secure wire gripping.
• Twist-on nut design ensures a secure and watertight seal.

Replaces / Cross-Reference Part Numbers

• General purpose twist-on wire connectors for AWG 12-22 applications.
• Model: 12-22 AWG

Compatibility & Fitment

• Designed for use with American Wire Gauge (AWG) 12, 14, 16, 18, 20, and 22 wire.
• Suitable for solid and stranded core wires.
• Ideal for outdoor electrical applications, including landscape lighting, irrigation systems, and direct burial connections.

When to Replace

• Use for new installations in outdoor, damp, or wet locations.
• Use to replace standard, non-waterproof connectors to prevent corrosion.
• Use when repairing or splicing damaged outdoor wiring.

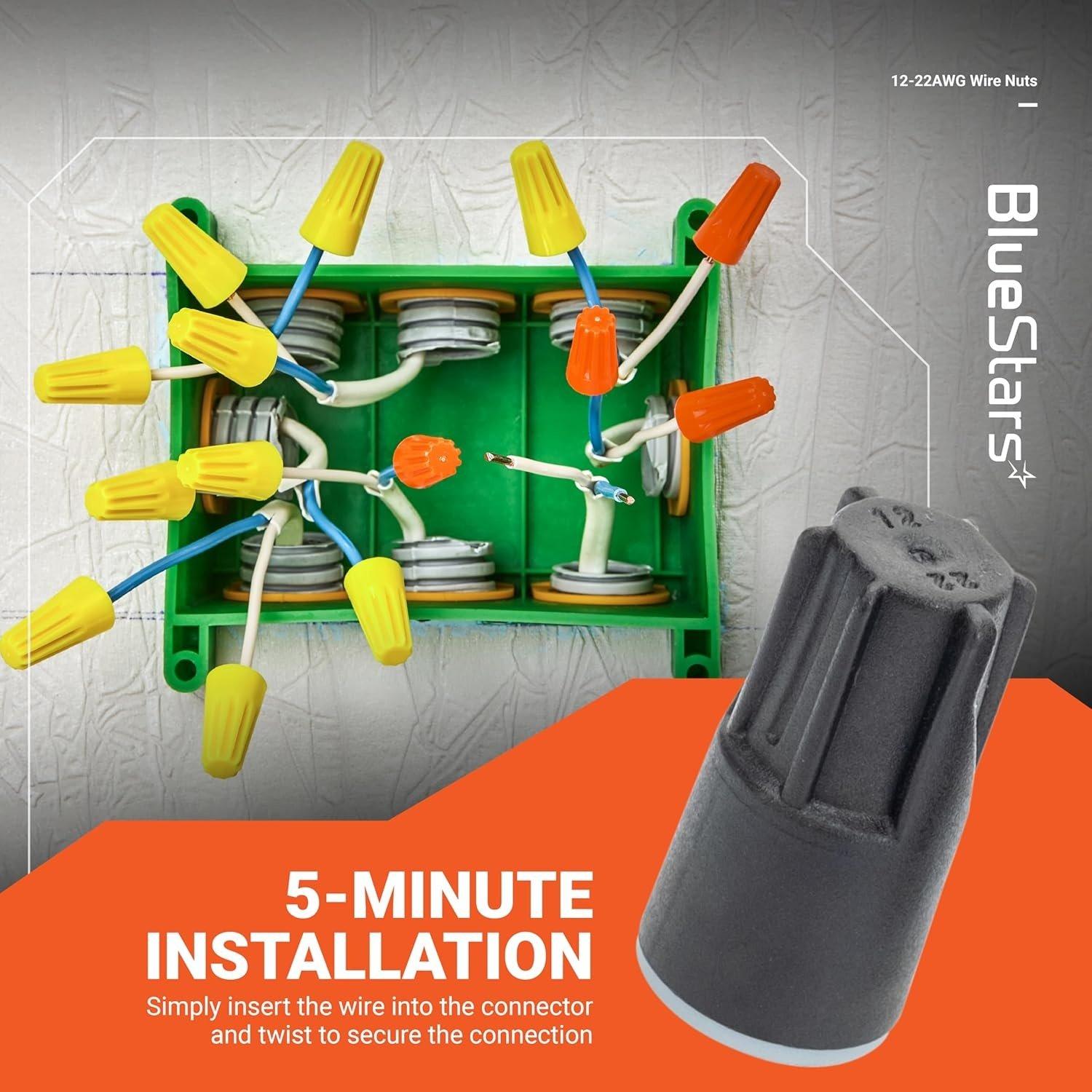

Installation Tips

• Ensure power is disconnected before installation.
• Strip wires to the appropriate length as recommended by the application.
• Align the stripped ends of the wires and insert them fully into the connector.
• Firmly twist the connector clockwise until it is tight. No special tools are required.
• Tug gently on each wire to confirm a secure mechanical connection.
