[Lifetime Warranty] SPX1105Z3 1.5" 90 Degree Elbow Pool Hose Adapter - Pack of 2

Pack of 2 SPX1105Z3 1.5" 90 Degree Elbow Pool Hose Adapter

Key Features

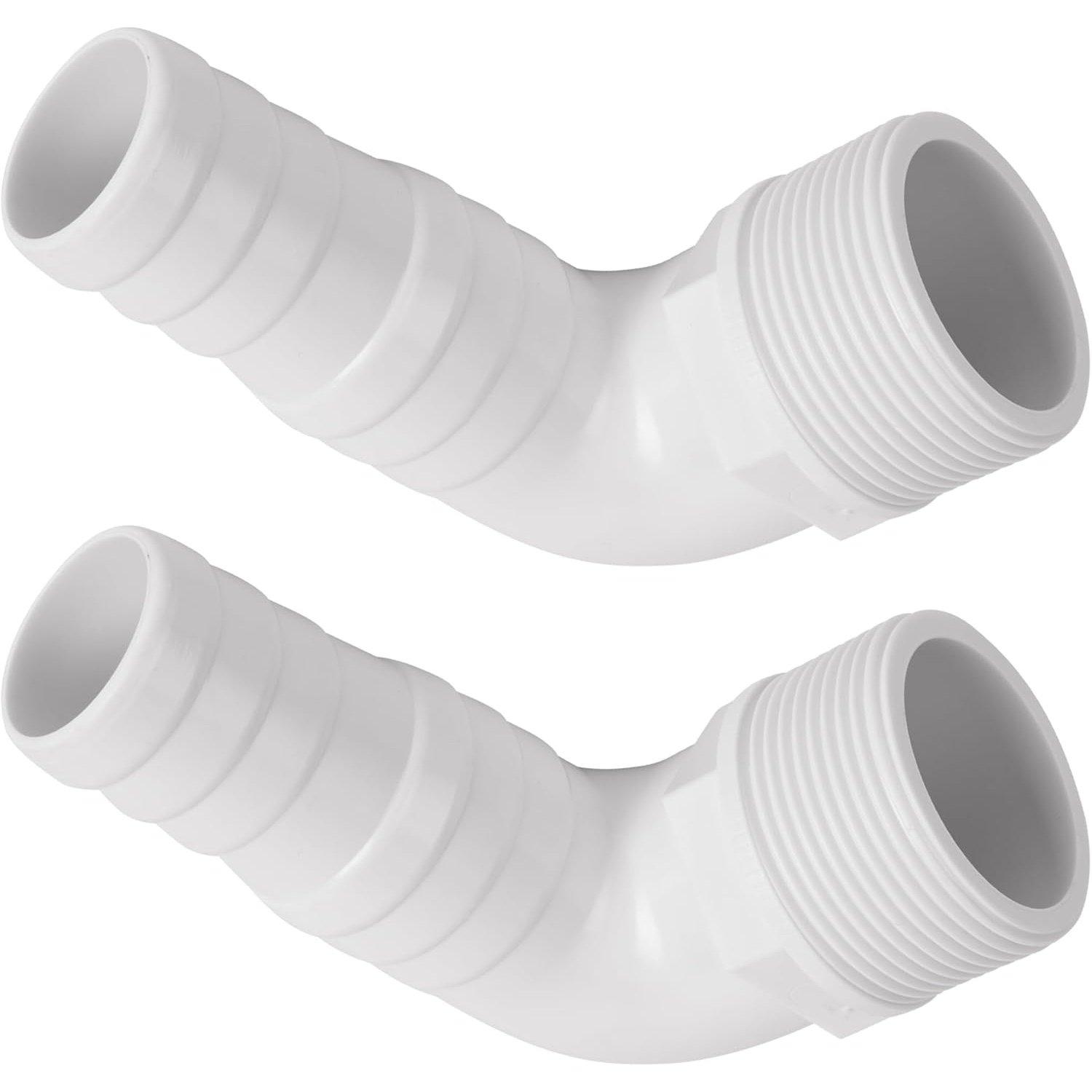

• Package contains two (2) elbow hose adapters.
• Configuration: 90-degree elbow for directional plumbing.
• Connection 1: 1.5-inch Male Pipe Thread (MPT).
• Connection 2: 1.5-inch smooth hose barb fitting.
• Constructed from durable, UV and chemical-resistant polymer.

Replaces / Cross-Reference Part Numbers

• Hayward SPX1105Z3

Compatibility & Fitment

• Fits standard 1.5-inch flexible pool hoses.
• Threads into 1.5-inch Female Pipe Thread (FPT) ports.
• Designed for Hayward above-ground pool pumps, filters, and skimmers.
• Used on various Hayward suction outlets and filter systems.

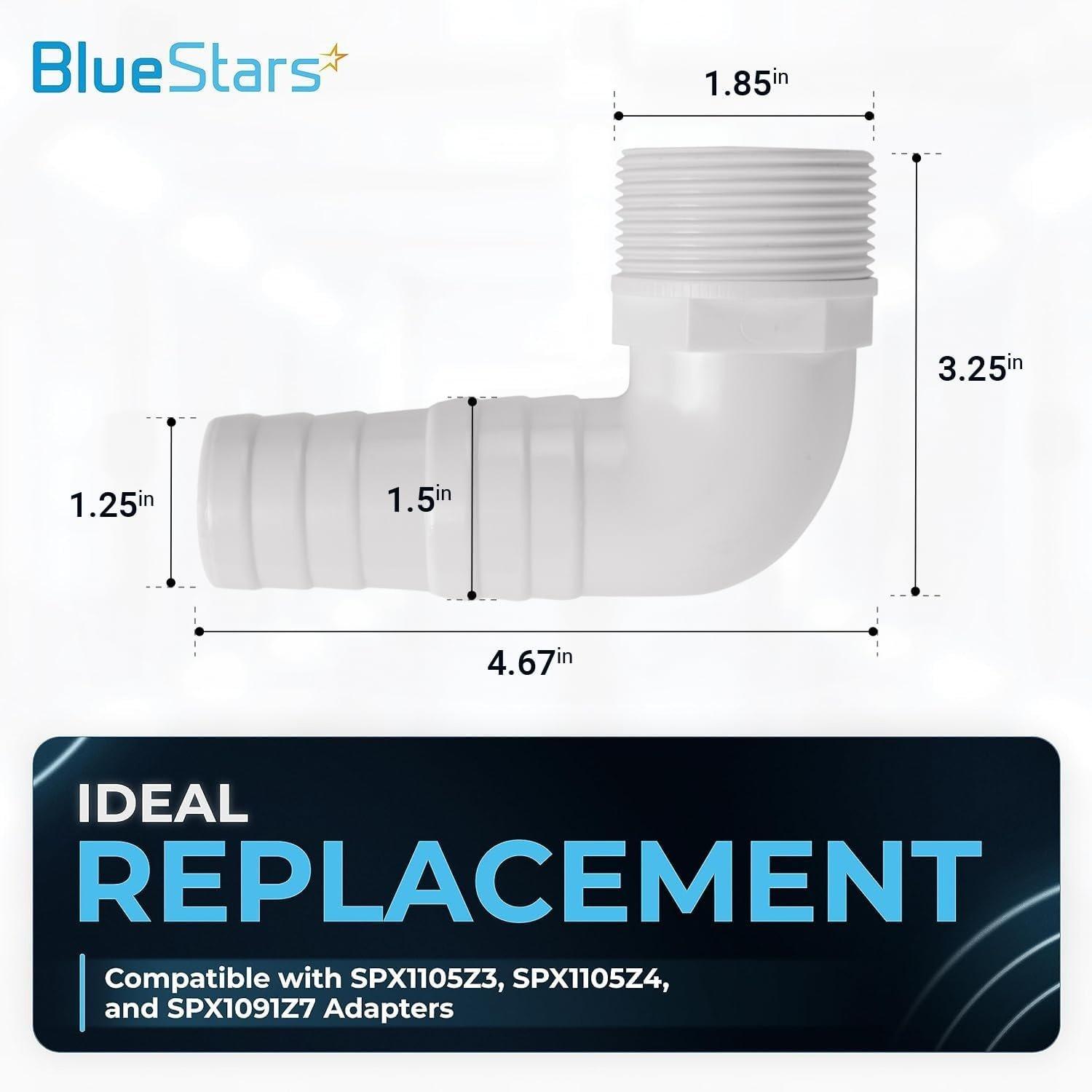

• Functions with systems incorporating parts SPX1105Z4 and SPX1091Z7.

When to Replace

• Visible cracks, stress marks, or leaks are present.
• Threads are stripped or damaged, preventing a watertight seal.
• The fitting has become brittle from age or chemical exposure.
• During system plumbing upgrades or reconfigurations.

Installation Tips

• Turn off the pool pump and relieve all system pressure before installation.
• Wrap the male threads with PTFE tape 3-4 times in a clockwise direction for a proper seal.
• Attach the flexible hose to the smooth barb and secure it with a stainless steel hose clamp.
• Hand-tighten the threaded connection, then use a wrench for a final 1/4 to 1/2 turn. Do not overtighten.
• Ensure the gasket or o-ring on the receiving female port is clean and in good condition.
