[Lifetime Warranty] 5303918202 Refrigerator Defrost Thermostat Replacement - Compatible with Frigidaire & Kenmore Refrigerators - Replaces 241619705 AP2150133 833603 PS469510

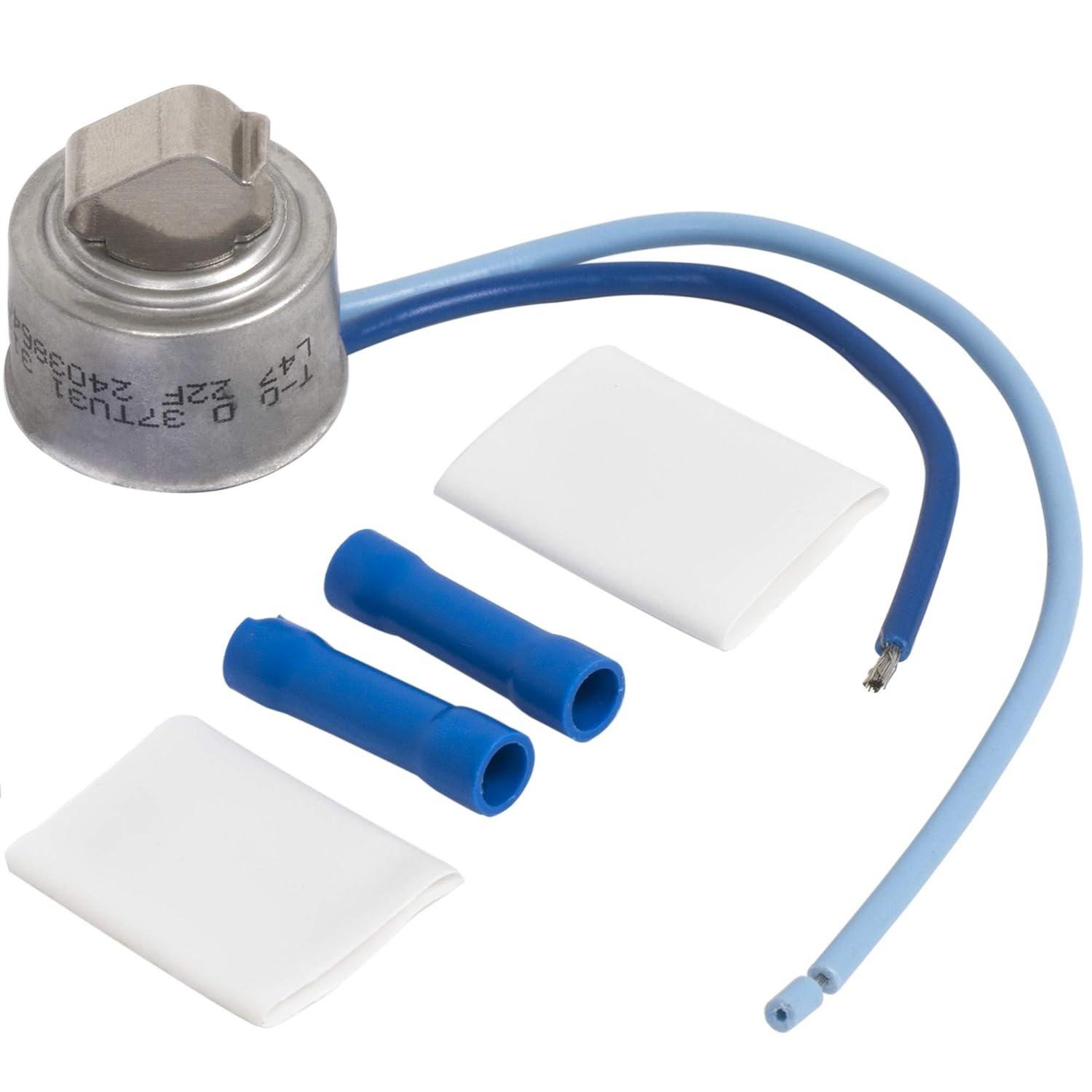

5303918202 Refrigerator Defrost Thermostat

Key Features

• Prevents evaporator overheating during the defrost cycle
• Clips directly onto the evaporator tubing

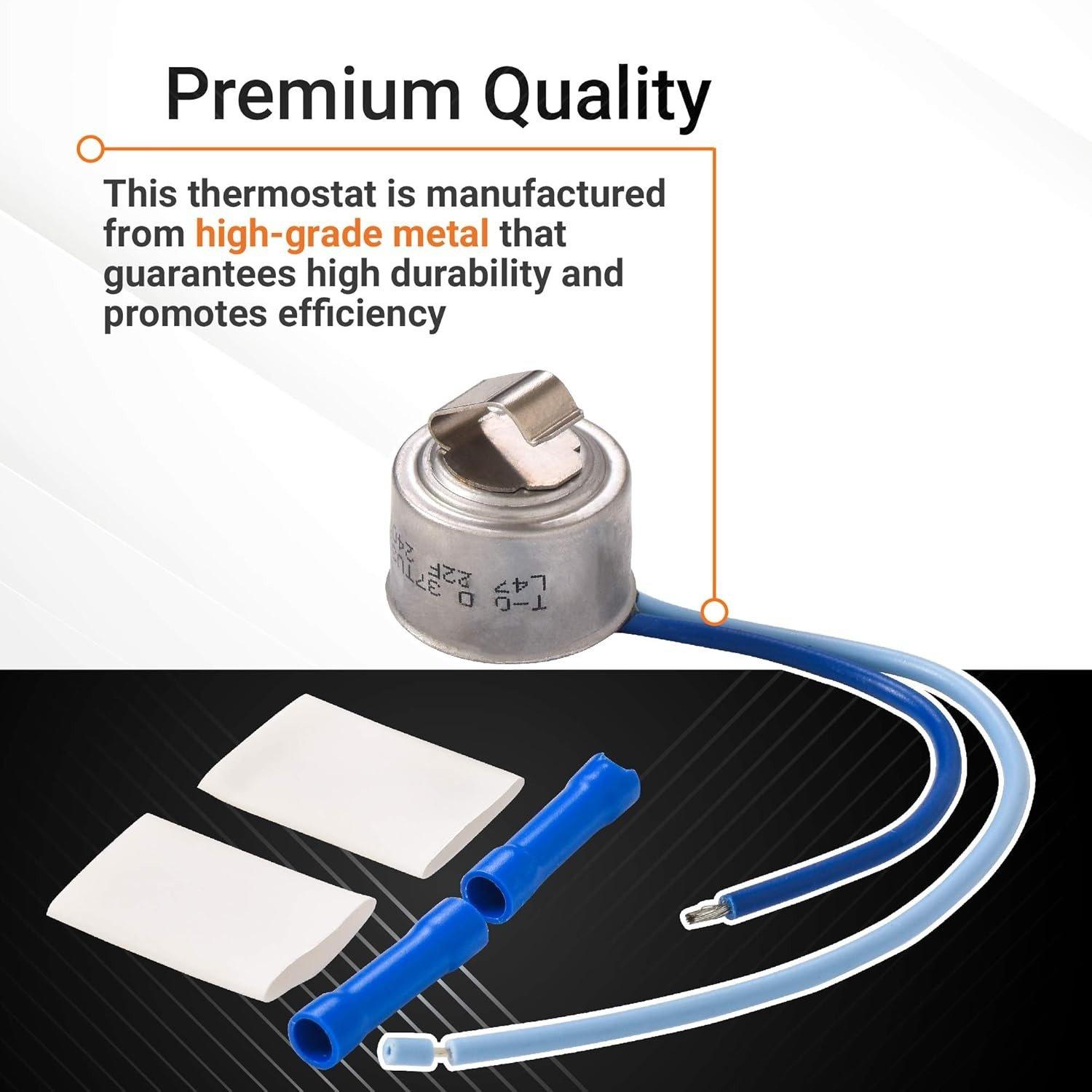

• Bimetal thermostat design
• Open Temperature: 47°F (8.3°C)
• Close Temperature: 25°F (-3.9°C)

Replaces / Cross-Reference Part Numbers

• AP2150133
• PS469510
• 833603
• 241619705
• AH469510
• EA469510
• SL8202

Compatibility & Fitment

• Designed for use with Frigidaire and Electrolux refrigerators.
• Compatible with various models from associated brands. Verify your original part number before ordering.

When to Replace

• Refrigerator is not defrosting
• Excessive frost buildup on evaporator coils
• Refrigerator is too warm
• Freezer section is too cold
• Water leaking inside the fresh food compartment

Installation Tips

• Disconnect the refrigerator from its power source before beginning the repair.
• Access the part by removing the service panel inside the freezer compartment.
• The thermostat is clipped onto the evaporator tube; unclip the old part and clip the new one in its place.
• Connect the two wire leads securely.
