[Lifetime Warranty] 5pcs 10W 1 ohm Ceramic Cement Resistor

Difficulty Icon: Normal
Normal
15 - 20 minutes

$7.65

$8.49

Save $0.84
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

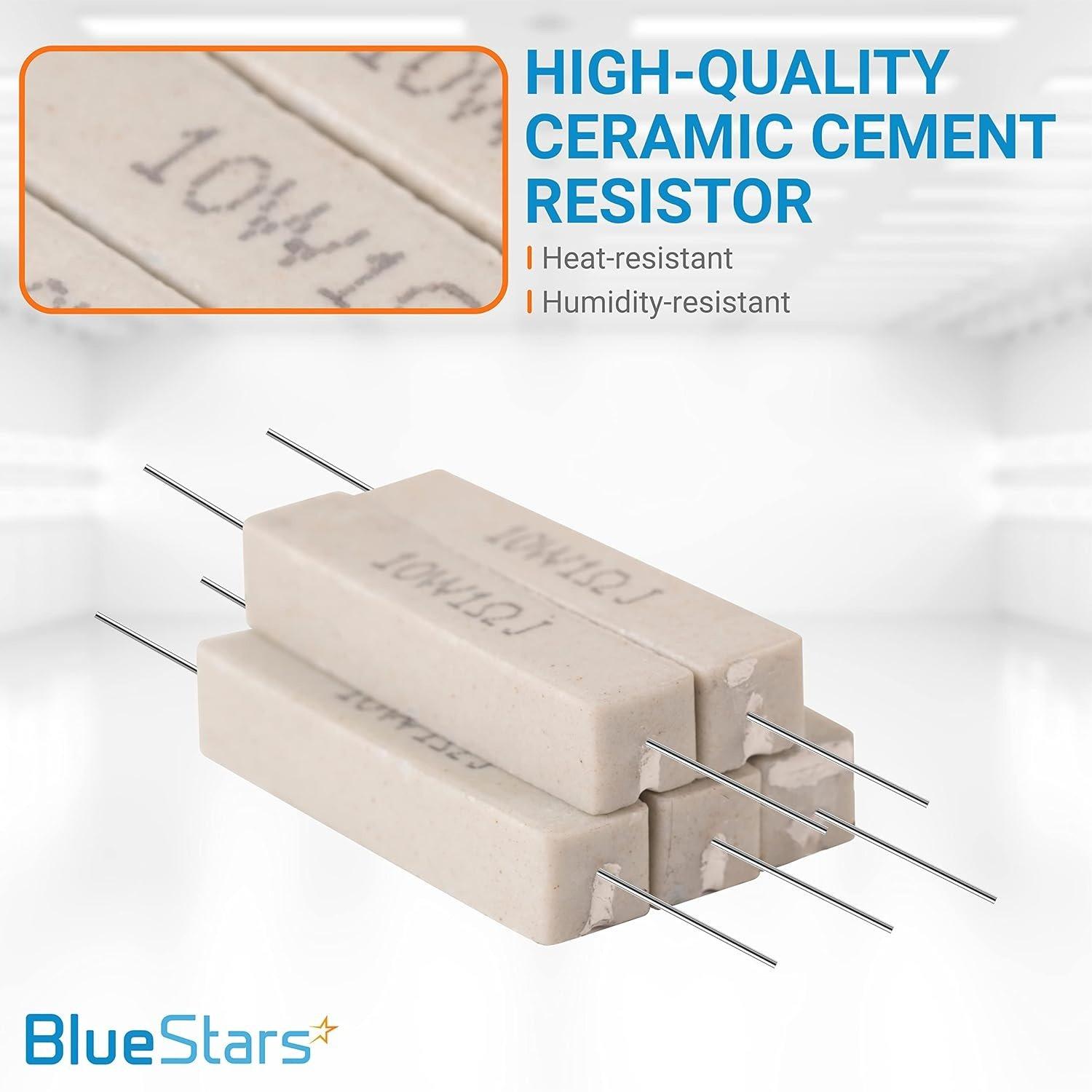

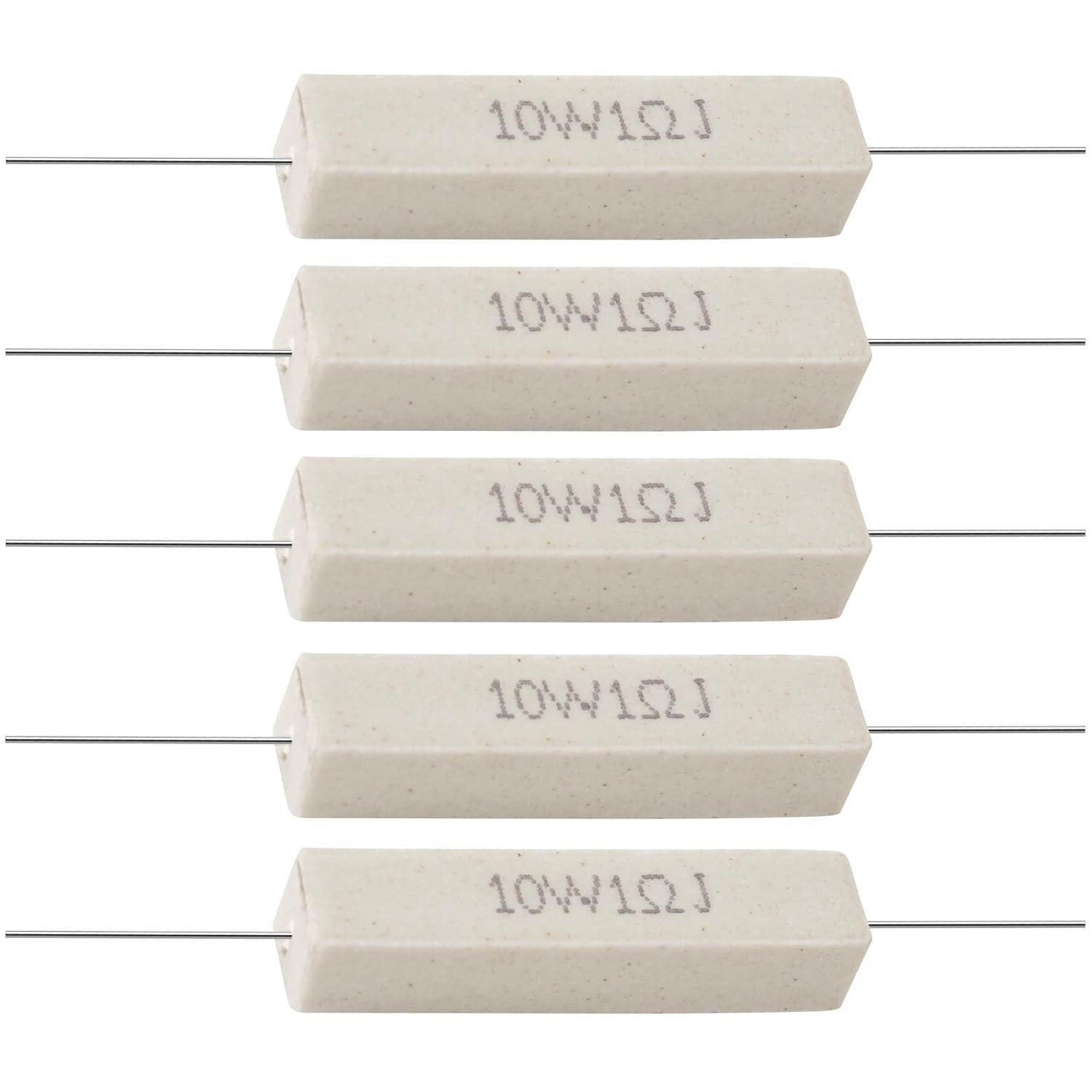

5pcs 10W 1 ohm Ceramic Cement Resistor

Key Features

  • Package Quantity: 5 resistors
  • Power Rating: 10 Watts
  • Resistance: 1 ohm (1R)
  • Tolerance: ±5% (J)
  • Body Material: Ceramic
  • Construction: Wirewound
  • Lead Type: Axial
  • Dimensions (Approximate): 49mm x 10mm x 10mm

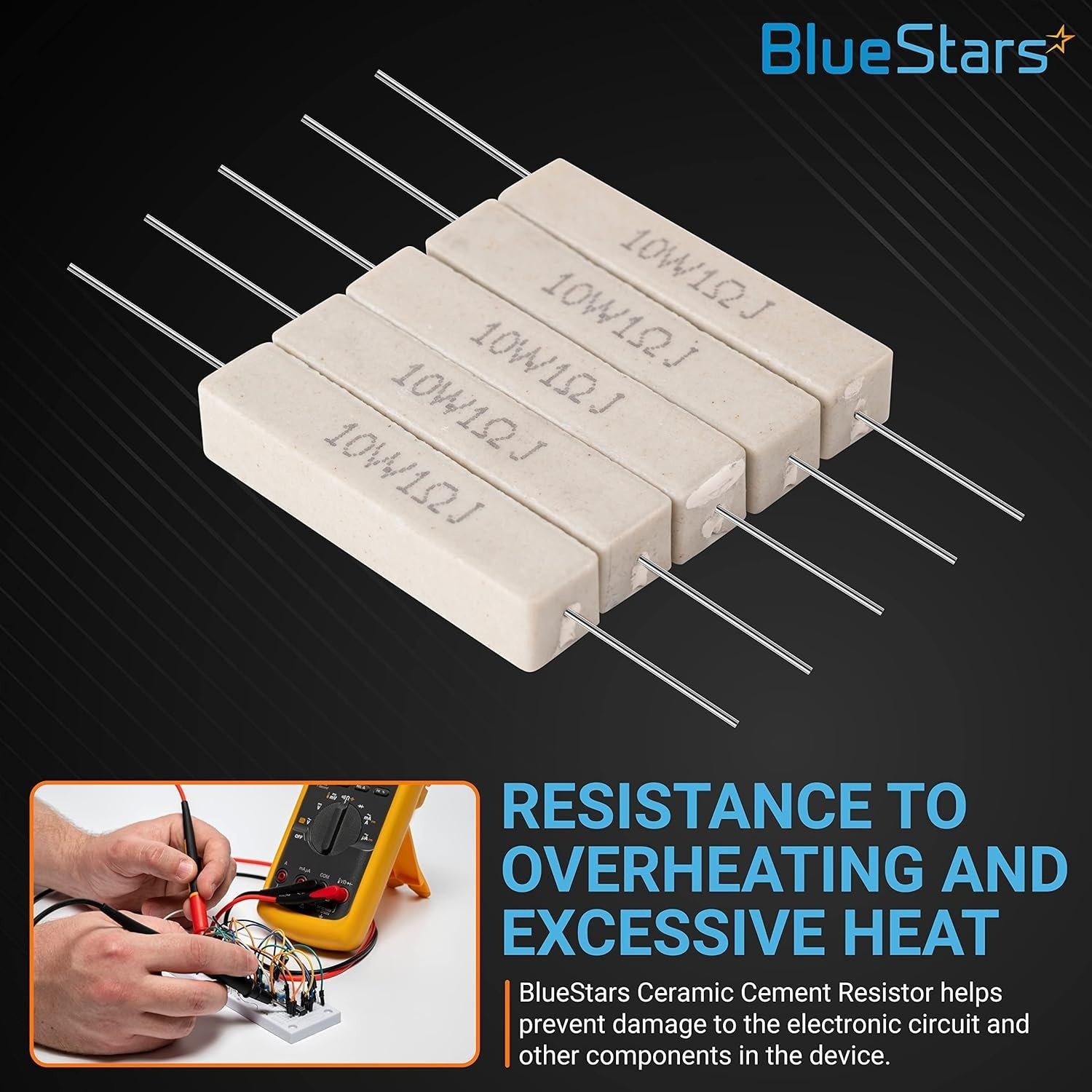

  • Properties: High heat dissipation, high insulation, stable performance

Replaces / Cross-Reference Part Numbers

  • 1R0J
  • 1R 10W
  • 1 ohm 10W 5%

Compatibility & Fitment

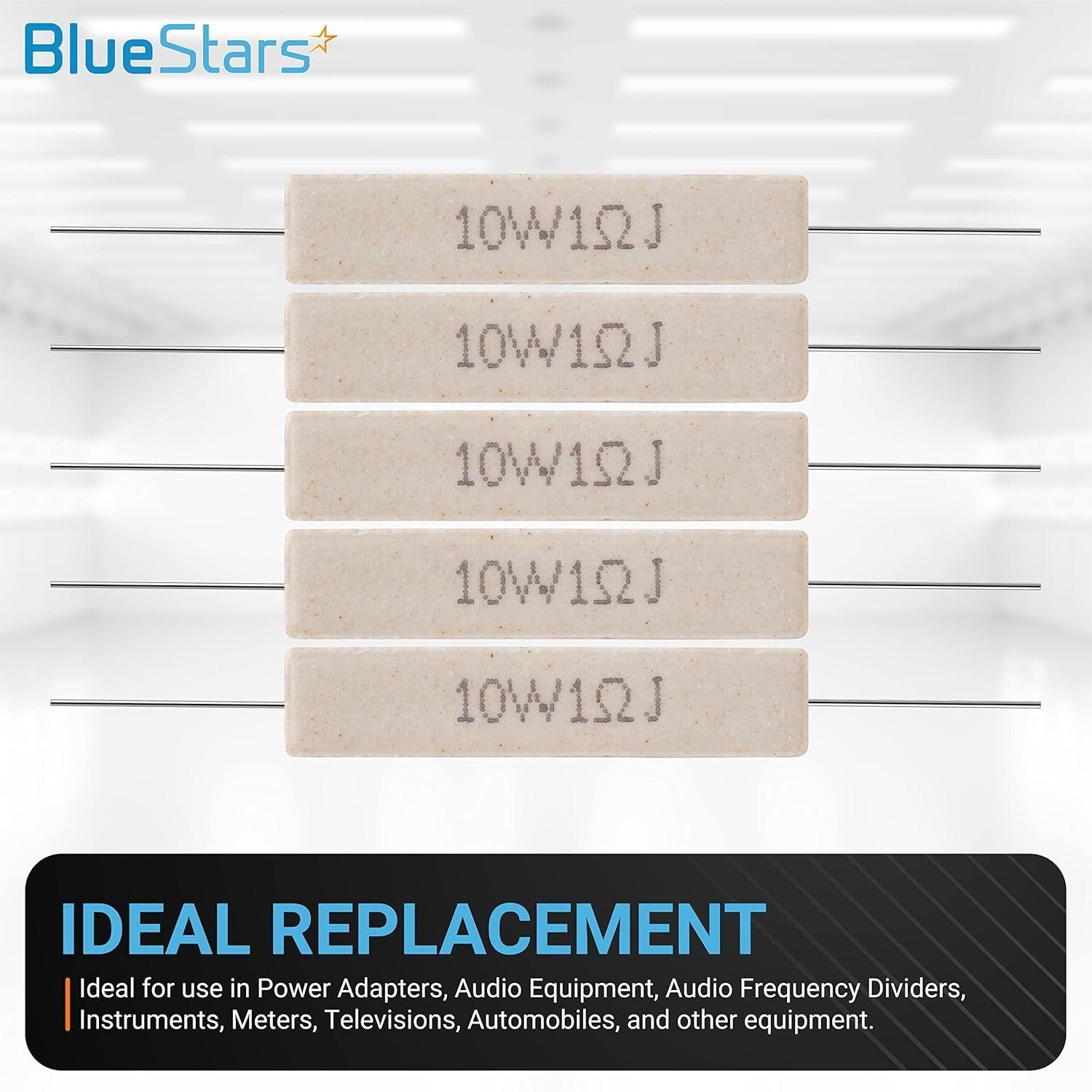

  • Suitable for a wide range of electronic applications requiring a power resistor.
  • Commonly used in power supplies, audio crossovers, amplifiers, and load-testing circuits.
  • Direct replacement for resistors with matching specifications (10W, 1 ohm, ±5%).

When to Replace

  • Existing resistor is visibly burned, cracked, or shows signs of overheating.
  • Circuit is malfunctioning due to resistor failure.
  • Resistance measures as an open circuit (infinite resistance) or outside the ±5% tolerance range when tested with a multimeter.

Installation Tips

  • Disconnect power to the circuit before removing the old component.
  • Confirm the resistance value with a multimeter before installation.
  • Mount the resistor with space for air circulation to allow for proper heat dissipation.
  • Ensure leads are securely soldered to the circuit board or terminals.
