[Lifetime Warranty] S97015157 Bathroom Exhaust Fan Motor Assembly - 8"× 8-1/4" Housing - Compatible with Broan NuTone - Motor Replacement 110 CFM/ 4 Sones

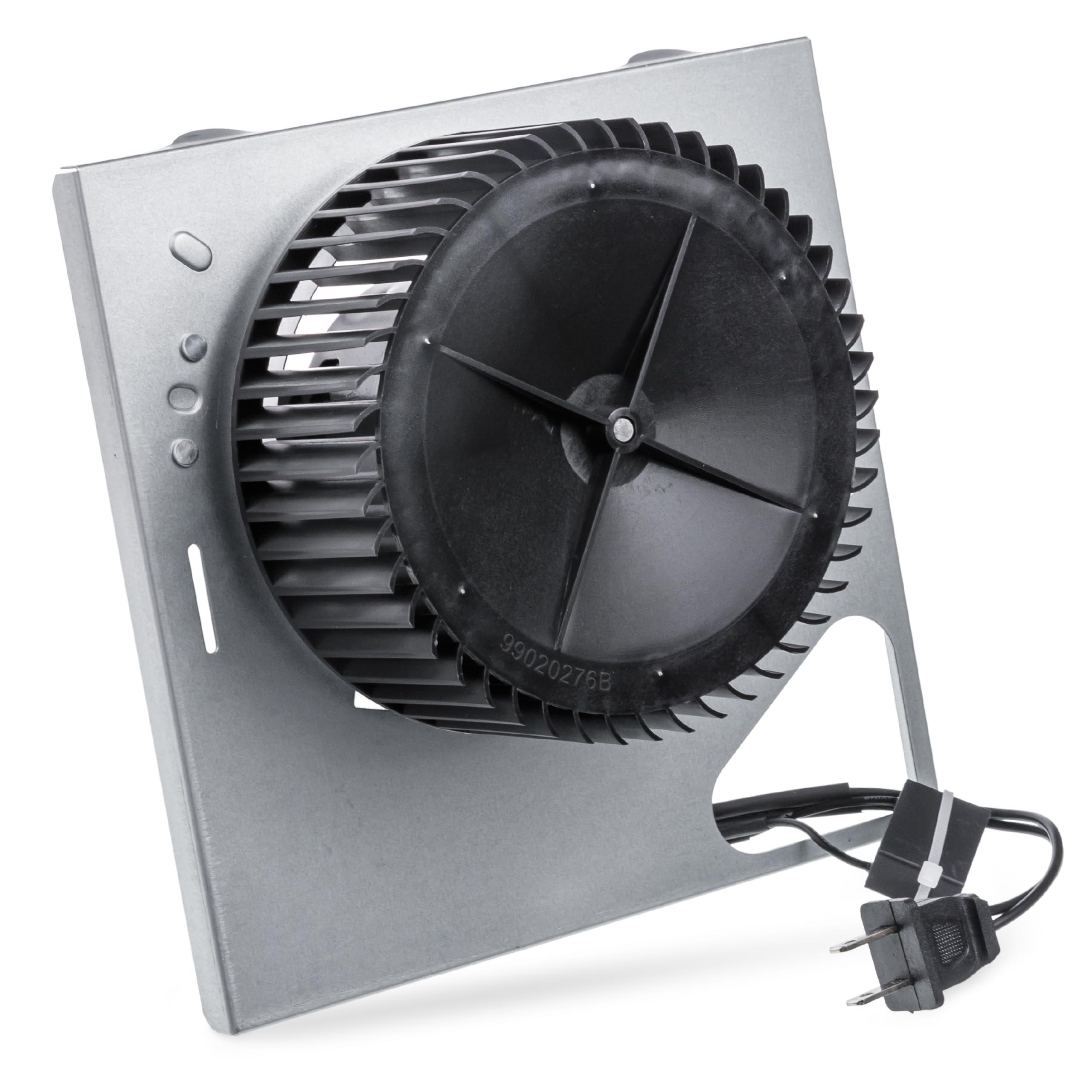

S97015157 Bathroom Exhaust Fan Motor Assembly (8"× 8-1/4" Housing)

Key Features

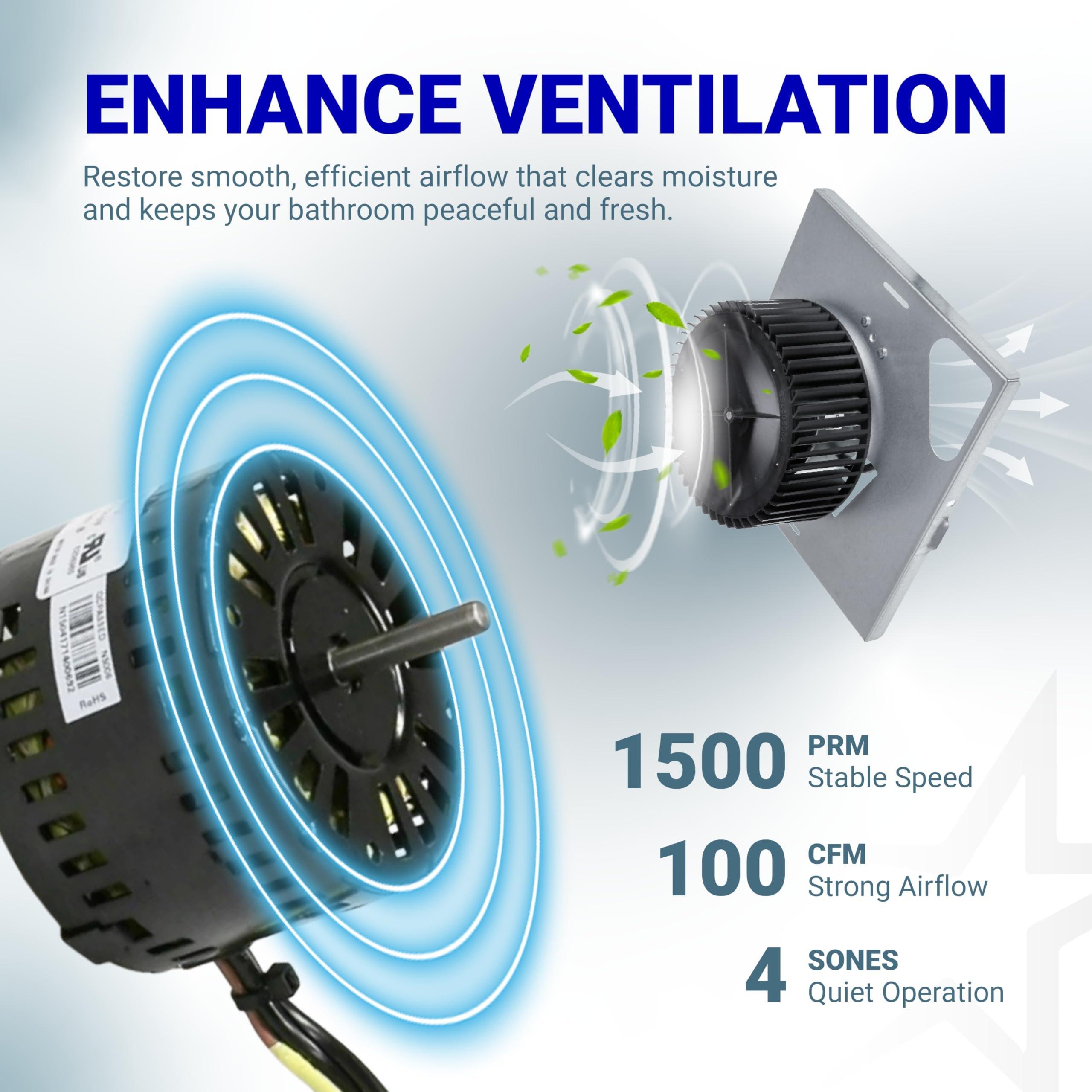

• Performance: 110 CFM (Cubic Feet per Minute) airflow
• Sound Level: 4.0 Sones

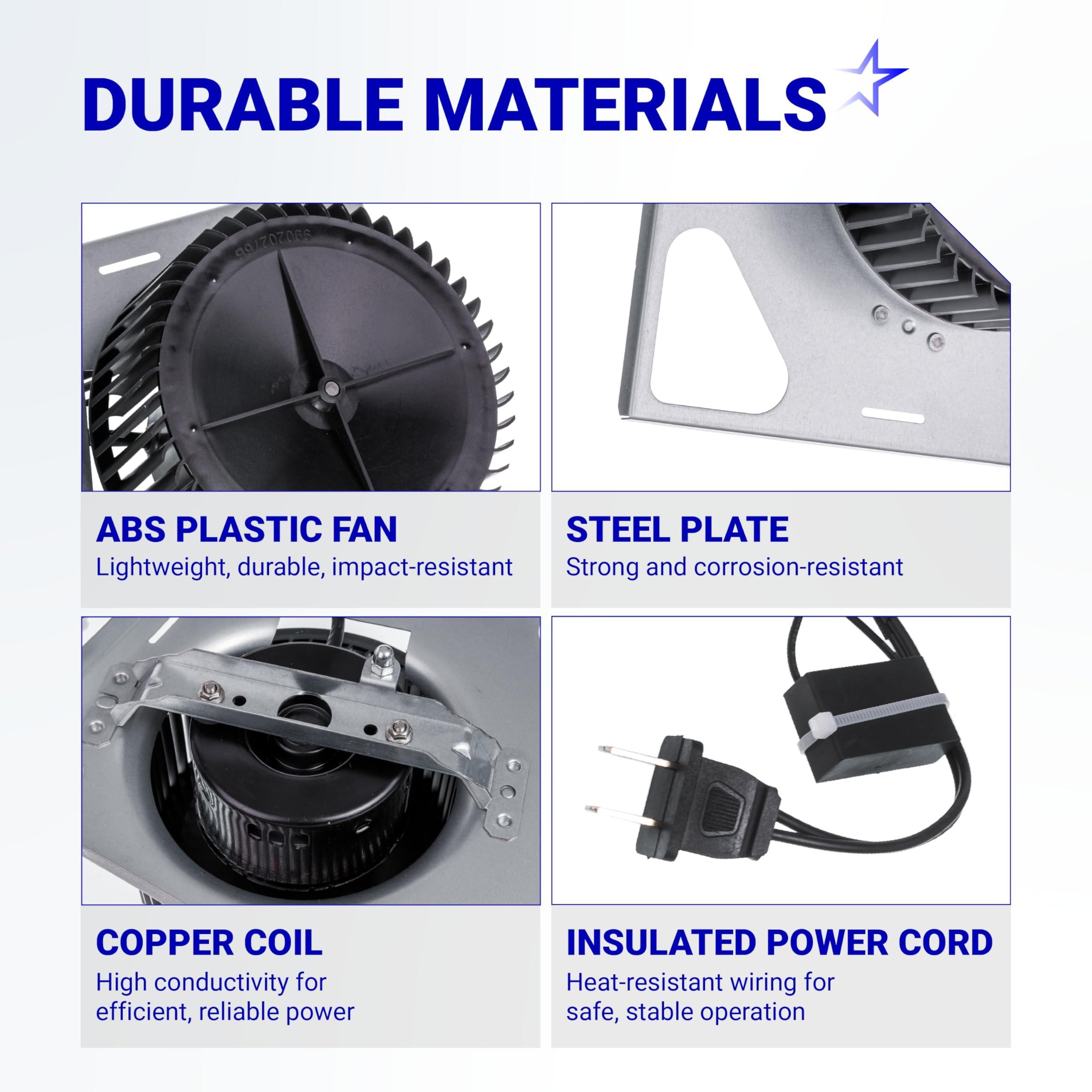

• Assembly: Includes motor and blower wheel
• Design: High-efficiency fan design for improved ventilation

Replaces / Cross-Reference Part Numbers

• S97015157

Compatibility & Fitment

• Brands: Broan, NuTone

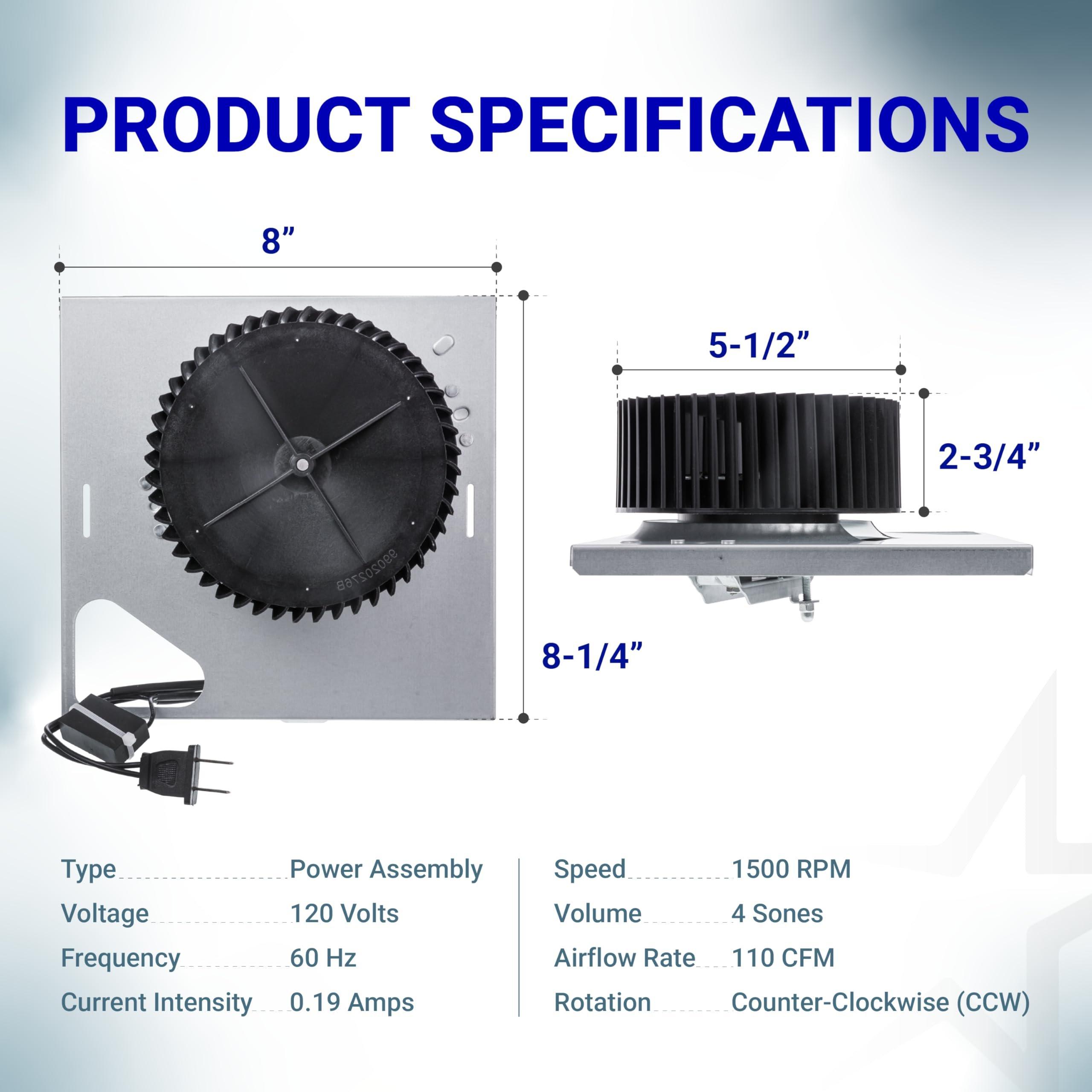

• Housing Dimensions: Fits fan housings measuring 8 inches by 8-1/4 inches. Always measure your existing fan housing before ordering.

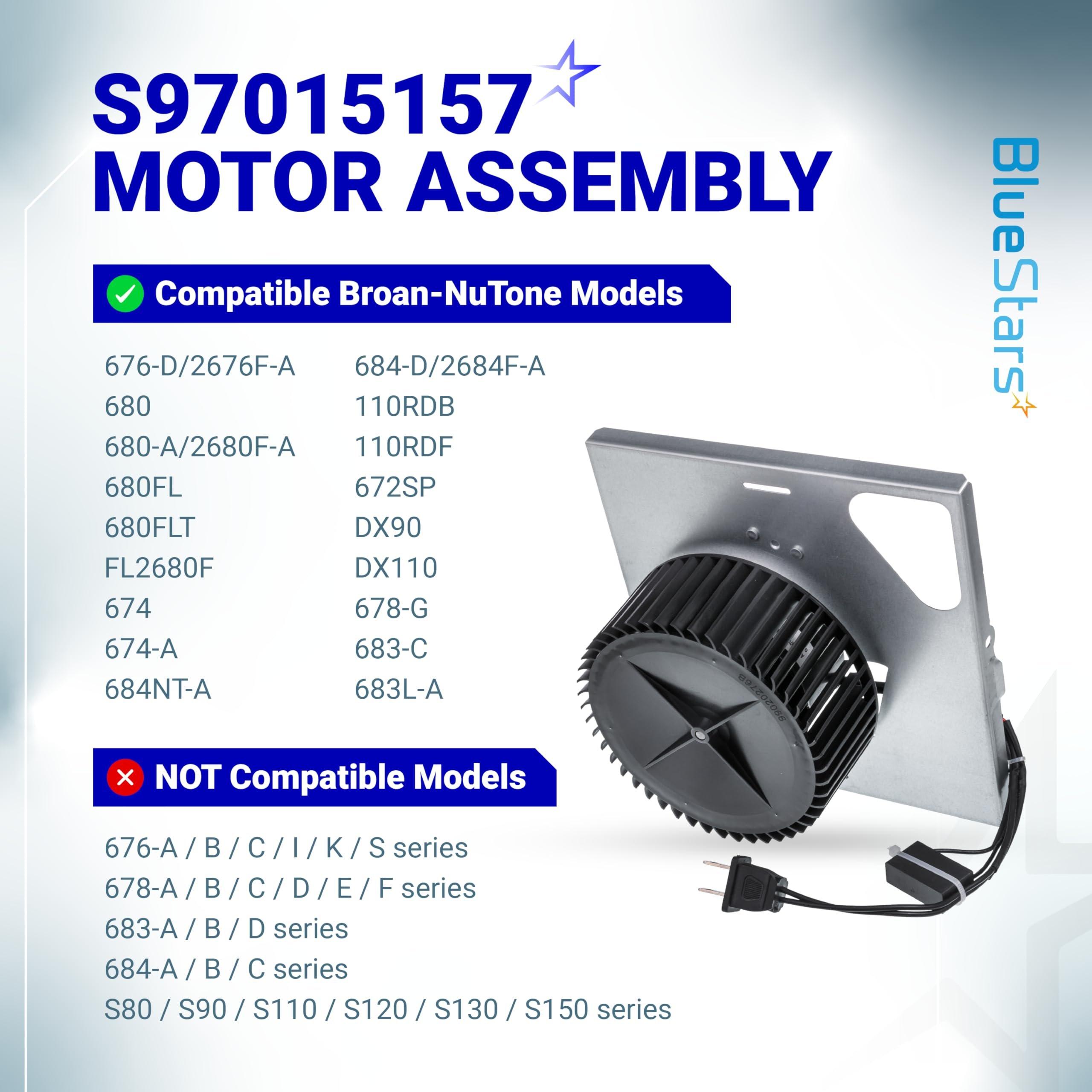

• Compatible Models: 674, 674-A, 676-D, 2676F-A, 680, 680-A, 2680F-A, 680FL, 680FLT, FL2680F, 684-D, 2684F-A, 684NT-A

When to Replace

• Fan motor is inoperable or does not start.
• Excessive or unusual noise such as grinding, humming, or rattling during operation.
• Noticeably reduced airflow and poor ventilation performance.
• Motor runs slowly, intermittently, or overheats.

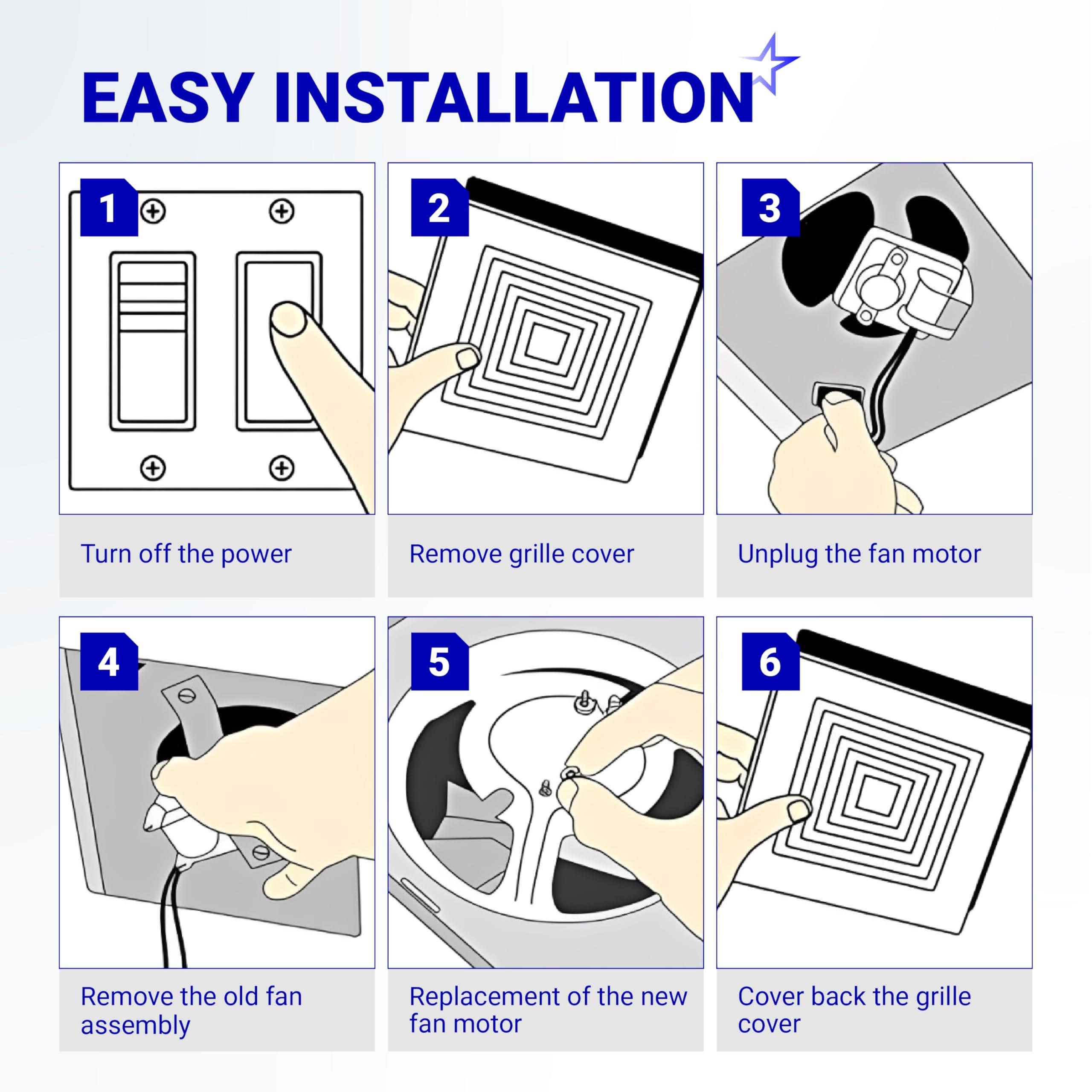

Installation Tips

• Disconnect electrical power at the circuit breaker before beginning installation.
• Remove the fan grille and unplug the existing motor from the receptacle.
• Remove the mounting screw or hardware securing the old motor plate to the fan housing.
• Install the new motor assembly, ensuring it is securely seated.
• Plug the new motor cord into the receptacle inside the housing.
• Restore power and test the fan before re-installing the grille.
