[Lifetime Warranty] 3920DD3005A Dishwasher Door Gasket Seal - LG and Kenmore Dishwasher - Replaces 1267456 AP4437203 AH3522654 PS3522654 EAP3522654 PD00001769 3920DD3003A

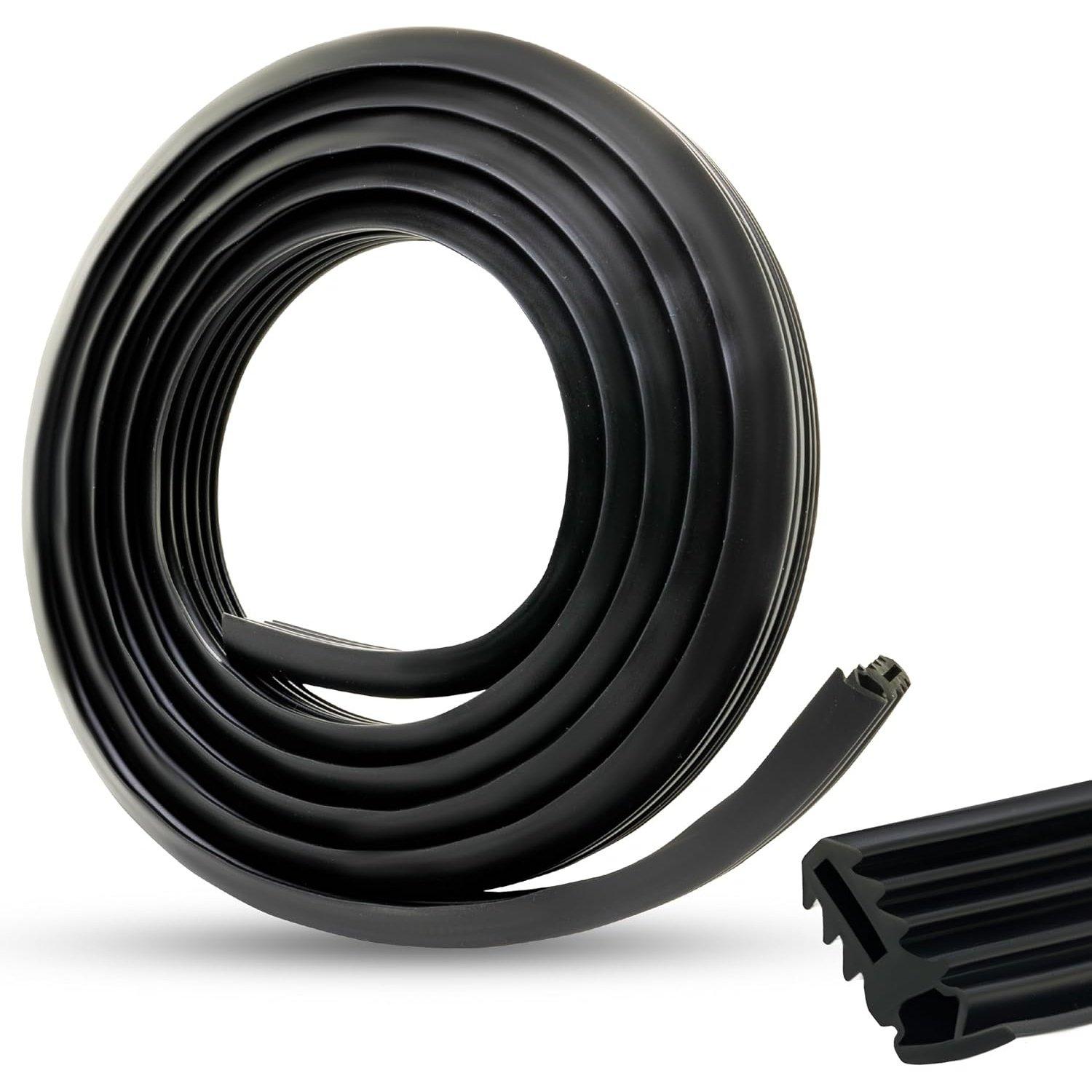

Dishwasher Door Gasket Seal 3920DD3005A

Key Features

• Creates a watertight seal between the dishwasher door and tub
• Prevents water leaks during operation

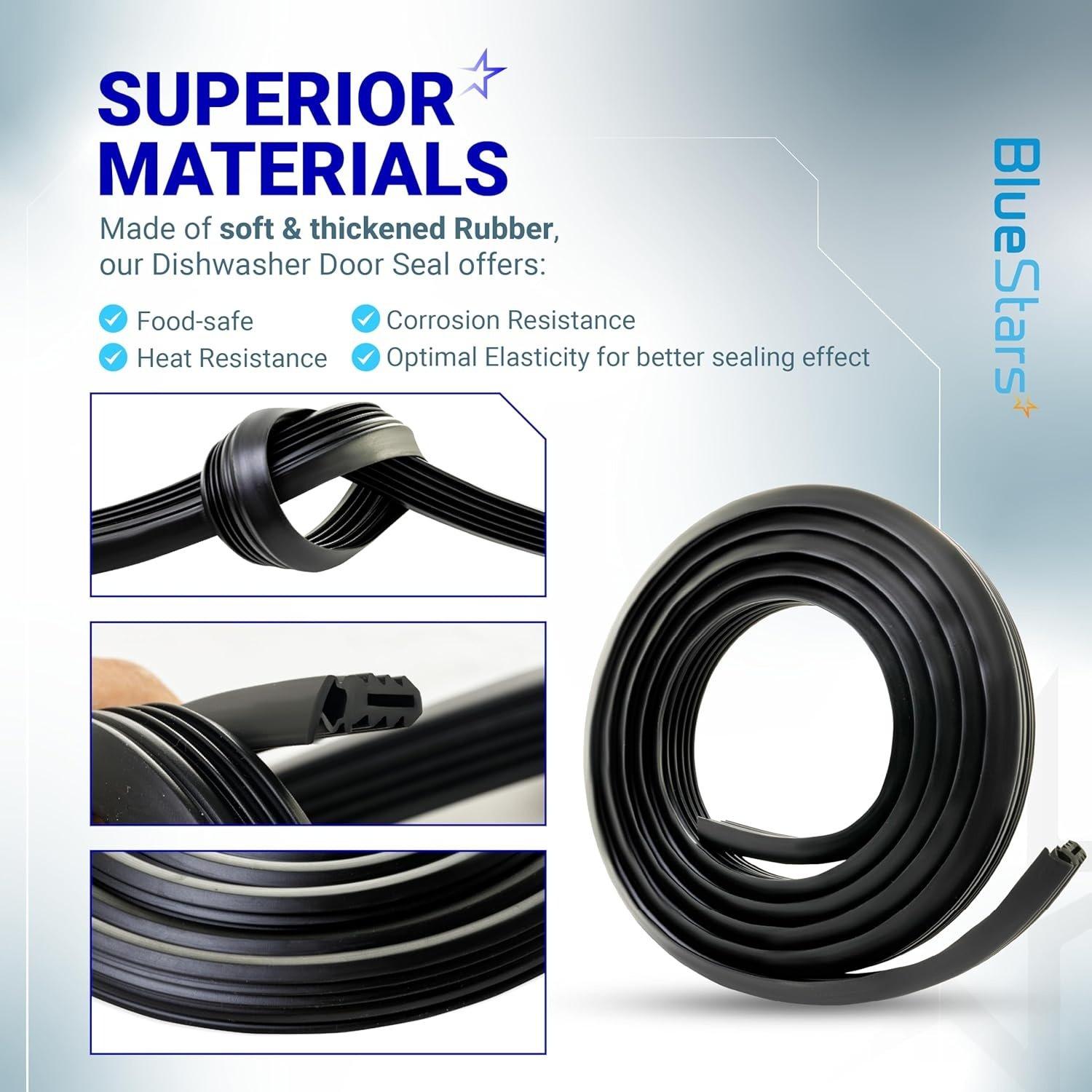

• Constructed from durable, flexible rubber
• Direct replacement for specified part numbers

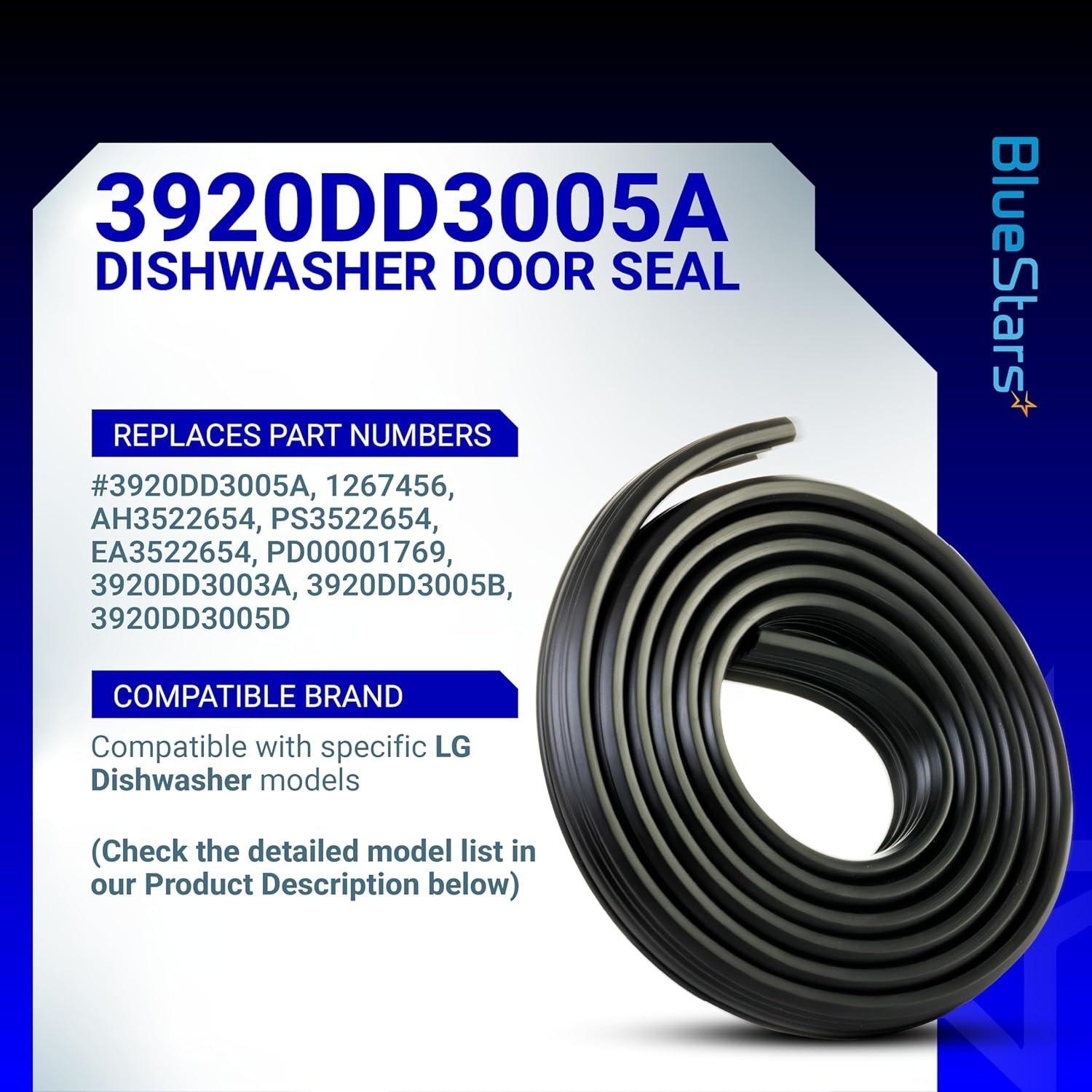

Replaces / Cross-Reference Part Numbers

• 3920DD3003A
• 1267456
• AP4437203
• EAP3522654
• PS3522654

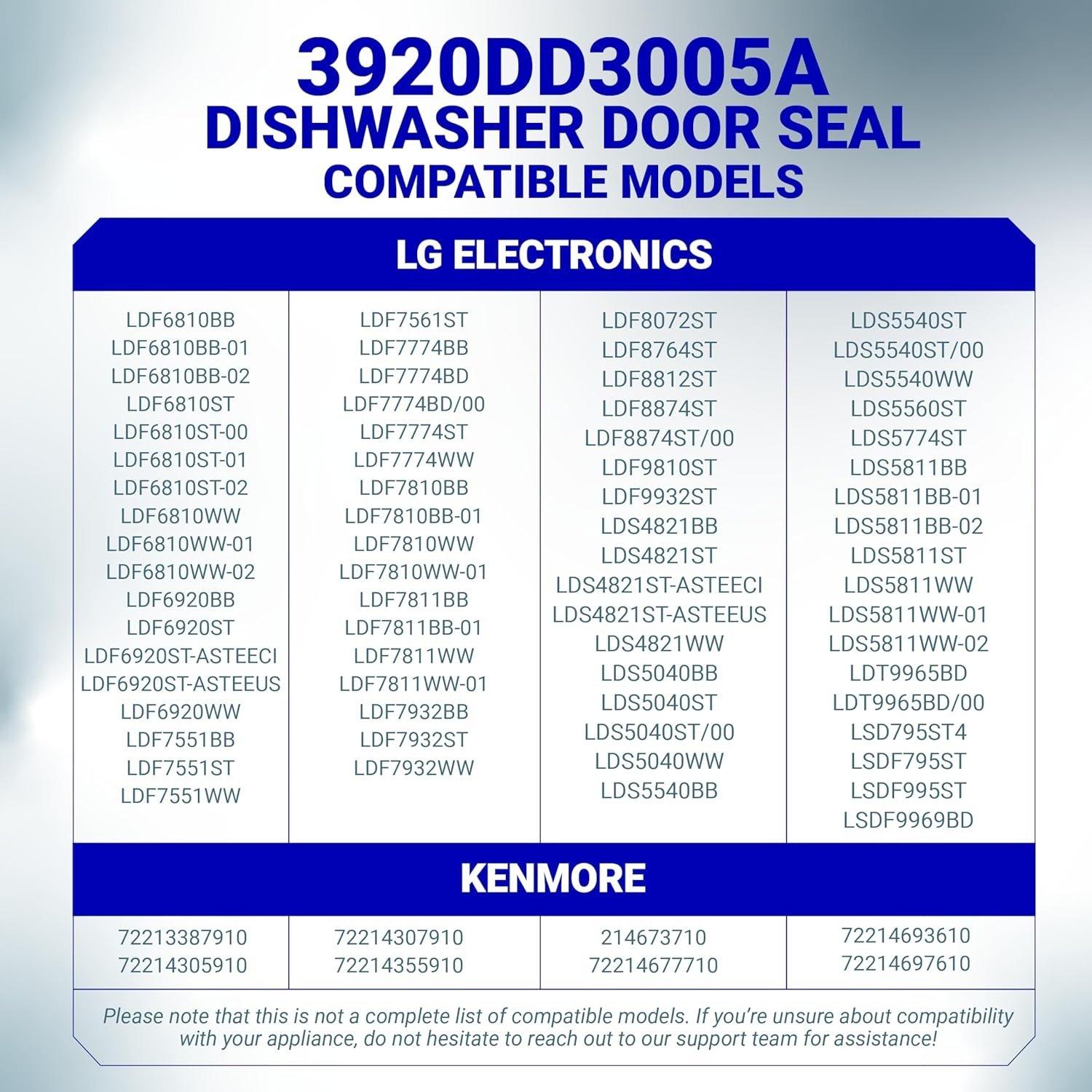

Compatibility & Fitment

• Designed for specific dishwasher models manufactured by LG and Kenmore
• Compatible with select models in the LDF, LDS, and LDT series
• Example compatible models include: D1401TB, LDF6920BB, LDF7811BB, LDF9932ST, LDS4821ST, LDS5811BB, LDS5811ST
• Confirm compatibility by checking your appliance's model number and service manual

When to Replace

• Water is leaking from the front or sides of the dishwasher door
• The existing gasket shows visible damage such as cracks, tears, or brittleness
• The seal is loose, deformed, or no longer seated correctly in its channel

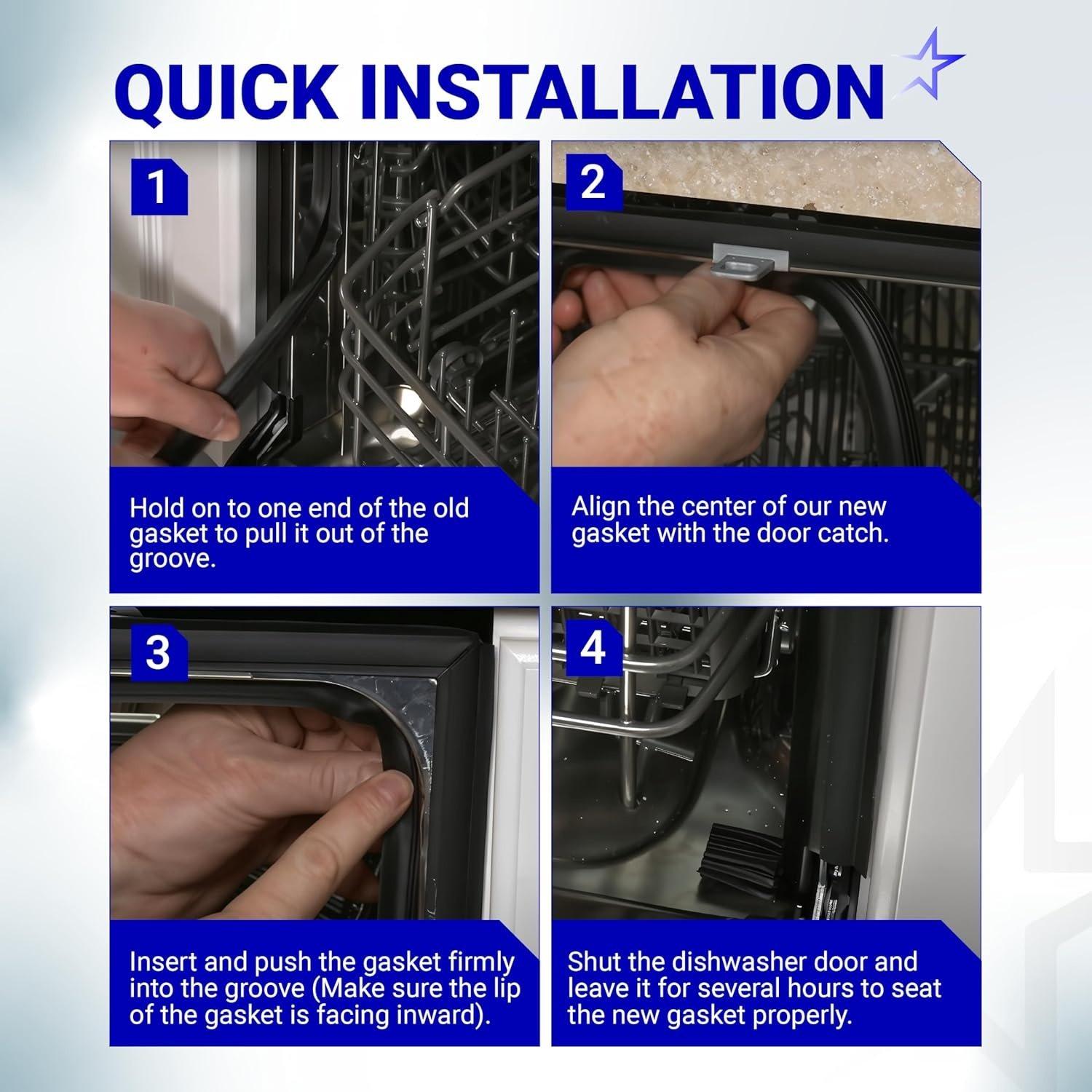

Installation Tips

• Disconnect the dishwasher from power and water supplies before installation
• Remove the old gasket by pulling it out from the door channel
• Clean the channel thoroughly to remove any residue or debris
• Soaking the new gasket in warm water can make it more pliable for an easier installation
• Press the new gasket firmly into the channel, starting from the top center and working towards the bottom
