[Lifetime Warranty] GX390 Recoil Starter Handle with Rope
Normal
15 - 20 minutes
$7.65
$8.49
Save $0.84
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

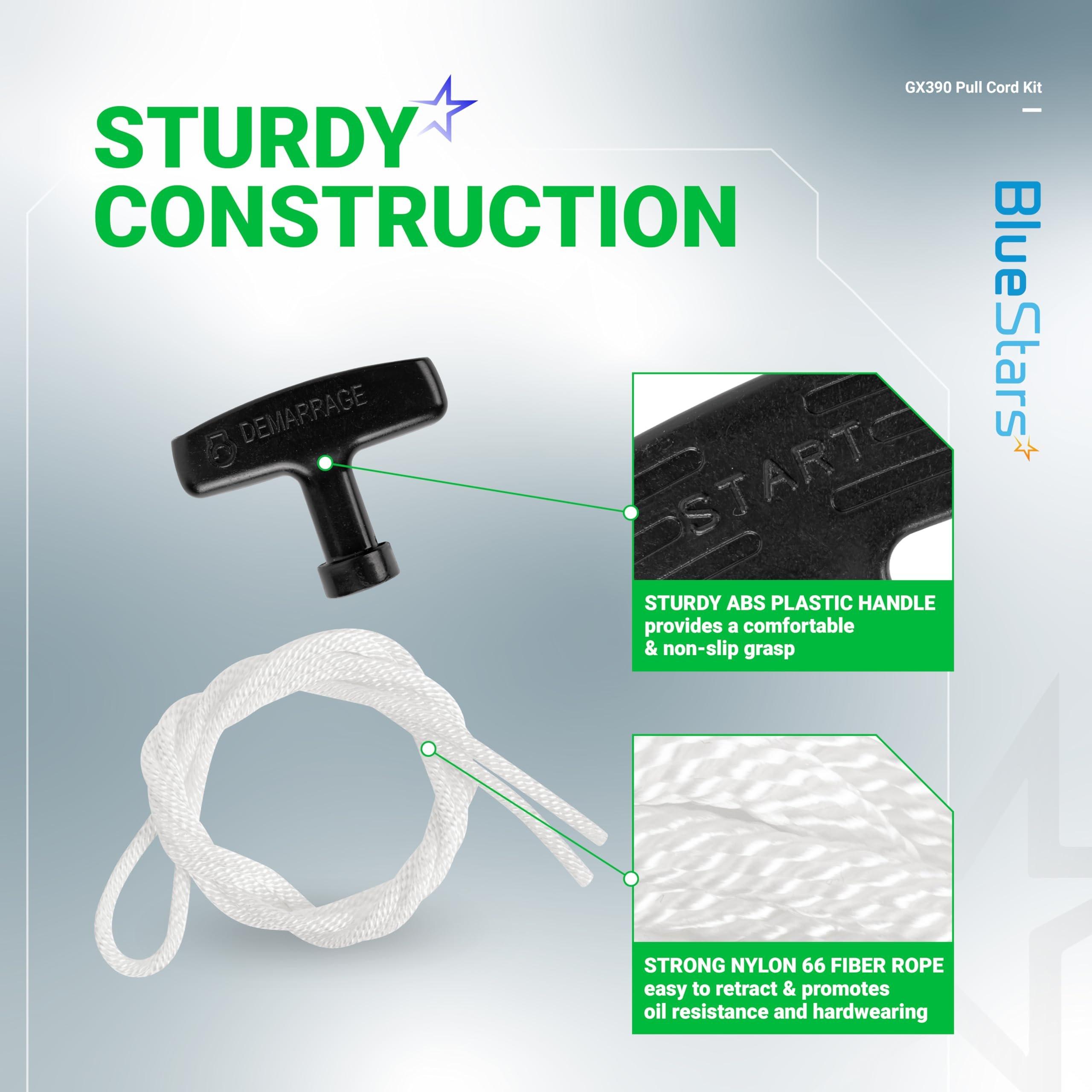

GX390 Recoil Starter Handle with Rope
Key Features
- Includes one starter handle and one pre-cut rope.
- Rope Material: Braided Nylon
- Rope Length: 1.2m (3.9 ft)
- Handle: High-impact plastic T-grip
Replaces / Cross-Reference Part Numbers
- Handle: 28462-ZE3-W01
- Rope: 28461-ZH8-003
Compatibility & Fitment
- Fits Honda engine models: GX120, GX160, GX200, GX240, GX270, GX340, GX390, GX610, GX620
- Also compatible with engine models: 173F, 177F, 182F, 188F, 190F
When to Replace
- Starter rope is frayed, worn, or broken.
- Starter handle is cracked, broken, or missing.
- Rope fails to retract or pulls with excessive friction due to wear.
Installation Tips
- Note the winding direction of the old rope on the pulley before removal.
- Securely knot the rope at both the handle and the starter pulley.
- After installation, pull the rope straight out from the housing to minimize wear.
- Ensure the recoil spring is correctly tensioned before reassembling the starter housing.
Item Model Number
GX390 Recoil Starter Handle with Rope
