[Lifetime Warranty] W10745655 Dryer Timer - Compatible with Maytag Whirlpool Crosley Amana 230VAC 60Hz Dryer Models YNED4655EW1 4KWED4605FW0 - Replaces W10857612 W10436308 AP6003908

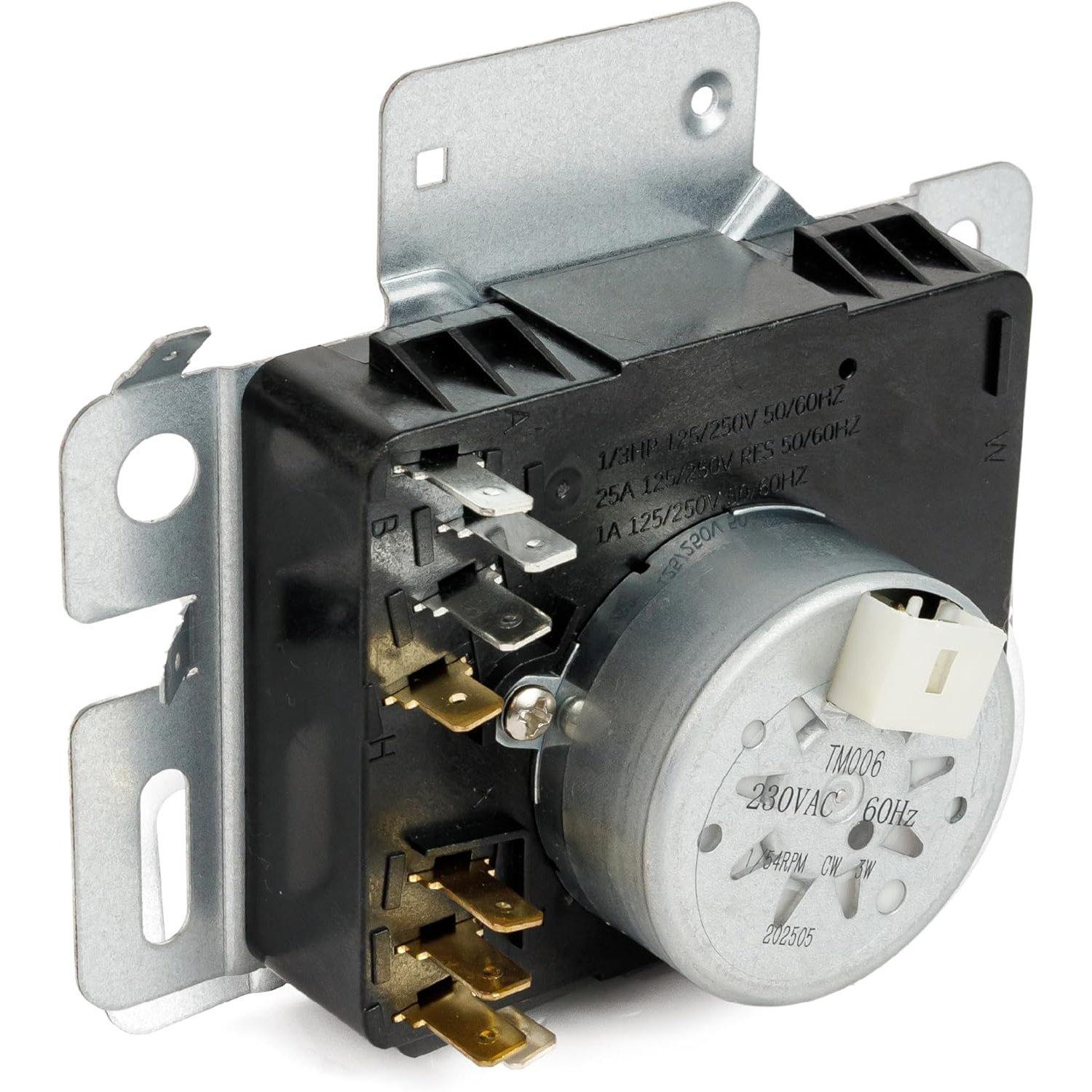

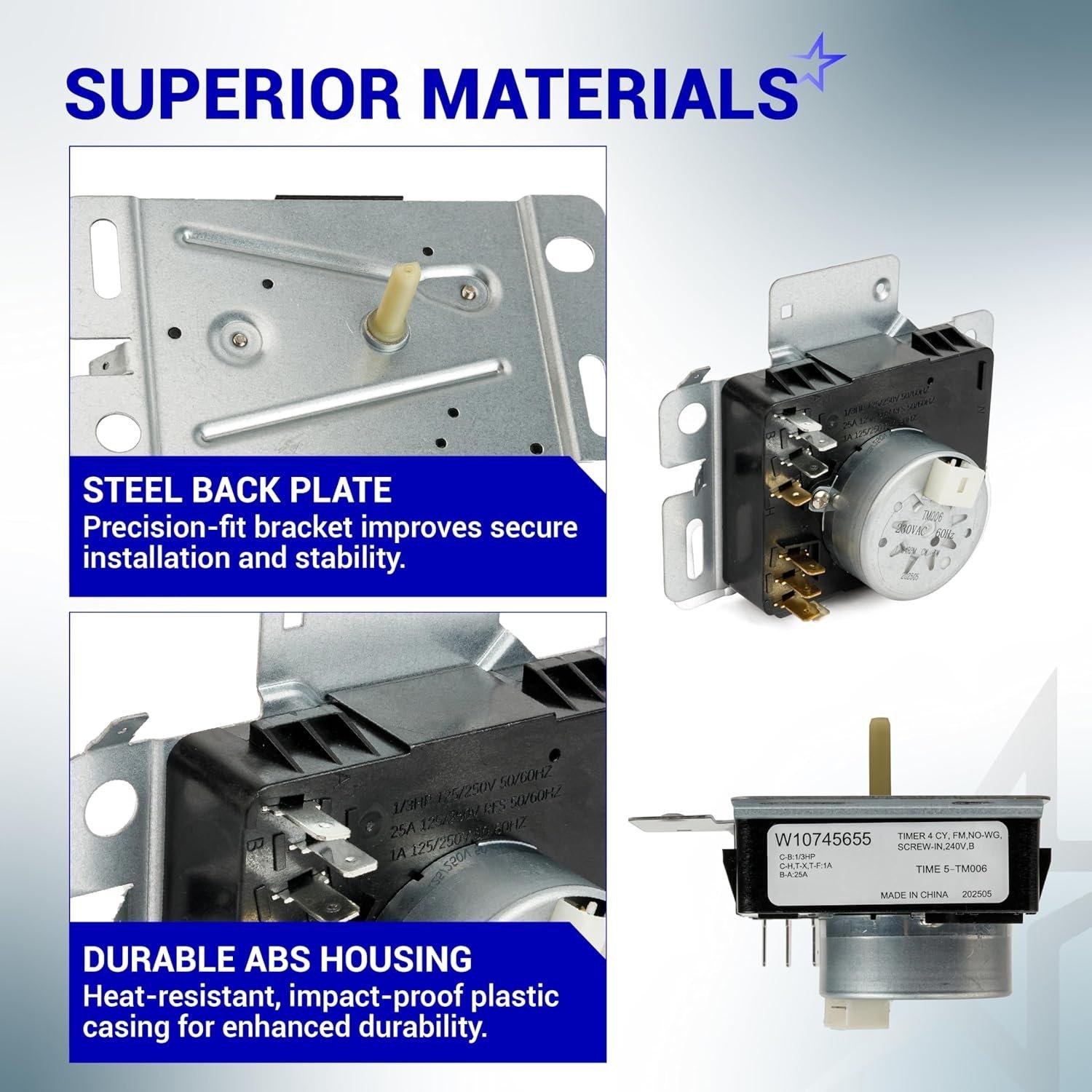

W10745655 Dryer Timer

Key Features

• Direct replacement timer for clothes dryers.
• Controls the duration of drying cycles, the drum motor, and the heat circuit.

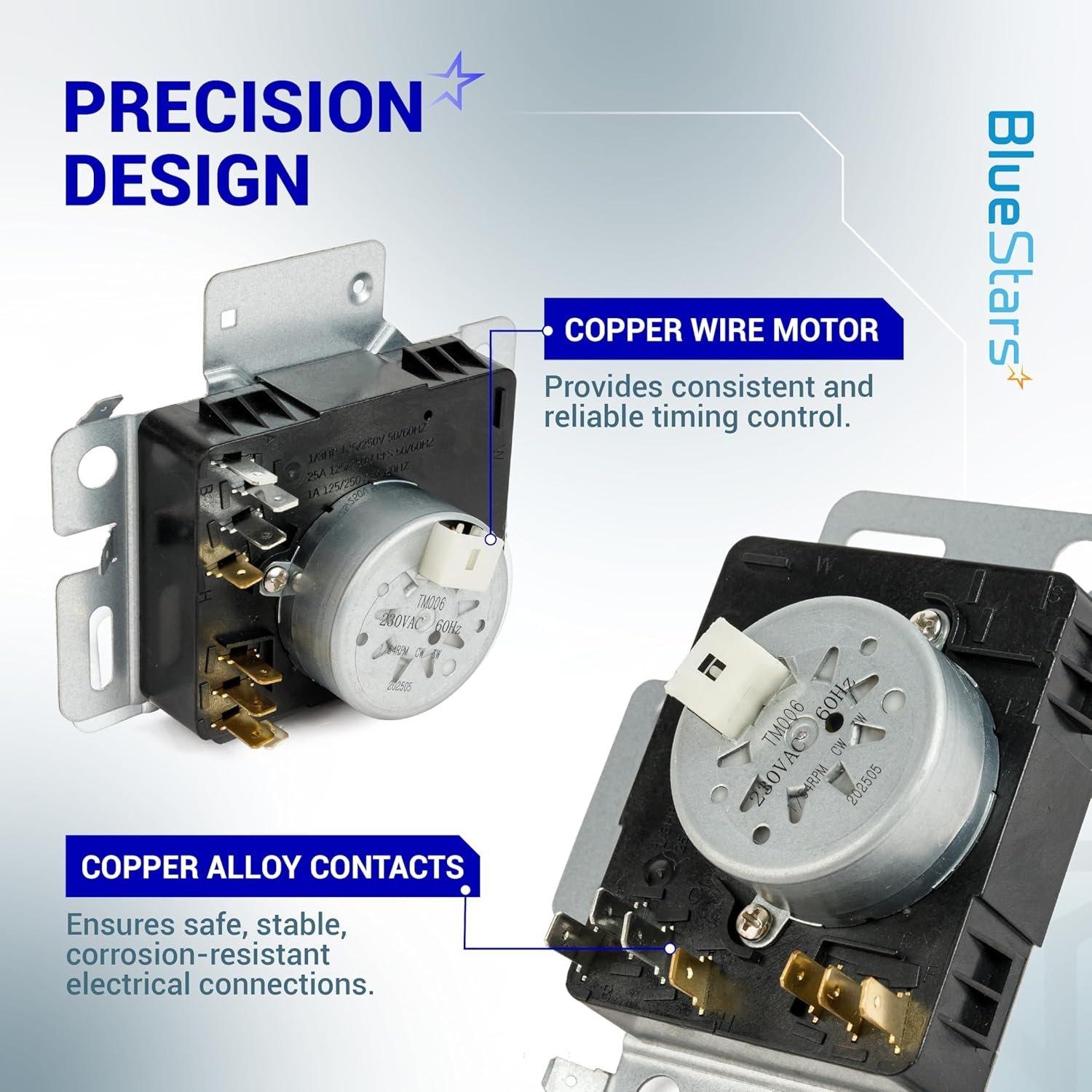

• Houses an internal motor and gear-driven cams to sequence dryer functions.
• Mounts within the main control console of the appliance.

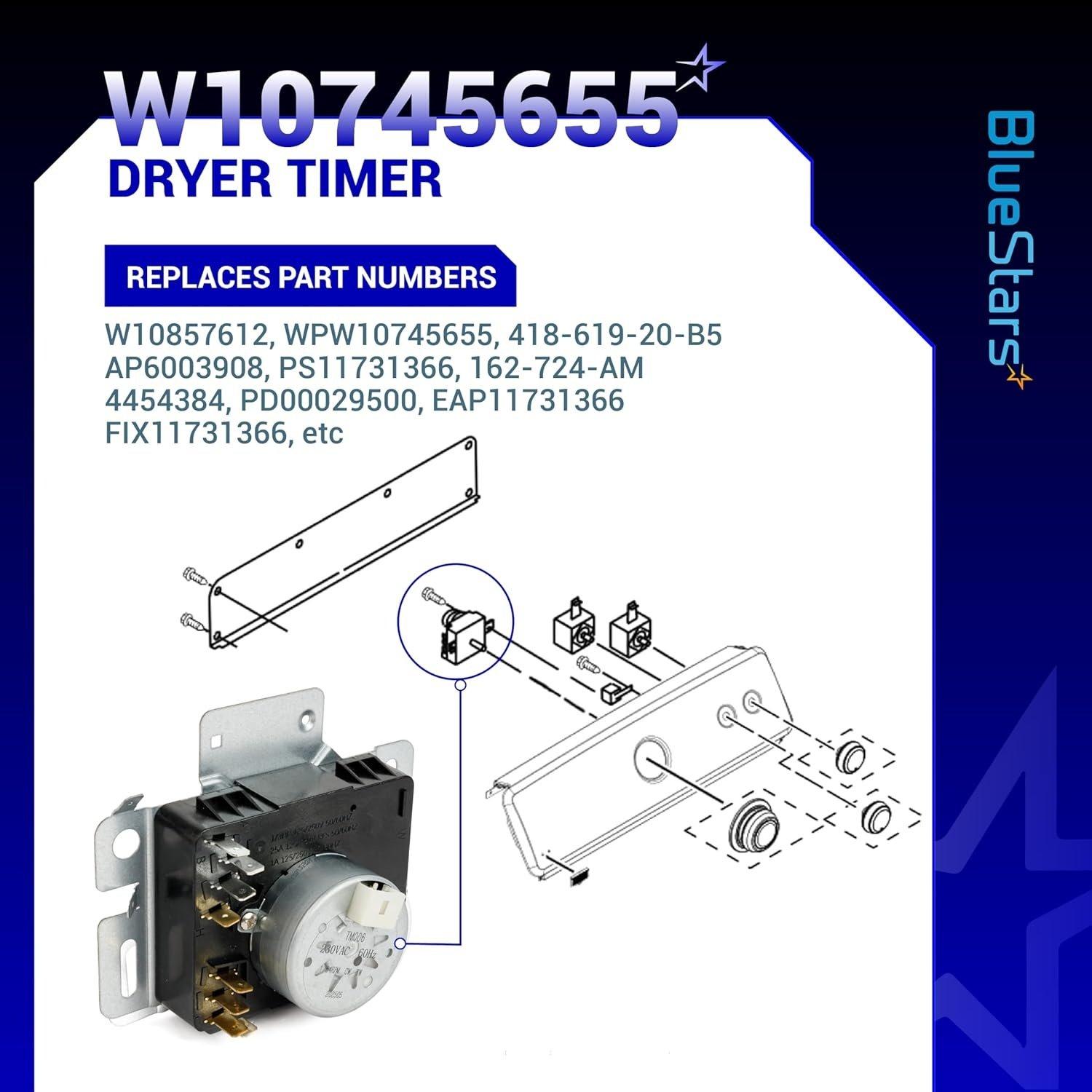

Replaces / Cross-Reference Part Numbers

• W10745655
• W10745655A
• W10857612
• 4454384
• AP6003908
• EAP11731366
• PD00029500
• PS11731366

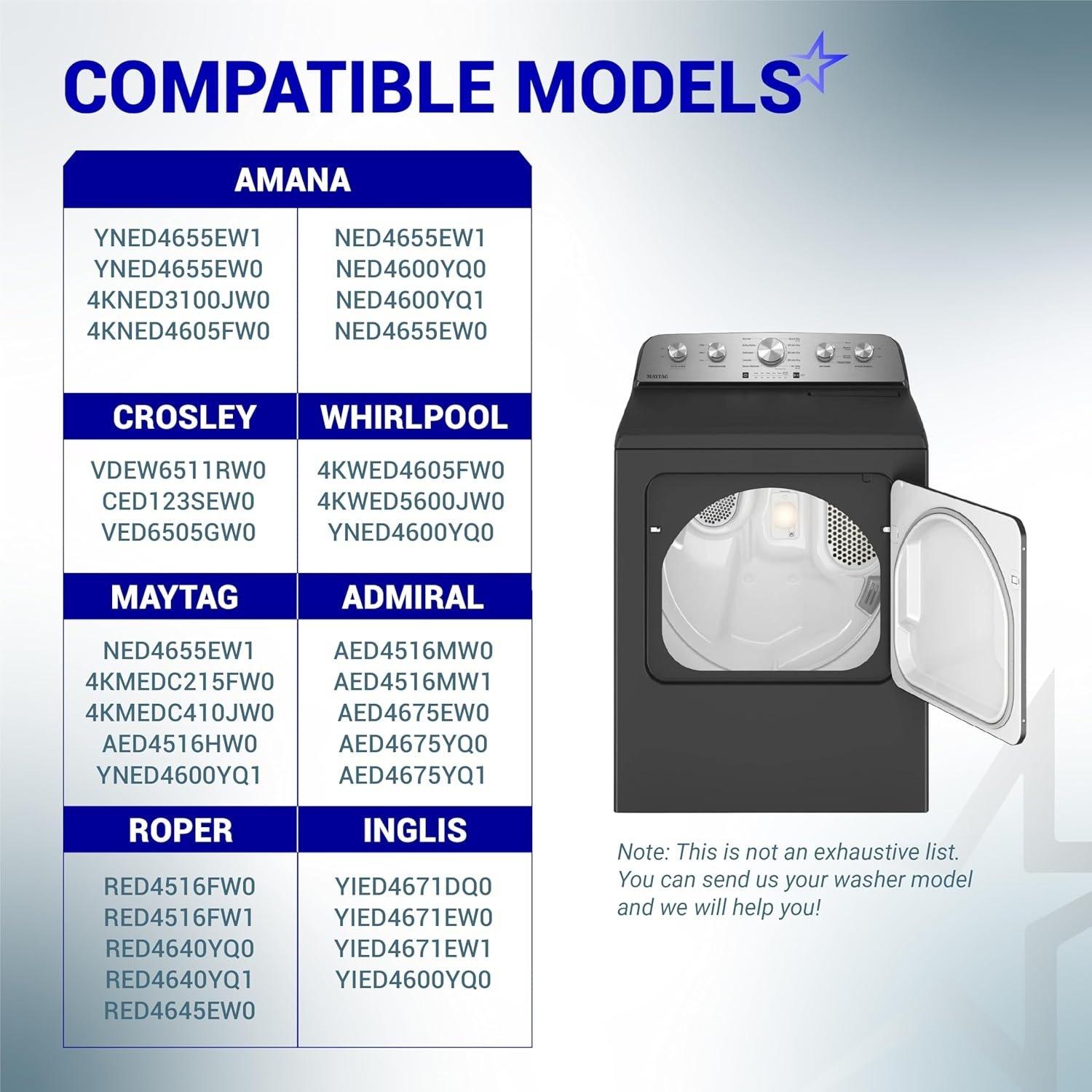

Compatibility & Fitment

• Fits specific dryer models manufactured by Whirlpool, Kenmore, and Maytag.
• To ensure proper fitment, confirm this part number is compatible with your dryer's specific model number.

When to Replace

• Timer dial does not advance during a cycle.
• Dryer fails to shut off after the cycle is complete.
• Dryer will not start, or specific cycles do not operate.
• Heating element or drum motor operates intermittently or not at all.

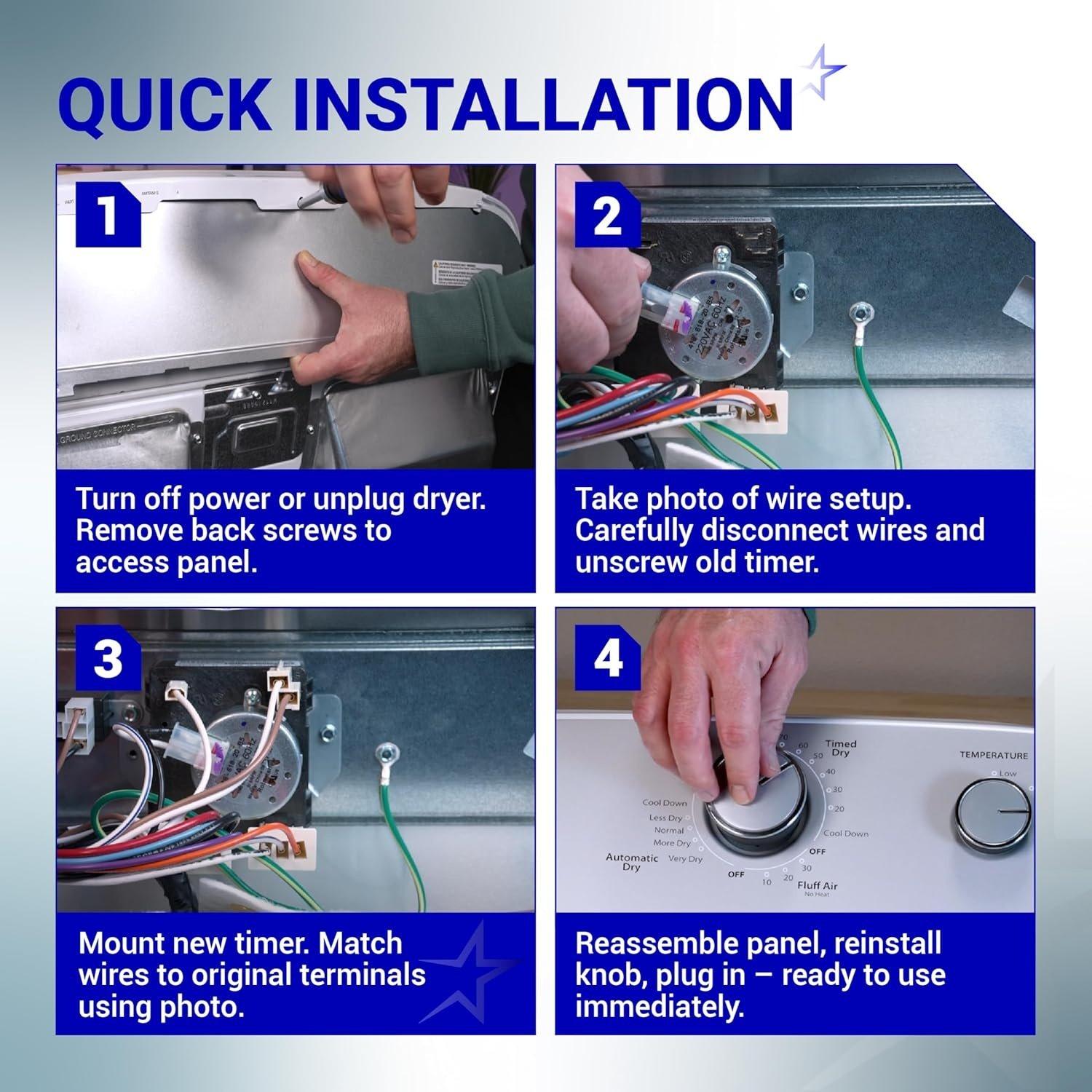

Installation Tips

• Before beginning repairs, disconnect the dryer from its electrical outlet.
• The timer is typically located behind the control console panel.
• Photograph the wire connections on the original timer before removal to ensure correct placement on the new part.
• Transfer the wires to the corresponding terminals on the new timer.
