[Lifetime Warranty] SPX0715D Pool Valve Seat Gasket

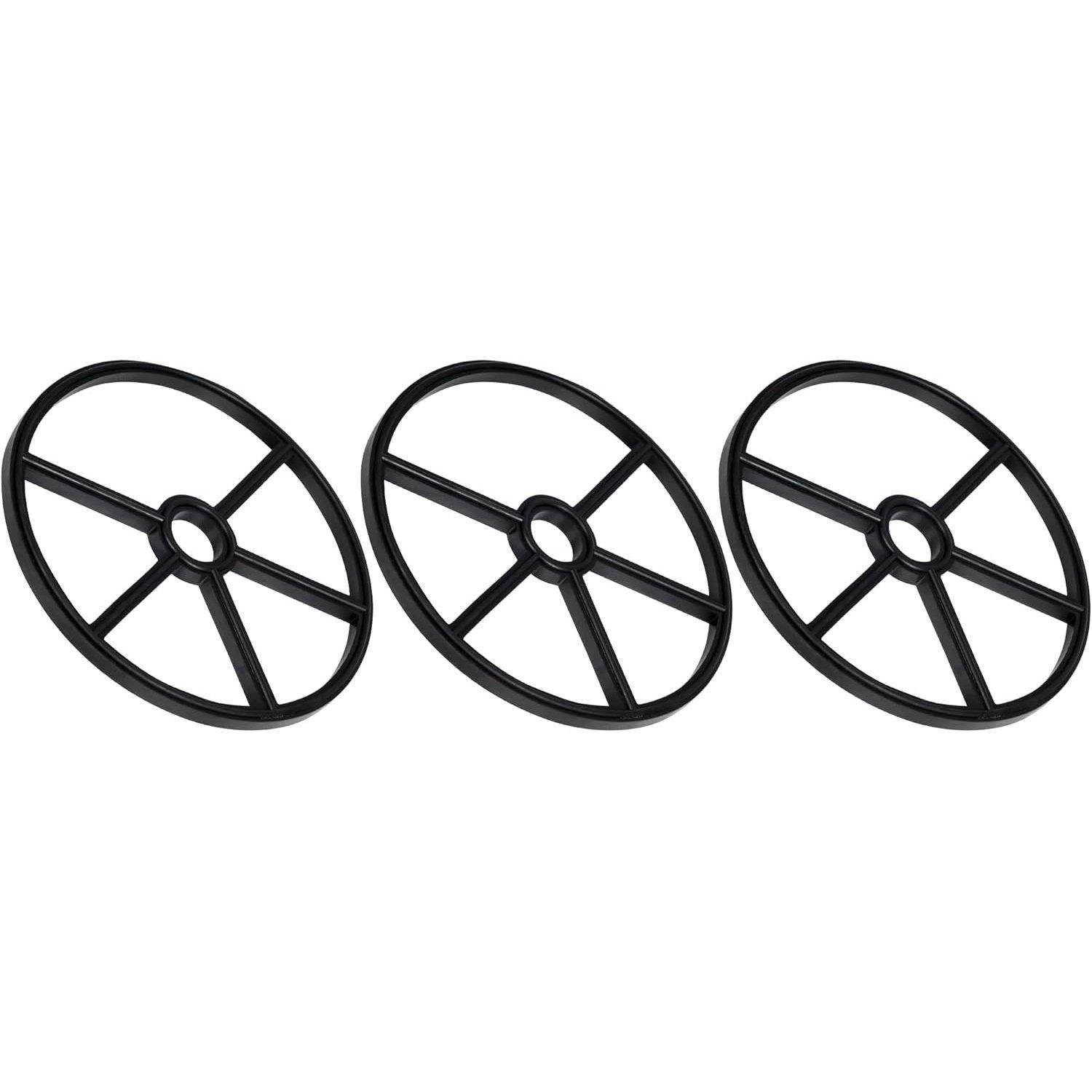

SPX0715D Pool Valve Seat Gasket

Key Features

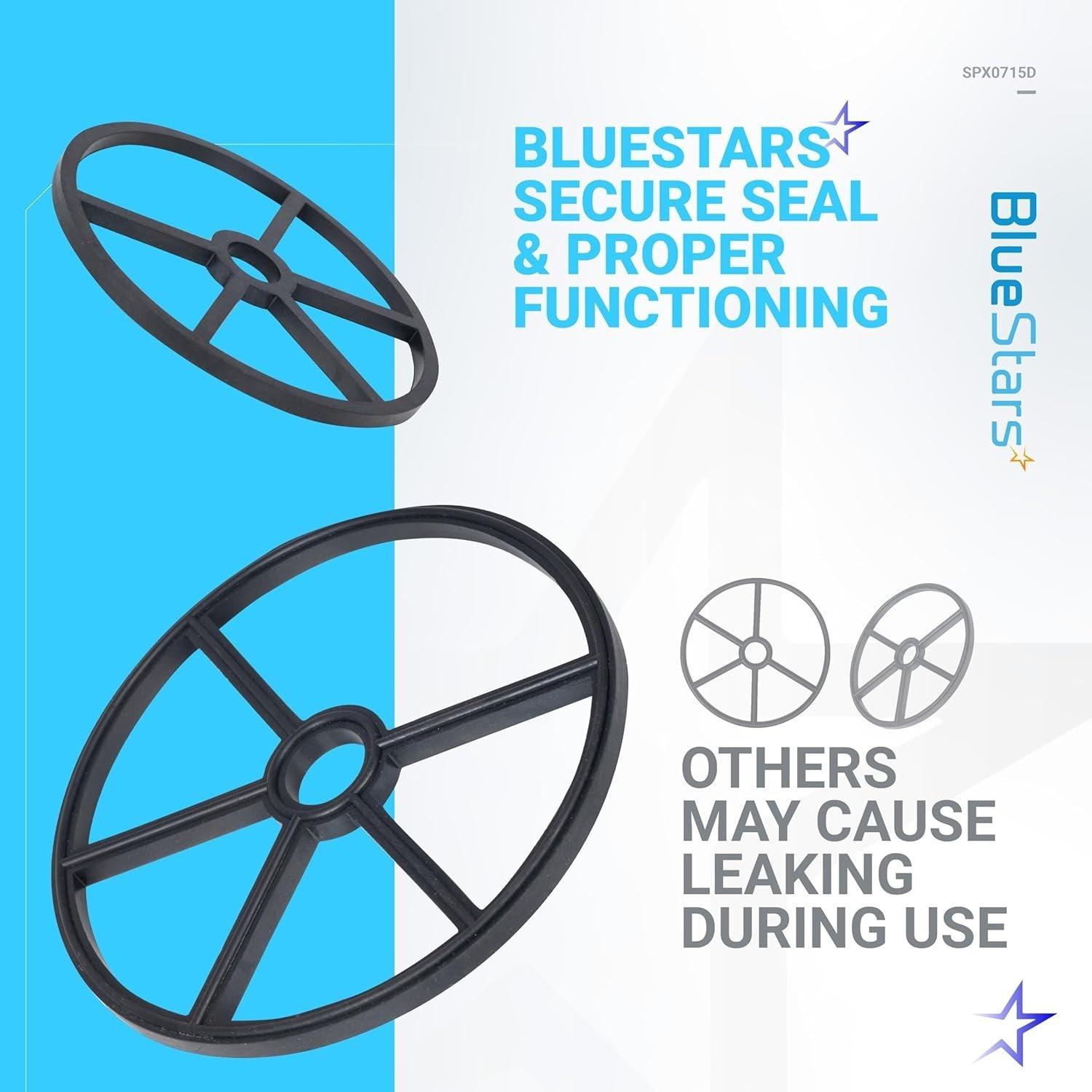

• Creates a watertight seal between the valve body and valve seat.
• Prevents leaks from the backwash or waste port during normal operation.
• Designed for 2-inch multiport valves.

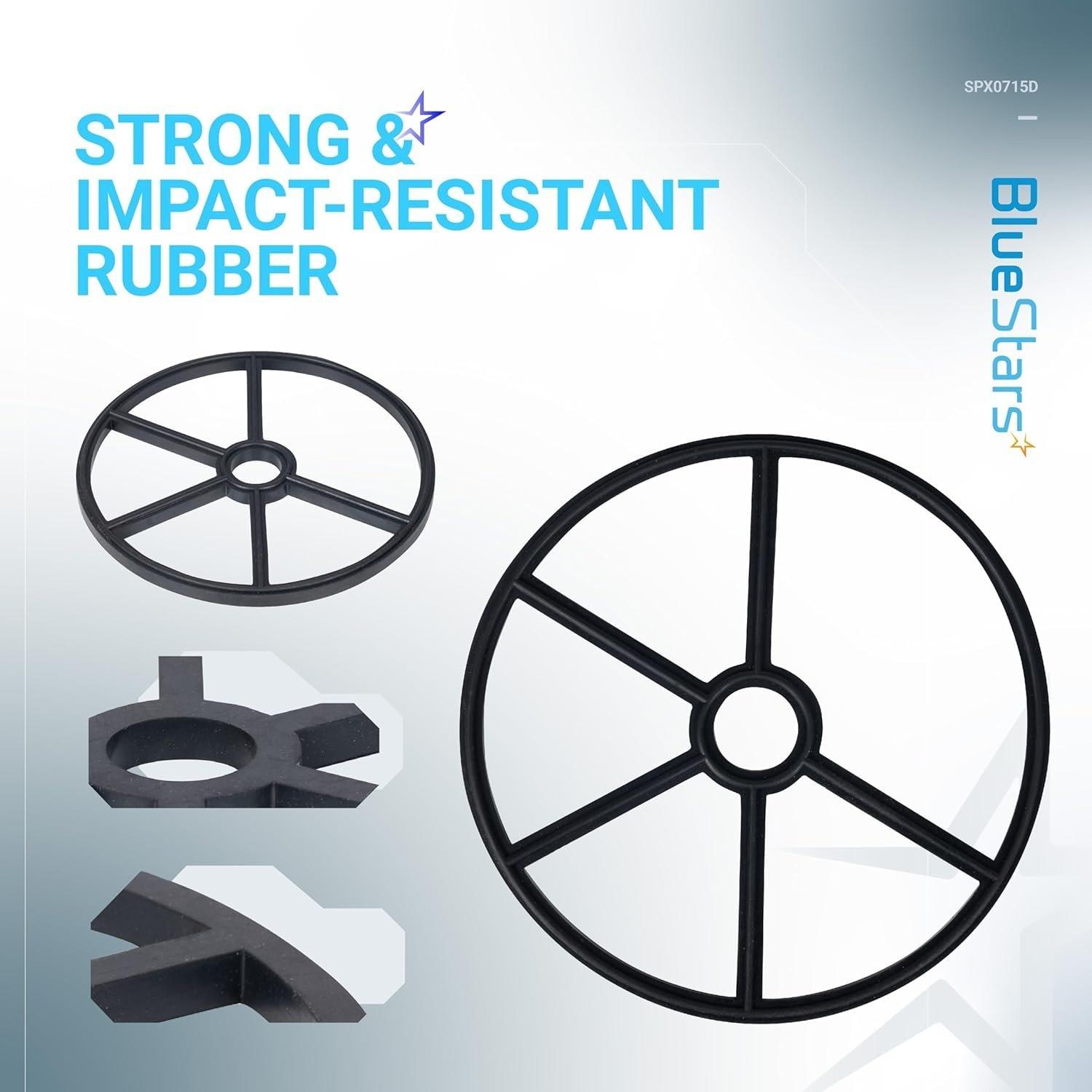

• Material designed for durability in pool chemical environments.
• Outside Diameter: 6-5/16 inches
• Inside Diameter (Center Hole): 3/4 inches

Replaces / Cross-Reference Part Numbers

• Hayward SPX0715D

Compatibility & Fitment

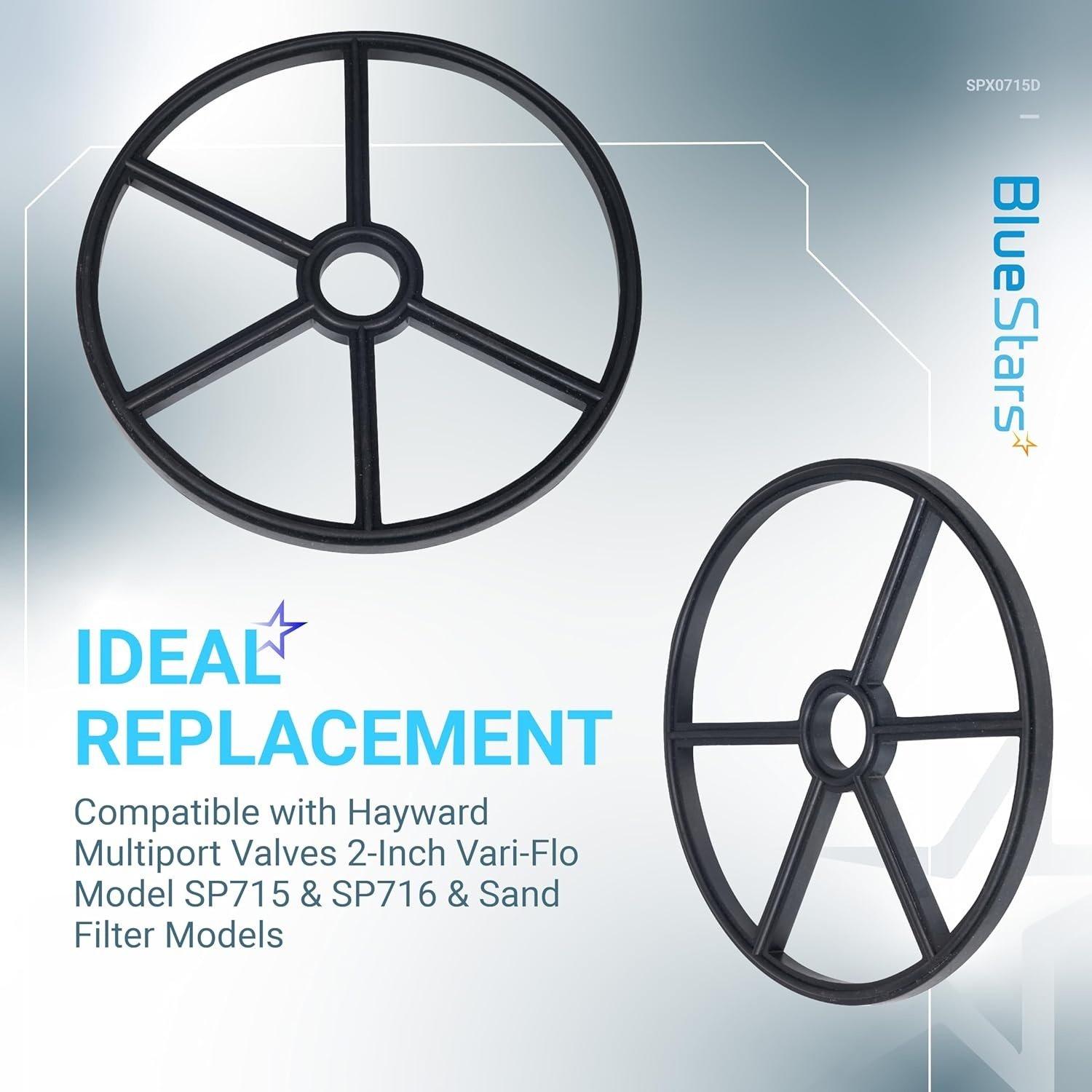

• Fits Hayward Vari-Flo multiport valve models SP0715 and SP0716.
• Fits Hayward Pro Series top-mount sand filter valve model S220T2.
• Compatible with select Hayward HCF series filters.

When to Replace

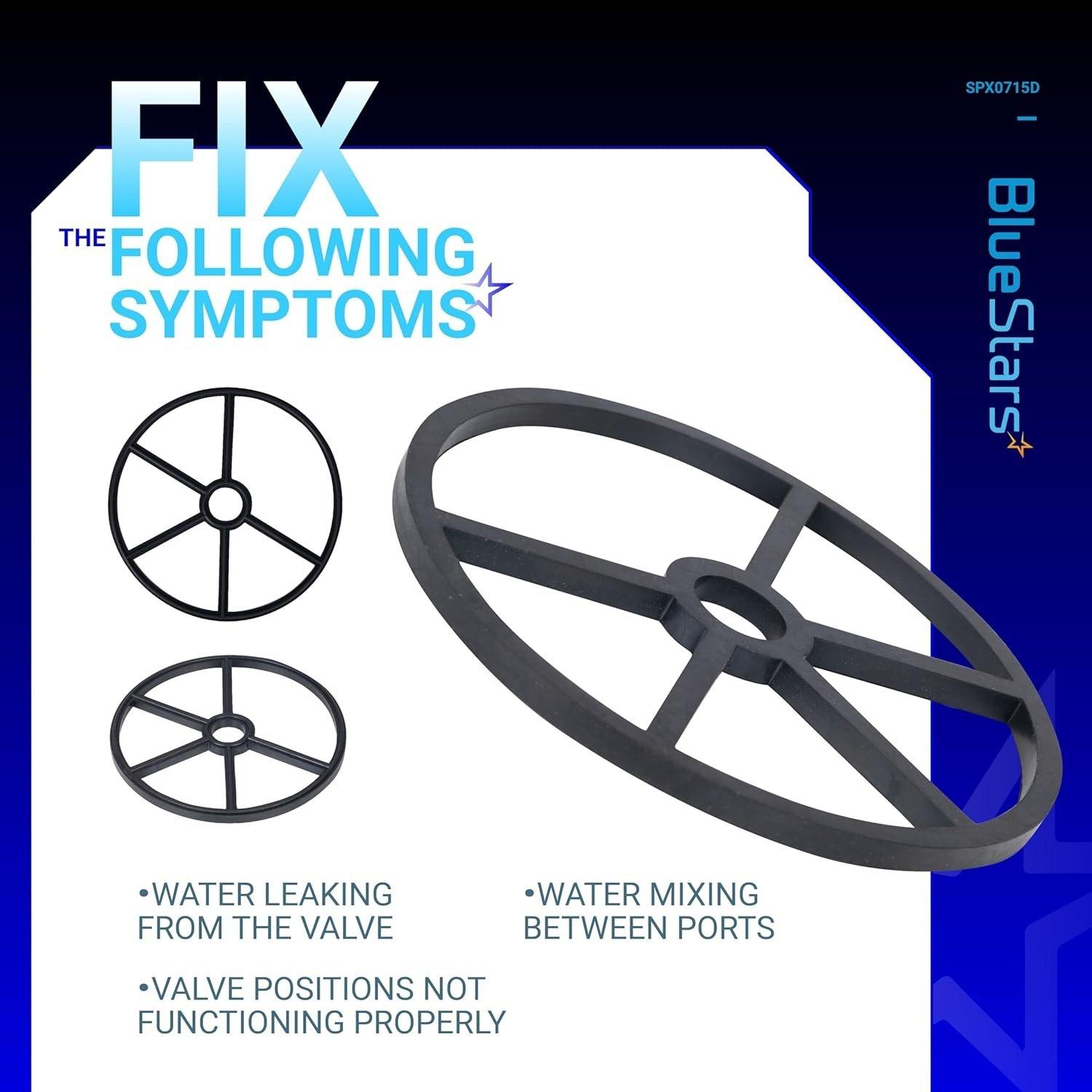

• Water is leaking out of the backwash or waste port while in filter mode.
• The existing gasket is visibly cracked, brittle, flattened, or deformed.
• Difficulty turning the valve handle or achieving a proper seal.
• During routine multiport valve servicing or rebuilds.

Installation Tips

• Turn off the pool pump and relieve system pressure before disassembly.
• Thoroughly clean the valve body groove where the gasket sits, removing any old adhesive or debris.
• A small amount of gasket-safe lubricant or adhesive can aid in holding the gasket in place during reassembly.
• Ensure the gasket is seated evenly and fully in the groove before reinstalling the valve top.
