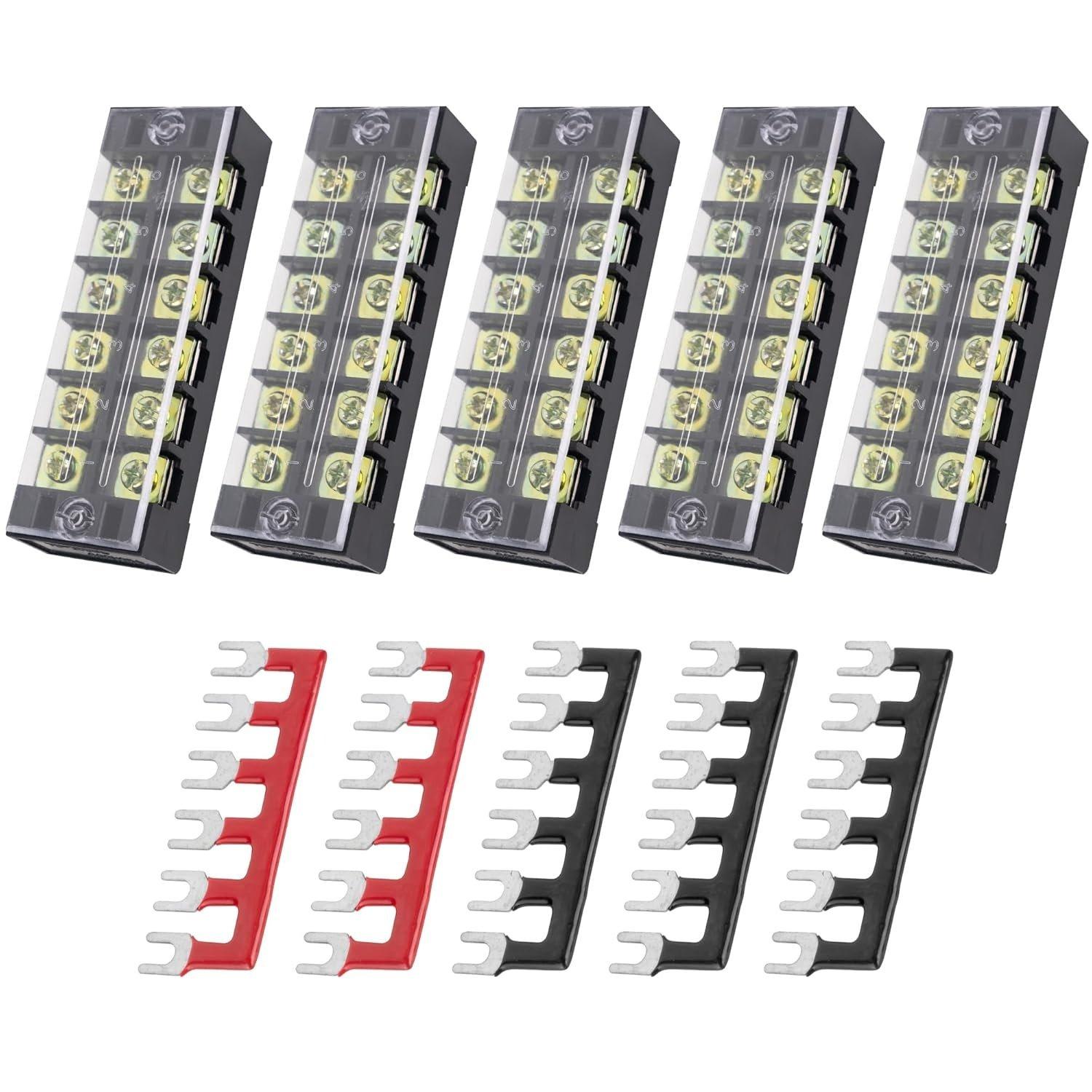

[Lifetime Warranty] 6 Positions Terminal Strip Blocks 600V 25A and 400V 25A 6 Positions Pre-Insulated Terminals Barrier Strip

6 Positions Terminal Strip Blocks 600V 25A and 400V 25A 6 Positions Pre-Insulated Terminals Barrier Strip

Key Features

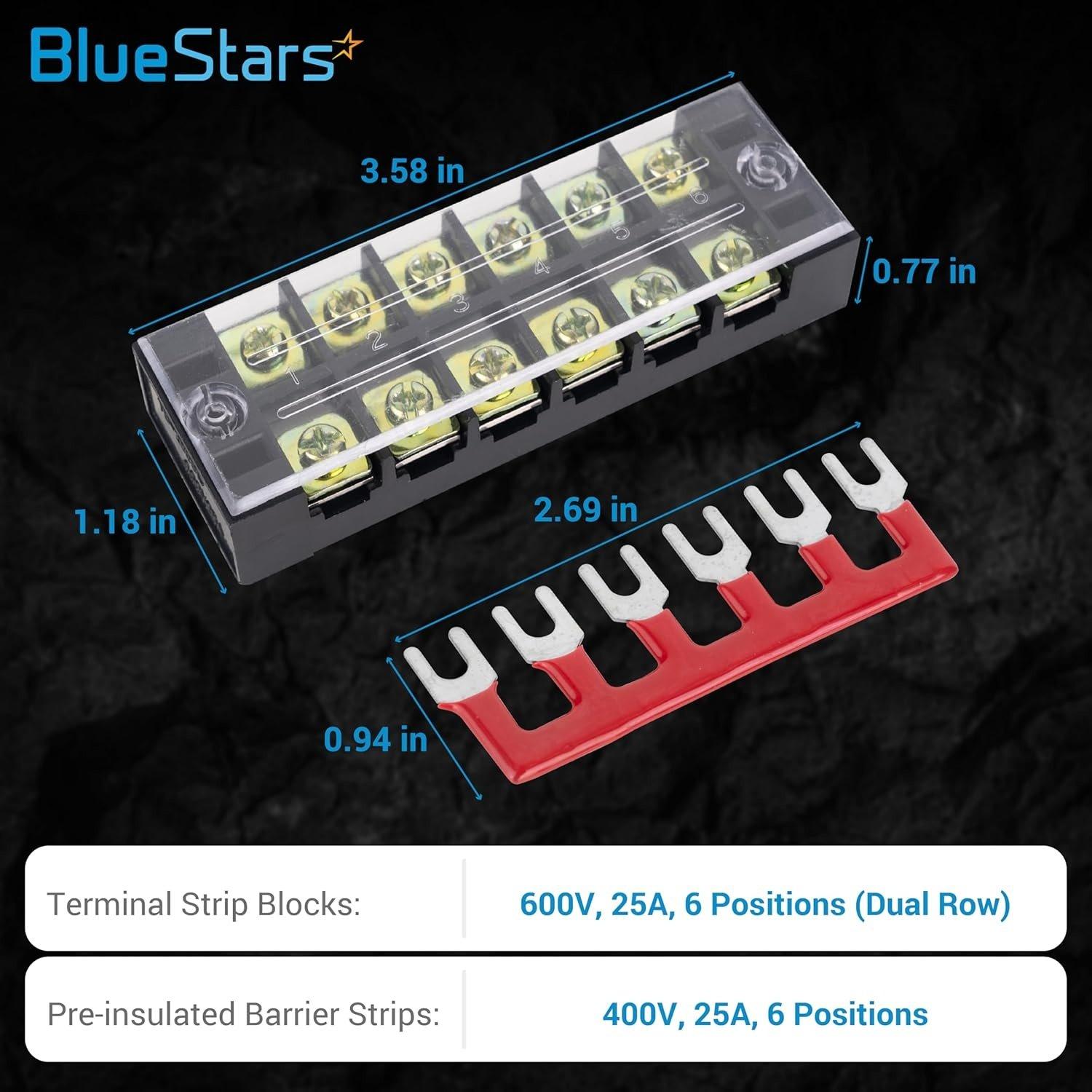

• Terminal Block Rating: 600V, 25A
• Barrier Strip Rating: 400V, 25A
• Configuration: Dual row, 6 positions per block and strip
• Terminals: Screw-type for secure wire connections

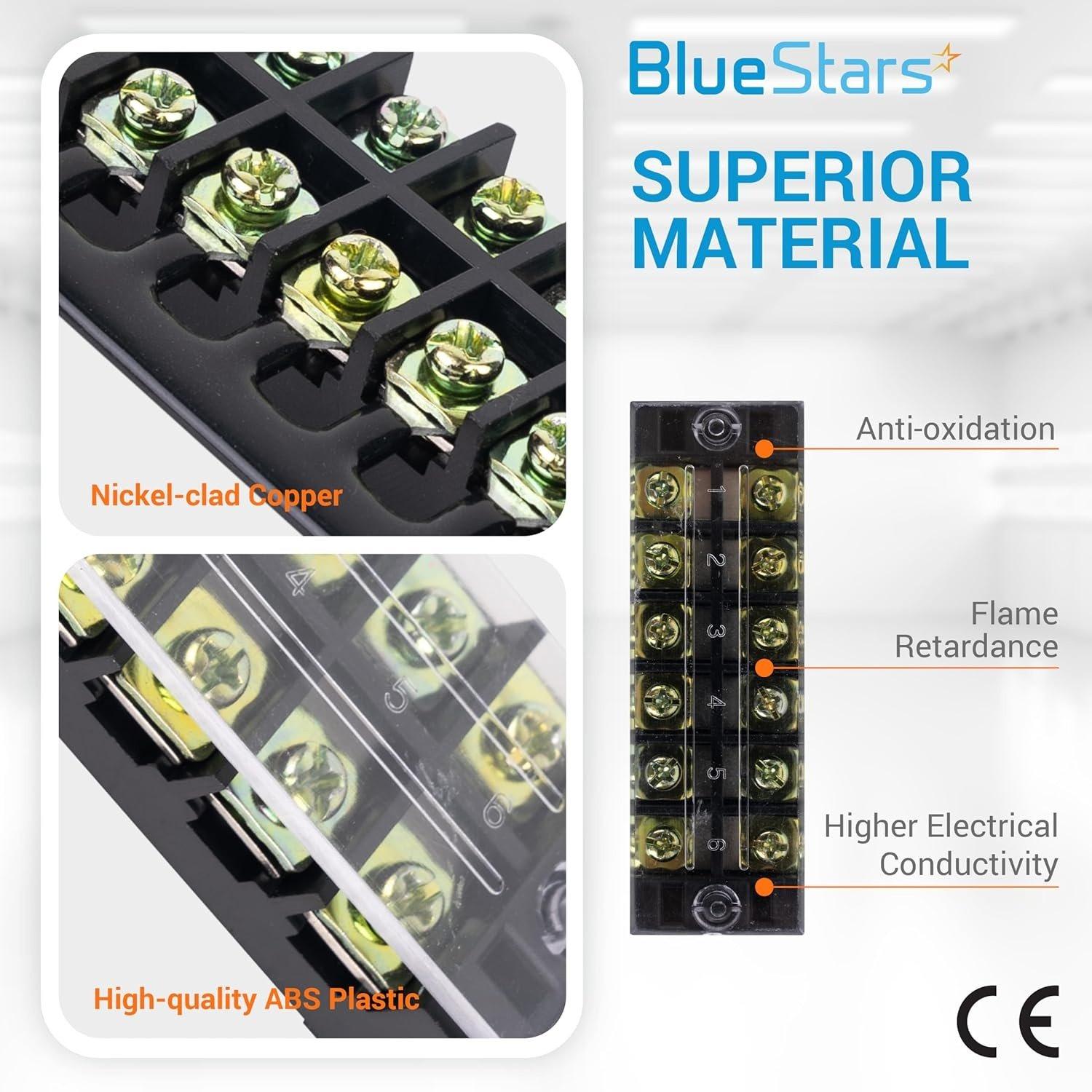

• Construction: Insulated housing with conductive metal terminals

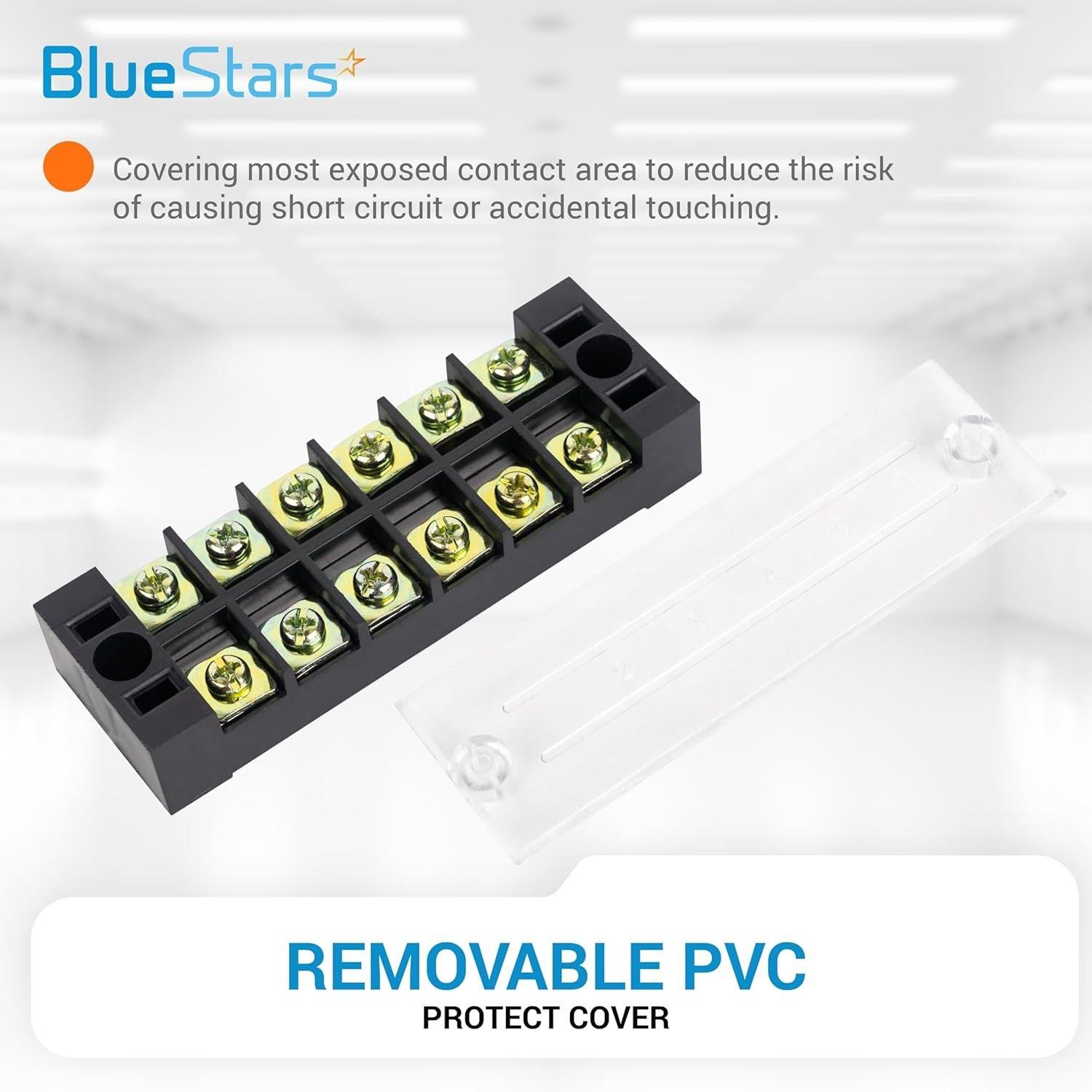

• Includes a removable, transparent plastic insulating cover for protection
• Barrier strips are pre-insulated for direct installation

Replaces / Cross-Reference Part Numbers

• Serves as a functional equivalent for 6-position screw terminal blocks and barrier strips with matching 600V/25A and 400V/25A electrical ratings.
• Suitable for replacing damaged or outdated terminal blocks in various electrical systems.

Compatibility & Fitment

• Designed for joining or distributing power for multiple circuits.
• Accepts a typical wire range of 22-12 AWG.

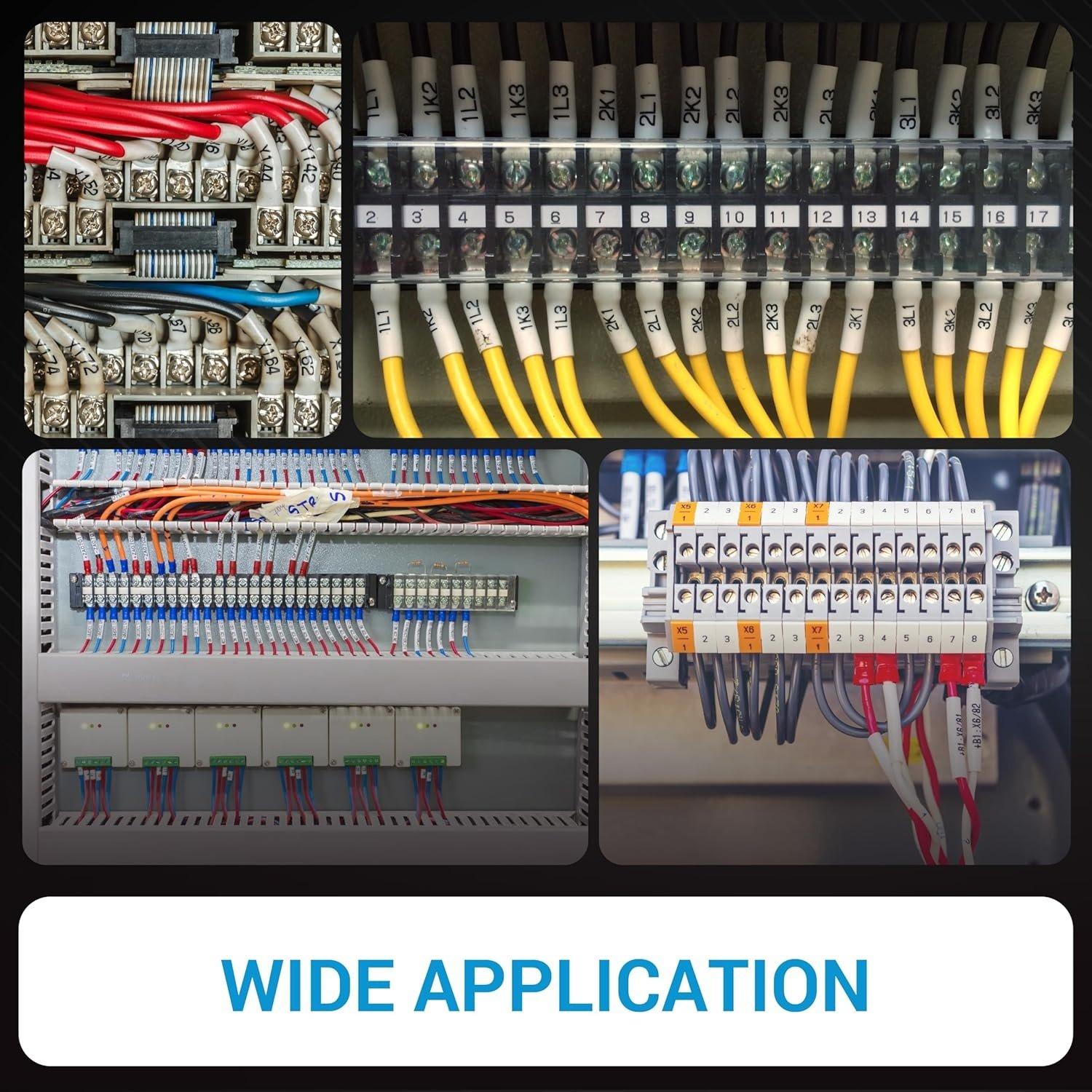

• Applicable in home electrical wiring, circuit boards, marine terminals, industrial controls, and automotive applications.
• Allows for the easy disconnection of a wiring branch without disrupting the entire system.

When to Replace

• Visible signs of heat damage, such as discoloration or melted plastic.
• Cracks or physical damage to the insulating base or cover.
• Stripped screw heads or threads preventing a secure connection.
• Corrosion on terminals causing intermittent or failed connections.

Installation Tips

• Always disconnect power from the circuit before installation or service.
• Strip wire insulation to the appropriate length, ensuring no bare wire is exposed beyond the terminal block once installed.
• Insert the wire fully into the terminal before tightening the screw.
• Use a correctly sized screwdriver and tighten screws to a firm torque without over-tightening.
• Confirm each connection is secure by gently pulling on the wire.
• Place the insulating cover over the terminals after wiring is complete.
