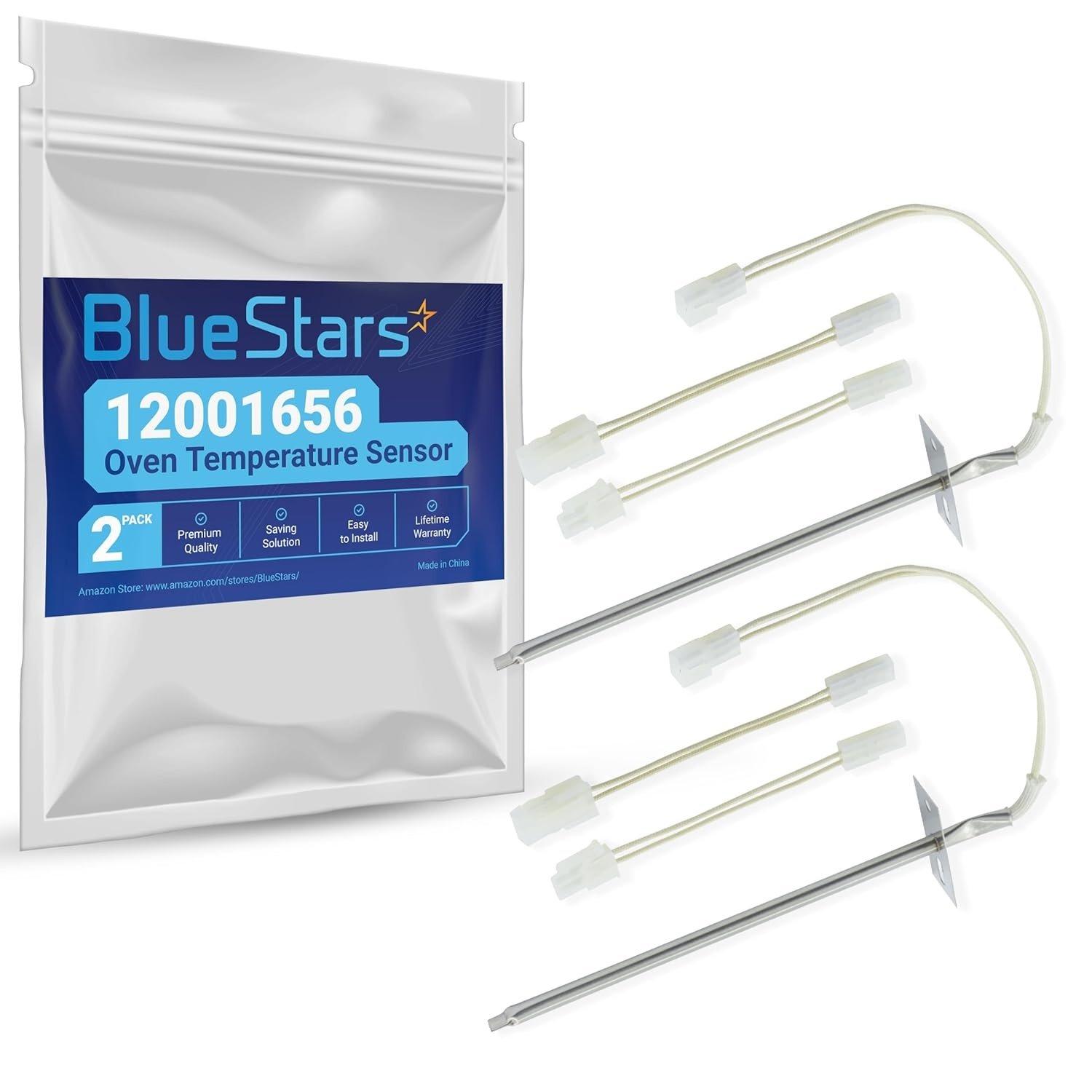

[Lifetime Warranty] 12001656 Oven Temperature Sensor - Pack of 2

12001656 Oven Temperature Sensor Part

Key Features

• Monitors internal oven temperature for accurate heat control.

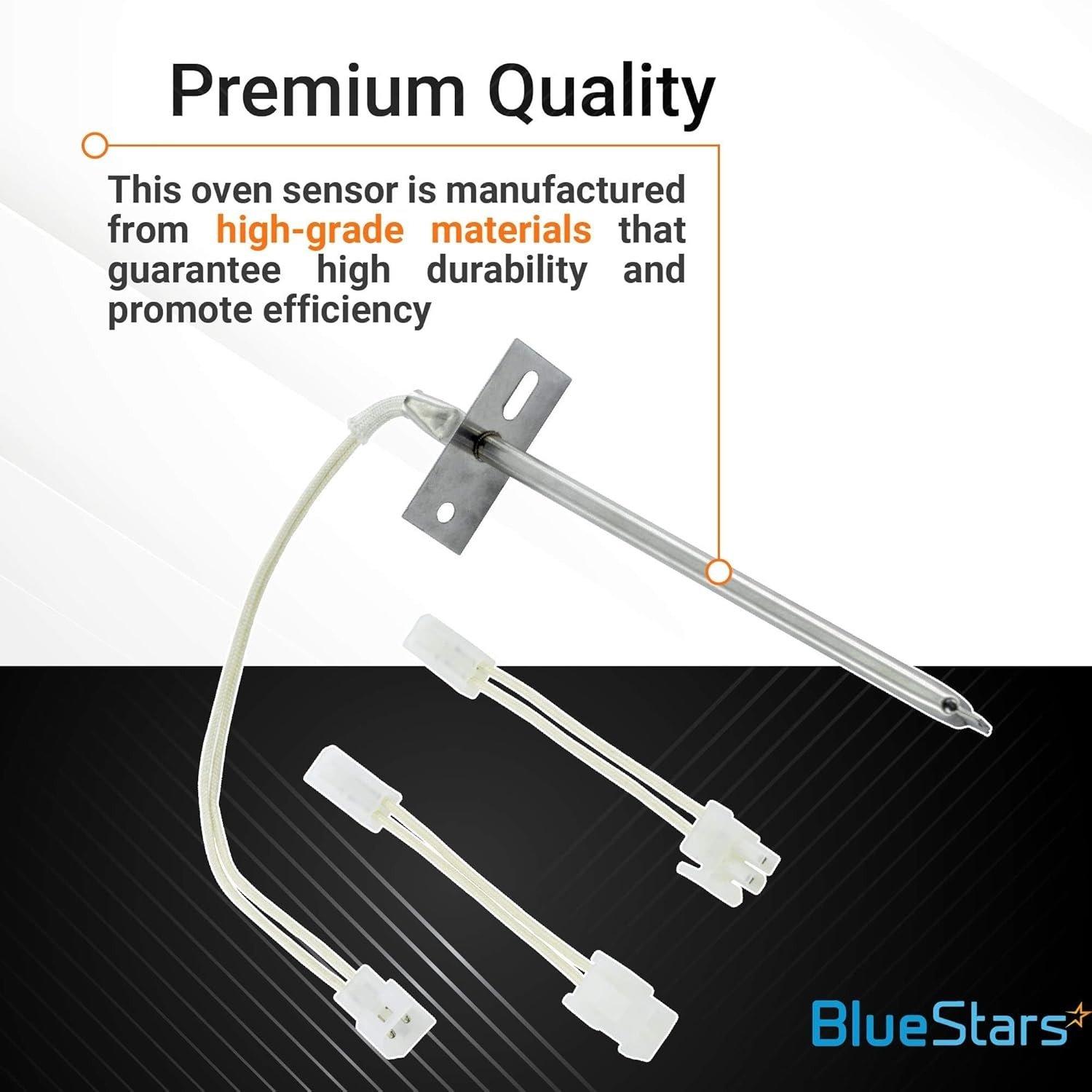

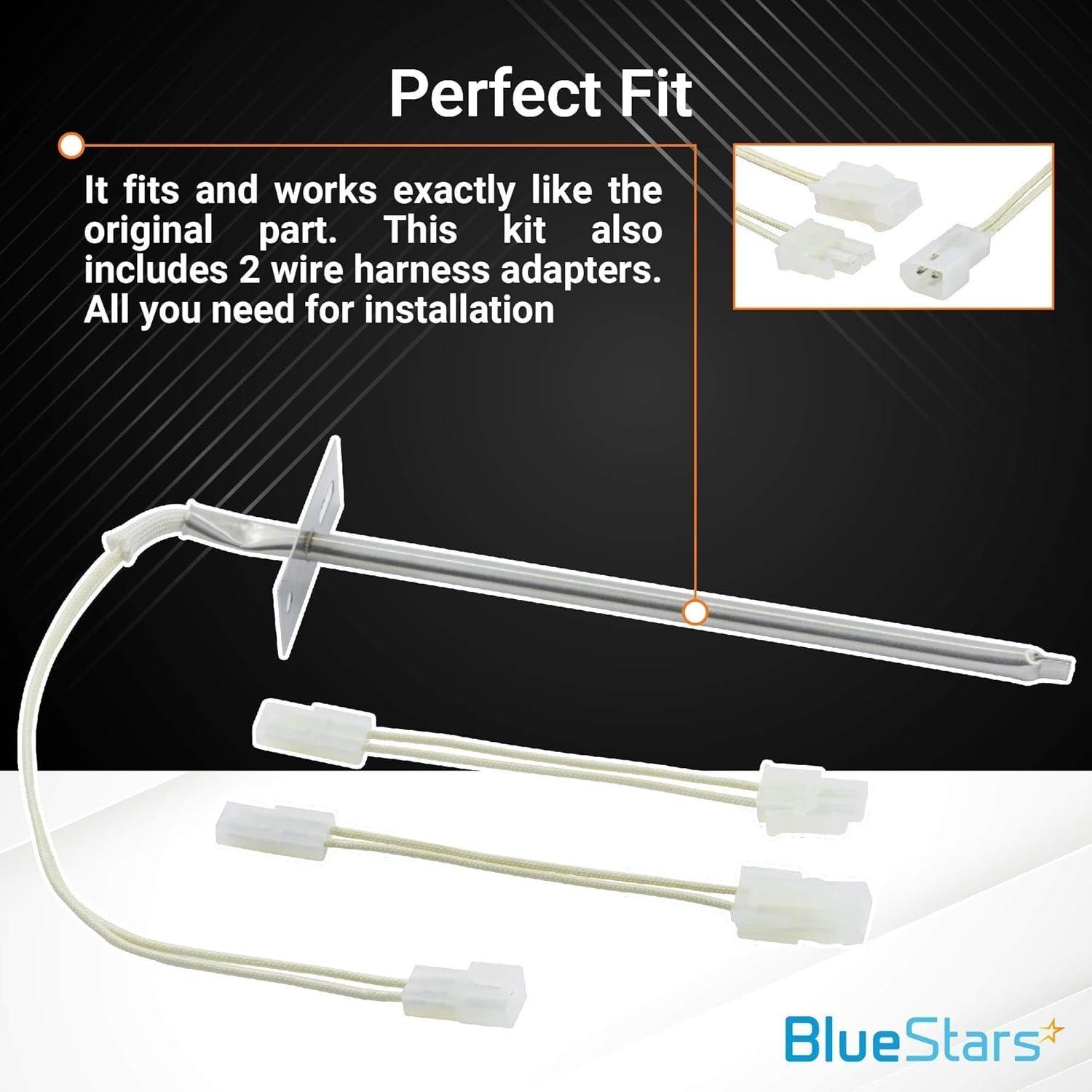

• Kit includes the sensor probe and two wire harness adapters for broad compatibility.
• Probe length measures 6 inches from tip to mounting bracket.
• Overall assembly length is approximately 7.125 inches.

Replaces / Cross-Reference Part Numbers

• 12001656
• AP4009009
• PS1570174
• 74004943
• 12001554

Compatibility & Fitment

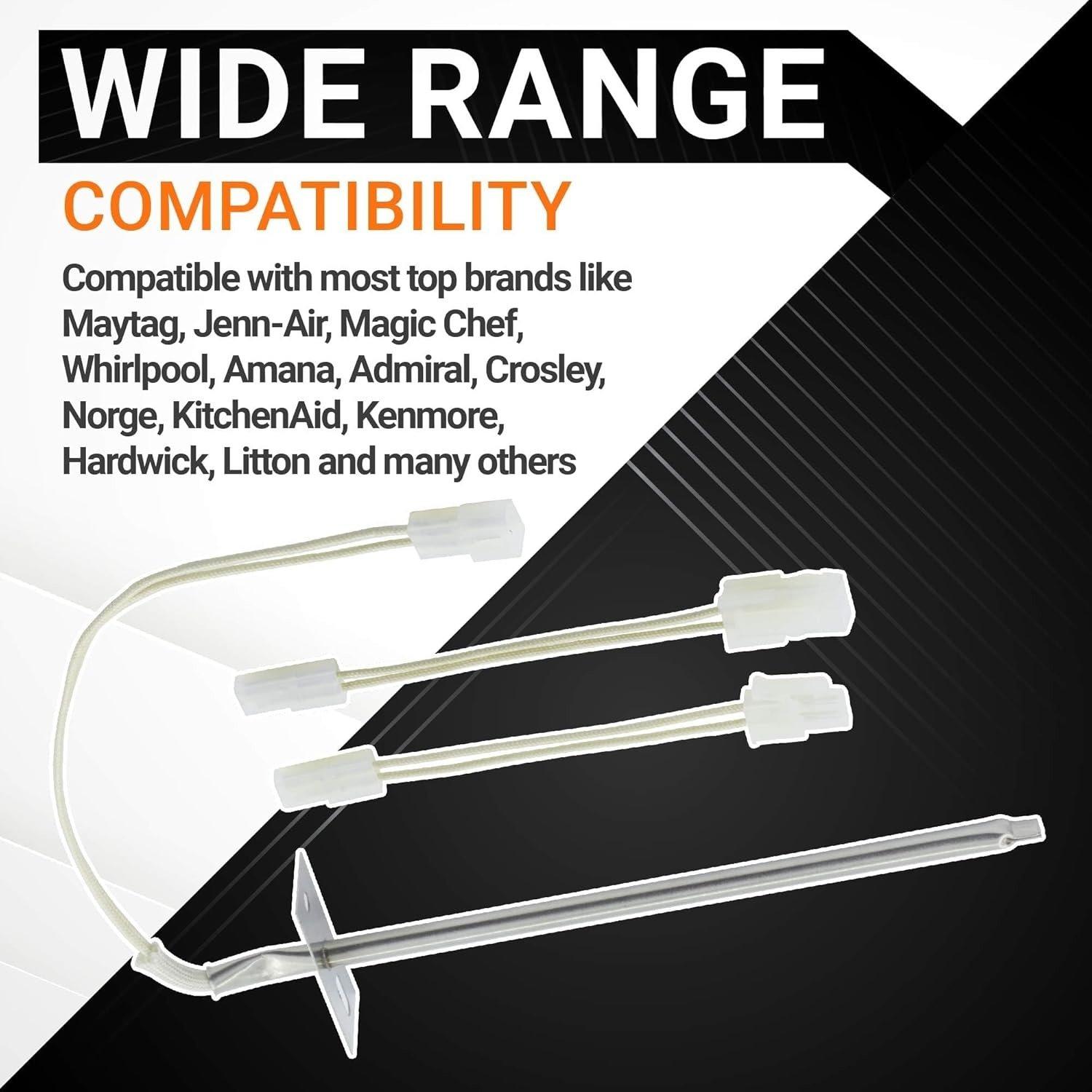

• Designed for use with various oven and range models from brands including Whirlpool, Kenmore, Maytag, and GE.
• Verify compatibility by checking your appliance's original part number.

When to Replace

• Oven temperature is inaccurate or fluctuates.
• Oven fails to heat, overheats, or heats unevenly.
• The appliance displays a temperature sensor-related error code.
• Food is consistently undercooked or burnt.

Installation Tips

• Disconnect the appliance from its power source before servicing.
• The sensor is typically mounted inside the oven cavity on the rear wall.
• Use the appropriate wire harness adapter to match your oven's connector.
• Retain original mounting screws for reinstallation.
