[Lifetime Warranty] W10112253 Mixer Worm Gear - Pack of 2

W10112253 Mixer Worm Gear - Pack of 2

Key Features

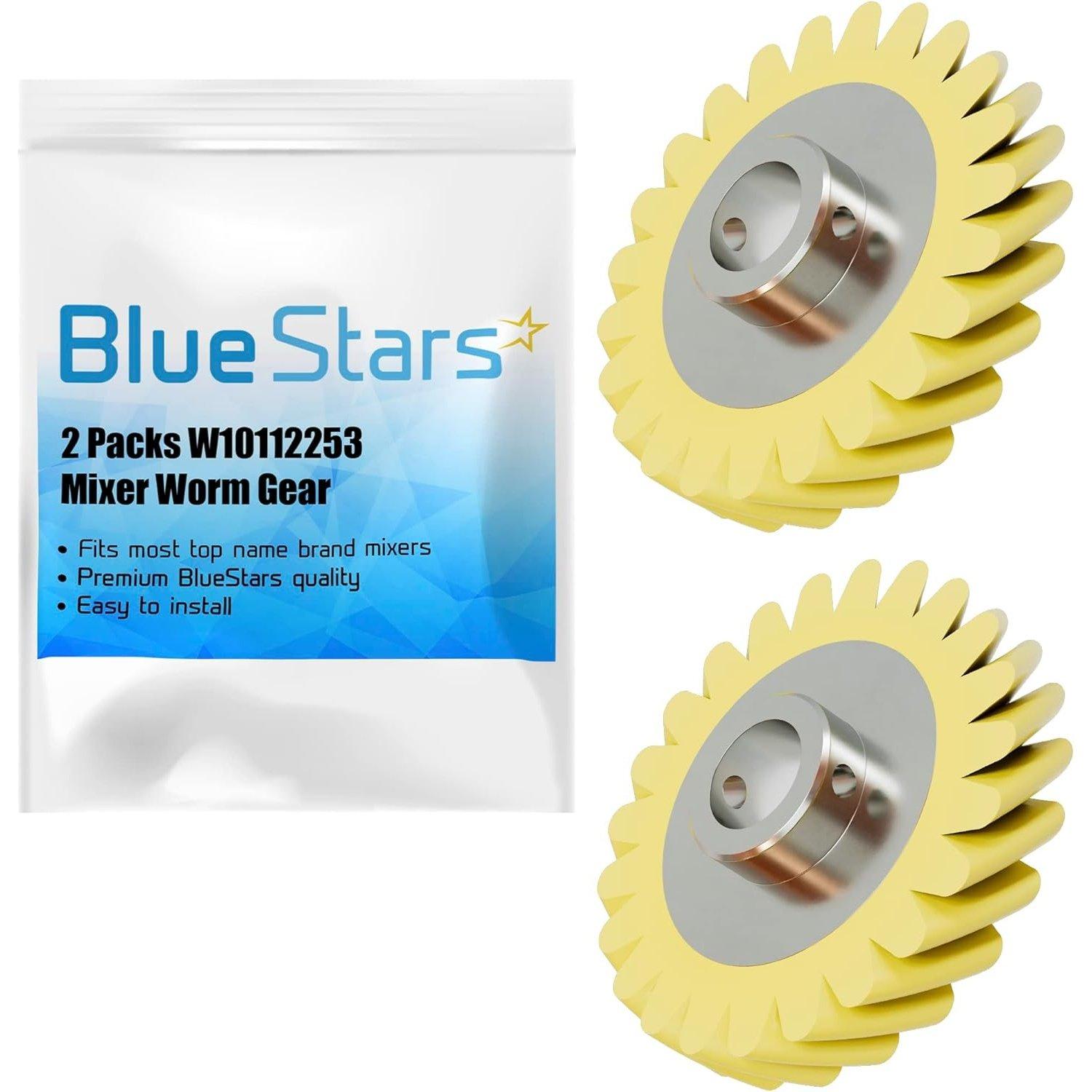

• Includes two (2) worm gears.
• Designed to be a failure point to protect the motor from damage under heavy loads.

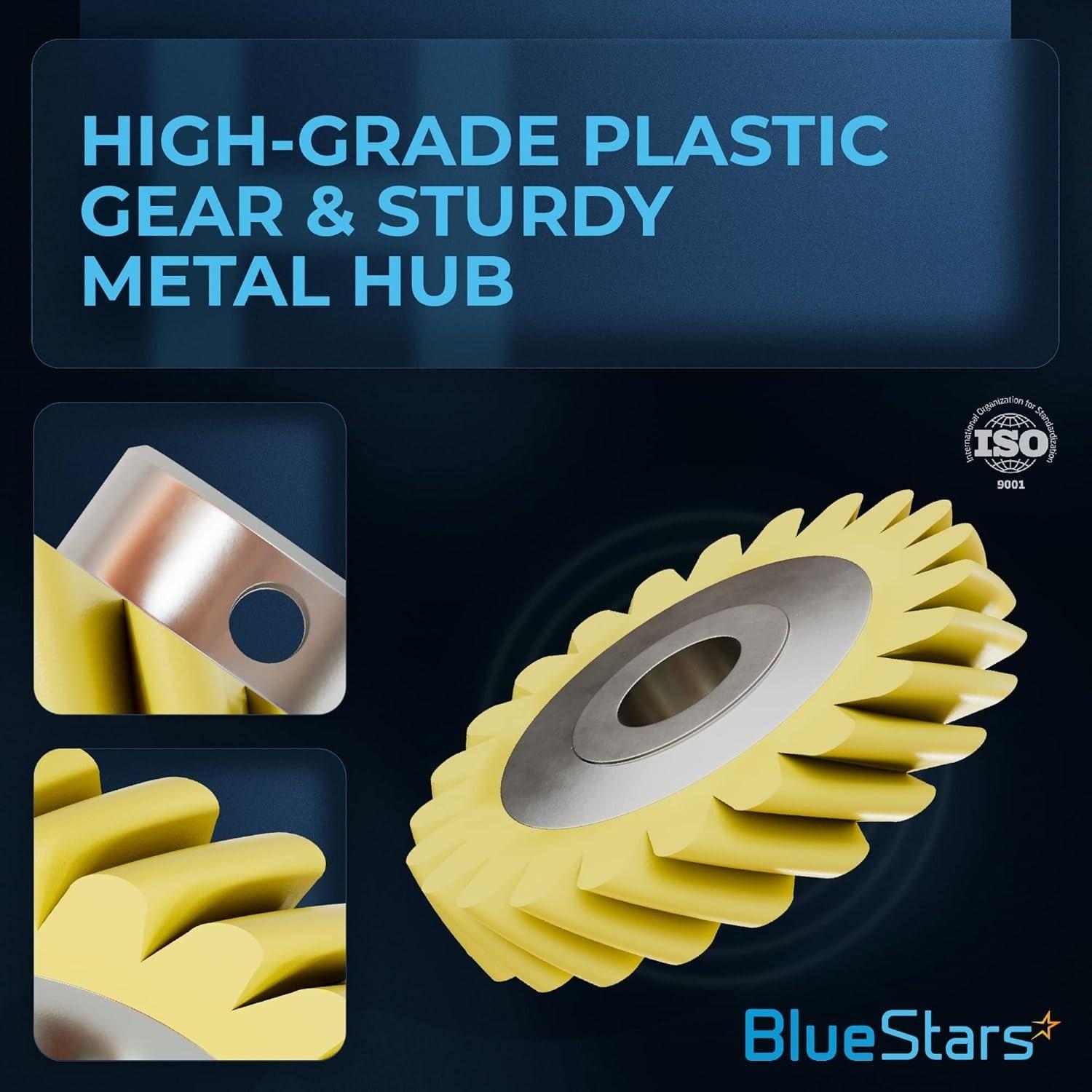

• Constructed from a durable nylon composite material.
• Direct replacement for specified OEM parts.

Replaces / Cross-Reference Part Numbers

• W10112253
• WPW10112253
• 4162897
• 4169830
• 1491159
• AP4295669

Compatibility & Fitment

• Fits specific stand mixer models from brands including KitchenAid, Whirlpool, and Kenmore.
• Commonly compatible with models such as K45SS, K5SS, KP50P, KPM5, KSM150, 5K45SS, and 5K5SS series.

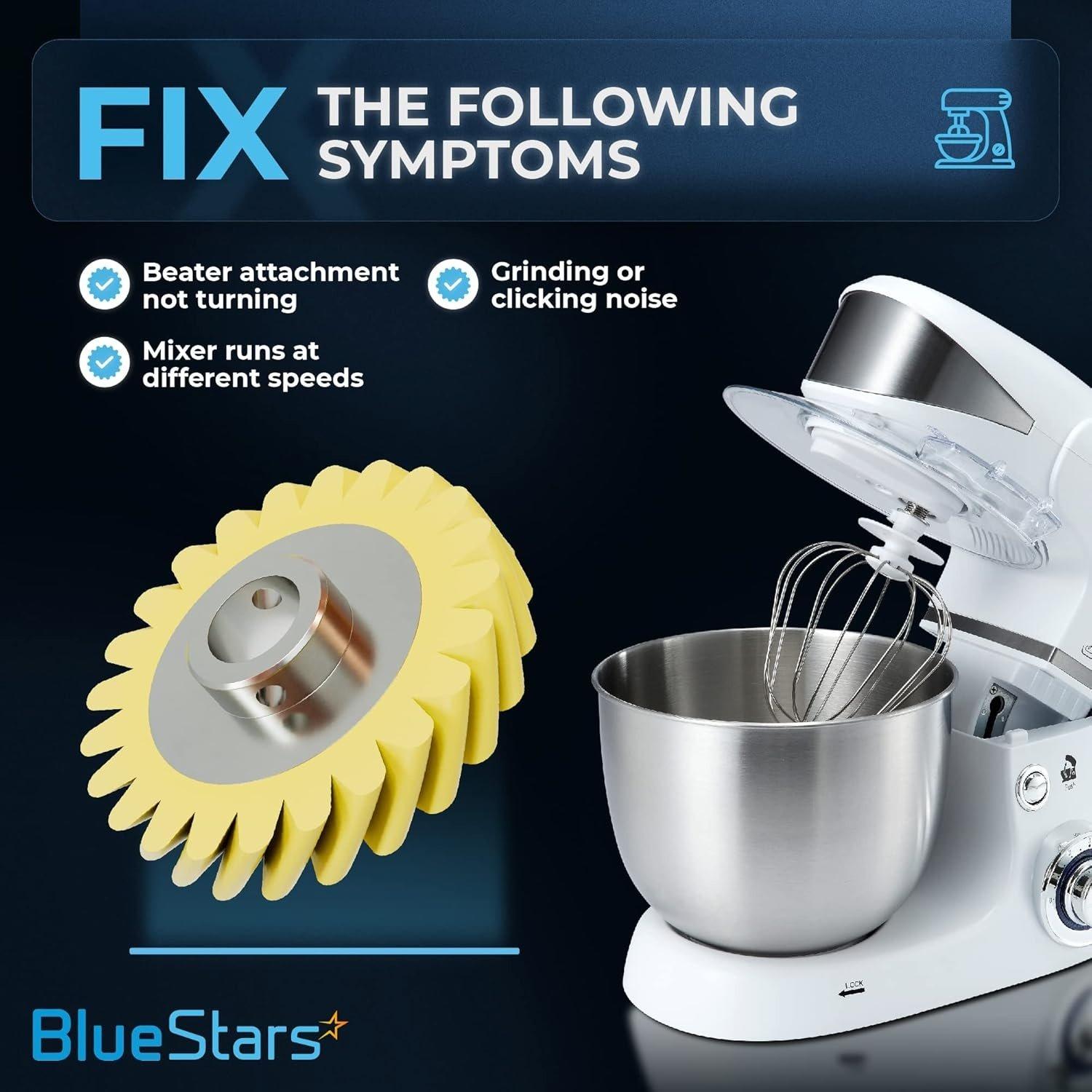

When to Replace

• Mixer motor runs, but the attachments do not spin.
• Loud grinding, clicking, or crunching noises during operation.
• Mixer stops working abruptly, especially under a heavy load.

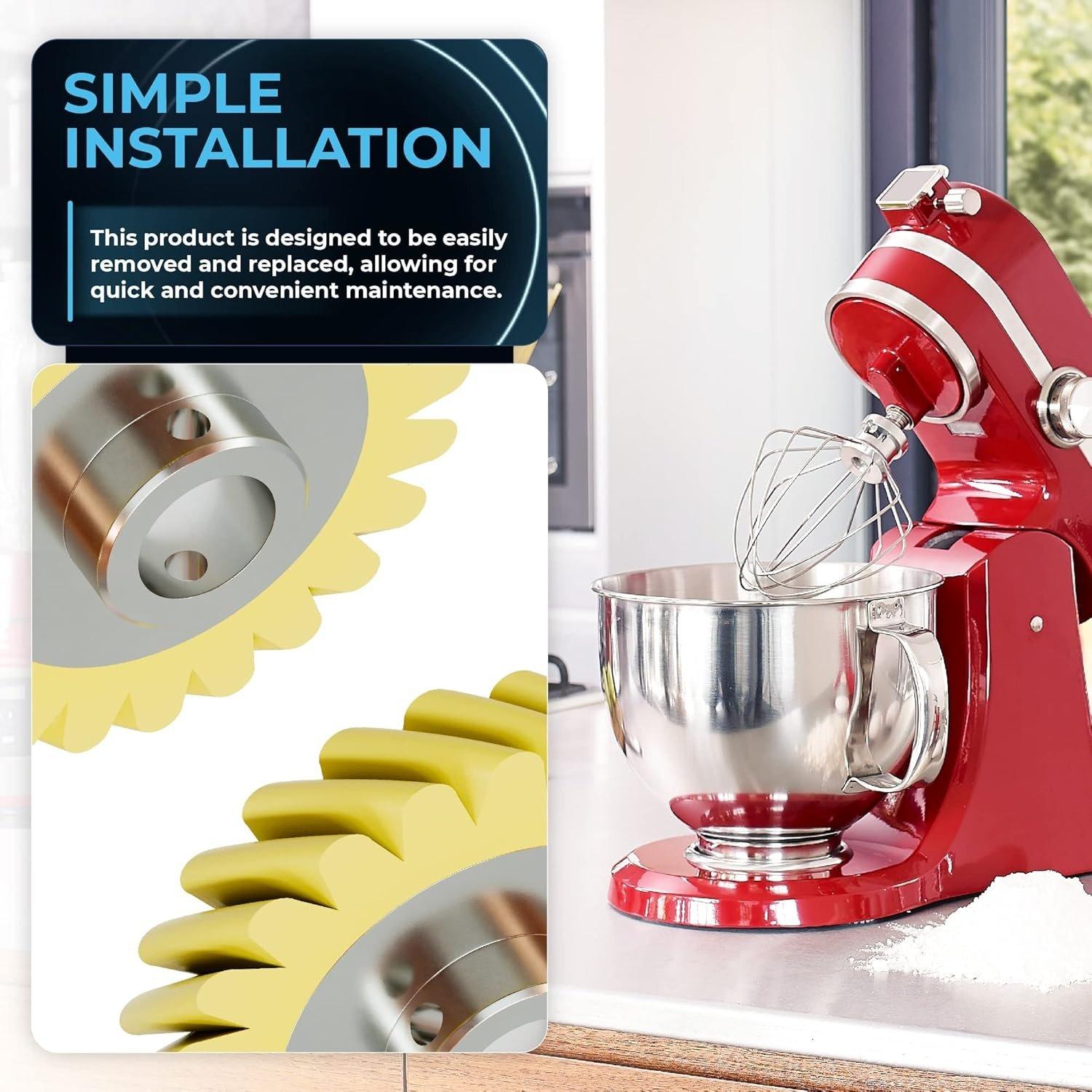

Installation Tips

• Disconnect the appliance from the power source before installation.
• Thoroughly clean all old grease and any metal fragments from the gear housing.
• Apply a liberal amount of new, food-grade gear lubricant to the new gear and housing.
• Ensure the new gear is properly seated and meshes with adjacent gears before reassembly.
