[Lifetime Warranty] 88-108 uF MFD 220-250 VAC Round Motor Start Capacitor 50/60 Hz - Fits AC Motor Run, Fan Start, Heat Pump

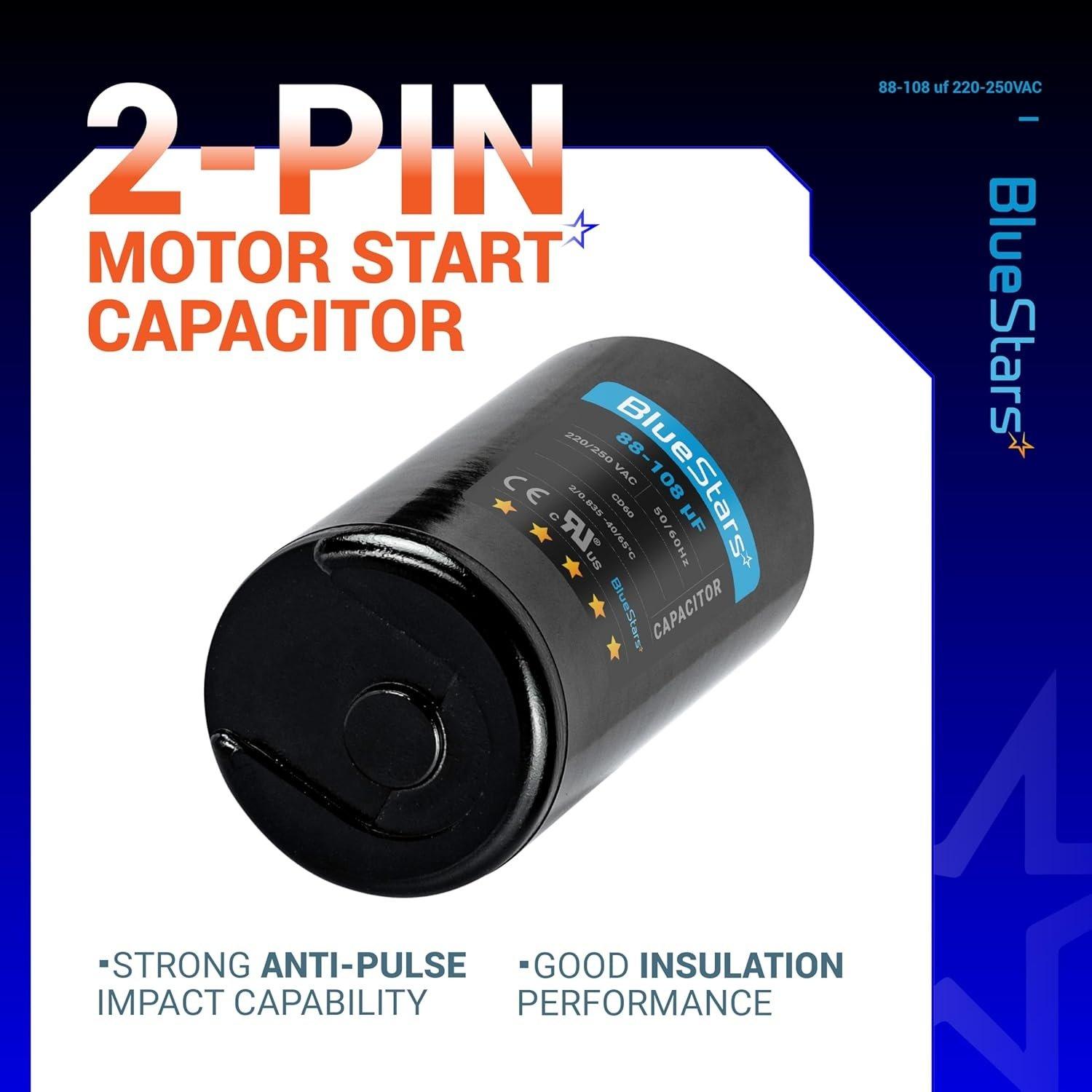

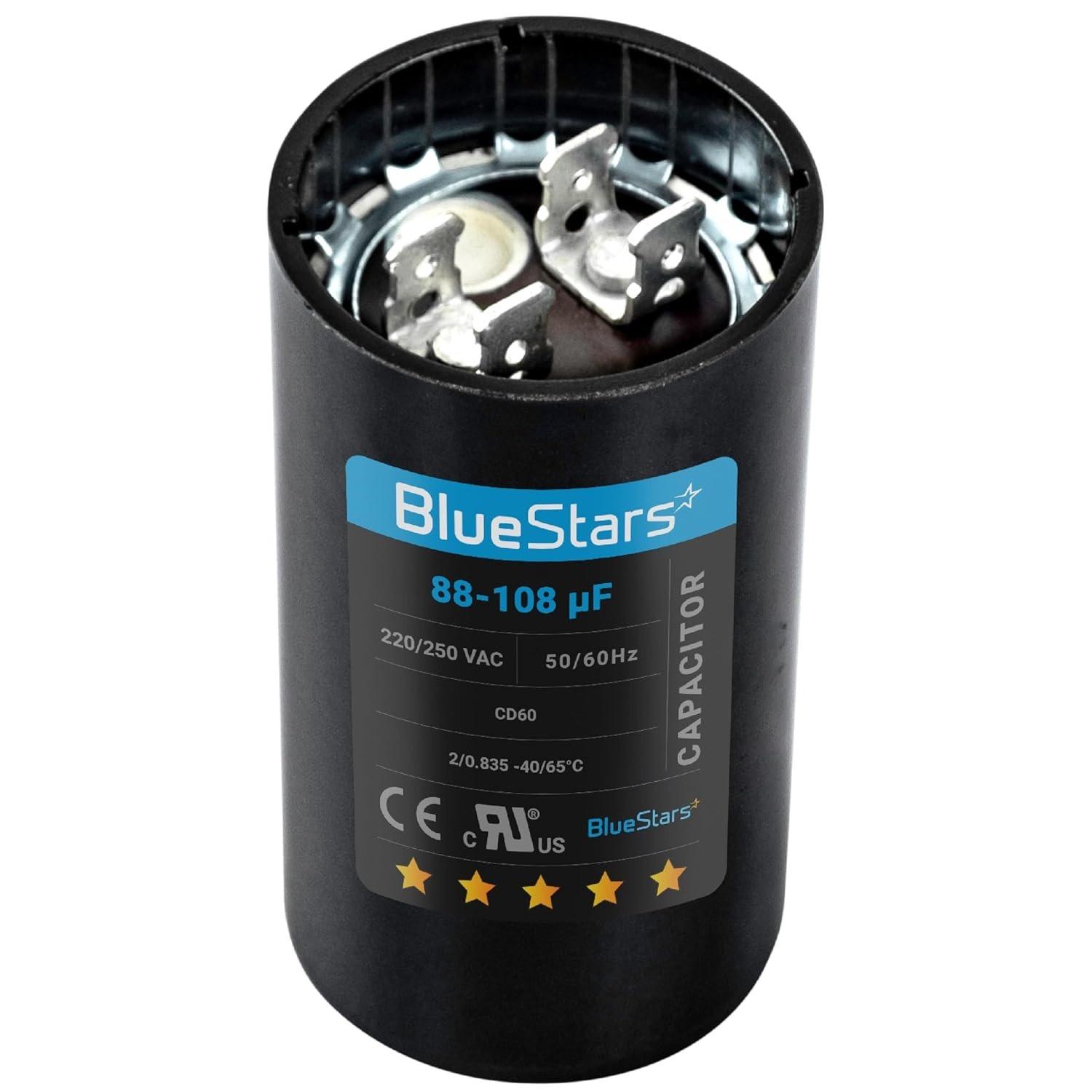

88-108 uF/MFD 220-250 VAC Round Motor Start Capacitor

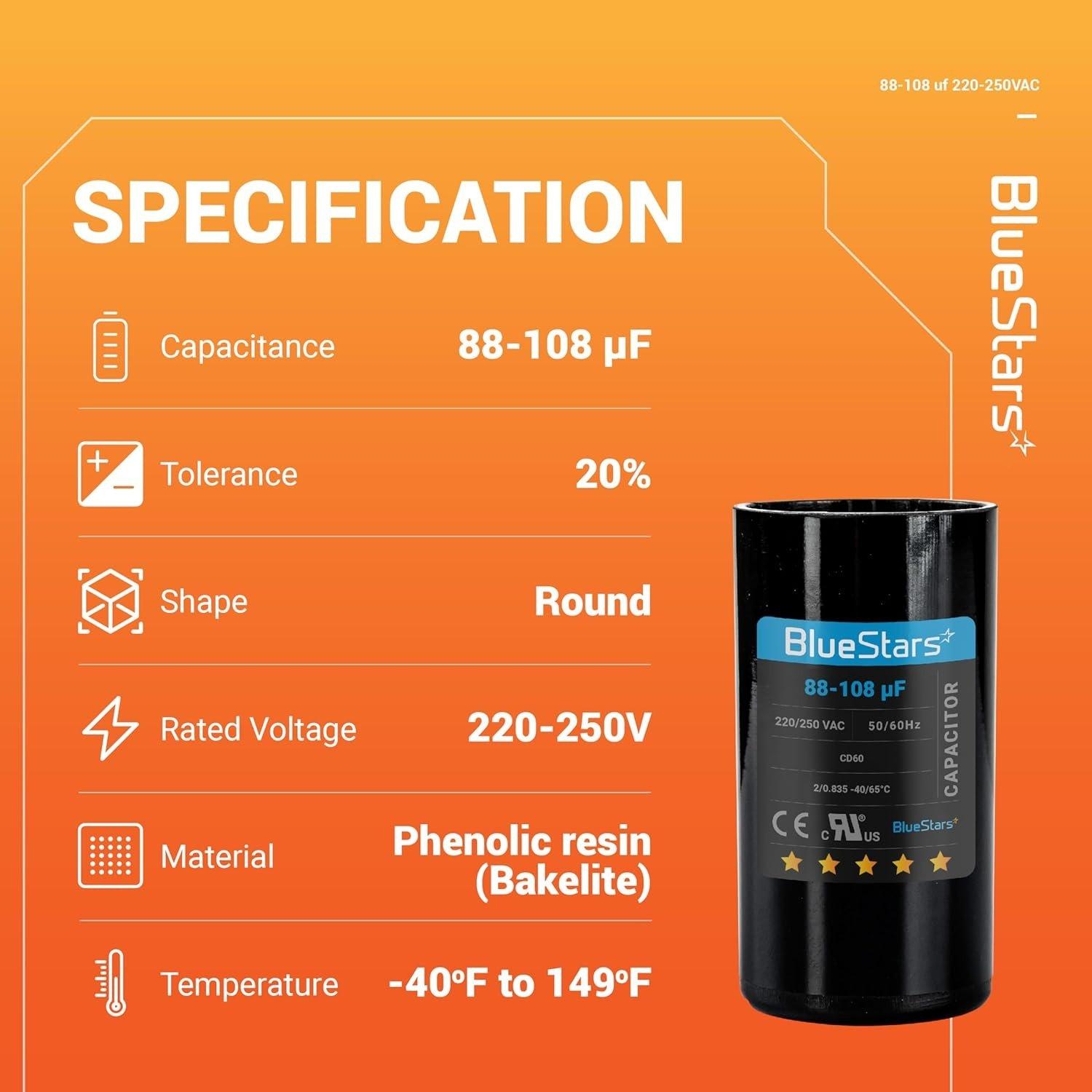

Key Features

• Capacitance: 88-108 Microfarads (uF/MFD)
• Voltage Rating: 220-250 Volts AC (VAC)
• Frequency: 50/60 Hz
• Shape: Round

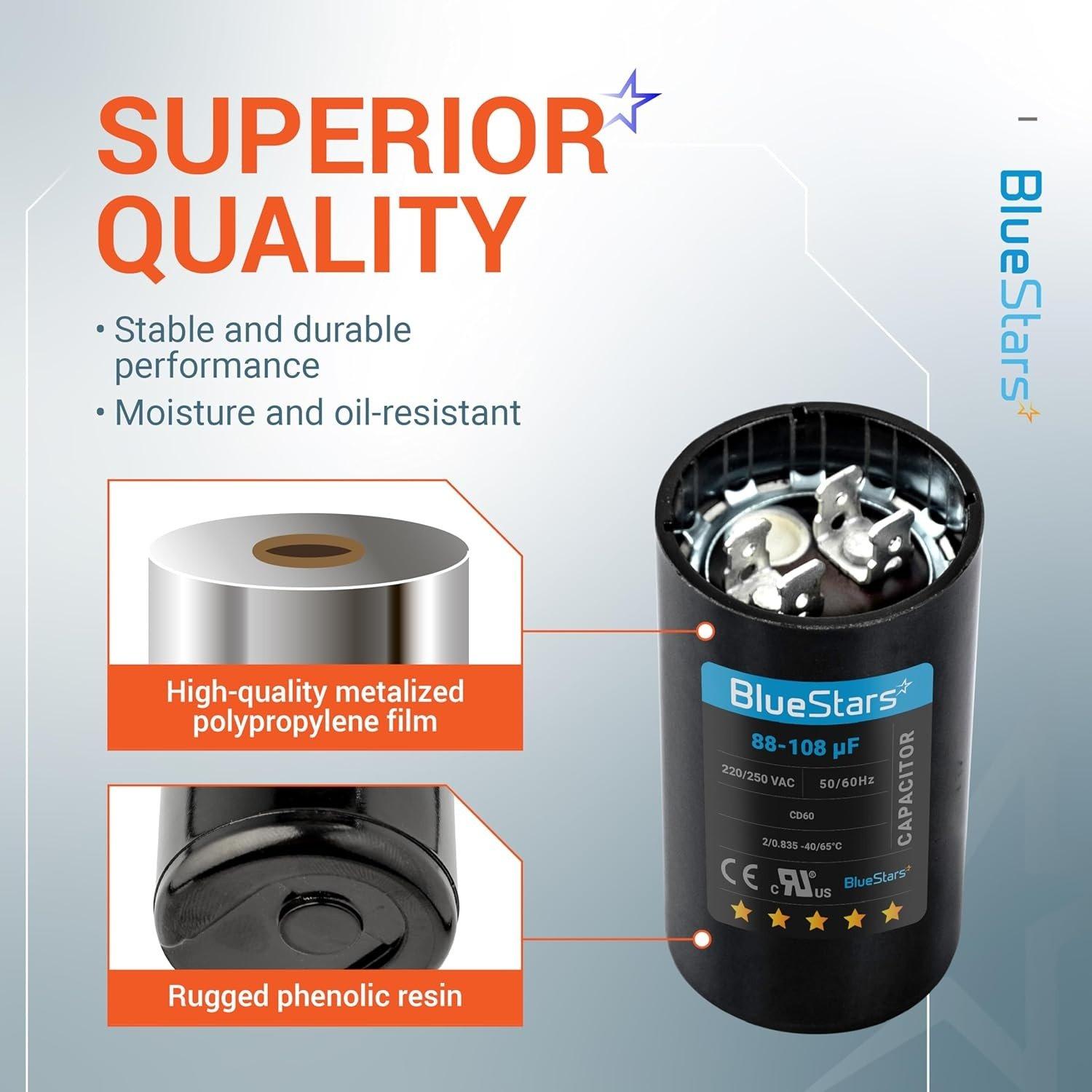

• Case Construction: Moisture and oil-resistant housing
• Terminals: Standard dual blade connectors
• Duty Cycle: Intermittent, designed for motor starting

Replaces / Cross-Reference Part Numbers

• Packard: PTMJ88
• BMI: 092A088B250BD4A
• DiversiTech
• Supco
• Seentech

Compatibility & Fitment

• HVAC blowers and fans
• Air conditioning compressors
• Refrigeration systems

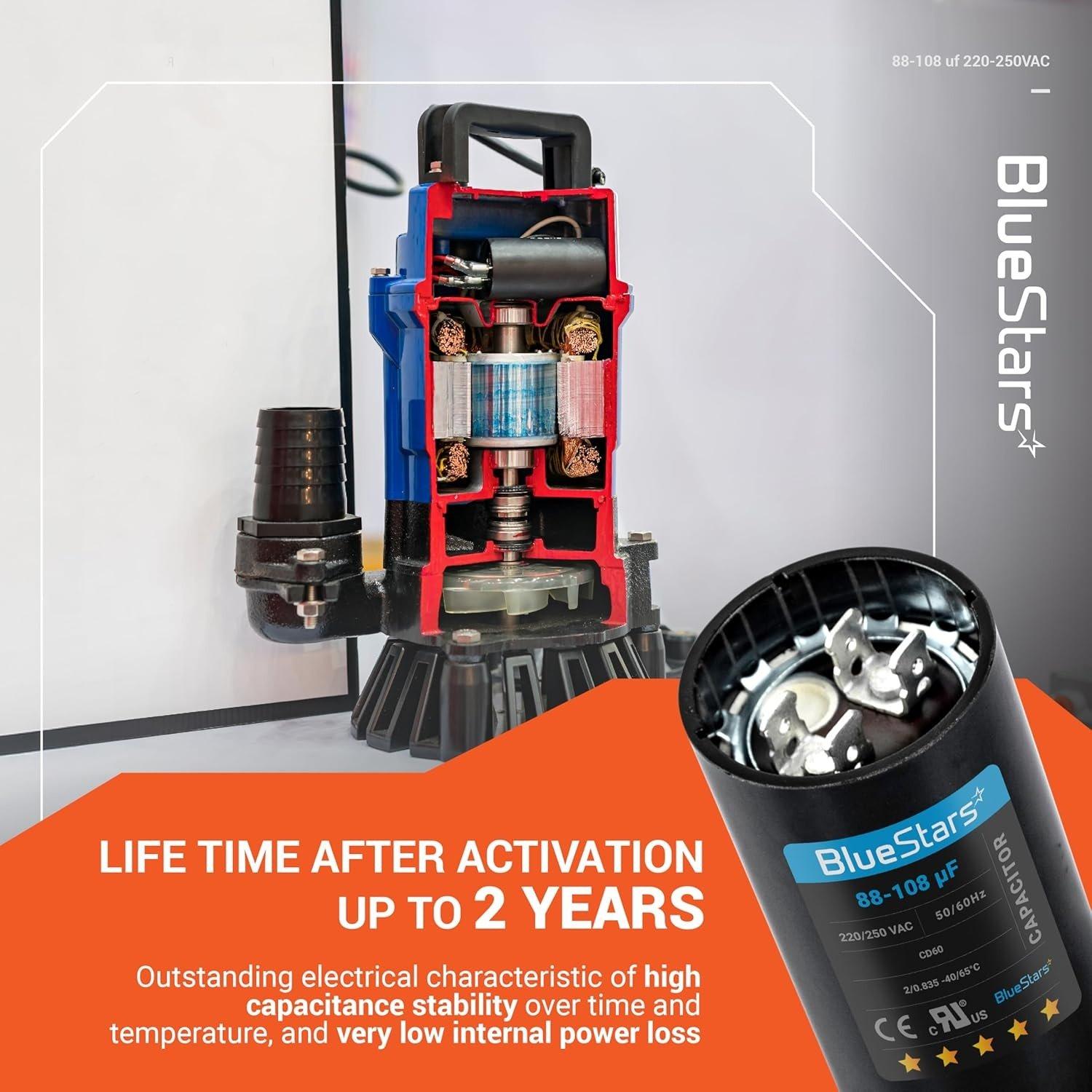

• Well pumps and other water pumps
• Industrial and appliance motors

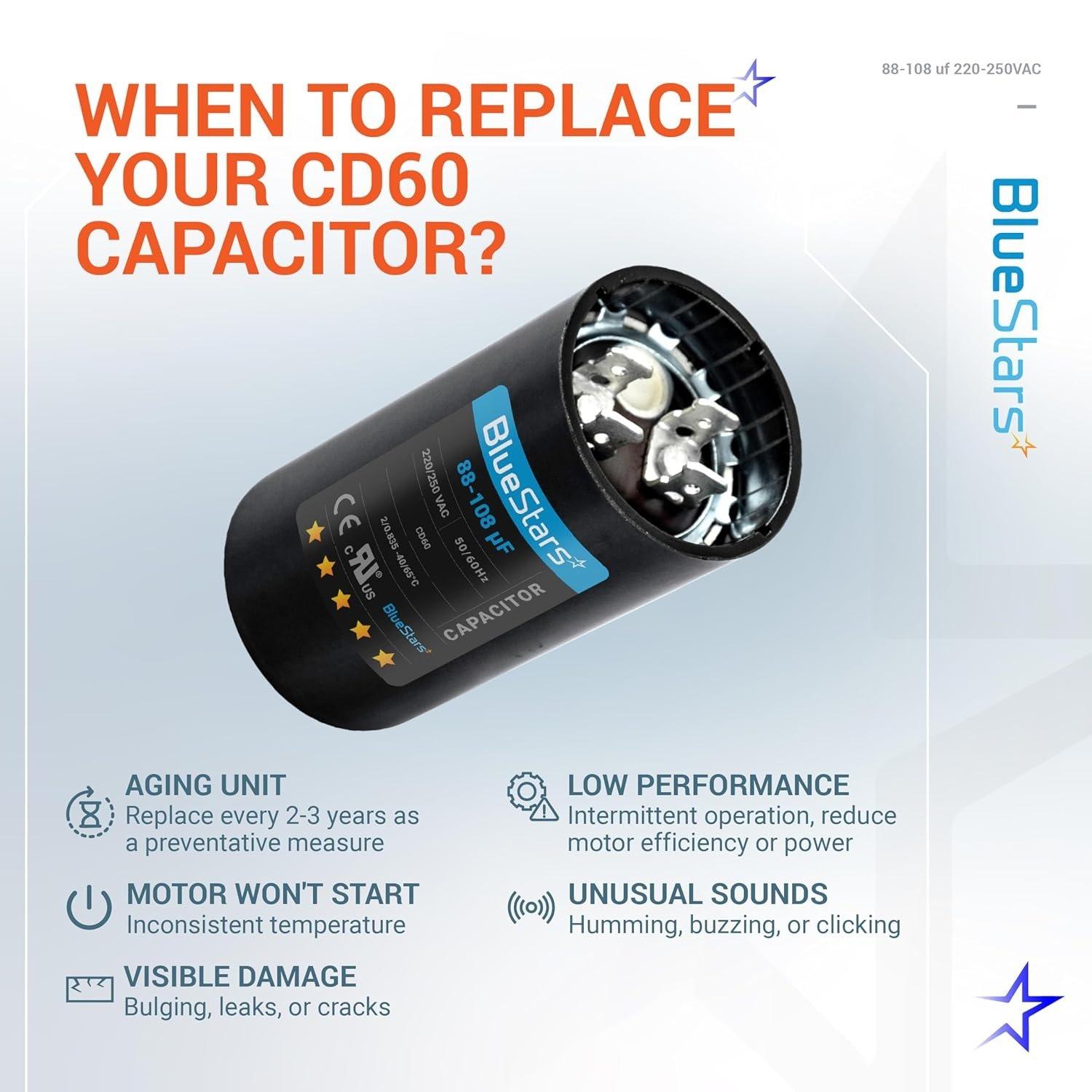

When to Replace

• Motor produces a humming sound but does not start
• Motor starts slowly or requires manual assistance to turn
• Breaker trips when the motor attempts to start
• Visible damage such as bulging, cracking, or leaking fluid from the capacitor case

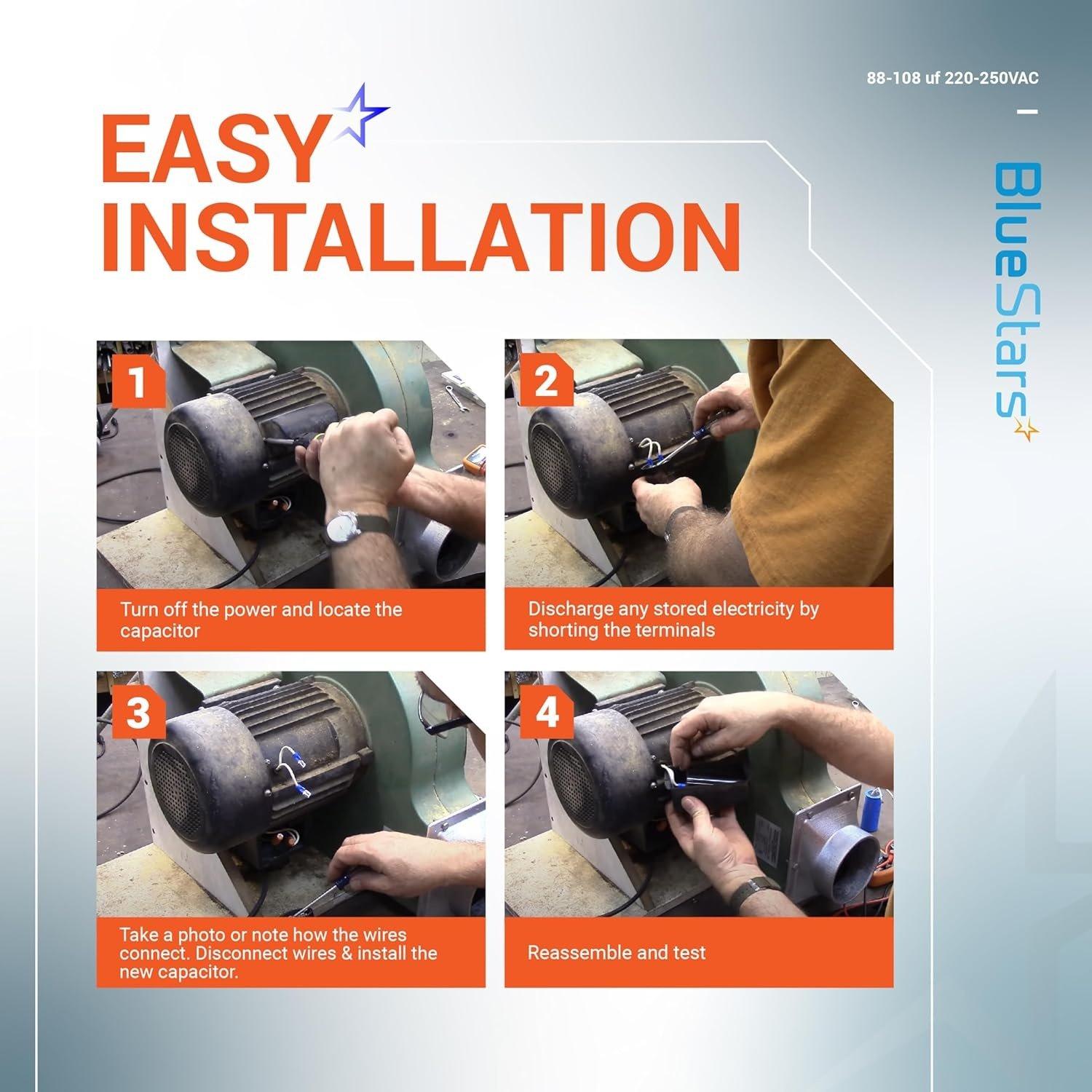

Installation Tips

• Safety Warning:Disconnect all electrical power to the unit before servicing. Capacitors store a dangerous electrical charge.
• Safely discharge the existing capacitor by shorting its terminals with an insulated tool.
• Note the wire connections before removing the old part.

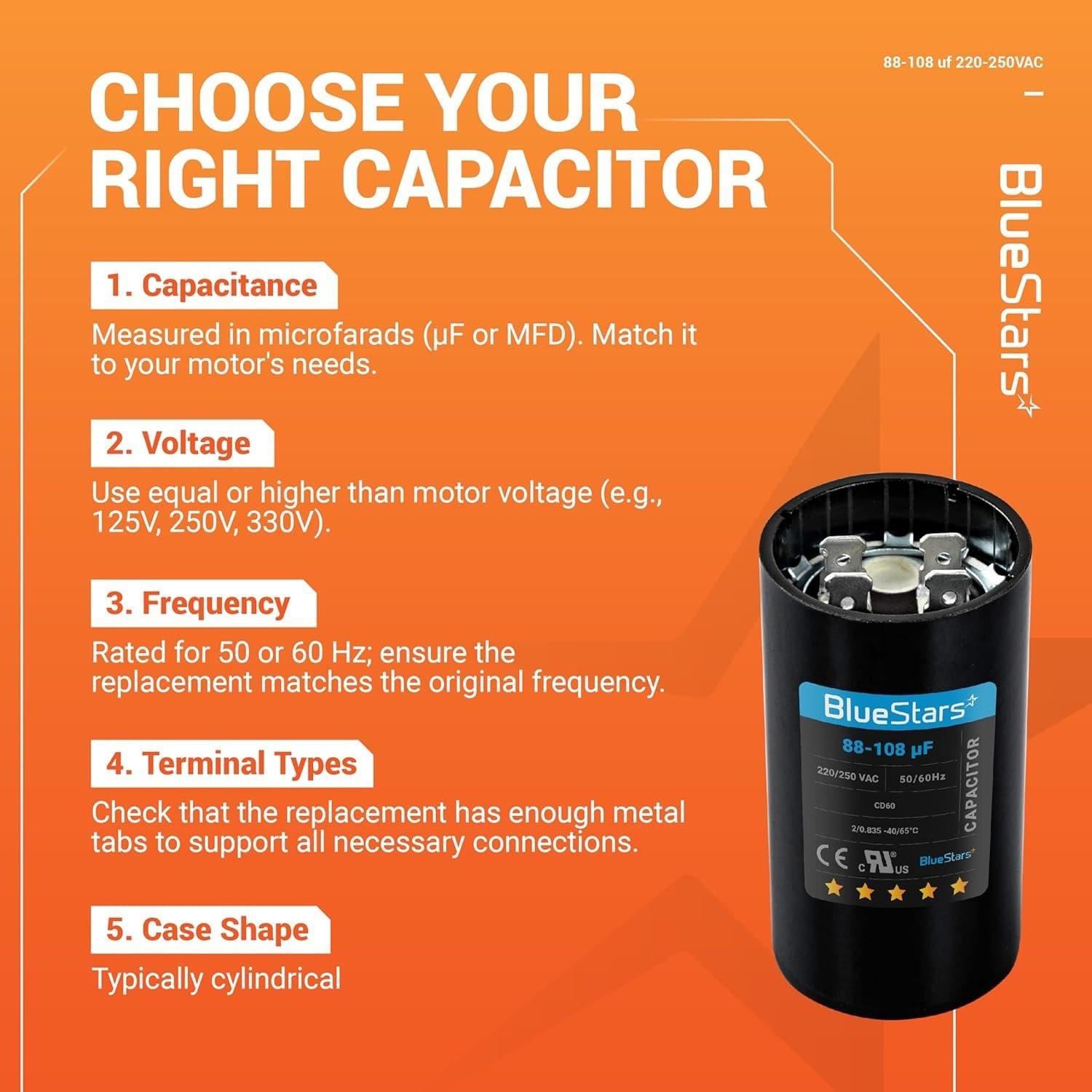

• Confirm the uF and VAC ratings of the new capacitor match the component being replaced. The voltage rating can be equal to or higher than the original, but never lower.
• This AC capacitor is non-polarized; wires can be connected to either terminal.
