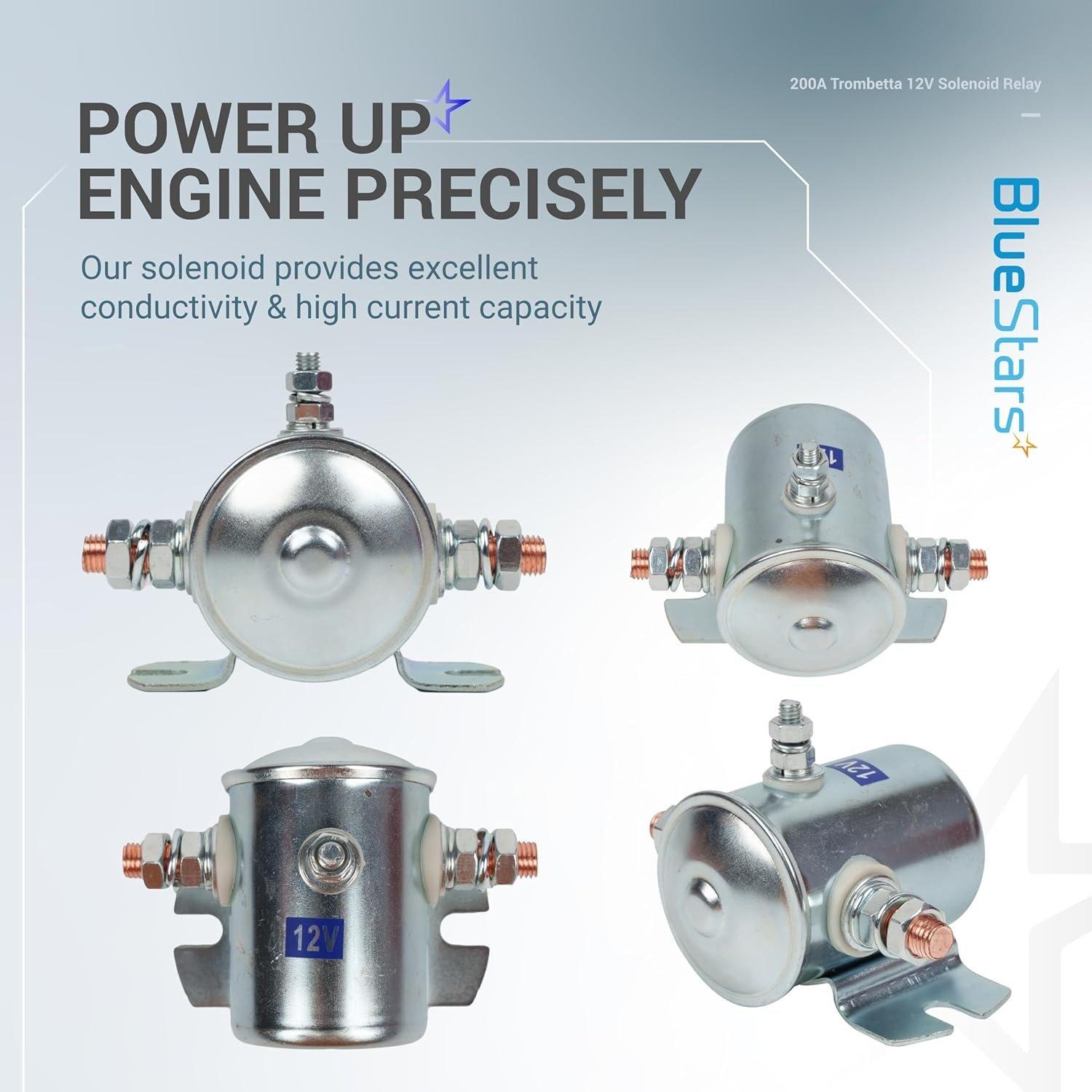

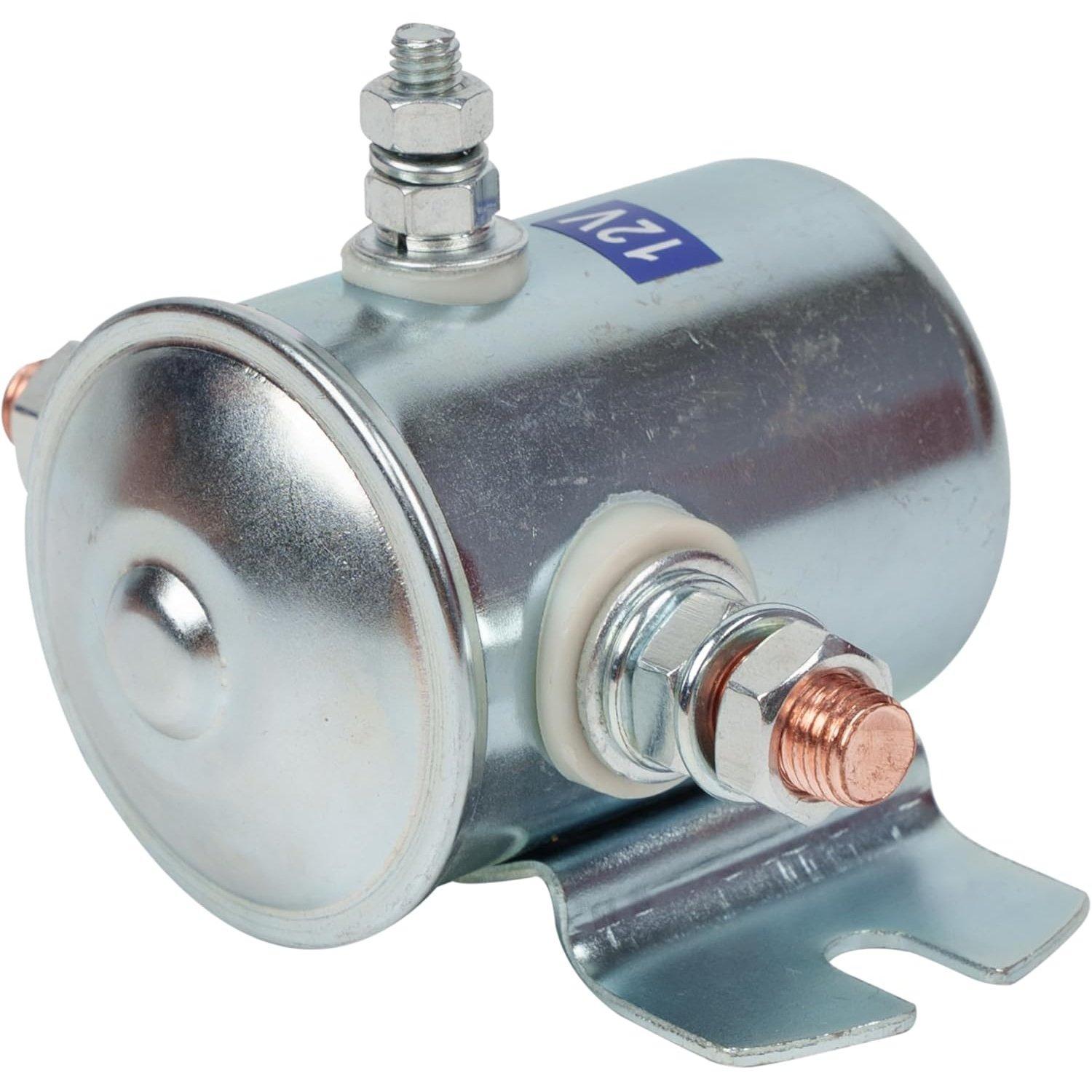

[Lifetime Warranty] 12V Max 200A Trombetta Solenoid 3-Terminal

12V Max 200A Trombetta Solenoid 3-Terminal

Key Features

• Voltage: 12V DC
• Maximum Current: 200A (transient)
• Duty Cycle: Continuous
• Configuration: 3-Terminal, Single Pole Single Throw (SPST)
• Contacts: Normally Open (NO)
• Terminals: 10-32 threaded studs

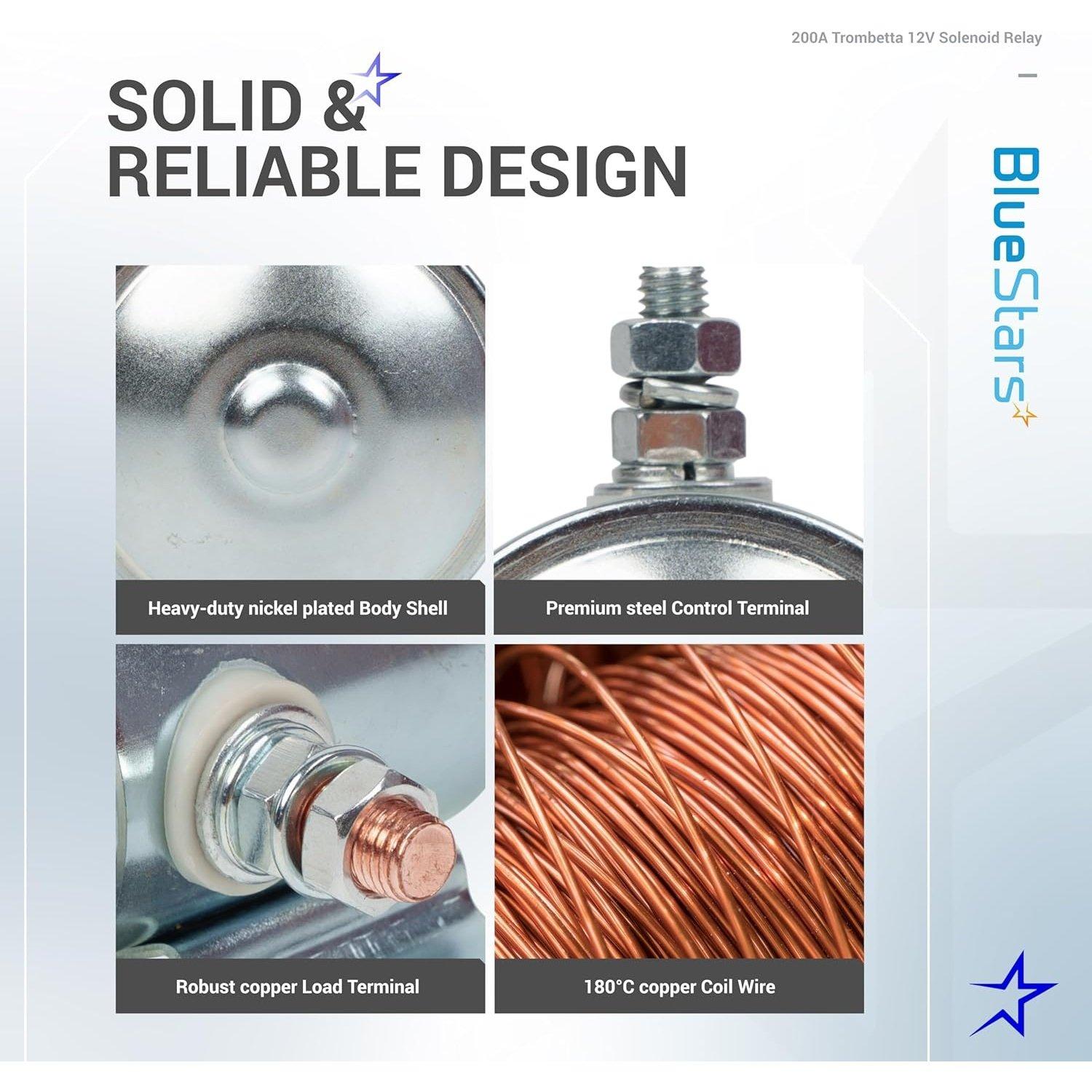

• Housing: Plated steel case with a flat mounting bracket

Replaces / Cross-Reference Part Numbers

• Trombetta: 24106
• Delco: 9341215010
• Littelfuse: 97240-X
• MaySpare: 2136

Compatibility & Fitment

• Commonly used in golf carts, winches, and marine applications.
• Suitable for battery isolation systems and other heavy-duty 12V switching needs.
• Compatible with systems from brands including Maxon and Waltco requiring a matching specification.

When to Replace

• Engine or motor fails to start or engage.
• Audible clicking from the solenoid without power transfer to the starter or motor.
• Intermittent operation of the electrical system it controls.
• Solenoid remains engaged, draining the battery.
• Visible corrosion or damage at the terminals or housing.

Installation Tips

• Disconnect the negative battery terminal before starting installation.
• Clean all cable ends and contact points to ensure a solid electrical connection.

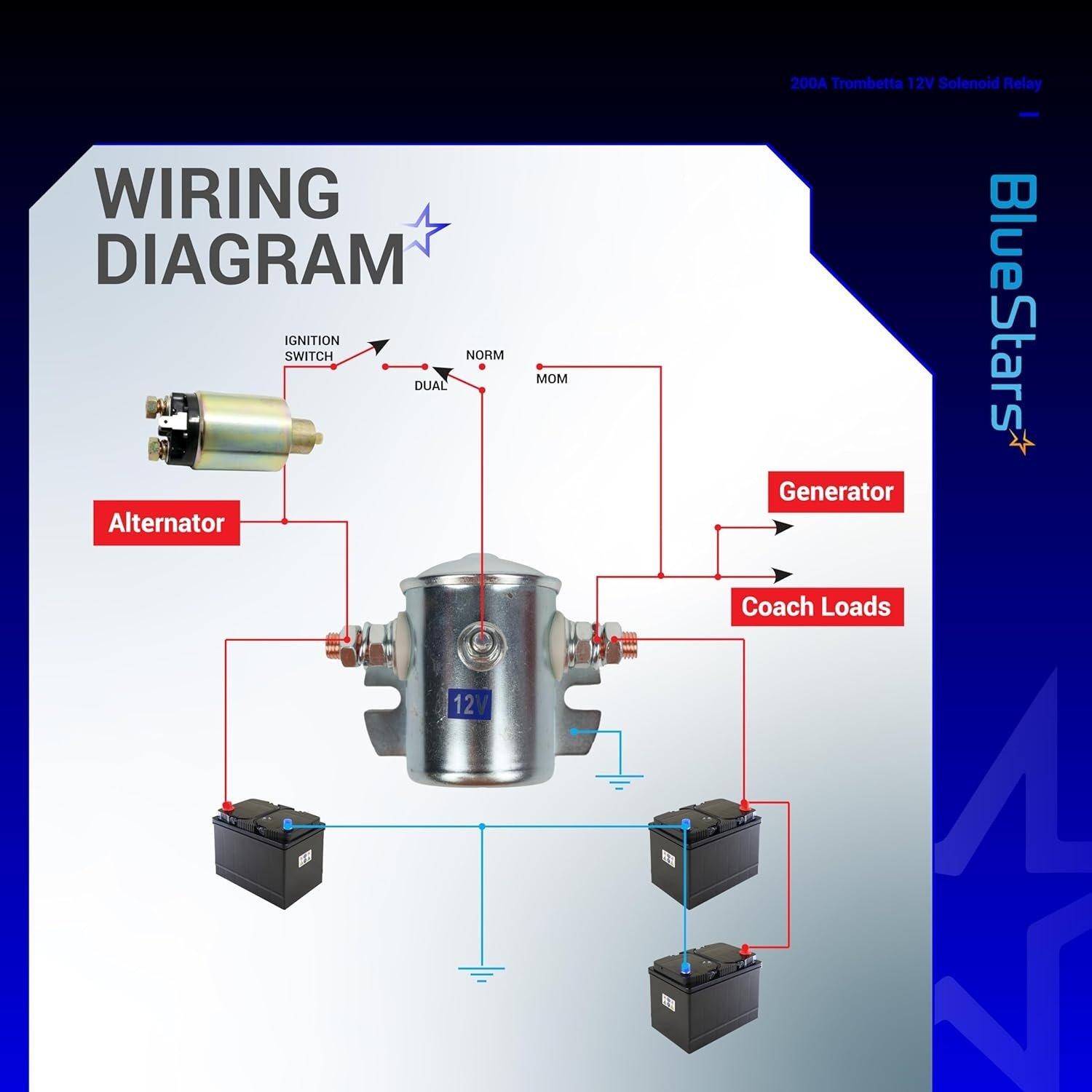

• Attach wiring according to the original component's configuration.
• Securely tighten terminal nuts without over-torquing to prevent internal damage.
• Mount the solenoid body firmly to a chassis or bracket to minimize vibration.
