[Lifetime Warranty] 279834 Dryer Gas Valve Ignition Solenoid Coil Kit - Compatible with Whirlpool Kenmore Maytag Dryers - Replaces AP3094251 PS334310 12001349 - Pack of 6

279834 Dryer Gas Valve Ignition Solenoid Coil Kit - Pack of 6

Key Features

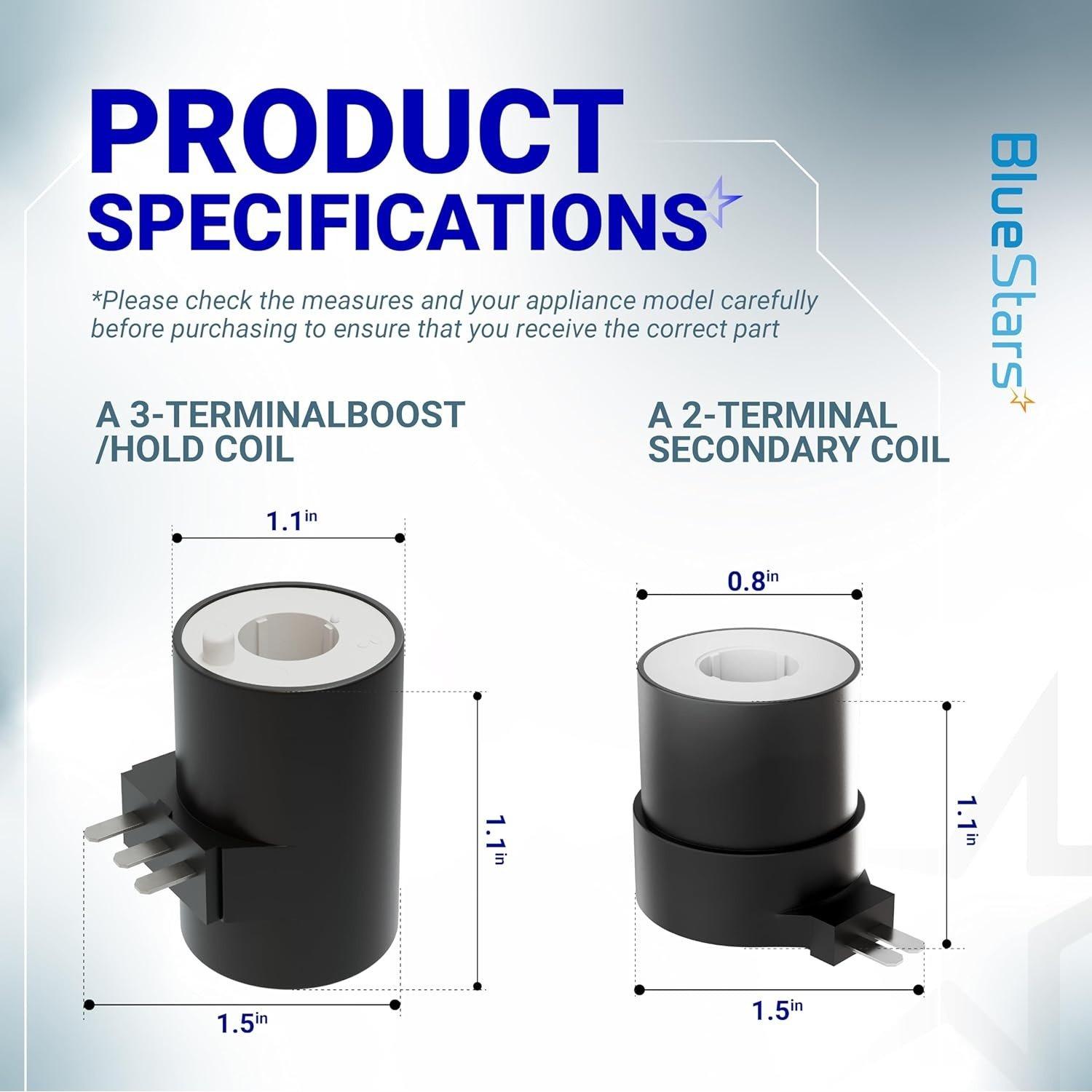

• Includes six solenoid coils (three sets of two). Each set contains one 2-terminal coil and one 3-terminal coil.
• Engineered to open the gas valve, allowing gas to flow and ignite for heating.
• Direct replacement for specific gas dryer models.
• Constructed from durable metal and plastic components.
• Corrects common dryer heating problems.

Replaces / Cross-Reference Part Numbers

• 279834
• 12001349
• 3479
• 694539
• AH334310
• AP3094251
• EA334310
• PS334310

Compatibility & Fitment

When to Replace

• Dryer drum tumbles, but no heat is produced.
• Dryer heats intermittently or takes too long to dry.
• The igniter glows, but the gas burner fails to light.
• A continuity test on existing coils indicates failure.

Installation Tips

• Disconnect the dryer from its power source and shut off the gas supply before beginning the repair.
• Access the gas valve assembly, typically located at the bottom of the dryer.
• Remove the mounting bracket and wires from the old coils.
• Install the new coils in the correct positions; the 2-terminal and 3-terminal coils are not interchangeable.
• Reconnect the wires and re-secure the assembly before restoring power and gas.
