AZ00533831
2-pack 270-324 uf/MFD 330 VAC Volts
Sold 642
Easy
More than 30 minutes
Out of Stock
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

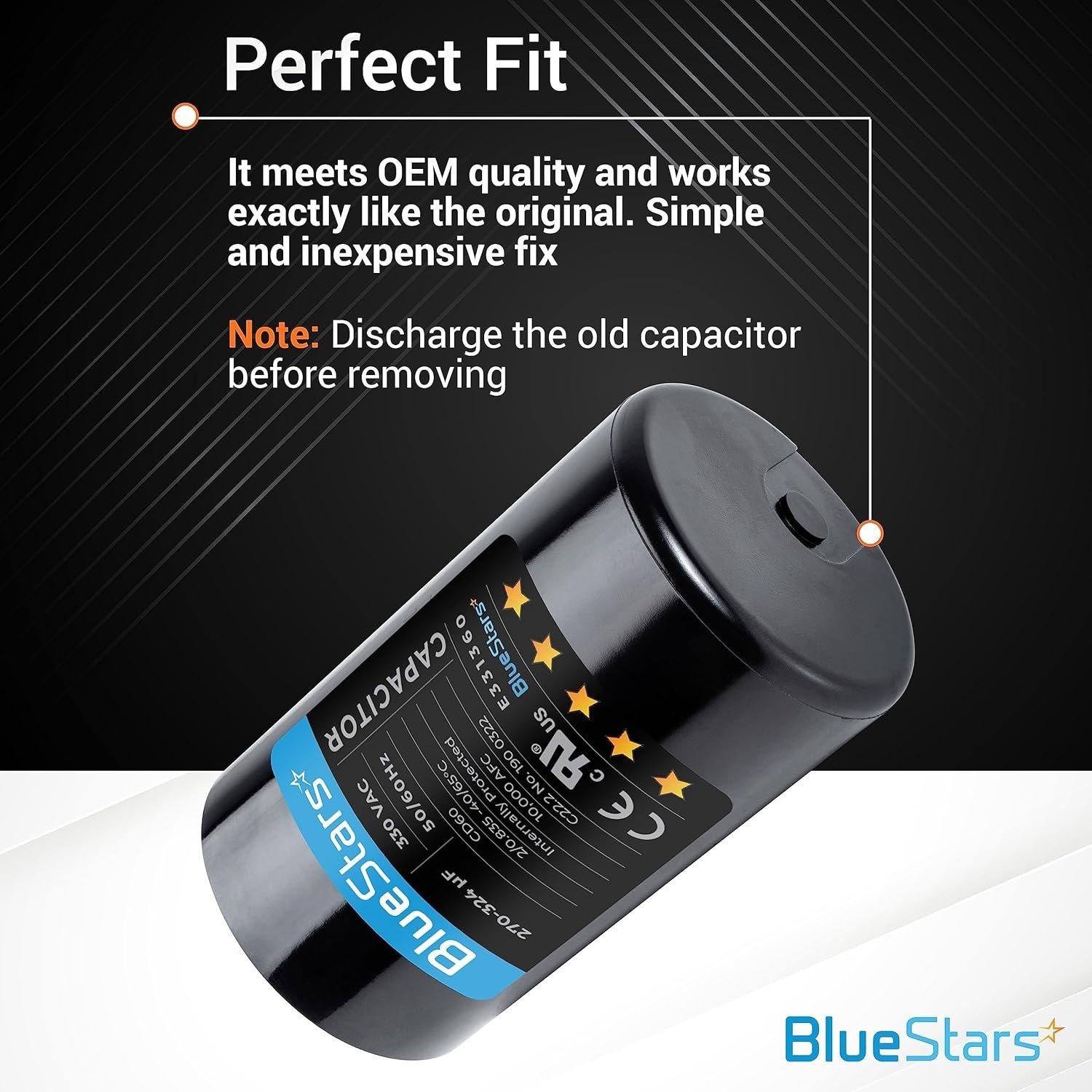

2-pack 270-324 uf/MFD 330 VAC Volts
Key Features
- Quantity: 2 Capacitors
- Type: Motor Start Capacitor
- Capacitance: 270-324 Microfarad (uf/MFD)
- Voltage Rating: 330 VAC
- Frequency: 50/60 Hz
- Shape: Round
- Case Material: Bakelite
- Terminals: 1/4 inch Male Terminals
- Dimensions: 2 9/16 in. Diameter x 4 3/8 in. Height
Replaces / Cross-Reference Part Numbers
- MARS2 11970
- Titan Pro TRMJ270
- Replaces any start capacitor with matching capacitance (270-324 MFD) and voltage (330 VAC or higher) specifications.
Compatibility & Fitment
- Designed for intermittent duty cycles in single-phase AC motor starting circuits.
- Commonly used in HVAC units, pool pumps, well pumps, and other electric motor applications.
- This is a start capacitor and cannot be used as a replacement for a run capacitor.
When to Replace
- Motor hums but does not start or struggles to start.
- Circuit breaker trips at motor startup.
- Visible signs of damage to the old capacitor, such as bulging, cracking, or leaking fluid.
- The motor starts slowly or requires manual assistance to get started.
Installation Tips
- Disconnect all electrical power to the unit before servicing.
- Safely discharge the old capacitor by shorting the terminals with an insulated screwdriver.
- Ensure the replacement capacitor's microfarad (uf/MFD) rating is within 10% of the original part.
- The voltage rating of the replacement capacitor must be equal to or greater than the original.
- Professional installation is recommended.
