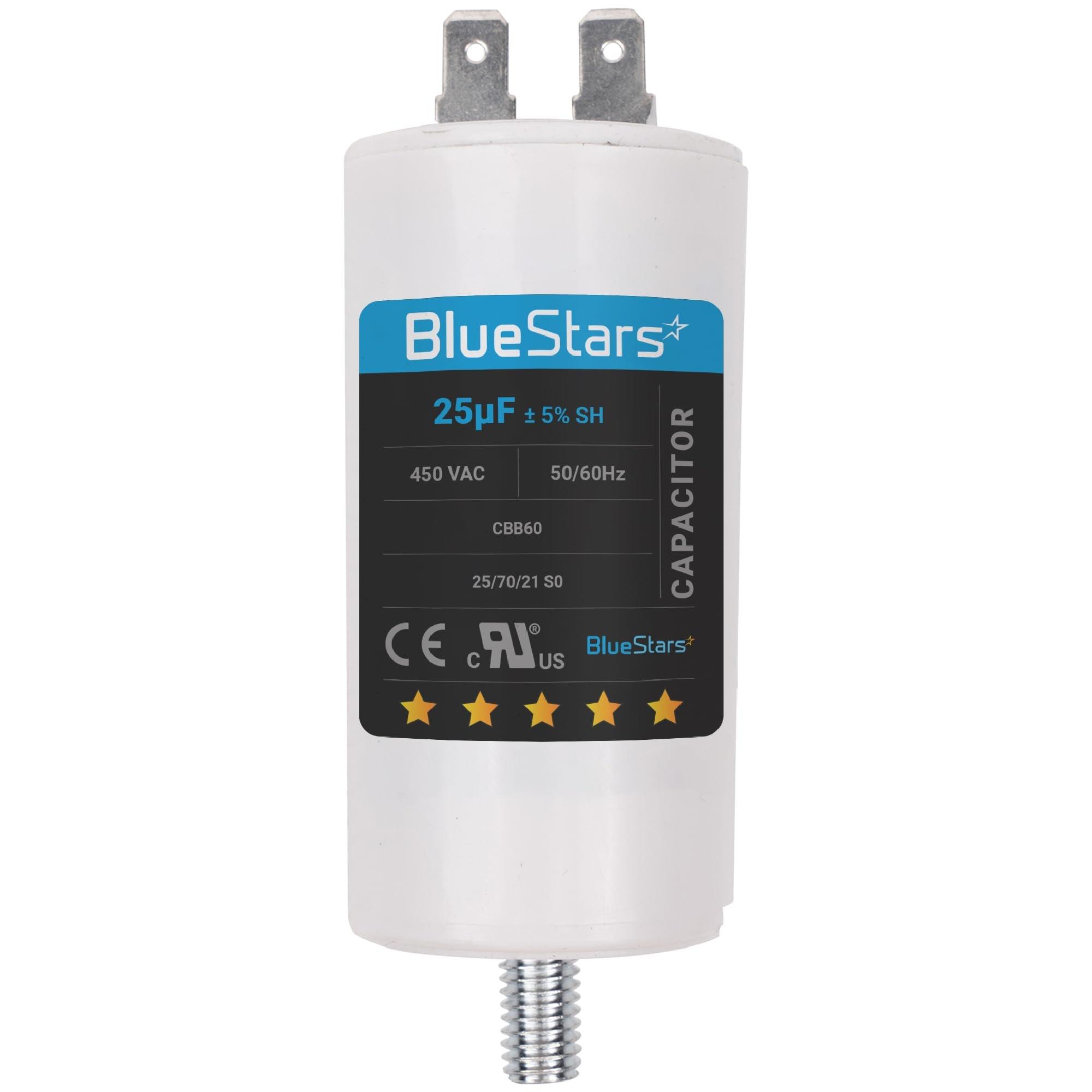

[Lifetime Warranty] 25 uF MFD 250 VAC CBB60 50/60 Hz Run Capacitor

25 uf/MFD/Microfarad 250 VAC Volts CBB60 50Hz/60Hz

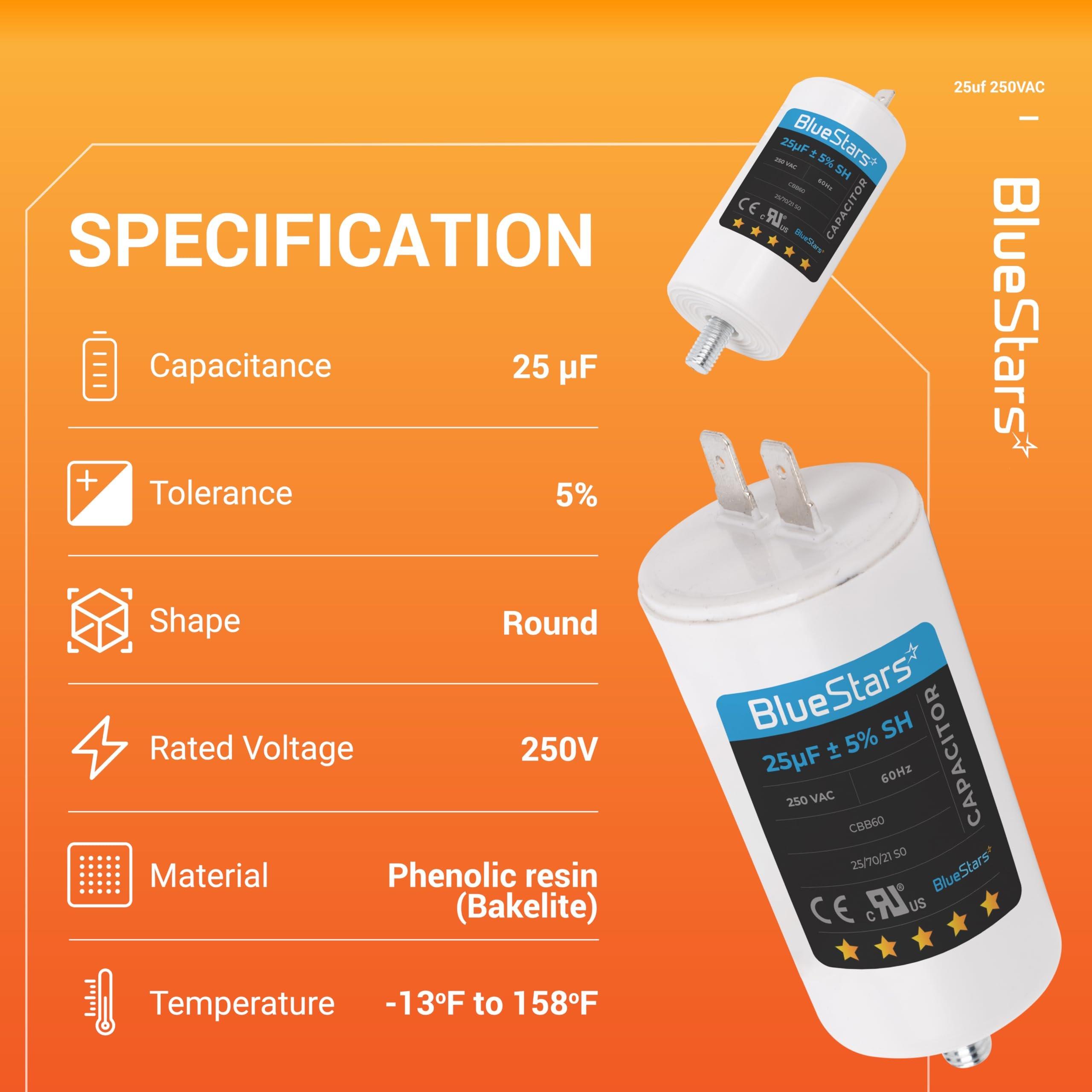

Key Features

• Model: CBB60
• Type: Motor Run Capacitor
• Capacitance: 25 µF (microfarads)
• Capacitance Tolerance: ±5%
• Voltage Rating: 250 VAC
• Frequency: 50Hz / 60Hz

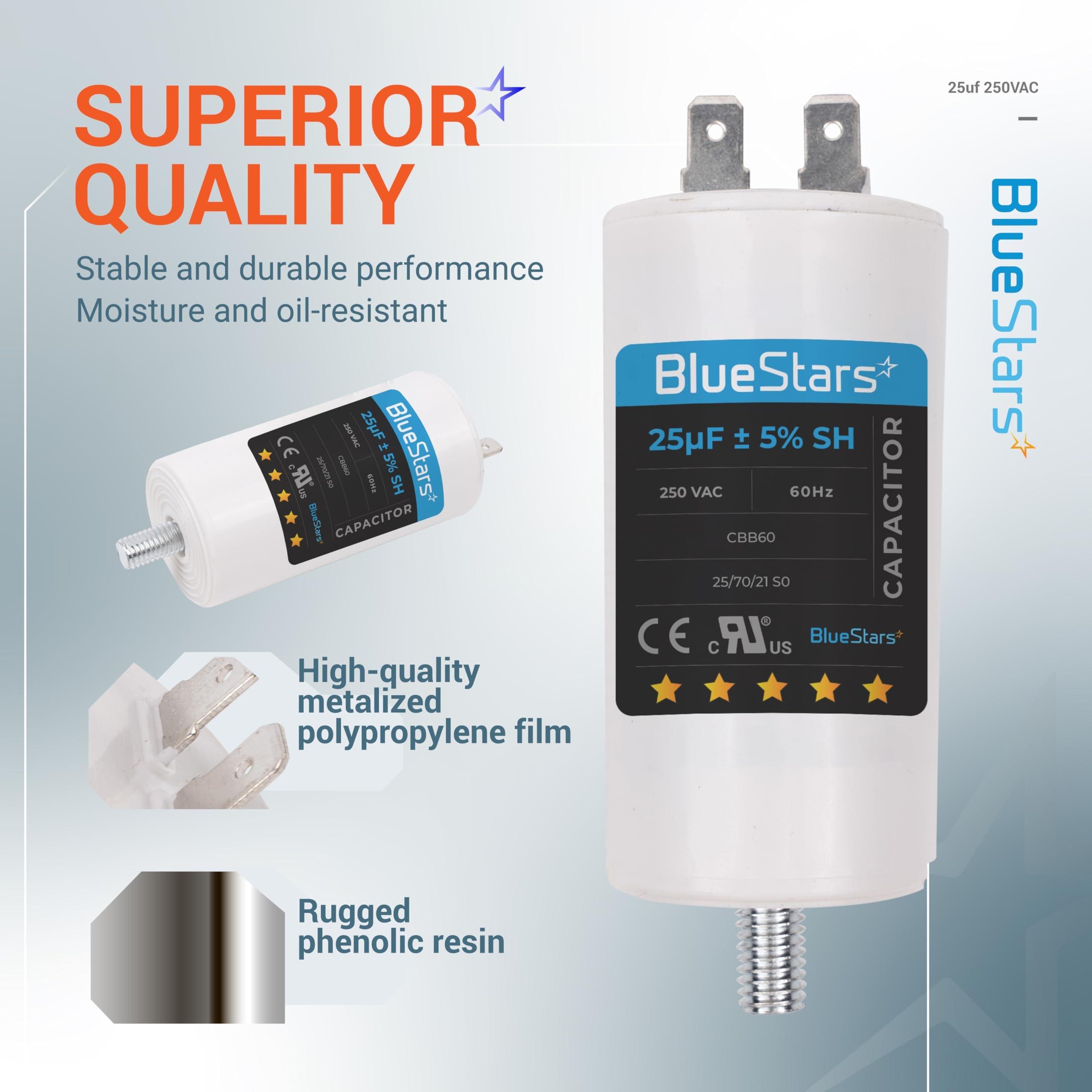

• Dielectric Material: Metallized polypropylene film
• Case Material: Plastic

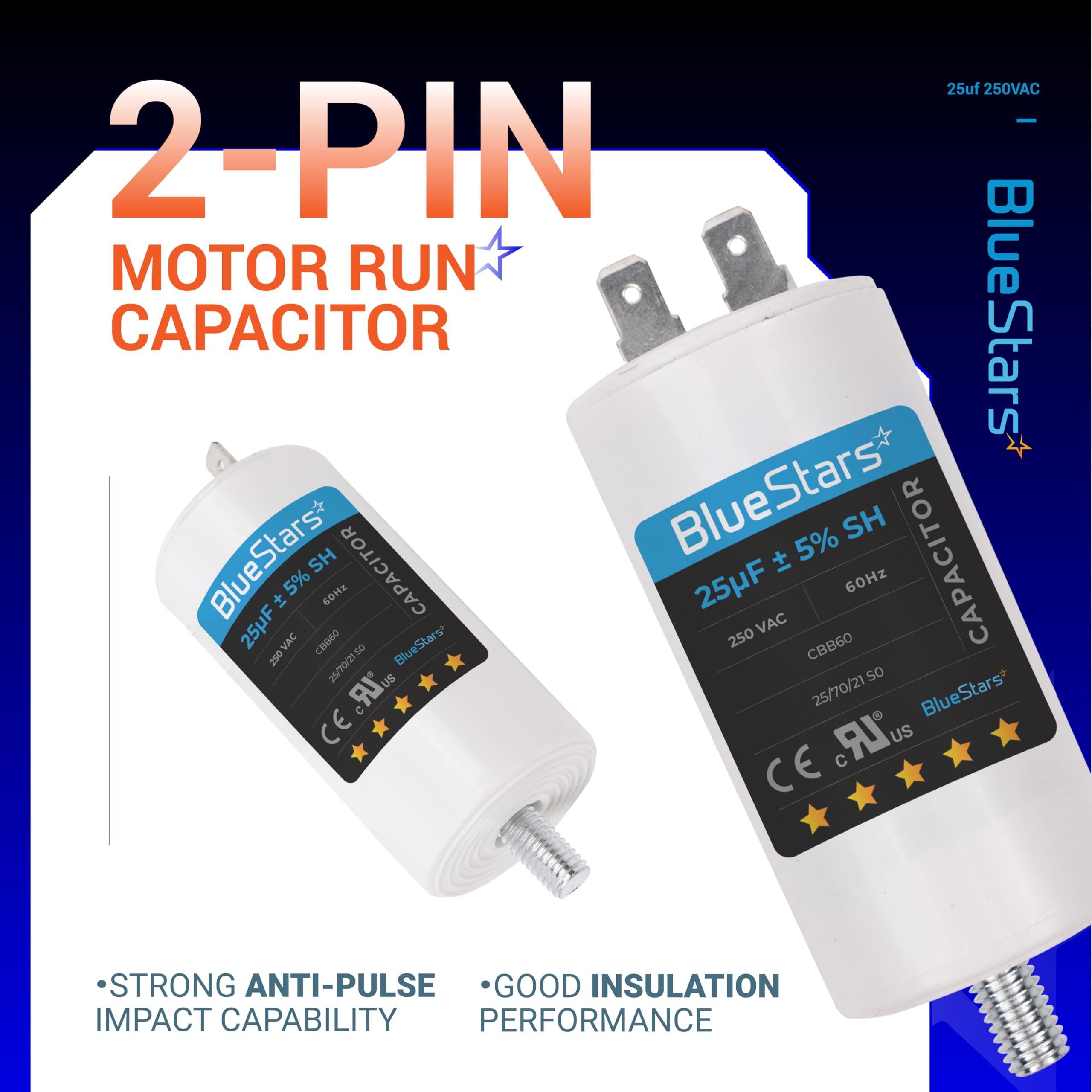

• Terminals: 2-pin spade terminals

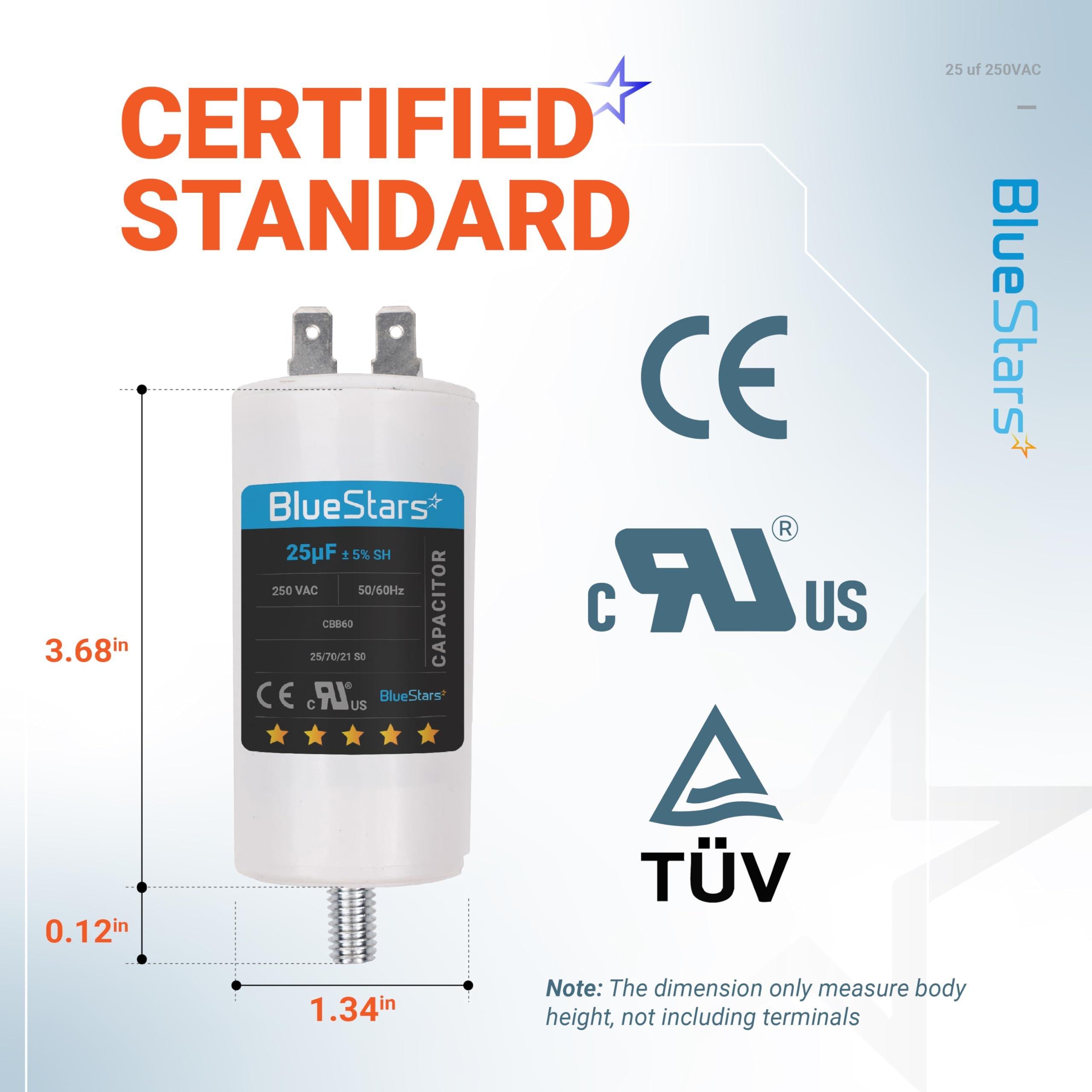

• Mounting: Bottom mounting stud
• Climate Category: 40/70/21
• Safety Class: S0

Replaces / Cross-Reference Part Numbers

• Replaces any CBB60-style round capacitor with matching 25 µF capacitance and 250 VAC voltage rating.
• Ensure physical dimensions and terminal style are compatible with your application.

Compatibility & Fitment

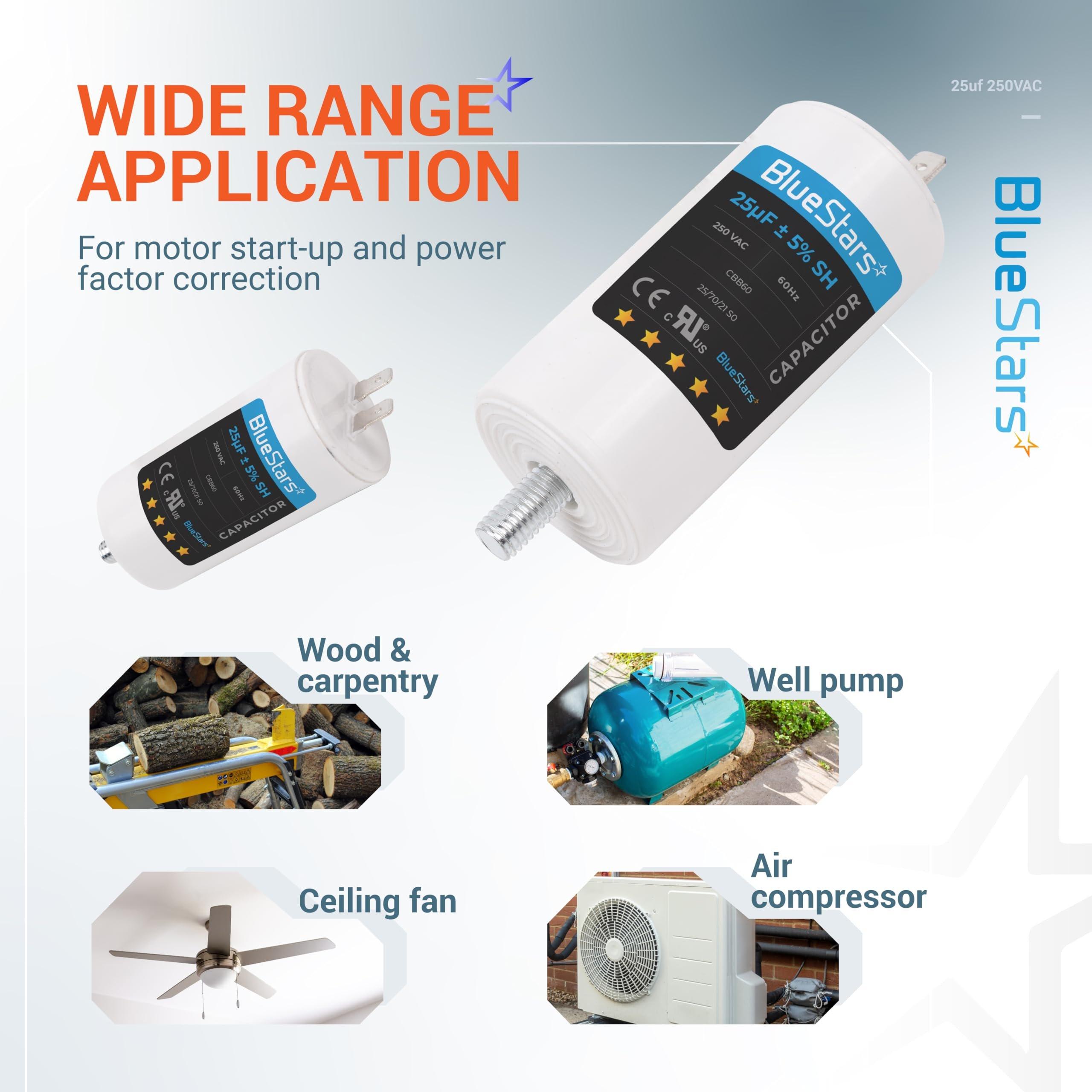

• Designed for single-phase AC motor start and run applications.
• Commonly used in equipment such as:Water pumpsAir compressorsPressure washersPool pumpsHVAC fans and blowers

When to Replace

• Motor hums but fails to start.
• Motor starts or runs slowly.
• Motor overheats or trips the circuit breaker.
• Visible signs of damage to the existing capacitor, such as bulging, cracking, or leaking fluid.
• Capacitance measures outside the specified tolerance when tested with a multimeter.

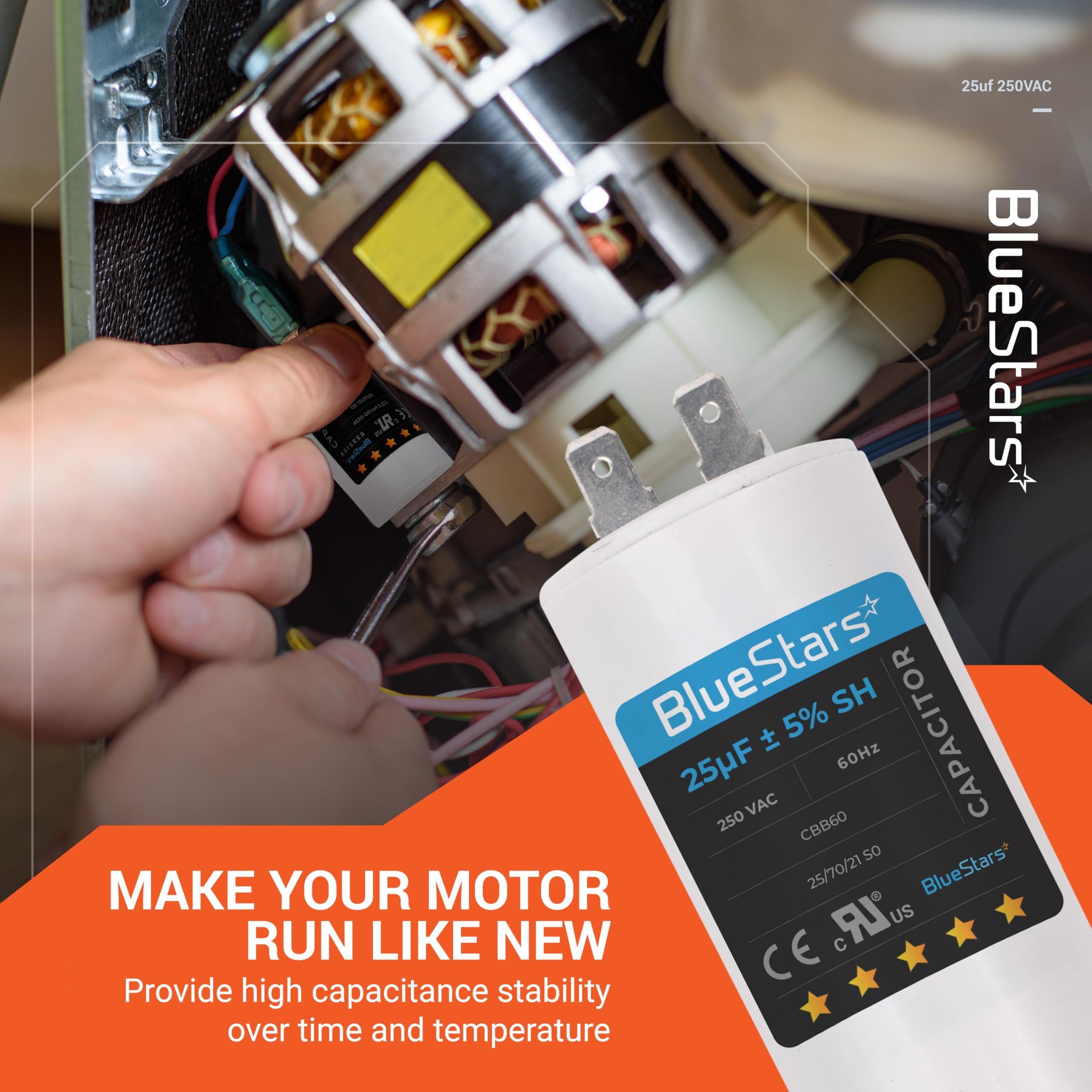

Installation Tips

• Disconnect all electrical power to the appliance before servicing.
• Safely discharge the old capacitor by shorting the terminals with an insulated tool.
• Verify that the µF rating matches the original capacitor.
• The replacement voltage rating must be equal to or greater than the original capacitor's rating.
• Ensure all wire connections are secure.
