[Lifetime Warranty] 60+5 uF MFD ±5% 370/440 VAC Dual Run Start Round Capacitor - Fits Condenser Straight Cool, Heat Pump

Difficulty Icon: Easy
Easy
More than 30 minutes

$18.72

$20.79

Save $2.07
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.

Description

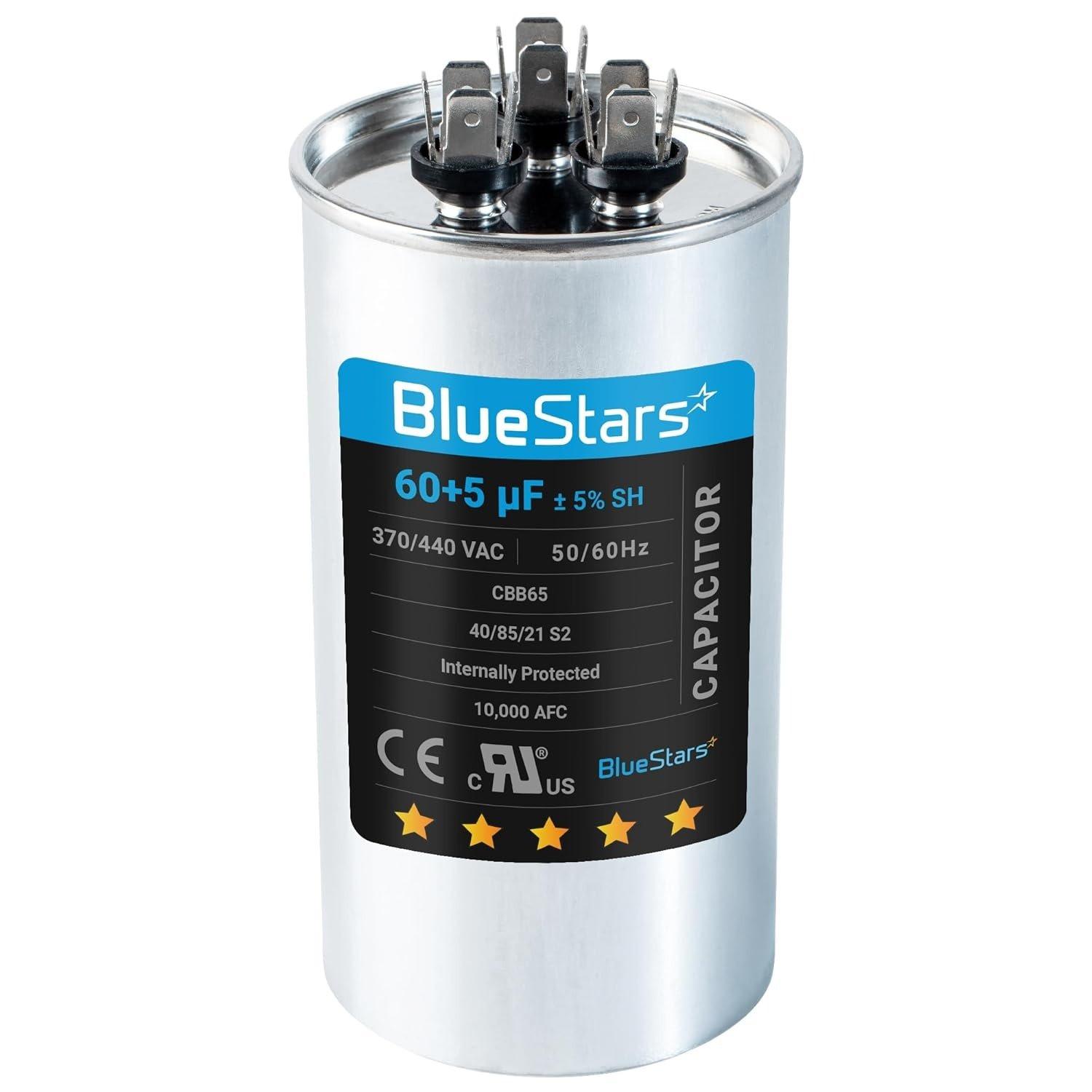

60+5 MFD uf ±5% 370/440 Volt VAC Dual Run Start Round Capacitor

Key Features

  • Capacitance Rating: 60/5 Microfarad (MFD)
  • Capacitance Tolerance: ±5%
  • Voltage Rating: 370/440 Volts AC (VAC)

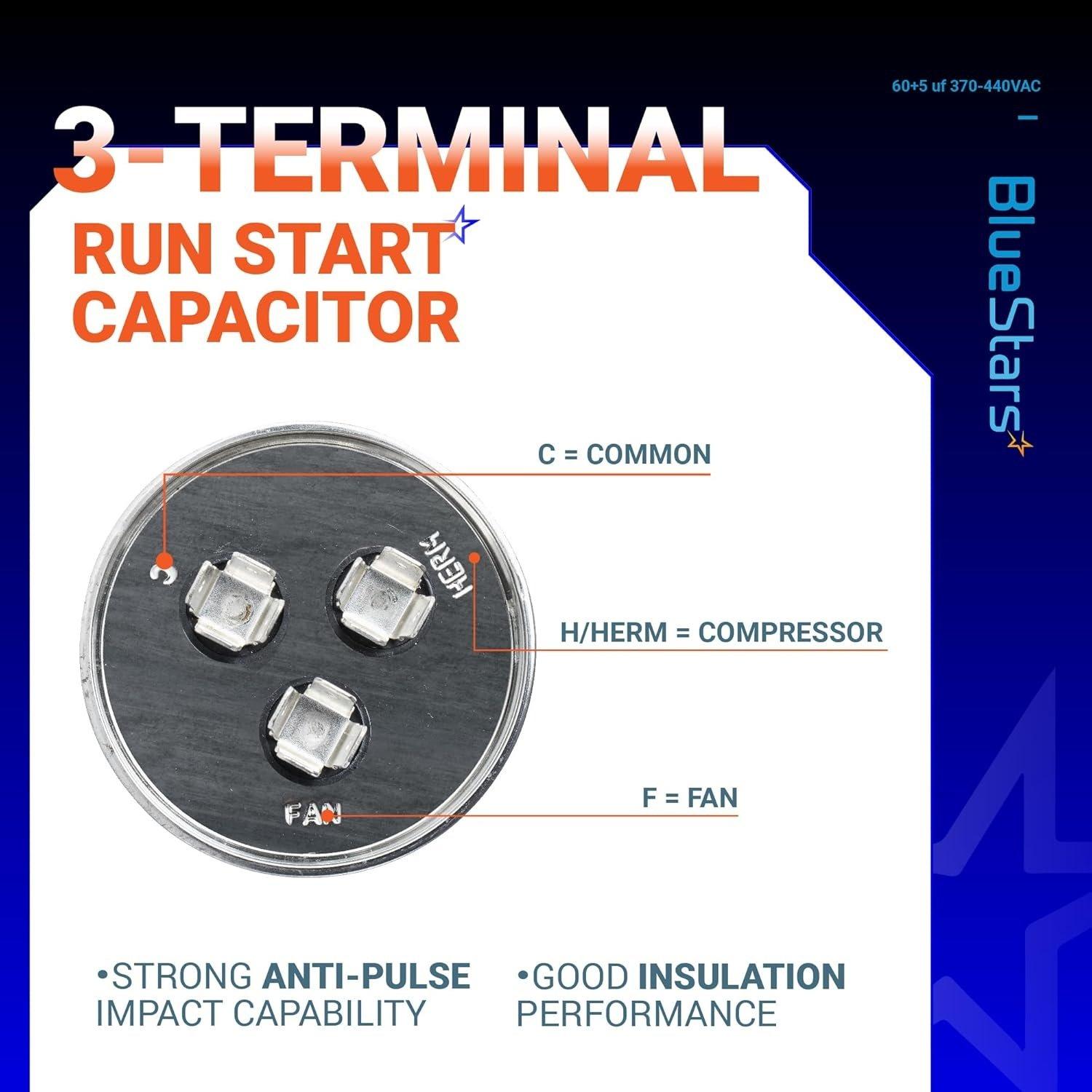

  • Terminal Configuration: C (Common), HERM (Compressor), FAN

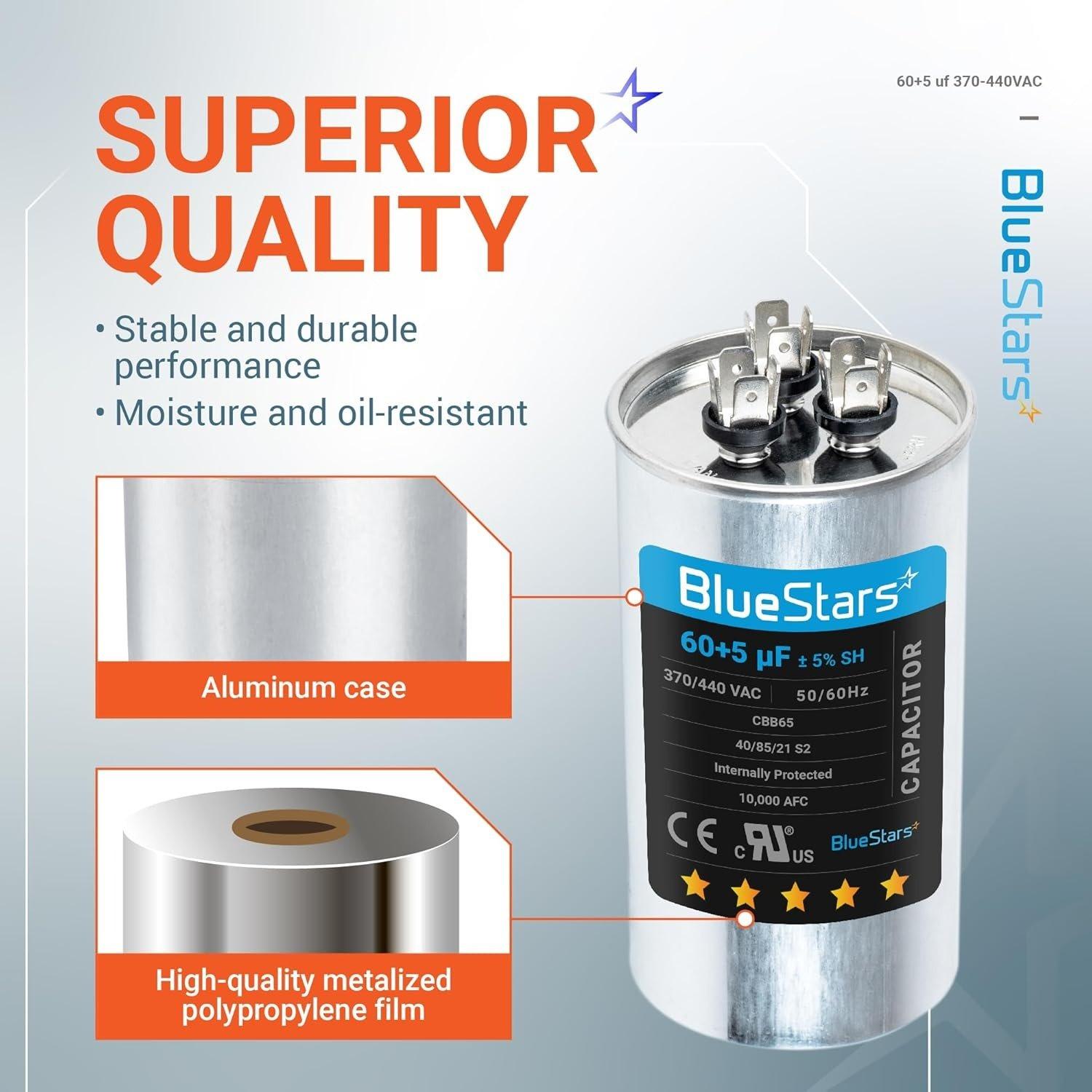

  • Construction: Round aluminum case with steel cover
  • Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
  • Safety Standard: Meets EIA-456-A industry standards
  • Operational Life: Rated for 60,000 hours of service

Replaces / Cross-Reference Part Numbers

  • Carrier: P291-6054R, 318833-401, HC98JA061
  • Goodman/Amana: CAP0600005440, C65-60/5R
  • Rheem/Ruud: 43-25134-11
  • Trane/American Standard: CPT00667
  • Mars: 12266
  • Packard: PRCFD605
  • Grainger/Dayton: 2MDV8

Compatibility & Fitment

  • Application: Designed for HVAC systems, including air conditioners and heat pumps, to power the compressor and fan motor.

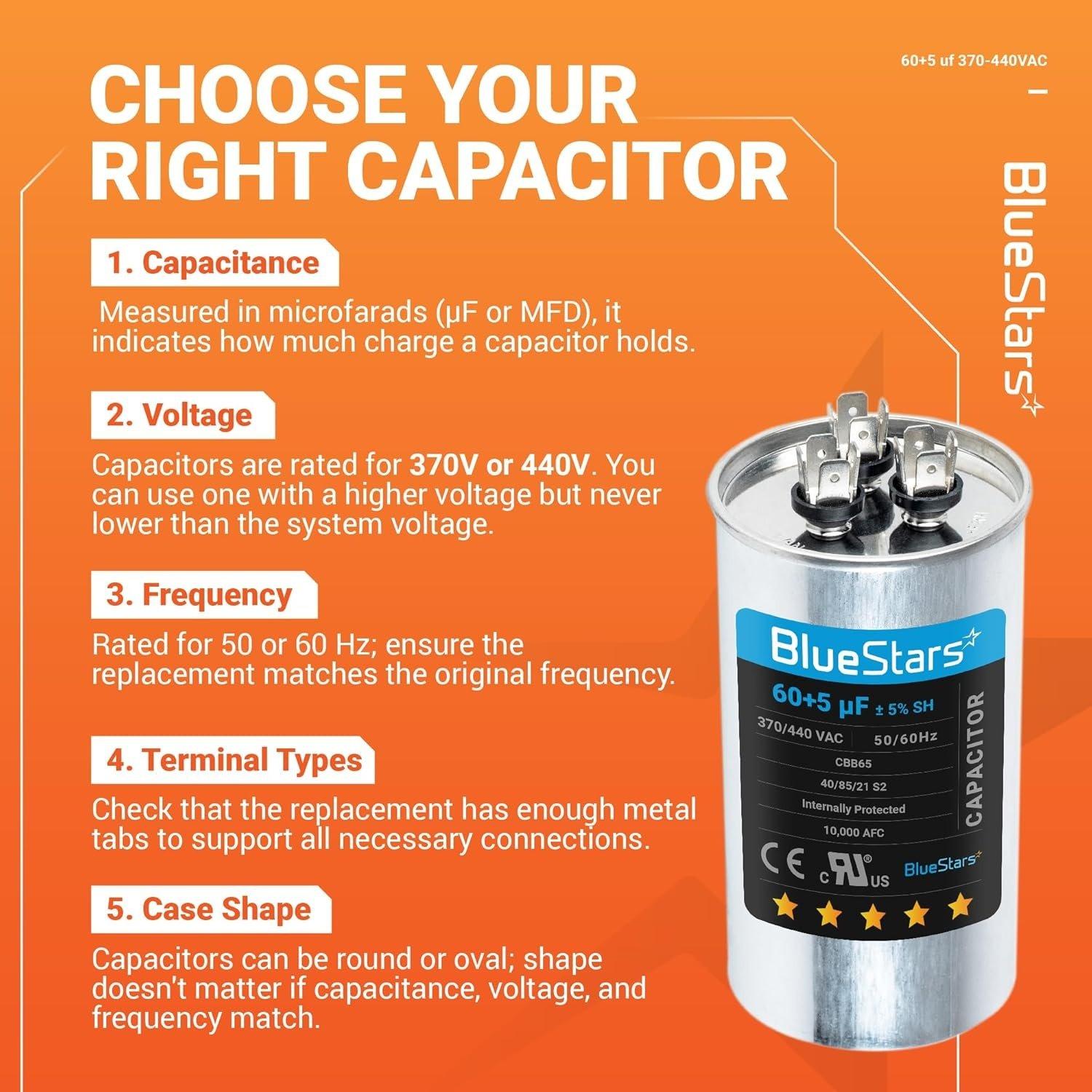

  • Voltage Compatibility: Replaces both 370 VAC and 440 VAC capacitors with a 60/5 MFD rating. A 440V capacitor can safely replace a 370V unit.

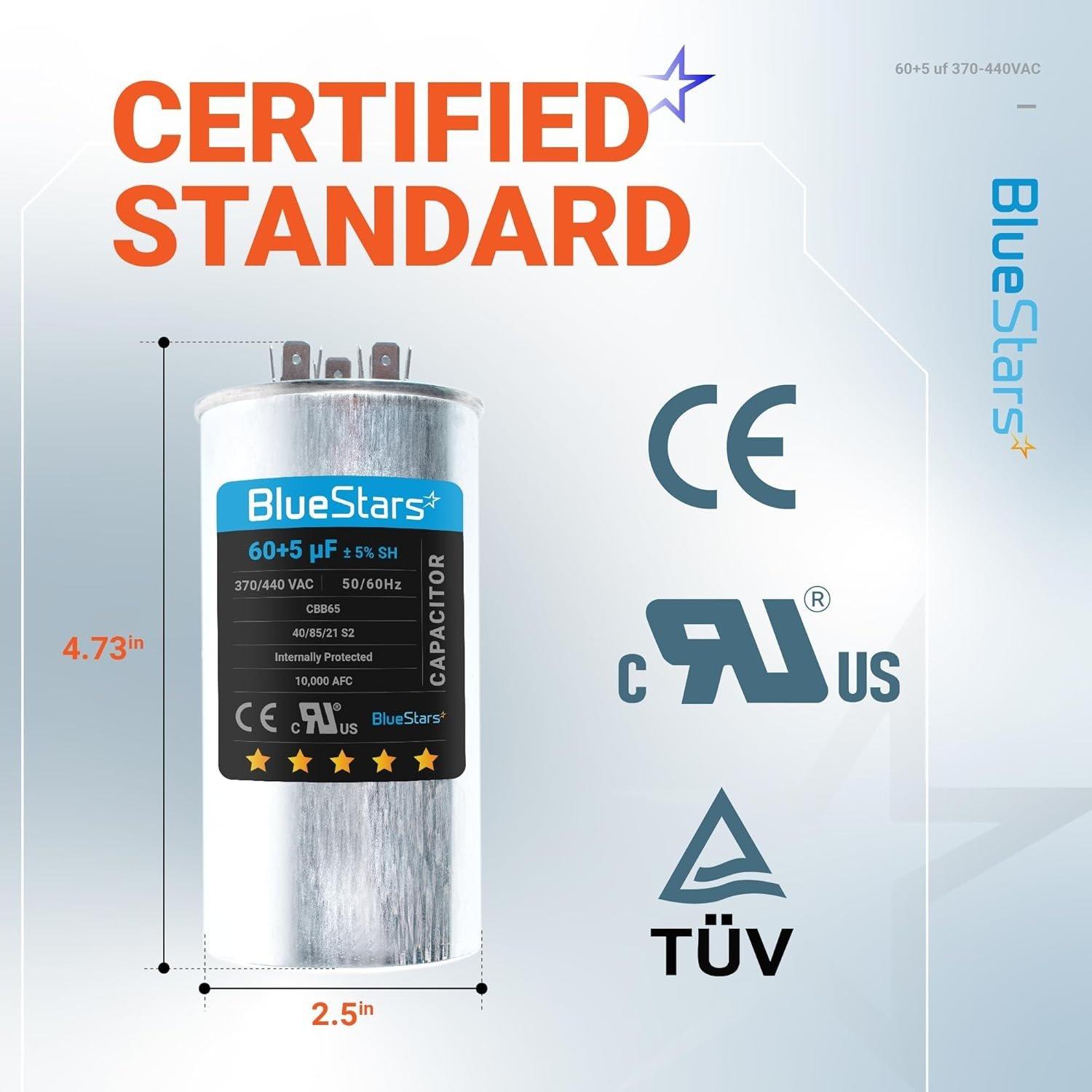

  • Physical Dimensions: Verify case dimensions for proper fit. Common dimensions for this rating are approximately 2.5 inches in diameter.

When to Replace

  • The outdoor unit's fan or compressor fails to start or struggles to run.
  • A humming noise is heard from the unit without the fan or compressor engaging.
  • The capacitor casing is visibly swollen, cracked, or leaking an oily substance.
  • Capacitance measures outside the specified ±5% tolerance when tested with a multimeter.

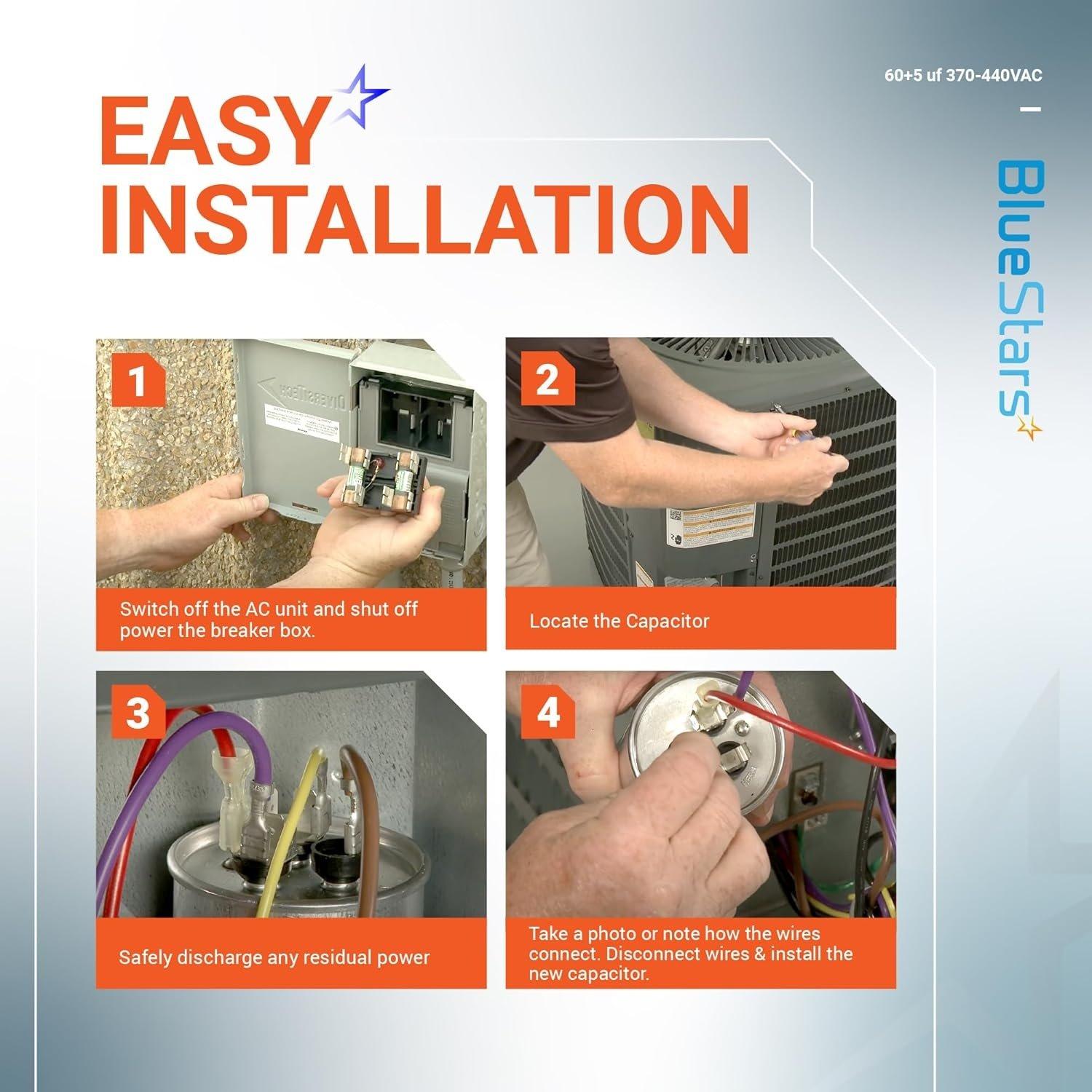

Installation Tips

  • Warning: Installation should be performed by a qualified technician. High voltage is present.
  • Disconnect all electrical power to the unit at the breaker and service panel before beginning work.
  • Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver or a high-wattage resistor.
  • Document or photograph the wire connections to the C, HERM, and FAN terminals before removal.
  • Secure the new capacitor in the mounting bracket and connect the wires to the corresponding terminals.
