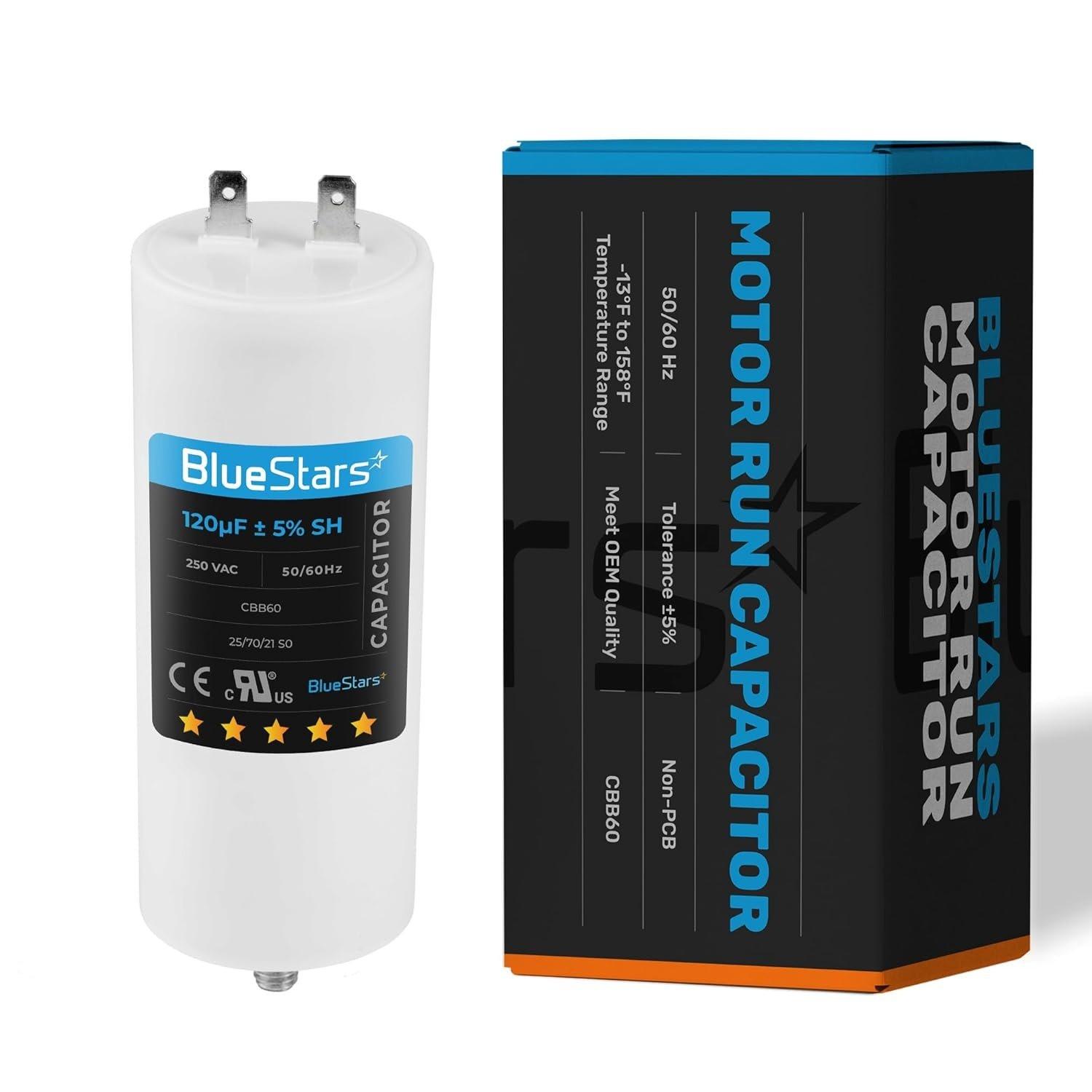

[Lifetime Warranty] 120 uF MFD 250 VAC CBB60 50/60 Hz Run Capacitor with Screw - Fits AC Motor Run, Heat Pump, Pool Pump

120 uF/MFD 250 VAC Volts CBB60 50Hz/60Hz Run Capacitor

Key Features

• Model: CBB60
• Capacitance: 120 Microfarad (µF/MFD)
• Voltage Rating: 250 VAC
• Frequency: 50Hz / 60Hz
• Shape: Cylindrical
• Termination: Wire Leads

Replaces / Cross-Reference Part Numbers

• Replaces any run capacitor with matching specifications.
• Ensure the replacement has a capacitance of 120 µF (within tolerance) and a voltage rating of 250 VAC or higher.

Compatibility & Fitment

• Designed for starting and running single-phase AC motors.
• Common applications include air conditioners, compressors, pumps, and washing machines.

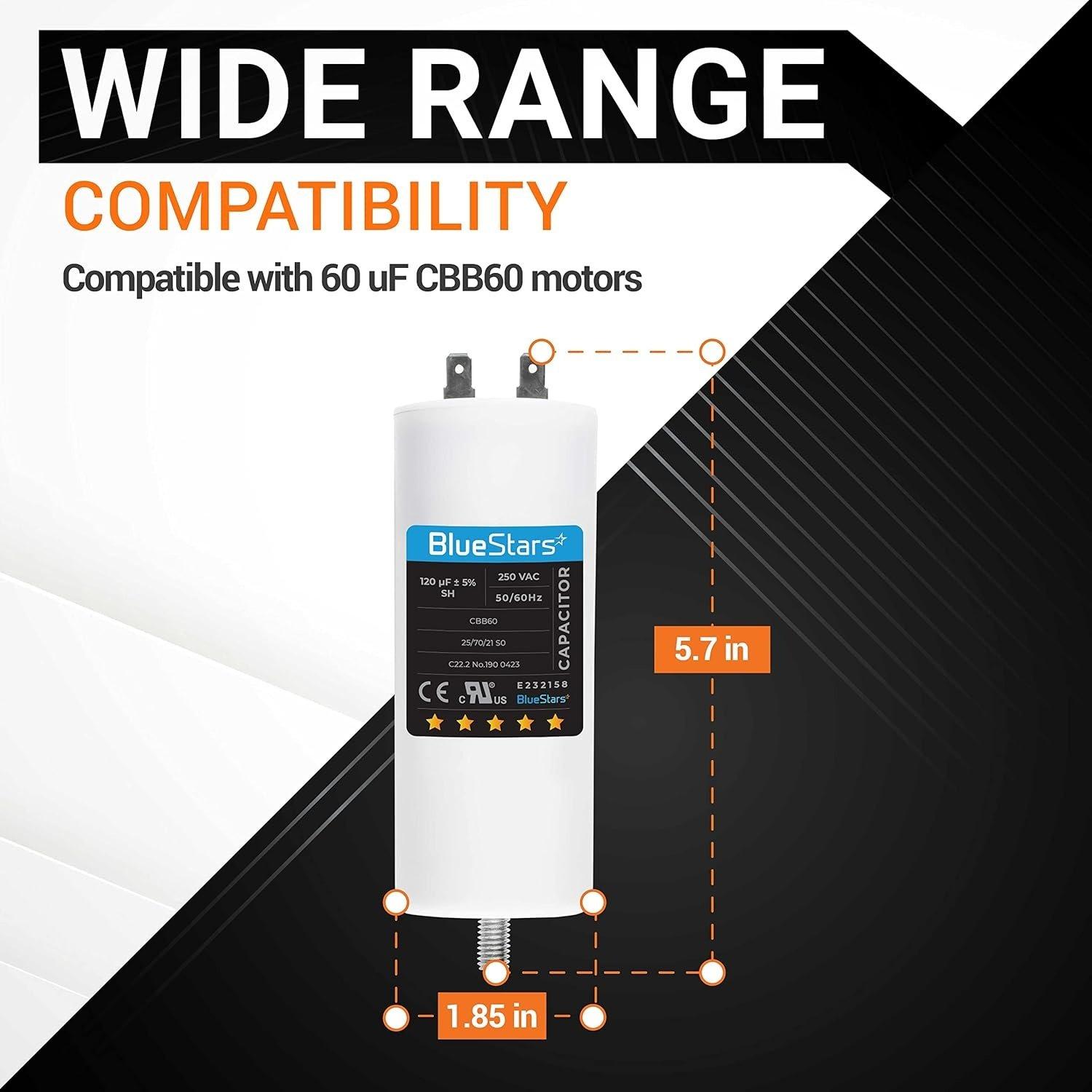

• Verify physical dimensions to ensure proper fit in the mounting bracket.

When to Replace

• Motor hums but fails to start or starts slowly.
• Motor does not reach its rated speed.
• Capacitor casing is physically damaged, swollen, or leaking.
• Capacitance measures outside of the component's specified tolerance.

Installation Tips

• Disconnect electrical power from the equipment before servicing.
• Discharge the existing capacitor by shorting its terminals with a properly insulated tool.
• Note the wire positions before disconnecting the old component.
• Confirm the new capacitor's voltage and microfarad ratings meet or exceed the original part's specifications.
